AJA Z-OEM-CRV24 Specifications

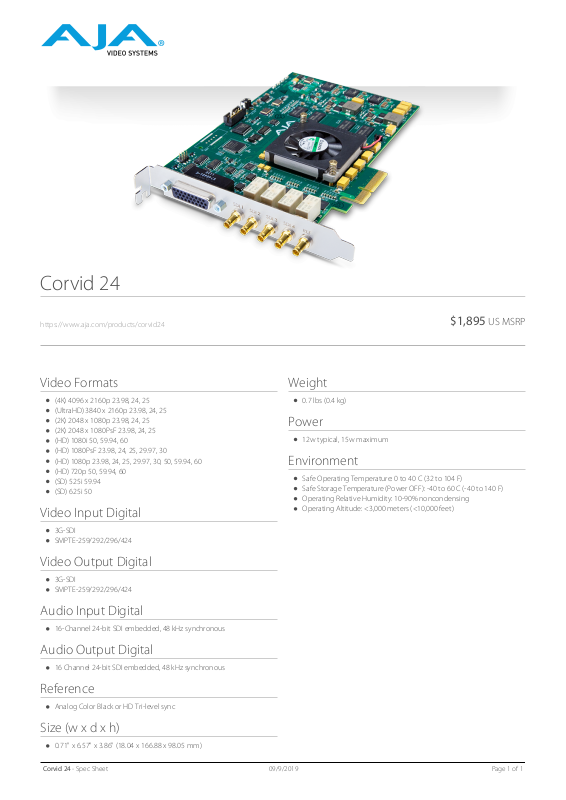

Corvid 24

https://www.aja.com/products/corvid24

Video Formats

(4K) 4096 x 2160p 23.98, 24, 25
(UltraHD) 3840 x 2160p 23.98, 24, 25
(2K) 2048 x 1080p 23.98, 24, 25
(2K) 2048 x 1080PsF 23.98, 24, 25
(HD) 1080i 50, 59.94, 60
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 525i 59.94
(SD) 625i 50

Video Input Digital

3G-SDI
SMPTE-259/292/296/424

Video Output Digital

3G-SDI
SMPTE-259/292/296/424

$1,895 US MSRP

Weight

0.7 lbs (0.4 kg)

Power

12w typical, 15w maximum

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

Audio Input Digital

16-Channel 24-bit SDI embedded, 48 kHz synchronous

Audio Output Digital

16 Channel 24-bit SDI embedded, 48 kHz synchronous

Reference

Analog Color Black or HD Tri-level sync

Size (w x d x h)

0.71" x 6.57" x 3.86" (18.04 x 166.88 x 98.05 mm)

Corvid 24 - Spec Sheet

09/9/2019 Page 1 of 1
