Installation & Operation Guide
Version 2.3r1
Published: July 3, 2014
Table of Contents
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Contacting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Video Formats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
I/O Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Conversion Mode Discussion and Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Upconvert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Selection Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Downconvert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Selection Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SD Aspect Ratio Convert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Selection Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
User Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using DIP Switches to Control the UDC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
DIP Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DIP Switches 4 & 5 (FMT0, FMT1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 2: MiniConfig Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
USB Control and Setup—Using AJA MiniConfig . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

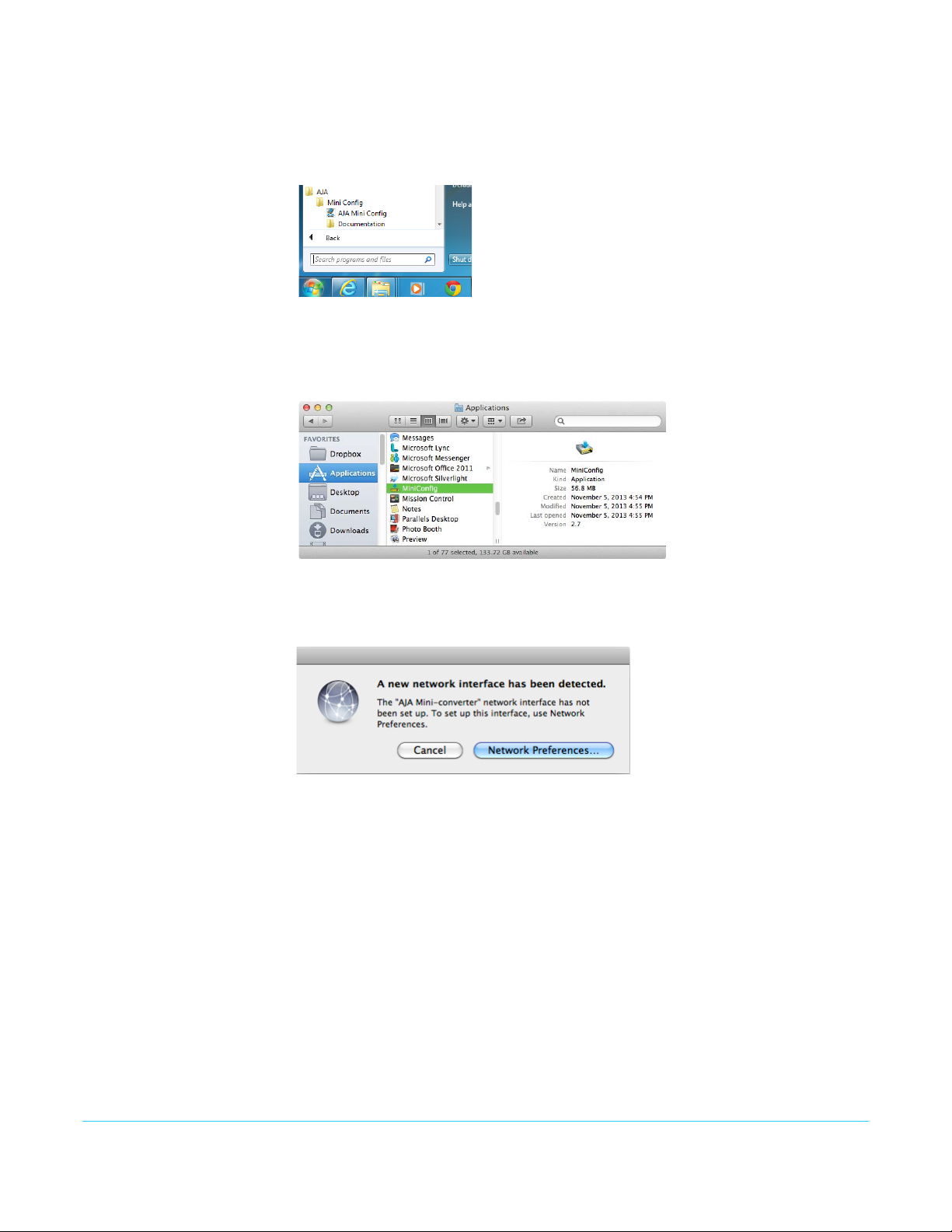

Installing MiniConfig on a Mac. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing MiniConfig on a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Running MiniConfig . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
PC Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Mac Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Saving Setups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating MiniConfig . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Tabbed Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

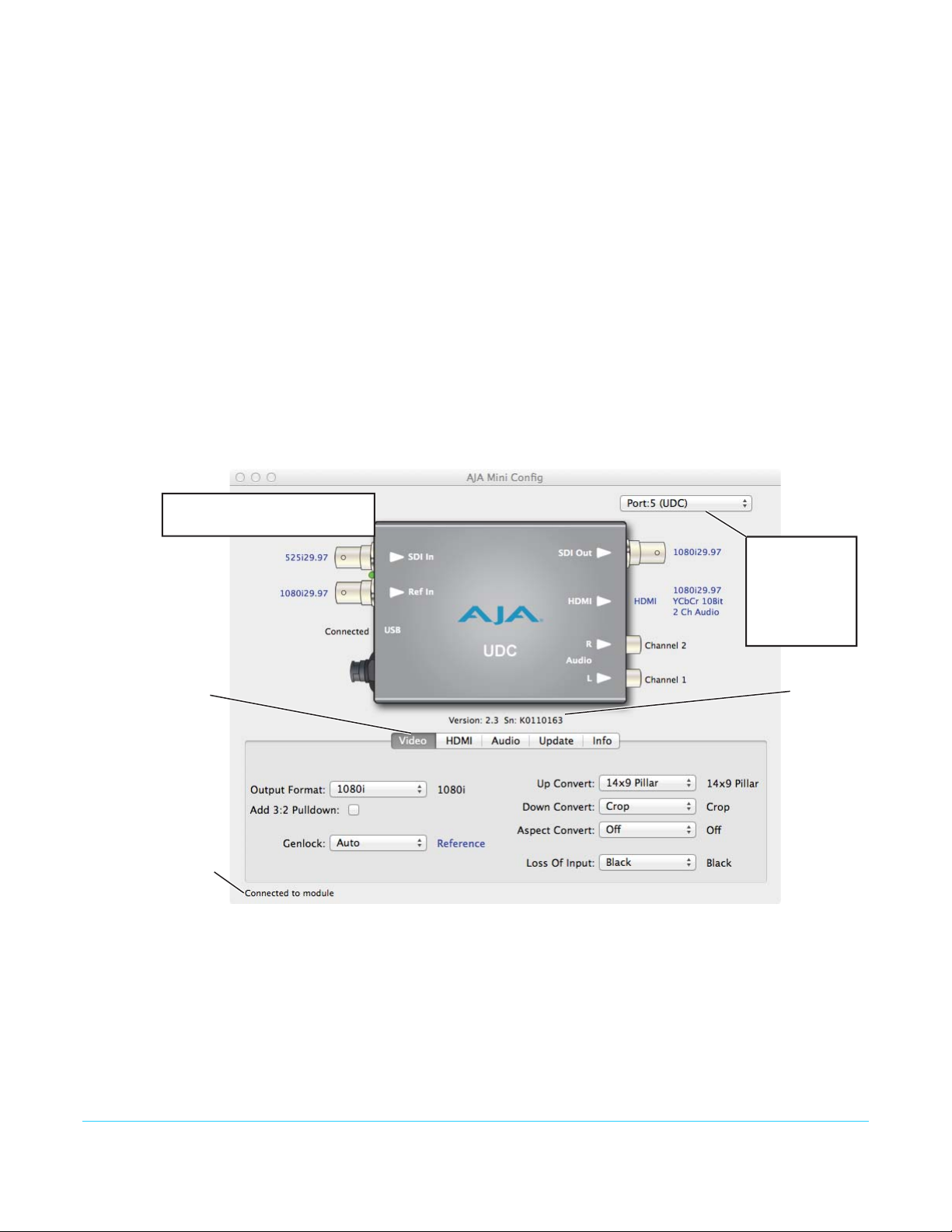

Video Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
HDMI Tab Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

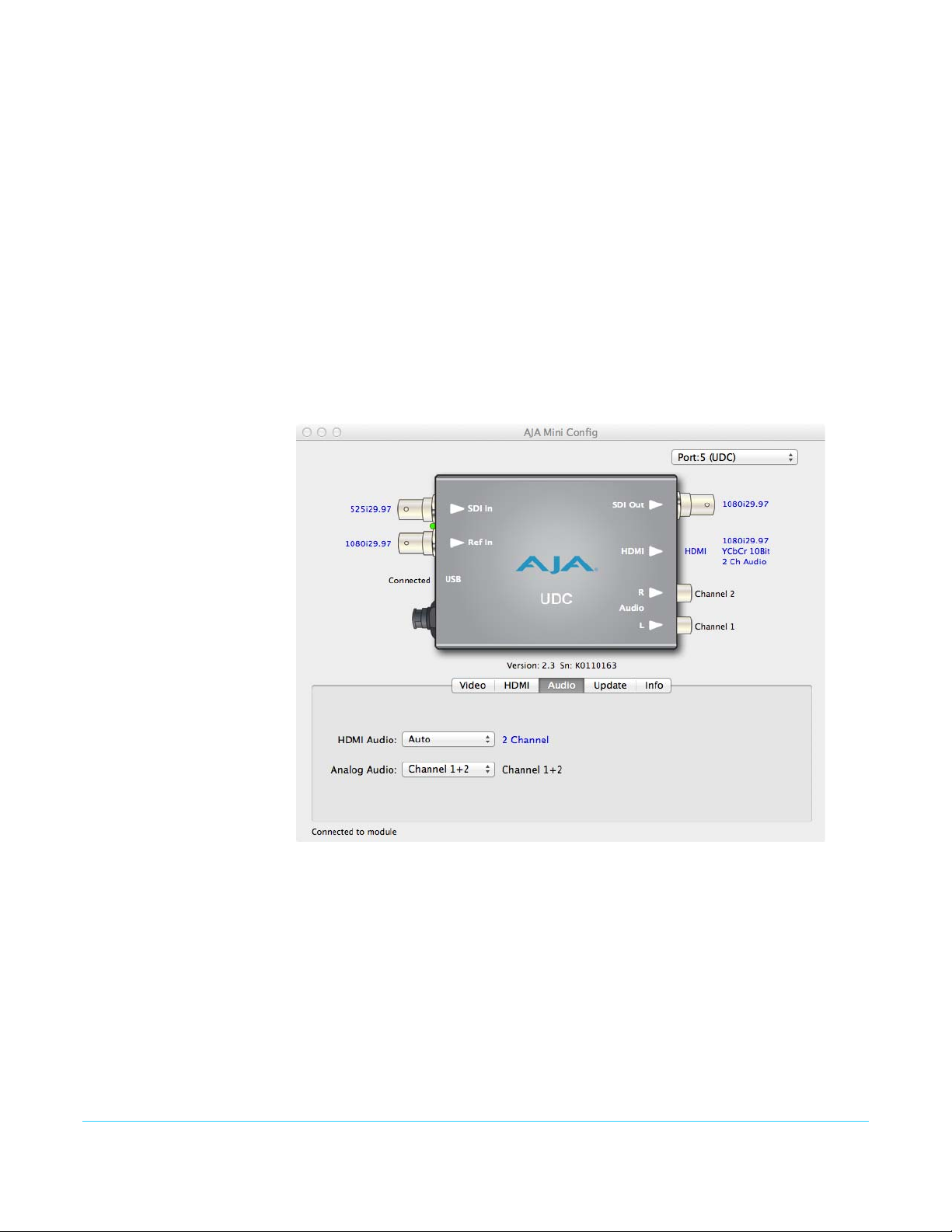

Audio Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Update Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Software Update Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

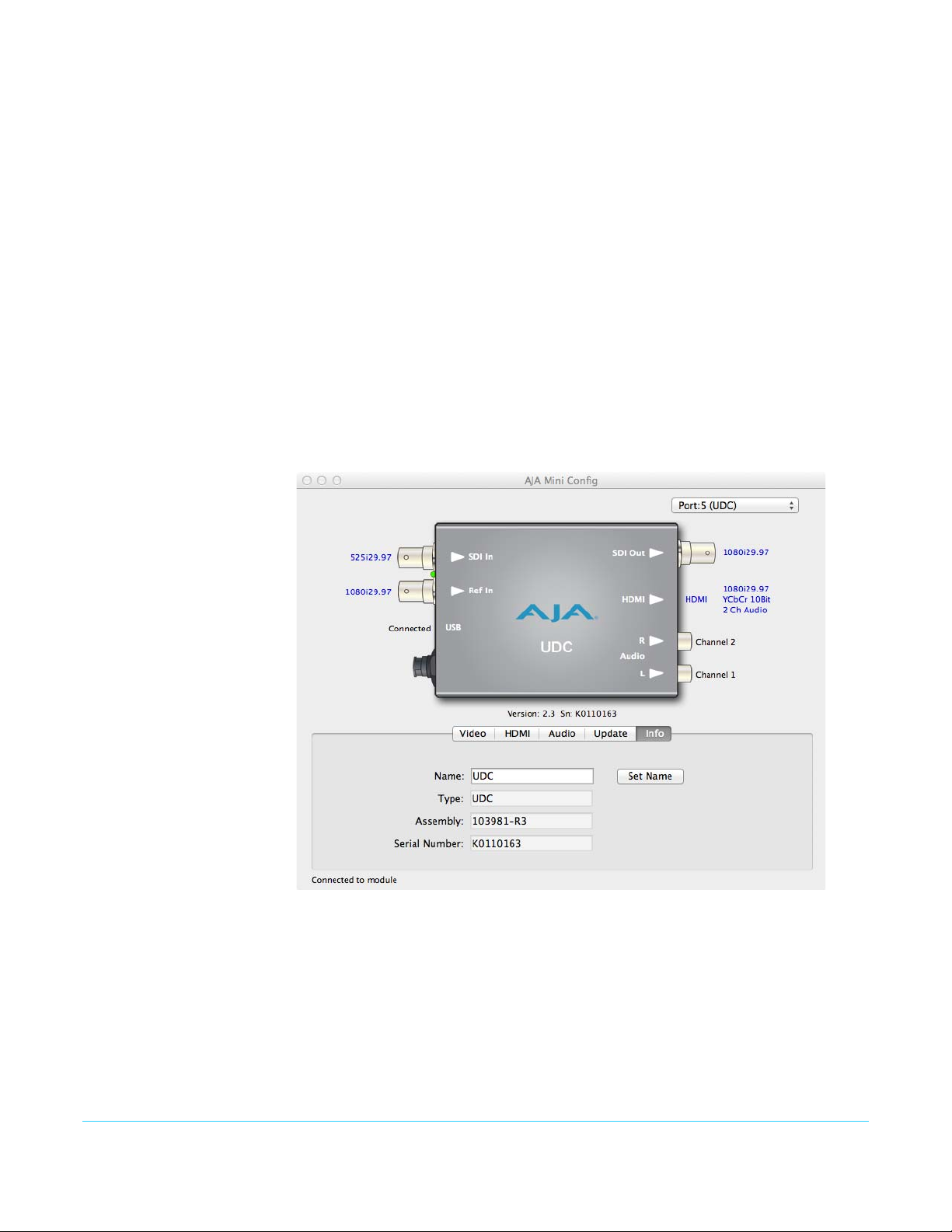

Info Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Appendix A: Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Appendix B: Safety and Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Federal Communications Commission (FCC) Compliance Notices . . . . . . . . . . . . . . . . . . 23
Class B Interference Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
FCC Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Canadian ICES Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
European Union and European Free Trade Association (EFTA)
Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
UDC Mini-Converter v2.3r1 www.aja.com
2
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Korean KCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Taiwan Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Recycling Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Translated Warning and Caution Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Before Operation Please Read These Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
UDC Mini-Converter v2.3r1 www.aja.com
3
Notices
Trademarks
AJA®, lo®, Ki Pro®, KONA®, KUMO®,T-TAP®, Because it matters.® and ROI® are registered
trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks
of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™,
Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™ and
V2Digital™ are trademarks of AJA Video Systems, Inc.
AirPort, Apple, Apple logo, AppleShare, AppleTalk, FireWire, iPod, iPod touch, Mac and
Macintosh are registered trademarks of Apple Inc. Final
QuickTime
Avid, Avid DNxHD and Media Composer are registered trademarks of Avid Technology,
Inc.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing, LLC.
DVI is a registered trademark of DDWG.
logo are trademarks of Apple Inc.
Cut Pro, QuickTime and
Copyright
Contacting Support
Telephone: +1.530.271.3190
FAX : +1.530.271.3140
Web: http://www.aja.com
Support Email: support@aja.com
TASCAM is a registered trademark of TEAC Corporation.
All other trademarks are the property of their respective holders.
Copyright © 2014 AJA Video Systems, Inc. All rights reserved. All information in this
manual is subject to change without notice. No part of the document may be
reproduced or transmitted in any form, or by any means, electronic or mechanical,
including photocopying or recording, without the express written permission of AJA
Video Systems, Inc.
When calling for support, have all information at hand prior to calling.
To contact AJA for sales or support, use any of the following methods:
Sales Email: sales@aja.com
UDC Mini-Converter v2.3r1 www.aja.com
4
Chapter 1: Introduction
Overview
Video Formats
Features
The UDC is a broadcast quality Up/Down/Cross Mini-Converter that can convert between
SD, HD, and 3G-A video formats. Borrowing from AJA’s industry leading conversion
technology used in our model FS2, the UDC provides very high quality conversions at a
low price. The UDC also supports 16-channel embedded SDI audio. I/Os include SD/HD/
3G SDI Input and Output, HDMI output, and 2-channel RCA-style audio output. The UDC
can be controlled by local DIP switches with additional control available via USB and
AJA’s Mini-Config application. A Reference Input allows the video output to be timed to a
local reference.
The UDC does not convert frame rates—it works with the input frame rate. The only
exception is a 3:2 function where 23.98 is converted to 59.94 (and 24 is converted to 60).
If a reference is provided, it must be in the same frame rate hierarchy as the input video
(e.g., 23.98/29.97/59.94, 25/50, or 24/30/60).
• Converts between SD, HD, and 3G HD formats
NOTE: UDC converts 3G-A formats only. It does not input or output 3G-B.
• Supports 1080p50/60
• Very high quality conversions
• 16-channel embedded SDI audio input
• 16-channel embedded SDI audio output
UDC Mini-Converter v2.3r1 www.aja.com
5
Block Diagram
Up,
Down,
and
Cross
Converter
Audio
D/A
Video
Audio
HDMI
Transmitter
Video with Embedded Audio
2-Channel
Analog Audio
Monitor Output
HDMI 1.4a Output
with Embedded
Audio
SD/HD/3G-SDI IN
SD/HD/3G-SDI Output
SDI Receiver
Reference Input
USB Port
(connect to PC or Mac)
Selects 8 or 10-bit Video
and other Functions
Genlock
SD/HD/3G-SDI
+ 5 VDC
Power
Input
2-Channel
Unbalanced
Analog Audio
(RCA-style Jacks)
HDMI Output
Input 1 BNC
Reference Input
USB
Port
LOCK LED
SD/HD/3G-SDI
Output
• 8-channel HDMI output audio
• 2-channel RCA-style analog outputs at -10dBV (nominal)
• Reference Input
• Configurable via DIP switch or USB port and supplied Mini-Config software
• Uses universal input +5V power supply AJA model DWP-U-R1 (included)
•5-year warranty
Figure 1. UDC Mini-Converter, Simplified Block Diagram
I/O Connections
UDC Mini-Converter v2.3r1 www.aja.com
Figure 2. UDC Mini-Converter
NOTE: The LOCK LED indicates by color the detected signal type. Green is SD-SDI, red is HD-SDI, and
amber/orange is 3G-SDI. Off indicates no input.
6
Full Screen
4:3 Pillar
LB to Full
14:9 Pillar
Wide Zoom
16
9
4
3
4:3 Upconverts To These displays on 16:9
Conversion Mode Discussion and Examples
Upconvert Mode The UDC allows you to select the type of Upconversion performed on an SD source input.
This mode is in effect only when the input is SD (525i or 625i) and the selected output
format is HD (720p, 1080i, or 1080p).
Figure 3. Upconvert Mode Examples
Selection Description Full Screen – 4x3 image is stretched horizontally to fill a 16x9 frame.
4x3 Pillar – 4x3 image at center screen with black sidebars.
LB to Full – 4x3 letterboxed image is scaled to fit horizontally in a 16x9 frame. Black bars
top and bottom are cropped off.
14x9 Pillar (default) – 4x3 image is scaled to create a 14x9 image with black sidebars and
slightly cropping top and bottom of original image.
Wide Zoom – A combination of scaling and stretching is used to fit to a 16x9 frame.
Slight cropping of top and bottom and a small aspect ratio change
UDC Mini-Converter v2.3r1 www.aja.com
7
16
9
Anamorphic
Letterbox
4
3
16:9 Downconverts To These displays on 4:3
Crop
14:9
Downconvert Mode This mode determines the type of Downconversion performed on the selected HD
source input. See the following Downconvert Illustrations for Downconversion examples.
This mode is in effect only when the input is HD (720p, 1080i, or 1080p) and the selected
output format is SD (525i or 625i).
Figure 4. Downconvert Mode Example
Selection Description Letterbox – Image is reduced with black top and bottom added to image area, with the
aspect ratio preserved.
Crop (default) – Image is cropped to fit new screen size.
Anamorphic – HD image is converted to full-screen SD with a 16x9 aspect ratio
(anamorphic).
14:9 – Image is reduced slightly with aspect ratio preserved. Black is added top and
bottom, and the left and right sides are cropped.
Auto AFD – Automatically selects the best Downconvert mode based on the input
video's Active Format Description (AFD) code.
Active Format Description (AFD) codes are carried in the vertical ancillary (VANC)
portion of HD SDI video signals, specified in SMPTE 2016 as follows: “AFD information
is intended to guide DTV receivers and/or intermediate professional video
equipment regarding the display of video of one aspect ratio on a display of another
aspect ratio.”
In the UDC Downconverter, the AFD code on the video input can be used to guide
the Downconverter in choosing which mode to use to best display the important
UDC Mini-Converter v2.3r1 www.aja.com
8
H Crop
Pillarbox
V Crop
14:9
Off
(no conversion)
Letterbox
4
3
4:3 Converts To These displays on 4:3
content of the16:9 HD input video on the 4:3 SD output. For example, if the input
AFD code is 10 (Full Frame), it means that the input video has important picture
information throughout the full 16:9 frame, so the Downconverter should use
Letterbox mode to be sure none of the content is cropped off. An AFD code of 9
(Pillarbox) says that the input video only has content within the center 4:3 area of the
picture (usually because it originally came from an Upconverted SD signal) so the
Downconverter Crop mode would be the best choice. There are 16 possible HD AFD
codes, of which 8 are in common use. The UDC does not process or use SD AFD
codes.
SD Aspect Ratio Convert
This mode selects the type of SD-to-SD Aspect Ratio Conversion (ARC) performed on an
incoming selected SD source. This mode is in effect only when the input and output are
both SD (525i or 625i). (In Europe 16:9 anamorphic video is also known as “wide screen”
video.)
Figure 5. SD Aspect Ratio Conversion Examples
Selection Descriptions Off–Turns aspect ratio conversion Off.
Letterbox–Converts 16:9 Anamorphic video to Letterbox video.
H Crop–Converts 16:9 Anamorphic video to 4:3 Standard video (crops left and right
edges of video).
Pillarbox–Converts 4:3 Standard video to 16:9 Anamorphic video.
UDC Mini-Converter v2.3r1 www.aja.com
9
Installation
User Controls
V Crop–Converts Letterbox video to 16:9 Anamorphic video.
14:9–Converts 16:9 Anamorphic video to 14:9 Cropped video.
Typically, UDC installation consists of the following steps:
1. Ensure the UDC is disconnected from power.
2. Connect video equipment to the converter BNCs and HDMI connector.
3. Connect audio equipment to RCA connectors (optional)
4. Apply power to the converter.
5. The UDC will now run using the default factory settings. If you wish to alter the
factory settings, see the following User Controls section.
The UDC can be used right out of the box for many applications, since it is designed to
recognize inputs and perform standard actions automatically. However, you can also
manually configure the UDC using either of two methods:
• “Mini Config” software application supplied for PCs and Macs
• DIP switches accessible via a cutout on the back of the UDC case
One of the DIP switches is a “Local/Remote” switch. When in the “Local” mode, the
remaining DIP switches support a subset of the user controls. When in the “Remote”
mode, the normal Mini-Converter non-volatile registers control the unit (as last set).
Refer to "Chapter 2: MiniConfig Operation on page 12" for information about controlling
the UDC with MiniConfig. Instructions for DIP switch settings are presented below.
Using DIP Switches to Control the UDC
In addition to the Mini-Config application, you can also control the unit via an 8-switch
DIP, accessible through a cut-out in the bottom of the unit.

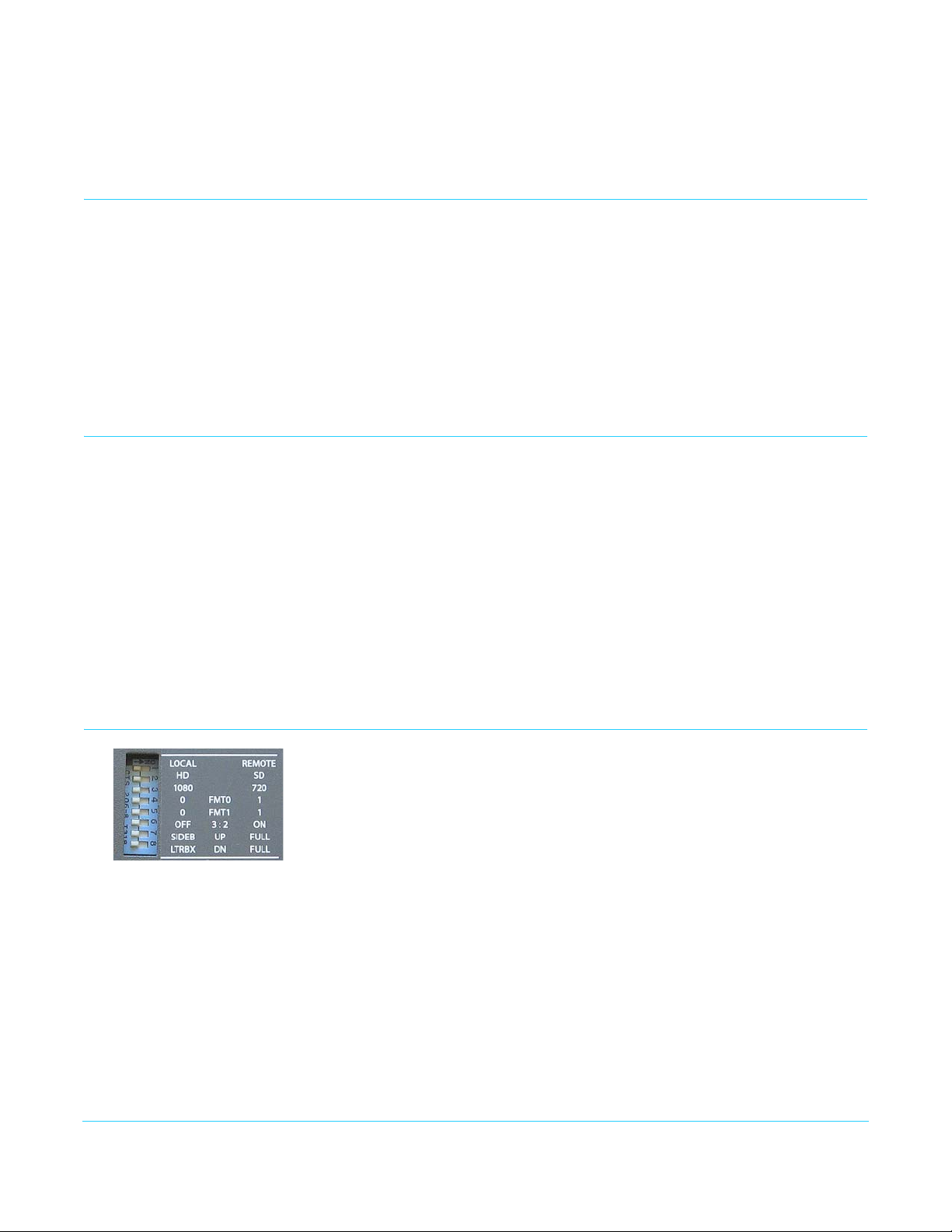

The default positions are shown in the figure on the left. The default settings result in an
output of 1080i59.94 with NTSC related inputs and 1080i50 with PAL related inputs.
For 1080p23.98/1080psf23.98 inputs, the input can be converted to 720p23.98,
1080p23.98, 1080i59.94, or 1080p59.94. The latter two would use the 3:2 DIP switch to
add 3:2 pulldown.
The compliance label, found on the back of the UDC, lists the DIP switch settings.
NOTE: HDMI monitors may not support all frame rates or "pSF" formats.
NOTE: UDC converts 3G-A formats only. It does not input or output 3G-B.
UDC Mini-Converter v2.3r1 www.aja.com
10
DIP Switch Settings The functions of the DIP switches and what they control are described in the following
tables.
Table 1. DIP Switch Setting Descriptions
SWITCH FUNCTION DIP Set LEFT (default) DIP Set RIGHT
1 Control Selects LOCAL (DIP), and
blocks MiniConfig control.
When in “Local” mode, the
remaining DIP switches will
support a subset of the user
controls.
2 HD/SD Selects HD output mode. Selects SD output mode.
3 1080/720
(HD mode
only)
4 & 5 Alternate
HD formats.
6 3:2
Conversion
(23.98/24
inputs only)
7 Up
Conversion
8 Down
Conversion
Selects 1080 output. Selects 720 output.
These two DIP switches (FMT0, FMT1) act together to select
alternate HD output formats. Zero (0) is Left position, one (1)
is Right position. See
3:2 conversion is OFF.
A 23.98/24 fps input results in
a 23.98/24 fps output.
Sets upconversion to Sidebar
(SIDEB).
Sets downconversion to
Letterbox (LT R B X ).
Table 2 below for setting information.
Selects REMOTE
(MiniConfig), and disables
DIP switches 2-8. When in
“Remote” mode, the normal
Mini-Config non-volatile
registers (as last set), control
the unit.
3:2 conversion is ON. A
23.98/24 fps input results in
either a 29.97/30 or 59.94/
60 fps output.
Sets upconversion to Full
screen (FULL).
Sets downconversion to Full
screen (FULL).
DIP Switches 4 & 5 (FMT0, FMT1)
UDC Mini-Converter v2.3r1 www.aja.com
DIP switches 4 and 5 together select alternate HD formats. Switches 1 and 2 can also
affect the HD output format. In the table below an X indicates a “Don’t Care” setting.
Table 2. Output Formats for DIP Switch 2,3, 4, & 5 Settings
SW2
HD/SD
Left Left Left Left 1080i 25/29.97/30
Left Left Left Right 1080pSF 23.98/24/25/29.97/30
Left Left Right Left 1080p 50/59.94/60
Left Left Right Right 1080p 23.98/24/25/29.97/30
Left Right X Left 720p 50/59.94/60
Left Right X Right 720p 23.98/24/25/29.97/30
Right X X X 525i/625i
SW3
1080/720
SW 4
FMT0
SW 5
FMT1
Output
11
Chapter 2: MiniConfig Operation
USB Control and Setup—Using AJA MiniConfig
The UDC Mini-Converter can usually be used right out of the box for most applications
since it is designed to recognize inputs and perform standard actions automatically by
default. However you can also manually configure the unit using a supplied software
application for PCs and Macs called “MiniConfig.” This same application can be used to
update Mini-Converter firmware released by AJA.
Installing MiniConfig on a Mac
NOTE: Macintosh computers must be Intel-based (G5, G4 and earlier models will not work with
Installing MiniConfig on a PC
To install the application on a Mac, insert the CD supplied with the
Mini-Converter into the computer, drag the “AJA MiniConfig”
application for your platform (Mac or PC) to your desktop or an
applications folder.
MiniConfig).
To install the application on a Windows PC, insert the CD supplied with the MiniConverter into the computer, locate the “MiniInstaller” application, and then doubleclick it.

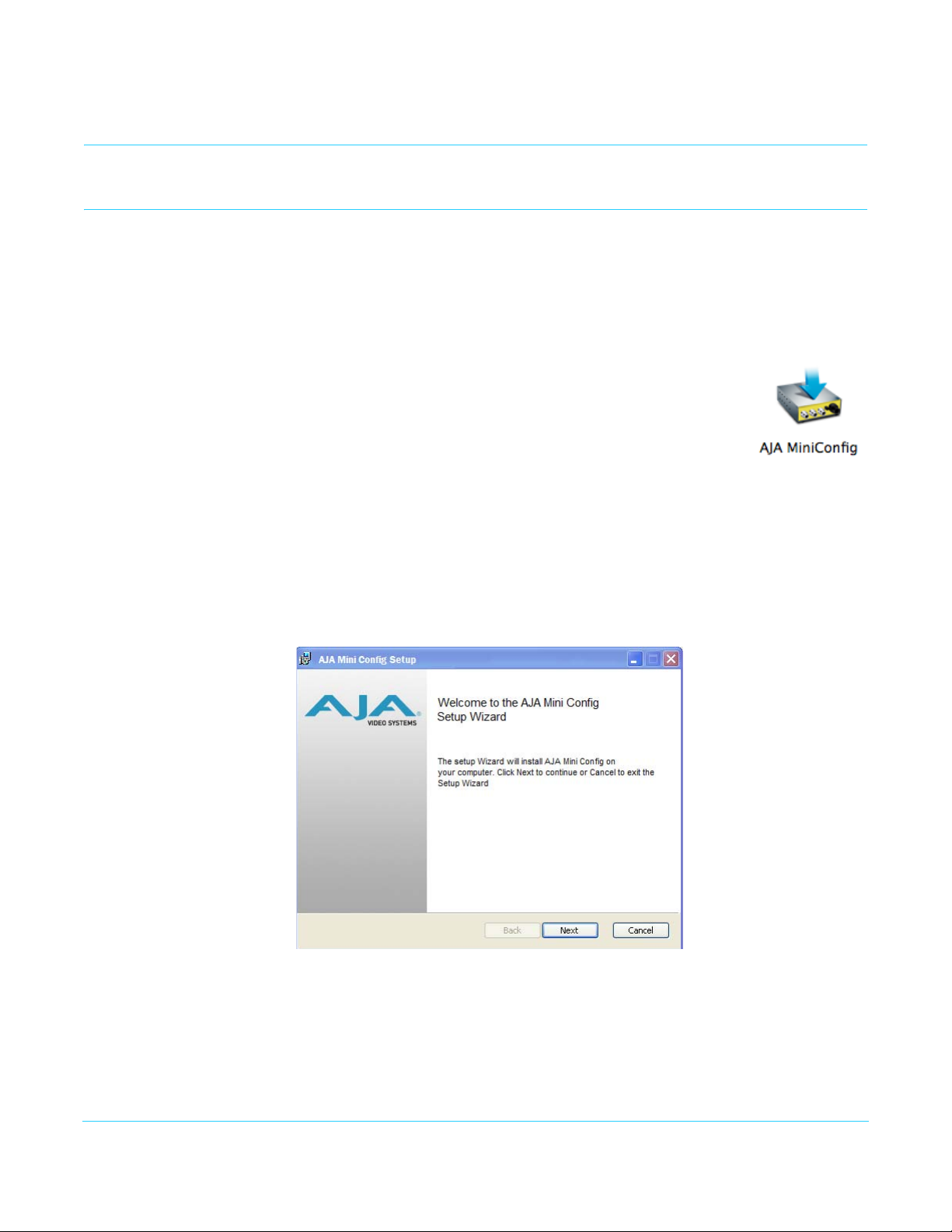

Figure 6. MiniConfig Setup Wizard on PC
A Setup Wizard will guide you through the installation. Just click Next to begin.
Answer all questions in the subsequent dialogues; when done, you will be able to locate
the MiniConfig application in the AJA folder in the Programs listing.
Running MiniConfig Connect the Mini-Converter to the PC or Mac via the supplied USB cable. Connect the
external power supply (supplied) to the Mini-Converter.
UDC Mini-Converter v2.3r1 www.aja.com
12
PC Startup To run MiniConfig on a PC, find the AJA MiniConfig in the program list and locate the AJA
MiniConfig application.
Figure 7. PC MiniConfig Startup
Mac Startup To run MiniConfig on a Mac, double-click the Applications folder and locate the AJA
MiniConfig application. Double-click the application to launch it.
Figure 8. Mac MiniConfig Startup
Saving Setups A File menu at the top of the MiniConfig application menu bar allows you to Save the
Operating MiniConfig
NOTE: On a Mac, when the Mini-Converter is connected to the USB port, you may see an alert like
that shown below. If you do, press Cancel—this alert can be ignored.
Figure 9. Mac Network Message (ignore)
state of the Mini-Converter, with your current settings, to a file for later recall. This allows
you to set up the converter for different applications, storing each (with Save) to a unique
name for easy recall—using the Open menu item. A Revert to Factory Settings menu item
similarly allows you to change the settings back to AJA’s factory defaults. An Edit menu
allows you to cut and paste values to/from fields, just as in other applications.
The MiniConfig application provides a graphic interface for viewing settings and
updating software. It consists of an information area at the top that shows the available
Mini-Converters attached to the computer via USB, with a graphical rendering of the
selected Mini-Converter showing all the connectors and their current state.
Colored text next to the connectors indicates the signal type and what the MiniConverter is doing:
• Blue text indicates the values automatically selected
UDC Mini-Converter v2.3r1 www.aja.com
13
Tabbed
screens
Message
showing
status
Firmware
version
and serial
number
Each connector is labeled with
the signals currently detected.
Select a USB
port and an
attached
Mini-Converter
(name in
parentheses)
• Black text indicates values that you have manually selected
• Red text indicates the Mini-Converter is not detecting a signal or cannot negotiate with
the attached device
NOTE: Even if no output device is detected, it still shows the signal it is outputting.
NOTE: Configuration settings in red will change based on the attached output device as well as input
signals. For improved accuracy and reliability, you should configure the Mini-Converter only
when the target output device is attached and input signals are supplied at the inputs.
Screens are virtually the same on both PC and Mac, with subtle differences that reflect
the general look of the platform environment.
Running Multiple Mini-
Converters:
MiniConfig can manage multiple AJA Mini-Converters connected via USB—even when
they are of differing types. However it only connects to one at a time. You can choose
which Mini-Converter you wish to control using the pulldown menu in the upper right
hand corner. If you want to configure and update multiple Mini-Converters in parallel,
you can do it by running multiple instances of the MiniConfig application and have each
control a different Mini-Converter.
Figure 10. MiniConfig, Video Screen
UDC Mini-Converter v2.3r1 www.aja.com
NOTE: The LOCK LED indicates by color the detected signal type. Green is SD-SDI, red is HD-SDI, and
amber/orange is 3G-SDI. Off indicates no input.
Selecting a Mini-Converter with the dropdown menu causes this application to connect
to the selected converter. The graphic of Mini-Converter and text below it provides:
• Type of converter
• Firmware version
• Serial number of the unit
14
A status field at the bottom of the screen shows if your application is connected and
communicating with the Mini-Converter.
When configuring the Mini-Converter, select it from the top pulldown, view the current
settings and change any values. Making a change communicates that new value to the
Mini-Converter’s non-volatile memory.
Tabbed Screens The Tabs delineate control screens with groups of controls for each type of task to be
performed. The controls for the actual configuration parameters are specific to each
Mini-Converter type. Click on any of the tab buttons and the screen below will change to
match. Each of these screens are described on the following pages.
Video Tab Screen The Video Screen is where you can configure UDC video inputs and outputs. Pull-down
menu settings are described following the screen graphic.

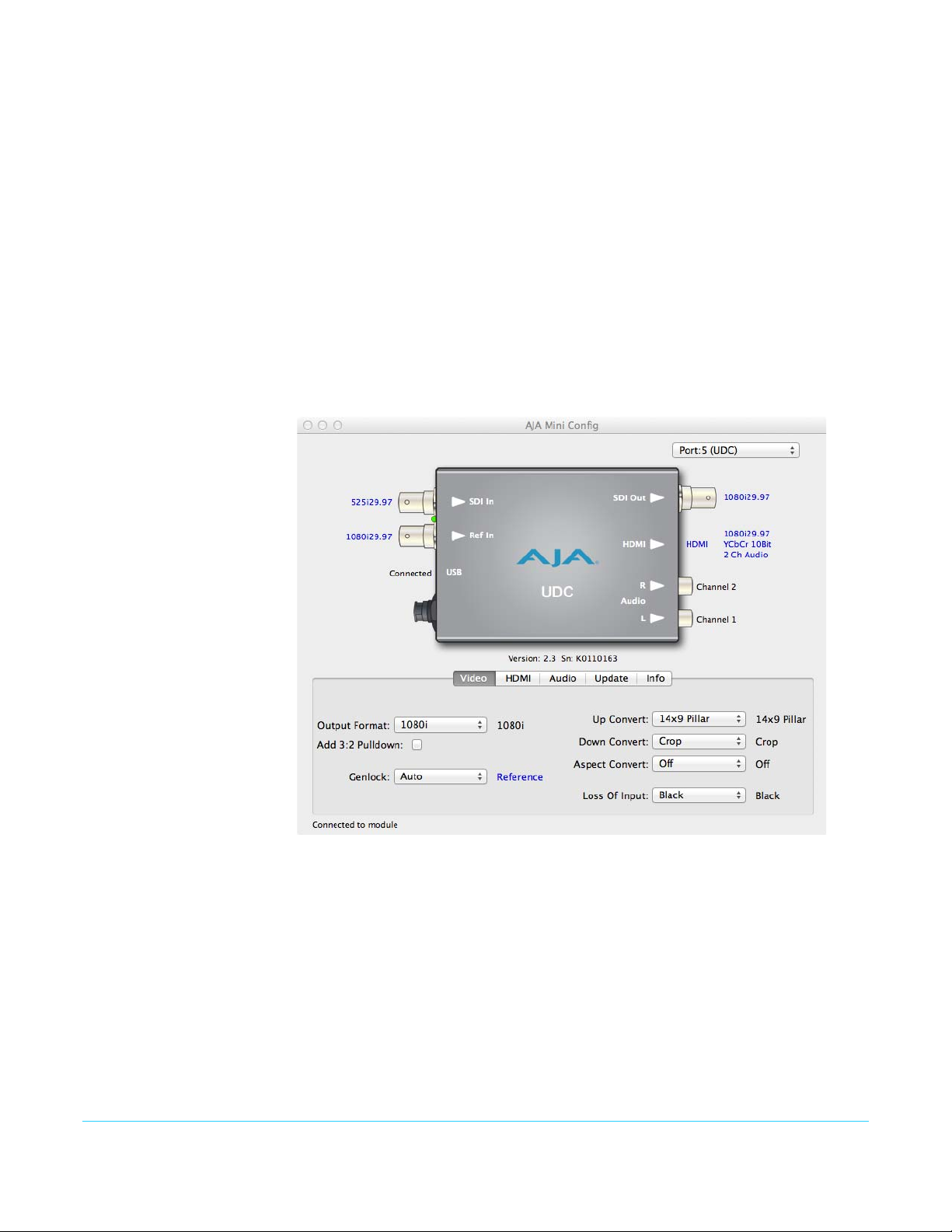

Figure 11. Mini Config, Video Screen
Output Format: Determines the UDC output video format. (This selection is used only
when the UDC module is in Remote mode as set by DIP switch #1. In Local mode, the
video output format is determined by DIP switches 2-5). These are the format choices:
SD: The output video format will be 525i59.94 (for 23.98, 29.97, or 59.94 fps video
inputs) or 625i50 (for 25 or 50 fps video inputs).
720p: The output video format will be 720p59.94 (for 23.98, 29.97, or 59.94 fps video
inputs), 720p60 (for 24, 30, or 60 fps video inputs), or 720p50 (for 25 or 50 fps video
inputs).
1080i: The output video format will be 1080i59.94 (for 23.98, 29.97, or 59.94 fps video
inputs), 1080i60 (for 24, 30, or 60 fps video inputs), or 1080i50 (for 25 or 50 fps video
inputs).
UDC Mini-Converter v2.3r1 www.aja.com
15
1080psf: The output video format will be 1080psf23.98 (for 23.98 fps video inputs),
1080psf24 (for 24 fps video inputs), 1080psf25 (for 25 or 50 fps video inputs),
1080psf29.97 (for 29.97 or 59.94 video inputs), or 1080psf30 (for 30 or 60 fps video
inputs).
1080p (low): The output video format will be 1080p23.98 (for 23.98 fps video
inputs), 1080p24 (for 24 fps video inputs), 1080p25 (for 25 or 50 fps video inputs),
1080p29.97 (for 29.97 or 59.94 video inputs), or 1080p30 (for 30 or 60 fps video
inputs).
1080p (high): The output video format will be 1080p50 (for 25 or 50 fps video
inputs), 1080p59.94 (for 23.98, 29.97 or 59.94 video inputs), or 1080p60 (for 24, 30 or
60 fps video inputs).
NOTE: UDC converts 3G-A formats only. It does not input or output 3G-B.
Add 3:2 Pulldown: When the Add 3:2 Pull down box is checked, 23.98 fps and 24 fps
video inputs are converted to 29.97 fps and 30 fps, respectively, by adding 3:2 pull down
before conversion. Note that this selection is only used when the UDC module is in
Remote mode (DIP switch #1). In Local mode, 3:2 pull down addition is determined by
DIP switch #6.
Genlock: Determines the timing reference for the UDC video output. The selected
reference is displayed to the right of the Genlock pull-down. These are the choices:
Auto (default): Auto uses the reference input if present, or locks to the SDI input if no
reference is present or if the reference is present but is not compatible.
Lock to Input: Always locks to the SDI input.
Lock to Reference: Always locks to the Reference input – if the supplied reference is
not compatible, reverts to Free Run.
Free Run: Always operates in Free Run mode.
Up Convert: Determines the mode when converting from SD input video to an HD
output video format. This selection is only used when the UDC module is in Remote
mode (DIP switch #1). In Local mode, the up convert mode is determined by DIP switch
#7. These are the choices:
4x3 Pillar: Produces 4x3 image at center screen with black sidebars.
14x9 Pillar (default): Produces 14x9 image, zoomed slightly to fill a 14x9 image with
black sidebars.
Full Screen: Produces anamorphic full screen display.
LB to Full Image: Produces image zoomed to fit the full screen (letterbox).
Wide Zoom: Produces an image sized to fit a 16x9 screen using a combination of
zoom and stretch. (This can introduce a small aspect ratio change.)
Down Convert: Determines the mode when converting from HD input video to an SD
output video format. Note that this selection is only used when the UDC module is in
Remote mode (DIP switch #1). In Local mode, the upconvert mode is determined by DIP
switch #8. These are the choices:
Crop (default): Image is cropped to fit new screen size.
Anamorphic: HD image is converted to full-screen SD with a 16x9 aspect ratio
(anamorphic).
UDC Mini-Converter v2.3r1 www.aja.com
16
14x9: Image is reduced slightly with aspect ratio preserved. Black is added top and
bottom, and the left and right sides are cropped.
Auto AFD: Automatically selects the best Downconvert mode based on the input
video's Active Format Description (AFD) code. If the input video is not carrying an
AFD VANC code, the Downconverter defaults to crop.
Letterbox: Image is reduced with black top and bottom added to image area, with
the aspect ratio preserved.
Aspect Convert: Determines the mode when converting from SD input video to an SD
output video format. There is no DIP switch equivalent for this control. The setting is
saved in nonvolatile memory in the module and used for all subsequent operation. These
are the choices:
Off (default): The input image is copied to the output with no scaling.
Letterbox: The input frame is scaled vertically to a 16x9 "letterboxed" size
(anamorphic to letterbox conversion).
H Crop: The input frame is scaled horizontally to 16x9, then center-cropped
(anamorphic to center crop conversion).
Pillarbox: The input frame is scaled horizontally to make a pillarbox output (4x3 to
anamorphic conversion).
V Crop: The input frame is scaled vertically to make a vertically cropped output
(letterbox to anamorphic conversion).
14x9: The input frame is scaled horizontally and vertically as a compromise between
H Crop and Letterbox (anamorphic to 14x9 conversion).
Loss of Input: Determines what action is taken when input video is lost. These are the
choices:
Black (default): The output goes to black.
Freeze: The output freezes on the last good frame.
UDC Mini-Converter v2.3r1 www.aja.com
17
HDMI Tab Screen Provides user selection of the HDMI output modes. There is no DIP switch equivalent for
these controls. The setting is saved in nonvolatile memory in the module and used for all
subsequent operation.

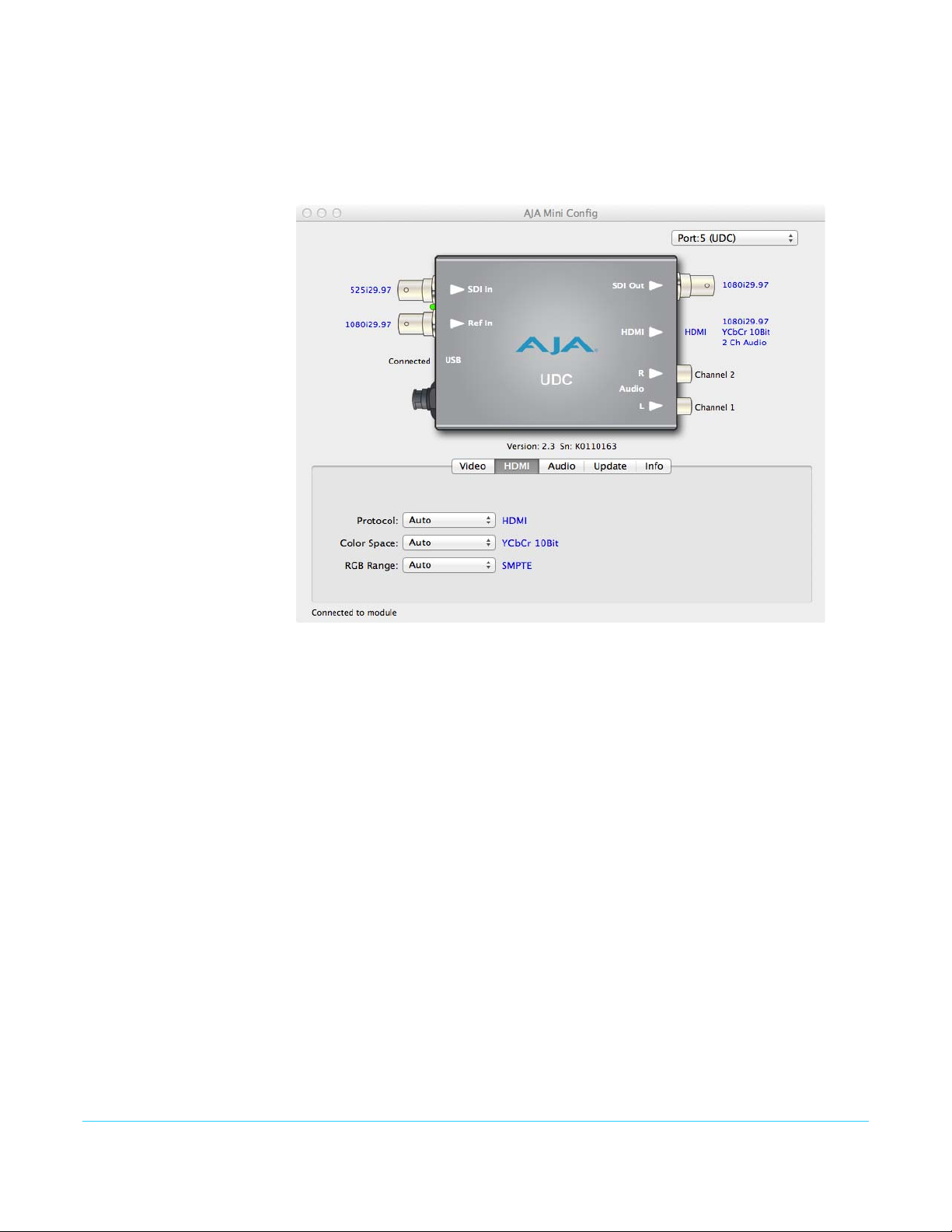

Figure 12. Mini Config, HDMI Screen
HDMI Video Output: The HDMI video output always mirrors the SDI video output, both
in content and output format selection.
NOTE: When the output format is set to 1080psf23.98 or 1080psf24 the HDMI output is disabled
since HDMI does not have a corresponding supported format.
Protocol: Selects whether the HDMI output uses DVI or HDMI protocols for sending
video to the destination device. These are the choices:
Auto: UDC automatically selects the output protocol based on getting the attached
HDMI device's EDID information. This is the recommended setting. The selected
protocol is shown to the right of the popup control.
HDMI: UDC uses HDMI protocols regardless of the attached device's EDID.
DVI: UDC uses DVI protocols regardless of the attached device's EDID. Because DVI
protocols do not support audio or HDMI InfoFrame ancillary data, select this mode
only if you know that the attached device requires it.
Color Space: Selects the HDMI output color space and depth. These are the choices:
Auto: UDC automatically selects the mode based on getting the attached HDMI
device's EDID information. This is the recommended setting. The selected mode is
shown to the right of the pull-down control.
RGB 8Bit: UDC uses 8-bit RGB mode regardless of the attached device's EDID.
RGB 10Bit: UDC uses 10-bit RGB mode regardless of the attached device's EDID.
YCbCr 10Bit: UDC uses 10-bit YCbCr mode regardless of the attached device's EDID.
UDC Mini-Converter v2.3r1 www.aja.com
18
RGB Range: Selects the HDMI video levels when the Color Space is RGB 8Bit or RGB 10Bit.
Auto: The UDC automatically selects the mode based on getting the attached HDMI
device's EDID information. This is the recommended setting. The selected mode is
shown to the right of the popup control.
SMPTE: The UDC scales the output video level to 8-bit range 16 - 235 (10-bit 64 - 940)
regardless of the attached device's EDID.
Full Range: The UDC scales the output video level to 8-bit range 0 - 255 (10-bit 0 -
1023) regardless of the attached device's EDID.
Audio Tab Screen The Audio Screen is where you can configure UDC HDMI and analog (RCA-style) audio
output channels. Pull down menu settings are described following the screen graphic.
There is no DIP switch equivalent for these controls. The setting is saved in nonvolatile
memory in the module and used for all subsequent operation.
Figure 13. Mini Config, Audio Screen
SDI Output (Embedded) Audio: The SDI output audio is a channel-for-channel copy of
the input SDI embedded audio. There are no user controls.
HDMI Audio: Selects how many SDI channels are passed to the HDMI connector and
which channel pairs are selected. These are the choices:
Auto: The UDC automatically selects the audio output configuration based on
communicating with the attached HDMI device. The resulting mode is displayed to
the right of the popup control.
2 Channel: Outputs a pair of channels from the SDI stream to two channels on the
HDMI output connector. The selected audio pair is determined by the Analog Audio
setting (below).
8 Channel: Outputs SDI channels 1 through 8 to the HDMI output connector.
UDC Mini-Converter v2.3r1 www.aja.com
19
Analog Audio: Selects the channel pair that will be output to the Analog RCA connectors
(L/R) and the HDMI audio output (when HDMI Audio is in 2-channel mode). These are the
choices:
Channel 1+2, Channel 3+4, Channel 5+6, Channel 7+8, Channel 9+10, Channel
11+12, Channel 13+14, Channel 15+16
Update Tab Screen Use this Update screen to view the software version currently installed on the UDC or to
install new software.

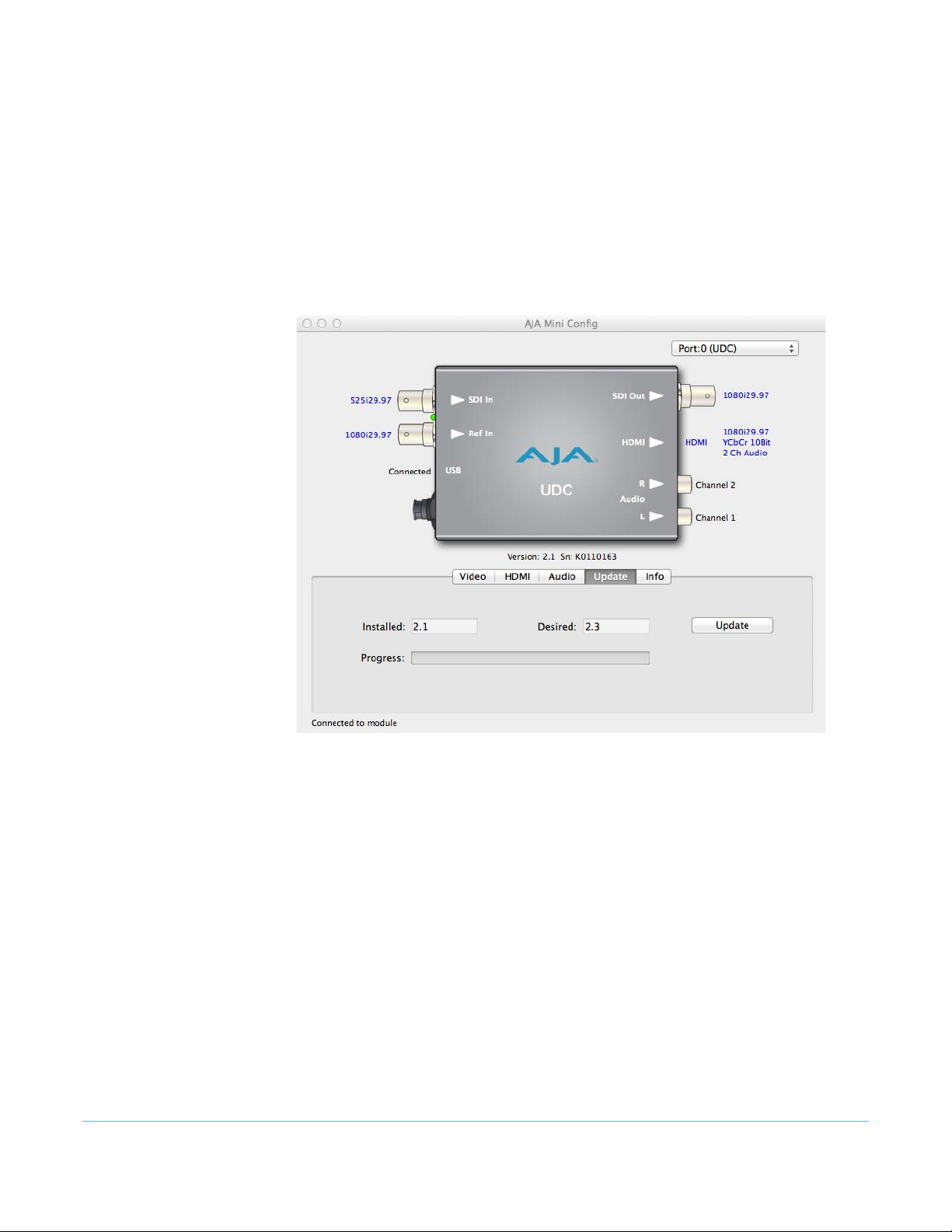

Figure 14. Mini Config, Update Screen
NOTE: When discussing Mini-Converters, “Firmware” is software that will be stored in the Mini-
Converter’s non-volatile memory and used when it is powered up. This is different from the
Mini Config application software. The version numbers shown in the Update screen refer only
to the firmware.
The following fields and controls are present in this screen:
Installed: This field shows the version of the UDC firmware currently installed.
Desired: This field shows the version of firmware embedded in the Mini-Config
application, which you can install into the Mini-Converter by clicking the Update button.
Update: This button initiates a software update operation, loading the “Desired” version
of firmware into the Mini-Converter’s non-volatile memory.
Progress: This indicator bar shows the progress of software being installed.
UDC Mini-Converter v2.3r1 www.aja.com
20
Software Update Procedure
Use the Update screen to update the UDC software as follows:
1. Check the AJA website for new Mini-Config software for your Mini-Converter. If you
find new software, download it and uncompress the (zip) file archive. Use this URL to
check for new software:
http://www.aja.com/en/products/mini-converters/mini-config-software#support
2. Connect the Mini-Converter to a Mac or PC via a USB port on the computer, and run
the new Mini-Config software you just downloaded.
3. Click on the Update tab screen.
4. Check the Installed version level against the Desired version level. If the Desired is
newer, click the Update button to download the new firmware to the Mini-Converter;
progress will be shown via the “Progress” thermometer bar.
Info Tab Screen This screen provides basic information about the Mini-Converter. This information, which
consists of unit identifying information, is mostly useful when calling AJA Support for
service or technical support.
Figure 15. Mini Config, Info Screen
Name: This field allows you to give your Mini-Converter a name. This may be useful if you
have several Mini-Converters attached to a single Mac/PC via USB so you can distinguish
one of them easily (especially if they’re the same model). In the example show previously,
the UDC has been named “pilot.” To change the value, type in a new name and click the
“Set Name” button.
Typ e: This is the factory set model name of the Mini-Converter (UDC).
Assembly: This is the factory assembly number.
Serial Number: This is the factory set unique serial number of your UDC. If you ever call
AJA Support for service, you may be asked for this number.
UDC Mini-Converter v2.3r1 www.aja.com
21
Appendix A: Specifications
Specifications
SDI I/O SD/HD-SDI (auto-selected), SMPTE-292/296/424, 1x BNC
Formats:
• 525i59.94, 625i50
• 1080i 50/59.94
• 720p 23.98/24/25/29.97/30/50/59.94/60
• 1080p 23.98/24/25/29.97/30/59.94/60
• 1080psf 23.98/24/25/29.97/30
Reference Input • Color Black
•Tri-Level sync
HDMI Output 10-bit HDMI v1.4a
Formats:
• 525i29.97, 625i50
• 1080i 50/59.94/60
• 720p 23.98/24/25/29.97/30/50/59.94/60
• 1080p 23.98/24/25/29.97/30/59.94/60
NOTE: HDMI monitors may not properly support all frame rates or "pSF" formats.
Audio I/O • 16-channel embedded SDI audio input
• 16-channel embedded SDI audio output
• 8-channel HDMI audio output
• 2 RCA-style analog outputs at -10dBV (nominal)
HDCP The UDC does not encode the HDMI output with HDCP encryption. By definition, HD-SDI
inputs to the UDC are unencrypted. The HDMI specification requires HDMI monitors to
support unencrypted inputs.
User Controls USB port used with supplied cable and MiniConfig software application to configure
device via PC/Mac.
Size 5.8" x 3.1" x 1 (147mm x 79mm x 25mm)
Power Uses AJA Power Supply model DWP-U-R1 (included)
• 100-240V, 50/60Hz Universal Input
• +5V DC regulated, 7.5 watt capacity
UDC Mini-Converter v2.3r1 www.aja.com
22
Appendix B: Safety and Compliance
Federal Communications Commission (FCC) Compliance Notices
Class B Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Canadian ICES Statement
Canadian Department of Communications Radio Interference Regulations
This digital apparatus does not exceed the Class A limits for radio-noise emissions from a
digital apparatus as set out in the Radio Interference Regulations of the Canadian
Department of Communications. This Class A digital apparatus complies with Canadian
ICES-003.
Règlement sur le brouillage radioélectrique du ministère des Communications
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils
numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du
ministère des Communications du Canada. Cet appareil numérique de la Classe A est
conforme à la norme NMB-003 du Canada.
UDC Mini-Converter v2.3r1 www.aja.com
23
European Union and European Free Trade Association (EFTA) Regulatory Compliance
This equipment may be operated in the countries that comprise the member countries
of the European Union and the European Free Trade Association. These countries, listed
in the following paragraph, are referred to as The European Community throughout this
document:
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA,
FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA,
LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA,
SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY,
SWITZERLAND
Declaration of Conformity
Immunity:: EN 55103-2: 2009
Marking by this symbol indicates compliance with the Essential Requirements of the EMC
Directive of the European Union 2004/108/EC.
This equipment meets the following conformance standards:
Safety: CB- IEC 60065:2001 + A1:2005
NRTL - UL 60065:2003 R11.06, CSA C22.2 NO. 60065:2003 + A1:06
GS - EN 60065:2002 + A1
Additional licenses issued for specific countries available on request.
Emissions: EN 55103-1: 2009
EN 61000-3-2: 2006+A1:2009 +A2:2009, EN 61000-3-3: 2008
EN 61000-4-2: 2009, EN 61000-4-3: 2006+A1:2008, EN 61000-4-4: 2004,
EN 61000-4-5: 2005, EN 61000-4-6: 2007, EN 61000-4-11: 2004
The product is also licensed for additional country specific standards as required for the
International Marketplace.
Warning !
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case, the user may be required to take appropriate measures.
Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse B. In Wohnbereichen
können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen Fällen
der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.
Attention! Ceci est un produit de Classe B. Dans un environnement domestique, ce
produit risque de créer des interférences radioélectriques, il appartiendra alors à
l?utilisateur de prendre les mesures spécifiques appropriées.
UDC Mini-Converter v2.3r1 www.aja.com
24

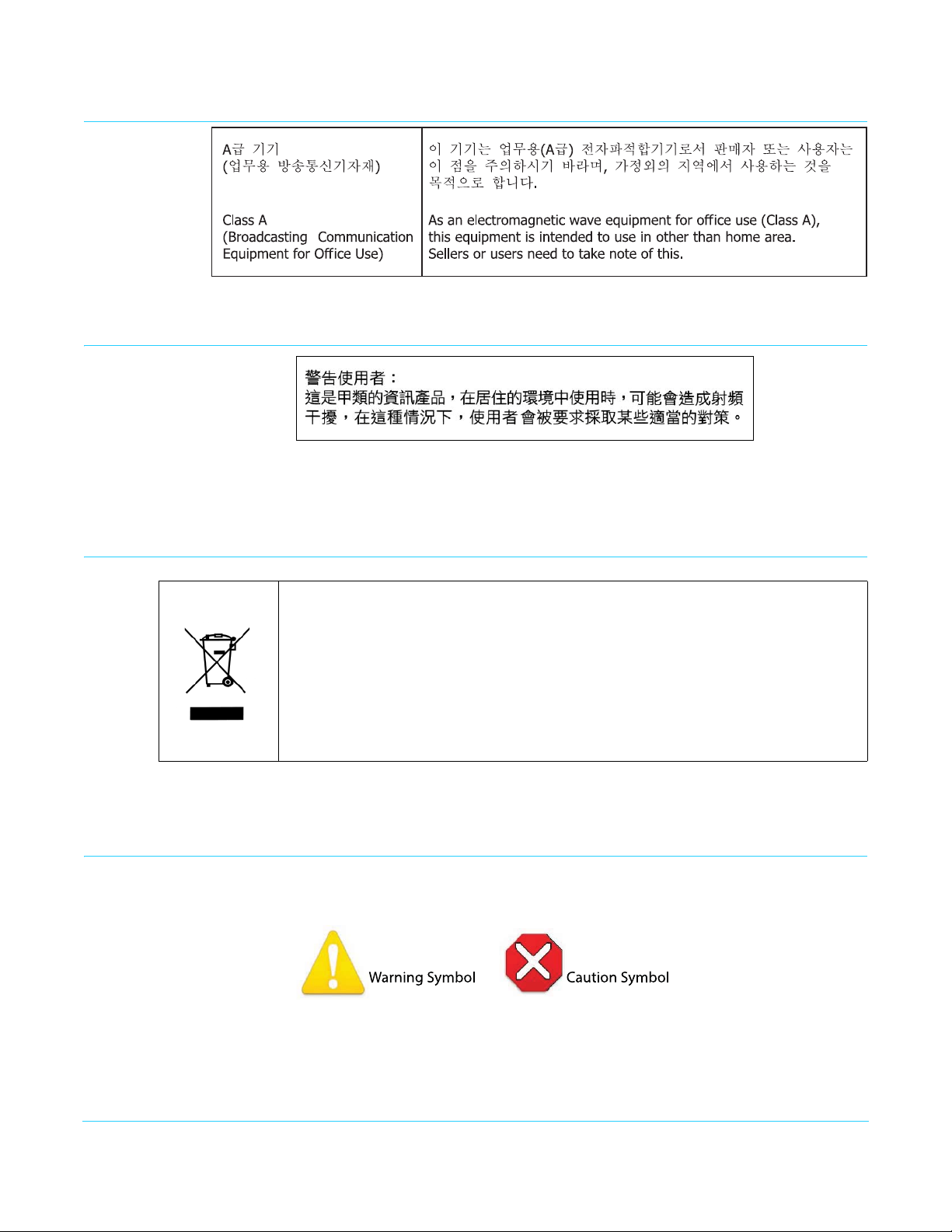

Korean KCC Compliance Statement
Taiwan Compliance Statement
This is a Class A product based on the standard of the Bureau of Standards, Metrology
and Inspection (BSMI) CNS 13438, Class A.
Recycling Notice
This symbol on the product or its packaging indicates that this product must not be
disposed of with your other household waste. Instead, it is your responsibility to
dispose of your waste equipment by handing it over to a designated collection point
for the recycling of waste electrical and electronic equipment. The separate collection
and recycling of your waste equipment at the time of disposal will help conserve
natural resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can drop off your
waste for recycling, please contact your local authority, or where you purchased your
product.
Translated Warning and Caution Messages
The following caution statements, warning conventions, and warning messages apply to
this product and manual.
UDC Mini-Converter v2.3r1 www.aja.com
25
Before Operation Please Read These Instructions
War ning!
Read and follow all warning notices and instructions marked on the product or
included in the documentation.
Avertissement ! Lisez et conformez-vous à tous les avis et instructions
d'avertissement indiqués sur le produit ou dans la documentation.
War nung! Lesen und befolgen Sie die Warnhinweise und Anweisungen, die auf dem
Produkt angebracht oder in der Dokumentation enthalten sind.
¡Advertencia! Lea y siga todas las instrucciones y advertencias marcadas en el
producto o incluidas en la documentación.
Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos na
documentação.
Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o inclusi
nella documentazione.
War ning!
Do not use this device near water and clean only with a dry cloth.
Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement avec
un tissu sec..
War nung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem
trockenen Tuch säubern.
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un
paño seco.
Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano
seco.
Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un
panno asciutto.
UDC Mini-Converter v2.3r1 www.aja.com
26
War ning!
Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
Avertissement ! Ne bloquez aucune ouverture de ventilation. Suivez les instructions
du fabricant lors de l'installation.
War nung! Die Lüftungsöffnungen dürfen nicht blockiert werden. Nur gemäß den
Anweisungen des Herstellers installieren.
¡Advertencia! No bloquee ninguna de las aberturas de la ventilación. Instale de
acuerdo con las instrucciones del fabricante.
Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as
instruções do fabricante.
Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le
istruzioni del fornitore.
War ning!
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Avertissement ! N'installez pas l'appareil près d'une source de chaleur telle que des
radiateurs, des bouches d'air de chauffage, des fourneaux ou d'autres appareils
(amplificateurs compris) qui produisent de la chaleur.
War nung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern, Öfen
oder anderen Wärme erzeugenden Geräten (einschließlich Verstärkern) aufstellen.
¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros de
calor, estufas u otros aparatos (incluidos amplificadores) que generan calor.
Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de
calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor.
Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda,
stufe o altri apparecchi (amplificatori compresi) che emettono calore.
UDC Mini-Converter v2.3r1 www.aja.com
27
War ning!
Refer all servicing to qualified service personnel. Servicing is required when the
device has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the device, the device has been
exposed to rain or moisture, does not operate normally, or has been dropped.
Avertissement ! Référez-vous au personnel de service qualifié pour tout entretien.
L'entretien est exigé quand l'appareil a été endommagé de quelque manière que ce
soit, par exemple lorsque le cordon d'alimentation ou la prise sont endommagés, que
du liquide a été versé ou des objets sont tombés dans l'appareil, que l'appareil a été
exposé à la pluie ou à l'humidité, ne fonctionne pas normalement ou est tombé.
War nung! Das Gerät sollte nur von qualifizierten Fachkräften gewartet werden. Eine
Wartung ist fällig, wenn das Gerät in irgendeiner Weise beschädigt wurde, wie bei
beschädigtem Netzkabel oder Netzstecker, falls Flüssigkeiten oder Objekte in das
Gerät gelangen, das Gerät Regen oder Feuchtigkeit ausgesetzt wurde, nicht
ordnungsgemäß funktioniert oder fallen gelassen wurde.
¡Advertencia! Consulte al personal calificado por cuestiones de reparación. El servicio
de reparación se requiere cuando el dispositivo ha recibido cualquier tipo de daño,
por ejemplo cable o espigas dañadas, se ha derramado líquido o se han caído objetos
dentro del dispositivo, el dispositivo ha sido expuesto a la lluvia o humedad, o no
funciona de modo normal, o se ha caído.
Aviso! Remeta todos os serviços de manutenção para o pessoal de assistência
qualificado. A prestação de serviços de manutenção é exigida quando o dispositivo
foi danificado mediante qualquer forma, como um cabo de alimentação ou ficha que
se encontra danificado/a, quando foi derramado líquido ou caíram objectos sobre o
dispositivo, quando o dispositivo foi exposto à chuva ou à humidade, quando não
funciona normalmente ou quando foi deixado cair.
Avviso! Fare riferimento al personale qualificato per tutti gli interventi di assistenza.
L'assistenza è necessaria quando il dispositivo è stato danneggiato in qualche modo,
ad esempio se il cavo di alimentazione o la spina sono danneggiati, è stato rovesciato
del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo
è stato esposto a pioggia o umidità, non funziona correttamente o è caduto.
UDC Mini-Converter v2.3r1 www.aja.com
28
Warranty Information
Limited Warranty
AJA Video Systems, Inc. (AJA Video) warrants that this product will be free from defects in
materials and workmanship for a period of five years from the date of purchase. If a
product proves to be defective during this warranty period, AJA Video, at its option, will
either repair the defective product without charge for parts and labor, or will provide a
replacement in exchange for the defective product.
In order to obtain service under this warranty, you the Customer, must notify AJA Video
of the defect before the expiration of the warranty period and make suitable
arrangements for the performance of service.The Customer shall be responsible for
packaging and shipping the defective product to a designated service center nominated
by AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the
product to the Customer if the shipment is to a location within the country in which the
AJA Video service center is located. Customer shall be responsible for paying all shipping
charges, insurance, duties, taxes, and any other charges for products returned to any
other locations.
This warranty shall not apply to any defect, failure or damage caused by improper use or
improper or inadequate maintenance and care. AJA Video shall not be obligated to
furnish service under this warranty a) to repair damage resulting from attempts by
personnel other than AJA Video representatives to install, repair or service the product,
b) to repair damage resulting from improper use or connection to incompatible
equipment, c) to repair any damage or malfunction caused by the use of non-AJA Video
parts or supplies, or d) to service a product that has been modified or integrated with
other products when the effect of such a modification or integration increases the time
or difficulty of servicing the product.
THIS WARRANTY IS GIVEN BY AJA VIDEO IN LIEU OF ANY OTHER WARRANTIES, EXPRESS
OR IMPLIED. AJA VIDEO AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AJA VIDEO’S
RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE WHOLE AND
EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR ANY INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER AJA VIDEO OR
THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
UDC Mini-Converter v2.3r1 www.aja.com
29
Loading...
