PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid exposure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
(SF-P200)
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
1) After the connection, remove solder shown in
the right figure.
:SOLDER
10 9
PICK UP ASSY
116
SF-P200
2
![](/html/b6/b6c7/b6c7c0680a937ab0757dcfeed12269eb99079a90c164c39e73a00181e48d3b04/bg3.png)
ELECTRICAL MAIN PARTS LIST
REF. NO PART NO. KANRI DESCRIPTION
IC
87-A21-082-040 C-IC,BA6655AFV
8A-HCH-602-010 C-IC,MN101C439-XXX
87-A21-446-010 C-IC,MN662782RPT1
87-A21-568-040 C-IC,GLT441M04
87-A21-578-040 C-IC,AN8838NSB
87-A21-543-040 C-IC,NJU7012
87-A21-521-040 C-IC,BH6517FS
87-A21-085-040 C-IC,TA2120FN
TRANSISTOR
89-211-323-080 C-TR,2SB1132R
87-A30-332-040 C-TR,CPH3106
87-A30-333-040 C-TR,CPH3206
87-026-608-080 C-TR,DTC 123 JK
89-111-625-080 TR,2SA1162 (0.15W)
89-416-643-080 C-TR,2SD1664R
89-327-125-080 CHIP TR,2SC2712GR
87-026-680-080 C-TR,IMH4A
87-026-268-080 C-TR,RN2411
87-026-239-080 TR,DTC114TK (0.2W)
89-324-121-080 C-TR,2SC2412K
87-026-235-080 CHIP-TR,DTC114EK
DIODE
87-A40-614-040 C-DIODE,SFPB-72
87-020-591-080 C-ZENER,02CZ 11Y
87-A40-554-040 C-DIODE,RB491D
87-A40-469-080 C-DIODE,HSM2838CTR
87-020-331-080 CHIP-DIODE,DAN202K
87-002-882-080 C-DIODE,RB425D

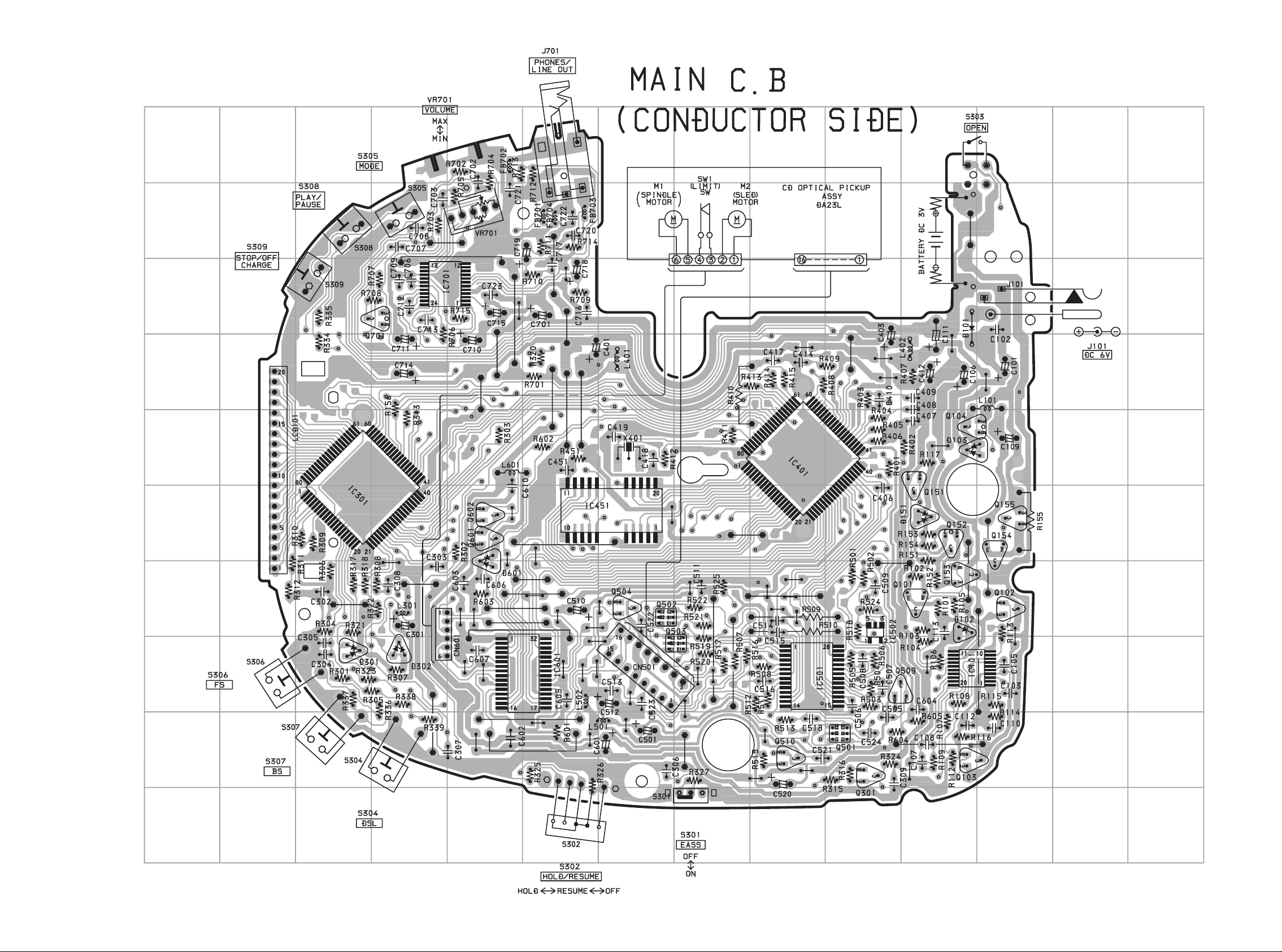

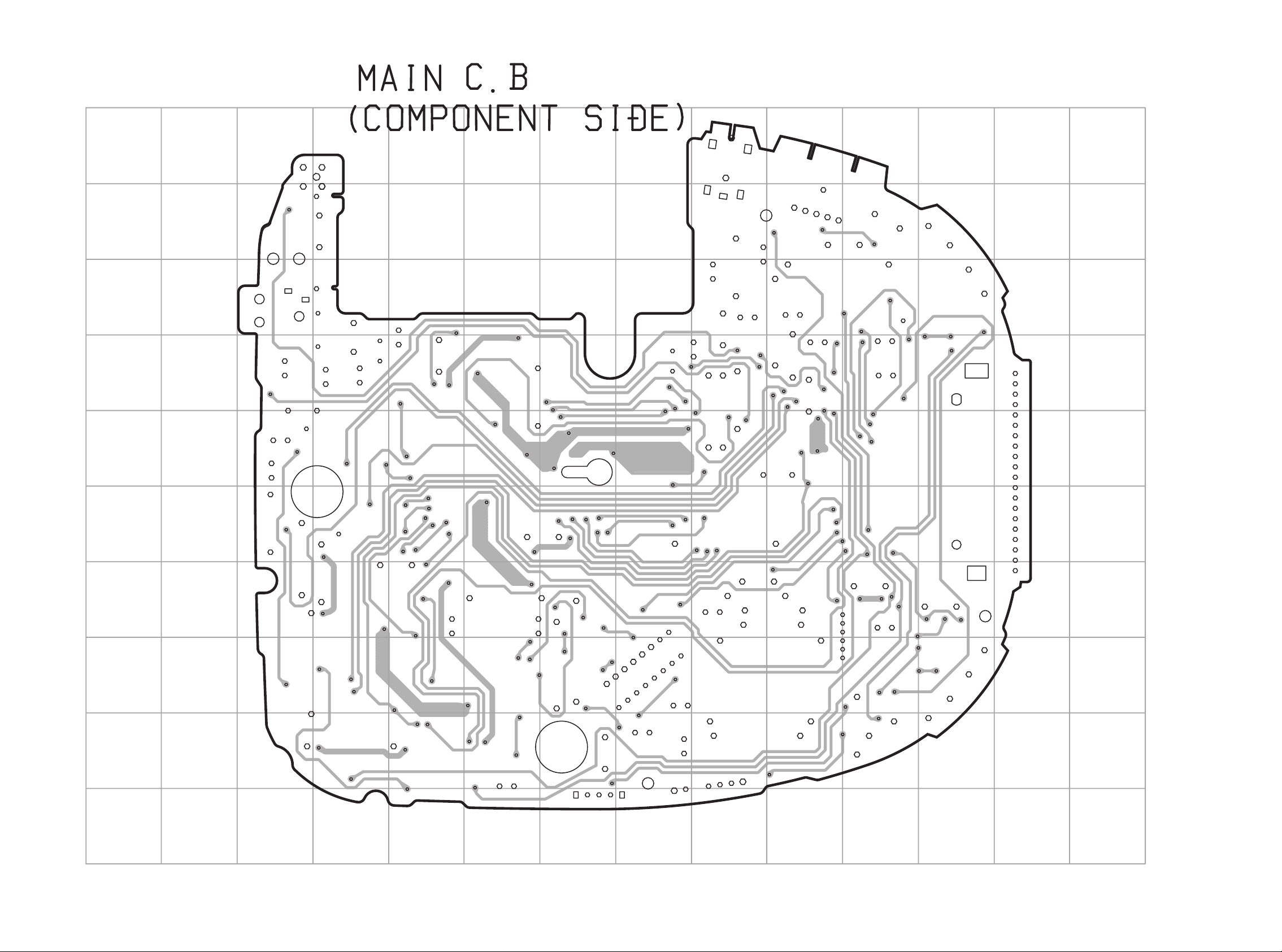

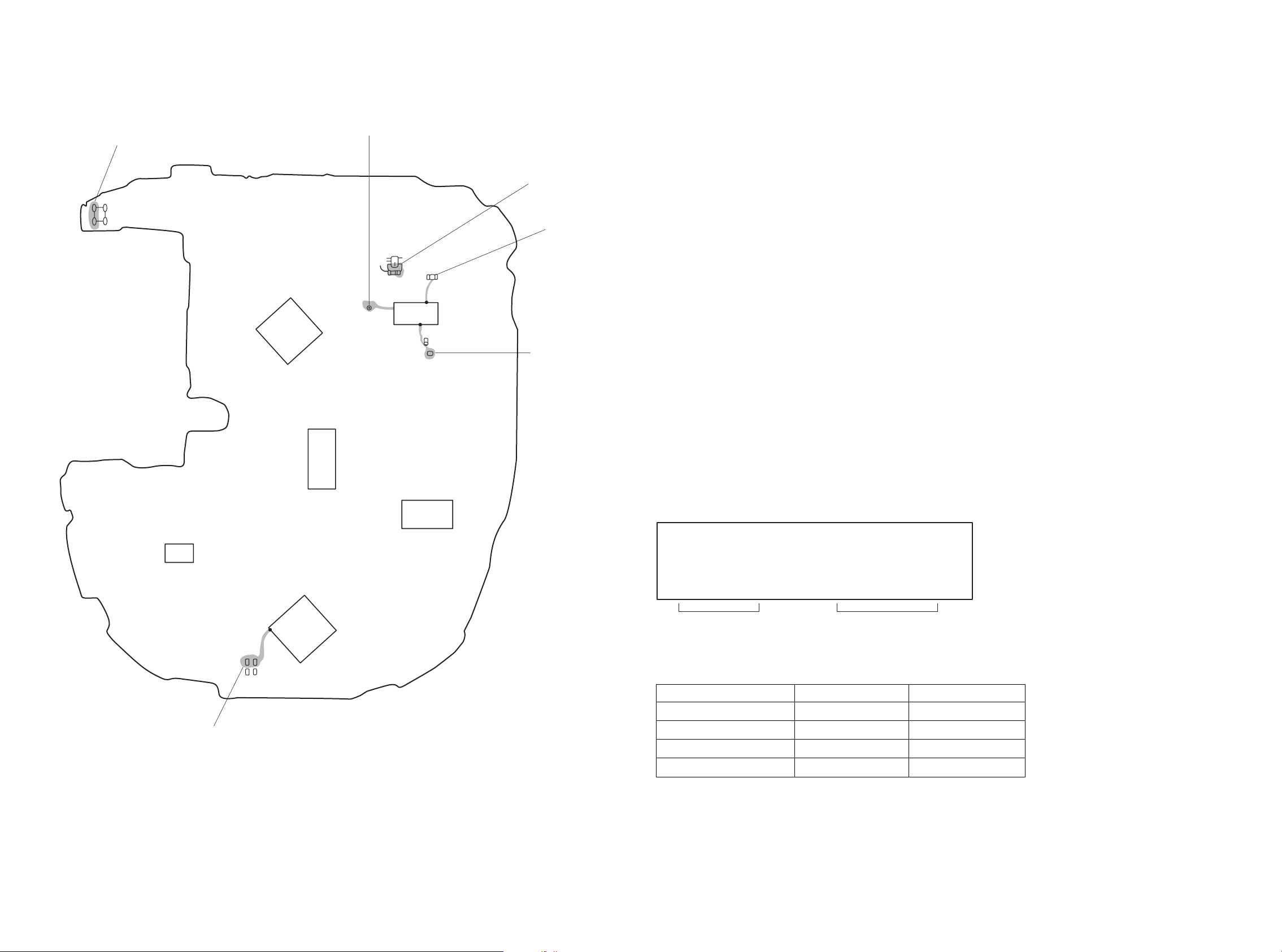

MAIN C.B
C101 87-010-060-040 CAP,E 100-16
C102 87-010-197-080 CAP, CHIP 0.01 DM
C103 87-010-197-080 CAP, CHIP 0.01 DM
C105 87-012-156-080 C-CAP,S 220P-50 CH
C106 87-010-483-040 CAP,E 220-4 7L SRA
C107 87-010-194-080 CAP, CHIP 0.047
C108 87-010-178-080 CHIP CAP 1000P
C109 87-A12-158-040 CAP,E 100-4 M 7L SRA
C110 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C111 87-A10-505-080 CAP,E 220-6.3 SF
C112 87-010-805-080 CAP, S 1-16
C113 87-010-196-080 CHIP CAPACITOR,0.1-25
C301 87-A10-488-040 CAP,E 47-4 7L SR
C302 87-010-197-080 CAP, CHIP 0.01 DM
C303 87-010-196-080 CHIP CAPACITOR,0.1-25
C304 87-010-196-080 CHIP CAPACITOR,0.1-25
C305 87-010-197-080 CAP, CHIP 0.01 DM
C306 87-010-197-080 CAP, CHIP 0.01 DM
C307 87-010-197-080 CAP, CHIP 0.01 DM
C308 87-010-309-080 C-CAP,1000P-50 CH
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C401 87-016-557-040 CAP,E 100-6.3 SF
C403 87-015-677-040 CAP,E 100-6.3 7L
C406 87-A11-550-080 C-CAP,S 820P-50 K B
C407 87-010-198-080 CAP, CHIP 0.022
C408 87-016-460-080 C-CAP,S 0.22-16 B
C409 87-016-526-080 C-CAP,S 0.47-16 BK
C410 87-010-197-080 CAP, CHIP 0.01 DM
C412 87-A12-158-040 CAP,E 100-4 M 7L SRA
C414 87-010-318-080 C-CAP,S 47P-50 CH
C417 87-010-318-080 C-CAP,S 47P-50 CH
C418 87-010-146-080 CHIP CAP 2PF
C419 87-010-146-080 CHIP CAP 2PF
NO.
REF. NO PART NO. KANRI DESCRIPTION
C451 87-010-196-080 CHIP CAPACITOR,0.1-25
C501 87-A12-158-040 CAP,E 100-4 M 7L SRA
C505 87-012-365-080 C-CAP,S 0.027-25VBK
C506 87-012-156-080 C-CAP,S 220P-50 CH
C507 87-010-321-080 CHIP CAPACITOR,82P(J)
C508 87-010-321-080 CHIP CAPACITOR,82P(J)
C509 87-A11-550-080 C-CAP,S 820P-50 K B
C510 87-A12-158-040 CAP,E 100-4 M 7L SRA
C511 87-010-196-080 CHIP CAPACITOR,0.1-25
C512 87-A10-488-040 CAP,E 47-4 7L SR
C513 87-010-196-080 CHIP CAPACITOR,0.1-25
C514 87-012-365-080 C-CAP,S 0.027-25VBK
C515 87-012-365-080 C-CAP,S 0.027-25VBK
C516 87-010-196-080 CHIP CAPACITOR,0.1-25
C518 87-010-312-080 C-CAP,S 15P-50 CH
C520 87-A10-488-040 CAP,E 47-4 7L SR
C521 87-012-349-080 C-CAP,S 1000P-50 CH
C522 87-010-805-080 CAP, S 1-16
C523 87-010-805-080 CAP, S 1-16
C524 87-010-154-080 CAP CHIP 10P
C601 87-A12-158-040 CAP,E 100-4 M 7L SRA
C602 87-010-197-080 CAP, CHIP 0.01 DM
C603 87-010-805-080 CAP, S 1-16
C604 87-010-197-080 CAP, CHIP 0.01 DM
C605 87-010-196-080 CHIP CAPACITOR,0.1-25
C606 87-010-196-080 CHIP CAPACITOR,0.1-25
C607 87-010-197-080 CAP, CHIP 0.01 DM
C610 87-010-805-080 CAP, S 1-16
C701 87-A12-158-040 CAP,E 100-4 M 7L SRA
C702 87-010-854-080 C-CAP,S 560PCH
C703 87-010-854-080 C-CAP,S 560PCH
C706 87-012-368-080 C-CAP,S 0.1-50 F
C707 87-A10-826-080 C-CAP,S 1-10 K B
C708 87-A10-826-080 C-CAP,S 1-10 K B
C709 87-A10-826-080 C-CAP,S 1-10 K B
C710 87-015-681-040 E/CAP 10-16
C711 87-A10-488-040 CAP,E 47-4 7L SR
C712 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C713 87-012-368-080 C-CAP,S 0.1-50 F
C714 87-015-696-040 CAP,E 2.2-50 SRA
C715 87-015-681-040 E/CAP 10-16
C716 87-012-368-080 C-CAP,S 0.1-50 F
C717 87-012-368-080 C-CAP,S 0.1-50 F
C718 87-010-483-040 CAP,E 220-4 7L SRA
C719 87-010-483-040 CAP,E 220-4 7L SRA
C720 87-010-178-080 CHIP CAP 1000P
C721 87-010-178-080 CHIP CAP 1000P
C722 87-012-368-080 C-CAP,S 0.1-50 F
C723 87-010-197-080 CAP, CHIP 0.01 DM
CN501 87-A61-104-010 CONN,16P H WHITE 52089-1610
CN601 87-009-411-010 CONN,6P ZH V
FB701 83-XM1-617-080 C-COIL,BK2125HM601
FB702 83-XM1-617-080 C-COIL,BK2125HM601
FB703 83-XM1-617-080 C-COIL,BK2125HM601
FB704 83-XM1-617-080 C-COIL,BK2125HM601
J101 87-A60-421-010 JACK,DC HEC3600 BLK 6
J701 85-HC5-616-010 JACK,3.5 ST W/R GRN
L101 87-005-770-080 COIL,47UH 7607
L301 87-A50-367-080 C-COIL, 10UH LQG21F
L401 87-A50-556-080 C-COIL, 47UH K LQH3C
L402 87-A50-440-080 C-COIL, 100UH K LQH3C34
L501 87-A50-367-080 C-COIL, 10UH LQG21F
L502 87-A50-367-080 C-COIL, 10UH LQG21F
L601 87-A50-580-080 COIL,470UH LHL06NB
LCD101 8A-HC7-602-010 LCD,AHC-7
S301 87-A90-163-010 SW,SL1-1-2 HSW1060
S302 87-A91-742-010 SW,SL 4-1-3 HSW2061-010010
S303 87-A91-622-010 SW,MICRO PV1102
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M
NO.
3
![](/html/b6/b6c7/b6c7c0680a937ab0757dcfeed12269eb99079a90c164c39e73a00181e48d3b04/bg4.png)
REF. NO PART NO. KANRI DESCRIPTION
S306 87-A90-095-080 SW,TACT EVQ11G04M
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11G04M
S309 87-A90-095-080 SW,TACT EVQ11G04M
VR701 87-A90-462-010 VR,RTRY 30KCX2 H RK14J12A0
X401 87-A70-202-080 C-VIB,CER 16.93MHZ CSACV-MXJ04
NO.
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
CHIP RESISTOR PART CODE
Chip Resistor Part Coding
88
A
Resistor Code
Chip resistor
Wattage Type Tolerance
1/16W 1005 5% CJ
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
Symbol
CJ
CJ
CJ
Figure
Value of resistor
Form
L
Dimensions (mm)
t
W
0.55
Resistor Code
108
118
128
LW t
1.0 0.5 0.35 104
1.6 0.8 0.45
2 1.25 0.45
3.2
1.6
: A
: A
