S E R V I C E M A N U A L
COMPACT DISC PLAYER
XP-V50
XP-V53
XP-GM2000
• TYPE: AEZ, AK
SIMPLE MANUAL
• Replace this Service Manual with ”Revision Publishing” when it is issued.
S/M Code No. 09–98C–320–4T2
ELECTRICAL MAIN PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
V50AK ..................XX......................................E...............
[S]V50AEZ ..............XX.......................................F..............
[G]V50AEZ ..............XX........................................G.............
[L]V53AEZ ..............XX.........................................H............
[L]V50AEZ ..............XX..........................................I...........
GM2000AEZ ..............XX...........................................J..........
REF.NO PARTS NO. DESCRIPTION SUFFIX
C 801 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJ..........
C 806 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 808 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFGHIJ..........
C 807 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFGHIJ..........
C 805 87-012-199-080 0E CAP 220P ABCDEFGHIJ..........
C 813 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGHIJ..........
C 812 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGHIJ..........
C 837 87-A10-904-080 0E C-CAP,U 1-6.3 K B ABCDEFGHIJ..........
CN 801 87-A60-756-080 C-CONN,24P V 24FLT-SM1TB ABCDEFGHIJ..........
D 801 87-A40-469-040 0E C-DIODE,HSM2838CTR ABCDEFGHIJ..........
D 802 87-A40-590-040 C-DIODE,HRW0202A ABCDEFGHIJ..........
FB 801 83-XM1-617-080 0E C-COIL,BK2125HM601 ....................
FB 802 83-XM1-617-080 0E C-COIL,BK2125HM601 ....................
L 802 87-A50-011-080 0E C-COIL,47UH LQH3C ABCDEFGHIJ..........
L 801 87-A50-367-080 C-COIL, 10UH LQG21F ABCDEFGHIJ..........
Q 801 87-026-211-080 0E TR,DTA144EK ABCDEFGHIJ..........
S 801 87-036-252-010 0E SW,PUSH SPPB 51 ABCDEFGHIJ..........
S 802 87-A90-493-080 C-SW,SL 1-1-2 SSSS81 ABCDEFGHIJ..........
S 803 87-A90-493-080 C-SW,SL 1-1-2 SSSS81 ABCDEFGHIJ..........
VR 801 87-A90-462-010 1B VR,RTRY 30KCX2 H RK14J12A0 ABCDEFGHIJ..........
W 801 8Z-HC5-605-010 FF-CABLE, 24P 0.5 60MM ABCDEF..............
D 151 87-A40-469-040 0E C-DIODE,HSM2838CTR ABCDEFGHIJ..........
Q 152 86-NFZ-687-080 0E C-TR,2SA1037S ABCDEFGHIJ..........
Q 151 87-026-608-080 0E C-TR,DTC 123 JK ABCDEFGHIJ..........
Q 153 89-211-323-080 1A C-TR,2SB1132R ABCDEFGHIJ..........
Q 156 89-324-121-080 0E C-TR,2SC2412K ABCDEFGHIJ..........
Q 154 89-416-643-080 C-TR,2SD1664R ABCDEFGHIJ..........
C 102 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJ..........
C 106 87-010-503-040 0E CAP,E 220-4 GAS ABCDEFGHIJ..........
C 101 87-010-561-040 0E CAP,E 100-16 GAS ABCDEFGHIJ..........
C 107 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 103 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 109 87-012-199-080 0E CAP 220P ABCDEFGHIJ..........
C 104 87-A10-505-080 CAP,E 220-6.3 SF ABCDEFGHIJ..........
C 110 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJ..........
C 113 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGHIJ..........
C 112 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGHIJ..........
C 111 87-A10-025-080 0E C-CAP,U 0.22-16Z F ABCDEFGHIJ..........
C 115 87-A10-904-080 0E C-CAP,U 1-6.3 K B ABCDEFGHIJ..........
C 124 87-A10-904-080 0E C-CAP,U 1-6.3 K B ABCDEFGHIJ..........
D 104 87-A40-469-040 0E C-DIODE,HSM2838CTR ABCDEFGHIJ..........
D 103 87-A40-469-040 0E C-DIODE,HSM2838CTR ABCDEFGHIJ..........
D 102 87-A40-592-040 C-ZENER,HZM11NB2 ABCDEFGHIJ..........
IC 101 87-A21-082-040 1D C-IC,BA6655AFV ABCDEFGHIJ..........
J 101 87-A60-421-010 JACK,DC HEC3600 BLK 6 ABCDEFGHIJ..........
L 101 88-HC4-615-010 COIL,39UH 7006-2M ABCDEF..............
L 101 88-HC4-615-040 C-COIL,39UH 7006-2M ......GHIJ..........
Q 102 87-A30-183-040 1A C-TR,2SD1628G ABCDEFGHIJ..........
Q 101 87-A30-183-040 1A C-TR,2SD1628G ABCDEFGHIJ..........
Q 105 89-113-695-680 1A C-TR,2SA1369G/H ABCDEFGHIJ..........
Q 104 89-113-695-680 1A C-TR,2SA1369G/H ABCDEFGHIJ..........
Q 103 89-211-323-080 1A C-TR,2SB1132R ABCDEFGHIJ..........
C 207 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJ..........
C 209 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 201 87-012-273-080 0E C-CAP,U 820P-50 B ABCDEFGHIJ..........
C 206 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGHIJ..........
C 203 87-012-287-080 0E C-CAP,U 0.015-25 F ABCDEFGHIJ..........
C 205 87-012-287-080 0E C-CAP,U 0.015-25 F ABCDEFGHIJ..........
C 204 87-012-287-080 0E C-CAP,U 0.015-25 F ABCDEFGHIJ..........
C 202 87-012-287-080 0E C-CAP,U 0.015-25 F ABCDEFGHIJ..........
C 208 87-A10-904-080 0E C-CAP,U 1-6.3 K B ABCDEFGHIJ..........
C 210 87-A10-904-080 0E C-CAP,U 1-6.3 K B ABCDEFGHIJ..........
CN 202 87-009-411-010 0E CONN,6P ZH V ABCDEFGHIJ..........
CN 201 87-A60-757-080 C-CONN,16P H IL-402R-16S ABCDEFGHIJ..........
D 201 87-A40-590-040 C-DIODE,HRW0202A ABCDEFGHIJ..........
IC 201 87-A21-083-040 C-IC,BH6508FS ABCDEFGHIJ..........
L 201 87-005-843-080 0E C-COIL,470UH K LQH3C ABCDEFGHIJ..........
Q 203 87-026-235-080 0E CHIP-TR,DTC114EK ABCDEFGHIJ..........
Q 201 87-026-239-080 0E TR,DTC114TK (0.2W) ABCDEFGHIJ..........
Q 202 89-324-121-080 0E C-TR,2SC2412K ABCDEFGHIJ..........
C 308 87-010-421-040 0E CAP,E 4.7-50 5L ABCDEFGHIJ..........
C 305 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 304 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 306 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 301 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGHIJ..........
C 303 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGHIJ..........
C 302 87-A11-066-080 C-CAP,TN 47-4 M TCMS-B2R ABCDEFGHIJ..........
C 315 87-010-498-040 0E CAP,E 10-16 GAS ABCDEFGHIJ..........
C 318 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJ..........
C 317 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJ..........
C 319 87-010-788-080 0E C-CAP,U 0.033-2.5F ABCDEFGHIJ..........
ELECTRICAL MAIN PARTS LIST - 2
C 311 87-010-788-080 0E C-CAP,U 0.033-2.5F ABCDEFGHIJ..........
C 313 87-012-195-080 0E C-CAP,U 100P-50CH ABCDEFGHIJ..........
C 316 87-012-278-080 0E C-CAP,U 2200P-50 B ABCDEFGHIJ..........
C 312 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGHIJ..........
C 314 87-A10-904-080 0E C-CAP,U 1-6.3 K B ABCDEFGHIJ..........
C 324 87-010-787-080 0E CAP, U 0.022-25 ABCDEFGHIJ..........
C 322 87-010-788-080 0E C-CAP,U 0.033-2.5F ABCDEFGHIJ..........
C 329 87-010-959-080 0E CHIP CAP,U 0.056-16F ABCDEFGHIJ..........
C 323 87-012-172-080 0E CAPACITOR CHIP U 10P CH ABCDEFGHIJ..........
C 327 87-A11-066-080 C-CAP,TN 47-4 M TCMS-B2R ABCDEFGHIJ..........
C 334 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJ..........
C 332 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGHIJ..........
C 331 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGHIJ..........
C 335 87-012-167-080 0E C-CAP,U 5P-50 CH ABCDEFGHIJ..........
C 358 87-010-503-040 0E CAP,E 220-4 GAS ABCDEFGHIJ..........
C 356 87-010-503-040 0E CAP,E 220-4 GAS ABCDEFGHIJ..........
C 350 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGHIJ..........
C 355 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 357 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFGHIJ..........
C 353 87-012-199-080 0E CAP 220P ABCDEFGHIJ..........
C 351 87-012-280-080 0E CAP, U 3300P-50 ABCDEFGHIJ..........
C 352 87-012-282-080 0E CAP, U 4700P-50 ABCDEFGHIJ..........
C 354 87-A10-463-080 0E C-CAP,U 0.47-10 Z F ABCDEFGHIJ..........
C 365 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 362 87-012-178-080 0E C-CAP,U 18P-50 CH ABCDEFGHIJ..........
C 363 87-012-178-080 0E C-CAP,U 18P-50 CH ABCDEFGHIJ..........
C 360 87-A10-463-080 0E C-CAP,U 0.47-10 Z F ABCDEFGHIJ..........
C 376 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 373 87-012-197-080 0E C-CAP,U 150P-50 CH ABCDEFGHIJ..........
C 374 87-012-197-080 0E C-CAP,U 150P-50 CH ABCDEFGHIJ..........
C 372 87-012-272-080 0E C-CAP,U 680P-50 B ABCDEFGHIJ..........
C 371 87-012-272-080 0E C-CAP,U 680P-50 B ABCDEFGHIJ..........
L 302 87-A50-367-080 C-COIL, 10UH LQG21F ABCDEFGHIJ..........
L 301 87-A50-367-080 C-COIL, 10UH LQG21F ABCDEFGHIJ..........
L 351 87-A50-011-080 0E C-COIL,47UH LQH3C ABCDEFGHIJ..........
Q 301 86-NFZ-687-080 0E C-TR,2SA1037S ABCDEFGHIJ..........
Q 305 87-026-233-080 0E TR,DTA114TK-TP ABCDEFGHIJ..........
Q 312 87-026-239-080 0E TR,DTC114TK (0.2W) ABCDEFGHIJ..........
R 301 87-022-253-080 0E C-RES U39K-1/16WF ABCDEFGHIJ..........
R 302 87-022-253-080 0E C-RES U39K-1/16WF ABCDEFGHIJ..........
R 303 87-022-287-080 0E C-RES,U 120K-1/16W F ABCDEFGHIJ..........
R 304 87-022-287-080 0E C-RES,U 120K-1/16W F ABCDEFGHIJ..........
X 351 81-592-641-010 1A CERAMIC FILTER, 16.93MHZ ABCDEFGHIJ..........
C 705 87-010-503-040 0E CAP,E 220-4 GAS ABCDEFGHIJ..........
C 706 87-010-503-040 0E CAP,E 220-4 GAS ABCDEFGHIJ..........
C 703 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 704 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 708 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGHIJ..........
C 707 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGHIJ..........
C 756 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJ..........
C 753 87-A10-904-080 0E C-CAP,U 1-6.3 K B ABCDEFGHIJ..........
C 752 87-A11-065-080 C-CAP,TN 10-4 M TCMS-AR ABCDEFGHIJ..........
FB 702 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJ..........
FB 701 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJ..........
FB 704 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJ..........
FB 703 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJ..........
J 701 85-HC5-616-010 1B JACK,3.5 ST W/R GRN ABCDEFGHIJ..........
J 701 87-A60-682-010 1B JACK,3.5 ST 7P ....................
C 402 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJ..........
C 403 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGHIJ..........
C 405 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFGHIJ..........
C 401 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGHIJ..........

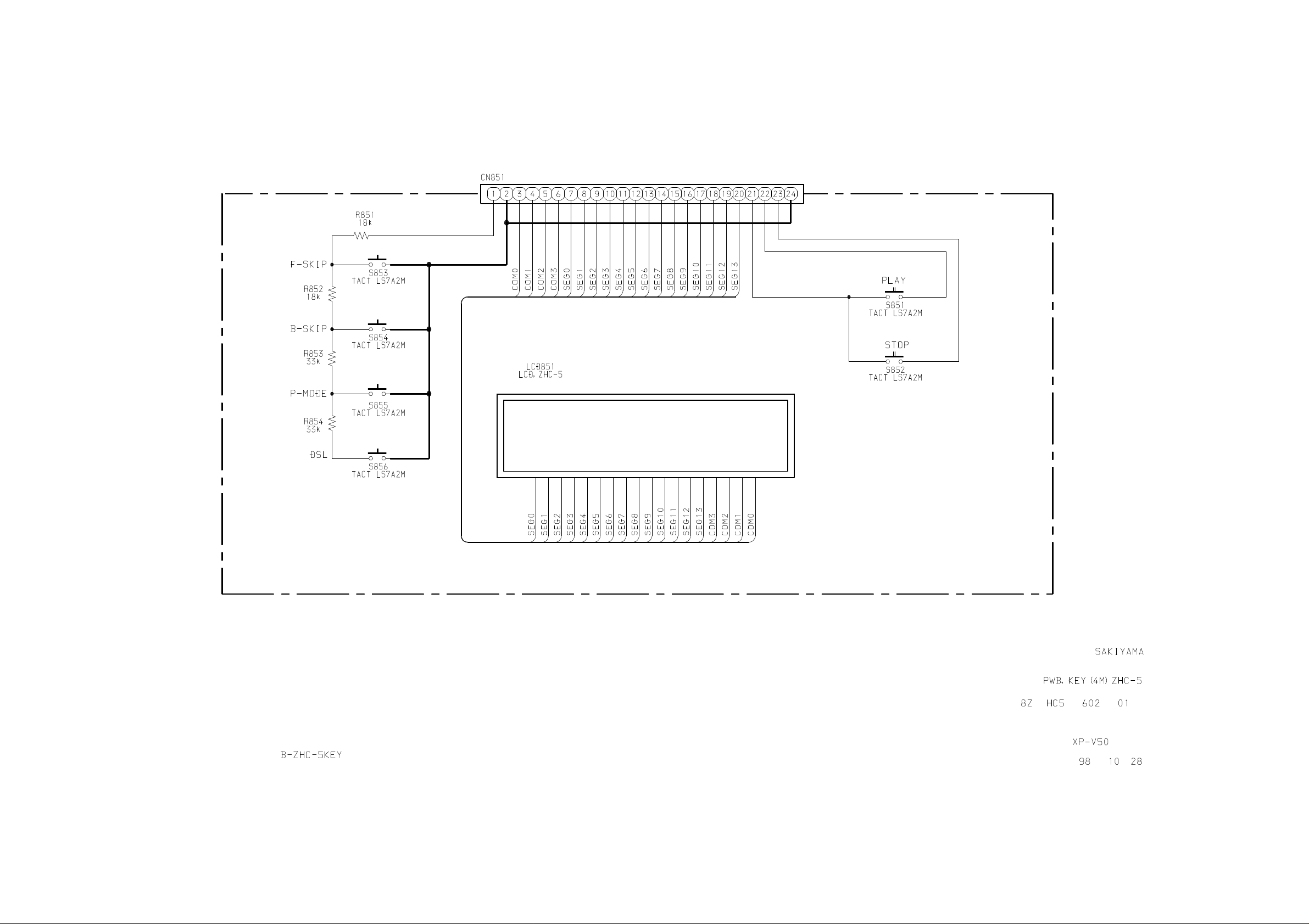

CN 851 87-A60-755-080 C-CONN,24P H 24FLZ-RSM1TB ABCDEFGHIJ..........
LCD 851 8Z-HC5-610-010 LCD,ZHC-5 ABCDEFGHIJ..........
S 851 87-A90-665-180 0E C-SW,TACT LS7A2M ABCDEFGHIJ..........
S 853 87-A90-665-180 0E C-SW,TACT LS7A2M ABCDEFGHIJ..........
S 852 87-A90-665-180 0E C-SW,TACT LS7A2M ABCDEFGHIJ..........
S 855 87-A90-665-180 0E C-SW,TACT LS7A2M ABCDEFGHIJ..........
S 856 87-A90-665-180 0E C-SW,TACT LS7A2M ABCDEFGHIJ..........
S 854 87-A90-665-180 0E C-SW,TACT LS7A2M ABCDEFGHIJ..........
IC 301 87-A21-087-010 1D C-IC,CXA2542AR ......GHIJ..........
IC 351 87-A20-916-010 2A C-IC,CXD3009Q ......GHIJ..........
IC 402 87-A21-088-010 2P C-IC,SM5904AF ......GHIJ..........
IC 751 87-A21-085-040 1C C-IC,TA2120FN ......GHIJ..........
IC 801 8Z-HC5-620-010 2A C-IC,CXP83417-152Q ......GHIJ..........
IC 801 8Z-HC5-621-010 C-IC,CXD83417-XXXQ ....................
