Aiwa XGE-15 Schematic

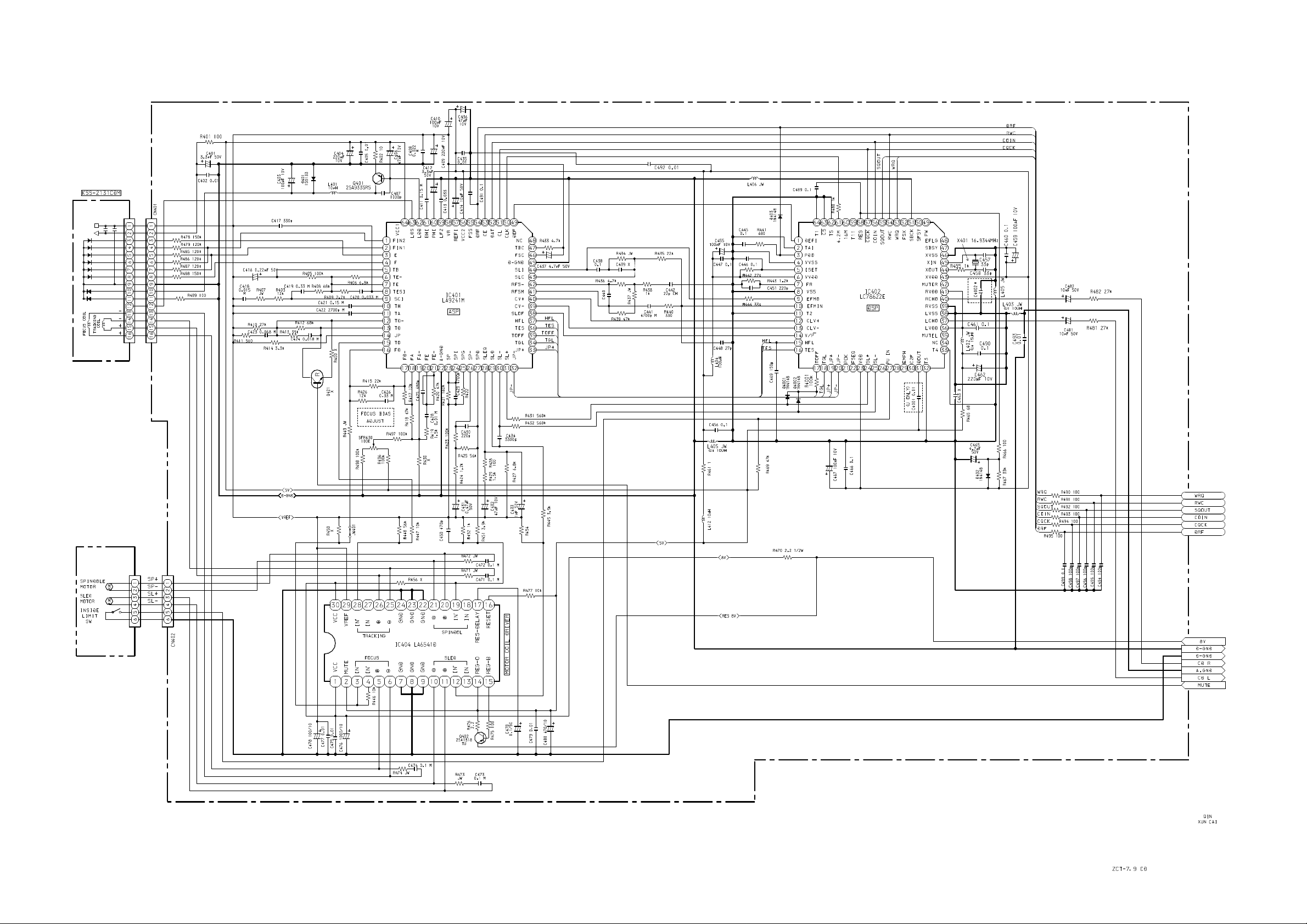

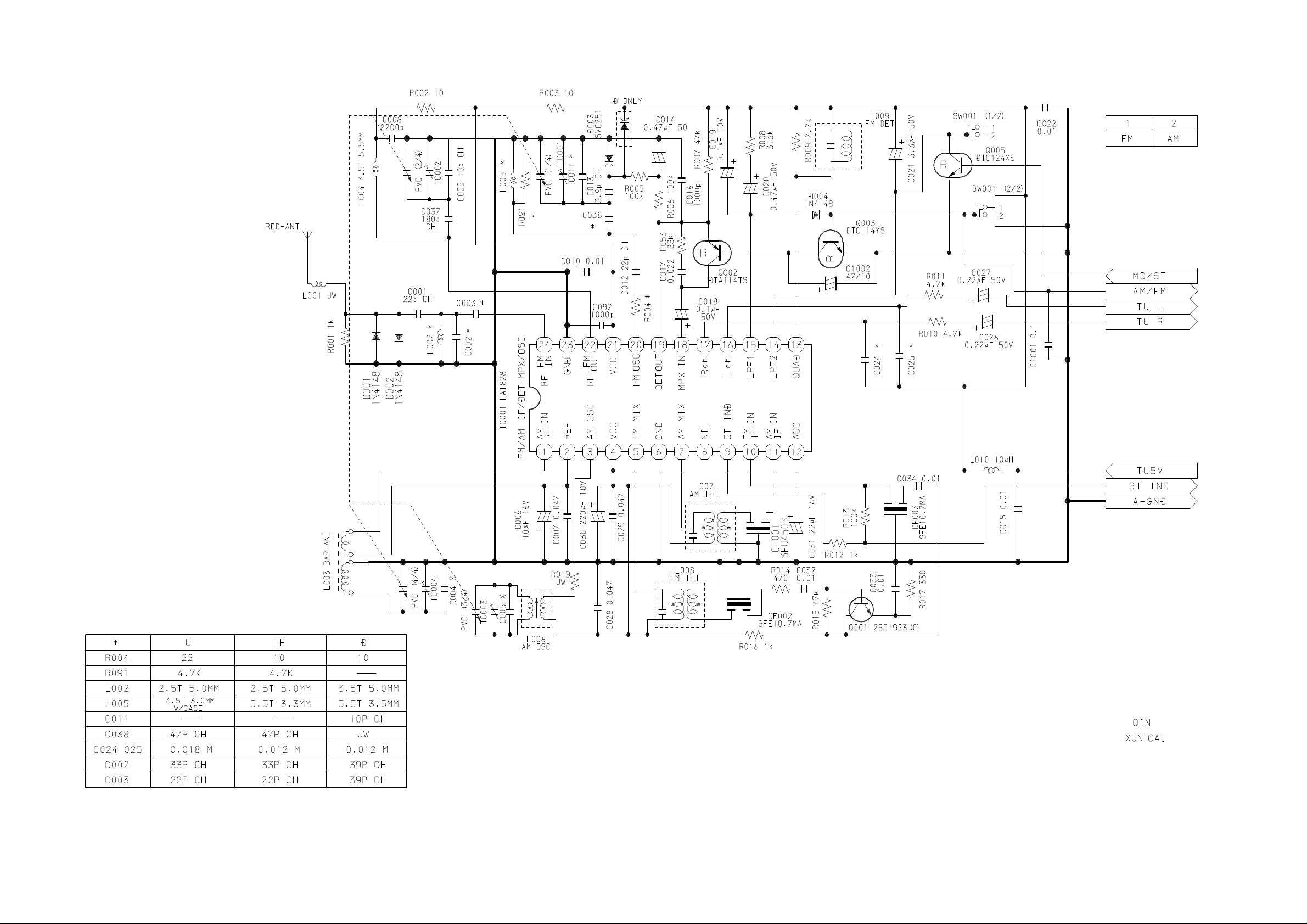

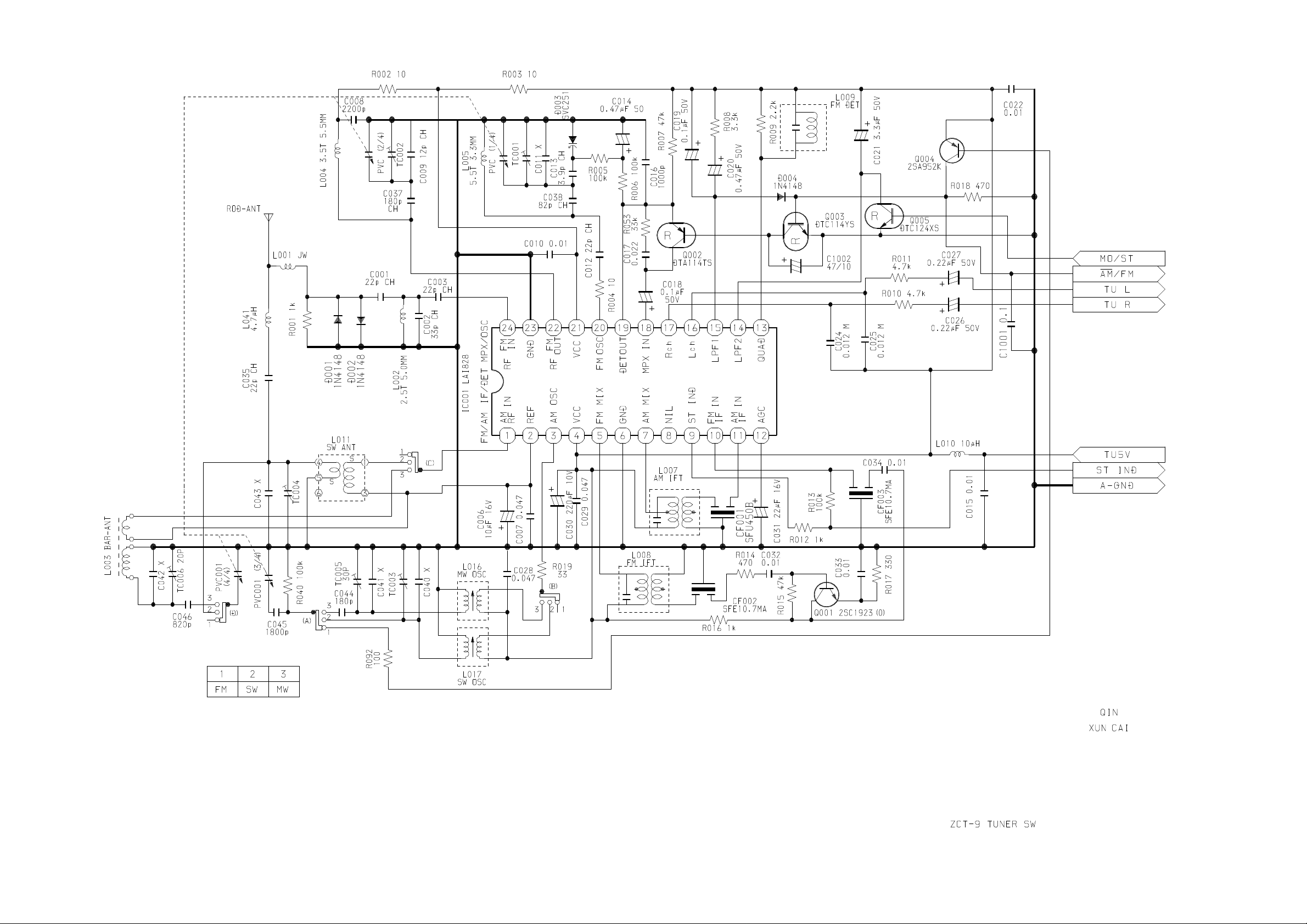

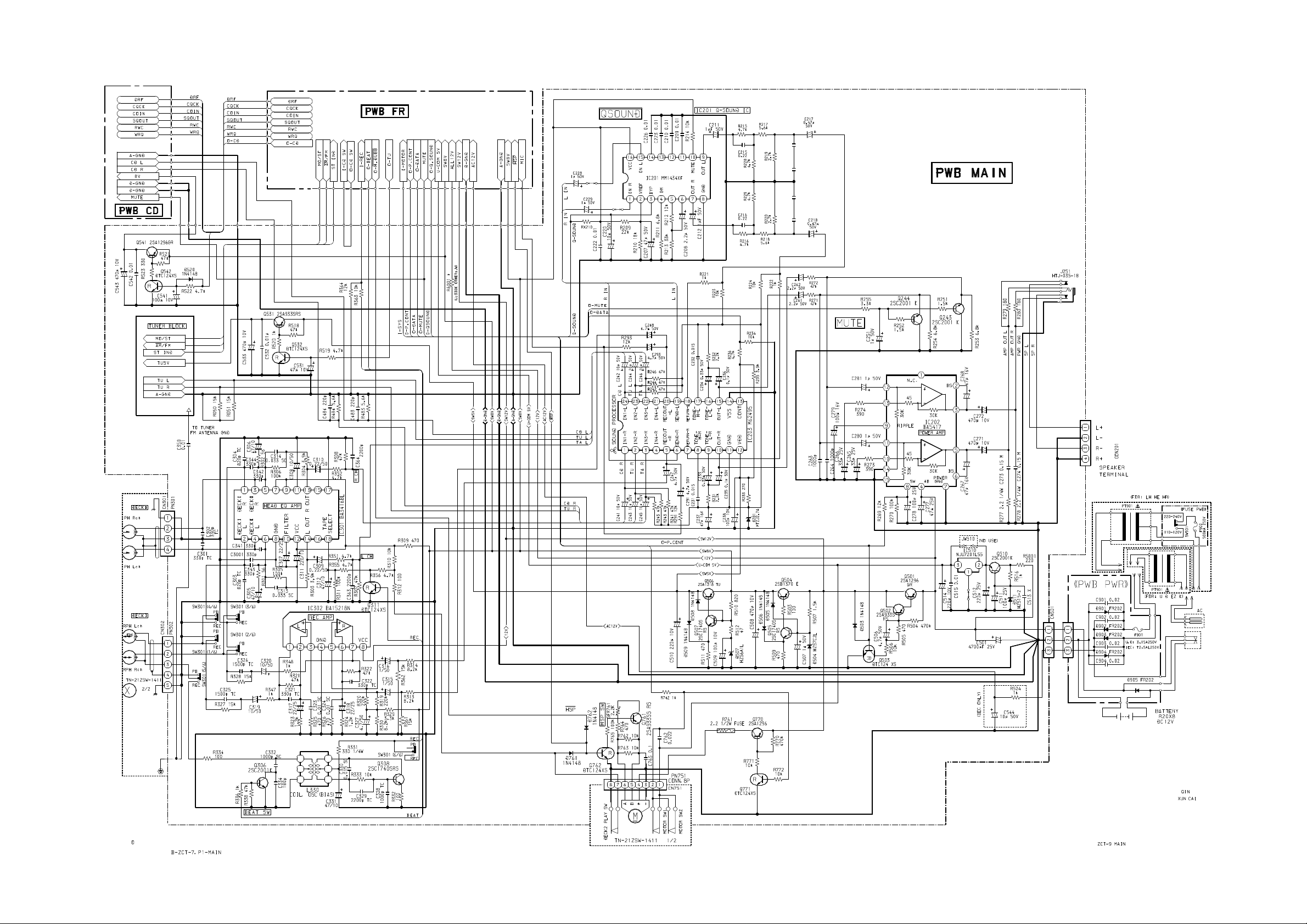

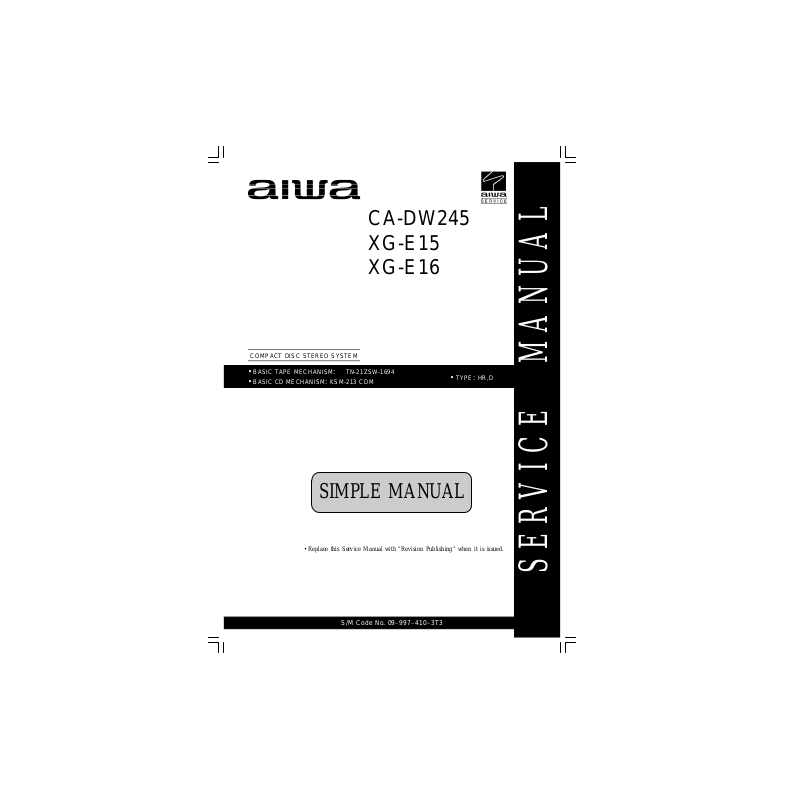

S E R V I C E M A N U A L
COMPACT DISC STEREO SYSTEM
CA-DW245
XG-E15
XG-E16
• BASIC TAPE MECHANISM: TN-21ZSW-1694
• BASIC CD MECHANISM: KSM-213 CDM
SIMPLE MANUAL
• TYPE: HR,D
• Replace this Service Manual with ”Revision Publishing” when it is issued.
S/M Code No. 09–997–410–3T3
ELECTRICAL PARTS LIST-1/5
NOTE: The characters in the suffix column indicate the part usage.
HRJSC ..................OO..................................A...................
15S ....................OO...................................B..................
16S ....................OO....................................C.................
KANR1
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 218 87-010-400-080 0E CAP, ELECT 0.47-50V ABC.................
C 217 87-010-400-080 0E CAP, ELECT 0.47-50V ABC.................
C 228 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 229 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 238 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 237 87-010-380-080 0E CAP, ELECT 47-16V ABC.................
C 235 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................
C 236 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................
C 234 87-010-546-080 0E CAP, ELECT 0.33-50V ABC.................
C 233 87-010-546-080 0E CAP, ELECT 0.33-50V ABC.................
C 247 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 248 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 243 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 241 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 242 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 246 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 244 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 245 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 261 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................
C 262 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................
C 291 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 293 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
D 281 87-A40-466-080 0E ZENER,MTZJ2.7A ABC.................
IC 203 87-A21-111-040 1C C-IC,M62495FP ABC.................
C 208 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................
C 207 87-010-408-080 0E CAP, ELECT 47-50V ABC.................
C 209 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 211 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 212 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 210 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 220 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 223 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 222 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 226 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
IC 201 87-A20-946-040 1D C-IC,MM1434XF ABC.................
C 251 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 267 87-010-380-080 0E CAP, ELECT 47-16V ABC.................
C 268 87-010-380-080 0E CAP, ELECT 47-16V ABC.................
C 265 87-010-383-080 0E CAP, ELECT 33-25V ABC.................
C 266 87-010-383-080 0E CAP, ELECT 33-25V ABC.................
C 263 87-018-131-080 0E CAP, CER 1000P-50V ABC.................
C 264 87-018-131-080 0E CAP, CER 1000P-50V ABC.................
C 279 87-010-112-080 0E CAP, ELECT 100-16V ABC.................
C 272 87-010-221-080 0E CAP, ELECT 470-10V ABC.................
C 271 87-010-221-080 0E CAP, ELECT 470-10V ABC.................
C 277 87-010-260-080 0E CAP, ELECT 47-25V ABC.................
C 278 87-010-384-080 0E CAP, ELECT 100-25V ABC.................
C 281 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 280 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
IC 202 87-A20-591-010 1C IC,BA5417 ABC.................
J 251 87-009-216-010 1A JACK, DIA 3.5 ABC.................
PN 201 88-CT6-621-010 SP TERMINAL 4P LEVER ABC.................
Q 244 89-320-011-010 0E TR,2SC2001 (0.6W) ABC.................
Q 243 89-320-011-010 0E TR,2SC2001 (0.6W) ABC.................
C 508 87-010-221-080 0E CAP, ELECT 470-10V ABC.................
C 509 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 507 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 506 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 501 87-010-453-010 1C CAP, ELECT 4700-25V ABC.................
C 514 87-010-248-080 0E CAP, ELECT 220-10V ABC.................
C 510 87-010-248-080 0E CAP, ELECT 220-10V ABC.................
C 511 87-010-384-080 0E CAP, ELECT 100-25V ABC.................
C 512 87-010-385-080 0E CAP, ELECT 220-25V ABC.................
C 533 87-010-221-080 0E CAP, ELECT 470-10V ABC.................
C 531 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 543 87-010-221-080 0E CAP, ELECT 470-10V ABC.................
C 541 87-010-374-080 0E CAP, ELECT 47-10V ABC.................
C 544 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
D 505 84-RM1-695-010 DIODE,1N4148 ABC.................
D 508 84-RM1-695-010 DIODE,1N4148 ABC.................
D 503 84-RM1-695-010 DIODE,1N4148 ABC.................
D 509 84-RM1-695-010 DIODE,1N4148 ABC.................
D 506 84-RM1-695-010 DIODE,1N4148 ABC.................
D 507 87-017-148-080 0E ZENER,HZS6A1L ABC.................
D 504 87-017-161-080 0E ZENER,HZS7C2L ABC.................
D 511 87-017-139-010 0E ZENER,HZS15-2 ABC.................
IC 510 87-070-416-010 1B IC,NJU7201 L55 ABC.................
PN 501 87-049-919-010 0E CONN,3P EH V WHT ABC.................
Q 503 87-026-291-010 1A TR,DTC124XS ABC.................
Q 507 87-026-462-010 0E TR,2SC1740S ABC.................
Q 505 87-026-462-010 0E TR,2SC1740S ABC.................
Q 502 87-026-463-010 0E TR,2SA933S,RS ABC.................
Q 506 88-NF9-637-010 TR,2SA1318T/U ABC.................
Q 501 89-112-965-010 0E TR,2SA1296GR ABC.................
ELECTRICAL PARTS LIST-2/5
Q 504 89-213-702-010 1A TR,2SB1370 (1.8W) ABC.................
Q 510 87-026-462-010 0E TR,2SC1740S ABC.................
Q 532 87-026-291-010 1A TR,DTC124XS ABC.................
Q 531 87-026-463-010 0E TR,2SA933S,RS ABC.................
Q 542 87-026-291-010 1A TR,DTC124XS ABC.................
Q 541 89-112-965-010 0E TR,2SA1296GR ABC.................
88-CT6-632-010 TERMINAL,ASSY MECHA 1P ABC.................
C 305 87-010-374-080 0E CAP, ELECT 47-10V ABC.................
C 306 87-010-374-080 0E CAP, ELECT 47-10V ABC.................
C 307 87-010-382-080 0E CAP, ELECT 22-25V ABC.................
C 308 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 309 87-010-545-080 0E CAP, ELECT 0.22-50V ABC.................
C 302 87-018-131-080 0E CAP, CER 1000P-50V ABC.................
C 301 87-018-131-080 0E CAP, CER 1000P-50V ABC.................
C 303 87-018-131-080 0E CAP, CER 1000P-50V ABC.................
C 304 87-018-131-080 0E CAP, CER 1000P-50V ABC.................
C 311 87-010-248-080 0E CAP, ELECT 220-10V ABC.................
C 312 87-010-374-080 0E CAP, ELECT 47-10V ABC.................
C 317 87-010-382-080 0E CAP, ELECT 22-25V ABC.................
C 318 87-010-382-080 0E CAP, ELECT 22-25V ABC.................
C 315 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 316 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 319 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 310 87-010-545-080 0E CAP, ELECT 0.22-50V ABC.................
C 327 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 320 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 322 87-018-125-080 0E CAP, CER 330P-50V ABC.................
C 321 87-018-125-080 0E CAP, CER 330P-50V ABC.................
C 328 87-018-131-080 0E CAP, CER 1000P-50V ABC.................
C 329 87-018-132-080 0E CAP, CER 2200P-16V ABC.................
C 326 87-018-196-080 0E CAP, CER 1500P-16V ABC.................
C 325 87-018-196-080 0E CAP, CER 1500P-16V ABC.................
C 331 87-010-374-080 0E CAP, ELECT 47-10V ABC.................
C 334 87-018-122-080 0E CAP 180P-50 B ABC.................
C 344 87-018-125-080 0E CAP, CER 330P-50V ABC.................
C 341 87-018-125-080 0E CAP, CER 330P-50V ABC.................
C 343 87-018-125-080 0E CAP, CER 330P-50V ABC.................
C 342 87-018-125-080 0E CAP, CER 330P-50V ABC.................
C 765 87-018-209-080 0E CAP, CER 0.1-50V ABC.................
D 761 84-RM1-695-010 DIODE,1N4148 ABC.................
D 762 84-RM1-695-010 DIODE,1N4148 ABC.................
IC 302 87-001-440-010 0E IC,BA15218N ABC.................
IC 301 87-020-828-010 1C IC,BA3416BL * ABC.................
L 330 88-CT6-620-010 REC OSC ABC.................
PN 301 87-A60-110-010 0E CONN,4P V S2M-4W ABC.................
PN 302 87-A60-111-010 0E CONN,5P V S2M 5W ABC.................
PN 751 87-099-832-010 0E CONN,8P S2M-8W ABC.................
Q 308 87-026-462-080 0E TR,2SC1740 S(RS 0.3W) ABC.................
Q 306 89-320-011-080 0E TR,2SC2001 (15W) ABC.................
Q 311 87-026-291-080 1A TR,DTC124XS ABC.................
Q 762 87-026-291-080 1A TR,DTC124XS ABC.................
Q 761 87-026-463-080 0E TR,2SA933S (0.3W) ABC.................
Q 771 87-026-291-080 1A TR,DTC124XS ABC.................
Q 770 89-112-965-080 0E TR,2SA1296 (0.75W) ABC.................
R 761 87-029-019-010 0E RES, FUSEIBLE 1/2W-2.2 ABC.................
SFR 761 87-024-239-010 0E SFR,2.2K V RH0632C ABC.................
SW 301 88-CT6-619-010 BACK SLIDE SW 6P2T SHORTIN ABC.................

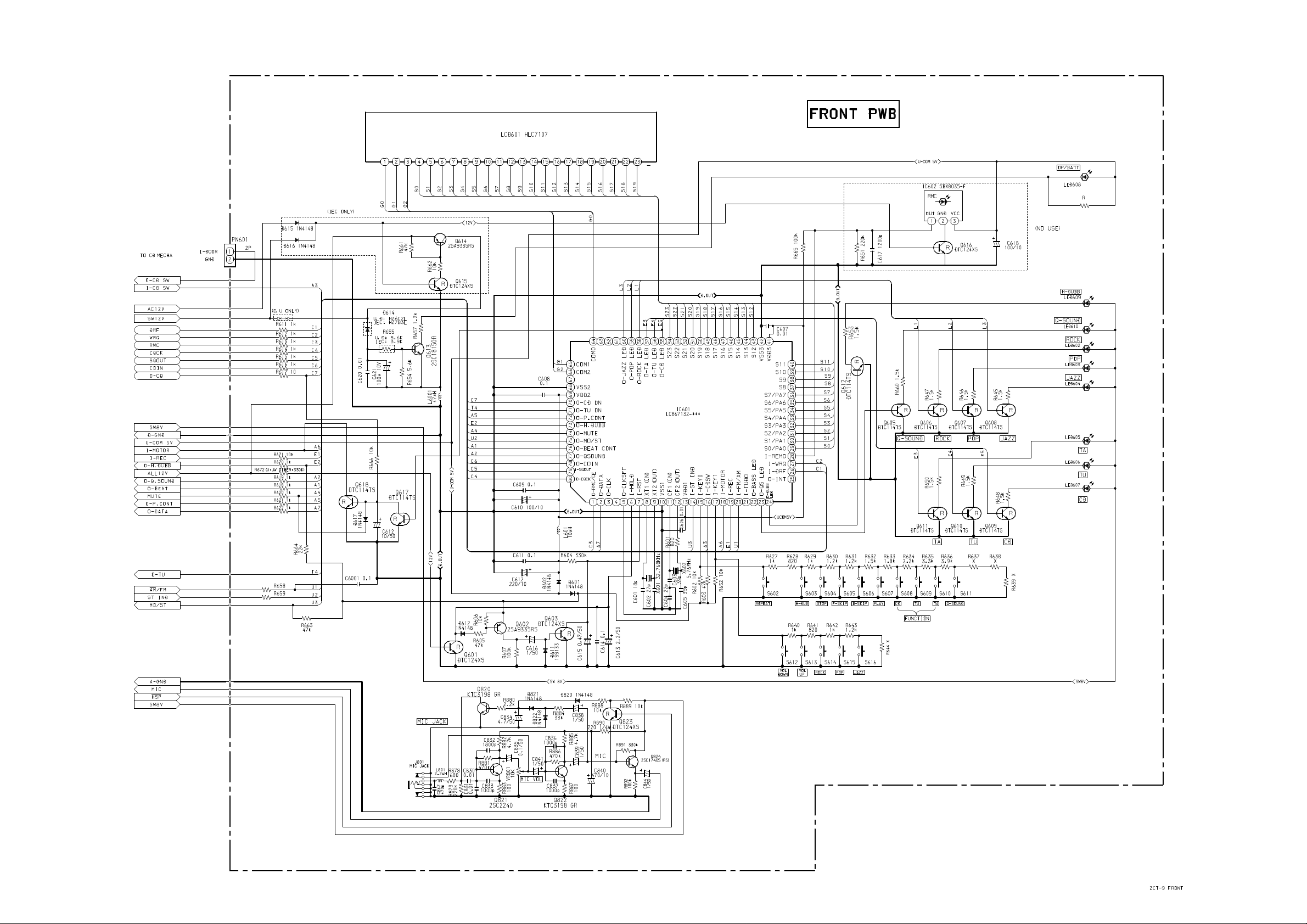

8Z-CT9-202-010 HLDR,LCD ABC.................
8Z-CT9-203-010 HLDR,LED A ABC.................
8Z-CT9-204-010 HLDR,LED B ABC.................
8Z-CT9-205-010 HLDR,LED C ABC.................
C 607 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 606 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 609 87-018-209-080 0E CAP, CER 0.1-50V ABC.................
C 608 87-018-209-080 0E CAP, CER 0.1-50V ABC.................
C 601 89-654-185-080 0E CAP,TC 18P-50 J CH UP125 ABC.................
C 604 89-654-215-080 0E CAP,TC 22P-50 J CH UP125 ABC.................
C 602 89-654-235-080 0E CAP TC 27P-50J CH ABC.................
C 603 89-654-275-080 0E CAP,TC 39P-50 J CH UP125 ABC.................
C 605 89-654-275-080 0E CAP,TC 39P-50 J CH UP125 ABC.................
C 612 87-010-248-080 0E CAP, ELECT 220-10V ABC.................
C 610 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 615 87-010-400-080 0E CAP, ELECT 0.47-50V ABC.................
C 616 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 613 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................
C 614 87-018-209-080 0E CAP, CER 0.1-50V ABC.................
C 611 87-018-209-080 0E CAP, CER 0.1-50V ABC.................
C 621 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 622 87-010-378-080 0E CAP, ELECT 10-16V ABC.................
C 620 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
D 602 84-RM1-695-010 DIODE,1N4148 ABC.................
D 601 84-RM1-695-010 DIODE,1N4148 ABC.................
D 616 84-RM1-695-010 DIODE,1N4148 ABC.................
D 615 84-RM1-695-010 DIODE,1N4148 ABC.................
D 612 84-RM1-695-010 DIODE,1N4148 ABC.................
D 611 84-RM1-695-010 DIODE,1N4148 ABC.................
D 617 84-RM1-695-010 DIODE,1N4148 ABC.................
D 614 87-027-607-080 0E ZENER,HZ7B3L ABC.................
IC 601 8Z-CH4-636-010 2A IC,LC867132V-**** ABC.................
L 601 87-003-171-010 0E COIL,15UH TROIDAL ABC.................
LCD 601 8Z-CT9-630-010 LCD,HLC7107 ZCT-9 ABC.................
LED 609 8Z-CT6-632-010 LED,L-934LID ABC.................
ELECTRICAL PARTS LIST-3/5
LED 606 8Z-CT6-632-010 LED,L-934LID ABC.................
LED 602 8Z-CT6-632-010 LED,L-934LID ABC.................
LED 607 8Z-CT6-632-010 LED,L-934LID ABC.................
LED 608 8Z-CT6-632-010 LED,L-934LID ABC.................
LED 603 8Z-CT6-632-010 LED,L-934LID ABC.................
LED 605 8Z-CT6-632-010 LED,L-934LID ABC.................
LED 604 8Z-CT6-632-010 LED,L-934LID ABC.................
LED 610 8Z-CT6-632-010 LED,L-934LID ABC.................
PN 601 87-A60-109-010 0E CONN,2P V S2M-2W ABC.................
Q 601 87-026-291-010 1A TR,DTC124XS ABC.................
Q 603 87-026-291-010 1A TR,DTC124XS ABC.................
Q 602 87-026-463-010 0E TR,2SA933S,RS ABC.................
Q 608 87-026-464-010 0E TR,DTC114TS ABC.................
Q 607 87-026-464-010 0E TR,DTC114TS ABC.................
Q 609 87-026-464-010 0E TR,DTC114TS ABC.................
Q 606 87-026-464-010 0E TR,DTC114TS ABC.................
Q 605 87-026-464-010 0E TR,DTC114TS ABC.................
Q 615 87-026-291-010 1A TR,DTC124XS ABC.................
Q 614 87-026-463-010 0E TR,2SA933S,RS ABC.................
Q 617 87-026-464-010 0E TR,DTC114TS ABC.................
Q 611 87-026-464-010 0E TR,DTC114TS ABC.................
Q 610 87-026-464-010 0E TR,DTC114TS ABC.................
Q 618 87-026-464-010 0E TR,DTC114TS ABC.................
Q 612 87-026-464-010 0E TR,DTC114TS ABC.................
Q 613 89-318-155-080 0E TR,2SC1815 (0.4W) ABC.................
S 613 8Z-CT6-636-010 SW,TACT EVQJAC04M ABC.................
S 615 8Z-CT6-636-010 SW,TACT EVQJAC04M ABC.................
S 614 8Z-CT6-636-010 SW,TACT EVQJAC04M ABC.................
S 616 8Z-CT6-636-010 SW,TACT EVQJAC04M ABC.................
S 612 8Z-CT6-636-010 SW,TACT EVQJAC04M ABC.................
X 601 87-030-273-010 1A VIB,XTAL 32.768K5PPM ABC.................
X 602 87-A70-070-080 1A VIB,CER 5.76MHZ CRHF ABC.................
C 838 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 839 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 834 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 835 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................
C 840 87-010-221-080 0E CAP, ELECT 470-10V ABC.................
C 841 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 844 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 842 87-018-127-080 0E CAP, CER 470P-50V ABC.................
D 820 84-RM1-695-010 DIODE,1N4148 ABC.................
D 821 84-RM1-695-010 DIODE,1N4148 ABC.................
D 822 84-RM1-695-010 DIODE,1N4148 ABC.................
J 801 88-CT6-625-010 JACK,MIC ABC.................
Q 823 87-026-291-080 1A TR,DTC124XS ABC.................
Q 824 87-026-462-080 0E TR,2SC1740 S(RS 0.3W) ABC.................
Q 820 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 822 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 821 89-322-405-080 0E TR,2SC2240GR ABC.................
VR 801 87-A90-768-010 VR,RTRY 10KAX1 1 H ABC.................
C 409 87-010-248-080 0E CAP, ELECT 220-10V ABC.................
C 404 87-010-248-080 0E CAP, ELECT 220-10V ABC.................
C 403 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 406 87-010-374-080 0E CAP, ELECT 47-10V ABC.................
C 401 87-010-403-080 0E CAP, ELECT 3.3-50V ABC.................
C 402 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 405 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 410 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 414 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 412 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................
C 416 87-010-545-080 0E CAP, ELECT 0.22-50V ABC.................
C 417 87-018-125-080 0E CAP, CER 330P-50V ABC.................
C 425 87-018-129-080 0E CAP, CER 680P-50V ABC.................
C 432 87-010-374-080 0E CAP, ELECT 47-10V ABC.................
C 436 87-010-374-080 0E CAP, ELECT 47-10V ABC.................
C 431 87-010-400-080 0E CAP, ELECT 0.47-50V ABC.................
C 433 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 437 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 430 87-018-123-080 0E CAP, CER 220P-50V ABC.................
C 435 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 442 87-018-059-080 0E CAP TC-S 22P-50CH ABC.................
C 448 87-018-111-080 0E CAP, CERA-SOL SS 27P ABC.................
C 459 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 455 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 457 87-018-106-080 0E CAP,TC-U 15P-50 SL ABC.................
C 458 87-018-106-080 0E CAP,TC-U 15P-50 SL ABC.................
C 453 87-018-119-080 0E CAP, CER 100P-50V ABC.................
C 454 87-018-120-080 0E CAP, CERA-SOL SS 120P ABC.................
C 451 87-018-123-080 0E CAP, CER 220P-50V ABC.................
C 452 87-018-127-080 0E CAP, CER 470P-50V ABC.................
C 450 87-018-127-080 0E CAP, CER 470P-50V ABC.................
C 462 87-010-248-080 0E CAP, ELECT 220-10V ABC.................
C 467 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 465 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 469 87-018-121-080 0E CAP, CER 150P-50V ABC.................
C 476 87-010-236-080 0E CAP,E 1000-10 SME ABC.................
C 478 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 470 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................
C 477 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 479 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 475 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................
C 480 87-010-221-080 0E CAP, ELECT 470-10V ABC.................
Loading...
