Aiwa SX-TV110 Schematic
SX-TV110
YJ

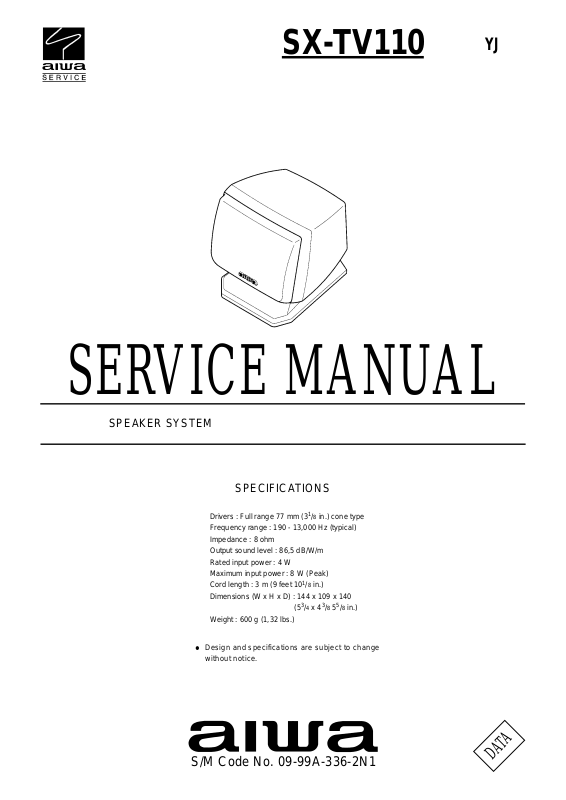

SERVICE MANUAL
SPEAKER SYSTEM
SPECIFICATIONS
Drivers : Full range 77 mm (31/8 in.) cone type
Frequency range : 190 - 13,000 Hz (typical)
Impedance : 8 ohm
Output sound level : 86,5 dB/W/m
Rated input power : 4 W
Maximum input power : 8 W (Peak)
Cord length : 3 m (9 feet 101/8 in.)
Dimensions (W x H x D) : 144 x 109 x 140
(53/4 x 43/8 55/8 in.)
Weight : 600 g (1,32 lbs.)
Design and specifications are subject to change
•
without notice.
S/M Code No. 09-99A-336-2N1
DATA
ACCESSORIES LIST
REF. NO PART NO. KANRI DESCRIPTION
1 87-YS5-902-010 IB,Y (E,S,R,G,A,PE) -S
NO.
MECHANICAL PARTS LIST
REF. NO PART NO. KANRI DESCRIPTION
1 87-YS5-011-010 CABI,FR ST
2 87-YS5-012-010 CABI,REAR ST
3 87-YS5-013-010 STAND,SPKR ST
4 87-YS5-014-010 GRILLE,SPKR ST
5 84-CD8-046-010 BADGE,AIWA 25-3.8
6 87-067-581-010 TAPPING SCREW, BVT2+3-15
7 87-YS5-219-010 HLDR,SPKR N
8 87-YS5-601-010 CORD,SPKR 3M
9 87-YS5-603-010 SPKR,7.7 8OHM DIAPM
NO.
920074
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111
Printed in Singapore
