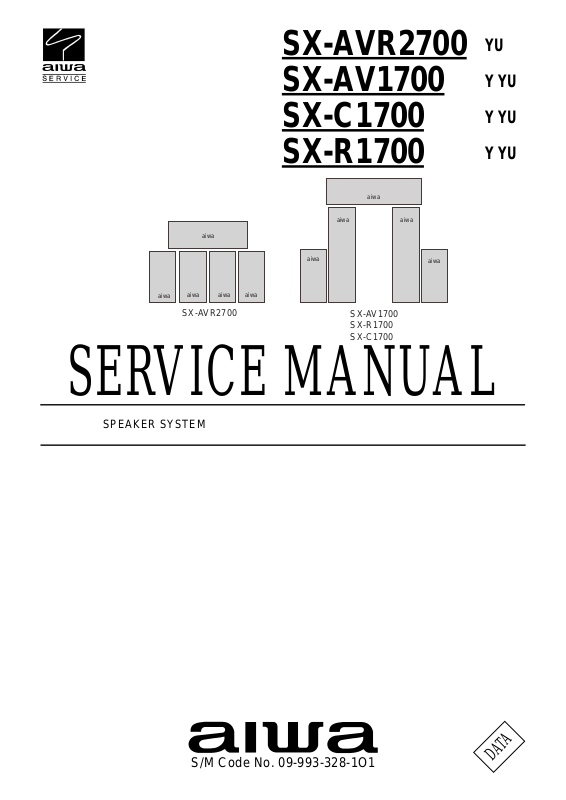

Page 1
SX-AVR2700
YU
aiwa
aiwa
aiwa
SX-AVR2700
SX-AV1700
SX-C1700
SX-R1700
aiwa
aiwa
aiwa
aiwaaiwa
SX-AV1700
SX-R1700
SX-C1700
aiwa
aiwa
Y YU
Y YU
Y YU
SERVICE MANUAL
SPEAKER SYSTEM
S/M Code No. 09-993-328-1O1
DATA
Page 2
SPECIFICATIONS
SX-AVR2700
Speaker Full-range: 100 mm x 2, cone type
Impedance 8 ohms
Maximum input power 150 W (peak)
Dimensions (W x H x D) Front: 120 x 230 x 110 mm (4
3
/4 x 91/8 x 4 in.)
Center: 360 x 120 x 110 mm (14
Surround: 120 x 230 x 110 mm (4
Weight Front: 1.8 kg (3 lbs 15 oz)
Center: 2.0 kg (4 lbs 7 oz)
Surround: 1.6 kg (3 lbs 8 oz)
• Design and specifications are subject to change without notice.
SX-AV1700
Speaker 2 way 3 speakers
Woofer: 100 mm, cone type
Tweeter: 60 mm, cone type
Passive radiator: 100 mm
Impedance 8 ohms
Maximum input power 75 W (peak)
Dimensions (W x H x D) 170 x 500 x 205 mm (6
Weight 2.8 kg (6 lbs 3 oz)
3
/4 x 193/4 x 81/8 in.)
1
/4 x 43/4 x 4 in.)
3
/4 x 91/8 x 4 in.)
• Design and specifications are subject to change without notice.
SX-C1700
Speaker Full-range: 100 mm x 2, cone type
Impedance 8 ohms
Maximum input power 75 W (peak)
3
Dimensions (W x H x D) 430 x 120 x 175 mm (17 x 4
/4 x 7 in.)
Weight 2.7 kg (5 lbs 15 oz)
• Design and specifications are subject to change without notice.
SX-R1700
Speaker Full-range: 100 mm x 1, cone type
Impedance 8 ohms
Maximum input power 75 W (peak)
Dimensions (W x H x D) 120 x 230 x 175 mm (4
Weight 1.9 kg (4 lbs 3 oz)
• Design and specifications are subject to change without notice.
3
/4 x 91/8 x 7 in.)
2
Page 3
SPEAKER DISASSEMBLY INSTRUCTIONS
Type.1
Type.4
Insert a flat-bladed screwdriver into the position indicated by the
arrows and remove the panel. Remove the screws of each speaker
unit andthen remove the speaker units.
Type.2
Remove the grill frame and four pieces of rubber caps by pulling
out with a flat-bladed screwdriver. Remove the screws from hold
where installed rubber caps. Insert a flat-bladed screwdriver into
the position indicated by the arrows and remove the panel. Remove the screws of each speaker unit and then remove the speaker
units.
TOOLS
1 Plastic head hammer
2 (-) flat head screwdriver
3 Cut chisel
1 2 3
How to Remove the PANEL, FR
1. Insert the (-) flat head screwdriver tip into the gap
between the PANEL, FR and the PANEL, SPKR. Tap
the head of the (-) flat head screwdriver with the plastic
hammer head, and create the clearance as shown in Fig-1.
2. Insert the cut chisel in the clearance, and tap the head of
the cut chisel with plastic hammer as shown in Fig-2, to
remove the PANEL, FR.
3. Place the speaker horizontally. Tap head of the cut
chisel with plastic hammer as shown in Fig-3, and
remove the PANEL, FR completely.
Type.3
Insert a flat-bladed screwdriver into the position indicated by the
arrows and remove the panel. Turn the speaker unit to counterclockwise direction while inserting a flat-bladed screwdriver into
one of the hollows arround speaker unit, and then remove the speaker
unit. After replacing the speaker unit, install it turnning to clockwise direction unit "click" sound comes out.
Fig-1 Fig-2
Fig-3
How to Attach the PANEL, FR
Attach the PANEL, FR to the PANEL, SPKR. Tap the four
corners of the PANEL, FR with the plastic hammer to fit the
PANEL, FR into the PANEL, SPKR completely.
3
Page 4
SPEAKER PARTS LIST
SX-AVR2700 (SX-AV2700, SX-C2700, SX-R2700)
REF. NO PART NO. KANRI DESCRIPTION
1 8Z-AS1-001-010 CABI,FR<AV,R>
2 8Z-AS1-003-010 GRILLE,FRAME ASSY<AV,R>
3 8Z-AS1-006-010 CABI,FR C
4 8Z-AS1-008-010 GRILLE,FRAME ASSY C
5 8Z-AS1-601-010 SPKR, 100<R>
6 8Z-AS1-602-010 SPKR, 100<AV,C>
7 8Z-AS1-011-010 TERMINAL,ASSY
8 88-AS1-609-010 SPKR, CORD 30M
NO.
SX-AV1700
REF. NO PART NO. KANRI DESCRIPTION
1 8Z-AS3-001-010 GRILLE,FRAME ASSY
2 88-AS4-602-010 SPKR, W160
3 8Z-AS3-602-010 SPKR, 100
4 8Z-AS3-608-010 SPKR, TW 60
5 8Z-AS3-005-010 TERMINAL,ASSY
6 88-AS1-609-010 SPKR, CORD 30M
NO.
SX-C1700
REF. NO PART NO. KANRI DESCRIPTION
1 8Z-AS4-001-010 GRILLE,FRAME ASSY
2 8Z-AS1-602-010 SPKR, 100
3 8Z-AS4-003-010 TERMINAL,ASSY
NO.
SX-R1700
REF. NO PART NO. KANRI DESCRIPTION
1 8Z-AS1-601-010 SPKR, 100
2 8Z-AS5-001-010 GRILLE,FRAME ASSY
3 8Z-AS5-005-010 TERMINAL,ASSY
NO.
920074
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111
