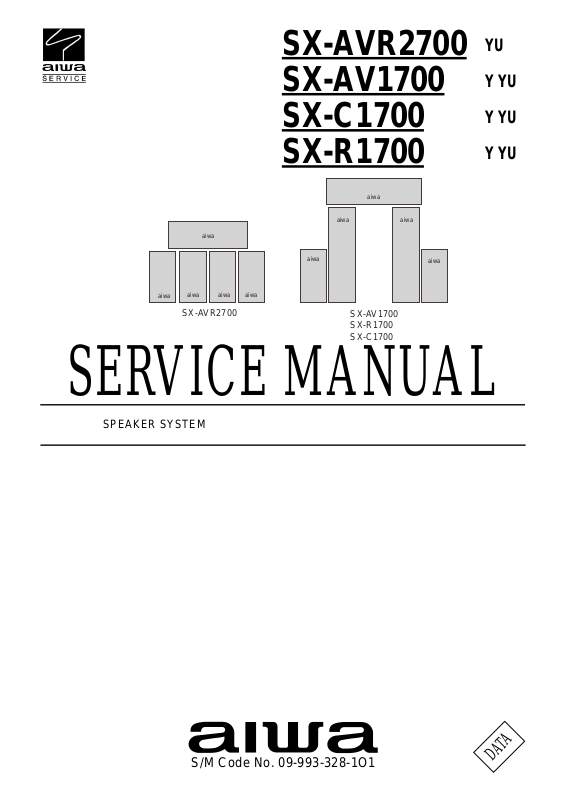

SERVICE MANUAL

SPEAKER SYSTEM

S/M Code No. 09-993-328-1O1

DATA

SPECIFICATIONS

SX-AVR2700

Speaker Full-range: 100 mm x 2, cone type
Impedance 8 ohms
Maximum input power 150 W (peak)
Dimensions (W x H x D) Front: 120 x 230 x 110 mm (4

3

/4 x 91/8 x 4 in.)
Center: 360 x 120 x 110 mm (14
Surround: 120 x 230 x 110 mm (4

Weight Front: 1.8 kg (3 lbs 15 oz)

Center: 2.0 kg (4 lbs 7 oz)
Surround: 1.6 kg (3 lbs 8 oz)

• Design and specifications are subject to change without notice.

SX-AV1700

Speaker 2 way 3 speakers

Woofer: 100 mm, cone type
Tweeter: 60 mm, cone type
Passive radiator: 100 mm

Impedance 8 ohms
Maximum input power 75 W (peak)
Dimensions (W x H x D) 170 x 500 x 205 mm (6
Weight 2.8 kg (6 lbs 3 oz)

3

/4 x 193/4 x 81/8 in.)

1

/4 x 43/4 x 4 in.)

3

/4 x 91/8 x 4 in.)

• Design and specifications are subject to change without notice.

SX-C1700

Speaker Full-range: 100 mm x 2, cone type
Impedance 8 ohms
Maximum input power 75 W (peak)

3

Dimensions (W x H x D) 430 x 120 x 175 mm (17 x 4

/4 x 7 in.)

Weight 2.7 kg (5 lbs 15 oz)

• Design and specifications are subject to change without notice.

SX-R1700

Speaker Full-range: 100 mm x 1, cone type
Impedance 8 ohms
Maximum input power 75 W (peak)
Dimensions (W x H x D) 120 x 230 x 175 mm (4
Weight 1.9 kg (4 lbs 3 oz)

• Design and specifications are subject to change without notice.

3

/4 x 91/8 x 7 in.)

2
