Aiwa NSX-S779 Schematic
S E R V I C E M A N U A L
COMPACT DISC STEREO
CASSETTE RECEIVER
NSX-S777
NSX-S779
• TYPE: HA(S777), LH(S779)
SIMPLE MANUAL
• Replace this Service Manual with "Revision Publishing" when it is issued.
S/M Code No. 09–993–403–5T3
ELECTRICAL MAIN PARTS LIST - 1/9
NOTE: The characters in the suffix column indicate the part usage.
777HA ..................XX.....................................D................
779LH ..................XX.......................................F..............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 505 87-010-178-080 CHIP CAP 1000P ...D................
C 502 87-010-196-080 CHIP CAPACITOR,0.1-25 ...D................
C 501 87-010-544-040 CAP,E 0.1-50 SME ...D................
C 503 87-010-544-040 CAP,E 0.1-50 SME ...D................
C 504 87-012-156-080 C-CAP,S 220P-50 CH ...D................
C 606 87-010-112-040 CAP,E 100-16 ..CD................
C 608 87-010-178-080 CHIP CAP 1000P ..C.................
C 601 87-010-186-080 CAP,CHIP 4700P ..CD................
C 607 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 605 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 603 87-010-320-080 CHIP CAP 68P ..CD................
C 602 87-010-405-040 CAP,E 10-50 ..C.................
C 604 87-010-546-040 CAP,E 0.33-50 ..CD................
C 621 87-010-178-080 CHIP CAP 1000P ..C.................
C 652 87-010-183-080 C-CAP,S 2700P-50 B ..CD................
C 653 87-010-213-080 C-CAP,S 0.015-50 B ..CD................
FB 601 87-A50-190-080 C-COIL,S BLM21A102S ..CD................
J 601 87-A60-651-010 JACK,3.5MONO ..CD................
J 602 87-A60-651-010 JACK,3.5MONO ..C.................
Q 502 87-A30-075-080 C-TR,2SA1235F ...D................
Q 501 87-A30-076-080 C-TR,2SC3052F ...D................
Q 604 87-A30-075-080 C-TR,2SA1235F ..CD................
Q 603 87-A30-076-080 C-TR,2SC3052F ..CD................
Q 602 87-A30-076-080 C-TR,2SC3052F ..C.................
Q 601 87-A30-087-080 C-FET,2SK2158 ..C.................
VR 501 86-NFA-607-010 VR,RTRY 10K15AX1 1 V XV0121PVN ...D................

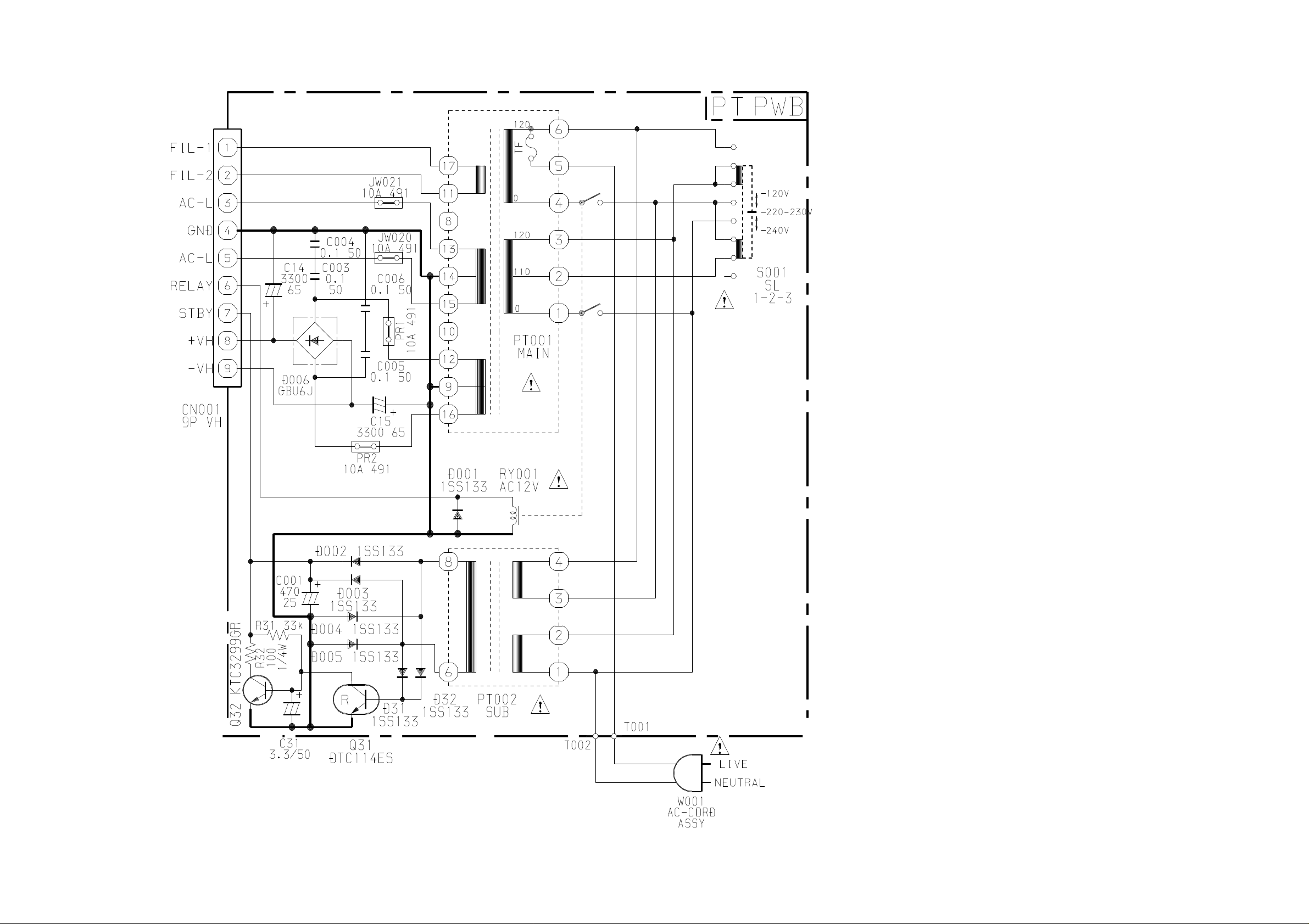

8Z-NF8-660-010 PT,SUB ZNF-8(D) ....................
C 1 87-010-387-080 CAP,E 470-25 SME ABCDE...............
C 8 87-016-520-000 CAP,E 3300-65 M SMG ABCDE...............
C 9 87-016-520-000 CAP,E 3300-65 M SMG ABCDE...............
C 2 87-018-209-080 CAP, CER 0.1-50V ABC.E...............
C 4 87-018-209-080 CAP, CER 0.1-50V ABCDE...............
C 6 87-018-209-080 CAP, CER 0.1-50V ABCDE...............
C 3 87-018-209-080 CAP, CER 0.1-50V ABCDE...............
C 5 87-018-209-080 CAP, CER 0.1-50V ABCDE...............
C 31 87-010-403-040 CAP,E 3.3-50 SME ABCDE...............
CN 1 87-A60-851-010 CONN,9P V VH ABCDE...............
D 1 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 5 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 2 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 4 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 3 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 6 87-A40-547-090 DIODE,D5SBA20 ...D................
D 6 87-A40-548-090 DIODE,D3SBA20 ABC.E...............
D 31 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 32 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
JW 21 87-026-682-080 PROTECTOR,10A 60V491 ...D................
JW 20 87-026-682-080 PROTECTOR,10A 60V491 ...D................
JW 20 87-A90-195-080 PROTECTOR 7A 125V 49 ABC.E...............
JW 21 87-A90-195-080 PROTECTOR 7A 125V 49 ABC.E...............
PR 2 87-026-682-080 PROTECTOR,10A 60V491 ABCDE...............
PR 1 87-026-682-080 PROTECTOR,10A 60V491 ABCDE...............
PR 1 87-026-691-080 FUSE,10A 125V 251 ....................
PR 2 87-026-691-080 FUSE,10A 125V 251 ....................
PR 3 87-A91-276-080 FUSE,125MA 125V F 251 ....................
PT 2 8Z-NF8-661-010 PT,SUB ZNF-8(U) ....................
PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) ABC.E...............
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) ...D................
Q 31 87-026-245-080 TR,DTC114ES ABCDE...............
Q 32 87-A30-198-080 TR,KTC3199GR ABCDE...............
RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR ABC.E...............
RY 1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 ...D................
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ...D................
T 1 87-A60-317-010 TERMINAL, 1P MSC ABCDE...............
T 2 87-A60-317-010 TERMINAL, 1P MSC ABCDE...............

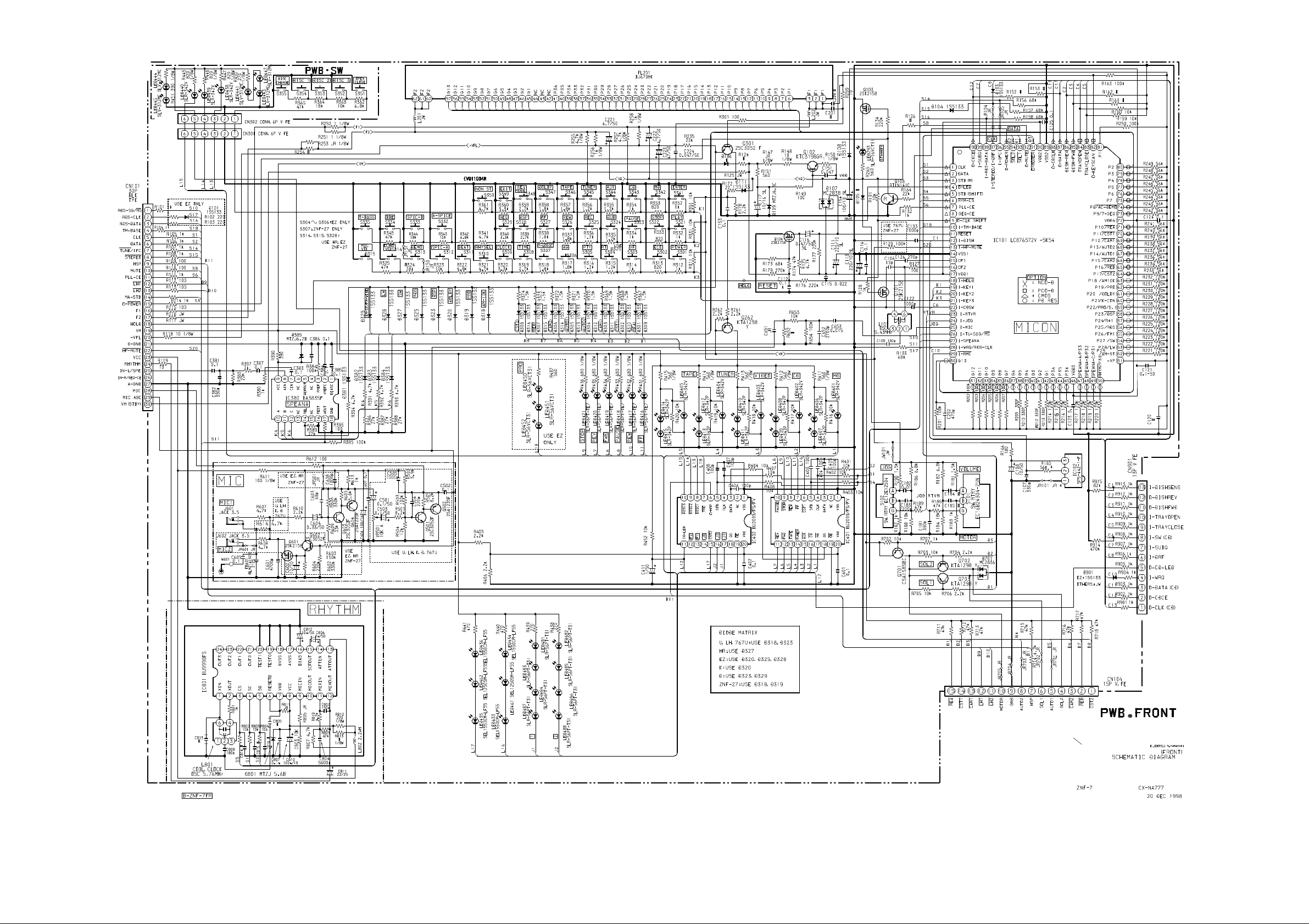

87-NF5-203-010 GUIDE,FL ..CD................
87-NF6-205-010 GUIDE,LED ..CD................
8Z-NF7-201-010 GUIDE,FUNCTION ..CD................
8Z-NF7-202-010 GUIDE,PLAY ..CD................
8Z-NF7-203-010 GUIDE,CD ..CD................
C 103 87-010-178-080 CHIP CAP 1000P ..CD................
C 106 87-010-312-080 C-CAP,S 15P-50 CH ..CD................
C 105 87-010-322-080 C-CAP,S 100P-50 CH ..CD................
C 108 87-010-405-040 CAP,E 10-50 ..CD................
C 107 87-012-157-080 C-CAP,S 330P-50 CH ..CD................
C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 115 87-010-198-080 CAP, CHIP 0.022 ..CD................
C 116 87-010-493-040 CAP,E 0.47-50 GAS ..CD................
C 117 87-010-498-040 CAP,E 10-16 GAS ..CD................
C 112 87-016-081-080 C-CAP,S 0.1-16 RK ..CD................
C 113 87-A11-242-040 CAP,E 220-10 M 5L SRM ..CD................
C 111 87-A11-242-040 CAP,E 220-10 M 5L SRM ..CD................
C 122 87-010-178-080 CHIP CAP 1000P ..CD................
C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
ELECTRICAL MAIN PARTS LIST - 2/9
C 124 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 126 87-012-145-080 CAP, CHIP S 270P CH ..CD................
C 121 87-012-368-080 C-CAP,S 0.1-50 F ..CD................
C 151 87-010-194-080 CAP, CHIP 0.047 ..CD................
C 153 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 154 87-010-264-040 CAP,E 100-10 5L ..CD................
C 183 87-010-182-080 C-CAP,S 2200P-50 B ..CD................
C 182 87-010-197-080 CAP, CHIP 0.01 DM ..CD................
C 181 87-012-157-080 C-CAP,S 330P-50 CH ..CD................
C 202 87-012-140-080 CAP 470P ..CD................
C 221 87-010-404-040 CAP,E 4.7-50 SME ..CD................
C 222 87-010-404-040 CAP,E 4.7-50 SME ..CD................
C 223 87-010-408-040 CAP,E 47-50 SME ..CD................
C 224 87-012-369-080 C-CAP,S 0.047-50F ..CD................
C 381 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 387 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 383 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 385 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 384 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 382 87-012-158-080 C-CAP,S 390P-50 CH ..CD................
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 408 87-010-322-080 C-CAP,S 100P-50 CH ..CD................
C 403 87-010-322-080 C-CAP,S 100P-50 CH ..CD................
C 407 87-010-322-080 C-CAP,S 100P-50 CH ..CD................
C 406 87-010-322-080 C-CAP,S 100P-50 CH ..CD................
C 405 87-010-322-080 C-CAP,S 100P-50 CH ..CD................
C 404 87-010-322-080 C-CAP,S 100P-50 CH ..CD................
C 411 87-010-401-040 CAP,E 1-50 SME ..CD................
CN 101 87-099-720-010 CONN,30P TYK-B(P) ..CD................
CN 104 87-A60-140-010 CONN,15P V FE ..CD................
CN 301 87-A60-131-010 CONN,6P V FE ..CD................
CN 302 87-A60-131-010 CONN,6P V FE ..CD................
CN 901 87-A60-138-010 CONN,13P V FE ..CD................
D 103 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 101 87-020-465-080 DIODE,1SS133 (110MA) ..C.................
D 104 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 108 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 107 87-A40-270-080 C-DIODE,MC2838 ..CD................
D 109 87-A40-509-080 ZENER,MTZJ6.8C ..CD................
D 111 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 305 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 306 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 307 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 303 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 308 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 301 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 304 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 302 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 309 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 312 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 315 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 311 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 316 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 313 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 310 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 314 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 318 87-020-465-080 DIODE,1SS133 (110MA) ...D................
D 329 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 328 87-020-465-080 DIODE,1SS133 (110MA) ..C.................
D 320 87-020-465-080 DIODE,1SS133 (110MA) ..C.................
D 325 87-020-465-080 DIODE,1SS133 (110MA) ..C.................
D 323 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 327 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 385 87-017-932-080 ZENER,MTJ6.2B ..CD................
D 384 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 383 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 382 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 381 87-020-465-080 DIODE,1SS133 (110MA) ..CD................
D 701 87-A40-269-080 C-DIODE,MC2836 ..CD................
D 901 87-020-465-080 DIODE,1SS133 (110MA) ..C.................
FL 201 8Z-NF7-610-010 FL,BJ679GK ..CD................
IC 102 87-A20-951-010 IC,TSOP1838RF1 ..CD................
IC 101 8Z-NF7-605-010 C-IC,LC876572W-**** ..CD................
IC 380 87-A21-023-040 C-IC,BA3835F ..CD................
IC 402 87-A21-021-040 C-IC,BU2099FV ..CD................
IC 401 87-A21-021-040 C-IC,BU2099FV ..CD................
L 101 87-A50-333-010 COIL,OSC 9.43MHZ ..CD................
LED 293 87-A40-589-040 LED,SLR-56VCT31 RED ..CD................
LED 404 87-A40-317-080 LED,SLR-342VCT31 RED ..CD................
LED 401 87-A40-317-080 LED,SLR-342VCT31 RED ..CD................
LED 403 87-A40-317-080 LED,SLR-342VCT31 RED ..CD................
LED 402 87-A40-317-080 LED,SLR-342VCT31 RED ..CD................
LED 405 87-A40-317-080 LED,SLR-342VCT31 RED ..CD................
LED 406 87-A40-496-040 LED,SLR-342MCT31 GRN ..CD................
LED 407 87-A40-496-040 LED,SLR-342MCT31 GRN ..CD................
LED 408 87-A40-496-040 LED,SLR-342MCT31 GRN ..CD................
LED 409 87-A40-496-040 LED,SLR-342MCT31 GRN ..CD................
LED 410 87-A40-496-040 LED,SLR-342MCT31 GRN ..CD................
LED 414 87-A40-496-040 LED,SLR-342MCT31 GRN ..CD................
LED 411 87-A40-496-040 LED,SLR-342MCT31 GRN ..CD................
ELECTRICAL MAIN PARTS LIST - 3/9
LED 413 87-A40-496-040 LED,SLR-342MCT31 GRN ..CD................
LED 412 87-A40-496-040 LED,SLR-342MCT31 GRN ..CD................
LED 415 87-A40-496-040 LED,SLR-342MCT31 GRN ..CD................
LED 417 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ..CD................
LED 416 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ..CD................
LED 418 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ..CD................
LED 419 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ..CD................
LED 420 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ..CD................
LED 421 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ..CD................
LED 438 87-A40-317-080 LED,SLR-342VCT31 RED ..CD................
LED 439 87-A40-317-080 LED,SLR-342VCT31 RED ..CD................
LED 433 87-A40-631-010 LED,SEL1550CM-LF55 GRN ..CD................
LED 435 87-A40-631-010 LED,SEL1550CM-LF55 GRN ..CD................
LED 434 87-A40-631-010 LED,SEL1550CM-LF55 GRN ..CD................
LED 436 87-A40-631-010 LED,SEL1550CM-LF55 GRN ..CD................
LED 440 87-A40-317-080 LED,SLR-342VCT31 RED ..CD................
LED 441 87-A40-637-040 LED,SLV-312MC GRN ..CD................
LED 444 87-A40-637-040 LED,SLV-312MC GRN ..CD................
LED 443 87-A40-637-040 LED,SLV-312MC GRN ..CD................
LED 442 87-A40-637-040 LED,SLV-312MC GRN ..CD................
LED 445 87-A40-637-040 LED,SLV-312MC GRN ..CD................
LED 462 87-A40-632-010 LED,SEL1250SM-LF55 RED ..CD................
LED 461 87-A40-632-010 LED,SEL1250SM-LF55 RED ..CD................
LED 486 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..CD................
LED 487 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..CD................
LED 482 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..CD................
LED 488 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..CD................
LED 484 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..CD................
LED 485 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..CD................
LED 483 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..CD................
LED 481 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..CD................
Q 102 87-026-610-080 TR,KTC3198GR ..CD................
Q 108 87-A30-073-080 C-TR,RT1N 141C ..CD................
Q 103 87-A30-087-080 C-FET,2SK2158 ..CD................
Q 104 87-A30-087-080 C-FET,2SK2158 ..CD................
Q 101 87-A30-087-080 C-FET,2SK2158 ..CD................
Q 262 87-A30-159-080 C-TR,KTA1298Y ..CD................
Q 301 87-A30-076-080 C-TR,2SC3052F ..CD................
Q 701 87-A30-200-080 TR,2SA1585SR ..CD................
Q 701 87-A30-240-080 TR,CSA1585BC ....................
Q 704 87-A30-318-080 TR,CSA952K ..CD................
Q 705 87-A30-318-080 TR,CSA952K ..CD................
R 212 87-012-157-080 C-CAP,S 330P-50 CH ..CD................
R 210 87-012-157-080 C-CAP,S 330P-50 CH ..CD................
R 213 87-012-157-080 C-CAP,S 330P-50 CH ..CD................
S 101 87-A90-471-010 SW,RTRY EC16B24304-25 NON ..CD................
S 102 87-A91-018-010 SW,RTRY EC12E12504ENC-30 ..CD................
S 305 87-A90-095-080 SW,TACT EVQ11G04M ..C.................
S 306 87-A90-095-080 SW,TACT EVQ11G04M ..C.................
S 302 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 308 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 304 87-A90-095-080 SW,TACT EVQ11G04M ..C.................
S 303 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 301 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 309 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 312 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 314 87-A90-095-080 SW,TACT EVQ11G04M ..C.................
S 311 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 313 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 310 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 315 87-A90-095-080 SW,TACT EVQ11G04M ..C.................
S 325 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 328 87-A90-095-080 SW,TACT EVQ11G04M ..C.................
S 329 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 323 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 322 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 321 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 327 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 326 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 324 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 332 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 333 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 334 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 335 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 347 87-A90-095-080 SW,TACT EVQ11G04M ..C.................
S 349 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 341 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 343 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 348 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 345 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 344 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 346 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 342 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 350 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 354 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 351 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 353 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 352 87-A90-095-080 SW,TACT EVQ11G04M ..CD................
S 355 87-A90-095-080 SW,TACT EVQ11G04M ..CD................

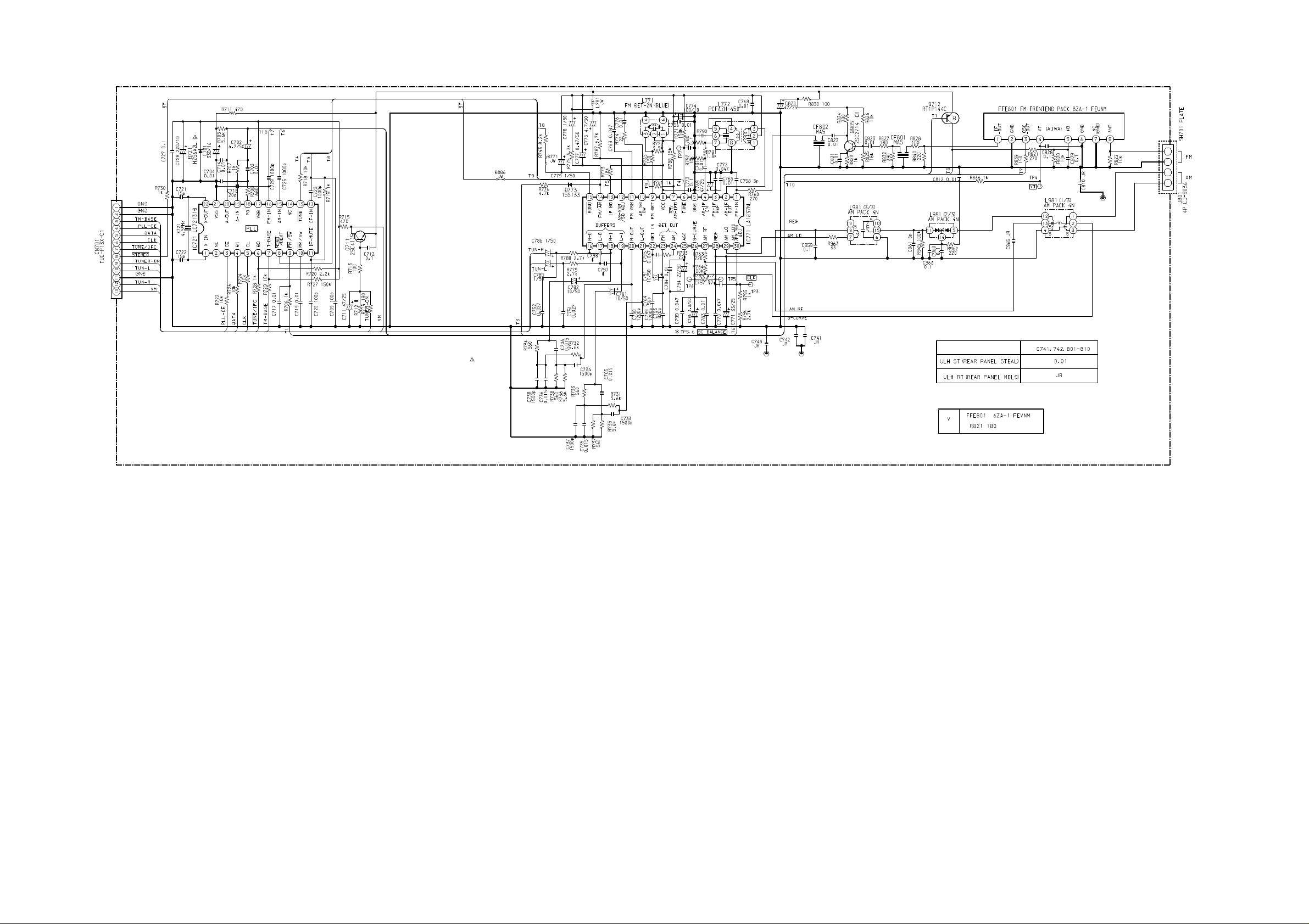

C 802 87-010-168-080 CAP, CHIP 150P ..CD................
C 804 87-010-187-080 CAP CHIP S5600P ..CD................
C 807 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
ELECTRICAL MAIN PARTS LIST - 4/9
C 805 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 806 87-010-401-040 CAP,E 1-50 SME ..CD................
C 809 87-012-155-080 C-CAP 180P-50CH ..CD................
C 810 87-010-263-040 CAP,E 100-10 ..CD................
C 811 87-010-382-040 CAP,E 22-25 SME ..CD................
C 812 87-010-405-040 CAP,E 10-50 ..CD................
D 801 87-017-931-080 ZENER,MTZJ5.6B ..CD................
IC 801 87-A21-051-040 C-IC,BU9990-03FS ..CD................
JW 801 87-008-372-080 FILTER, EMI BL OIRNI ..CD................
L 802 87-005-847-080 COIL,2.2UH(CECS) ..CD................
L 801 87-A50-093-010 COIL,CLOCK 5.76MHZ ..CD................

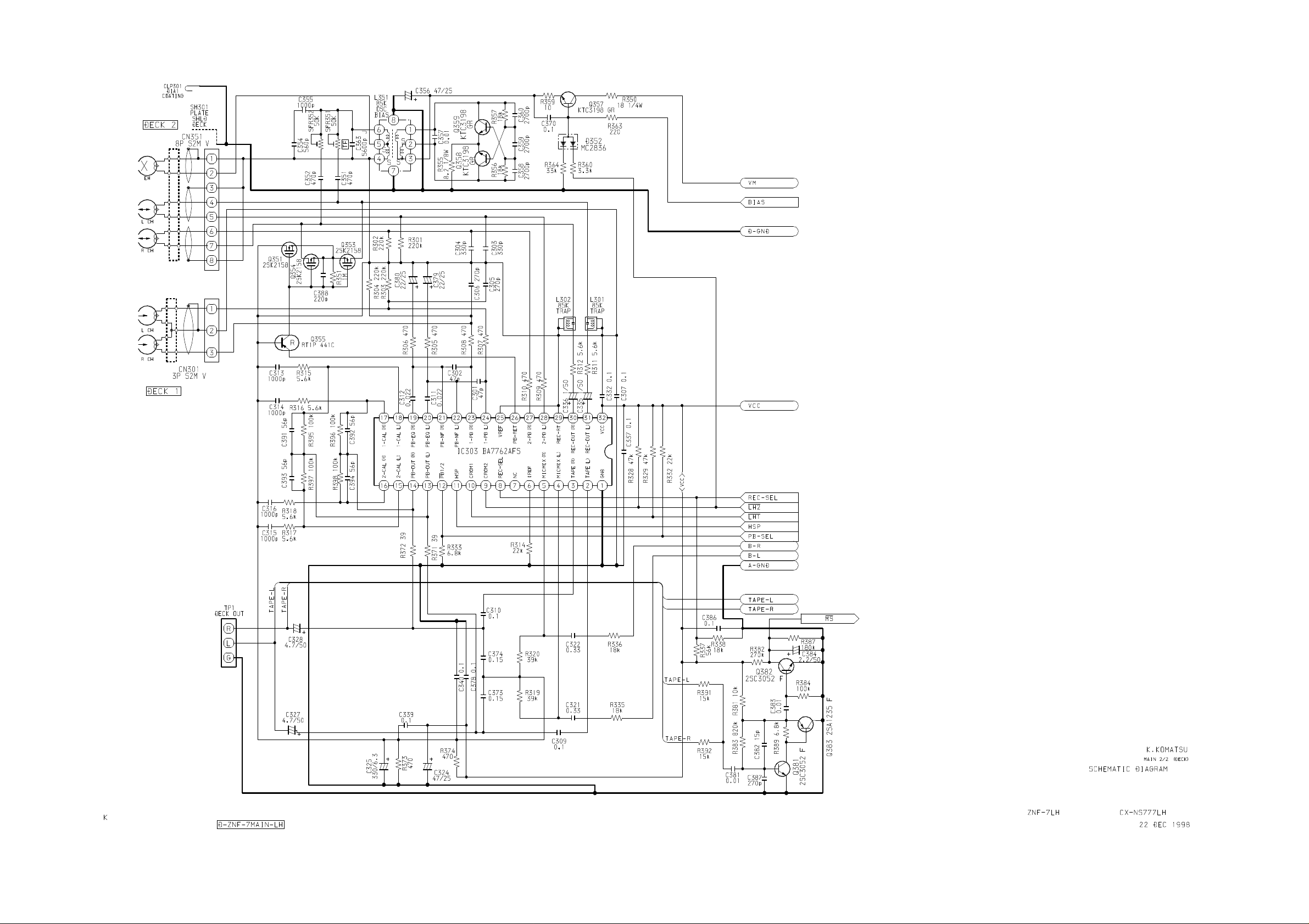

C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 ...D................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 302 87-010-318-080 C-CAP,S 47P-50 CH ABCDE...............
C 301 87-010-318-080 C-CAP,S 47P-50 CH ABCDE...............
C 305 87-012-145-080 CAP, CHIP S 270P CH ABCDE...............
C 306 87-012-145-080 CAP, CHIP S 270P CH ABCDE...............
C 304 87-012-157-080 C-CAP,S 330P-50 CH ABCDE...............
C 303 87-012-157-080 C-CAP,S 330P-50 CH ABCDE...............
C 316 87-010-178-080 CHIP CAP 1000P ABC.E...............
C 315 87-010-178-080 CHIP CAP 1000P ABC.E...............
C 313 87-010-179-080 CAP,CHIP S B1200P ...D................
C 316 87-010-179-080 CAP,CHIP S B1200P ...D................
C 314 87-010-179-080 CAP,CHIP S B1200P ...D................
C 315 87-010-179-080 CAP,CHIP S B1200P ...D................
C 313 87-010-181-080 CAP,CHIP S 1800P ABC.E...............
C 314 87-010-181-080 CAP,CHIP S 1800P ABC.E...............
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 ...D................
C 312 87-010-198-080 CAP, CHIP 0.022 ABCDE...............
C 311 87-010-198-080 CAP, CHIP 0.022 ABCDE...............
C 319 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABC.E...............
C 317 87-A10-201-080 C-CAP,S0.33-16 KB ABC.E...............
C 318 87-A10-201-080 C-CAP,S0.33-16 KB ABC.E...............
C 324 87-010-260-080 CAP, ELECT 47-25V ABCDE...............
C 325 87-010-370-080 CAP,E 330-6.3 SME ABCDE...............
C 327 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 328 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 320 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABC.E...............
C 322 87-016-492-080 C-CAP,S 0.33-16 FZ ABCDE...............
C 321 87-016-492-080 C-CAP,S 0.33-16 FZ ABCDE...............
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 336 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 335 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 354 87-010-175-080 CAP 560P ABCDE...............
C 359 87-010-183-080 C-CAP,S 2700P-50 B ABCDE...............
C 358 87-010-183-080 C-CAP,S 2700P-50 B ABCDE...............
C 357 87-010-197-080 CAP, CHIP 0.01 DM ABCDE...............
C 356 87-010-260-080 CAP, ELECT 47-25V ABCDE...............
C 352 87-012-140-080 CAP 470P ABCDE...............
C 351 87-012-140-080 CAP 470P ABCDE...............
C 355 87-012-349-080 C-CAP,S 1000P-50 CH ABCDE...............
C 360 87-010-183-080 C-CAP,S 2700P-50 B ABCDE...............
C 363 87-A10-292-080 CAP,M 5600P-50 J ABCDE...............
C 372 87-010-175-080 CAP 560P ABC.E...............
C 371 87-010-175-080 CAP 560P ABC.E...............
C 373 87-010-179-080 CAP,CHIP S B1200P ABC.E...............
C 374 87-010-179-080 CAP,CHIP S B1200P ABC.E...............
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 379 87-010-382-080 CAP, ELECT 22-25V ...D................
C 375 87-010-545-080 CAP, ELECT 0.22-50V ABC.E...............
C 376 87-010-545-080 CAP, ELECT 0.22-50V ABC.E...............
C 373 87-016-083-080 C-CAP,S 0.15-16 RK ...D................
C 374 87-016-083-080 C-CAP,S 0.15-16 RK ...D................
C 385 87-010-184-080 CHIP CAPACITOR 3300P(K) ABC.E...............
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 381 87-010-197-080 CAP, CHIP 0.01 DM ABCDE...............
C 383 87-010-197-080 CAP, CHIP 0.01 DM ABCDE...............
C 382 87-010-312-080 C-CAP,S 15P-50 CH ...D................
C 382 87-010-318-080 C-CAP,S 47P-50 CH ABC.E...............
C 380 87-010-382-080 CAP, ELECT 22-25V ...D................
C 384 87-010-402-080 CAP, ELECT 2.2-50V ABCDE...............
C 387 87-012-145-080 CAP, CHIP S 270P CH ...D................
C 388 87-012-156-080 C-CAP,S 220P-50 CH ABCDE...............
C 392 87-010-319-080 C-CAP,S 56P-50 CH ...D................
C 391 87-010-319-080 C-CAP,S 56P-50 CH ...D................
C 393 87-010-319-080 C-CAP,S 56P-50 CH ...D................
C 394 87-010-319-080 C-CAP,S 56P-50 CH ...D................
C 394 87-012-145-080 CAP, CHIP S 270P CH ABC.E...............
C 391 87-012-145-080 CAP, CHIP S 270P CH ABC.E...............
C 392 87-012-145-080 CAP, CHIP S 270P CH ABC.E...............
C 393 87-012-145-080 CAP, CHIP S 270P CH ABC.E...............
CN 301 87-099-827-010 CONN,3P S2M-3W ABCDE...............
CN 351 87-099-832-010 CONN,8P S2M-8W ABCDE...............
D 352 87-A40-269-080 C-DIODE,MC2836 ABCDE...............
FB 301 87-008-372-080 FILTER, EMI BL OIRNI ABC.E...............
IC 302 87-A20-355-010 IC,CXA1553P ABC.E...............
IC 303 87-A20-783-040 C-IC,BA7762AFS ABCDE...............
L 302 87-A50-049-010 COIL,TRAP 85K(COI) ABCDE...............
ELECTRICAL MAIN PARTS LIST - 5/9
L 301 87-A50-049-010 COIL,TRAP 85K(COI) ABCDE...............
L 351 87-007-342-010 COIL,OSC 85K BIAS ABCDE...............
Q 359 87-026-610-080 TR,KTC3198GR ABCDE...............
Q 358 87-026-610-080 TR,KTC3198GR ABCDE...............
Q 357 87-026-610-080 TR,KTC3198GR ABCDE...............
Q 356 87-A30-076-080 C-TR,2SC3052F ABC.E...............
Q 354 87-A30-087-080 C-FET,2SK2158 ABCDE...............
Q 351 87-A30-087-080 C-FET,2SK2158 ABCDE...............
Q 353 87-A30-087-080 C-FET,2SK2158 ABCDE...............
Q 355 87-A30-105-080 C-TR,RT1P 441C ABCDE...............
Q 383 87-A30-075-080 C-TR,2SA1235F ...D................
Q 382 87-A30-076-080 C-TR,2SC3052F ABCDE...............
Q 381 87-A30-076-080 C-TR,2SC3052F ABCDE...............
SFR 306 87-A90-433-080 SFR,50K H NVZ6TLTA ABC.E...............
SFR 305 87-A90-433-080 SFR,50K H NVZ6TLTA ABC.E...............
SFR 302 87-A90-557-080 SFR,33K H HOKU ABC.E...............
SFR 304 87-A90-557-080 SFR,33K H HOKU ABC.E...............
SFR 303 87-A90-557-080 SFR,33K H HOKU ABC.E...............
SFR 301 87-A90-557-080 SFR,33K H HOKU ABC.E...............
SFR 352 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDE...............
SFR 351 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDE...............
C 407 87-010-188-080 CAP,CHIP 6800P ABCDE...............
C 408 87-010-188-080 CAP,CHIP 6800P ABCDE...............
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 402 87-010-260-080 CAP, ELECT 47-25V ABCDE...............
C 404 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 406 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 405 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 403 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 409 87-012-140-080 CAP 470P ABCDE...............
C 415 87-010-197-080 CAP, CHIP 0.01 DM ABCDE...............
C 416 87-010-197-080 CAP, CHIP 0.01 DM ABCDE...............
C 419 87-010-260-080 CAP, ELECT 47-25V ABCDE...............
C 412 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 414 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 413 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 411 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 418 87-010-956-080 CHIP-CAP,S 0.068-25B ABCDE...............
C 417 87-010-956-080 CHIP-CAP,S 0.068-25B ABCDE...............
C 410 87-012-140-080 CAP 470P ABCDE...............
D 402 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 401 87-A40-269-080 C-DIODE,MC2836 ABCDE...............
IC 401 87-A21-022-040 C-IC,BA3880FS ABCDE...............
C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 451 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 452 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 452 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 451 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 459 87-A10-299-080 CAP,M 0.022-50 J ABCDE...............
C 455 87-A10-305-080 CAP,M 0.068-50 J ABCDE...............
C 456 87-A10-305-080 CAP,M 0.068-50 J ABCDE...............
C 461 87-018-119-080 CAP, CER 100P-50V ABCDE...............
C 465 87-A10-299-080 CAP,M 0.022-50 J ABCDE...............
C 460 87-A10-299-080 CAP,M 0.022-50 J ABCDE...............
C 466 87-A10-299-080 CAP,M 0.022-50 J ABCDE...............
IC 451 87-A21-031-040 C-IC,BU4551BF ABCDE...............
87-067-579-010 TAPPING SCREW, BVT2+3-8 ABCDE...............

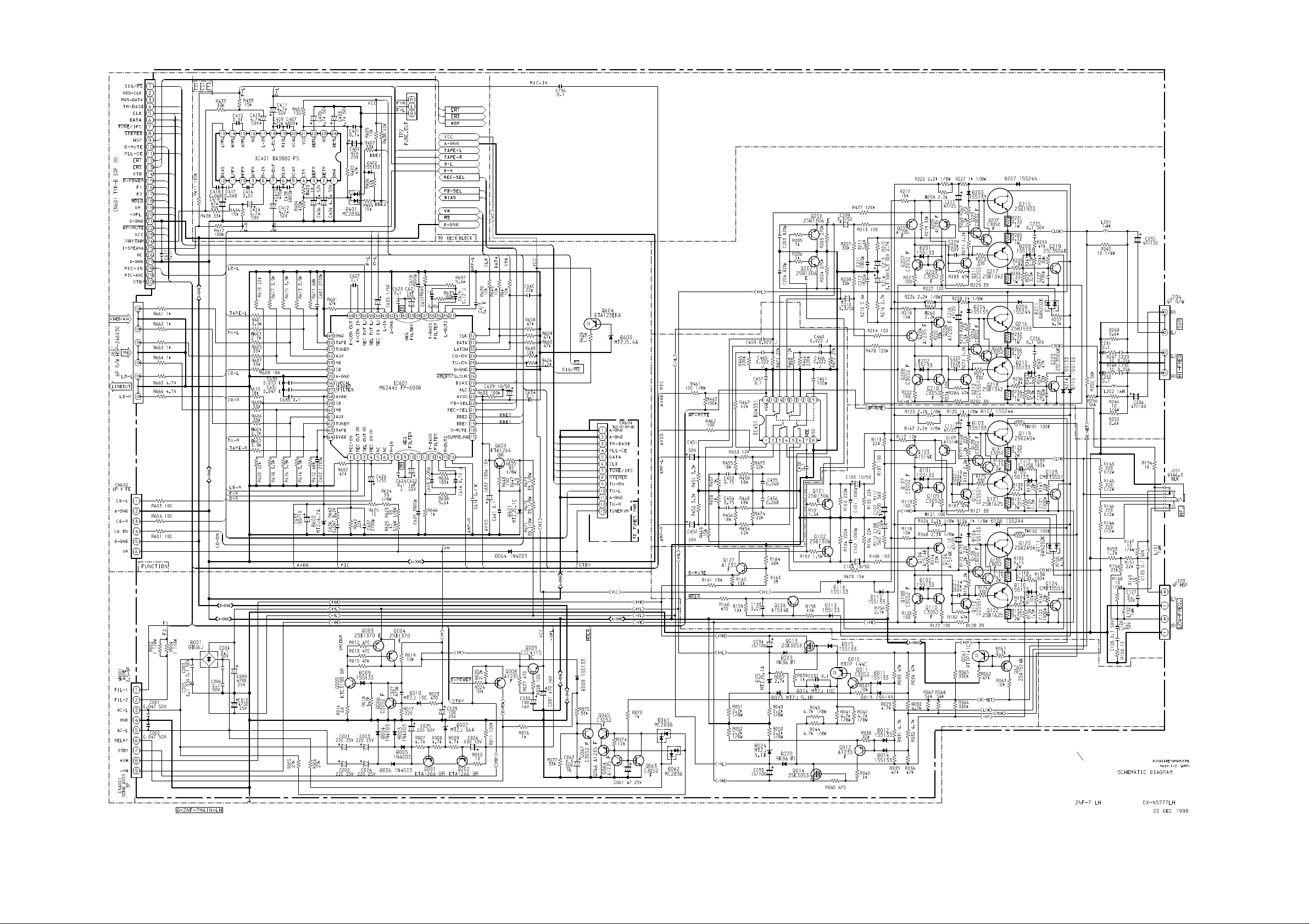

C 9 87-010-928-090 CAP,E 4700-25 SMG ABCDE...............
C 6 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 3 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 4 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 5 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 2 87-012-369-080 C-CAP,S 0.047-50F ABCDE...............
C 1 87-012-369-080 C-CAP,S 0.047-50F ABCDE...............
C 10 87-010-928-090 CAP,E 4700-25 SMG ABCDE...............
C 27 87-010-197-080 CAP, CHIP 0.01 DM ABC.E...............
C 26 87-010-263-080 CAP, ELECT 100-10V ABCDE...............
C 28 87-010-263-080 CAP, ELECT 100-10V ....................
C 29 87-010-384-080 CAP, ELECT 100-25V ABCDE...............
C 21 87-010-385-080 CAP, ELECT 220-25V ABCDE...............
C 24 87-010-385-080 CAP, ELECT 220-25V ABCDE...............
C 22 87-010-385-080 CAP, ELECT 220-25V ABCDE...............
C 23 87-010-385-080 CAP, ELECT 220-25V ABCDE...............
C 25 87-010-409-080 CAP,E 220-50 SME ABCDE...............
C 27 87-012-140-080 CAP 470P ...D................
C 30 87-010-112-080 CAP, ELECT 100-16V ABCDE...............
C 31 87-010-235-080 CAP,E 470-16 SME ABCDE...............
C 61 87-010-260-080 CAP, ELECT 47-25V ABCDE...............
C 62 87-010-496-080 CAP,E 3.3-50 5L ABCDE...............
CNA 1 8Z-NF8-669-010 CONN ASSY,9P VH ABCDE...............
D 8 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 9 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 6 87-070-274-080 DIODE,1N4003 SEM ABCDE...............
D 3 87-070-274-080 DIODE,1N4003 SEM ABCDE...............
D 4 87-070-274-080 DIODE,1N4003 SEM ABCDE...............
D 5 87-070-274-080 DIODE,1N4003 SEM ABCDE...............
D 7 87-A40-341-080 ZENER,MTZJ 36 A ABCDE...............
D 1 87-A40-547-090 DIODE,D5SBA20 ABCDE...............
D 10 87-A40-345-080 ZENER,MTZJ10C ABCDE...............
D 64 87-070-274-080 DIODE,1N4003 SEM ABCDE...............
D 62 87-A40-269-080 C-DIODE,MC2836 ABCDE...............
ELECTRICAL MAIN PARTS LIST - 6/9
D 61 87-A40-270-080 C-DIODE,MC2838 ABCDE...............
Q 1 87-026-609-080 TR,KTA1266GR ABCDE...............
Q 2 87-026-609-080 TR,KTA1266GR ABCDE...............
Q 5 87-026-610-080 TR,KTC3198GR ABCDE...............
Q 7 87-A30-075-080 C-TR,2SA1235F ....................
Q 8 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 6 87-A30-076-080 C-TR,2SC3052F ABCDE...............
Q 9 87-A30-234-080 TR,CSC4115BC ABCDE...............
Q 4 89-213-702-010 TR,2SB1370 (1.8W) ABCDE...............
Q 3 89-213-702-010 TR,2SB1370 (1.8W) ABCDE...............
Q 66 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 64 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 67 87-A30-076-080 C-TR,2SC3052F ABCDE...............
Q 65 87-A30-076-080 C-TR,2SC3052F ABCDE...............
Q 63 87-A30-076-080 C-TR,2SC3052F ABCDE...............
R 20 87-A00-261-080 RES,M/F 0.56-1W J ....................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABCDE...............
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDE...............
C 34 87-010-405-080 CAP, ELECT 10-50V ABC.E...............
C 33 87-010-405-080 CAP, ELECT 10-50V ABC.E...............
C 32 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 33 87-016-299-080 CAP,E 10-100 SME ...D................
C 34 87-016-299-080 CAP,E 10-100 SME ...D................
C 101 87-010-178-080 CHIP CAP 1000P ABCDE...............
C 102 87-010-178-080 CHIP CAP 1000P ABCDE...............
C 101 87-010-183-080 C-CAP,S 2700P-50 B ....................
C 102 87-010-183-080 C-CAP,S 2700P-50 B ....................
C 105 87-010-186-080 CAP,CHIP 4700P ....................
C 106 87-010-186-080 CAP,CHIP 4700P ....................
C 109 87-010-322-080 C-CAP,S 100P-50 CH ABC.E...............
C 104 87-010-400-080 CAP, ELECT 0.47-50V ....................
C 103 87-010-400-080 CAP, ELECT 0.47-50V ....................
C 108 87-010-403-080 CAP, ELECT 3.3-50V ....................
C 107 87-010-403-080 CAP, ELECT 3.3-50V ....................
C 104 87-010-405-080 CAP, ELECT 10-50V ABCDE...............
C 103 87-010-405-080 CAP, ELECT 10-50V ABCDE...............
C 108 87-010-408-080 CAP, ELECT 47-50V ABCDE...............
C 107 87-010-408-080 CAP, ELECT 47-50V ABCDE...............
C 112 87-010-260-080 CAP, ELECT 47-25V ABCDE...............
C 111 87-010-260-080 CAP, ELECT 47-25V ABCDE...............
C 110 87-010-322-080 C-CAP,S 100P-50 CH ABC.E...............
C 118 87-016-247-080 C-CAP,0.1-50 F ABCDE...............
C 117 87-016-247-080 C-CAP,0.1-50 F ABCDE...............
C 114 87-A10-812-080 C-CAP,S 220P-200 J CH ABCDE...............
C 113 87-A10-812-080 C-CAP,S 220P-200 J CH ABCDE...............
C 124 87-010-176-080 C-CAP,S 680P-50 SL ABC.E...............
C 123 87-010-176-080 C-CAP,S 680P-50 SL ABC.E...............
C 121 87-010-178-080 CHIP CAP 1000P ABCDE...............
C 122 87-010-178-080 CHIP CAP 1000P ABCDE...............
C 129 87-010-191-080 C-CAP,S 0.015-50 F ABC.E...............
C 126 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 127 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 128 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 125 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 130 87-010-191-080 C-CAP,S 0.015-50 F ABC.E...............
C 136 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 133 87-010-197-080 CAP, CHIP 0.01 DM ABCDE...............
C 131 87-010-197-080 CAP, CHIP 0.01 DM ABC.E...............
C 132 87-010-197-080 CAP, CHIP 0.01 DM ABC.E...............
D 13 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 15 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 12 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 14 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 11 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 19 87-A40-183-090 DIODE,RK36(F) ABCDE...............
D 16 87-A40-345-080 ZENER,MTZJ10C ABCDE...............
D 24 87-070-136-080 ZENER,MTZJ5.1B ABCDE...............
D 23 87-070-136-080 ZENER,MTZJ5.1B ABCDE...............
D 20 87-A40-183-090 DIODE,RK36(F) ABCDE...............
D 25 87-A40-345-080 ZENER,MTZJ10C ABC.E...............
D 25 87-A40-346-080 ZENER,MTZJ 8.2C ....................
D 24 87-A40-438-080 ZENER,MTZJ4.7A ....................
D 25 87-A40-442-080 ZENER,MTZJ9.1A ...D................
D 102 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 104 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 103 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 109 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 101 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 108 87-A40-488-080 DIODE,1SS244 ABCDE...............
D 107 87-A40-488-080 DIODE,1SS244 ABCDE...............
D 111 87-020-331-080 CHIP-DIODE,DAN202K ...D................
D 110 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 114 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 115 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 112 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 113 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 111 87-A40-270-080 C-DIODE,MC2838 ABC.E...............
J 203 87-033-240-010 TERMINAL,SP 4P32SV1-05 ABCDE...............
J 201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM ABCDE...............
J 201 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT ....................
L 101 87-003-383-010 COIL,1UH-S ABCDE...............
L 102 87-003-383-010 COIL,1UH-S ABCDE...............
Loading...
