NSX-S16

EZ,K

NSX-A111
NSX-S111
NSX-S112
NSX-A115
NSX-S116
NSX-S119

U
HA,LH,HR,HE,

HS,EZ,K,G,V

EZ

U

HC,EZ

LH

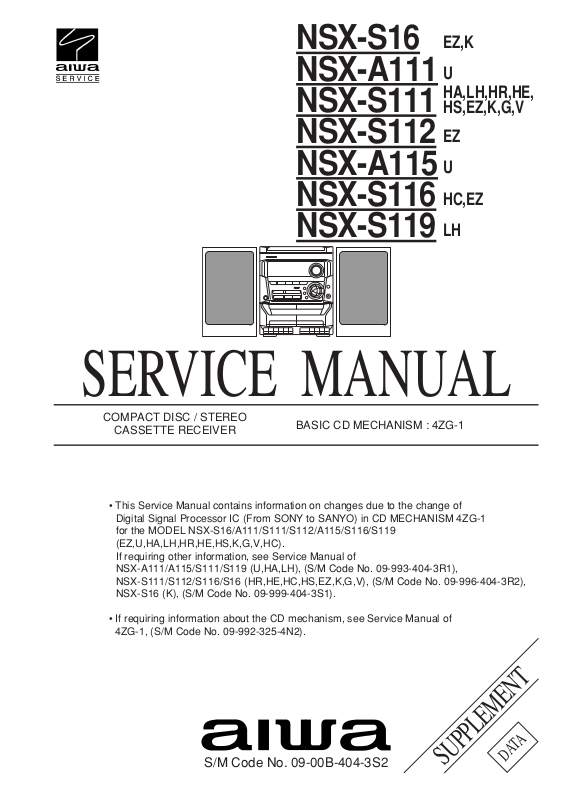

SERVICE MANUAL

COMPACT DISC / STEREO

CASSETTE RECEIVER

• This Service Manual contains information on changes due to the change of
Digital Signal Processor IC (From SONY to SANYO) in CD MECHANISM 4ZG-1
for the MODEL NSX-S16/A111/S111/S112/A115/S116/S119
(EZ,U,HA,LH,HR,HE,HS,K,G,V,HC).
If requiring other information, see Service Manual of
NSX-A111/A115/S111/S119 (U,HA,LH), (S/M Code No. 09-993-404-3R1),
NSX-S111/S112/S116/S16 (HR,HE,HC,HS,EZ,K,G,V), (S/M Code No. 09-996-404-3R2),
NSX-S16 (K), (S/M Code No. 09-999-404-3S1).

• If requiring information about the CD mechanism, see Service Manual of

4ZG-1, (S/M Code No. 09-992-325-4N2).

BASIC CD MECHANISM : 4ZG-1

S/M Code No. 09-00B-404-3S2

SUPPLEMENT

DATA

SYSTEM COMBINATION TABLE

SYSTEM

NSX-S16 EZ CX-NS16 4ZG-1 Z3RNDSHJM

NSX-S16 K CX-NS16 4ZG-1 Z4RNDSHC

NSX-A111 U CX-NA111 4ZG-1 Z3RNDSHJM

NSX-S111

NSX-S112 EZ CX-NS112 4ZG-1 Z3RNDSHJM

NSX-A115 U CX-NA115 4ZG-1 Z3RNDSHJM

NSX-S116 HC CX-NA116 4ZG-1 Z4RNDSHC1

NSX-S116 EZ CX-NS116 4ZG-1 Z3RNDSHJM

NSX-S119 LH CX-NS119 4ZG-1 Z3RNDSHM

TYPE

HA,LH,HR,HE,

HS,EZ,K,G,V

CD-

CASSEIVER

CX-NS111 4ZG-1 Z3RNDSHJM

CD

MECHANISM

– 2 –

ELECTRICAL MAIN PARTS LIST

For Model : NSX-A111 / A115 / S111 / S119 (U, HA, LH)
S/M Code No. 09-993-404-3R1

PWB REF NO. OLD PART NEW PART

IC101

C801 1000P (87-018-131-080) NO MOUNT

R108 1k 10k

FRONT C.B R810 100 1k

R811 100 10k

R814 82k NO MOUNT

R815 82k NO MOUNT

R816 68k 56k

R817 39k 56k

C-IC,M38B59MFH-P109FP C-IC,M38B59MFH-P117FP

(8Z-NFA-631-010) (8Z-NFA-671-010)

For Model : 1. NSX-S111 / S112 / S116 / S16 (HR, HE, HC, HS, EZ, K, G, V)

S/M Code No. 09-996-404-3R2

2. NSX-S16 (K)

S/M Code No. 09-999-404-3S1

PWB REF NO. OLD PART NEW PART

IC101

D801 <112EZ> 1SS133 JUMPER

C801 1000P (87-018-131-080) NO MOUNT

R103 <112EZ> 1k 82

R107 470 1k

R108 1k 10k

FRONT C.B R140 <112EZ> 56k 68k

R810 100 1k

R811 100 10k

R814 82k NO MOUNT

R815 82k NO MOUNT

R816 27k 56k

R817 39k 56k

R715 470 1k

MAIN C.B

R858 <112EZ> 1k 82

C-IC,M38B59MFH-P113FP C-IC,M38B59MFH-P117FP

(8Z-NFA-661-010) (8Z-NFA-671-010)

– 3 –
