Page 1
NSX-R81
EZ(S)
SERVICE MANUAL
CD STEREO SYSTEM
CD
CASSEIVER
NSX-R81
If requiring information about the CD mechanism, see Service Manual of
BZG-5 ZD5GNDM, (S/M Code No. 09-023-353-3NC).
CX-NR81
BASIC TAPE MECHANISM : 6ZM-3 PR4NM
BASIC CD MECHANISM : BZG-5 ZD5GNDM
SPEAKERSYSTEM
SX-NR80
REMOTE
CONTROLLER
RC-CAS01
S/M Code No. 09-025-455-1N2
DA T A
Page 2
TABLE OF CONTENTS -1/1
SPECIFICATIONS ...............................................................................................................................................................3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING ......................................................................4
NOTE ON BEFORE STARTING REPAIR ................................................................................................................... 5, 6
ACCESSORIES PARTS LIST.............................................................................................................................................. 7
ELECTRICAL PARTS LIST ....................................................................................................................................... 8 ~ 23
TRANSISTOR ILLUSTRATION ........................................................................................................................................24
SCHEMATIC DIAGRAM -1/5 (MAIN-1/2, AMP SECTION)............................................................................................... 25
SCHEMATIC DIAGRAM -2/5 (MAIN-2/2, TUNER SECTION) .......................................................................................... 26
SCHEMATIC DIAGRAM -3/5 (HP SECTION)................................................................................................................... 27

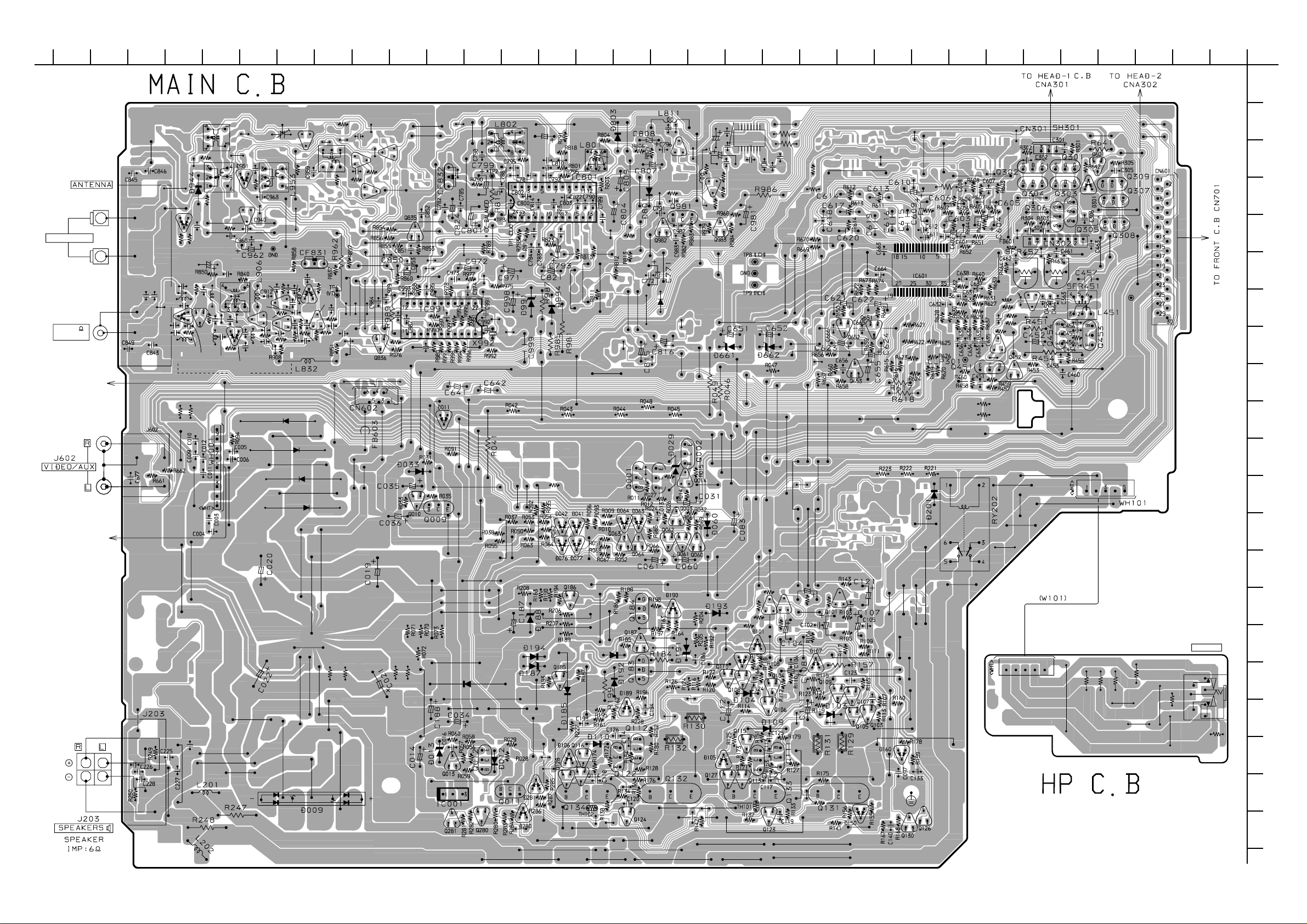

WIRING -1/4 (MAIN C.B, HP C.B) .....................................................................................................................................28
SCHEMATIC DIAGRAM -4/5 (FRONT/DECK/CD-LED SECTION).................................................................................29

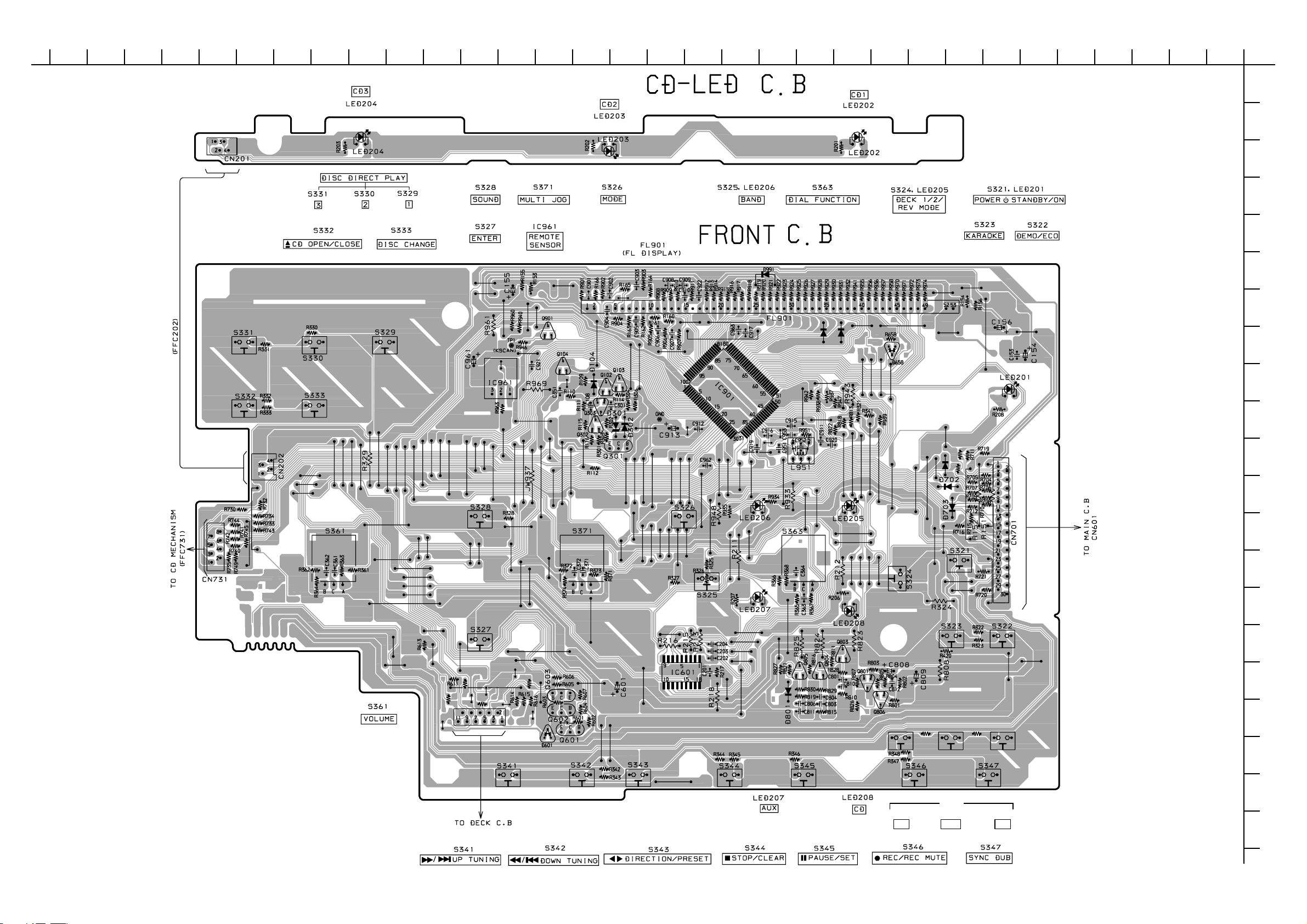

WIRING -2/4 (FRONT C.B/CD-LED C.B) .......................................................................................................................... 30
WIRING -3/4 (DECK C.B/HEAD-1 C.B) ............................................................................................................................. 31
SCHEMATIC DIAGRAM -5/5 (POWER SECTION) .......................................................................................................... 32
WIRING -4/4 (POWER C.B)............................................................................................................................................... 33
ELECTRICAL ADJUSTMENT.................................................................................................................................... 34 ~ 40
CD TEST MODE ................................................................................................................................................................ 41
LCD DISPLAY............................................................................................................................................................42 ~ 43
IC BLOCK DIAGRAM....................................................................................................................................................... 44
IC DESCRIPTION ..................................................................................................................................................... 45 ~ 46
MECHANICAL EXPLODED VIEW.................................................................................................................................. 47
MECHANICAL PARTS LIST ............................................................................................................................................ 48
COLOR NAME TABLE..................................................................................................................................................... 49
TAPE MECHANISM EXPLODED VIEW <6ZM-3 PR4NM>........................................................................................... 50
TAPE MECHANISM PARTS LIST <6ZM-3 PR4NM> ............................................................................................. 51 ~ 52
GENERAL SPEAKER DISASSEMBLY INSTRUCTIONS (FOR REFERENCE) ........................................................... 53
SPEAKER PARTS LIST (SX-NR80) ................................................................................................................................ 54
OTHER PARTS LIST ............................................................................................................................................... 55 ~ 56
-2-
Page 3
SPECIFICATIONS -1/1
MAIN UNIT CX-NR81
TUNER
FM tuning range 87.5 MHz to 108 MHz
FM usable sensitivity (IHF) 16.8 dBf
FM antenna terminal 75 ohms (unbalanced)
MW tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
MW usable sensitivity 350 µV/m
LW tuning range 144 kHz to 290 kHz
LW usable sensitivity 1400 µV/m
MW/LW antenna Loop antenna
AMPLIFIER
Power output Rated: 80 W + 80 W (6 ohms, T.H.D.
1 %, 1 kHz/DIN 45500)
Reference: 100 W + 100 W (6 ohms,
T.H.D. 10 %, 1 kHz/DIN 45324)
DIN MUSIC POWER: 220 W + 220 W
Total harmonic distortion 0.08 % (40 W, 1 kHz, 6 ohms, DIN
AUDIO)
Input VIDEO/AUX: 700 mV
Outputs SPEAKERS: 6 ohms or more
CD DIGITAL OUT (OPTICAL)
PHONES: 32 ohms or more
CASSETTE DECK
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz - 15 kHz
Recording system AC bias
Heads DECK 1: playback x 1
DECK 2: recording/playback x 1,
erase x 1
GENERAL
Power requirements 230 V AC, 50 Hz
Power consumption 110 W
Power consumption With ECO mode on: 0.6 W
in standby mode With ECO mode off: 20 W
Dimensions (W x H x D) 260 x 324 x 360 mm
Weight 7.8 kg
FRONT SPEAKERS SX-NR80
Speaker system 4 way, Built-in subwoofer (magnetic
shielded)
Speaker units Subwoofer: 160 mm cone
Mid range: 80 mm cone
Tweeter: 50 mm cone
Super tweeter: 20 mm ceramic
Impedance 6 ohms
Dimensions (W x H x D) 266 x 324 x 259 mm
Weight 5.7 kg
• Specifications and external appearance are subject to change
without notice.
CD PLAYER
Laser Semiconductor laser (λ= 780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
-3-
Page 4
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING -1/1
Solder
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION. BE
SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserståling vedåbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsÊttelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L'utillisation de commandes, réglages ou procédures autres
que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
Precaution to replace Optical block
(KSM-213RSCM)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care
the clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
CD PICK-UP Assy PWB
Solder
-4-
Page 5
NOTE ON BEFORE STARTING REPAIR -1/2
Fig-1
MAIN C.B
D101
C101 C102
3
4
2
2
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across the
electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
1 Remove the AC power cord.
2 Connect a discharging resistor at an end of lead wire that has
clips at both ends. Connect the other end of the lead wire to
metal chassis.
3 Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
4 Contact the same end of the discharging resistor as step 3 to
the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
5 Check that voltage across C101 and C102 has decreased to
1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Charging voltage (V) Discharging
(C101, 102) resistor ( )
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the reference numbers
of the charging capacitors on schematic diagram before starting the discharging work.
Rated power (W) Parts number
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming that the
MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is "H", the MICROCOMPUTER is judged to be operating correctly.
When this terminal is "L", the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD terminal before
exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go "L" when the POWER AMPLIFIER has any abnormalities
that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to "L".
• Good or no good judgement of the MICROCOMPUTER
1 Turn on the AC main power.
2 Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the "H" level or not.
3 When the HOLD terminal is "L" level, the abnormality detection circuit is judged to be working correctly and the MICRO
COMPUTER is judged to be good.
-5-
Page 6
NOTE ON BEFORE STARTING REPAIR -2/2
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power cord is
re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to exchange the
MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no good of the MICROCOM
PUTER.
1 Remove the AC power cord.
OCOMPUTER
18
MICR
FRONT C.B
15
C113
15
C113
16
Short with tweezers.
FRONT C.B
VSS
MICROCOMPUTER
VDD
Fig-2-2
2 Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
3 Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending on the
models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
-6-
Page 7
ACCESSORIES PARTS LIST -1/1
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
O AS1001 8C-NF5-906-110 IB,EZ(9L)M NSX-R81 a
X AS1002 8B-NF1-701-110 RC UNIT,CAS01 a
O AS1003 87-006-225-010 ANT,LOOP ANT NC2 a
O AS1004 87-A92-346-010 ANT,WIRE FM(FASTEN) a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-7-
Page 8
ELECTRICAL PARTS LIST - 1/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
CD-LED O CN 0201 87-099-211-010 CONN,4P V BLK 6216 a
CD-LED O LED0202 87-A41-120-040 LED,SEL6810ATP5 UMB a
CD-LED O LED0203 87-A41-120-040 LED,SEL6810ATP5 UMB a
CD-LED O LED0204 87-A41-120-040 LED,SEL6810ATP5 UMB a
CD-LED X R 0201 88-128-681-080 C-RES, 680-1/8W J a
CD-LED X R 0202 88-128-681-080 C-RES, 680-1/8W J a
CD-LED X R 0203 88-128-681-080 C-RES, 680-1/8W J a
DECK O CN 0001 87-099-753-010 CONN,11P H 9604 a
DECK X CRD0001 82-ZM3-601-010 RBN-CORD,4P-75 a
DECK S IC 0001 87-A21-269-010 IC,EW732 a
DECK S IC 0002 87-A21-269-010 IC,EW732 a
DECK O M 0001 87-A92-321-010 MOT,SHU2L 60 a
DECK X R 0001 88-121-392-080 RES,3.9K-1/8W J a
DECK O SFR0001 87-024-581-010 SFR,3.3K H KVSF637A a
DECK O SOL0001 82-ZM3-627-010 SOL ASSY,27 SO a
DECK O SOL0002 82-ZM3-627-010 SOL ASSY,27 SO a
DECK O SW 0001 87-A90-248-010 SW,MICRO ESE11SH2CXQ a
DECK O SW 0002 87-A90-248-010 SW,MICRO ESE11SH2CXQ a
DECK O SW 0003 87-A90-248-010 SW,MICRO ESE11SH2CXQ a
DECK O SW 0004 87-A90-248-010 SW,MICRO ESE11SH2CXQ a
CX-SNR81
EZSM
DECK O SW 0005 87-A90-248-010 SW,MICRO ESE11SH2CXQ a
FRONT O C 0108 87-010-785-080 C-CAP,U 0.015-25 K B GRM a
FRONT O C 0153 87-010-787-080 C-CAP,U 0.022-25 K B GRM a
FRONT O C 0154 87-A12-078-040 CAP,E 47-35 SMG a
FRONT O C 0155 87-A12-090-040 CAP,E 4.7-50 SMG a
FRONT O C 0156 87-A12-090-040 CAP,E 4.7-50 SMG a
FRONT O C 0201 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
FRONT O C 0202 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0203 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0204 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0301 87-012-278-080 C-CAP,U 2200P-50 K B GRM a
FRONT O C 0351 87-A10-353-080 C-CAP,U 0.22-10 K B a
FRONT O C 0361 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
FRONT O C 0362 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
FRONT O C 0363 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
FRONT O C 0364 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
FRONT O C 0371 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
FRONT O C 0372 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
FRONT O C 0601 87-A12-069-040 CAP,E 22-25 SMG a
FRONT O C 0801 87-A11-969-080 C-CAP,U 0.082U-16 K B a
CX-SNR81
EZSM
FRONT O C 0803 87-012-280-080 C-CAP,U 3300P-50 K B GRM a
FRONT O C 0804 87-A10-592-080 C-CAP,S 0.015-50 J B a
FRONT O C 0806 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
FRONT O C 0808 87-A12-087-040 CAP,E 1-50 SMG a
FRONT O C 0809 87-A12-092-040 CAP,E 22-50 SMG a
FRONT O C 0810 87-A11-057-080 C-CAP,U 0.1-16 K B a
FRONT O C 0811 87-012-280-080 C-CAP,U 3300P-50 K B GRM a
FRONT O C 0812 87-012-281-080 C-CAP,U 3900P-50 K B GRM a
FRONT O C 0901 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0902 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0903 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0904 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0905 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0906 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0907 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0908 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0909 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0910 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0911 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
FRONT O C 0912 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
CX-SNR81
EZSM
FRONT O C 0913 87-A10-189-040 CAP,E 220-10 M 5L a
FRONT O C 0915 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
FRONT O C 0916 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
FRONT O C 0917 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
FRONT O C 0919 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
FRONT O C 0920 87-010-829-080 C-CAP,U 0.047-16 Z F CM/CB a
FRONT O C 0921 87-012-282-080 C-CAP,U 4700P-50 K B GRM a
FRONT O C 0922 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
FRONT O C 0951 87-012-172-080 C-CAP,U 10P-50 D CH GRM a
FRONT O C 0952 87-010-854-080 C-CAP,S 560P-50 J CH CMC a
FRONT O C 0953 87-012-349-080 C-CAP,S 1000P-50 J CH GRM a
FRONT O C 0961 87-A12-075-040 CAP,E 10-35 SMG a
FRONT O C 0962 87-012-336-080 C-CAP,U 330P-50 J SL GRM a
FRONT O C 0963 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
FRONT O CN 0104 87-A60-057-010 CONN,11P V 9604S-11C a
FRONT O CN 0202 87-099-209-010 CONN,4P H BLK 6216 a
FRONT O CN 0701 87-099-720-010 CONN,30P BLK TYK-B(P) a
FRONT O CN 0731 87-099-196-010 CONN,8P V BLK 6216 a
FRONT S D 0104 87-A40-291-080 DIODE,1N4148M (CPT) a
FRONT S D 0301 87-A40-748-080 ZENER,UZ5.6BSA a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-8-
Page 9
ELECTRICAL PARTS LIST - 2/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
FRONT S D 0302 87-A40-291-080 DIODE,1N4148M (CPT) a
FRONT S D 0601 87-A40-269-080 C-DIODE,MC2836 a
FRONT S D 0658 87-A40-269-080 C-DIODE,MC2836 a
FRONT X D 0701 88-100-000-010 PLATING-JW, 0.58 SN95 a
FRONT X D 0702 88-100-000-010 PLATING-JW, 0.58 SN95 a
FRONT X D 0703 88-100-000-010 PLATING-JW, 0.58 SN95 a
FRONT S D 0801 87-A40-291-080 DIODE,1N4148M (CPT) a
FRONT S D 0981 87-A40-291-080 DIODE,1N4148M (CPT) a
FRONT S D 0983 87-A40-291-080 DIODE,1N4148M (CPT) a
FRONT O FFC0104 88-911-101-110 FF-CABLE,11P 1.25 100MM a
FRONT O FFC0202 88-904-201-110 FF-CABLE,4P 1.25 a
FRONT O FFC0731 88-908-301-110 FF-CABLE,8P 1.25 300MM a
FRONT O FL 0901 8C-NF5-603-010 FL,HUA-11MM42T a
FRONT S IC 0601 87-070-289-040 C-IC,BU2092F a
FRONT S IC 0901 8C-NF5-602-030 C-IC,UPD780228-081-3BA a
FRONT S IC 0961 87-A21-831-010 IC,SPS-442-1-F1 a
FRONT O JR 0601 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O JR 0605 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O JR 0609 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O JR 0617 88-108-101-080 C-RES,U 100-1/16W J a
CX-SNR81
EZSM
FRONT X JW 0937 88-121-101-080 RES,100-1/8W J a
FRONT O L 0951 87-A50-655-010 COIL,CLK 4.19MHZ (TOKO)7KLY a
FRONT O LED0201 87-A41-062-040 LED,LTL-1CHEE-012A RED a
FRONT O LED0205 87-A41-062-040 LED,LTL-1CHEE-012A RED a
FRONT O LED0206 87-A41-062-040 LED,LTL-1CHEE-012A RED a
FRONT O LED0207 87-A41-062-040 LED,LTL-1CHEE-012A RED a
FRONT O LED0208 87-A41-062-040 LED,LTL-1CHEE-012A RED a
FRONT S Q 0102 87-A30-076-080 C-TR,2SC3052F a
FRONT S Q 0103 87-A30-538-040 C-TR,SRA2202S a
FRONT S Q 0104 87-A30-538-040 C-TR,SRA2202S a
FRONT S Q 0301 87-A30-494-080 TR,2SA1980G a
FRONT S Q 0302 87-A30-076-080 C-TR,2SC3052F a
FRONT S Q 0303 87-A30-076-080 C-TR,2SC3052F a
FRONT S Q 0601 87-A30-495-080 TR,2SA1981Y a
FRONT S Q 0602 87-A30-495-080 TR,2SA1981Y a
FRONT S Q 0603 89-112-965-080 TR,2SA1296GR a
FRONT S Q 0801 87-A30-076-080 C-TR,2SC3052F a
FRONT S Q 0803 87-A30-288-040 C-TR,DTC114YKA a
FRONT S Q 0804 87-A30-288-040 C-TR,DTC114YKA a
FRONT S Q 0805 87-A30-288-040 C-TR,DTC114YKA a
CX-SNR81
EZSM
FRONT S Q 0806 87-A30-076-080 C-TR,2SC3052F a
FRONT S Q 0901 87-A30-538-040 C-TR,SRA2202S a
FRONT O R 0109 88-108-224-080 C-RES,U 220K-1/16W J a
FRONT O R 0110 88-108-153-080 C-RES,U 15K-1/16W J a
FRONT X R 0111 88-108-333-080 C-RES,U 33K-1/16W J a
FRONT O R 0112 88-108-224-080 C-RES,U 220K-1/16W J a
FRONT O R 0114 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT O R 0115 88-108-153-080 C-RES,U 15K-1/16W J a
FRONT X R 0116 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0151 88-100-000-010 PLATING-JW, 0.58 SN95 a
FRONT X R 0152 88-100-000-010 PLATING-JW, 0.58 SN95 a
FRONT X R 0153 88-128-821-080 C-RES, 820-1/8W J a
FRONT X R 0154 88-128-821-080 C-RES, 820-1/8W J a
FRONT O R 0155 88-108-332-080 C-RES,U 3.3K-1/16W J a
FRONT O R 0156 88-108-332-080 C-RES,U 3.3K-1/16W J a
FRONT X R 0160 88-108-000-080 C-JUMPER,U a
FRONT X R 0161 88-108-000-080 C-JUMPER,U a
FRONT X R 0162 88-108-000-080 C-JUMPER,U a
FRONT X R 0163 88-108-000-080 C-JUMPER,U a
FRONT X R 0164 88-108-000-080 C-JUMPER,U a
CX-SNR81
EZSM
FRONT X R 0165 88-108-000-080 C-JUMPER,U a
FRONT X R 0166 88-108-000-080 C-JUMPER,U a
FRONT X R 0206 88-128-102-080 C-RES, 1K-1/8W J a
FRONT X R 0207 88-128-102-080 C-RES, 1K-1/8W J a
FRONT X R 0208 88-128-102-080 C-RES, 1K-1/8W J a
FRONT X R 0211 88-121-102-080 RES,1K-1/8W J a
FRONT X R 0212 88-121-102-080 RES,1K-1/8W J a
FRONT X R 0213 88-121-103-080 RES,10K-1/8W J a
FRONT X R 0215 88-121-103-080 RES,10K-1/8W J a
FRONT X R 0216 88-121-103-080 RES,10K-1/8W J a
FRONT X R 0217 88-108-472-080 C-RES,U 4.7K-1/16W J a
FRONT X R 0218 88-121-101-080 RES,100-1/8W J a
FRONT X R 0301 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0302 88-108-472-080 C-RES,U 4.7K-1/16W J a
FRONT O R 0303 88-108-153-080 C-RES,U 15K-1/16W J a
FRONT O R 0304 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT X R 0306 88-108-471-080 C-RES,U 470-1/16W J a
FRONT O R 0321 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT O R 0322 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT X R 0323 88-108-821-080 C-RES,U 820-1/16W J a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-9-
Page 10
ELECTRICAL PARTS LIST - 3/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
FRONT X R 0324 88-121-122-080 RES,1.2K-1/8W J a
FRONT X R 0325 88-108-122-080 C-RES,U 1.2K-1/16W J a
FRONT X R 0326 88-108-122-080 C-RES,U 1.2K-1/16W J a
FRONT X R 0327 88-108-182-080 C-RES,U 1.8K-1/16W J a
FRONT X R 0328 88-108-182-080 C-RES,U 1.8K-1/16W J a
FRONT X R 0329 88-121-272-080 RES,2.7K-1/8W J a
FRONT O R 0330 88-108-332-080 C-RES,U 3.3K-1/16W J a
FRONT X R 0331 88-108-472-080 C-RES,U 4.7K-1/16W J a
FRONT X R 0332 88-108-682-080 C-RES,U 6.8K-1/16W J a
FRONT O R 0333 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT O R 0341 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT O R 0342 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT X R 0343 88-108-821-080 C-RES,U 820-1/16W J a
FRONT O R 0344 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT X R 0345 88-108-122-080 C-RES,U 1.2K-1/16W J a
FRONT X R 0346 88-108-122-080 C-RES,U 1.2K-1/16W J a
FRONT X R 0347 88-108-182-080 C-RES,U 1.8K-1/16W J a
FRONT X R 0348 88-108-182-080 C-RES,U 1.8K-1/16W J a
FRONT O R 0349 88-108-272-080 C-RES,U 2.7K-1/16W J a
FRONT O R 0350 88-108-332-080 C-RES,U 3.3K-1/16W J a
CX-SNR81
EZSM
FRONT O R 0361 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT O R 0362 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT X R 0363 88-108-100-080 C-RES,U 10-1/16W J a
FRONT X R 0364 88-108-100-080 C-RES,U 10-1/16W J a
FRONT O R 0365 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT O R 0366 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT X R 0367 88-108-100-080 C-RES,U 10-1/16W J a
FRONT X R 0368 88-108-100-080 C-RES,U 10-1/16W J a
FRONT O R 0371 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT O R 0372 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT X R 0373 88-108-100-080 C-RES,U 10-1/16W J a
FRONT X R 0374 88-108-100-080 C-RES,U 10-1/16W J a
FRONT O R 0601 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT X R 0602 88-108-222-080 C-RES,U 2.2K-1/16W J a
FRONT O R 0603 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT X R 0604 88-108-222-080 C-RES,U 2.2K-1/16W J a
FRONT O R 0605 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT O R 0606 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT X R 0607 88-108-000-080 C-JUMPER,U a
FRONT O R 0611 88-108-473-080 C-RES,U 47K-1/16W J a
CX-SNR81
EZSM
FRONT O R 0613 88-108-473-080 C-RES,U 47K-1/16W J a
FRONT O R 0614 88-108-473-080 C-RES,U 47K-1/16W J a
FRONT O R 0615 88-108-473-080 C-RES,U 47K-1/16W J a
FRONT O R 0616 88-108-473-080 C-RES,U 47K-1/16W J a
FRONT X R 0658 88-108-152-080 C-RES,U 1.5K-1/16W J a
FRONT O R 0701 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0702 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0703 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0704 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0705 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0706 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0707 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0708 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0709 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O R 0710 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O R 0711 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O R 0712 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O R 0715 88-108-101-080 C-RES,U 100-1/16W J a
FRONT X R 0716 88-108-472-080 C-RES,U 4.7K-1/16W J a
FRONT X R 0719 88-108-100-080 C-RES,U 10-1/16W J a
CX-SNR81
EZSM
FRONT X R 0721 88-128-101-080 C-RES, 100-1/8W J a
FRONT O R 0730 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0732 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O R 0733 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O R 0734 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0735 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0740 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT O R 0741 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O R 0742 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT X R 0743 88-108-474-080 C-RES,U 470K-1/16W J a
FRONT O R 0744 88-108-823-080 C-RES,U 82K-1/16W J a
FRONT X R 0745 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0749 88-108-474-080 C-RES,U 470K-1/16W J a
FRONT X R 0801 88-108-472-080 C-RES,U 4.7K-1/16W J a
FRONT X R 0802 88-108-222-080 C-RES,U 2.2K-1/16W J a
FRONT X R 0803 88-108-152-080 C-RES,U 1.5K-1/16W J a
FRONT O R 0804 88-108-224-080 C-RES,U 220K-1/16W J a
FRONT X R 0805 88-108-393-080 C-RES,U 39K-1/16W J a
FRONT X R 0807 88-108-000-080 C-JUMPER,U a
FRONT X R 0808 88-121-101-080 RES,100-1/8W J a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-10-
Page 11
ELECTRICAL PARTS LIST - 4/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
FRONT O R 0810 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT X R 0811 88-108-334-080 C-RES,U 330K-1/16W J a
FRONT O R 0813 87-A11-057-080 C-CAP,U 0.1-16 K B a
FRONT X R 0815 88-108-472-080 C-RES,U 4.7K-1/16W J a
FRONT X R 0816 88-108-334-080 C-RES,U 330K-1/16W J a
FRONT O R 0818 87-A11-057-080 C-CAP,U 0.1-16 K B a
FRONT O R 0819 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT O R 0821 88-108-224-080 C-RES,U 220K-1/16W J a
FRONT O R 0822 87-A11-057-080 C-CAP,U 0.1-16 K B a
FRONT X R 0823 88-121-101-080 RES,100-1/8W J a
FRONT X R 0824 88-121-101-080 RES,100-1/8W J a
FRONT X R 0825 88-121-101-080 RES,100-1/8W J a
FRONT O R 0826 88-108-101-080 C-RES,U 100-1/16W J a
FRONT O R 0827 88-108-473-080 C-RES,U 47K-1/16W J a
FRONT O R 0828 88-108-224-080 C-RES,U 220K-1/16W J a
FRONT O R 0829 88-108-224-080 C-RES,U 220K-1/16W J a
FRONT X R 0830 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0901 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0902 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0903 88-108-104-080 C-RES,U 100K-1/16W J a
CX-SNR81
EZSM
FRONT X R 0904 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0905 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0906 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0907 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0908 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0909 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0910 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0911 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0912 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0913 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0914 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0915 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0916 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0917 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0918 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0919 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0920 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0921 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0922 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0923 88-108-104-080 C-RES,U 100K-1/16W J a
CX-SNR81
EZSM
FRONT X R 0924 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0925 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0926 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0927 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0928 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0929 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0930 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0931 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0932 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0933 88-121-104-080 RES,100K-1/8W J a
FRONT X R 0934 88-108-683-080 C-RES,U 68K-1/16W J a
FRONT X R 0935 88-128-683-080 C-RES, 68K-1/8W J a
FRONT X R 0936 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0937 88-128-472-080 C-RES, 4.7K-1/8W J a
FRONT X R 0938 88-108-472-080 C-RES,U 4.7K-1/16W J a
FRONT X R 0939 88-108-472-080 C-RES,U 4.7K-1/16W J a
FRONT X R 0940 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0941 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT O R 0942 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT X R 0943 88-121-472-080 RES,4.7K-1/8W J a
CX-SNR81
EZSM
FRONT X R 0946 88-108-000-080 C-JUMPER,U a
FRONT X R 0947 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0948 88-121-104-080 RES,100K-1/8W J a
FRONT O R 0951 88-108-102-080 C-RES,U 1K-1/16W J a
FRONT X R 0955 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0956 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0957 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0958 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT O R 0960 88-108-103-080 C-RES,U 10K-1/16W J a
FRONT X R 0961 88-121-181-080 RES,180-1/8W J a
FRONT O R 0963 88-108-563-080 C-RES,U 56K-1/16W J a
FRONT X R 0969 88-121-103-080 RES,10K-1/8W J a
FRONT X R 0970 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0971 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0972 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0973 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT X R 0974 88-108-104-080 C-RES,U 100K-1/16W J a
FRONT O S 0321 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0322 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0323 87-A90-095-080 SW,TACT EVQ11G04M a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-11-
Page 12
ELECTRICAL PARTS LIST - 5/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
FRONT O S 0324 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0325 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0326 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0327 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0328 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0329 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0330 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0331 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0332 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0333 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0341 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0342 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0343 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0344 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0345 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0346 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0347 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0348 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0349 87-A90-095-080 SW,TACT EVQ11G04M a
FRONT O S 0350 87-A90-095-080 SW,TACT EVQ11G04M a
CX-SNR81
EZSM
FRONT O S 0361 87-A92-359-010 SW,RTRY EC12E24604-30MM a
FRONT O S 0363 87-A92-273-110 SW,RTRY EC12E12204 30MM a
FRONT O S 0371 87-A92-273-110 SW,RTRY EC12E12204 30MM a
HEAD-1 O CNA0301 85-MA2-615-010 CONN ASSY,3P PH a
HP O J 0201 87-A60-420-010 JACK,3.5 ST (MSC) a
HP O R 0243 87-A01-001-050 RES,220-1/2W J BLT2J a
HP O R 0244 87-A01-001-050 RES,220-1/2W J BLT2J a
HP O R 0245 87-A01-001-050 RES,220-1/2W J BLT2J a
HP O R 0246 87-A01-001-050 RES,220-1/2W J BLT2J a
HP X R 0265 88-128-222-080 C-RES, 2.2K-1/8W J a
HP X R 0266 88-128-222-080 C-RES, 2.2K-1/8W J a
HP O WH 0201 87-A90-459-010 HLDR,WIRE 2.5-5P a
MAIN O C 0003 87-A12-317-080 C-CAP,U 0.1-50 Z F a
MAIN O C 0004 87-A12-317-080 C-CAP,U 0.1-50 Z F a
MAIN O C 0005 87-A12-317-080 C-CAP,U 0.1-50 Z F a
MAIN O C 0006 87-A12-317-080 C-CAP,U 0.1-50 Z F a
MAIN O C 0009 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0010 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0011 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0012 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
CX-SNR81
EZSM
MAIN O C 0013 87-012-282-080 C-CAP,U 4700P-50 K B GRM a
MAIN O C 0014 87-A12-071-080 CAP,E 47-25 SMG a
MAIN O C 0016 87-012-282-080 C-CAP,U 4700P-50 K B GRM a
MAIN O C 0019 87-A12-383-000 CAP,E 3300-65 M 85 IV LELON a
MAIN O C 0020 87-A12-383-000 CAP,E 3300-65 M 85 IV LELON a
MAIN O C 0021 87-A12-780-090 CAP,E 4700-35 M 85 SKR a
MAIN O C 0022 87-A12-780-090 CAP,E 4700-35 M 85 SKR a
MAIN O C 0031 87-A12-062-080 CAP,E 100-10 SMG a
MAIN O C 0034 87-A12-071-080 CAP,E 47-25 SMG a
MAIN O C 0035 87-A12-090-080 CAP,E 4.7-50 SMG a
MAIN O C 0036 87-A12-071-080 CAP,E 47-25 SMG a
MAIN O C 0060 87-A12-089-080 CAP,E 3.3-50 SMG a
MAIN O C 0061 87-A12-071-080 CAP,E 47-25 SMG a
MAIN O C 0083 87-A12-068-080 CAP,E 470-16 SMG a
MAIN O C 0097 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0101 87-012-278-080 C-CAP,U 2200P-50 K B GRM a
MAIN O C 0102 87-012-278-080 C-CAP,U 2200P-50 K B GRM a
MAIN O C 0103 87-A12-084-080 CAP,E 0.22-50 SMG a
MAIN O C 0104 87-A12-084-080 CAP,E 0.22-50 SMG a
MAIN O C 0105 87-012-280-080 C-CAP,U 3300P-50 K B GRM a
CX-SNR81
EZSM
MAIN O C 0106 87-012-280-080 C-CAP,U 3300P-50 K B GRM a
MAIN O C 0107 87-A12-091-080 CAP,E 10-50 SMG a
MAIN O C 0108 87-A12-091-080 CAP,E 10-50 SMG a
MAIN O C 0111 87-A12-077-080 CAP,E 33-35 SMG a
MAIN O C 0112 87-A12-077-080 CAP,E 33-35 SMG a
MAIN O C 0113 87-A10-596-080 C-CAP,S 100P-100 J CH a
MAIN O C 0114 87-A10-596-080 C-CAP,S 100P-100 J CH a
MAIN O C 0117 87-A12-317-080 C-CAP,U 0.1-50 Z F a
MAIN O C 0118 87-A12-317-080 C-CAP,U 0.1-50 Z F a
MAIN O C 0119 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0120 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0121 87-A12-087-080 CAP,E 1-50 SMG a
MAIN O C 0122 87-A12-087-080 CAP,E 1-50 SMG a
MAIN O C 0123 87-010-177-080 C-CAP,S 820P-50 J SL C2012 a
MAIN O C 0124 87-010-177-080 C-CAP,S 820P-50 J SL C2012 a
MAIN O C 0125 87-A10-596-080 C-CAP,S 100P-100 J CH a
MAIN O C 0126 87-A10-596-080 C-CAP,S 100P-100 J CH a
MAIN O C 0133 87-012-282-080 C-CAP,U 4700P-50 K B GRM a
MAIN O C 0140 87-012-278-080 C-CAP,U 2200P-50 K B GRM a
MAIN O C 0186 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-12-
Page 13
ELECTRICAL PARTS LIST - 6/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
MAIN O C 0187 87-A12-890-080 CAP,E 10-63 VR a
MAIN O C 0188 87-A12-890-080 CAP,E 10-63 VR a
MAIN O C 0193 87-012-273-080 C-CAP,U 820P-50 K B GRM a
MAIN O C 0194 87-012-273-080 C-CAP,U 820P-50 K B GRM a
MAIN O C 0225 87-A12-317-080 C-CAP,U 0.1-50 Z F a
MAIN O C 0226 87-A12-317-080 C-CAP,U 0.1-50 Z F a
MAIN O C 0227 87-A12-317-080 C-CAP,U 0.1-50 Z F a
MAIN O C 0228 87-A12-317-080 C-CAP,U 0.1-50 Z F a
MAIN O C 0229 87-010-191-080 C-CAP,S 0.015-50 Z F GRM a
MAIN O C 0230 87-010-191-080 C-CAP,S 0.015-50 Z F GRM a
MAIN O C 0301 87-012-275-080 C-CAP,U 1200P-50 K B GRM a
MAIN O C 0302 87-012-275-080 C-CAP,U 1200P-50 K B GRM a
MAIN O C 0303 87-012-275-080 C-CAP,U 1200P-50 K B GRM a
MAIN O C 0304 87-012-275-080 C-CAP,U 1200P-50 K B GRM a
MAIN O C 0305 87-012-270-080 C-CAP,U 470P-50 K B GRM a
MAIN O C 0306 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
MAIN O C 0363 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a
MAIN O C 0451 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0452 87-A12-092-080 CAP,E 22-50 SMG a
MAIN O C 0453 87-012-279-080 C-CAP,U 2700P-50 K B GRM a
CX-SNR81
EZSM
MAIN O C 0454 87-012-279-080 C-CAP,U 2700P-50 K B GRM a
MAIN O C 0455 87-012-279-080 C-CAP,U 2700P-50 K B GRM a
MAIN O C 0456 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0457 87-A12-361-080 CAP,M 5600P-100 J CP a
MAIN O C 0458 87-012-278-080 C-CAP,U 2200P-50 K B GRM a
MAIN O C 0459 87-012-271-080 C-CAP,U 560P-50 K B GRM a
MAIN O C 0460 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0461 87-012-158-080 C-CAP,S 390P-50 J CH GRM a
MAIN O C 0462 87-012-158-080 C-CAP,S 390P-50 J CH GRM a
MAIN O C 0463 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a
MAIN O C 0464 87-012-278-080 C-CAP,U 2200P-50 K B GRM a
MAIN O C 0465 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0601 87-012-188-080 C-CAP,U 47P-50 J CH GRM a
MAIN O C 0602 87-012-188-080 C-CAP,U 47P-50 J CH GRM a
MAIN O C 0603 87-A12-062-080 CAP,E 100-10 SMG a
MAIN O C 0604 87-A12-062-080 CAP,E 100-10 SMG a
MAIN X C 0605 88-700-740-810 CAP,M 6800P-50 J AMZV a
MAIN X C 0606 88-700-740-810 CAP,M 6800P-50 J AMZV a
MAIN O C 0607 87-012-270-080 C-CAP,U 470P-50 K B GRM a
MAIN O C 0608 87-012-270-080 C-CAP,U 470P-50 K B GRM a
CX-SNR81
EZSM
MAIN O C 0609 87-A12-087-080 CAP,E 1-50 SMG a
MAIN O C 0610 87-A12-087-080 CAP,E 1-50 SMG a
MAIN O C 0611 87-012-273-080 C-CAP,U 820P-50 K B GRM a
MAIN O C 0612 87-012-273-080 C-CAP,U 820P-50 K B GRM a
MAIN X C 0613 88-700-610-810 CAP,M 1000P-50 J LDS a
MAIN X C 0614 88-700-610-810 CAP,M 1000P-50 J LDS a
MAIN X C 0615 88-700-610-810 CAP,M 1000P-50 J LDS a
MAIN X C 0616 88-700-610-810 CAP,M 1000P-50 J LDS a
MAIN O C 0617 87-A10-295-080 CAP,M 0.01-50 J a
MAIN O C 0618 87-A10-295-080 CAP,M 0.01-50 J a
MAIN O C 0619 87-A10-295-080 CAP,M 0.01-50 J a
MAIN O C 0620 87-A10-295-080 CAP,M 0.01-50 J a
MAIN O C 0621 87-A12-085-080 CAP,E 0.33-50 SMG a
MAIN O C 0622 87-A12-085-080 CAP,E 0.33-50 SMG a
MAIN O C 0623 87-A12-085-080 CAP,E 0.33-50 SMG a
MAIN O C 0624 87-A12-085-080 CAP,E 0.33-50 SMG a
MAIN O C 0631 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
MAIN O C 0632 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
MAIN O C 0633 87-012-284-080 C-CAP,U 6800P-50 K B GRM a
MAIN O C 0634 87-012-284-080 C-CAP,U 6800P-50 K B GRM a
CX-SNR81
EZSM
MAIN O C 0635 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0636 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0637 87-012-278-080 C-CAP,U 2200P-50 K B GRM a
MAIN O C 0638 87-012-278-080 C-CAP,U 2200P-50 K B GRM a
MAIN O C 0641 87-A12-087-080 CAP,E 1-50 SMG a
MAIN O C 0642 87-A12-087-080 CAP,E 1-50 SMG a
MAIN O C 0651 87-A12-063-080 CAP,E 220-10 SMG a
MAIN O C 0652 87-A12-071-080 CAP,E 47-25 SMG a
MAIN O C 0655 87-A12-090-080 CAP,E 4.7-50 SMG a
MAIN O C 0656 87-010-784-080 C-CAP,U 0.012-25 K B GRM a
MAIN O C 0663 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a
MAIN O C 0664 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a
MAIN O C 0665 87-A10-504-080 C-CAP,U 0.047-16 K B a
MAIN O C 0666 87-A10-504-080 C-CAP,U 0.047-16 K B a
MAIN O C 0677 87-015-819-080 C-CAP, 0.01-50 K B C3216 a
MAIN O C 0771 87-A12-062-080 CAP,E 100-10 SMG a
MAIN O C 0772 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN X C 0781 88-108-000-080 C-JUMPER,U a
MAIN O C 0782 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0783 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-13-
Page 14
ELECTRICAL PARTS LIST - 7/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
MAIN O C 0784 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0785 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0786 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0788 87-012-167-080 C-CAP,U 5P-50 C CH GRM a
MAIN O C 0789 87-016-118-080 C-CAP,U 0.022-25 J B GRM a
MAIN O C 0790 87-016-118-080 C-CAP,U 0.022-25 J B GRM a
MAIN O C 0791 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0792 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0793 87-A12-090-080 CAP,E 4.7-50 SMG a
MAIN O C 0795 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0796 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0797 87-A12-091-080 CAP,E 10-50 SMG a
MAIN O C 0798 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0799 87-A12-065-080 CAP,E 33-16 SMG a
MAIN O C 0800 87-010-829-080 C-CAP,U 0.047-16 Z F CM/CB a
MAIN O C 0801 87-A12-089-080 CAP,E 3.3-50 SMG a
MAIN O C 0802 87-010-829-080 C-CAP,U 0.047-16 Z F CM/CB a
MAIN O C 0803 87-010-787-080 C-CAP,U 0.022-25 K B GRM a
MAIN O C 0804 87-A12-062-080 CAP,E 100-10 SMG a
MAIN O C 0807 87-A12-086-080 CAP,E 0.47-50 SMG a
CX-SNR81
EZSM
MAIN O C 0808 87-A12-087-080 CAP,E 1-50 SMG a
MAIN O C 0809 87-A12-087-080 CAP,E 1-50 SMG a
MAIN O C 0810 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0814 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0815 87-A12-086-080 CAP,E 0.47-50 SMG a
MAIN O C 0816 87-A12-086-080 CAP,E 0.47-50 SMG a
MAIN O C 0818 87-012-276-080 C-CAP,U 1500P-50 K B GRM a
MAIN O C 0821 87-A12-091-080 CAP,E 10-50 SMG a
MAIN X C 0822 88-108-000-080 C-JUMPER,U a
MAIN O C 0823 87-012-349-080 C-CAP,S 1000P-50 J CH GRM a
MAIN O C 0824 87-A12-090-080 CAP,E 4.7-50 SMG a
MAIN O C 0825 87-010-596-080 C-CAP,S 0.047-16 K R C2012 a
MAIN O C 0831 87-A12-092-080 CAP,E 22-50 SMG a
MAIN O C 0842 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN X C 0843 88-108-000-080 C-JUMPER,U a
MAIN O C 0844 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN X C 0845 88-108-000-080 C-JUMPER,U a
MAIN X C 0846 88-108-000-080 C-JUMPER,U a
MAIN X C 0847 88-108-000-080 C-JUMPER,U a
MAIN X C 0848 88-108-000-080 C-JUMPER,U a
CX-SNR81
EZSM
MAIN X C 0849 88-108-000-080 C-JUMPER,U a
MAIN O C 0850 87-A12-071-080 CAP,E 47-25 SMG a
MAIN O C 0851 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0852 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0853 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0859 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0860 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0869 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0870 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
MAIN O C 0871 87-012-199-080 C-CAP,U 220P-50 J CH GRM a
MAIN O C 0872 87-012-199-080 C-CAP,U 220P-50 J CH GRM a
MAIN O C 0873 87-A10-039-080 C-CAP,U 470P-50 J CH a
MAIN O C 0874 87-A12-091-080 CAP,E 10-50 SMG a
MAIN O C 0875 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0876 87-A12-091-080 CAP,E 10-50 SMG a
MAIN O C 0877 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0878 87-012-184-080 C-CAP,U 33P-50 J CH GRM a
MAIN O C 0879 87-012-180-080 C-CAP,U 22P-50 J CH GRM a
MAIN O C 0901 87-012-162-080 C-CAP,U 1P-50 C CH GRM a
MAIN O C 0902 87-012-165-080 C-CAP,U 3P-50 C CH GRM a
CX-SNR81
EZSM
MAIN O C 0903 87-012-164-080 C-CAP,U 2P-50 C CH GRM a
MAIN O C 0904 86-ZA1-615-080 C-CAP,U 680P-25 J CH a
MAIN O C 0905 87-012-162-080 C-CAP,U 1P-50 C CH GRM a
MAIN O C 0906 87-012-172-080 C-CAP,U 10P-50 D CH GRM a
MAIN O C 0907 87-012-166-080 C-CAP,U 4P-50 C CH GRM a
MAIN O C 0908 87-012-165-080 C-CAP,U 3P-50 C CH GRM a
MAIN O C 0909 86-ZA1-615-080 C-CAP,U 680P-25 J CH a
MAIN O C 0910 87-012-164-080 C-CAP,U 2P-50 C CH GRM a
MAIN O C 0911 87-012-166-080 C-CAP,U 4P-50 C CH GRM a
MAIN O C 0912 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
MAIN O C 0913 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR) a
MAIN O C 0914 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR) a
MAIN O C 0915 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR) a
MAIN O C 0917 87-012-178-080 C-CAP,U 18P-50 J CH GRM a
MAIN O C 0918 87-012-172-080 C-CAP,U 10P-50 D CH GRM a
MAIN O C 0919 87-012-184-080 C-CAP,U 33P-50 J CH GRM a
MAIN O C 0920 87-012-184-080 C-CAP,U 33P-50 J CH GRM a
MAIN O C 0921 87-012-180-080 C-CAP,U 22P-50 J CH GRM a
MAIN O C 0922 87-012-174-080 C-CAP,U 12P-50 J CH GRM a
MAIN O C 0923 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR) a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-14-
Page 15
ELECTRICAL PARTS LIST - 8/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
MAIN O C 0924 87-012-164-080 C-CAP,U 2P-50 C CH GRM a
MAIN O C 0925 87-012-164-080 C-CAP,U 2P-50 C CH GRM a
MAIN O C 0926 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR) a
MAIN O C 0931 87-A12-319-080 C-CAP,U 0.1-25 K B a
MAIN O C 0940 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0942 87-012-167-080 C-CAP,U 5P-50 C CH GRM a
MAIN O C 0947 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0948 87-A10-039-080 C-CAP,U 470P-50 J CH a
MAIN O C 0952 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0958 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0959 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0960 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0962 87-A12-087-080 CAP,E 1-50 SMG a
MAIN O C 0963 87-A12-319-080 C-CAP,U 0.1-25 K B a
MAIN O C 0971 87-A12-067-080 CAP,E 330-16 SMG a
MAIN O C 0972 87-A12-090-080 CAP,E 4.7-50 SMG a
MAIN O C 0973 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0974 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0979 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
MAIN O C 0981 87-A12-071-080 CAP,E 47-25 SMG a
CX-SNR81
EZSM
MAIN O C 0982 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0983 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0984 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0985 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
MAIN O C 0987 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0989 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O C 0991 87-012-176-080 C-CAP,U 15P-50 J CH GRM a
MAIN O C 0992 87-012-176-080 C-CAP,U 15P-50 J CH GRM a
MAIN O C 0993 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
MAIN O C 0995 87-012-274-080 C-CAP,U 1000P-50 K B GRM a
MAIN O C 0997 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a
MAIN O C 0998 87-A12-071-080 CAP,E 47-25 SMG a
MAIN O C 0999 87-A11-155-080 CAP,TC U 0.01-16 Z F a
MAIN O CF 0831 87-008-423-010 FLTR,CF SFE10.7MS3G-A a
MAIN O CF 0832 82-785-747-010 CF,MS2GH-A a
MAIN X CLP0301 87-A60-884-010 PIN,DIA1 COATING-SHS a
MAIN X CLP0601 87-A60-884-010 PIN,DIA1 COATING-SHS a
MAIN O CN 0301 87-A60-620-010 CONN,3P V 2MM JMT a
MAIN O CN 0302 87-A60-625-010 CONN,8P V 2MM JMT a
MAIN O CN 0601 87-099-719-010 CONN,30P H BLK TYK-B(X) a
CX-SNR81
EZSM
MAIN O CN 0602 87-A60-131-010 CONN,6P V FE a
MAIN O CNA0302 86-ZM3-605-110 CONN ASSY,8P -RPB a
MAIN S D 0001 87-070-178-090 DIODE,1N5402-BD54 a
MAIN S D 0002 87-070-178-090 DIODE,1N5402-BD54 a
MAIN S D 0003 87-070-178-090 DIODE,1N5402-BD54 a
MAIN S D 0004 87-070-178-090 DIODE,1N5402-BD54 a
MAIN S D 0009 87-A40-838-090 DIODE,G3SBA60L-6088 a
MAIN S D 0011 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0012 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN S D 0013 87-A40-764-080 ZENER,UZ10BSC a
MAIN S D 0029 87-A40-776-080 ZENER,UZ27BSD a
MAIN S D 0033 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN S D 0041 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0042 87-A40-269-080 C-DIODE,MC2836 a
MAIN S D 0060 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN S D 0063 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0064 87-A40-269-080 C-DIODE,MC2836 a
MAIN S D 0076 87-A40-269-080 C-DIODE,MC2836 a
MAIN S D 0077 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0101 87-A40-269-080 C-DIODE,MC2836 a
CX-SNR81
EZSM
MAIN S D 0103 87-020-465-080 DIODE,1SS133 a
MAIN S D 0104 87-020-465-080 DIODE,1SS133 a
MAIN S D 0105 87-A40-269-080 C-DIODE,MC2836 a
MAIN S D 0106 87-A40-269-080 C-DIODE,MC2836 a
MAIN S D 0107 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0108 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0109 87-A40-488-080 DIODE,1SS244 a
MAIN S D 0110 87-A40-488-080 DIODE,1SS244 a
MAIN S D 0150 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0160 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0185 87-A40-370-090 DIODE,RK46-P20 a
MAIN S D 0186 87-A40-370-090 DIODE,RK46-P20 a
MAIN S D 0187 87-A40-747-080 ZENER,UZ5.1BSB a
MAIN S D 0188 87-A40-749-080 ZENER,UZ5.6BSB a
MAIN S D 0189 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0190 87-A40-269-080 C-DIODE,MC2836 a
MAIN S D 0191 87-A40-764-080 ZENER,UZ10BSC a
MAIN S D 0192 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN S D 0193 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN X D 0194 88-100-000-010 PLATING-JW, 0.58 SN95 a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-15-
Page 16
ELECTRICAL PARTS LIST - 9/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
MAIN S D 0201 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN S D 0280 87-A40-269-080 C-DIODE,MC2836 a
MAIN S D 0281 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0301 87-A40-269-080 C-DIODE,MC2836 a
MAIN S D 0661 87-A40-745-080 ZENER,UZ4.7BSA a
MAIN S D 0662 87-A40-745-080 ZENER,UZ4.7BSA a
MAIN S D 0801 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN S D 0803 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN O D 0901 87-A41-048-040 C-VARI-CAP,HVM16-03 TL a
MAIN O D 0902 87-A41-048-040 C-VARI-CAP,HVM16-03 TL a
MAIN O D 0903 87-A41-048-040 C-VARI-CAP,HVM16-03 TL a
MAIN S D 0942 87-A40-270-080 C-DIODE,MC2838 a
MAIN S D 0944 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN O D 0951 87-A40-799-040 C-VARI-CAP,KV1610S a
MAIN S D 0991 87-017-149-080 ZENER,HZS6A2L a
MAIN S D 0992 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN S D 0994 87-A40-291-080 DIODE,1N4148M (CPT) a
MAIN X FB 0601 88-108-000-080 C-JUMPER,U a
MAIN X FB 0603 88-100-000-010 PLATING-JW, 0.58 SN95 a
MAIN O FB 0604 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a
CX-SNR81
EZSM
MAIN O FFC0602 88-906-251-110 FF-CABLE,6P 1.25 a
MAIN S IC 0001 87-A21-364-010 IC,NJM7806FA(A) a
MAIN S IC 0601 87-A22-235-040 C-IC,M61518FP a
MAIN S IC 0801 87-A22-060-010 IC,LA1845N-A a
MAIN S IC 0861 87-A20-440-040 C-IC,BU1920FS a
MAIN S IC 0991 87-A21-928-010 IC,LC72131D-N a
MAIN O J 0203 87-A60-238-010 TERMINAL,SP 4P (MSC) a
MAIN O J 0602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN a
MAIN O J 0832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05 a
MAIN X JR 0808 88-108-474-080 C-RES,U 470K-1/16W J a
MAIN O L 0201 87-A50-610-010 COIL,1UH K(MDEC) a
MAIN O L 0202 87-A50-610-010 COIL,1UH K(MDEC) a
MAIN O L 0451 87-007-342-010 COIL,OSC 85KHZ BIAS a
MAIN O L 0801 87-A50-608-010 COIL,FM DET-N(TOK) a
MAIN O L 0802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK) a
MAIN O L 0811 87-005-847-080 COIL,2.2UH K CECS a
MAIN O L 0832 87-005-847-080 COIL,2.2UH K CECS a
MAIN O L 0861 87-005-847-080 COIL,2.2UH K CECS a
MAIN O L 0901 86-ZA1-612-010 COIL,FM ANT/RF-1-Z a
MAIN O L 0902 86-ZA1-613-010 COIL,FM ANT/RF-2-Z a
CX-SNR81
EZSM
MAIN O L 0903 87-005-847-080 COIL,2.2UH K CECS a
MAIN O L 0904 86-ZA1-612-010 COIL,FM ANT/RF-1-Z a
MAIN O L 0905 86-ZA1-613-010 COIL,FM ANT/RF-2-Z a
MAIN O L 0906 87-005-847-080 COIL,2.2UH K CECS a
MAIN O L 0907 86-ZA1-614-010 COIL,FM OSC-Z a
MAIN O L 0908 88-ZA1-624-010 COIL,FM IFT 7-6.2 (COILS) a
MAIN O L 0941 87-A50-020-010 COIL,ANT LW (COI) 252KHZ a
MAIN O L 0942 87-A50-019-010 COIL,OSC LW (COI) 856KHZ a
MAIN O L 0952 87-A50-754-010 COIL,MW ANT(3BLW) a
MAIN O L 0953 87-A50-755-010 COIL,MW OSC(3BLW) a
MAIN S Q 0001 87-A30-494-080 TR,2SA1980G a
MAIN S Q 0002 87-A30-494-080 TR,2SA1980G a
MAIN S Q 0003 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0004 87-A30-494-080 TR,2SA1980G a
MAIN S Q 0009 87-A30-494-080 TR,2SA1980G a
MAIN S Q 0010 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0011 87-A30-614-010 TR,2SB1548 a
MAIN S Q 0012 87-A30-630-080 TR,2SC5343GL a
MAIN S Q 0013 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0014 87-A30-075-080 C-TR,2SA1235F a
CX-SNR81
EZSM
MAIN S Q 0060 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0061 87-A30-075-080 C-TR,2SA1235F a
MAIN S Q 0062 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0063 87-A30-075-080 C-TR,2SA1235F a
MAIN S Q 0064 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0101 87-A30-257-080 C-TR,2SD1306E a
MAIN S Q 0102 87-A30-257-080 C-TR,2SD1306E a
MAIN S Q 0103 87-A30-669-040 C-TR,SBT5401 a
MAIN S Q 0104 87-A30-669-040 C-TR,SBT5401 a
MAIN S Q 0105 87-A30-669-040 C-TR,SBT5401 a
MAIN S Q 0106 87-A30-669-040 C-TR,SBT5401 a
MAIN S Q 0107 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0108 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0109 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0110 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0111 87-A30-672-080 TR,2N5551C a
MAIN S Q 0112 87-A30-672-080 TR,2N5551C a
MAIN S Q 0113 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0114 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0115 87-A30-670-040 C-TR,SBT5551 a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-16-
Page 17
ELECTRICAL PARTS LIST - 10/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
MAIN S Q 0116 87-A30-670-040 C-TR,SBT5551 a
MAIN S Q 0121 87-A30-672-080 TR,2N5551C a
MAIN S Q 0122 87-A30-672-080 TR,2N5551C a
MAIN S Q 0123 87-A30-669-040 C-TR,SBT5401 a
MAIN S Q 0124 87-A30-669-040 C-TR,SBT5401 a
MAIN S Q 0126 87-A30-669-040 C-TR,SBT5401 a
MAIN S Q 0127 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0128 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0130 87-A30-670-040 C-TR,SBT5551 a
MAIN S Q 0131 87-A30-098-010 TR,FP1016 a
MAIN S Q 0132 87-A30-098-010 TR,FP1016 a
MAIN S Q 0133 87-A30-097-010 TR,FN1016 a
MAIN S Q 0134 87-A30-097-010 TR,FN1016 a
MAIN S Q 0183 87-A30-186-010 FET,2SK3053 a
MAIN S Q 0184 87-A30-186-010 FET,2SK3053 a
MAIN S Q 0185 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0186 87-A30-075-080 C-TR,2SA1235F a
MAIN S Q 0187 87-A30-075-080 C-TR,2SA1235F a
MAIN S Q 0235 87-A30-075-080 C-TR,2SA1235F a
MAIN S Q 0280 87-A30-538-040 C-TR,SRA2202S a
CX-SNR81
EZSM
MAIN S Q 0281 87-A30-669-040 C-TR,SBT5401 a
MAIN S Q 0301 87-A30-091-080 FET,2SJ460 a
MAIN S Q 0302 87-A30-091-080 FET,2SJ460 a
MAIN S Q 0303 87-A30-090-080 FET,2SK2541 a
MAIN S Q 0304 87-A30-090-080 FET,2SK2541 a
MAIN S Q 0305 87-A30-091-080 FET,2SJ460 a
MAIN S Q 0306 87-A30-091-080 FET,2SJ460 a
MAIN S Q 0307 87-A30-090-080 FET,2SK2541 a
MAIN S Q 0308 87-A30-090-080 FET,2SK2541 a
MAIN S Q 0309 87-A30-090-080 FET,2SK2541 a
MAIN S Q 0451 87-A30-630-080 TR,2SC5343GL a
MAIN S Q 0452 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0453 89-333-317-880 TR,2SC3331(T/U) a
MAIN S Q 0454 89-333-317-880 TR,2SC3331(T/U) a
MAIN S Q 0455 87-A30-119-040 C-TR,2SC3906K R a
MAIN S Q 0456 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0601 87-A30-538-040 C-TR,SRA2202S a
MAIN S Q 0651 87-A30-087-080 C-FET,2SK2158 a
MAIN S Q 0652 87-A30-087-080 C-FET,2SK2158 a
MAIN S Q 0653 87-A30-076-080 C-TR,2SC3052F a
CX-SNR81
EZSM
MAIN S Q 0835 87-A30-521-080 C-TR,2SC5345SF/S(O) a
MAIN S Q 0836 87-A30-677-040 C-TR,SRA2207S a
MAIN S Q 0861 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0863 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0901 89-503-602-080 C-FET,2SK360E a
MAIN S Q 0902 87-A30-664-080 C-TR,2SC2620B a
MAIN S Q 0903 87-A30-664-080 C-TR,2SC2620B a
MAIN S Q 0904 87-A30-664-080 C-TR,2SC2620B a
MAIN S Q 0905 87-A30-664-080 C-TR,2SC2620B a
MAIN S Q 0948 87-A30-675-040 C-TR,2SD1306NE07TL a
MAIN S Q 0951 87-A30-484-040 C-TR,KRA102S a
MAIN S Q 0952 87-A30-675-040 C-TR,2SD1306NE07TL a
MAIN S Q 0953 89-503-602-080 C-FET,2SK360E a
MAIN S Q 0981 87-A30-494-080 TR,2SA1980G a
MAIN S Q 0982 87-A30-076-080 C-TR,2SC3052F a
MAIN S Q 0983 87-A30-076-080 C-TR,2SC3052F a
MAIN X R 0003 88-128-229-080 C-RES, 2.2-1/8W J a
MAIN X R 0004 88-128-229-080 C-RES, 2.2-1/8W J a
MAIN X R 0007 88-128-229-080 C-RES, 2.2-1/8W J a
MAIN X R 0008 88-128-229-080 C-RES, 2.2-1/8W J a
CX-SNR81
EZSM
MAIN X R 0009 88-108-273-080 C-RES,U 27K-1/16W J a
MAIN X R 0010 88-108-273-080 C-RES,U 27K-1/16W J a
MAIN X R 0011 88-118-472-080 C-RES,S 4.7K-1/10W J a
MAIN X R 0012 88-118-472-080 C-RES,S 4.7K-1/10W J a
MAIN X R 0013 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN X R 0014 88-118-100-080 C-RES,S 10-1/10W J a
MAIN X R 0015 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN O R 0024 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0026 88-118-472-080 C-RES,S 4.7K-1/10W J a
MAIN X R 0027 88-118-472-080 C-RES,S 4.7K-1/10W J a
MAIN X R 0028 88-108-221-080 C-RES,U 220-1/16W J a
MAIN O R 0029 88-108-473-080 C-RES,U 47K-1/16W J a
MAIN X R 0031 88-108-154-080 C-RES,U 150K-1/16W J a
MAIN X R 0032 88-118-472-080 C-RES,S 4.7K-1/10W J a
MAIN O R 0033 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0035 88-108-123-080 C-RES,U 12K-1/16W J a
MAIN X R 0037 88-118-102-080 C-RES,S 1K-1/10W J a
MAIN X R 0038 88-118-102-080 C-RES,S 1K-1/10W J a
MAIN X R 0041 88-100-000-010 PLATING-JW, 0.58 SN95 a
MAIN X R 0042 88-129-000-080 C-JUMPER, 3216 a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-17-
Page 18
ELECTRICAL PARTS LIST - 11/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
MAIN X R 0043 88-129-000-080 C-JUMPER, 3216 a
MAIN X R 0044 88-128-271-080 C-RES, 270-1/8W J a
MAIN X R 0045 88-128-331-080 C-RES, 330-1/8W J a
MAIN X R 0046 88-121-271-080 RES,270-1/8W J a
MAIN X R 0047 88-128-331-080 C-RES, 330-1/8W J a
MAIN X R 0048 88-128-221-080 C-RES, 220-1/8W J a
MAIN X R 0049 88-121-221-080 RES,220-1/8W J a
MAIN O R 0050 88-108-223-080 C-RES,U 22K-1/16W J a
MAIN O R 0051 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN O R 0052 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN X R 0053 88-108-683-080 C-RES,U 68K-1/16W J a
MAIN X R 0054 88-118-562-080 C-RES,S 5.6K-1/10W J a
MAIN X R 0055 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN X R 0056 88-118-680-080 C-RES,S 68-1/10W J a
MAIN X R 0057 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN O R 0058 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0059 88-108-221-080 C-RES,U 220-1/16W J a
MAIN X R 0060 88-108-471-080 C-RES,U 470-1/16W J a
MAIN O R 0061 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0062 88-108-223-080 C-RES,U 22K-1/16W J a
CX-SNR81
EZSM
MAIN O R 0063 88-108-223-080 C-RES,U 22K-1/16W J a
MAIN O R 0064 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0065 88-108-123-080 C-RES,U 12K-1/16W J a
MAIN X R 0066 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN O R 0067 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0068 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0069 88-108-101-080 C-RES,U 100-1/16W J a
MAIN X R 0070 88-128-393-080 C-RES, 39K-1/8W J a
MAIN X R 0071 88-128-393-080 C-RES, 39K-1/8W J a
MAIN X R 0072 88-128-393-080 C-RES, 39K-1/8W J a
MAIN X R 0073 88-128-393-080 C-RES, 39K-1/8W J a
MAIN X R 0082 88-128-682-080 C-RES, 6.8K-1/8W J a
MAIN X R 0083 88-128-682-080 C-RES, 6.8K-1/8W J a
MAIN X R 0084 88-128-682-080 C-RES, 6.8K-1/8W J a
MAIN X R 0085 88-128-682-080 C-RES, 6.8K-1/8W J a
MAIN O R 0091 88-108-823-080 C-RES,U 82K-1/16W J a
MAIN X R 0092 88-108-393-080 C-RES,U 39K-1/16W J a
MAIN O R 0093 88-108-153-080 C-RES,U 15K-1/16W J a
MAIN O R 0094 88-108-823-080 C-RES,U 82K-1/16W J a
MAIN X R 0095 88-108-393-080 C-RES,U 39K-1/16W J a
CX-SNR81
EZSM
MAIN O R 0096 88-108-153-080 C-RES,U 15K-1/16W J a
MAIN O R 0103 88-108-153-080 C-RES,U 15K-1/16W J a
MAIN O R 0104 88-108-153-080 C-RES,U 15K-1/16W J a
MAIN X R 0105 88-108-273-080 C-RES,U 27K-1/16W J a
MAIN X R 0106 88-108-273-080 C-RES,U 27K-1/16W J a
MAIN O R 0107 88-108-101-080 C-RES,U 100-1/16W J a
MAIN O R 0108 88-108-101-080 C-RES,U 100-1/16W J a
MAIN X R 0109 88-118-332-080 C-RES,S 3.3K-1/10W J a
MAIN X R 0110 88-118-332-080 C-RES,S 3.3K-1/10W J a
MAIN X R 0111 88-118-102-080 C-RES,S 1K-1/10W J a
MAIN X R 0112 88-118-102-080 C-RES,S 1K-1/10W J a
MAIN X R 0113 88-118-273-080 C-RES,S 27K-1/10W J a
MAIN X R 0114 88-118-273-080 C-RES,S 27K-1/10W J a
MAIN X R 0115 88-128-222-080 C-RES, 2.2K-1/8W J a
MAIN X R 0116 88-128-222-080 C-RES, 2.2K-1/8W J a
MAIN O R 0117 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0118 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0119 88-118-101-080 C-RES,S 100-1/10W J a
MAIN X R 0120 88-118-101-080 C-RES,S 100-1/10W J a
MAIN X R 0121 88-118-101-080 C-RES,S 100-1/10W J a
CX-SNR81
EZSM
MAIN X R 0122 88-118-101-080 C-RES,S 100-1/10W J a
MAIN X R 0123 88-128-222-080 C-RES, 2.2K-1/8W J a
MAIN X R 0124 88-128-222-080 C-RES, 2.2K-1/8W J a
MAIN X R 0125 88-128-102-080 C-RES, 1K-1/8W J a
MAIN X R 0126 88-128-102-080 C-RES, 1K-1/8W J a
MAIN X R 0127 88-118-390-080 C-RES,S 39-1/10W J a
MAIN X R 0128 88-118-390-080 C-RES,S 39-1/10W J a
MAIN O R 0129 87-A00-262-080 RES,M/F 0.15-2W J a
MAIN O R 0130 87-A00-262-080 RES,M/F 0.15-2W J a
MAIN O R 0131 87-A00-262-080 RES,M/F 0.15-2W J a
MAIN O R 0132 87-A00-262-080 RES,M/F 0.15-2W J a
MAIN X R 0133 88-108-182-080 C-RES,U 1.8K-1/16W J a
MAIN X R 0134 88-108-182-080 C-RES,U 1.8K-1/16W J a
MAIN X R 0135 88-108-182-080 C-RES,U 1.8K-1/16W J a
MAIN X R 0136 88-108-182-080 C-RES,U 1.8K-1/16W J a
MAIN O R 0137 88-108-101-080 C-RES,U 100-1/16W J a
MAIN O R 0138 88-108-101-080 C-RES,U 100-1/16W J a
MAIN X R 0141 88-118-102-080 C-RES,S 1K-1/10W J a
MAIN X R 0142 88-118-102-080 C-RES,S 1K-1/10W J a
MAIN X R 0143 88-108-392-080 C-RES,U 3.9K-1/16W J a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-18-
Page 19
ELECTRICAL PARTS LIST - 12/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
MAIN X R 0144 88-108-392-080 C-RES,U 3.9K-1/16W J a
MAIN O R 0151 88-108-473-080 C-RES,U 47K-1/16W J a
MAIN O R 0152 88-108-473-080 C-RES,U 47K-1/16W J a
MAIN X R 0153 88-118-390-080 C-RES,S 39-1/10W J a
MAIN X R 0154 88-118-390-080 C-RES,S 39-1/10W J a
MAIN X R 0155 88-108-682-080 C-RES,U 6.8K-1/16W J a
MAIN X R 0156 88-108-682-080 C-RES,U 6.8K-1/16W J a
MAIN X R 0157 88-121-472-080 RES,4.7K-1/8W J a
MAIN X R 0158 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN O R 0159 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0160 88-118-103-080 C-RES,S 10K-1/10W J a
MAIN X R 0161 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN X R 0162 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN X R 0163 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN X R 0164 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN X R 0165 88-108-152-080 C-RES,U 1.5K-1/16W J a
MAIN X R 0166 88-108-152-080 C-RES,U 1.5K-1/16W J a
MAIN O R 0167 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0168 88-118-473-080 C-RES,S 47K-1/10W J a
MAIN X R 0171 88-118-222-080 C-RES,S 2.2K-1/10W J a
CX-SNR81
EZSM
MAIN X R 0172 88-118-222-080 C-RES,S 2.2K-1/10W J a
MAIN X R 0173 88-118-182-080 C-RES,S 1.8K-1/10W J a
MAIN X R 0174 88-118-182-080 C-RES,S 1.8K-1/10W J a
MAIN X R 0175 88-118-331-080 C-RES,S 330-1/10W J a
MAIN X R 0176 88-118-331-080 C-RES,S 330-1/10W J a
MAIN X R 0178 88-118-103-080 C-RES,S 10K-1/10W J a
MAIN O R 0179 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN O R 0180 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN X R 0181 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN X R 0182 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN X R 0183 88-128-392-080 C-RES, 3.9K-1/8W J a
MAIN X R 0184 88-121-102-080 RES,1K-1/8W J a
MAIN O R 0185 88-108-332-080 C-RES,U 3.3K-1/16W J a
MAIN X R 0186 88-118-102-080 C-RES,S 1K-1/10W J a
MAIN X R 0187 88-118-103-080 C-RES,S 10K-1/10W J a
MAIN X R 0188 88-118-222-080 C-RES,S 2.2K-1/10W J a
MAIN X R 0189 88-128-392-080 C-RES, 3.9K-1/8W J a
MAIN X R 0190 88-128-392-080 C-RES, 3.9K-1/8W J a
MAIN X R 0192 88-128-332-080 C-RES, 3.3K-1/8W J a
MAIN O R 0193 88-108-103-080 C-RES,U 10K-1/16W J a
CX-SNR81
EZSM
MAIN O R 0194 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0195 88-108-473-080 C-RES,U 47K-1/16W J a
MAIN O R 0196 88-108-473-080 C-RES,U 47K-1/16W J a
MAIN O R 0197 88-108-473-080 C-RES,U 47K-1/16W J a
MAIN O R 0198 88-108-473-080 C-RES,U 47K-1/16W J a
MAIN X R 0199 88-121-225-080 RES,2.2M-1/8W J a
MAIN X R 0204 88-128-332-080 C-RES, 3.3K-1/8W J a
MAIN X R 0205 88-128-332-080 C-RES, 3.3K-1/8W J a
MAIN X R 0206 88-128-392-080 C-RES, 3.9K-1/8W J a
MAIN X R 0207 88-128-392-080 C-RES, 3.9K-1/8W J a
MAIN X R 0208 88-128-392-080 C-RES, 3.9K-1/8W J a
MAIN X R 0217 88-108-683-080 C-RES,U 68K-1/16W J a
MAIN X R 0218 88-108-105-080 C-RES,U 1M-1/16W J a
MAIN O R 0219 88-108-153-080 C-RES,U 15K-1/16W J a
MAIN X R 0220 88-118-154-080 C-RES,S 150K-1/10W J a
MAIN X R 0221 88-128-180-080 C-RES, 18-1/8W J a
MAIN X R 0222 88-128-180-080 C-RES, 18-1/8W J a
MAIN X R 0223 88-128-180-080 C-RES, 18-1/8W J a
MAIN X R 0227 88-108-471-080 C-RES,U 470-1/16W J a
MAIN X R 0228 88-108-471-080 C-RES,U 470-1/16W J a
CX-SNR81
EZSM
MAIN X R 0247 88-130-100-080 RES,10-1/4W J a
MAIN X R 0248 88-130-100-080 RES,10-1/4W J a
MAIN X R 0249 88-128-100-080 C-RES, 10-1/8W J a
MAIN X R 0250 88-128-100-080 C-RES, 10-1/8W J a
MAIN X R 0280 88-128-473-080 C-RES, 47K-1/8W J a
MAIN X R 0281 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN O R 0282 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0283 88-108-224-080 C-RES,U 220K-1/16W J a
MAIN O R 0284 88-108-224-080 C-RES,U 220K-1/16W J a
MAIN X R 0285 88-108-333-080 C-RES,U 33K-1/16W J a
MAIN O R 0286 88-108-473-080 C-RES,U 47K-1/16W J a
MAIN O R 0287 88-108-473-080 C-RES,U 47K-1/16W J a
MAIN X R 0301 88-108-393-080 C-RES,U 39K-1/16W J a
MAIN X R 0302 88-108-393-080 C-RES,U 39K-1/16W J a
MAIN O R 0303 88-108-823-080 C-RES,U 82K-1/16W J a
MAIN O R 0304 88-108-823-080 C-RES,U 82K-1/16W J a
MAIN O R 0305 88-108-224-080 C-RES,U 220K-1/16W J a
MAIN X R 0451 88-121-222-080 RES,2.2K-1/8W J a
MAIN X R 0453 88-118-472-080 C-RES,S 4.7K-1/10W J a
MAIN X R 0454 88-121-829-080 RES,8.2-1/8W J a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-19-
Page 20
ELECTRICAL PARTS LIST - 13/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
MAIN X R 0455 88-108-183-080 C-RES,U 18K-1/16W J a
MAIN X R 0456 88-108-183-080 C-RES,U 18K-1/16W J a
MAIN X R 0457 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN O R 0458 88-108-563-080 C-RES,U 56K-1/16W J a
MAIN X R 0459 88-118-472-080 C-RES,S 4.7K-1/10W J a
MAIN X R 0460 88-108-229-080 C-RES,U 2.2-1/16W J a
MAIN X R 0461 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN X R 0462 88-108-471-080 C-RES,U 470-1/16W J a
MAIN O R 0463 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN O R 0464 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN X R 0467 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN O R 0468 88-108-272-080 C-RES,U 2.7K-1/16W J a
MAIN X R 0601 88-108-680-080 C-RES,U 68-1/16W J a
MAIN X R 0602 88-108-680-080 C-RES,U 68-1/16W J a
MAIN X R 0603 88-108-394-080 C-RES,U 390K-1/16W J a
MAIN X R 0604 88-108-394-080 C-RES,U 390K-1/16W J a
MAIN X R 0605 88-108-122-080 C-RES,U 1.2K-1/16W J a
MAIN X R 0606 88-108-122-080 C-RES,U 1.2K-1/16W J a
MAIN X R 0607 88-108-183-080 C-RES,U 18K-1/16W J a
MAIN X R 0608 88-108-183-080 C-RES,U 18K-1/16W J a
CX-SNR81
EZSM
MAIN X R 0609 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN X R 0610 88-121-472-080 RES,4.7K-1/8W J a
MAIN X R 0611 88-108-682-080 C-RES,U 6.8K-1/16W J a
MAIN X R 0612 88-108-682-080 C-RES,U 6.8K-1/16W J a
MAIN X R 0613 88-108-682-080 C-RES,U 6.8K-1/16W J a
MAIN X R 0614 88-108-682-080 C-RES,U 6.8K-1/16W J a
MAIN X R 0615 88-108-273-080 C-RES,U 27K-1/16W J a
MAIN X R 0616 88-108-273-080 C-RES,U 27K-1/16W J a
MAIN X R 0617 88-121-822-080 RES,8.2K-1/8W J a
MAIN X R 0618 88-121-822-080 RES,8.2K-1/8W J a
MAIN O R 0619 88-108-153-080 C-RES,U 15K-1/16W J a
MAIN O R 0620 88-108-153-080 C-RES,U 15K-1/16W J a
MAIN O R 0621 88-108-332-080 C-RES,U 3.3K-1/16W J a
MAIN O R 0622 88-108-332-080 C-RES,U 3.3K-1/16W J a
MAIN X R 0623 88-108-682-080 C-RES,U 6.8K-1/16W J a
MAIN X R 0624 88-108-682-080 C-RES,U 6.8K-1/16W J a
MAIN O R 0625 88-108-332-080 C-RES,U 3.3K-1/16W J a
MAIN O R 0626 88-108-332-080 C-RES,U 3.3K-1/16W J a
MAIN X R 0627 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN X R 0628 88-108-222-080 C-RES,U 2.2K-1/16W J a
CX-SNR81
EZSM
MAIN O R 0629 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0630 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0631 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN X R 0632 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN O R 0633 88-108-272-080 C-RES,U 2.7K-1/16W J a
MAIN O R 0634 88-108-272-080 C-RES,U 2.7K-1/16W J a
MAIN O R 0635 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN O R 0636 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN X R 0637 88-108-331-080 C-RES,U 330-1/16W J a
MAIN X R 0638 88-108-331-080 C-RES,U 330-1/16W J a
MAIN X R 0639 88-108-183-080 C-RES,U 18K-1/16W J a
MAIN X R 0640 88-108-183-080 C-RES,U 18K-1/16W J a
MAIN X R 0641 88-121-223-080 RES,22K-1/8W J a
MAIN X R 0642 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN X R 0643 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN X R 0644 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN X R 0649 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN X R 0650 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN O R 0651 88-108-101-080 C-RES,U 100-1/16W J a
MAIN O R 0652 88-108-101-080 C-RES,U 100-1/16W J a
CX-SNR81
EZSM
MAIN X R 0656 88-108-474-080 C-RES,U 470K-1/16W J a
MAIN X R 0657 88-128-684-080 C-RES, 680K-1/8W J a
MAIN X R 0658 88-108-684-080 C-RES,U 680K-1/16W J a
MAIN X R 0659 88-108-394-080 C-RES,U 390K-1/16W J a
MAIN X R 0660 88-108-274-080 C-RES,U 270K-1/16W J a
MAIN X R 0661 88-108-392-080 C-RES,U 3.9K-1/16W J a
MAIN X R 0662 88-108-392-080 C-RES,U 3.9K-1/16W J a
MAIN X R 0669 88-108-273-080 C-RES,U 27K-1/16W J a
MAIN X R 0670 88-108-273-080 C-RES,U 27K-1/16W J a
MAIN O R 0672 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0673 88-108-182-080 C-RES,U 1.8K-1/16W J a
MAIN O R 0674 88-108-123-080 C-RES,U 12K-1/16W J a
MAIN O R 0677 88-108-223-080 C-RES,U 22K-1/16W J a
MAIN X R 0678 88-128-223-080 C-RES, 22K-1/8W J a
MAIN X R 0789 88-108-273-080 C-RES,U 27K-1/16W J a
MAIN O R 0790 87-012-286-080 C-CAP,U 0.01-25 K B GRM a
MAIN O R 0791 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN X R 0793 88-108-221-080 C-RES,U 220-1/16W J a
MAIN X R 0795 88-108-000-080 C-JUMPER,U a
MAIN O R 0801 88-108-103-080 C-RES,U 10K-1/16W J a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-20-
Page 21
ELECTRICAL PARTS LIST - 14/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
MAIN O R 0802 88-108-223-080 C-RES,U 22K-1/16W J a
MAIN X R 0803 88-128-183-080 C-RES, 18K-1/8W J a
MAIN X R 0804 88-108-000-080 C-JUMPER,U a
MAIN O R 0805 88-108-332-080 C-RES,U 3.3K-1/16W J a
MAIN X R 0806 88-108-682-080 C-RES,U 6.8K-1/16W J a
MAIN O R 0809 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN O R 0810 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN X R 0811 88-108-000-080 C-JUMPER,U a
MAIN X R 0812 88-108-000-080 C-JUMPER,U a
MAIN O R 0813 88-108-224-080 C-RES,U 220K-1/16W J a
MAIN X R 0814 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN X R 0815 88-121-682-080 RES,6.8K-1/8W J a
MAIN O R 0818 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0821 88-108-000-080 C-JUMPER,U a
MAIN O R 0823 88-108-473-080 C-RES,U 47K-1/16W J a
MAIN O R 0826 88-108-223-080 C-RES,U 22K-1/16W J a
MAIN X R 0832 88-108-391-080 C-RES,U 390-1/16W J a
MAIN X R 0840 88-108-221-080 C-RES,U 220-1/16W J a
MAIN O R 0850 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0851 88-118-470-080 C-RES,S 47-1/10W J a
CX-SNR81
EZSM
MAIN O R 0853 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN X R 0854 88-108-331-080 C-RES,U 330-1/16W J a
MAIN X R 0855 88-108-183-080 C-RES,U 18K-1/16W J a
MAIN O R 0856 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0857 88-108-181-080 C-RES,U 180-1/16W J a
MAIN X R 0858 88-108-271-080 C-RES,U 270-1/16W J a
MAIN O R 0860 88-108-101-080 C-RES,U 100-1/16W J a
MAIN X R 0861 88-108-471-080 C-RES,U 470-1/16W J a
MAIN O R 0862 88-108-272-080 C-RES,U 2.7K-1/16W J a
MAIN X R 0863 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN O R 0864 88-108-123-080 C-RES,U 12K-1/16W J a
MAIN X R 0865 88-108-471-080 C-RES,U 470-1/16W J a
MAIN X R 0867 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN X R 0870 88-121-102-080 RES,1K-1/8W J a
MAIN X R 0871 88-121-102-080 RES,1K-1/8W J a
MAIN X R 0901 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN X R 0902 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN X R 0903 88-108-330-080 C-RES,U 33-1/16W J a
MAIN O R 0904 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0905 88-108-102-080 C-RES,U 1K-1/16W J a
CX-SNR81
EZSM
MAIN X R 0906 88-108-564-080 C-RES,U 560K-1/16W J a
MAIN X R 0908 88-108-271-080 C-RES,U 270-1/16W J a
MAIN X R 0909 88-108-181-080 C-RES,U 180-1/16W J a
MAIN X R 0910 88-108-334-080 C-RES,U 330K-1/16W J a
MAIN X R 0911 88-108-181-080 C-RES,U 180-1/16W J a
MAIN X R 0912 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN X R 0913 88-108-152-080 C-RES,U 1.5K-1/16W J a
MAIN X R 0914 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN X R 0915 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN X R 0916 88-108-470-080 C-RES,U 47-1/16W J a
MAIN O R 0926 88-108-101-080 C-RES,U 100-1/16W J a
MAIN O R 0944 88-108-101-080 C-RES,U 100-1/16W J a
MAIN X R 0945 88-108-104-080 C-RES,U 100K-1/16W J a
MAIN X R 0947 88-108-183-080 C-RES,U 18K-1/16W J a
MAIN X R 0948 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN O R 0952 88-108-562-080 C-RES,U 5.6K-1/16W J a
MAIN X R 0954 88-108-222-080 C-RES,U 2.2K-1/16W J a
MAIN X R 0956 88-108-471-080 C-RES,U 470-1/16W J a
MAIN X R 0958 88-108-472-080 C-RES,U 4.7K-1/16W J a
MAIN O R 0959 88-108-103-080 C-RES,U 10K-1/16W J a
CX-SNR81
EZSM
MAIN X R 0962 88-121-102-080 RES,1K-1/8W J a
MAIN X R 0964 88-108-330-080 C-RES,U 33-1/16W J a
MAIN O R 0968 88-108-822-080 C-RES,U 8.2K-1/16W J a
MAIN O R 0969 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN O R 0973 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN O R 0975 88-108-562-080 C-RES,U 5.6K-1/16W J a
MAIN O R 0976 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN O R 0977 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN X R 0978 88-108-681-080 C-RES,U 680-1/16W J a
MAIN O R 0979 88-108-123-080 C-RES,U 12K-1/16W J a
MAIN X R 0980 88-108-684-080 C-RES,U 680K-1/16W J a
MAIN X R 0981 88-121-471-080 RES,470-1/8W J a
MAIN X R 0982 88-108-682-080 C-RES,U 6.8K-1/16W J a
MAIN X R 0983 88-108-392-080 C-RES,U 3.9K-1/16W J a
MAIN O R 0984 88-108-562-080 C-RES,U 5.6K-1/16W J a
MAIN X R 0985 88-121-471-080 RES,470-1/8W J a
MAIN X R 0986 88-121-221-080 RES,220-1/8W J a
MAIN X R 0987 88-121-472-080 RES,4.7K-1/8W J a
MAIN O R 0988 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0989 88-121-102-080 RES,1K-1/8W J a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-21-
Page 22
ELECTRICAL PARTS LIST - 15/16
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
MAIN O R 0990 88-108-563-080 C-RES,U 56K-1/16W J a
MAIN O R 0991 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
MAIN O R 0992 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0993 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
MAIN O R 0994 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O R 0995 87-012-195-080 C-CAP,U 100P-50 J CH GRM a
MAIN O R 0996 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN X R 0997 88-108-154-080 C-RES,U 150K-1/16W J a
MAIN O R 0998 88-108-102-080 C-RES,U 1K-1/16W J a
MAIN O R 0999 88-108-103-080 C-RES,U 10K-1/16W J a
MAIN O RY 0202 87-A91-686-010 RELAY, G5PA-28(OMRON) a
MAIN O SFR0451 87-A90-432-080 SFR,30K H NVZ6TLTA a
MAIN O SFR0452 87-A90-432-080 SFR,30K H NVZ6TLTA a
MAIN X SH 0301 8C-NF5-221-010 PLATE,SHLD DECK M a
MAIN X SH 0901 8C-ZA3-619-010 SHLD-CASE,CZA-3 EZ P a
MAIN O TC 0942 87-A91-774-080 TRIMMER,PLY 30P 6.8X5.4 CDYL a
MAIN O TH 0101 87-A91-042-080 C-THMS,100K 55001 a
MAIN O TH 0102 87-A91-042-080 C-THMS,100K 55001 a
MAIN O W 0099 8B-NFJ-620-010 F-CABLE,9P 2.5 280MM a
MAIN O W 0101 8B-NF1-640-010 F-CABLE,5P 2.5 250MM a
CX-SNR81
EZSM
MAIN O WH 0001 87-A90-510-010 HLDR,WIRE 2.5-9P a
MAIN O WH 0101 87-A90-459-010 HLDR,WIRE 2.5-5P a
MAIN O X 0862 87-A70-307-010 VIB,XTAL 4.332MHZ CSA-309ST a
MAIN O X 0992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST a
POWER O C 0085 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a
POWER S D 0082 87-A40-270-080 C-DIODE,MC2838 a
POWER S D 0083 87-A40-269-080 C-DIODE,MC2836 a
POWER X F 0081 88-100-000-010 PLATING-JW, 0.58 SN95 a
POWER ! O PT 0001 8C-NF5-608-010 PT,CNF-5 EZ a
POWER ! O PT 0081 8B-MA6-675-010 PT,SUB BMA E (VRK) a
POWER ! O RY 0081 87-A91-418-010 RELAY,AC 12V G5PA-1-M a
POWER ! O T 0081 87-A60-317-010 TERMINAL, 1P MSC a
POWER ! O T 0082 87-A60-317-010 TERMINAL, 1P MSC a
POWER O WH 0081 87-A90-510-010 HLDR,WIRE 2.5-9P a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-22-
Page 23
ELECTRICAL PARTS LIST - 16/16
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
CHIP RESISTOR PART CODE
Chip Resistor Part Coding
88
A
Resistor Code
Chip resistor
Wattage Type Tolerance
1/16W 1005 5% CJ
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
Symbol
CJ
CJ
CJ
Figure
Value of resistor
Form
L
Dimensions (mm)
t
W
0.55
Resistor Code
108
118
128
LW t
1.0 0.5 0.35 104
1.6 0.8 0.45
2 1.25 0.45
3.2
1.6
: A
: A
-23-
Page 24
TRANSISTOR ILLUSTRATION -1/1
B C E
2SB1548
FN1016
FP1016
E C B
2N5551C
D
G
E C B
2SA1296GR
E C B
2SA1980G
E C B
2SC5343GL
2SA1981Y
2SC3331(T/U)
G D S
2SK3053
S D G
2SJ460
2SK2541
S
G
D
B
S
C
E
2SK360E 2SK2158
2SA1235F
2SC2620B
2SC3052F
2SC3906KR
2SC5345SF/S(O)
2SD1306E
DTC114YKA
KRA102S
SBT5401
SBT5551
SRA2202S
SRA2207S
-24-
Page 25
SCHEMATIC DIAGRAM - 1/5 (MAIN -1/2, AMP SECTION)
TO MAIN C.B 2/2 (TUNER SECTION) 1A-16A
16A
14A
15A
4.86/0
12.04
-26.3
9.78
T1
T2
T3
MAIN C.B 1/2
RDS-SIG
RDS-CLK
RDS-DATA
BEAT SW 13A
(AMP SECTION)
4.86/0
5.93
PIN601
FB604
0.1
R609
R610 4.7K
4.7K
T3
T2
T1
12.04
BEAT
5.93
FN1016
9.78
15K15K
2SC3052F
-50.0
FP1016
FN1016
1.8K
(W099)
AC36.4V
AC17.5V
AC2.3V
TO POWER C.B WHO81
0/5.0V
DC11.4V
1N5402-BD54 x4
R003
2.2
R004
2.2
R007
2.2
R008
2.2
D001-004
50.1
D001
D003
-50.0
C458
2200P
D002
D004
23.2
2SC3906KR
G3SBA60L-6088
-23.6
R461
4.7K
-50.0
50.1
-50.0
9.78
FP1016
6.8K
6.8K
12.04
R460
-23.6
23.2
-23.6
5.93
-26.3
12.04
12.04
12.04
BEAT
2.2
50.1
12.04
12.04
9.78
50.1
12.04
23.2
-23.6
22K
-50.0
9.78 9.78
3.3K
D186
RK46-P20
3.3K
23.2
D185
RK46-P20
-23.6
-50.0
-50.0
12.04
C230
0.015
C229
0.015
TO HP C.B WH201
-25-
Page 26
SCHEMATIC DIAGRAM - 2/5 (MAIN -2/2, TUNER SECTION)
MAIN C.B 2/2 (TUNER SECTION)
Q902 L901,902,904,905 Q901
C916
0.01
D
G
S
ANTENNA
6.9V
0.01
22/50
TP4
(VT)
D
G
1N4148M
R956
470
C952
0.01
Q948
2SD1306NE07TL
LW SW
MW TRACKING ADJ.
TC942
30P
FM75
(COAXIAL)
MW/LW
LOOP
13
64
Q903-905
7.81V
5.62V
11.33V
0.01
25 KB
C984
C991
X992
4.5MHz
1A
2A
3A
4A
5A
0.01 25 KB
C987
0.01 25 KB
0.01
1N4148M
12.04V
7.81V
5.6K
1N4148M
1N4148M
R811
JR
R812
JR
6.8K
ON:7.68V OFF:0V
0.022
0.022
L801
R823
47K
L802
AM IF ADJ.
JR
JR
PCFJZH-450L
0.01
R790
C788
5P
C782
TP2
TP2,3
R814
2.2K
TP1
TP3
(DC BALANCE)
(CLK)
MS2 GH-A
Q835
FM IF AMP
Q951
KRA102S
MW/LW SW
COIL,OSC MW(3BLW)
R948
4.7K
SFE10.7
Q952
2SD1306NE07TL
LW OSC SW
R958
4.7K
270
JR962
Q836
FM BAND SW
AM RF AMP
JR950
C962
1/50
S
13A
6A
14A
15A
TO MAIN C.B 1/2 (AMP SECTION) 1A-6A,13A-16A
16A
470K
1N4148M
1K
L942
LW VT ADJ.
8A
470
1K
100K
RESET
MUX
T2
VREF
4.9V
ARI
VDD
QUAL
RDATA
CMPF0VSST1XO
RCLK
T57
XI
12.04V
TUNER ON:4.86V OFF:0V
11.33V
10A
11A
12A
9A
7A
TO MAIN C.B 1/2
(AMP SECTION)
7A-12A
L941,TC942
LW TRACKING ADJ.
-26-
Page 27
SCHEMATIC DIAGRAM -3/5 (HP SECTION)
WH201
JW243
J201
JW244
TO MAIN C.B 1/2 (AMP SECTION) WH101
R266
R246R244
R265R245R243
-27-
Page 28
WIRING - 1/4 (MAIN C.B / HP C.B)
101112131415161718192021222324
1234567892526272829303132
A
J832
MW/LW LOOP
FM75
(COAXIAL)
TO CD MECHANISM
J832
C847
C848
FFC602
D901
C904
C905
C902
L901
C903
R004
C901
L902
R954
R902
L941
D942
R947
R901
Q901
C906
C831
R003
C958
L904
R959
C914
R903
C908
R952
L952
C907
C947
L908
L903
R956
C859
R904
D902
C916
SH901
C942
Q953
EB
R944
C
C860
C910
C909
Q902
C
C915
R906
L905
TC942
E
B
C911
Q904
C922
C919
R912
C917
C
C
R913
E
B
E
B
D001
C921
Q903
R909
C924
Q948
EB
R945
C920
R910
C
L942
L907
R911
C918
C923
D903
C925
C913
R969
C952
13
64
C948
R964
R914
Q905
C931
C
R905
EB
C926
R926
R916
R915
C844
Q946
B
E
C
R948
Q952
C869
C797
Q951
E
C
B
R958
B
C
E
R821
C786 R802
C818
C825
C871
R809
R861
C870
Q861
R864
C
C872
EB
L861
C874
C876
R865
EB
C
C875
16 9
18
C873
R867
Q863
R863
R862
IC861
C877
X862
C878
C879
R678
R871
R870
R677
R610
R609
C304
B
C
D
E
F
C989
R973
C985
D992
C465
R468
R462
C459
FB602
C
EB
R467
R461
Q456
EB
Q455
C
CLP601
G
H
I
R007
R008
J
TO POWER C.B WH081
C230
W099
C229
D002
D003
D004
R082
R083
R085
D186
R030
D195
Q4
C
EB
R013
K
L
M
N
R181
C122
Q101
C
C101
EB
J201
PHONES
15
WH201
C109
R243 R244
R245
R246
R265
J201
7
6
5
4
1
3
2
R266
O
P
Q
R
D108
R220
R218
R219
R217
Q235
Q102
C
C
EB
EB
R144
R182
C103
S
-28-
T
R135
U
Page 29
SCHEMATIC DIAGRAM - 4/5 (FRONT/DECK/CD-LED SECTION)
DC:-17.26
AC:2.01VAC
-26.3 -26.3
R701
R702
D701
R703
PTY
RT
S350 S349 S348
R350
3.3K
R349
2.7K
AG
R348
1.8K
-26.3
-26.3
-26.3
5.15
1N4148M
5.15
TO MAIN C.B 1/2 (AMP SECTION) CN601
10.8/0
10.8/0
10.8/0
12.04
-26.3
DC:-17.26
AC:2.01VAC
12.04
12.04
S350
RDS
1N4148M
LW
AM10K
D983 1N4148M
D981 1N4148M
P17
P15
10.8/010.8/0
10.8/0
10.8/0
10.8/0
5.0
10.8/0
10.8/0
5.0
1N4148M
5.15
12.04
10.8/0
10.8/0
10.8/0
10.8/0
10.8/0
NORM/ACTION
-29-
12.04
5.08/0
JR617 100
NORM/ACTION
EW732
5.08/0
5.08/0
T7
5.08/0
JR609 100
5.08/0
JR605 100
T11
5.08/0
5.08/0
JR601 100
CN104
(FFC104)
CN1
CRD1
Page 30
WIRING - 2/4 (FRONT C.B / CD-LED C.B)
101112131415161718192021222324
1234567892526272829303132
A
B
C
D
E
F
G
D983
D981
D701
R701
R702
H
I
J
K
R703
L
M
N
O
P
JR601
JR605
JR609
10
CN104
JR617
S348
R349
R350
S350S349
Q
R
S
T
RDS
S349
PTYAG
S350
RT
U
CN1
(FFC104)
S348
-30-
Page 31
WIRING - 3/4 (DECK C.B / HEAD-1 C.B)
(CST1)
(CAM1)
IC1
1
3
1
3
1
2
11
10
(REA)
(CST2)(CAM2)
DECK C.B
HEAD-1
C.B
IC2
PH
DECK 1
CN1
TO FRONT C.B CN104
(FFC104)
CNA301
CNA302
TO MAIN CB
CN301
CRD1
TO MAIN C.B CN302
DECK-2
101112131415161718192021222324
1234567892526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
-31-
Page 32
SCHEMATIC DIAGRAM -5/5 (POWER SECTION)
POWER C.B
PT,CNF-5 EZ
WH081
AC36.4V
AC17.5V
AC2.3V
TO MAIN C.B 1/2 (AMP SECTION) WH001 VIA W099
DC11.4V
0/5.0V
D083
C085
0.1
D082
RY081
RELAY,AC12V
T082
AC CORD ASSY, E BLK CC
PT081
PT,SUB BMA E
(VRK)
T081
AC230V, 50Hz
F081
-32-
Page 33
WIRING - 4/4 (POWER C.B)
POWER C.B
D083D082
RY081
T081
T082
F081
1
17
TF
PT081
1
4
6
8
8 17
9
WH081
C085
PT001
BRN
BLU
AC230V
50Hz
AC CORD ASSY, E BLK CC
TO MAIN C.B WH001
(W099)
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
-33-
N
O
P
Q
R
S
T
U
Page 34
ELECTRICAL ADJUSTMENT -1/7
18
MAIN C.B (PARTS SIDE)
SFR451 SFR452
5
L
8
02
2 7
TC942
L942
L953
L907
L941
6
L952
L901
9
L904L905
L902
3
5
6
9
10
MAIN C.B (PATTERN SIDE)
4
)
(
)
(
)
(
15
16
3
17
18
19
DECK C.B (PATTERN SIDE)
12
-34-
15
PH
RPH
15
Page 35
ELECTRICAL ADJUSTMENT -2/7
<TUNER Adjustment>
1. VT Check (MW)
Requirements
• Measuring instrument: Digital multimeter
Test points: VT, GND
1) Connect the digital multimeter between VT and GND.
2) Set the function to MW, and tune the receiving frequency of the unit at 1,602 kHz.
3) Check that the digital multimeter ranges under 9 V.
4) Tune the receiving frequency of the unit at 531 kHz.
5) Check that the digital multimeter ranges above 0.5 V.
2. VT Adjustment (LW)
Requirements: Same as above.
• Adjustment point: L942
1) Connect the digital multimeter between VT and GND.
2) Set the function to FM, and tune the receiving frequency of the unit at 144.0 kHz.
3) Adjust L942 so that the digital multimeter ranges at 1.3 ± 0.05 V.
3. VT Adjustment and Check (FM)
Requirements: Same as the above.
ï Adjustment point: L907
1) Connect the digital multimeter between VT and GND.
2) Set the function to FM, and tune the receiving frequency of the unit at 108.0 MHz.
3) Adjust L907 so that the digital multimeter ranges at 7.0 ± 0.1 V.
4) Tune the receiving frequency of the unit at 87.5 MHz.
5) Check that the digital multimeter ranges under 0.5 V.
4. CLOCK Check (MW)
Requirements
• Measuring instrument: Frequency counter
Test point: CLOCK (IC801 24PIN), GND
1) Connect the frequency counter between CLOCK and GND.
2) Set the function to MW, and tune the receiving frequency of the unit at 1,710 kHz.
3) Check that the frequency counter ranges at 2,160 kHz ± 45 Hz.
-35-
Page 36
ELECTRICAL ADJUSTMENT -3/7
<MW/LW Adjustment>
Make the following preparations for MW/LW adjustment.
Preparations
• Standard Signal Generator (S.S.G.) / Loop antenna / Oscilloscope / Millivoltmeter / Dummy resistance (6y)
1) Connect the unit and measuring instruments as shown in the diagram below.
2) Position the loop antenna connected to S.S.G. and the one connected to the unit 60 cm apart.
5. IF Adjustment (MW)
Requirements: As instructed in preparations.
• Adjustment point: L802
1) Set S.S.G. to MW; carrier of 999 kHz or 1,000 kHz with 30% modulation, and source at 1 kHz, position output at maximum.
2) Tune the receiving frequency of the unit at MW 999 kHz or 1,000 kHz.
3) While monitoring the waveform at 1 kHz through the oscilloscope, lower the output level of S.S.G. maximum (till a certain degree of
noise is monitored).
4) Adjust L802 so that the millivoltmeter points maximum.
´
6. Tracking Adjustment (MW)
Requirements: As instructed in preparations.
• Adjustment point: L952 / L953
1) Set S.S.G. to MW; carrier of 999 kHz with 30% modulation, and source at 1 kHz, position output at maximum.
2) Tune the receiving frequency of the unit at MW 999 kHz.
3) While monitoring the waveform at 1kHz through the oscilloscope, lower the output level of S.S.G. maximum (till a certain degree of
noise is monitored).
4) Adjust L952 so that the millivoltmeter points maximum.
5) Set S.S.G. to MW; carrier of 603 kHz with 30% modulation, and source at 1 kHz.
6) Tune the receiving frequency of the unit at MW 603 kHz.
7) Adjust L953 so that the millivoltmeter points maximum.
8) Repeat above steps 1) to 7) 2 to 3 times.
7. Tracking Adjustment(LW)
Requirements: As instructed in preparations.
• Adjustment point: L941/TC942
1) Set S.S.G. to LW; carrier of 144 kHz with 30% modulation, and source at 1 kHz, position output at maximum.
2) Tune the receiving frequency of the unit at LW144 kHz.
3) While monitoring the waveform at 1kHz through the oscilloscope, lower the output level of S.S.G. maximum (till a certain degree of
noise is monitored).
4) Adjust L941 so that the millivoltmeter points maximum.
5) Set S.S.G. to LW; carrier of 290 kHz with 30% modulation, and source at 1 kHz.
6) Tune the receiving frequency of the unit at LW 290 kHz.
7) Adjust TC942 so that the millivoltmeter points maximum.
8) Repeat above steps 1) to 7) 2 to 3 times.
8. Auto-Stop Check (MW)
Requirements: As instructed in preparations.
1) Set S.S.G. to MW; carrier of 999 kHz or 1,000 kHz with 30% modulation, source at 1 kHz, and output of 40 to 65 dBuV.
2) Apply the tuning search function, and check that the unit automatically stops at MW 999 kHz or 1,000 kHz.
-36-
Page 37
ELECTRICAL ADJUSTMENT -4/7
<FM Adjustment>
Make the following preparations for FM adjustment.
Preparations
• Standard Signal Generator (S.S.G.) / Loop antenna / Oscilloscope / Millivoltmeter / Dummy resistance (6y)
1) Connect the unit and measuring instruments as shown in the diagram below.
2) Connect the output of S.S.G. to the antenna input of the unit.
9. Tracking Adjustment
Requirements: As instructed in preparations.
• Adjustment point: L901/L902/L904/L905
1) Set S.S.G. to FM; carrier of 108 MHz with 75 kHz modulation, and source at 1 kHz, position output at maximum.
2) Tune the receiving frequency of the unit at FM 108 MHz.
3) While monitoring the waveform at 1kHz through the oscilloscope, lower the output level of S.S.G. maximum (till a certain degree of
noise is monitored).
4) Adjust L901/L902/L904/L905 so that the millivoltmeter points maximum.
´
10. Separation Check
Requirements: As instructed in preparations.
1) Set S.S.G. to FM; carrier of 98 MHz with 67.5 kHz modulation, source at 1 kHz, and output at 74 dBuV.
2) Switch S.S.G. to PILOT ON, and set PILOT at 7.5 kHz.
3) Tune the receiving frequency of the unit at FM 98 MHz.
4) Allow the output of S.S.G. only from Lch, and check that the difference between Lch and Rch is 12 dB or above.
5) Apply the above check to Rch.
11. Auto-Stop Check
Requirements: As instructed in preparations.
1) Set S.S.G. to FM; carrier of 98 MHz or 83 MHz with 75 kHz modulation, source at 1kHz, and output at 10 to 35 dBuV or less.
2) Apply the tuning search function, and check that the unit automatically stops at FM 98 MHz or 83 MHz.
-37-
Page 38
ELECTRICAL ADJUSTMENT -5/7
<DECK Section>
12. Tape Speed Adjustment (DECK 2)
Requirements
• Measuring instrument: Wow and flutter meter (frequency counter)
Test tape: TTA-100 (3 kHz)
Test point: HP OUT
Adjustment point: SFR1
1) Connect the wow and flutter meter to HP OUT of the unit.
2) Insert the test tape (TTA-100) to DECK 2. Play back the middle part of the tape,
and adjust SFR1 so that the level 3,000 Hz ± 5 Hz is monitored.
13. Tape Speed Check (DECK 1)
Requirements: Same as the above, 12.
1) Insert the test tape (TTA-100) to DECK 1. Play back the middle part of the tape, and check that
the level is ranged within ± 5 Hz as compared to the speed monitored for DECK 2.
14. Wow and Flutter Check (DECK 1 and DECK 2)
Requirements: Same as the above, 12.
1) Connect the wow and flutter meter to HP OUT of the unit.
2) Set the wow and flutter to JIS for INDICATOR and to W RMS (WTD) for mode.
3) Play back the middle part of the test tape (TTA-100), and check that the level ranges under 0.25%.
15. Head Azimuth Adjustment (DECK 1 and DECK 2)
Requirements
• Measuring instrument: Oscilloscope
Test tape: TTA-300 (10 kHz)
Test point: TP8 (Lch), TP9 (Rch)
Adjustment point: Head azimuth adjustment screw
1) Connect the probe CH1 of the oscilloscope to TP8 (Lch) and CH2 to TP9 (Rch).
2) Set V mode of the oscilloscope to ADD.
3) Insert the test tape (TTA-300) to DECK 1. Forward and play back the middle part of the tape,
and adjust the head azimuth adjustment screw so that the waveform achieves its maximum level
when 10 kHz is played.
4) After adjustment, secure the screw with glue (1600 B).
5) Apply the above steps 3) and 4) to DECK 2.
16. Playback Frequency Check (DECK 1 and DECK 2)
Requirements
• Measuring instrument: Millivoltmeter
Test tape: TTA-300 (315 Hz / 10 kHz)
Test point: TP8 (Lch), TP9 (Rch)
1) Connect CH1 of the millivoltmeter to TP8 (Lch) and CH2 to TP9 (Rch).
2) Insert the test tape (TTA-300) to DECK 1, and play back 315 Hz and 10 kHz.
3) Check that the level of 10 kHz is ranged within 0 ± 3 dB compared to the output level of 315 Hz
as a reference.
4) Apply the above steps 2) and 3) to DECK 2.
-38-
Page 39
ELECTRICAL ADJUSTMENT -6/7
17. Playback Sensitivity Check (DECK 1 and DECK 2)
Requirements
• Measuring instrument: Millivoltmeter
Test tape: TTA-200 (400 kHz)
Test points: TP8 (Lch), TP9 (Rch)
1) Connect CH1 of the millivoltmeter to TP8 (Lch) and CH2 to TP9 (Rch).
2) Insert the test tape (TTA-200) to DECK 1 and play back.
3) Check that the output level is ranged within 140 mV ± 3 dB.
4) Apply the above steps, 2) and 3) to DECK 2.
18. Record/Playback Frequency Response Adjustment (DECK 2)
Requirements
• Measuring instrument: Millivoltmeter, Audio signal
oscillator (low frequency
oscillator), Attenuator
Test tape: TTA-602 (NORMAL)
Test points: TP8 (Lch), TP9 (Rch)
Input point: AUX (1 kHz / 10 kHz)
Adjustment points: SFR451 (Lch), SFR452 (Rch)
1) Connect CH1 of the millivoltmeter to TP8 (Lch) and CH2 to TP9 (Rch).
2) Connect the output of the oscillator to the attenuator, and then the attenuator to AUX of the unit.
3) Insert the test tape (TTA-602) to DECK 2, and record 1 kHz signal from AUX.
4) Adjust the attenuator so that the output levels at TP8 and TP9 are ranged at 10mV.
5) Record 1 kHz and 10 kHz alternatively.
6) Play back the tape. Adjust SFR451 (Lch)/SFR452 (Rch) so that the playback output level of 10 kHz is ranged within 0 ± 1 dB
compared to the playback output level of 1 kHz as reference.
19. Record/Playback Sensitivity Check (DECK 2)
Requirements
• Measuring instrument: Same as the above, 18
Test tape: TTA-602 (NORMAL)
Test point: TP8 (Lch),TP9 (Rch)
Input point: AUX (1 kHz)
1) Insert the test tape (TTA-602) to DECK 2, and record 1 kHz signal from AUX.
2) Adjust the attenuator so that the output levels at TP8 and TP9 are 100 mV.
3) Play back 1kHz, and check that the output level is ranged within -2 dB ± 3.5 dB compared to the recording output level.
-39-
Page 40
ELECTRICAL ADJUSTMENT -7/7
<FRONT Section>
FRONT C.B PATTERN SIDE
CLOCK
20
FRONT C.B PARTS SIDE
20
GND
L951
20. Clock Adjustment
Requirements
• Measuring instrument: Frequency counter
Test point: CLOCK, GND
Adjustment point: L951
1) While pressing the FF and POWER button,
insert the AC plug to the outlet.
2) Adjust L951 so that the frequency counter indicates the
frequency level within 84.804 ± 0.085 Hz.
-40-
Page 41
CD TEST MODE -1/1
RF waveform check (1.55Vp-p Approx.)
CD TEST MODE Ver. 3.0
1. Starting CD T est Mode
While pressing and holding down the CD OPEN/CLOSE button, insert the AC plug to outlet.
When test mode starts, the message, TEST appears on the display .
2. Exiting CD Test Mode
Press the POWER button or remove the AC plug from outlet.
* When the other function keys are pressed during playback, test mode stops.
3. Function of CD T est Mode
No Mode Function Key Display Movement Check
1 Start Mode All lit. FL all lit. FL check
Microcomputer check
2 Search Mode STOP button READING LD constantly lit. APC circuit check
Focus search continuous Laser current electricity measurement
movement *1, 2 Focus search waveform check
Spindle motor continuous kick Focus error waveform check
(DRF is ignored during search mode.)
3 Play Mode PLAY button Normal Normal playback Each servo circuit check
If TOC READ is unavailable, DRF check
focus search is continued.
4 Traverse PAUSE Normal Tracking servo OFF/ON Tracking balance check
Mode button OFF and ON is repeated by every
press of the PAUSE button.
5 Sled mode FF button TEST PU moves to the innermost position. *3
At the same time, lens is kicked
toward inner position.
RWD button TEST PU moves to the outermost position. *3
At the same time, lens is kicked toward
outer position.
6 Spindle mode REC/ All lit. When the button is pressed at the first Spindle circuit check
REC MUTE time, spindle motor rotates forward Spindle motor check
button (at rough speed).
At the second press, rotation is reversed.
At the third press, rotation stops.
* 1 When Focus Search operates continuously more than 10 minutes, the protection circuit is activated due to heat generation of the driver IC.
In this case, turn off the power, wait for approximately 10 minutes so that heat is released, and then restart.
* 2 When the Forcus Search fails three times, the gain is switched for CD-RW at the fourth time.
* 3 Be careful not to damage the gear because the sled motor rotates while the FF or RWD button is being pressed even if the pickup is located in
the innermost track or the outermost track.
Sled circuit check
Tracking circuit check
Mechanism movement check
PU check
-41-
Page 42
LCD DISPLAY -1/2 <HUA-11MM42T>
GRID ASSIGNMENT
-42-
Page 43
LCD DISPLAY -2/2 <HUA-11MM42T>
ANODE CONNECTION
PIN CONNECTION
-43-
Page 44
IC BLOCK DIAGRAM -1/1
IC, LC72131D-N IC, BU2092F IC, M61518FP
IC, LA1845N-A IC, BU1920FS
-44-
Page 45
IC DESCRIPTION -1/1 (µPD780228-081-3BA) -1/2
Pin No. Pin Name I/O Description
1 O-MOTOR O DECK MOTOR output.
2 O-SOL1 O DECK SOL1 output.
3 O-SOL2 O DECK SOL2 output.
4 O-LED_STB O STB output for shift registor.
5 O-MUTE O MUTE output.
6 O-KSCAN O Initial scan output.
7 O-PLL_CE O TUNER chip enable output.
8 I-TM_BASE I Reference clock input for clock. (8Hz)
9 I-FUNC_A I Rotary encoder input function A.
10 I-FUNC_B I Rotary encoder input function B.
11 I-CAM2 I DECK CAM2 input.
12 I-CAM1 I DECK CAM1 input.
13 I-AUTO2 I DECK AUTO2 input.
14 I-AUTO1 I DECK AUTO1 input.
15 I-CST2 I DECK CST2 input.
16 I-CST1 I DECK CST1 input.
17 IC – Connected to GND.
18 VSS0 – GND for port part.
19 VDD0 – Power supply for port part.
20 O-POWER O Power control output.
21 I-JOG_A I Rotary encoder input A.
22 I-JOG_B I Rotary encoder input B.
23 I-VOL_A I Rotary encoder input volume A.
24 I-VOL_B I Rotary encoder input volume B.
25 I-SUBQ I CD SUBQ input.
26 I-WRQ I CD WRQ input.
27 I-DRF I CD DRF input.
28 I-RDS_CLK I Clock input for RDS. (Connected to GND through a resistor)
29 I-RDS_DATA I Input TUNER RDS DATA. (Connected to GND through a resistor)
30 RESET – System RESET input
31 O-DSC/O-DATA I/O Function IC control / DATA output.
32 O-CLK_SFT O Clock shift output.
33 I-IFC I TUNER IF count serial data input.
34 I-RMC I System remote control signal input.
35 I-DISH I CD turntable photo sensor.
36 I-STEREO I Tuner stereo input.
37 VDD1 – Power supply.
38 X2 O Main system clock output 2. (4.19 MHz)
39 X1 I Main system clock output 1. (4.19 MHz)
40 VSS1 – GND.
41 AVDD – Voltage for A/D converter.
42 I-HOLD I Input for HOLD.
-45-
Page 46
IC DESCRIPTION -1/1 (µPD780228-081-3BA) -2/2
Pin No. Pin Name I/O Description
43 I-CDSW I CD mechanism SW input.
44 I-SPEANA_1 I Input spectrum analyzer DATA (Low Frequency).
45 I-SPEANA_2 I Input spectrum analyzer DATA (Middle Frequency).
46 I-SPEANA_3 I Input spectrum analyzer DATA (High Frequency).
47 I-KEY1 I Key input 1.
48 I-KEY2 I Key input 2.
49 I-TU_SIG/(I-MIC) I
50 AVSS – GND for A/D converter.
51 O-BIAS O DECK BIAS output.
52 O-CD_CE O CD chip enable output.
53 O-CD_CLK O CD CLK output.
54 O-CD_DATA O CD DATA output.
55 O-CLK O CLOCK output.
56 ~ 62 P32 ~ P26 O FL segment P32 ~ P26 output.
63 P25/I-REB I/O FL segment P25 output / DECK REB SW input.
64 P24/I-REA I/O FL segment P24 output / DECK REA SW input.
65 P23/I-CAM2 I/O FL segment P23 output / DECK CAM2 input (Not used).
66 P22/I-CAM1 I/O FL segment P22 output / DECK CAM1 input (Not used).
67 ~ 70 P21 ~ P18 O FL segment P21 ~ P18 output.
71 P17/AM10K I/O FL segment P17 output / AM10K diode input (Not used).
72 P16/AMST I/O FL segment P16 output / AMST diode input (Not used).
73 P15/LW I/O FL segment P15 output / LW diode input (Not used).
74 P14/SW I/O FL segment P14 output / SW diode input (Not used).
75 P13/OIRT I/O FL segment P13 output / OIRT diode input (Not used).
76 P12/RDS I/O FL segment P12 output / DECK RDS diode input (Not used).
77 P11/R+1 I/O FL segment P11 output / DECK R+1 diode input.
78 P10/MPX I/O FL segment P10 output / MPX initial diode input (Not used).
79 VDD2 – Voltage supply for FIP controller.
80 VLOAD – Negative voltage supply for FIP controller.
81 P9/ECO-OFF I/O FL segment P9 output / ECO MODE initial OFF diode input (Not used).
82 P8/KARAOKE I/O FL segment P8 output / KARAOKE initial diode input.
83 P7/DEMO I/O FL segment P7 output / DEMO diode input (Not used).
84 ~ 89 P6 ~ P1 O FL segment P6 ~ P1 output.
Signal LEVEL A/D input for RDS / MIC Input for auto vocal fader.
(Connected to GND through a resistor)
90 ~ 100 G1 ~ G11 O FL grid G1 ~ G11 output.
-46-
Page 47
MECHANICAL EXPLODED VIEW -1/1
A
16
15
17
18
9
14
50
10
51
19
52
20
13
A
21
67
B
22
B
12
11
F
49
5
4
23
A
39
38
G
66
25
53
B
28
C
48
2
1
24
29
26
30
27
31
53
60
31
54
E
30
37
45
32
36
68
D
G
G
G
34
G
G
55
59
40
64
H
35
33
41
G
58
61
62
A
A
47
A
63
G
42
F
G
I
44
65
I
57
43
A
6
8
7
51
50
3
52
46
A
56
-47-
Page 48
MECHANICAL MAIN PARTS LIST -1/1
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
O MC1001 8A-NF8-282-010 SPR-T,EJECT 2 a
O MC1002 8A-NF8-281-010 SPR-T,EJECT 1 a
O MC1003 8B-NF1-003-110 BOX,CASS 2 a
O MC1004 8B-NF1-002-110 BOX,CASS 1 a
O MC1005 8Z-NF6-210-010 DMPR,150 N a
O MC1006 8B-NF1-008-010 BOX,DOOR a
O MC1007 8C-NF5-003-010 PANEL,DOOR R1 a
O MC1008 8B-NF1-010-010 WINDOW,CASS a
O MC1009 8B-NF1-021-110 KNOB,RTRY VOL a
O MC1010 8B-NF1-023-010 PANEL,VOL a
O MC1011 8B-NF1-001-110 CABI,FR EZ a
O MC1012 8B-NF1-015-110 KEY,POWER a
O MC1013 8B-NF1-028-010 REFLECTOR,FUN a
O MC1014 8C-NF5-005-010 PANEL,FR EZ a
O MC1015 8B-NF1-022-110 KNOB,RTRY JOG a
O MC1016 8B-NF1-024-010 KNOB,RTRY FUN a
O MC1017 8B-NF1-025-010 WINDOW,FUN a
O MC1018 8C-NF5-022-010 WINDOW,DISP EZ a
O MC1019 8B-NF1-014-010 WINDOW,CD a
O MC1020 8B-NF1-005-010 PANEL,LEFT a
CX-SNR81
EZSM
O MC1021 8B-NF1-007-010 PANEL,TOP a
O MC1022 8B-NF1-027-010 REFLECTOR,ECO a
O MC1023 8C-NF5-010-010 KEY,REC EZ a
O MC1024 87-069-033-010 CABLE,TIE a
O MC1025 8C-NF5-006-010 KEY,OPE LH a
O MC1026 8B-NF1-016-010 KEY,CD a
O MC1027 8B-NF1-017-110 KEY,ENTER a
O MC1028 8A-NF8-209-010 OIL-DMPR,120 a
O MC1029 87-NF4-216-010 HLDR,LOCK 1 a
O MC1030 86-NF9-224-010 SPR-C,LOCK a
O MC1031 82-NF5-229-010 PLATE,LOCK(*) a
O MC1032 87-NF4-217-110 HLDR,LOCK 2 a
O MC1033 88-908-301-110 FF-CABLE,8P 1.25 300MM a
O MC1034 88-911-101-110 FF-CABLE,11P 1.25 100MM a
O MC1035 88-904-201-110 FF-CABLE,4P 1.25 a
O MC1036 8B-NF9-207-010 GUIDE,FL 90.2-20 a
O MC1037 8A-NF8-206-010 HLDR,PWB M a
O MC1038 8B-NF1-013-010 PANEL,TRAY a
O MC1039 87-CE3-023-010 BADGE,AIWA 30N SILV a
O MC1040 88-906-251-110 FF-CABLE,6P 1.25 a
CX-SNR81
EZSM
O MC1041 8C-NF5-015-010 CABI,REAR EZSM a
O MC1042 8B-NF1-203-010 HLDR,PWB PT a
! O MC1043 87-A80-157-010 AC CORD ASSY,E BLK CC a
O MC1044 87-085-185-010 BUSHING,AC CORD(E) CM-22B a
X MC1045 8C-NF5-621-010 PWB,FRONT CNF-5 a
O MC1046 8B-NF1-006-010 PANEL,RIGHT a
O MC1047 84-ZG1-245-210 CAP,OPTICAL a
X MC1048 8C-NF5-643-010 PWB,HP1 EZ/K a
X MC1049 8B-NF9-204-010 CUSH, 11-8.5-2 a
O MC1050 8B-NF1-209-010 COVER, MAGNET a
O MC1051 8B-NF1-206-010 MAGNET,BOX 11-6-4 a
O MC1052 8B-NF1-207-010 PLATE,BOX a
X MC1053 87-NF4-218-010 PLATE,EARTH MECHA a
X MC1054 M8-BZG-581-130 BZG-5 ZD5GNDM a
X MC1055 M8-6ZM-39C-130 6ZM-3 PR4NM a
X MC1056 8C-NF5-207-010 CHAS,MAIN CM 76-60 a
! O MC1057 8C-NF5-608-010 PT,CNF-5 EZ a
X MC1058 8C-NF5-203-010 HLDR,TR 7 a
X MC1059 8C-NF5-641-010 PWB,MAIN EZ/K a
O MC1060 8C-NF5-603-010 FL,HUA-11MM42T a
CX-SNR81
EZSM
X MC1061 8C-NF5-226-110 HT-SINK,ASSY140-3 a
X MC1061a 8C-NF5-212-110 HT-SINK,MAIN S a
X MC1061b 8C-NF5-213-010 HT-SINK,FIN 140 a
X MC1062 8C-NF5-642-010 PWB,PT EZ/K a
X MC1063 8C-NF5-646-010 PWB,HLDR WIRE1 EZ/K a
X MC1064 8B-NF6-215-010 HT-SINK,FET a
! O MC1065 8B-MA6-675-010 PT,SUB BMA E (VRK) a
X MC1066 8C-NF5-622-010 PWB,CD LED CNF-5 a
O MC1067 8B-NF1-020-010 KEY,RDS a
X MC1068 8C-ZA3-618-010 SHLD-CASE,CZA-3 EZ S a
O MC1A 87-B10-091-010 UTT2+3-10 W/O SLOT BLK a
O MC1B 87-721-096-410 QT2+3-10 W/O SLOT a
O MC1C 88-AR1-217-010 S-SCREW,BFT2+3-8 a
O MC1D 87-NF4-224-010 S-SCREW,IT3B+3-8 CU a
O MC1E 8C-NF5-222-010 W,4-7-0.65 W/ADH a
O MC1F 87-067-579-010 BVT2+3-8 W/O SLOT a
O MC1G 87-067-703-010 BVT2+3-10 W/0 SL0T a
O MC1H 87-B10-315-010 BVIT3B+3-8 R W/O a
O MC1I 87-078-200-010 S-SCREW,ITC+4-8 R a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-48-
Page 49
COLOR NAME TABLE -1/1
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green HT Transparent Gray
HM Metallic Gray NH Champagne Gold M Wood Pattern
-49-
Page 50
TAPE MECHANISM EXPLODED VIEW -1/1 <6ZM-3 PR4NM>
25
24
62
61
23
38
22
56
e
14
26
27
29
LVR EJECT L
59
28
30
J
31
45
G
44
35
32
34
e
33
C
36
37
L
30
33
J
b
32
34
43
58
42
41
35
36
31
H
47
48
40
46
F
B
A
51
A
52
53
47
55
41
58
GEAR PLAY
13
38
57
a
LVR EJECT R
39
4
50
10
8
D
d
c
GEAR
11
PLAY
16
12
17
c
d
9
4
13
49
E
18
54
3
2
7
4
15
6
a
27
b
9
10
11
12
54
21
63
4
1
2
3
5
K
7
6
I
19
64
20
-50-
60
8
50
I
Page 51
TAPE MECHANISM PARTS LIST -1/2 <6ZM-3 PR4NM>
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
6ZM-3
PR4NM
O ST1001 82-ZM1-234-310 FLY-WHL,L ASSY a
X ST1001a 82-ZM1-348-110 FLY-WHL,L W a
X ST1001b 82-ZM1-236-010 CAPSTAN,2-41.5 a
O ST1002 82-ZM3-305-310 GEAR,CAM M2 a
O ST1003 82-ZM1-226-010 GEAR,REW a
O ST1004 82-ZM1-216-510 GEAR,REEL a
O ST1005 09-001-420-010 FLY-WHL,R ASSY a
X ST1005a 82-ZM3-338-310 FLY-WHL,R3W a
X ST1005b 82-ZM1-239-010 CAPSTAN,2.2-41.7 a
O ST1006 82-ZM1-225-210 GEAR,FR a
O ST1007 82-ZM3-306-110 LVR,FR M2 a
O ST1008 82-ZM3-333-310 SLIP DISK ASSY 2 a
X ST1008a 82-ZM3-332-310 PULLEY,FR 2 a
X ST1008b 82-ZM1-230-110 GEAR,TAKE UP a
X ST1008c 82-ZM1-231-010 CLR,SLIP a
X ST1008d 82-ZM1-232-010 FELT,DIA 8.4-13-1 a
X ST1008e 82-ZM1-233-110 SPR-C,SLIP a
O ST1009 82-ZM1-322-010 SPR-T,FR 60 a
O ST1010 82-ZM1-220-210 GEAR,IDLER a
O ST1011 82-ZM3-616-010 RING MAGNET 4 a
6ZM-3
PR4NM
O ST1012 82-ZM1-227-310 LVR,TRIG a
O ST1013 82-ZM1-265-310 SPR-E,TRIG a
X ST1014 85-ZM3-201-210 PLATE,SHLD M3 a
O ST1015 82-ZM1-237-610 FLY-WHL ASSY,R a
X ST1015a 82-ZM1-349-110 FLY-WHL,R W a
X ST1015b 82-ZM1-239-010 CAPSTAN,2.2-41.7 a
O ST1016 86-ZM3-210-010 BELT,PS a
O ST1017 82-ZM3-221-210 PULLEY,MOT 2M a
O ST1018 86-ZM3-203-010 HLDR,MOT S a
O ST1019 86-ZM1-206-010 BELT,MAIN L a
O ST1020 82-ZM3-627-010 SOL ASSY,27 SO a
X ST1020a 82-ZM3-629-010 HLDR,BOBBIN SOL SO a
X ST1020b 82-ZM3-630-010 YOKE,SOL SO a
X ST1020c 82-ZM3-631-010 SHAFT,CORE SOL SO a
X ST1020d 82-ZM3-632-010 SHAFT,PLUNGER SOL SO a
X ST1020e 82-ZM3-633-010 TERMINAL,SOL SO a
O ST1021 82-ZM3-335-310 PULLEY,COUPLER M3 a
O ST1022 86-ZM3-215-110 CHAS ASSY,RS a
X ST1022a 82-ZM1-317-210 OILLESS-BRG 2.2RN a
X ST1022b 82-ZM1-318-210 OILLESS-BRG 2LN a
6ZM-3
PR4NM
X ST1022c 82-ZM3-302-610 OUT-SERT ASSY,M2 a
X ST1022d 82-ZM3-303-210 CHAS,M2 a
O ST1023 82-ZM1-258-210 SPR-T,PINCH L a
O ST1024 82-ZM3-348-010 LEVER ASSY,PINCH YL a
X ST1024a 82-ZM3-349-010 LEVER,PINCH YL a
X ST1024b 82-ZM3-345-010 ROLLER ASSY,Y a
X ST1024c 82-ZM3-346-010 CLR,ROLLER Y a
X ST1024d 82-ZM3-347-010 ROLLER,RUBBER Y a
O ST1025 82-ZM1-266-310 LVR,DIR a
O ST1026 82-ZM1-214-010 SPR-T,DIR a
O ST1027 82-ZM1-333-210 PLATE,LINK2 a
O ST1028 82-ZM3-339-110 SHAFT,COUPLER N3 a
O ST1029 82-ZM1-255-310 SPR-E,LVR DIR a
O ST1030 82-ZM1-285-410 SPR-C,BT L a
O ST1031 82-ZM1-222-310 LVR,PLAY a
O ST1032 82-ZM1-217-410 REEL,TABLE a
O ST1033 82-ZM1-244-510 SPR-C,BT a
O ST1034 82-ZM1-257-010 SPR-T,CAS a
O ST1035 82-ZM1-242-010 LVR,CAS a
O ST1036 82-ZM1-243-010 LVR,STOP a
6ZM-3
PR4NM
O ST1037 82-ZM1-240-110 LVR,REC a
O ST1038 82-ZM3-343-010 LEVER ASSY,PINCH YR a
X ST1038a 82-ZM3-344-010 LEVER,PINCH YR a
X ST1038b 82-ZM3-345-010 ROLLER ASSY,Y a
X ST1038c 82-ZM3-346-010 CLR,ROLLER Y a
X ST1038e 82-ZM3-347-010 ROLLER,RUBBER Y a
O ST1039 86-ZM3-204-010 SPR-T,PINCH S a
O ST1040 82-ZM1-208-310 HLDR,HEAD a
O ST1041 82-ZM1-219-110 SPR-T,LINK a
O ST1042 82-ZM1-210-110 GEAR,H T a
O ST1043 82-ZM3-353-010 SPR-T,HEAD 2 a
O ST1044 82-ZM1-207-910 GUIDE,TAPE a
O ST1045 82-ZM1-314-110 PLATE,HEAD a
O ST1046 87-A92-196-010 HEAD,PH HADKH2604A FPC a
X ST1046a 85-ZM3-602-010 PWB,FLEX A a
O ST1047 82-ZM1-218-010 SPR-E,HB a
O ST1048 82-ZM1-206-910 CHAS,HEAD a
O ST1049 86-ZM3-214-110 BELT,SBU RR a
O ST1050 82-ZM1-338-110 BELT,FR 4 a
O ST1051 87-A92-195-010 HEAD,RPH HASVH5507A a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-51-
Page 52
TAPE MECHANISM PARTS LIST -2/2 <6ZM-3 PR4NM>
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
6ZM-3
PR4NM
O ST1052 86-ZM3-222-010 SPR-C,RPH S2 a
O ST1053 86-ZM3-202-210 BASE,HEAD S a
O ST1054 82-ZM3-351-010 HLDR,IC 2 a
O ST1055 86-ZM3-605-110 CONN ASSY,8P -RPB a
O ST1056 82-ZM1-259-310 SPR-T,PINCH R a
O ST1057 86-ZM3-201-010 CHAS,HEAD S a
O ST1058 82-ZM1-269-210 SPR-T,BRG a
O ST1059 82-ZM1-288-010 SH,1.63-3.2-0.5 SLT a
X ST1060 86-ZM3-602-110 PWB,MAIN S a
X ST1061 86-ZM3-603-110 PWB,HEAD S a
O ST1062 85-MA2-615-010 CONN ASSY,3P PH a
O ST1063 87-069-033-010 CABLE,TIE a
O ST1064 87-A92-321-010 MOT,SHU2L 60 a
O ST1A 86-ZM3-207-010 S-SCREW,RPH a
O ST1B 86-ZM3-209-010 S-SCREW,AZIMUTH S a
O ST1C 87-761-073-410 VFT2+2.6-6 W/O SLOT a
O ST1D 82-ZM3-222-010 S-SCREW,SHILD PLATE a
O ST1E 87-251-071-410 U+2.6-4 a
O ST1F 80-ZM6-207-010 V+1.6-7 a
O ST1G 86-ZM4-206-110 S-SCREW,AZIMUTH L a
6ZM-3
PR4NM
O ST1H 85-ZM3-202-010 S-SCREW,TG a
O ST1I 82-ZM3-334-010 PW,2.16-6-0.4 a
O ST1J 80-ZM6-243-010 SH 1.75-3.6-0.5 SLT a
O ST1K 87-B10-043-010 W-P,0.99-4-0.25 SLT a
O ST1L 86-ZM3-213-010 S-SCREW,HLDR MOT S a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-52-
Page 53
GENERAL SPEAKER DISASSEMBLY INSTRUCTIONS (FOR REFERENCE) -1/1
Type.1
Insert a flat-bladed screwdriver into the position indicated by the
arrows and remove the panel. Remove the screws of each speaker
unit and then remove the speaker units.
Type.2
Remove the grill frame and four pieces of rubber caps by pulling
out with a flat-bladed screwdriver. Remove the screws from hole
where installed rubber caps. Insert a flat-bladed screwdriver into
the position indicated by the arrows and remove the panel. Remove the screws of each speaker unit and then remove the speaker
units.
Type.4
TOOLS
1 Plastic head hammer
2 ( ) flat head screwdriver
3 Cut chisel
321
How to Remove the PANEL, FR
1. Insert the ( ) flat head screwdriver tip into the gap
between the PANEL, FR and the PANEL, SPKR. Tap the
head of the ( ) flat head screwdriver with the plastic
hammer head, and create the clearance as shown in Fig-1.
2. Insert the cut chisel in the clearance, and tap the head of
the cut chisel with plastic hammer as shown in Fig-2, to
remove the PANEL, FR.
Type.3
Insert a flat-bladed screwdriver into the position indicated by the
arrows and remove the panel. Turn the speaker unit to counter clockwise direction while inserting a flat-bladed screwdriver into
one of the hollows around speaker unit, and then remove the speaker
unit. After replacing the speaker unit, install it turning to clockwise
direction until "click" sound comes out.
3. Place the speaker horizontally. Tap head of the cut chisel
with plastic hammer as shown in Fig-3, and remove the
PANEL, FR completely.
Fig-1 Fig-2
How to Attach the PANEL, FR
Attach the PANEL, FR to the PANEL, SPKR. Tap the four
corners of the PANEL, FR with the plastic hammer to fit the
PANEL, FR into the PANEL, SPKR completely.
-53-
Fig-3
Page 54
SPEAKER PARTS LIST -1/1 <SX-NR80>
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
SX-SNR80
YSN
O SP1001 88-NSK-610-010 SPKR, CERAMIC ASSY a
O SP1002 8A-NSJ-006-010 BADGE,AIWA S35 a
O SP1003 8B-NSH-612-010 CORD,SPKR a
O SP1004 8C-NS4-606-010 SPKR, T 50 14/2 a
O SP1005 8C-NS5-001-010 PANEL,FR A R a
O SP1006 8C-NS5-002-010 PANEL,FR A L a
O SP1007 8C-NS5-003-010 PANEL,BA A R a
O SP1008 8C-NS5-004-010 PANEL,BA A L a
O SP1009 8C-NS5-005-010 PANEL,FR B R a
O SP1010 8C-NS5-006-010 PANEL,FR B L a
O SP1011 8C-NS5-007-010 PANEL,BA B R a
O SP1012 8C-NS5-008-010 PANEL,BA B L a
O SP1013 8C-NS5-009-010 PLATE,W a
O SP1014 8C-NS5-010-010 PROTECTOR, SQ a
X SP1015 8C-NS5-011-010 LBL,SPEC YS R a
X SP1016 8C-NS5-012-010 LBL,SPEC YS L a
O SP1017 8C-NS5-013-010 PROTECTOR, TW L a
O SP1018 8C-NS5-014-010 PROTECTOR, TW R a
O SP1019 8C-NS5-602-010 SPKR, W 160 30/4 a
O SP1020 8C-NS5-604-010 SPKR, M 80 16/2 a
SX-SNR80
YSN
O SP1021 8Z-NS3-026-010 CORD,BUSH L a
X SP1022 PC-NS5-943-070 SX-SNR80YSN a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-54-
Page 55
OTHER PARTS LIST -1/2
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR81
EZSM
X 8B-NF1-031-110 SH,CD a
X 8B-NF1-213-010 SH, 12.5-17.5-0.07 W/ADH a
X 87-B40-281-010 LBL,BAR-CODE A 35X8 a
X 87-057-995-010 LBL,CAUTION EFSD a
X 87-057-961-010 LBL,CAUTION TRIANGLE a
X 8B-NF1-029-010 SH,FL a
X 87-B40-447-010 SH, 28-10-0.35 W/ADH a
X 8B-NF1-214-010 SH,FFC a
X 8B-NF1-032-010 SH,LED a
X 87-B40-098-010 BAG,PV 0.025-650-750 PL a
X 93-704-337-010 SH,FOAMED-MAT 0.31-800-500 a
X 87-B40-085-010 BAG,PV 0.04-200-350 PL a
X 87-B50-079-010 LIST,FACILITY(B)-0007 a
X 8C-NF5-854-110 CUSHION,FRONT M a
X 8C-NF5-855-110 CUSHION,REAR M a
X 87-B40-057-010 BAG,PP 0.03-150-200 a
X 87-056-168-010 SH,CAUTION INF-WARR(EC) a
X 8C-NF5-971-010 LBL,POP EZ a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-55-
Page 56
OTHER PARTS LIST -2/2 <TAPE MECHANISM 6ZM-3 PR4NM>
! = ! SAFTY PARTS
C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
6ZM-3
PR4NM
X 82-ZM3-987-010 BAG,PV 0.04-300-210 a
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-56-
Page 57
0251431
2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111
Loading...
