SERVICE MANUAL
CD STEREO SYSTEM
SYSTEM
NSX-R10
NSX-R12
CD
CASSEIVER
CX-NR10
CX-NR12
BASIC CD MECHANISM : BZG-2 ZD9GNC2 BASIC TAPE MECHANISM : CMAT6Z2(1+1)ALPS
SPEAKER
SX-NR10
REMOTE
CONTROLLER
RC-CAS03(VS)
S/M Code No. 09-028-455-6N4
DA T A
TABLE OF CONTENTS -1/1
SPECIFICATIONS ...............................................................................................................................................................3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING ......................................................................4
NOTE ON BEFORE STARTING REPAIR ................................................................................................................... 5, 6
ACCESSORIES PARTS LIST.............................................................................................................................................. 7
ELECTRICAL PARTS LIST ....................................................................................................................................... 8 ~ 21
TRANSISTOR ILLUSTRATION ........................................................................................................................................22
SCHEMATIC DIAGRAM -1/5 (MAIN-1/2, AMP SECTION)............................................................................................... 23
SCHEMATIC DIAGRAM -2/5 (MAIN-2/2, TUNER SECTION) .......................................................................................... 24
SCHEMATIC DIAGRAM -3/5 (HP SECTION)................................................................................................................... 25
WIRING -1/4 (MAIN C.B, HP C.B) .....................................................................................................................................26
SCHEMATIC DIAGRAM -4/5 (FRONT/DECK SECTION) ............................................................................................... 27

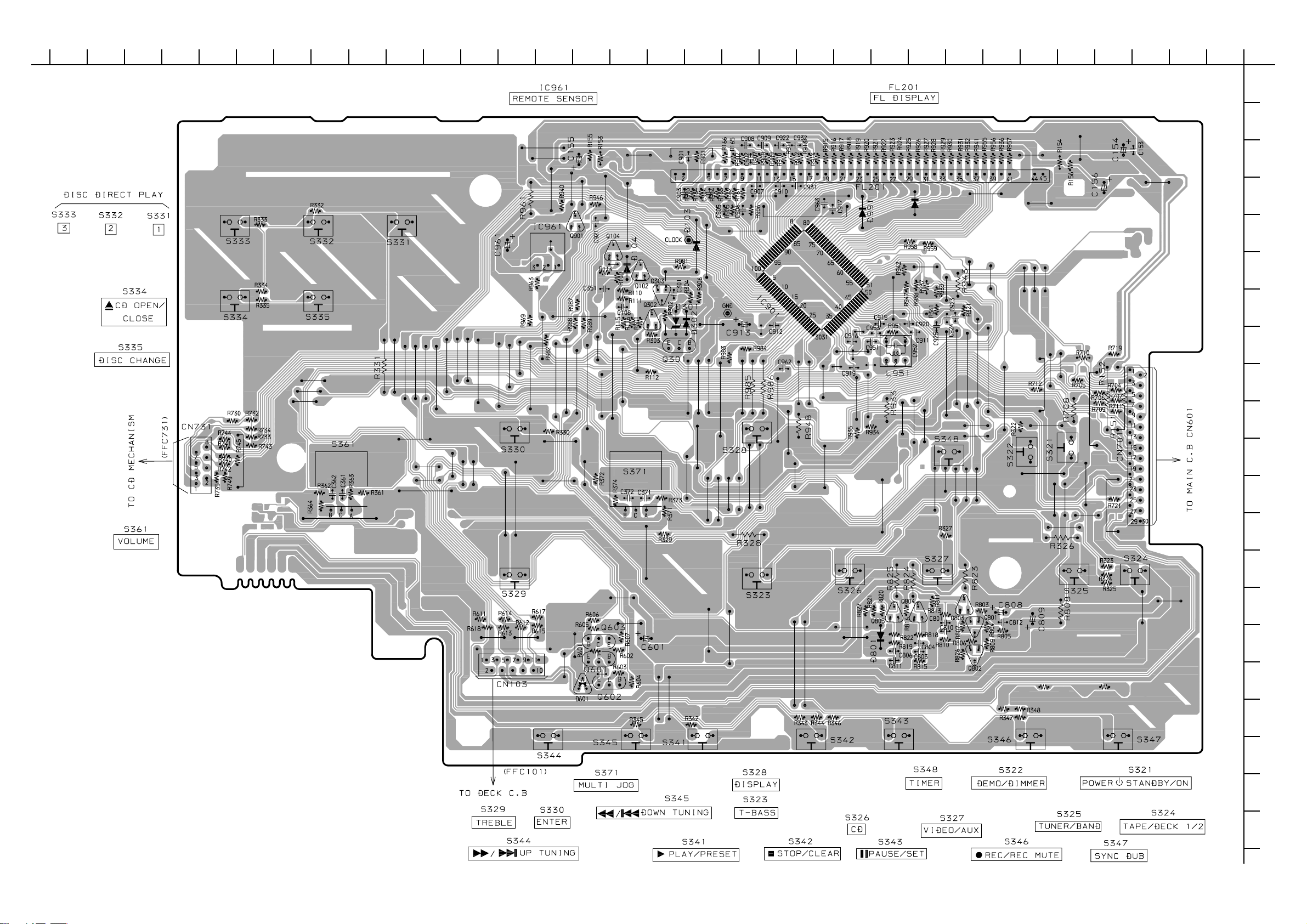

WIRING -2/4 (FRONT C.B)................................................................................................................................................ 28
WIRING -3/4 (DECK C.B) ..................................................................................................................................................29
SCHEMATIC DIAGRAM -5/5 (PT SECTION) ................................................................................................................... 30
WIRING -4/4 (PT C.B)........................................................................................................................................................ 31

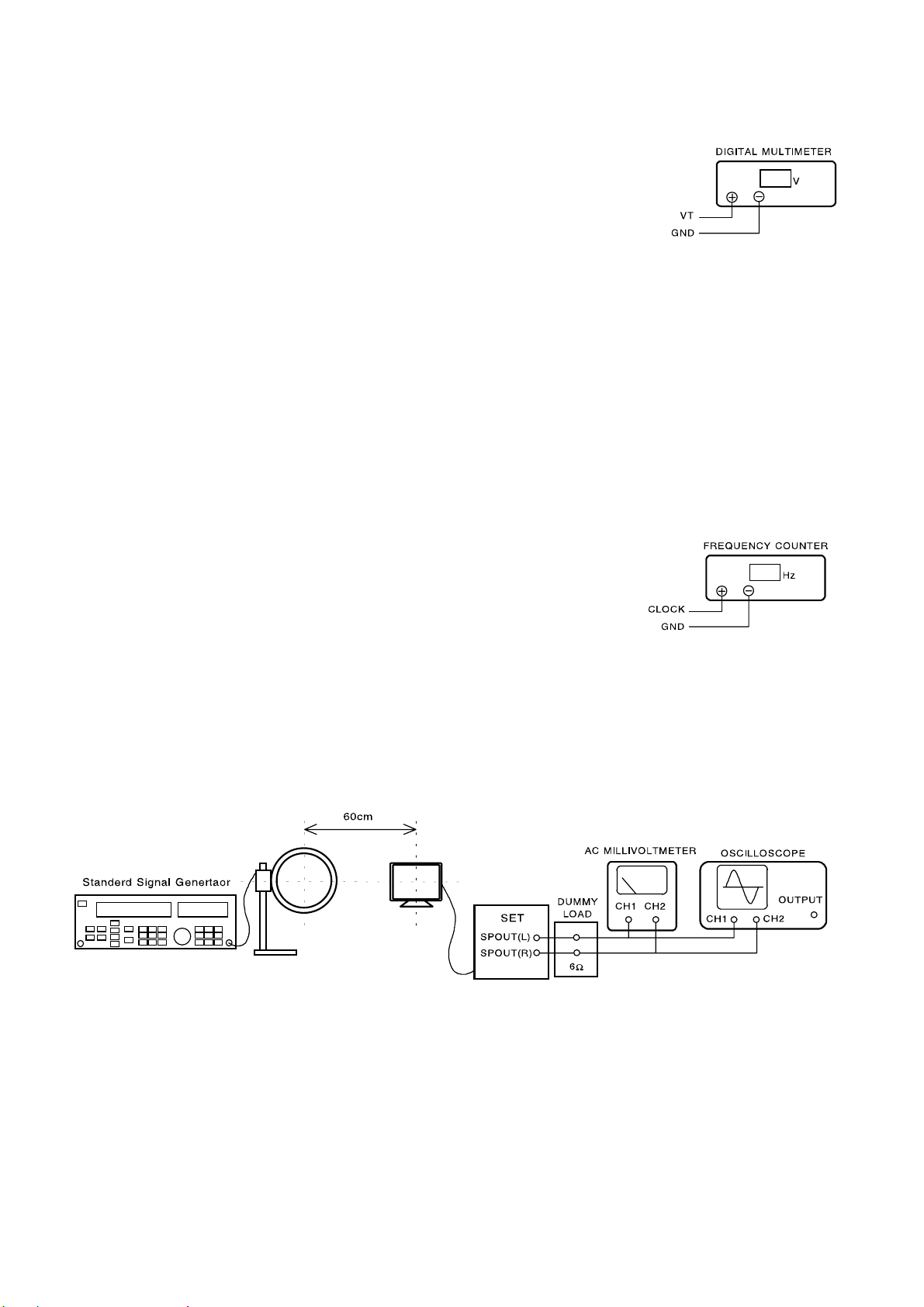

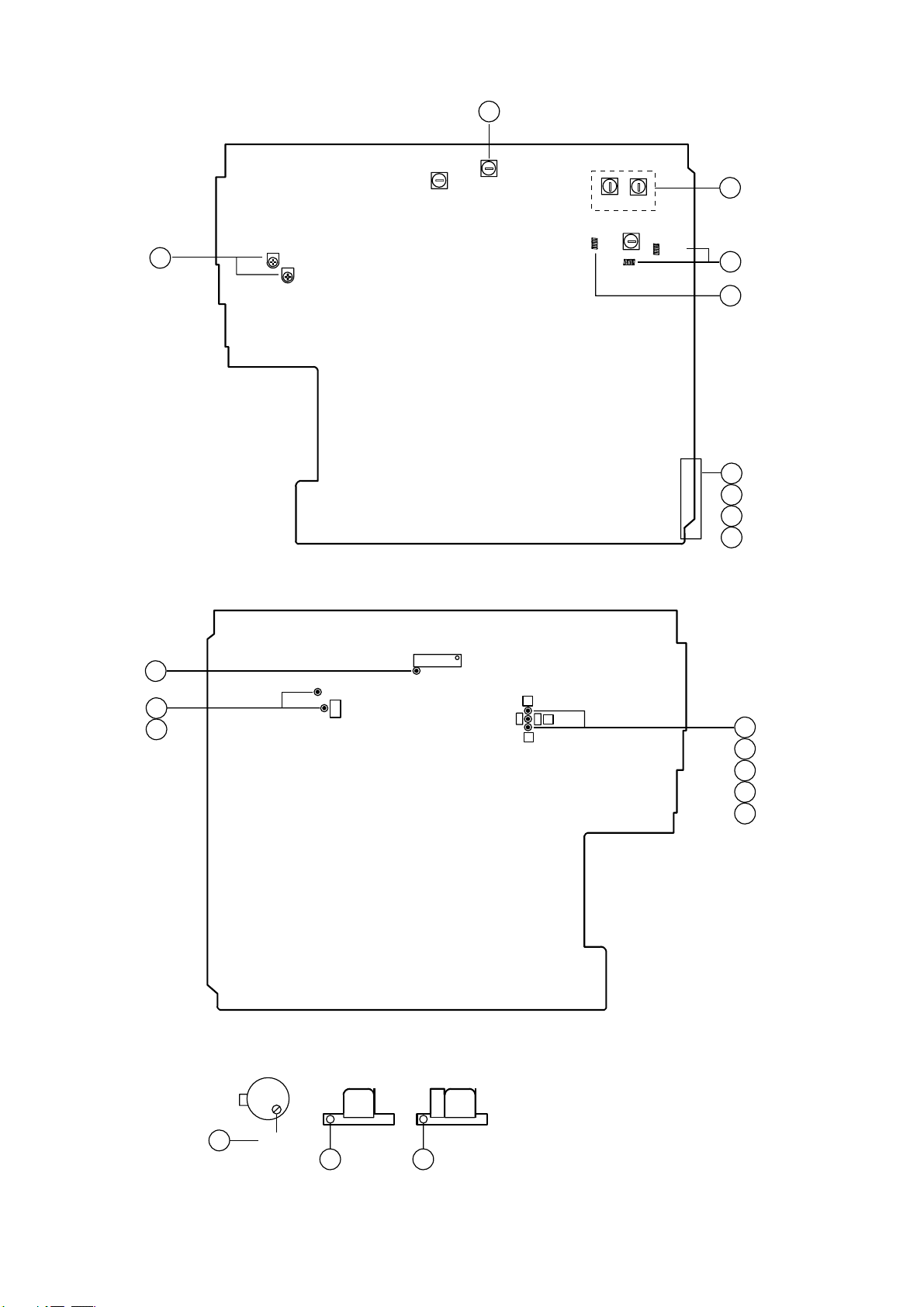

ELECTRICAL ADJUSTMENT.................................................................................................................................... 32 ~ 37
CD TEST MODE ................................................................................................................................................................ 38
FL DISPLAY (HUA-13SS09T)............................................................................................................................................ 39

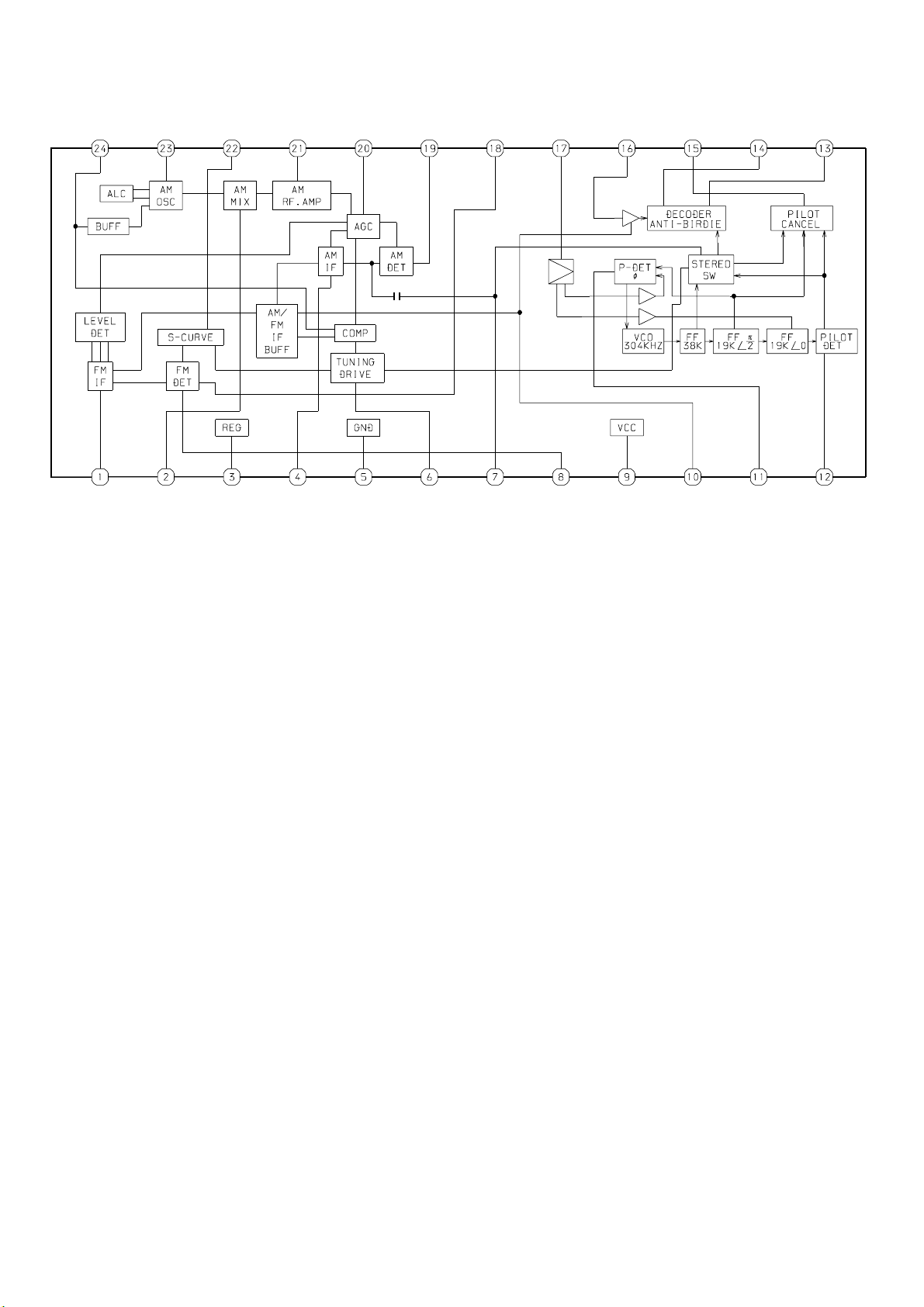

IC BLOCK DIAGRAM...............................................................................................................................................40 ~ 41
IC DESCRIPTION ..................................................................................................................................................... 42 ~ 43

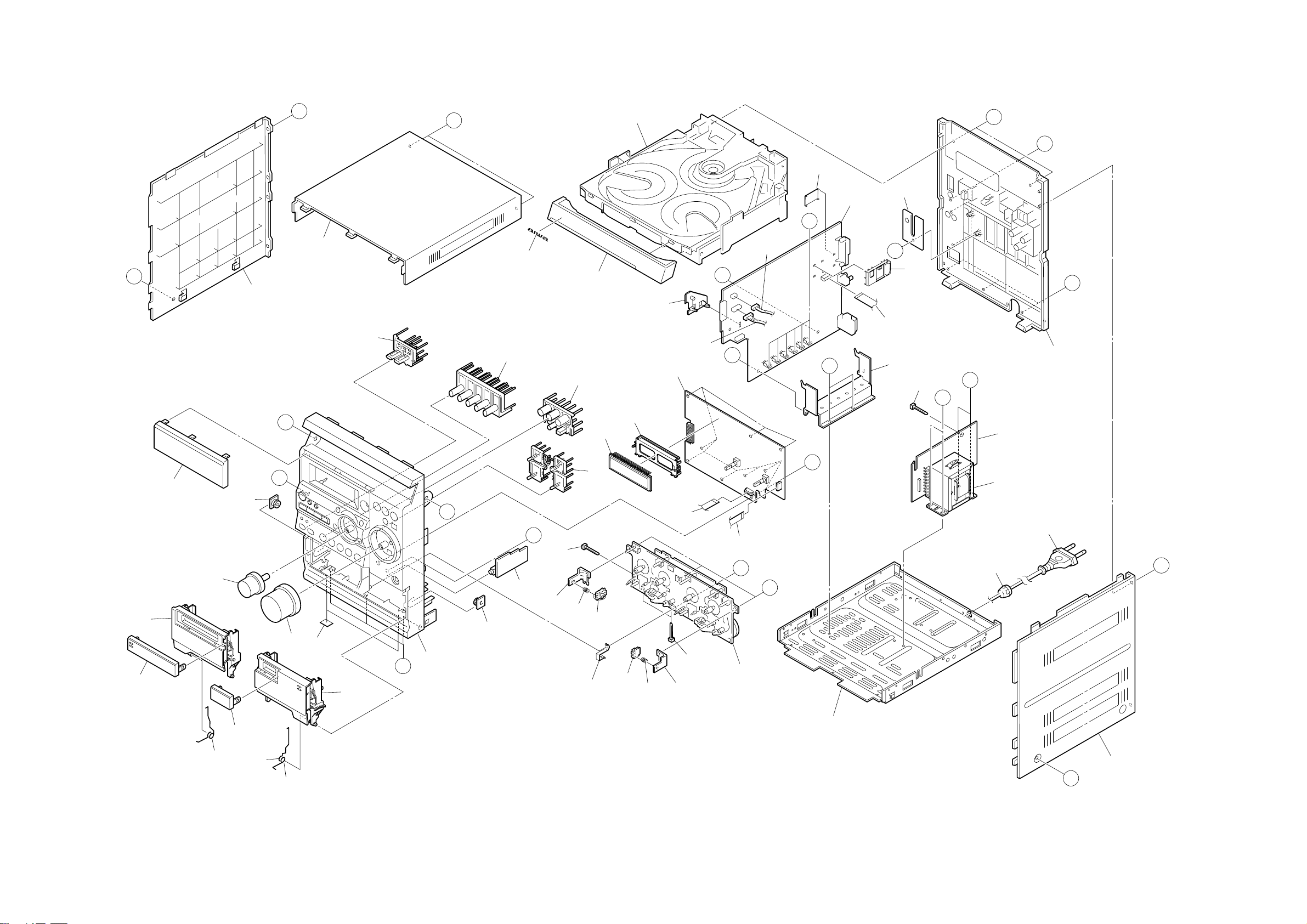

MECHANICAL EXPLODED VIEW.................................................................................................................................. 44
MECHANICAL PARTS LIST ............................................................................................................................................ 45
COLOR NAME TABLE..................................................................................................................................................... 46
TAPE MECHANISM EXPLODED VIEW <CMAT6Z2 (1+1)ALPS>................................................................................ 47
TAPE MECHANISM PARTS LIST <CMAT6Z2 (1+1)ALPS> .......................................................................................... 48
GENERAL SPEAKER DISASSEMBLY INSTRUCTIONS (FOR REFERENCE) ........................................................... 49
SPEAKER PARTS LIST (SX-NR10) ................................................................................................................................ 50
OTHER PARTS LIST ....................................................................................................................................................... 51
-2-
SPECIFICATIONS -1/1
MAIN UNIT CX-NR10/CX-NR12
TUNER
FM tuning range FM1 (OIRT): 65 MHz to 74 MHz (10 kHz step)
FM usable sensitivity (IHF) FM1: 15.3 dBf
FM antenna terminal 75 ohms (unbalanced) AM tuning range 531 kHz to 1602 kHz (9 kHz step)
AM usable sensitivity 350 µV/m AM antenna Loop antenna
AMPLIFIER
Power output Rated: 8 W + 8 W (6 ohms, T.H.D. 1%, 1 kHz/DIN 45500)
Total harmonic distortion 0.08 % (6 W, 1 kHz, 6 ohms, DIN AUDIO) Input VIDEO/AUX: 500 mV Outputs SPEAKERS: 6 ohms or more
CASSETTE DECK
Track format 4 tracks, 2 channels stereo Frequency response 50 Hz - 15 kHz Recording system AC bias Heads DECK 1: playback x 1
FM2 (CCIR): 87.5 MHz to 108 MHz (50 kHz step)
FM2: 12.8 dBf
530 kHz to 1710 kHz (10 kHz step)
Reference: 10 W + 10 W (6 ohms, T.H.D. 10 %, 1 kHz/DIN 45324)
PHONES: 32 ohms or more
DECK 2: recording/playback x 1, erase x 1
CD PLAYER
Laser Semiconductor laser (λ = 780 nm) D/A converter 1 bit dual Signal-to-noise ratio 85 dB (1 kHz, 0 dB) Harmonic distortion 0.05 % (1 kHz, 0 dB)
GENERAL
Power requirements 230 V AC, 50 Hz Power consumption 42 W Dimensions (W x H x D) 260 x 324 x 315 mm Weight 4.7 kg
FRONT SPEAKERS SX-NR10
Speaker system 1 way, bass reflex (magnetic shielded) Speaker unit Full range: 100 mm cone Impedance 6 ohms Dimensions (W x H x D) 210 x 324 x 202 mm Weight 2.8 kg
• Specifications and external appearance are subject to change without notice.
-3-
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING -1/1
This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when open and interlocks defeated avoid exposure to beam. Advarsel: Usynlig laserståling vedåbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsÊttelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saataa altistaa käyt-täjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i denna bruksanvising, kan användaren utsättas för osynling laserstrålning, som överskrider gränsen för laserklass 1.
CAUTION
Use of controls or adjustments or performance of proce­dures other than those specified herin may result in hazardous radiation exposure.
ATTENTION
L'utillisation de commandes, réglages ou procédures autres que ceux spécifiés peut entraîner une dangereuse exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior.
CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT
Precaution to replace Optical block
(PXR-104X-BP-0101)
Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode.
1) After the connection, remove solder shown in right figure.
CD PICK-UP Assy PWB
Solder
-4-
NOTE ON BEFORE STARTING REPAIR -1/2
Fig-1
MAIN C.B
D101
C101 C102
3
4
2
2
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect can occur. In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
1 Remove the AC power cord. 2 Connect a discharging resistor at an end of lead wire that has
clips at both ends. Connect the other end of the lead wire to metal chassis.
3 Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
4 Contact the same end of the discharging resistor as step 3 to
the negative (-) side (-VH) of C102 in the same way. (For two seconds)
5 Check that voltage across C101 and C102 has decreased to
1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Charging voltage (V) Discharging
(C101, 102) resistor ( )
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the reference numbers
of the charging capacitors on schematic diagram before starting the discharging work.
Rated power (W) Parts number
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is "H", the MICROCOMPUTER is judged to be operating correctly. When this terminal is "L", the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD terminal before exchange. When the MICROCOMPUTER is not defective, the HOLD terminal can also go "L" when the POWER AMPLIFIER has any abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to "L".
• Good or no good judgement of the MICROCOMPUTER 1 Turn on the AC main power. 2 Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the "H" level or not. 3 When the HOLD terminal is "L" level, the abnormality detection circuit is judged to be working correctly and the MICRO
COMPUTER is judged to be good.
-5-
NOTE ON BEFORE STARTING REPAIR -2/2
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed. When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no good of the MICROCOM PUTER. 1 Remove the AC power cord.
OCOMPUTER
18
MICR
FRONT C.B
15
C113
15
C113
16
Short with tweezers.
FRONT C.B
VSS
MICRO­COMPUTER
VDD
Fig-2-2
2 Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers. 3 Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
-6-
ACCESSORIES PARTS LIST -1/1
! = ! SAFTY PARTS C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR10 CX-SNR12 VSC2 VSC2 O AS1001 8C-NFA-927-010 IB,V(ER)BF NSX-R10 a . O AS1001 8C-NFA-937-010 IB,V(ER)BF NSX-R12 . b O AS1002 8C-NF8-702-110 RC UNIT,RC-CAS03(VS) a b O AS1003 87-A92-345-110 ANT,WIRE FM(SEMI-ST) a b O AS1004 87-006-225-110 ANT,LOOP ANT NC2 a b
All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
-7-
ELECTRICAL PARTS LIST - 1/14
! = ! SAFTY PARTS C = Components marked
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
CX-SNR10 CX-SNR12 VSC2 VSC2 FRONT O C 0108 87-010-785-080 C-CAP,U 0.015-25 K B GRM a b FRONT O C 0153 87-010-787-080 C-CAP,U 0.022-25 K B GRM a b FRONT O C 0154 87-010-246-040 CAP,E 47-35 M 11L SME a b FRONT O C 0155 87-010-404-040 CAP,E 4.7-50 M 11L SME a b FRONT O C 0156 87-010-404-040 CAP,E 4.7-50 M 11L SME a b FRONT O C 0301 87-012-278-080 C-CAP,U 2200P-50 K B GRM a b FRONT O C 0351 87-A10-353-080 C-CAP,U 0.22-10 K B a b FRONT O C 0361 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b FRONT O C 0362 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b FRONT O C 0371 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
FRONT O C 0372 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b FRONT O C 0601 87-010-382-040 CAP,E 22-25 M 11L SME a b FRONT O C 0801 87-A10-353-080 C-CAP,U 0.22-10 K B a b FRONT O C 0803 87-012-280-080 C-CAP,U 3300P-50 K B GRM a b FRONT O C 0804 87-A10-592-080 C-CAP,S 0.015-50 J B a b FRONT O C 0806 87-012-273-080 C-CAP,U 820P-50 K B GRM a b FRONT O C 0808 87-010-544-040 CAP,E 0.1-50 M 11L SME a b FRONT O C 0809 87-010-404-040 CAP,E 4.7-50 M 11L SME a b FRONT O C 0810 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b FRONT O C 0811 87-A12-052-080 C-CAP,S 0.033-25 J B a b
CX-SNR10 CX-SNR12 VSC2 VSC2 FRONT O C 0812 87-012-285-080 C-CAP,U 8200P-50 K B GRM a b FRONT O C 0901 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0902 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0903 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0904 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0905 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0906 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0907 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0908 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0909 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b
FRONT O C 0910 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0911 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b FRONT O C 0912 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b FRONT O C 0913 87-A10-189-040 CAP,E 220-10 M 5L a b FRONT O C 0915 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b FRONT O C 0916 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b FRONT O C 0917 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b FRONT O C 0919 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b FRONT O C 0920 87-010-829-080 C-CAP,U 0.047-16 Z F CM/CB a b FRONT O C 0921 87-012-282-080 C-CAP,U 4700P-50 K B GRM a b
CX-SNR10 CX-SNR12 VSC2 VSC2 FRONT O C 0922 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0923 87-016-116-080 C-CAP,U 0.015-25 J B CB a b FRONT O C 0924 87-016-116-080 C-CAP,U 0.015-25 J B CB a b FRONT O C 0925 87-016-116-080 C-CAP,U 0.015-25 J B CB a b FRONT O C 0931 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0932 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b FRONT O C 0951 87-012-172-080 C-CAP,U 10P-50 D CH GRM a b FRONT O C 0952 87-010-854-080 C-CAP,S 560P-50 J CH CMC a b FRONT O C 0953 87-012-349-080 C-CAP,S 1000P-50 J CH GRM a b FRONT O C 0961 87-010-391-040 CAP,E 10-35 M 11L SME a b
FRONT O C 0962 87-012-336-080 C-CAP,U 330P-50 J SL GRM a b FRONT O C 0963 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b FRONT O CN 0103 87-099-013-010 CONN,11P V BLK 6216 a b FRONT O CN 0701 87-099-720-010 CONN,30P BLK TYK-B(P) a b FRONT O CN 0731 87-099-196-010 CONN,8P V BLK 6216 a b FRONT S D 0103 87-020-465-080 DIODE,1SS133 a b FRONT S D 0104 87-020-465-080 DIODE,1SS133 a b FRONT S D 0301 87-A40-234-080 ZENER,MTZJ5.6A a b FRONT S D 0302 87-020-465-080 DIODE,1SS133 a b FRONT S D 0601 87-A40-269-080 C-DIODE,MC2836 a .
CX-SNR10 CX-SNR12 VSC2 VSC2 FRONT S D 0601 87-A40-269-040 C-DIODE,MC2836 . b FRONT S D 0801 87-020-465-080 DIODE,1SS133 a b FRONT S D 0985 87-020-465-080 DIODE,1SS133 a b FRONT S D 0991 87-020-465-080 DIODE,1SS133 a b FRONT O FFC0103 88-911-101-110 FF-CABLE,11P 1.25 100MM a b FRONT O FFC0731 88-908-301-110 FF-CABLE,8P 1.25 300MM a b FRONT O FL 0201 8C-NF9-615-010 FL,HUA-13SS09T a b FRONT S IC 0901 8C-NF9-610-030 C-IC,UPD780226GF-033-3BA a b FRONT S IC 0961 87-A21-831-010 IC,SPS-442-1-F1 a b FRONT O L 0951 87-A50-655-010 COIL,CLK 4.19MHZ (TOKO)7KLY a b
FRONT S Q 0102 87-A30-076-080 C-TR,2SC3052F a . FRONT S Q 0102 87-A30-076-040 C-TR,2SC3052F . b FRONT S Q 0104 87-A30-538-040 C-TR,SRA2202S a b FRONT S Q 0301 87-A30-494-080 TR,2SA1980G a b FRONT S Q 0302 87-A30-076-080 C-TR,2SC3052F a . FRONT S Q 0302 87-A30-076-040 C-TR,2SC3052F . b FRONT S Q 0303 87-A30-076-080 C-TR,2SC3052F a . FRONT S Q 0303 87-A30-076-040 C-TR,2SC3052F . b FRONT S Q 0601 87-A30-495-080 TR,2SA1981Y a b FRONT S Q 0602 87-A30-495-080 TR,2SA1981Y a b
