NSX-D77
U
SERVICE MANUAL
COMPACT DISC
STEREO CASSETTE RECEIVER
• Replace this Service manual with “Revision Publishing” when it is issued.
BASIC CD MECHANISM: 6ZG-1 ZRNDM
BASIC TAPE MECHANISM: 2ZM-3MK2 PR4NM
S/M Code No. 09-002-425-2T2
SIMPLE
DATA
ELECTRICAL MAIN PARTS LIST - 1/10
NOTE: The characters in the suffix column indicate the part usage.
U ......................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 603 87-010-112-040 CAP,E 100-16 A...................
C 602 87-010-186-080 CAP,CHIP 4700P A...................
C 601 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 606 87-010-320-080 CHIP CAP 68P A...................
C 604 87-010-405-040 CAP,E 10-50 A...................
C 605 87-010-546-040 CAP,E 0.33-50 A...................
C 608 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 621 87-010-178-080 CHIP CAP 1000P A...................
CN 602 87-A60-082-010 CONN,05P H 9604S-05F A...................
FB 601 87-008-372-080 FILTER, EMI BL OIRNI A...................
J 602 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM A...................
J 601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM A...................
Q 604 87-A30-075-080 C-TR,2SA1235F A...................
Q 602 87-A30-076-080 C-TR,2SC3052F A...................
Q 603 87-A30-076-080 C-TR,2SC3052F A...................
Q 601 87-A30-087-080 C-FET,2SK2158 A...................
C 161 87-010-178-080 CHIP CAP 1000P A...................
C 162 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 407 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 410 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 417 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 423 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 424 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 501 87-010-178-080 CHIP CAP 1000P A...................
C 502 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 532 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 531 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
CN 104 87-099-750-010 CONN,15P V 9604SC A...................
CN 302 87-A60-059-010 CONN,08P V 9604S-08C A...................
IC 401 87-070-289-040 IC,BU 2092F A...................
IC 402 87-A21-021-040 C-IC,BU2099FV A...................
LED 101 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 421 87-A40-843-010 LED,2363-2UBC/F45-27 BLUE A...................
LED 422 87-A40-843-010 LED,2363-2UBC/F45-27 BLUE A...................
LED 445 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 446 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 441 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 447 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 443 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 448 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 440 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 444 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 442 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 449 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 455 87-A40-537-040 LED,SLR-56PT-T31-W A...................
LED 451 87-A40-537-040 LED,SLR-56PT-T31-W A...................
LED 452 87-A40-537-040 LED,SLR-56PT-T31-W A...................
LED 454 87-A40-537-040 LED,SLR-56PT-T31-W A...................
LED 453 87-A40-537-040 LED,SLR-56PT-T31-W A...................
LED 456 87-A40-537-040 LED,SLR-56PT-T31-W A...................
LED 463 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 464 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 461 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 462 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 465 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 521 87-A40-847-010 LED,2363-2UBC/C470 BLUE A...................
LED 522 87-A40-847-010 LED,2363-2UBC/C470 BLUE A...................
Q 109 87-A30-087-080 C-FET,2SK2158 A...................
Q 401 87-A30-075-080 C-TR,2SA1235F A...................
S 202 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 206 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 201 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 207 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 204 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 203 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 205 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 208 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 211 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 215 87-A90-095-080 SW,TACT EVQ11G04M ....................
S 216 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 213 87-A90-095-080 SW,TACT EVQ11G04M ....................
S 212 87-A90-095-080 SW,TACT EVQ11G04M ....................
S 214 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 217 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 221 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 228 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 222 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 229 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 224 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 223 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 227 87-A90-095-080 SW,TACT EVQ11G04M ....................
S 226 87-A90-095-080 SW,TACT EVQ11G04M ....................
S 225 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 230 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 231 87-A90-095-080 SW,TACT EVQ11G04M A...................
ELECTRICAL MAIN PARTS LIST - 2/10
S 232 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 244 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 246 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 247 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 243 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 248 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 245 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 241 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 242 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 249 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 250 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 251 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 513 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 514 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 511 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 512 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 515 87-A90-095-080 SW,TACT EVQ11G04M A...................
SW 101 87-A91-740-010 SW,RTRY EC12E24308-30MM A...................
SW 501 87-A91-739-010 SW,RTRY EC12E12404-25MM RT A...................
87-067-680-010 BVI T3+3-10 A...................
C 1 87-010-387-080 CAP,E 470-25 SME A...................
C 8 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 9 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 16 87-010-403-040 CAP,E 3.3-50 SME A...................
C 13 87-010-917-000 CAP,E 3300-50 M SMG A...................
C 12 87-010-917-000 CAP,E 3300-50 M SMG A...................
C 18 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 10 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 11 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 19 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 23 87-A10-231-090 CAP,E 3300-80 A...................
C 22 87-A10-231-090 CAP,E 3300-80 A...................
C 21 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 20 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
CN 2 87-A61-108-010 CONN,5P V TID-A A...................
CN 1 87-A61-110-010 CONN,9P V TID-A A...................
D 2 87-017-447-010 DIODE,GBU4DL A...................
D 3 87-017-654-060 DIODE,GBU6J A...................
D 8 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 4 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 5 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 7 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 6 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 9 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 14 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 17 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 11 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 18 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 15 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 10 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 16 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 19 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 22 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 29 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 21 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 27 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 23 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 28 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 25 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 24 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 26 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 20 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 30 87-A40-736-080 DIODE,1N4148M(SEM) A...................
FC 4 87-033-213-080 CLAMP, FUSE ....................
FC 1 87-033-213-080 CLAMP, FUSE A...................
FC 3 87-033-213-080 CLAMP, FUSE ....................
FC 2 87-033-213-080 CLAMP, FUSE A...................
PR 9 87-A91-276-080 FUSE,125MA 125V F 251 A...................
PT 2 8A-NF8-661-010 PT,SUB ANF-8 (U) A...................
PT 2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI ....................
Q 1 87-026-245-080 TR,DTC114ES A...................
Q 2 87-A30-198-080 TR,KTC3199GR A...................
RY 1 87-A90-976-010 RELAY,AC12V SDT-S-112LMR A...................
RY 2 87-A91-300-010 RELAY,AC 12V-ALA2PF12 ....................
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ....................
T 1 87-A60-317-010 TERMINAL, 1P MSC A...................
T 2 87-A60-317-010 TERMINAL, 1P MSC A...................
* 8A-NF3-215-010 HLDR,TR A...................
* 8A-NF3-217-010 HLDR,TR-SW A...................
C 101 87-010-178-080 CHIP CAP 1000P A...................
C 102 87-010-178-080 CHIP CAP 1000P A...................
C 106 87-010-186-080 CAP,CHIP 4700P A...................
C 105 87-010-186-080 CAP,CHIP 4700P A...................
C 107 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 108 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 104 87-010-405-080 CAP, ELECT 10-50V A...................
C 103 87-010-405-080 CAP, ELECT 10-50V A...................
C 119 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 112 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 111 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 114 87-A10-812-080 C-CAP,S 220P-200 J CH A...................
C 113 87-A10-812-080 C-CAP,S 220P-200 J CH A...................
ELECTRICAL MAIN PARTS LIST - 3/10
C 120 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 121 87-010-260-080 CAP, ELECT 47-25V A...................
C 122 87-010-260-080 CAP, ELECT 47-25V A...................
C 173 87-010-186-080 CAP,CHIP 4700P A...................
C 205 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 206 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 209 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 208 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 207 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 204 87-A10-300-080 CAP,M 0.027-50 J A...................
C 203 87-A10-300-080 CAP,M 0.027-50 J A...................
C 201 87-A10-303-080 CAP,M 0.047-50 J A...................
C 202 87-A10-303-080 CAP,M 0.047-50 J A...................
C 210 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 218 87-010-260-080 CAP, ELECT 47-25V A...................
C 217 87-010-260-080 CAP, ELECT 47-25V A...................
C 212 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 211 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 216 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 215 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 223 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 224 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 222 87-010-405-080 CAP, ELECT 10-50V A...................
C 221 87-010-405-080 CAP, ELECT 10-50V A...................
C 249 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 255 87-010-190-080 S CHIP F 0.01 A...................
C 256 87-010-190-080 S CHIP F 0.01 A...................
C 253 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 252 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 251 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 254 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 413 87-A10-119-080 CAP,E 10-100 REA A...................
C 414 87-A10-119-080 CAP,E 10-100 REA A...................
CNA 103 8A-NF8-651-010 CONN ASSY,5P TID-A(480) A...................
CON 101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 A...................
CON 102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 A...................
D 101 87-A40-269-080 C-DIODE,MC2836 A...................
D 105 87-A40-270-080 C-DIODE,MC2838 A...................
D 103 87-A40-313-080 C-DIODE,MC 2840 A...................
D 113 87-020-331-080 CHIP-DIODE,DAN202K A...................
D 118 87-A40-488-080 DIODE,1SS244 A...................
D 117 87-A40-488-080 DIODE,1SS244 A...................
D 115 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 116 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 111 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 112 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 124 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 122 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 123 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 121 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 154 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 153 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 171 87-A40-270-080 C-DIODE,MC2838 A...................
D 202 87-020-331-080 CHIP-DIODE,DAN202K A...................
D 201 87-A40-269-080 C-DIODE,MC2836 A...................
D 205 87-A40-270-080 C-DIODE,MC2838 A...................
D 203 87-A40-313-080 C-DIODE,MC 2840 A...................
D 204 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 209 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 411 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 413 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 412 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 410 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 414 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 419 87-A40-747-080 ZENER,UZ5.1BSB A...................
D 418 87-A40-751-080 ZENER,UZ6.2BSB A...................
D 417 87-A40-764-080 ZENER,UZ10BSC A...................
D 422 87-A40-646-010 DIODE,FMB-G16L A...................
D 421 87-A40-646-010 DIODE,FMB-G16L A...................
D 428 87-A40-764-080 ZENER,UZ10BSC A...................
D 431 87-A40-736-080 DIODE,1N4148M(SEM) A...................
IC 201 87-A21-397-010 IC,STK490-070 A...................
IC 201 87-A21-417-010 IC,STK490-310 ....................
J 201 87-A61-148-010 JACK,PIN 4P R/W BLUE A...................
L 251 87-003-383-010 COIL,1UH-S A...................
L 252 87-003-383-010 COIL,1UH-S A...................
Q 115 87-A30-076-080 C-TR,2SC3052F A...................
Q 116 87-A30-076-080 C-TR,2SC3052F A...................
Q 113 87-A30-076-080 C-TR,2SC3052F A...................
Q 114 87-A30-076-080 C-TR,2SC3052F A...................
Q 112 87-A30-107-070 C-TR,CMBT5401 A...................
Q 111 87-A30-107-070 C-TR,CMBT5401 A...................
Q 117 87-A30-107-070 C-TR,CMBT5401 A...................
Q 118 87-A30-107-070 C-TR,CMBT5401 A...................
Q 119 87-A30-190-080 TR,CC5551 A...................
Q 120 87-A30-190-080 TR,CC5551 A...................
Q 131 87-A30-097-010 TR,FN 1016 A...................
Q 132 87-A30-097-010 TR,FN 1016 A...................
Q 133 87-A30-098-010 TR,FP 1016 A...................
Q 134 87-A30-098-010 TR,FP 1016 A...................
Q 136 87-A30-107-070 C-TR,CMBT5401 A...................
ELECTRICAL MAIN PARTS LIST - 4/10
Q 135 87-A30-107-070 C-TR,CMBT5401 A...................
Q 172 87-A30-106-040 C-TR,CMBT5551 A...................
Q 171 87-A30-107-070 C-TR,CMBT5401 A...................
Q 203 87-A30-075-080 C-TR,2SA1235F A...................
Q 201 87-A30-107-070 C-TR,CMBT5401 A...................
Q 202 87-A30-107-070 C-TR,CMBT5401 A...................
Q 401 87-A30-074-080 C-TR,RT1P 141C A...................
Q 403 87-A30-074-080 C-TR,RT1P 141C A...................
Q 409 87-A30-076-080 C-TR,2SC3052F A...................
Q 402 87-A30-107-070 C-TR,CMBT5401 A...................
Q 406 87-A30-186-010 FET,2SK3053 A...................
Q 405 87-A30-186-010 FET,2SK3053 A...................
Q 410 87-A30-075-080 C-TR,2SA1235F A...................
R 161 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 162 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 165 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 166 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 232 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 231 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 243 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 244 87-A00-258-080 RES,M/F 0.22-1W J A...................
RY 201 87-A91-686-010 RELAY, G5PA-28(OMRON) A...................
TH 101 87-A91-042-080 C-THMS,100K 55001 A...................
TH 102 87-A91-042-080 C-THMS,100K 55001 A...................
WH 103 87-A90-459-010 HLDR,WIRE 2.5-5P A...................
* 8Z-NF3-210-010 GUIDE,FL A...................
C 103 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 104 87-010-313-080 CAP, CHIP 18P A...................
C 105 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 109 87-010-401-040 CAP,E 1-50 SME A...................
C 106 87-012-145-080 CAP, CHIP S 270P CH A...................
C 107 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 108 87-015-681-040 E/CAP 10-16 A...................
C 118 87-010-194-080 CAP, CHIP 0.047 A...................
C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 110 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 115 87-010-198-080 CAP, CHIP 0.022 A...................
C 116 87-010-493-040 CAP,E 0.47-50 GAS A...................
C 117 87-010-498-040 CAP,E 10-16 GAS A...................
C 113 87-A10-189-040 CAP,E 220-10 A...................
C 119 87-A10-797-040 CAP,E 47-35 M 5L SRM A...................
C 112 87-A11-606-080 C-CAP,S 0.22-25 K B A...................
C 128 87-010-178-080 CHIP CAP 1000P A...................
C 129 87-010-194-080 CAP, CHIP 0.047 A...................
C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 122 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 121 87-015-699-040 CAP,E 10-50 7L A...................
C 120 87-015-699-040 CAP,E 10-50 7L A...................
C 132 87-A10-189-040 CAP,E 220-10 A...................
C 131 87-A10-189-040 CAP,E 220-10 A...................
C 151 87-010-194-080 CAP, CHIP 0.047 A...................
C 196 87-010-194-080 CAP, CHIP 0.047 A...................
C 197 87-010-194-080 CAP, CHIP 0.047 A...................
C 213 87-A10-189-040 CAP,E 220-10 A...................
C 306 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 305 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 304 87-A11-606-080 C-CAP,S 0.22-25 K B A...................
C 303 87-A11-606-080 C-CAP,S 0.22-25 K B A...................
C 310 87-010-067-040 CAP,E 0.1-50 5L A...................
C 701 87-010-981-040 CAP,E 22-35 5L SRE A...................
C 902 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 906 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 909 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 907 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 904 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 903 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 905 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 908 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 901 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 912 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 911 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 910 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 913 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 914 87-012-145-080 CAP, CHIP S 270P CH A...................
CN 101 87-099-720-010 CONN,30P TYK-B(P) A...................
CN 103 87-099-750-010 CONN,15P V 9604SC A...................
CN 102 87-A60-054-010 CONN,14P V 9604S-14C A...................
CN 301 87-A60-079-010 CONN,08P H 9604S-08F A...................
CN 601 87-A60-062-010 CONN,05P V 9604S-05C A...................
CN 701 87-099-750-010 CONN,15P V 9604SC A...................
D 109 87-017-154-080 ZENER,HZS6C3L A...................
D 104 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 107 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 103 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 115 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 116 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 111 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 114 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 110 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 113 87-A40-736-080 DIODE,1N4148M(SEM) A...................
ELECTRICAL MAIN PARTS LIST - 5/10
D 120 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 150 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 306 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 301 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 302 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 307 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 304 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 303 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 305 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 308 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 312 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 319 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 310 87-A40-747-080 ZENER,UZ5.1BSB A...................
D 323 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 325 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 321 87-A40-736-080 DIODE,1N4148M(SEM) ....................
D 324 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 320 87-A40-736-080 DIODE,1N4148M(SEM) ....................
D 326 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 334 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 336 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 332 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 337 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 331 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 333 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 335 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 338 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 701 87-A40-269-080 C-DIODE,MC2836 A...................
FL 101 8A-NF3-613-010 FL,BJ752GK-ANF3 A...................
IC 102 87-A21-482-010 IC,RPM6938-H4 A...................
IC 101 8A-NF3-635-010 C-IC,LC876580W-**** A...................
IC 380 87-A21-577-040 C-IC,M61506FP A...................
L 101 87-A50-333-010 COIL,OSC 9.43MHZ A...................
LED 313 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 315 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 312 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 314 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
LED 311 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................
Q 104 87-026-610-080 TR,KTC3198GR A...................
Q 108 87-A30-073-080 C-TR,RT1N 141C A...................
Q 102 87-A30-076-080 C-TR,2SC3052F A...................
Q 107 87-A30-076-080 C-TR,2SC3052F A...................
Q 101 87-A30-087-080 C-FET,2SK2158 A...................
Q 111 87-A30-074-080 C-TR,RT1P 141C A...................
Q 112 87-A30-074-080 C-TR,RT1P 141C A...................
Q 301 87-A30-276-040 C-TR,DTA143EKA A...................
Q 703 87-A30-318-080 TR,CSA952K A...................
Q 702 87-A30-318-080 TR,CSA952K A...................
Q 701 87-A30-329-080 TR,CD1585BC A...................
S 313 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 312 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 316 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 317 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 314 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 311 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 315 87-A90-095-080 SW,TACT EVQ11G04M A...................
C 806 87-010-071-040 CAP,E 1-50 M 5L SRE ....................
C 802 87-010-176-080 C-CAP,S 680P-50 SL ....................
C 803 87-010-187-080 CAP CHIP S5600P ....................
C 805 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 807 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 804 87-010-213-080 C-CAP,S 0.015-50 B ....................
C 809 87-012-155-080 C-CAP 180P-50CH ....................
C 801 87-012-156-080 C-CAP,S 220P-50 CH ....................
C 811 87-010-244-040 CAP,E 22-16 5L ....................
C 810 87-010-264-040 CAP,E 100-10 5L ....................
C 812 87-016-044-040 CAP,E 100-16 GAS ....................
C 821 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 833 87-010-322-080 C-CAP,S 100P-50 CH ....................
D 801 87-A40-749-080 ZENER,UZ5.6BSB ....................
IC 801 87-A21-051-040 C-IC,BU9990-03FS ....................
L 802 87-003-098-080 COIL,2.2UH ....................
L 801 87-A50-093-010 COIL,CLOCK 5.76MHZ ....................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 302 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 304 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 305 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 306 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 303 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 316 87-010-178-080 CHIP CAP 1000P A...................
C 315 87-010-178-080 CHIP CAP 1000P A...................
C 313 87-010-180-080 C-CER 1500P A...................
C 314 87-010-180-080 C-CER 1500P A...................
C 311 87-010-198-080 CAP, CHIP 0.022 A...................
C 312 87-010-198-080 CAP, CHIP 0.022 A...................
C 319 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................
C 318 87-A10-201-080 C-CAP,S0.33-16 KB A...................
C 317 87-A10-201-080 C-CAP,S0.33-16 KB A...................
C 324 87-010-260-080 CAP, ELECT 47-25V A...................
C 325 87-010-370-080 CAP,E 330-6.3 SME A...................
C 327 87-010-404-080 CAP, ELECT 4.7-50V A...................
ELECTRICAL MAIN PARTS LIST - 6/10
C 328 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 321 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................
C 322 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................
C 320 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 336 87-010-401-080 CAP, ELECT 1-50V A...................
C 335 87-010-401-080 CAP, ELECT 1-50V A...................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 354 87-010-175-080 CAP 560P A...................
C 358 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 359 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 357 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 356 87-010-260-080 CAP, ELECT 47-25V A...................
C 351 87-012-140-080 CAP 470P A...................
C 352 87-012-140-080 CAP 470P A...................
C 355 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 360 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 372 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 371 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 373 87-010-179-080 CAP,CHIP S B1200P A...................
C 374 87-010-179-080 CAP,CHIP S B1200P A...................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 375 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 376 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 385 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 383 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 381 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 382 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 384 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 388 87-012-156-080 C-CAP,S 220P-50 CH A...................
CN 301 87-A60-620-010 CONN,3P V 2MM JMT A...................
CN 351 87-A60-625-010 CONN,8P V 2MM JMT A...................
D 352 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 353 87-A40-736-080 DIODE,1N4148M(SEM) A...................
IC 302 87-A20-355-010 IC,CXA1553P A...................
IC 303 87-A20-783-040 C-IC,BA7762AFS A...................
L 301 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 302 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 351 87-007-342-010 COIL,OSC 85K BIAS A...................
Q 357 87-026-609-080 TR,KTA1266GR A...................
Q 359 87-026-610-080 TR,KTC3198GR A...................
Q 358 87-026-610-080 TR,KTC3198GR A...................
Q 355 87-A30-063-080 C-TR,KRA104S A...................
Q 351 87-A30-087-080 C-FET,2SK2158 A...................
Q 353 87-A30-087-080 C-FET,2SK2158 A...................
Q 354 87-A30-087-080 C-FET,2SK2158 A...................
Q 361 87-A30-076-080 C-TR,2SC3052F A...................
Q 381 87-A30-076-080 C-TR,2SC3052F A...................
Q 382 87-A30-076-080 C-TR,2SC3052F A...................
SFR 302 87-024-355-080 SFR,33K DIA6 H A...................
SFR 301 87-024-355-080 SFR,33K DIA6 H A...................
SFR 303 87-024-355-080 SFR,33K DIA6 H A...................
SFR 304 87-024-355-080 SFR,33K DIA6 H A...................
SFR 306 87-024-356-080 SFR,47K DIA6 H A...................
SFR 305 87-024-356-080 SFR,47K DIA6 H A...................
SFR 352 87-024-356-080 SFR,47K DIA6 H A...................
SFR 351 87-024-356-080 SFR,47K DIA6 H A...................
C 104 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 105 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 111 87-010-401-080 CAP, ELECT 1-50V A...................
C 112 87-010-401-080 CAP, ELECT 1-50V A...................
C 116 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 115 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 122 87-010-406-080 CAP, ELECT 22-50 A...................
C 121 87-010-406-080 CAP, ELECT 22-50 A...................
C 163 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 178 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 177 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 173 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 172 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 171 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 174 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 175 87-A11-572-080 C-CAP,S 0.015-50 K B A...................
C 176 87-A11-572-080 C-CAP,S 0.015-50 K B A...................
CN 101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3 A...................
D 101 87-A40-736-080 DIODE,1N4148M(SEM) A...................
J 102 87-A60-238-010 TERMINAL,SP 4P (MSC) A...................
J 101 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM A...................
L 101 87-003-383-010 COIL,1UH-S A...................
L 102 87-003-383-010 COIL,1UH-S A...................
Q 103 87-A30-076-080 C-TR,2SC3052F A...................
Q 108 87-A30-076-080 C-TR,2SC3052F A...................
Q 109 87-A30-076-080 C-TR,2SC3052F A...................
Q 101 87-A30-076-080 C-TR,2SC3052F A...................
Q 102 87-A30-076-080 C-TR,2SC3052F A...................
Q 104 87-A30-076-080 C-TR,2SC3052F A...................
Q 107 87-A30-076-080 C-TR,2SC3052F A...................
Q 106 87-A30-269-040 C-FET,2SJ461-T1 A...................
ELECTRICAL MAIN PARTS LIST - 7/10
Q 105 87-A30-269-040 C-FET,2SJ461-T1 A...................
Q 113 87-A30-075-080 C-TR,2SA1235F A...................
Q 110 87-A30-076-080 C-TR,2SC3052F A...................
Q 112 87-A30-076-080 C-TR,2SC3052F A...................
Q 111 87-A30-076-080 C-TR,2SC3052F A...................
R 162 87-A00-441-050 RES,270-1/2W J RP A...................
R 161 87-A00-441-050 RES,270-1/2W J RP A...................
R 163 87-A00-441-050 RES,270-1/2W J RP A...................
R 164 87-A00-441-050 RES,270-1/2W J RP A...................
C 973 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 974 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 979 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 971 87-010-381-080 CAP, ELECT 330-16V A...................
C 972 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 982 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 983 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 987 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 984 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 981 87-010-260-080 CAP, ELECT 47-25V A...................
C 993 87-010-178-080 CHIP CAP 1000P A...................
C 995 87-010-178-080 CHIP CAP 1000P A...................
C 997 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 998 87-010-260-080 CAP, ELECT 47-25V A...................
C 991 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 992 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 999 87-A11-155-080 CAP,TC U 0.01-16 Z F A...................
D 804 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 991 87-017-149-080 ZENER,HZS6A2L A...................
IC 991 87-070-127-110 IC,LC72131 D A...................
Q 981 87-A30-234-080 TR,CSC4115BC A...................
R 993 87-010-322-080 C-CAP,S 100P-50 CH A...................
R 991 87-010-322-080 C-CAP,S 100P-50 CH A...................
R 995 87-010-322-080 C-CAP,S 100P-50 CH A...................
X 991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 A...................
C 774 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 773 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 772 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 771 87-010-263-080 CAP, ELECT 100-10V A...................
C 788 87-010-149-080 C-CAP,S 5P-50 CH A...................
C 784 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 782 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 785 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 786 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 783 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 789 87-010-220-080 C-CAP,S 0.018-25 B A...................
C 791 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 792 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 798 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 796 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 795 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 790 87-010-220-080 C-CAP,S 0.018-25 B A...................
C 793 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 797 87-010-405-080 CAP, ELECT 10-50V A...................
C 799 87-010-407-080 CAP, ELECT 33-50V A...................
C 803 87-010-198-080 CAP, CHIP 0.022 A...................
C 804 87-010-263-080 CAP, ELECT 100-10V A...................
C 807 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 808 87-010-401-080 CAP, ELECT 1-50V A...................
C 809 87-010-401-080 CAP, ELECT 1-50V A...................
C 801 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 802 87-012-369-080 C-CAP,S 0.047-50F A...................
C 800 87-012-369-080 C-CAP,S 0.047-50F A...................
C 819 87-010-179-080 CAP,CHIP S B1200P A...................
C 810 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 814 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 815 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 811 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 816 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 812 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 823 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 820 87-010-179-080 CAP,CHIP S B1200P A...................
C 821 87-010-405-080 CAP, ELECT 10-50V A...................
C 824 87-010-406-080 CAP, ELECT 22-50 A...................
C 825 87-010-596-080 CAP, S 0.047-16 A...................
D 803 87-A40-736-080 DIODE,1N4148M(SEM) A...................
IC 801 87-A21-415-010 IC,LA1843 A...................
L 801 87-A50-266-010 COIL,FM DET-2N(TOK) A...................
L 802 87-A91-110-010 FLTR,PCFJZH-450 (TOK) A...................
L 811 87-005-847-080 COIL,2.2UH(CECS) A...................
L 822 87-A50-209-010 COIL,1POLE MPX(MIT) A...................
L 821 87-A50-209-010 COIL,1POLE MPX(MIT) A...................
Q 801 87-A30-076-080 C-TR,2SC3052F A...................
Q 802 87-A30-076-080 C-TR,2SC3052F A...................
C 842 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 844 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 858 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 859 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 853 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 852 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 851 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 850 87-010-260-080 CAP, ELECT 47-25V A...................
C 860 87-010-197-080 CAP, CHIP 0.01 DM A...................
ELECTRICAL MAIN PARTS LIST - 8/10
C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 961 87-010-152-080 C-CAP,S 8P-50 CH A...................
C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z A...................
CF 831 87-008-261-010 FILTER, SFE10.7MA5-A A...................
CF 832 87-008-261-010 FILTER, SFE10.7MA5-A A...................
FFE 831 A8-8ZA-190-030 8ZA-1 FEUNM A...................
J 831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 A...................
L 832 87-005-847-080 COIL,2.2UH(CECS) A...................
L 951 8A-NF8-667-010 COIL,AM PACK 4(TOK) A...................
Q 836 87-A30-072-080 C-TR,RT1P 144C A...................
Q 835 89-327-143-080 TR,2SC2714 (0.1W) A...................
C 4 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 3 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 28 87-010-258-080 CAP,E 22-35 SME A...................
C 26 87-010-258-080 CAP,E 22-35 SME A...................
C 25 87-010-392-080 CAP ELECT 33SME-35V A...................
C 27 87-010-392-080 CAP ELECT 33SME-35V A...................
C 21 87-016-035-090 CAP, E 6800-35 VR A...................
C 22 87-016-035-090 CAP, E 6800-35 VR A...................
C 32 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 34 87-010-247-080 CAP, ELECT 100-50V A...................
C 33 87-010-263-080 CAP, ELECT 100-10V A...................
C 31 87-010-263-080 CAP, ELECT 100-10V A...................
C 35 87-010-380-080 CAP, ELECT 47-16V A...................
C 36 87-010-381-080 CAP, ELECT 330-16V A...................
C 39 87-010-384-080 CAP, ELECT 100-25V A...................
C 38 87-010-384-080 CAP, ELECT 100-25V A...................
C 40 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 61 87-010-260-080 CAP, ELECT 47-25V A...................
C 60 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 82 87-010-260-080 CAP, ELECT 47-25V A...................
C 81 87-010-374-080 CAP, ELECT 47-10V A...................
C 80 87-010-401-080 CAP, ELECT 1-50V A...................
CN 1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3 A...................
CN 91 87-A60-619-010 CONN,2P V 2MM JMT A...................
CNA 1 8A-NF8-653-010 CONN ASSY,9P TID-A(480) A...................
D 1 87-A40-673-090 DIODE,D10XB20 A...................
D 27 87-A40-553-080 DIODE,1N4003 LES A...................
D 26 87-A40-553-080 DIODE,1N4003 LES A...................
D 25 87-A40-553-080 DIODE,1N4003 LES A...................
D 28 87-A40-553-080 DIODE,1N4003 LES A...................
D 29 87-A40-784-080 ZENER,UZ39BSB A...................
D 33 87-070-274-080 DIODE,1N4003 SEM A...................
D 34 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 32 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 30 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 31 87-A40-764-080 ZENER,UZ10BSC A...................
D 64 87-A40-269-080 C-DIODE,MC2836 A...................
D 63 87-A40-270-080 C-DIODE,MC2838 A...................
D 66 87-A40-313-080 C-DIODE,MC 2840 A...................
D 61 87-A40-313-080 C-DIODE,MC 2840 A...................
D 62 87-A40-313-080 C-DIODE,MC 2840 A...................
D 60 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 65 87-A40-768-080 ZENER,UZ16BSA A...................
D 84 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 85 87-A40-736-080 DIODE,1N4148M(SEM) A...................
Q 5 87-026-610-080 TR,KTC3198GR A...................
Q 7 87-A30-075-080 C-TR,2SA1235F A...................
Q 8 87-A30-075-080 C-TR,2SA1235F A...................
Q 6 87-A30-076-080 C-TR,2SC3052F A...................
Q 1 87-A30-217-010 TR,2SB1436(R) A...................
Q 2 87-A30-217-010 TR,2SB1436(R) A...................
Q 9 87-A30-318-080 TR,CSA952K A...................
Q 3 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 4 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 10 87-A30-076-080 C-TR,2SC3052F A...................
Q 63 87-A30-075-080 C-TR,2SA1235F A...................
Q 61 87-A30-075-080 C-TR,2SA1235F A...................
Q 60 87-A30-076-080 C-TR,2SC3052F A...................
Q 62 87-A30-076-080 C-TR,2SC3052F A...................
Q 64 87-A30-076-080 C-TR,2SC3052F A...................
Q 82 87-026-610-080 TR,KTC3198GR A...................
Q 80 87-A30-075-080 C-TR,2SA1235F A...................
Q 81 87-A30-076-080 C-TR,2SC3052F A...................
Q 84 87-A30-218-080 TR,2SB1237(Q) A...................
R 25 87-A00-261-080 RES,M/F 0.56-1W J A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
C 606 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 603 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 604 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 605 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 616 87-010-180-080 C-CER 1500P A...................
C 613 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 617 87-010-198-080 CAP, CHIP 0.022 A...................
C 619 87-010-263-080 CAP, ELECT 100-10V A...................
C 612 87-010-369-080 C-CAP,S 0.033-25 K B A...................
C 615 87-010-401-080 CAP, ELECT 1-50V A...................
C 618 87-010-401-080 CAP, ELECT 1-50V A...................
C 611 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 614 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 621 87-010-197-080 CAP, CHIP 0.01 DM A...................
ELECTRICAL MAIN PARTS LIST - 9/10
C 628 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 627 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 624 87-010-401-080 CAP, ELECT 1-50V A...................
C 623 87-010-401-080 CAP, ELECT 1-50V A...................
C 620 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 629 87-A11-590-080 C-CAP,S 0.047-16 K B A...................
C 626 87-A11-590-080 C-CAP,S 0.047-16 K B A...................
C 632 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 631 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 633 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 630 87-010-263-080 CAP, ELECT 100-10V A...................
C 639 87-010-405-080 CAP, ELECT 10-50V A...................
C 636 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 637 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 638 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 635 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 642 87-010-401-080 CAP, ELECT 1-50V A...................
C 641 87-010-401-080 CAP, ELECT 1-50V A...................
C 644 87-010-401-080 CAP, ELECT 1-50V A...................
C 679 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 673 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 672 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 671 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 682 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 680 87-010-197-080 CAP, CHIP 0.01 DM A...................
CN 605 87-099-568-010 CONN,11P TUC-P11P-B1 A...................
CN 601 87-099-719-010 CONN,30P TYK-B(X) A...................
CN 602 87-A60-131-010 CONN,6P V FE A...................
D 603 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 602 87-A40-745-080 ZENER,UZ4.7BSA A...................
D 601 87-A40-802-080 ZENER,UZ5.1BSC A...................
IC 601 87-A21-452-040 C-IC,BD3876KS2 A...................
J 601 87-A60-885-010 JACK,PIN 6P R/W MSC A...................
Q 601 87-026-609-080 TR,KTA1266GR A...................
Q 606 87-A30-086-070 C-TR,CSD1306E A...................
Q 605 87-A30-086-070 C-TR,CSD1306E A...................
C 506 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 502 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 501 87-010-263-080 CAP, ELECT 100-10V A...................
C 505 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................
C 508 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 509 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 507 87-A11-550-080 C-CAP,S 820P-50 K B A...................
C 504 87-A11-606-080 C-CAP,S 0.22-25 K B A...................
C 503 87-A11-606-080 C-CAP,S 0.22-25 K B A...................
C 517 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 518 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 510 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 514 87-010-374-080 CAP, ELECT 47-10V A...................
C 516 87-010-401-080 CAP, ELECT 1-50V A...................
C 515 87-010-401-080 CAP, ELECT 1-50V A...................
C 513 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 511 87-A11-550-080 C-CAP,S 820P-50 K B A...................
C 512 87-A11-606-080 C-CAP,S 0.22-25 K B A...................
C 535 87-010-178-080 CHIP CAP 1000P A...................
C 536 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 533 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 532 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 538 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 531 87-010-560-080 CAP,E 10-50 GAS A...................
C 534 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 541 87-010-178-080 CHIP CAP 1000P A...................
D 501 87-A40-747-080 ZENER,UZ5.1BSB A...................
FB 501 87-008-372-080 FILTER, EMI BL OIRNI A...................
IC 501 87-A21-018-040 C-IC,M65849BFP631D A...................
Q 532 87-A30-075-080 C-TR,2SA1235F A...................
Q 531 87-A30-076-080 C-TR,2SC3052F A...................
C 201 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 202 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 205 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 209 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 207 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 208 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 219 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 216 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 215 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 218 87-010-198-080 CAP, CHIP 0.022 A...................
C 217 87-010-198-080 CAP, CHIP 0.022 A...................
C 214 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 213 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 211 87-012-365-080 C-CAP,S 0.027-25VBK A...................
C 212 87-012-365-080 C-CAP,S 0.027-25VBK A...................
C 210 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 227 87-010-112-080 CAP, ELECT 100-16V A...................
C 223 87-010-178-080 CHIP CAP 1000P A...................
C 224 87-010-178-080 CHIP CAP 1000P A...................
C 226 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 225 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 220 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 221 87-010-188-080 CAP,CHIP 6800P A...................
C 222 87-010-188-080 CAP,CHIP 6800P A...................
ELECTRICAL MAIN PARTS LIST - 10/10
C 228 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 229 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 230 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 231 87-010-322-080 C-CAP,S 100P-50 CH A...................
CN 201 87-A60-546-010 CONN,11P H GRY TUC-P11X-C1 A...................
IC 201 87-A20-869-040 C-IC,M62449FP A...................
MECHANICAL PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
U ......................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-NF3-090-010 RING,FOOT A...................
8A-NF3-028-010 BOX,CASS L A...................
8A-NF3-029-010 BOX,CASS R A...................
8A-NF3-031-010 PANEL,FR U A...................
8A-NF3-034-010 PANEL,FR LH ....................
8A-NF3-039-010 PANEL,CASS L A...................
8A-NF3-040-010 PANEL,CASS R A...................
8A-NF3-042-010 PANEL ASSY,TRAY A...................
8A-NF3-047-010 PANEL,CD A...................
8A-NF3-048-010 PANEL,REFLECTOR- CD A...................
8A-NF3-049-010 PANEL,KEY-CD A...................
8A-NF3-058-010 WINDOW,CASS L A...................
8A-NF3-059-010 WINDOW,CASS R A...................
8A-NF4-051-010 WINDOW,DISP ....................
8Z-NF3-048-010 COVER, BOTTOM A...................
* 8A-NF3-001-010 CABI,FR A...................
* 8A-NF3-026-010 CABI,BOTTOM A...................
* 8A-NF3-027-010 CABI,STEEL A...................
* 8A-NF4-011-010 CABI,REAR LHSM ....................
* 8A-NF4-013-010 CABI,REAR USM A...................
* 8A-NF4-052-010 WINDOW,DISP U A...................
8A-NF3-061-010 KEY,GEQ A...................
8A-NF3-062-010 KEY,DSP A...................
8A-NF3-063-010 KEY ASSY,OPE A...................
8A-NF3-065-010 KEY,KARAOKE A...................
8A-NF3-067-010 KEY,BBE A...................
8A-NF3-068-010 KEY,JOG A...................
8A-NF3-069-010 KEY,SPICE ....................
8A-NF3-070-010 KEY,ECO A...................
8A-NF3-071-010 KEY,CD A...................
8A-NF3-072-010 KEY,FUNC A...................
8A-NF3-073-010 KEY,REC U A...................
8A-NF3-076-010 RING,VOL A...................
8A-NF3-077-010 RING,JOG H ....................
8A-NF3-078-010 RING,JOG U A...................
8A-NF3-081-010 KNOB,RTRY VOL A...................
8A-NF3-082-010 KNOB,RTRY JOG A...................
81-532-080-010 LABEL, CASS. COMPT A...................
8A-NF3-087-010 REFLECTOR,JOG A...................
8A-NF3-088-010 REFLECTOR,FUNC A...................
8A-NF3-089-010 REFLECTOR,CD A...................
8A-NF3-090-010 REFLECTOR,CASS L A...................
8A-NF3-091-010 REFLECTOR,CASS R A...................
8Z-NF3-643-010 CONN ASSY,3P PB A...................
8Z-NF3-644-010 CONN ASSY,8P RPB A...................
84-ZG1-245-210 CAP,OPTICAL A...................
82-NF5-218-010 SPR-T,EJECT 1 (SIN) A...................
82-NF5-219-010 SPR-T,EJECT 2 (SIN) A...................
82-NF5-229-010 PLATE,LOCK A...................
86-NF9-224-010 SPR-C,LOCK A...................
87-064-185-010 HLDR,WIRE A...................
87-NF4-215-010 HLDR,FFC A...................
87-NF4-216-010 HLDR,LOCK 1 A...................
87-NF4-217-110 HLDR,LOCK 2 A...................
87-NF4-221-010 HLDR,CABLE A...................
87-NF8-220-010 DMPR,150 A...................
8A-NF3-225-010 COVER, HLDR A...................
* 8A-NF3-201-010 GUIDE,LED-FUNC A...................
* 8A-NF3-203-010 GUIDE,LED-CD A...................
* 8A-NF3-213-010 HLDR,HT-SINK L A...................
* 8A-NF3-214-010 HLDR,HT-SINK R A...................
* 8A-NF3-221-010 HLDR,IC-VM A...................
* 8A-NF3-223-010 HLDR,FAN A...................
* 8A-NF8-206-010 HLDR,PWB M A...................
87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................
87-067-689-010 TAPPING SCREW, BVTT+3-8 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-975-010 S-SCREW,IT+4-8 A...................
87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) A...................
87-721-096-410 QT2+3-10 GLD A...................
87-721-097-410 QT2+3-12 GLD A...................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU A...................
* 87-067-822-010 BVT2+3-20 W/O SLOT A...................
* 8A-NF3-208-010 HLDR,CHAS L A...................
* 8A-NF3-209-010 HLDR,CHAS R A...................
* 8A-NF3-210-010 HLDR,SIDE L A...................
* 8A-NF3-211-010 HLDR,SIDE R A...................
* 8A-NF3-212-010 HLDR,REAR A...................
87-085-185-010 BUSHING, AC CORD (E) ....................
87-A91-422-010 BUSHING,AC CORD(U) A...................
87-A91-423-010 FAN,AD0612DS-D7OGL A...................
87-A91-711-010 FAN, 3110GL-B4W-B34-H02 -400MM A...................
88-905-081-110 FF-CABLE, 5P 1.25 A...................
88-906-481-110 FF-CABLE, 6P 1.25 480MM A...................
88-908-381-110 FF-CABLE,8P 1.25 A...................
88-914-481-110 FF-CABLE, 14P 1.25 480MM A...................
MECHANICAL PARTS LIST - 2/2
88-915-161-110 FF-CABLE, 15P 1.25 A...................
F 102 87-035-458-010 FUSE,4A 250V T W/C ....................
F 101 87-035-458-010 FUSE,4A 250V T W/C ....................
F 101 87-035-493-010 FUSE,8A 125V A...................
PT 101 8A-NF4-601-010 PT,U EI96-60 ANF-4 A...................
PT 101 8A-NF4-602-010 PT,LH EI96-60 ANF-4 ....................
W 101 87-A80-148-010 AC CORD ASSY,E BLK ....................
W 101 87-A80-149-010 AC CORD ASSY,U BLK A...................
87-067-680-010 BVI T3+3-10 A...................
WH 103 87-A90-459-010 HLDR,WIRE 2.5-5P A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
U ......................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8A-NF4-902-010 IB,LH (ESP) M ....................
8A-NF4-903-010 IB,U (ESF) M A...................
87-006-225-010 AM LOOP ANT NC2 A...................
87-043-115-010 ANT,FEEDER FM A...................
87-A91-017-010 PLUG,CONVERSION JT-0476 ....................
8Z-NF5-702-010 RC UNIT,RC-ZAS04 A...................

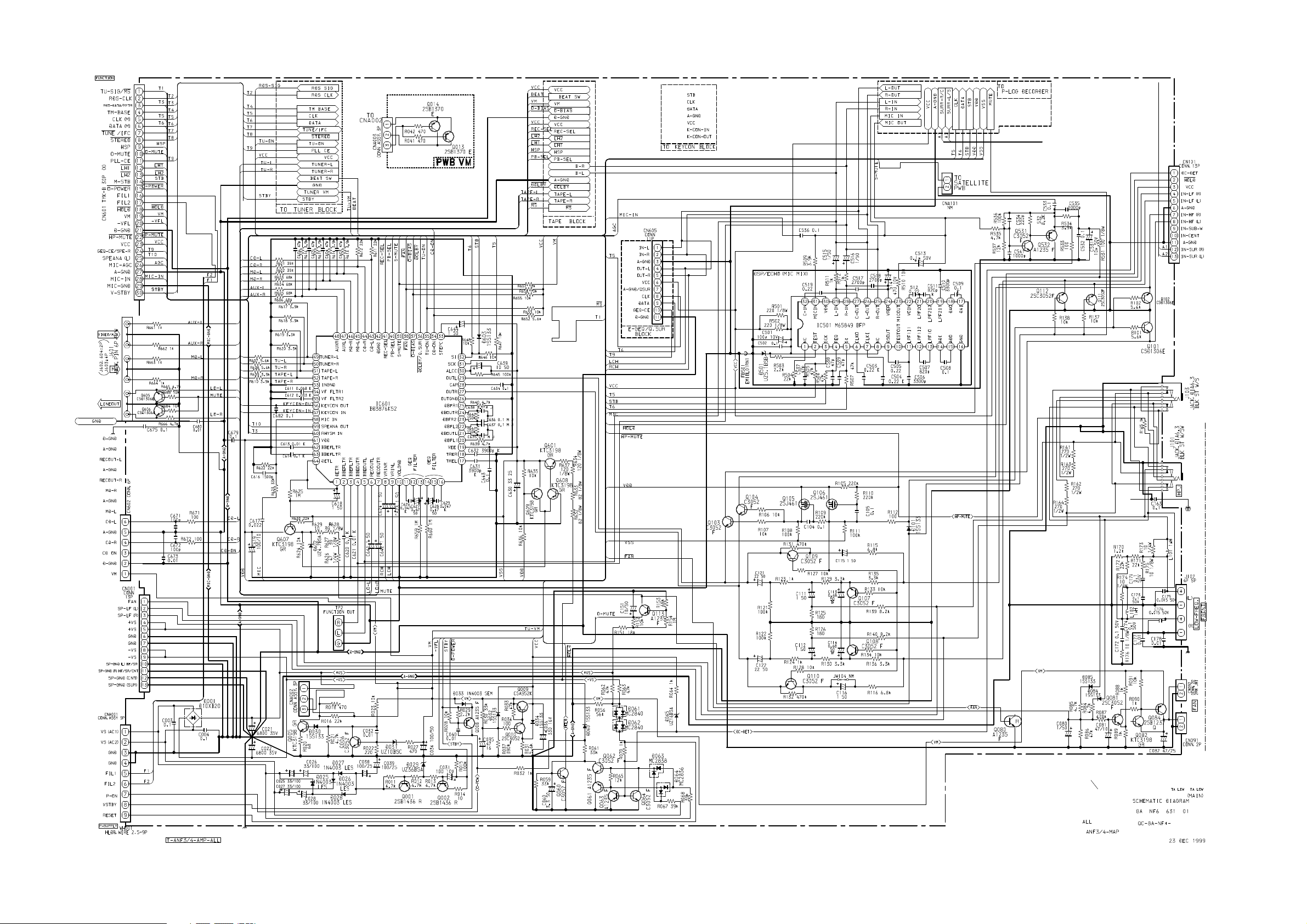

SCHEMATIC DIAGRAM _ 1 (MAIN 1/3)

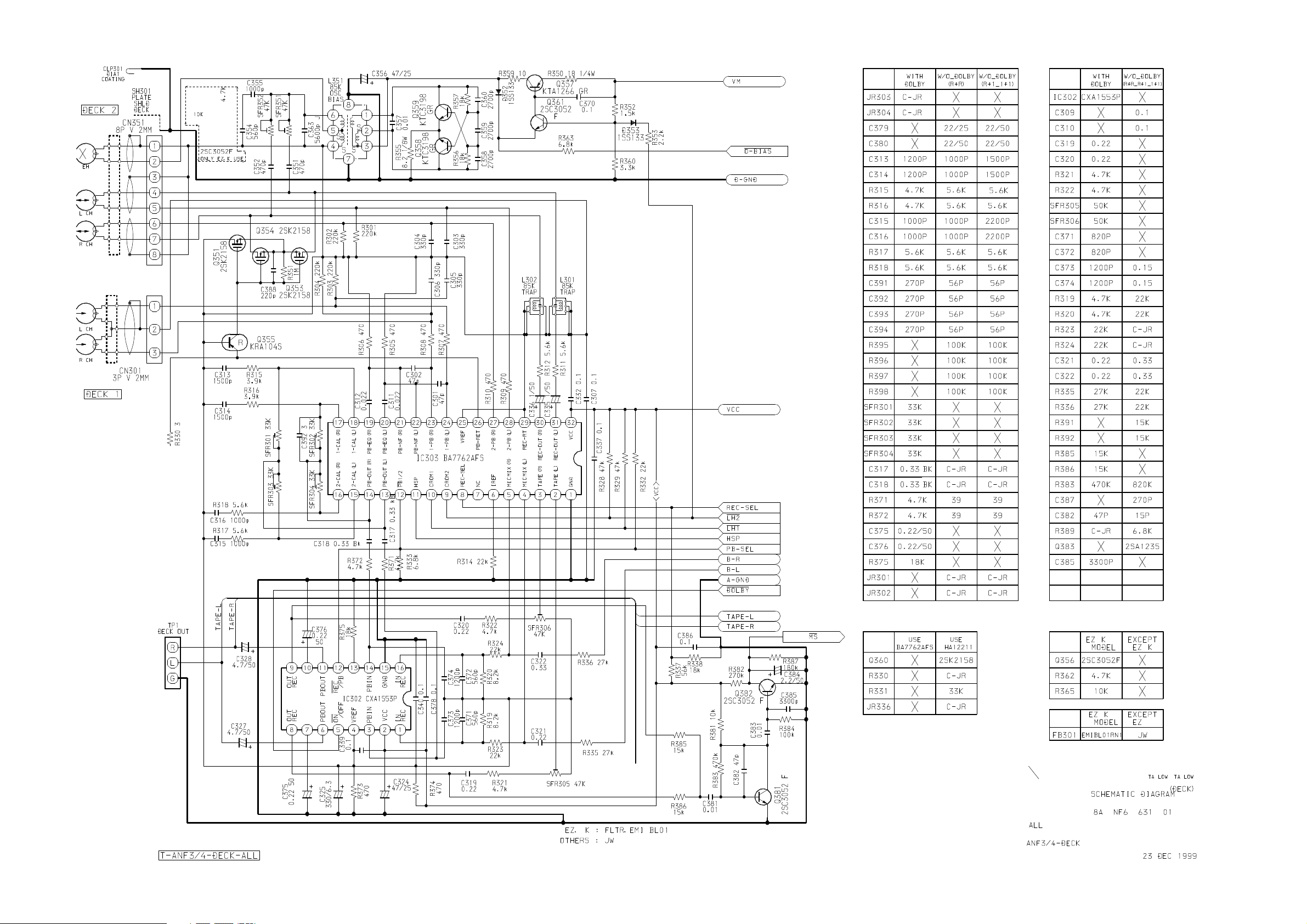

SCHEMATIC DIAGRAM _ 2 (MAIN 2/3 : DECK SECTION)
SCHEMATIC DIAGRAM _ 3 (MAIN 3/3 : TUNER SECTION)
SCHEMATIC DIAGRAM _ 4 (KEY-CON)
SCHEMATIC DIAGRAM _ 5 (CONTROL)
SCHEMATIC DIAGRAM _ 6 (DISPLAY)
SCHEMATIC DIAGRAM _ 7 (AMP)
SCHEMATIC DIAGRAM _ 8 (PT)
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111
Printed in Singapore9820572
Loading...
