Aiwa CT-X409 User Manual [en, es, fr]

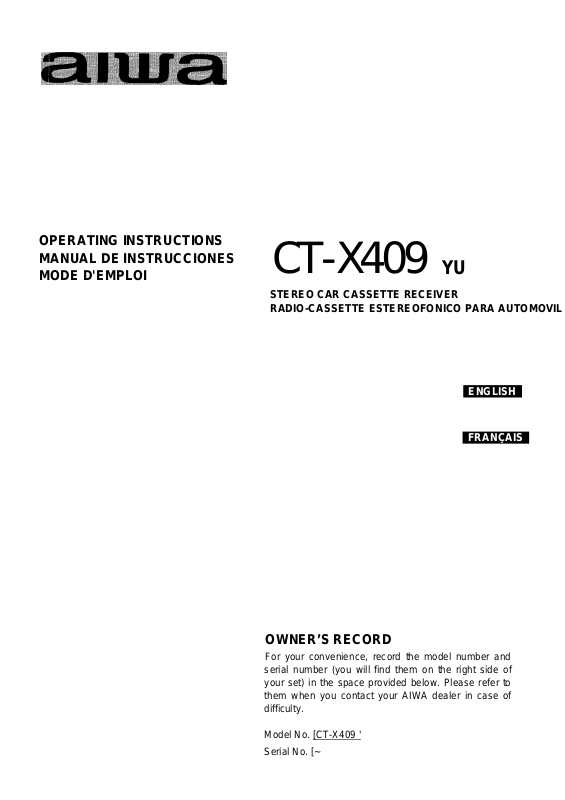

OPERATING INSTRUCTIONS MANUAL DE INSTRUCCIONES MODE D'EMPLOI
CT-X409
STEREO CAR CASSETTE RECEIVER
RADIO-CASSETTE ESTEREOFONICO PARA AUTOMOVIL
YU
ENGLISH
FRANÇAIS
OWNER’S RECORD
For your convenience, record the model number and
serial number (you will find them on the right side of
your set) in the space provided below. Please refer to
them when you contact your AIWA dealer in case of
difficulty.
Model No. [CT-X409 '
Serial No. [~
Welcome
Thankyou foryour purchasing this AIWA product.
To optimize the performance of this unit, please
read through this manual carefully.
In addition to this operating instructions manual,
be sure to refer to the separate installation and
connections manuals as well.
PRECAUTIONS
• This unit is designed to be operated on a 12-volt
DC negative-ground electrical system only.
•To prevent short-circuiting, disconnect the
negative car battery terminal until the unit has
been mounted and connected completely.
•When replacing the fuse, be sure to use one
whose amperage rating is identical. Use of a
fuse of higher amperage may cause serious
damage to the unit.
• Keep screwdrivers, etc. and other metallic or
magnetic objects away from the playback head.
•When your car was parked in direct sunlight
resulting in a considerable rise in temperature
inside the car, allow the unit to cool off before
operating it.
• Keep the volume at such a level that you can
hear outside warning sounds (horns, sirens,
etc.).
Notes on cassettes .
Do NOT expose cassettes to direct sunlight,
extremely high or cold temperature or moisture.
Keep cassettes away from equipment with builtin magnets to avoid unwanted noise or loss of
sound quality.
Do NOT touch the tape of a cassette, as any dirt
or dust will contaminate the heads.
Be sure to remove any cassette from the unit if
you are not using it.
NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
— increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
CAUTION
Modifications or adjustments to this product, which
are not expressly approved by the manufacturer,
may void the user’s right or authority to operate
this product.

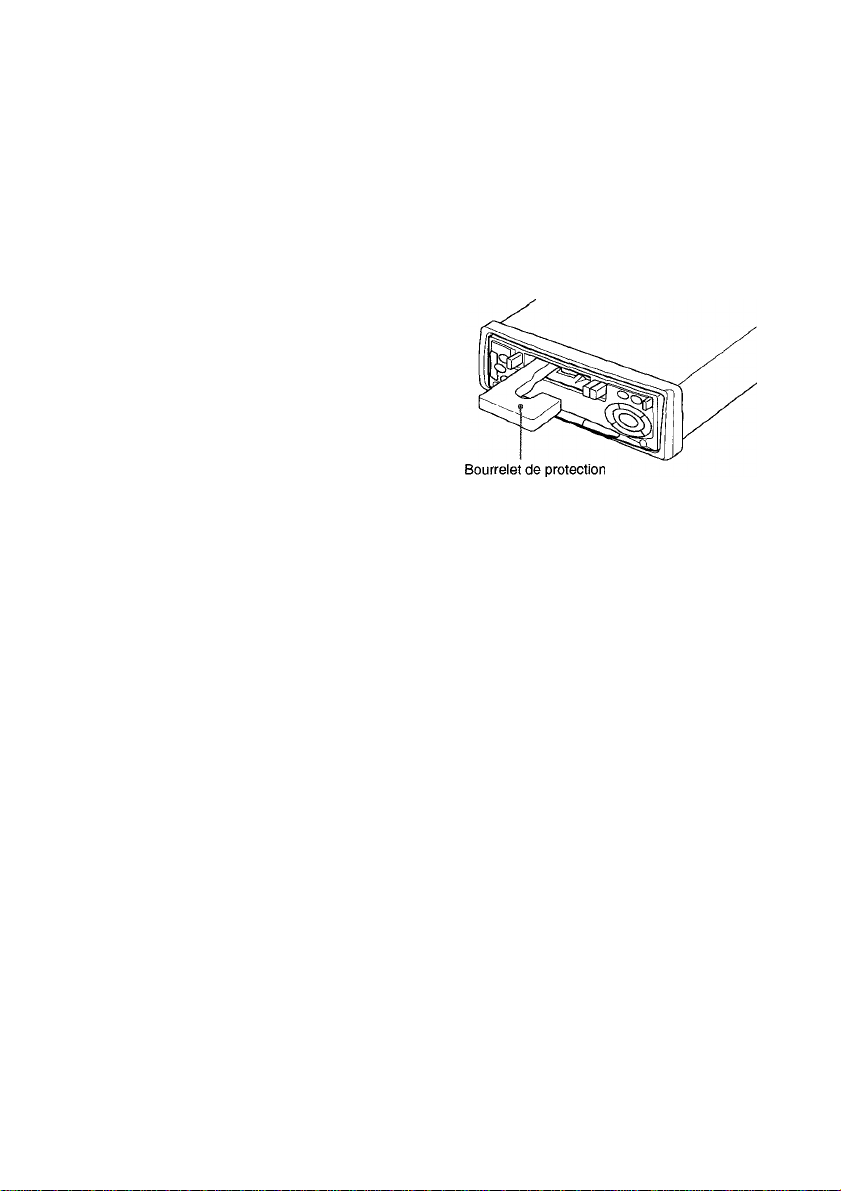

Caution on the transit protection pad
The unit is shipped with a transit protection pad
in the cassette compartment.
Be sure to press EJECT ±, to remove the pad
before operating the unit.
1 ENGLISH
TABLE OF CONTENTS
FRONT PANEL...............................................................................................................................................3
DETACHING AND ATTACHING THE FRONT PANEL.................................................................................4
SETTING THE BEEP TONE..........................................................................................................................5
SETTING THE CLOCK...................................................................................................................................5
RADIO OPERATION .....................................................................................................................................6
PRESETTING STATIONS..............................................................................................................................7
MY INFORMATION SWITCH ........................................................................................................................8
TAPE PLAYBACK.........................................................................................................................................10
SOUND ADJUSTMENTS ............................................................................................................................11
CONNECTING A PORTABLE CD/MD PLAYER OR OTHER EQUIPMENT
MAINTENANCE............................................................................................................................................13
SPECIFICATIONS........................................................................................................................................13
This unit can be operated using the AIWA RC-SW1 or RC-CD1 remote control (sold separately).
..............................................
12
m
Z
o
r
0)
X
ENGLISH 2

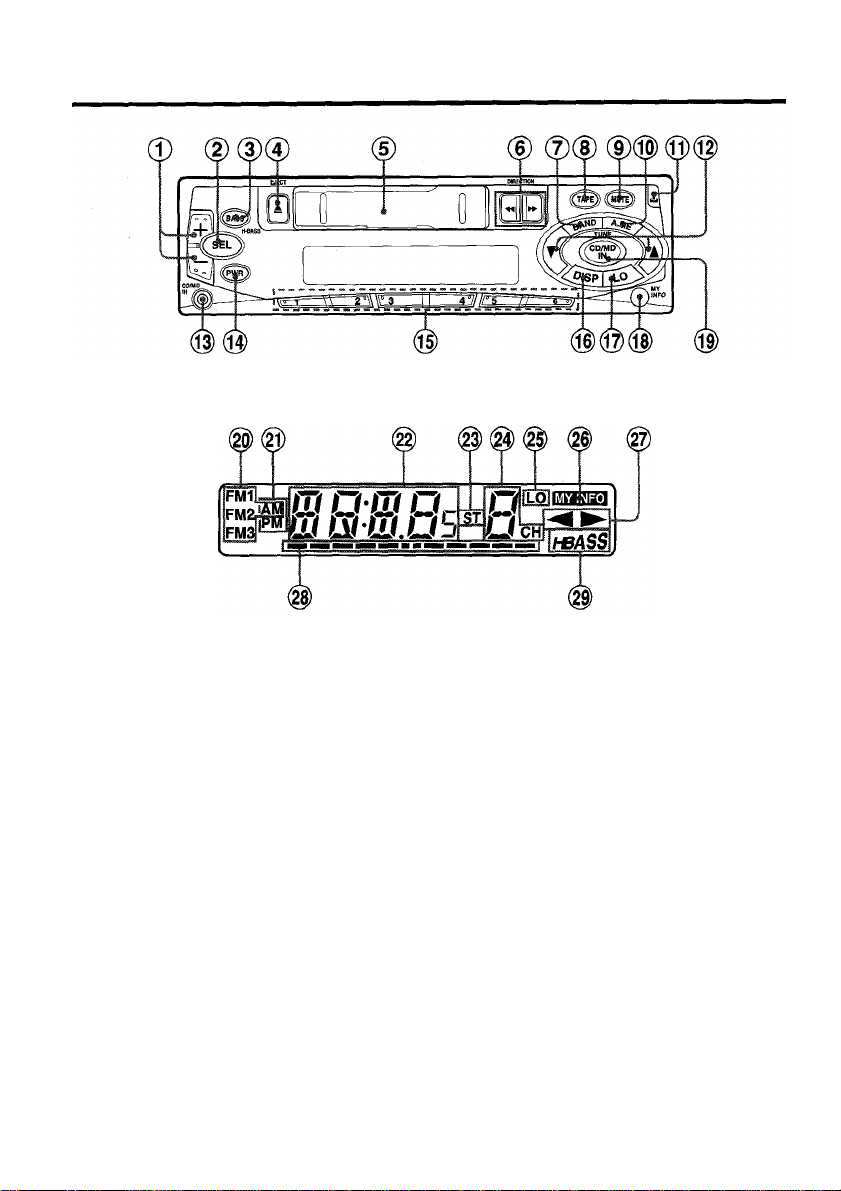

FRONT PANEL
Display window
(T) +/— (audio control) button
(D SEL (select) button
(3) H-BASS button
© EJECT ± button
(§) Cassette compartment
©DIRECTION button
@ BAND button
©TAPE button
© MUTE button
@ A.ME (auto memory/preset scan) button
® i, (release) button
©TUNE T/A buttons
© CD/MD IN jack (3.5-mm dia.)
© PWR (power on/off) button
® Preset station buttons 1-6
3 ENGLISH
>) DISP (display) button
) LO (local/DX) button
MY INFO (my information) button
i) CD/MD IN button
p Band indicator
p AM/PM indicator
P
Main display section
p ST (stereo) indicator
p Subdisplay section
P
LO (local) indicator
P
MY INFO (my information) indicator
p (tape direction) indicators
p Audio control indicator
p H BASS indicator

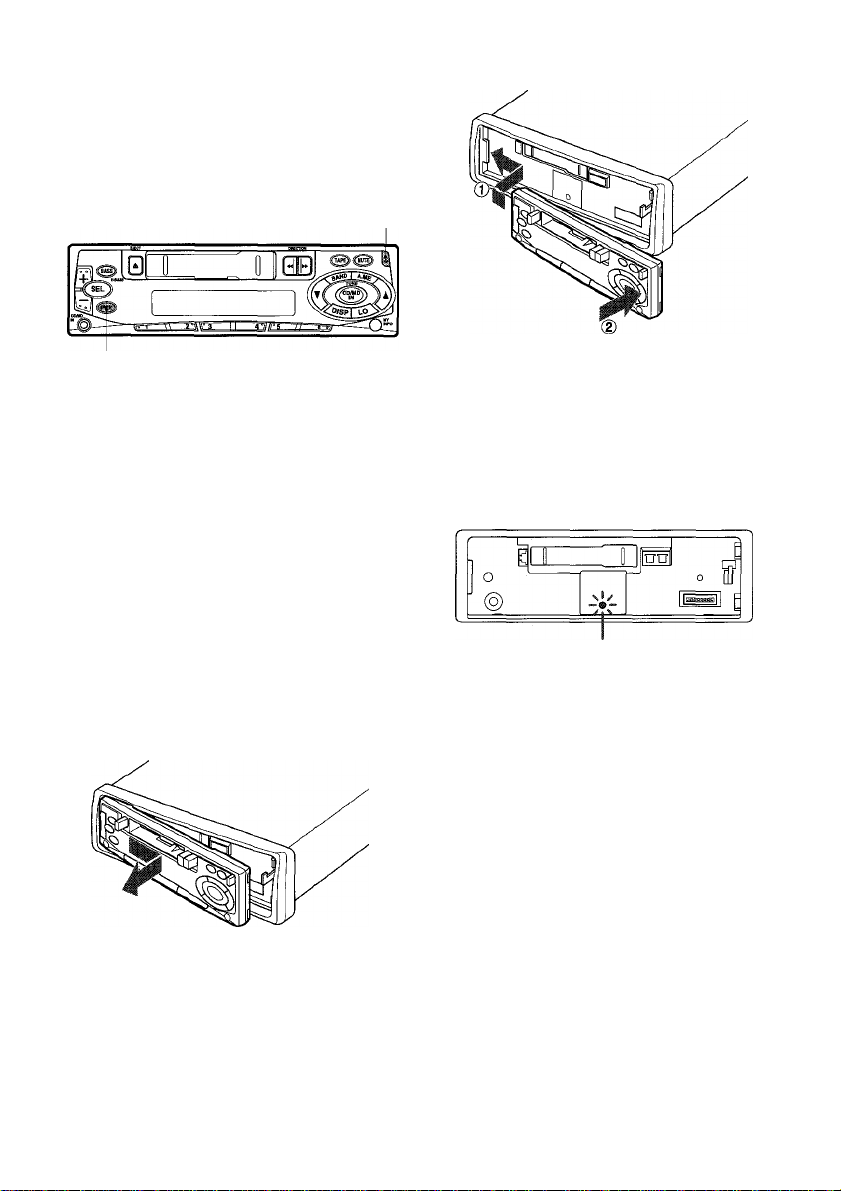

DETACHING AND
ATTACHING THE FRONT PANEL
You can detach the front panel from the unit and
carry it with you when you ieave your car
unattended.
When you carry the front panel out of your car,
use the supplied carrying case.
Before detaching the front panel, remove the
cassette to prevent possible damage to the unit.
1 Press PWR to turn the unit off.
2 While supporting the front panel with
one hand, press i, to release one side
of the panel. Care must be taken not to
drop the panel. It may suddenly eject at
this point.
3 When the front panel is lifted from the
unit, remove it by pulling it away from
the unit.
Attaching the front panel
Security Lamp
When the front panel is detached, you can find an
LEED lamp on the front side of the unit. This lamp
is designed to deter theft, and continues to flash
when the front panel is detached. This unit is not
equipped with any other security systems such
as a security alarm, so there are limitations to its
effectiveness.
LED lamp
Do NOT touch the connector on the reverse
side of the front panel, as doing so may
contaminate the connector and cause a poor
connection resulting in a malfunction.
ENGLISH 4

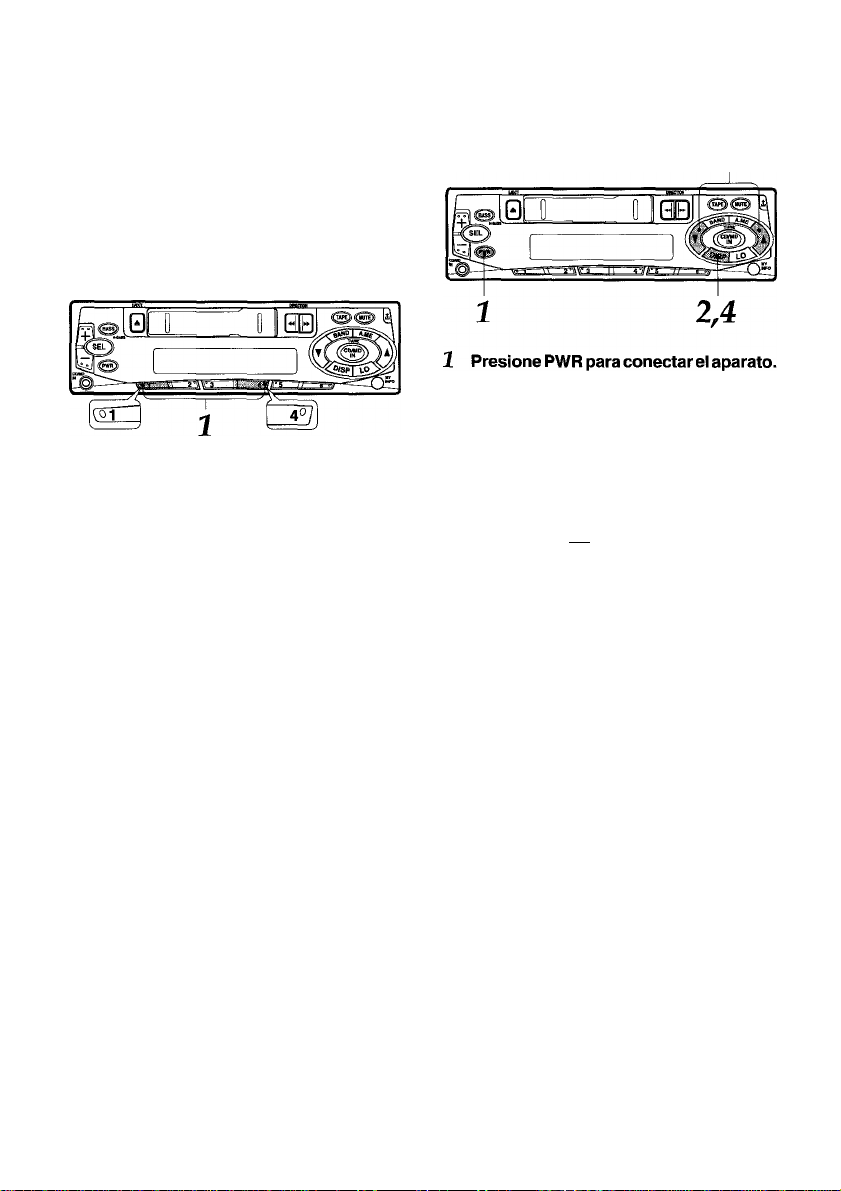

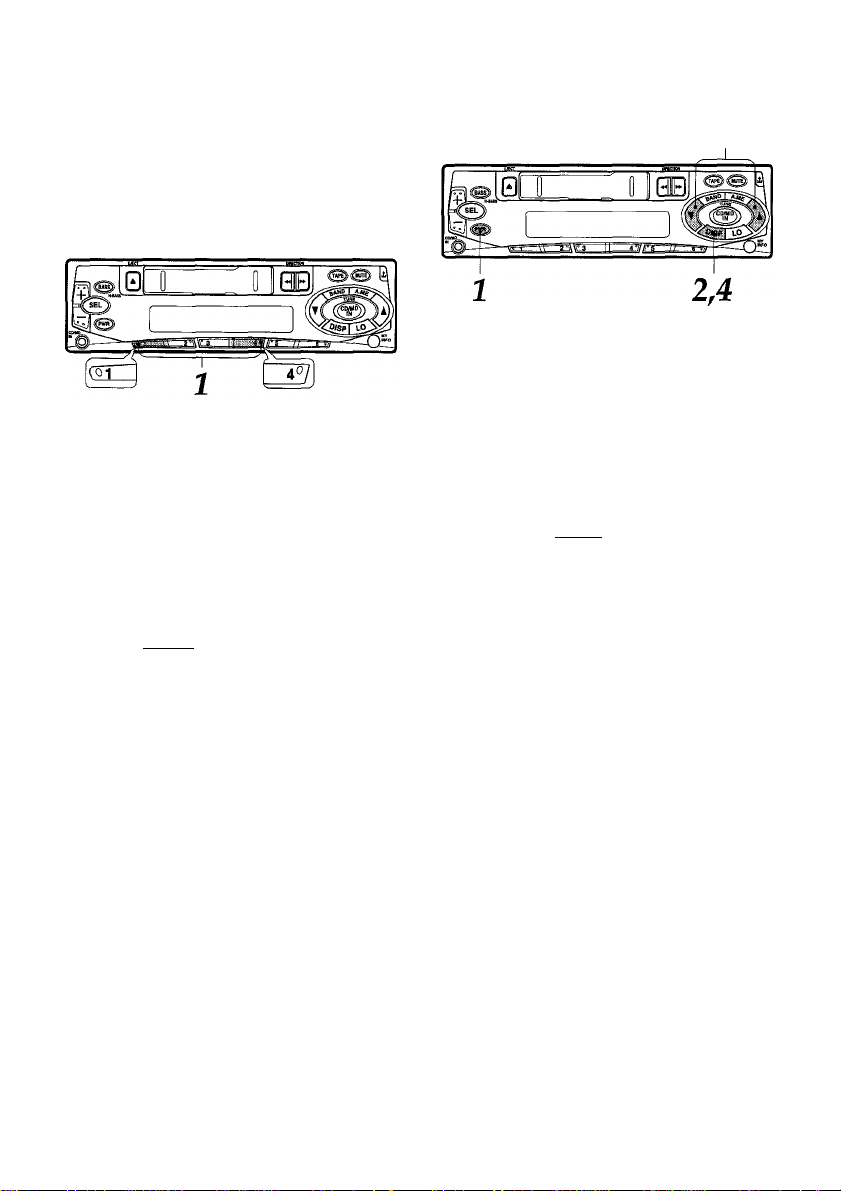

SEniNG THE BEEP TONE SEHING THE CLOCK
The unit is preset at the factory to beep each time
you press any button on the front panel except 1,,
◄◄ and You can stop beeping by
following the procedure below.
Press PWR to turn the unit on.
1
Press and hoid DiSP for more than 2
2
With the unit off, press 1 and 4 at the same time.
The “BEEP” indication appears.
Each time you press them, this function turns
on or off.
The beep function is activated when the
“BEEP” indication appears with the audio
control indicator lighting up and canceled
without the indicator.
K c c o
T( c c. r
Audio control indicator
seconds untii the ciock indication
fiashes.
If you do not proceed with step 3 within 5
seconds, the clock indication disappears.
\ f I I - - -- - -- -- - -- - -- - -- - --
AM^f D-n rr.
-------I.............
Press TUNE T to set the hour.
3
Press TUNE ▲ to set the minute.
Press DiSP to start working the clock
4
from 0 second.
~UZULU
i -4^
Having the clock displayed while in Radio or
Tape Play mode
Press DISP. The clock display appears for 5
seconds, then the unit returns to its former display.
5 ENGLISH

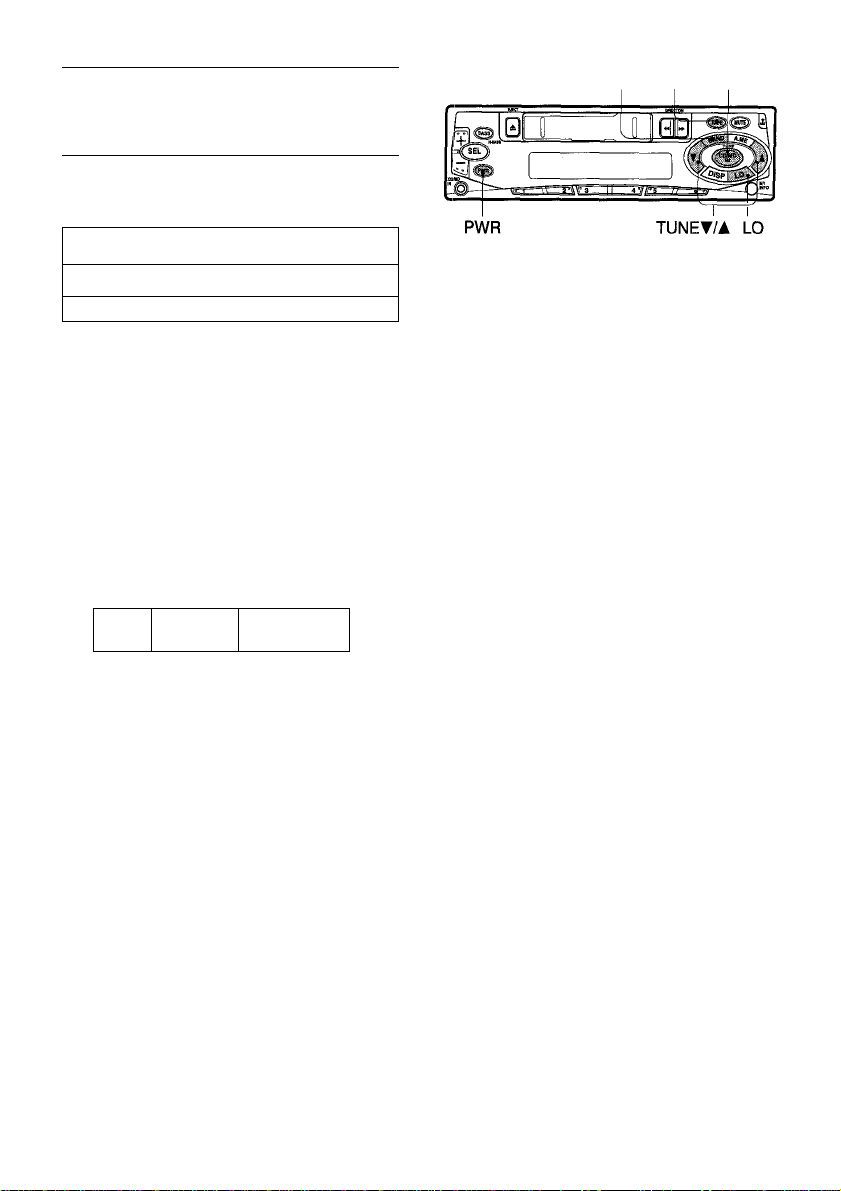

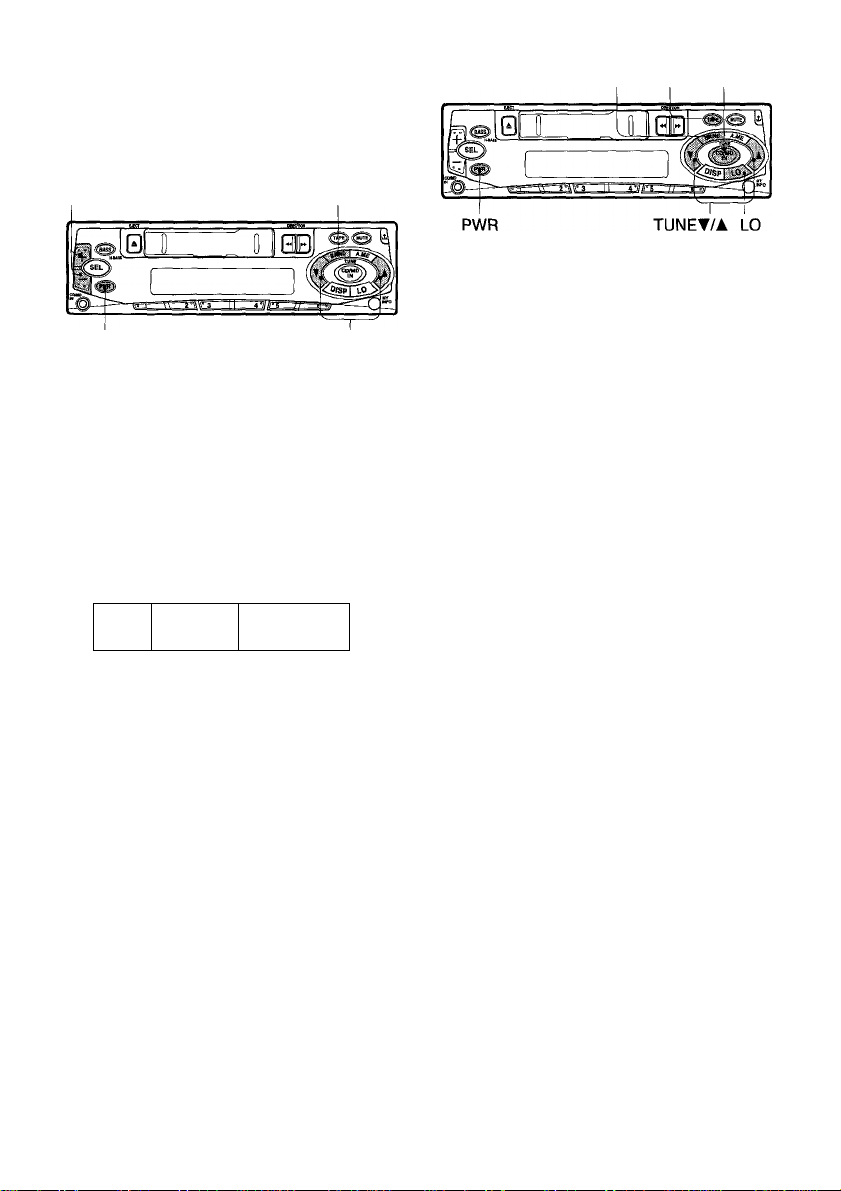

RADIO OPERATION
4
Press PWR to turn the unit on.
The radio frequency appears.
Press BAND to select the band from
among FM1, FM2, FM3 and AM.
The band indicators appear cyclically in order.
(FM1, FM2 and FM3 share the same
frequency range.)
Band
indicator
-----
Press (more than 2 seconds) either
TUNE T or TUNE Ato tune in the desired
station.
The unit starts scanning and tunes in a station
automatically (seek tuning).
Press TUNE T to decrease and TUNE A to
increase the frequency.
Press the button again to cancel seek tuning.
Repeat the procedure until the desired station
is tuned in.
Note
If you press (less than 0.5 second at a time)
either TUNE T or TUNE A, the frequency
decreases or increases step by step.
Adjust the volume with +/—.
|.nU
lUU.
Frequency
indication
BAND TAPE CD/MD IN
To turn the unit off
Press PWR.
Note
The unit turns on in the last selected mode when
you turned off the unit with the exceptions of
pressing the following buttons.
• Pressing TAPE turns on the unit in Tape Play
mode.
• Pressing BAND turns on the unit in Radio mode.
• Pressing CD/MD IN turns on the unit in CD/MD
IN mode.
Switching modes
When the unit is in Radio mode, inserting a
cassette switches the unit to Tape Play mode
automatically.
LO (local/DX) button
You can use Local mode when you wish to tune
in only strong stations during seek tuning. In
Radio mode, press LO to select Local mode. The
“LO” indicator lights up.
• Press LO to deactivate Local mode and switch
to DX (distance) mode.
•The “ST” (stereo) indicator lights up when the
tuned-in station is broadcasting in stereo and
the reception is good.
ENGUSH 6
PRESETTING STATIONS
To preset stations automatically
(auto memory)
1 2
To preset stations manually
You can manually preset stations that have not
been selected by auto memory.
Press BAND to select a desired band from among FM1, FM2, FM3 and AM.
inn t
(UU. (
2 Press and hold A.ME for more than 2
seconds to activate the automatic
presetting function.
The six strongest available stations w/ill be
stored in memory on the preset station buttons
1 to 6 in order of their signal strength.
Use this function to automatically preset up to 6
stations each for FM1, FM2, FM3 and AM (up to
a total of 24 stations).
• When auto memory is completed, the station
stored in ICH is tuned in.
•To stop auto memory, press A.ME again.
To check the preset stations (preset scan)
• If you wish to check the preset stations, press
A.ME for less than 2 seconds. The preset stations
stored in memory will be tuned in for 5 seconds
each in order.
• To stop this function, press A.ME again or press
any of the preset station buttons 1 to 6.
Press BAND to seiect the band from among FM1, FM2, FM3 and AM.
Tune in the station that you wish to
preset with TUNE T or TUNEA.
Press one of the preset station buttons
1 to 6 for approximateiy 2 seconds.
The number of the pressed preset station
button appears next to the frequency
indication.
Preset number
(n n
(u u.
Repeatthese procedures to preset up to 6 stations
each for FM1, FM2, FM3 and AM.
• If you try to preset a station on a preset station
button on which another station of the same
band has already been preset, the previously
preset station will be erased.
J
„jf CH
7 fNGUSH
To tune in the preset stations
MY INFORMATION SWITCH
You can timer-activate the radio for a daily radio
program. The unit turns on and off in Radio mode
at the preset time automatically.
Setting the timer
1 Press BAND to select a desired band
from among FM1, FM2, FM3 and AM.
2 Press the desired preset station button.
The number of the pressed preset station
button is dispiayed next to the frequency
indication.
Active tuning reception control (ATRC)
This unit automaticaiiy suppresses FM noise
caused by varying signal strength resulting from
movement of the car.
• The built-in automatic blending circuit mixes the
left and right channel signals according to the
strength of the reception. At the same time, the
high-cut circuit activates to maintain the sound
quality.
• If the reception becomes even weaker, the unit
automatically switches to Monaural mode to
reduce noise.
2

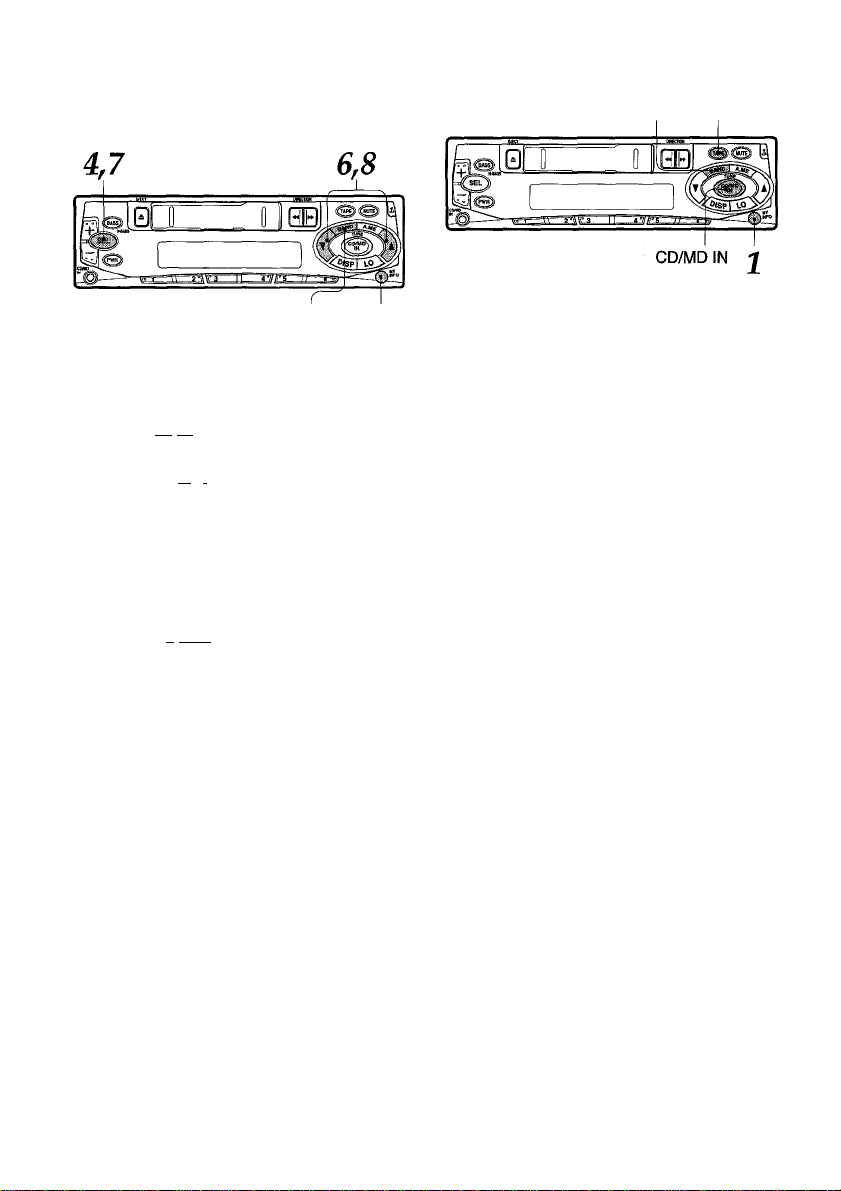

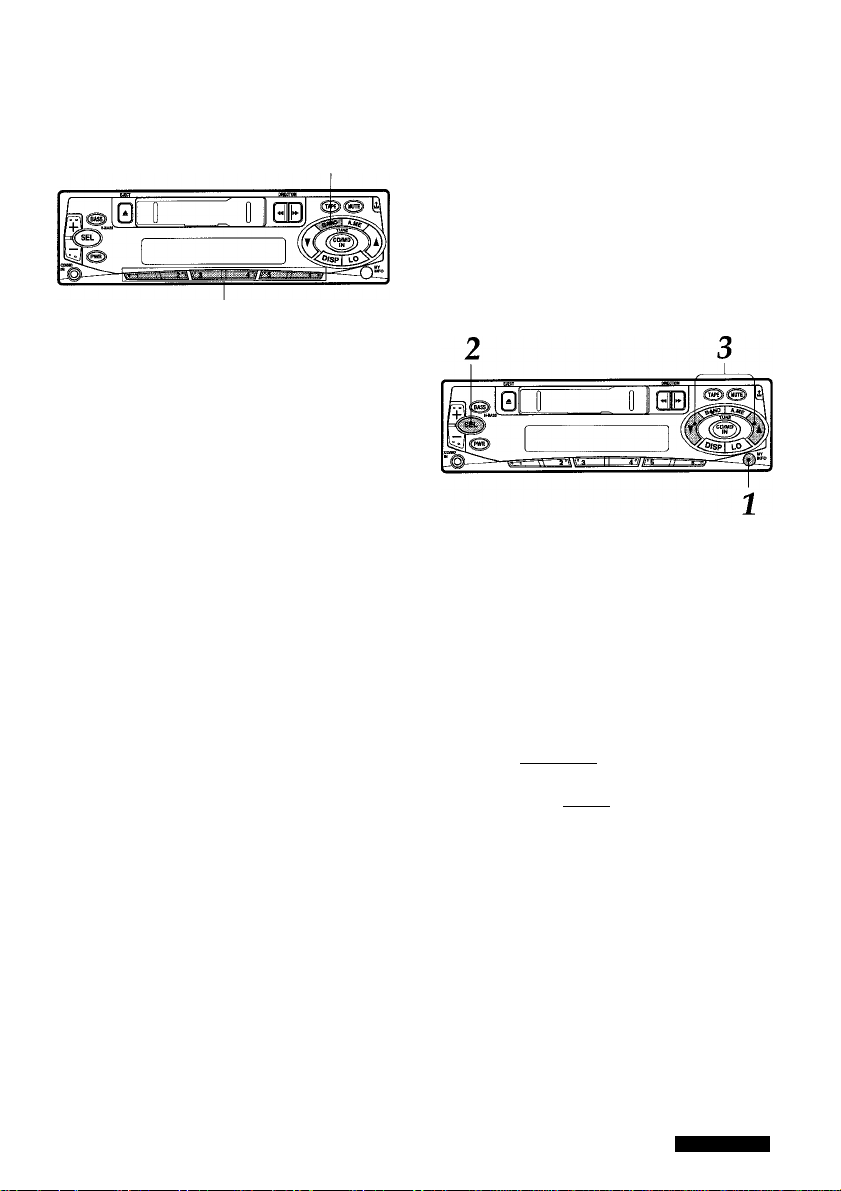

With the unit off, press and hold MY INFO for more than 2 seconds.
The “PO” indication flashes in the display
window.
% I .Ll.
: O
n^.
/1 I 1 N
2 Press SEL.
Timer indication flashes.
-------
\ \ !—! l-f /
à I^St ^
mjl rtnni
AC-LiU'^
____
I I 1
Set the time you wish the unit to turn on in Radio mode.
Press TUNET to set the hour.
Press TUNEA to set the minute.
--------
continued
ENGLISH 8

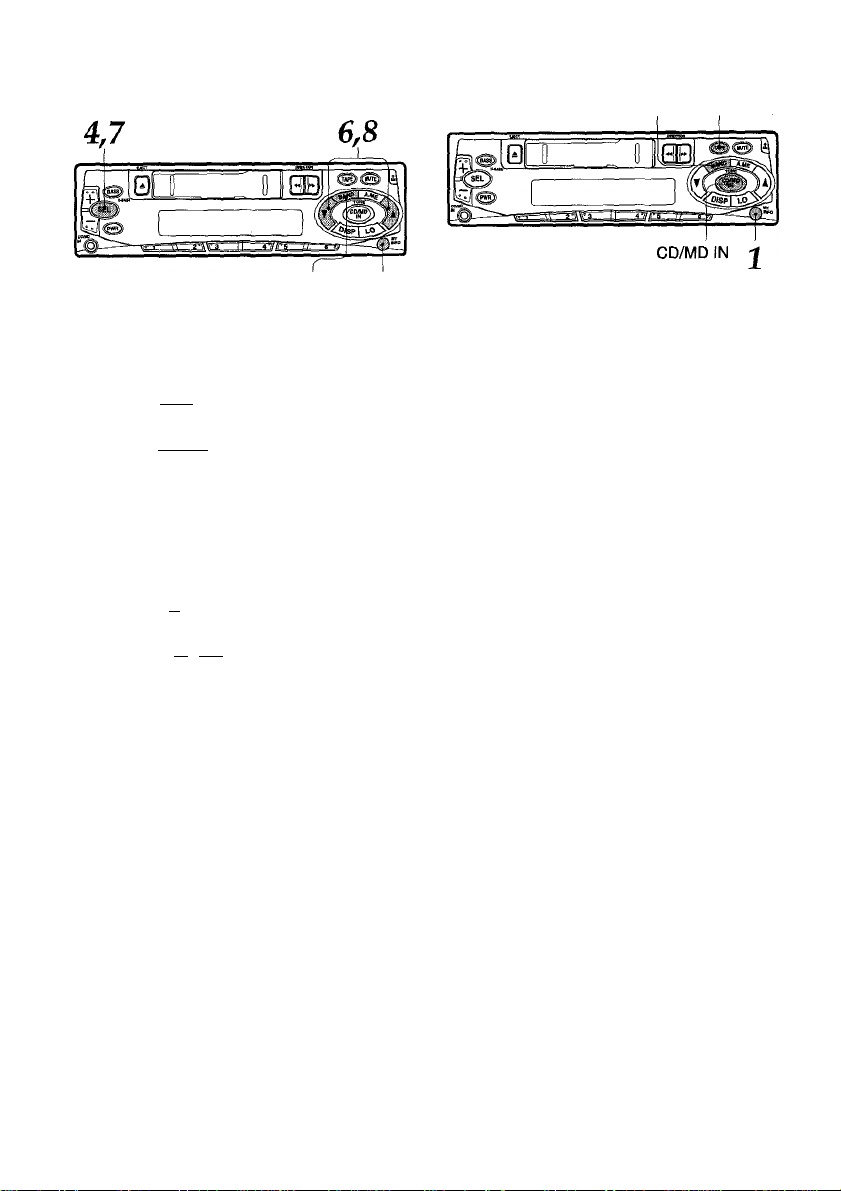

MY INFORMATION SWITCH
4
Press SEL.
Radio indication fiashes.
Band indicator
IU _i.
. , •— _______
.ZJ_I .XJlJ
5
Press BAND to select the band.
6
Tune in the station that you wish to
preset with TUNE T or TUNE A.
Press SEL.
Timer indication flashes.
----
Set the time you wish the unit to turn
off.
Press TUNE T to set the hour.
Press TUNE A to set the minute.
Press and hoid MY iNFO for more than
2 seconds.
Your setting is stored in memory and the unit
turns off.
I".
---------------
DDII'
rJ-I LK
4
I t
A ''
(>

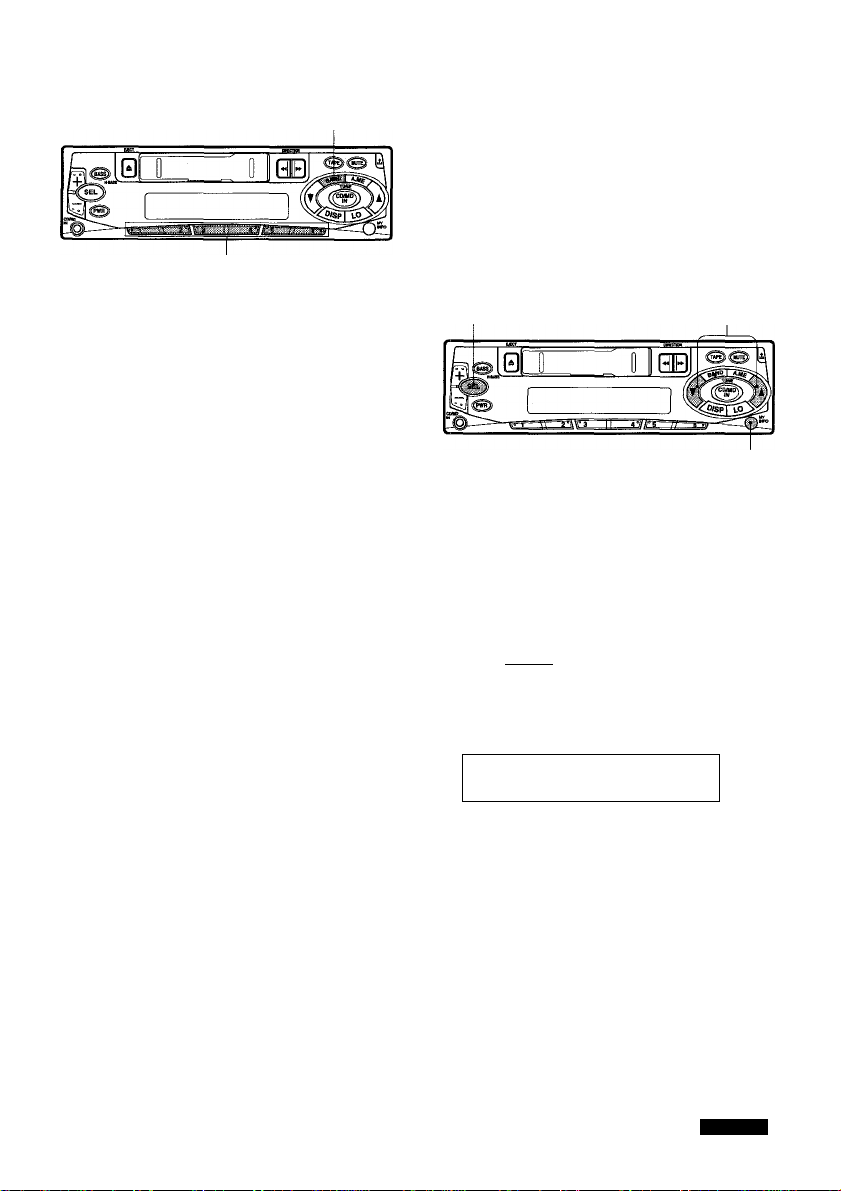

Activating the timer
BAND TAPE
1 With the unit on, press MY iNFO.
The “MY INFO” indicator lights up and the
timer is activated.
To cancel the timer
Press MY INFO again so that the “MY INFO”
indicator disappears.
To check the setting
With the unit off, press MY INFO.
The turn-on time, followed by the radio frequency
and the turn-off time, appears in the display
window each for 1 second, then the unit turns off.
Notes
• Even if the unit is in a mode other than Radio
mode, the unit switches to Radio mode and
tunes in the preset radio program at the preset
time automatically.
• Even if you are listening to a radio program with
this function, pressing the following buttons
switches the unit to other mode:
— Pressihg BAND changes the unit to Radio
mode.
— Pressing TAPE changes the unit to Tape
Play mode.
— Pressing CD/MD IN changes the unit to CD/
MD IN mode.
If you switch modes with these buttons, the unit
does not turn off at the turn-off time of the timer.
9 ENGLISH

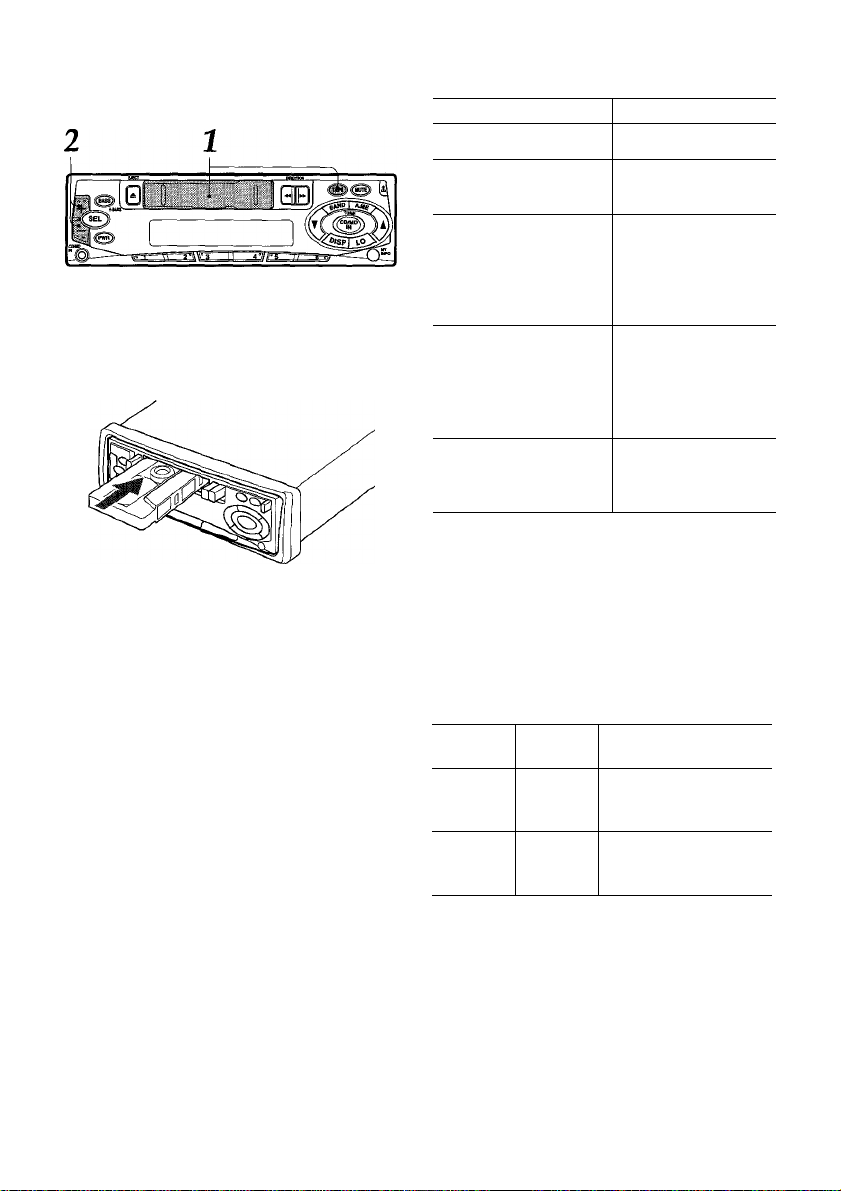

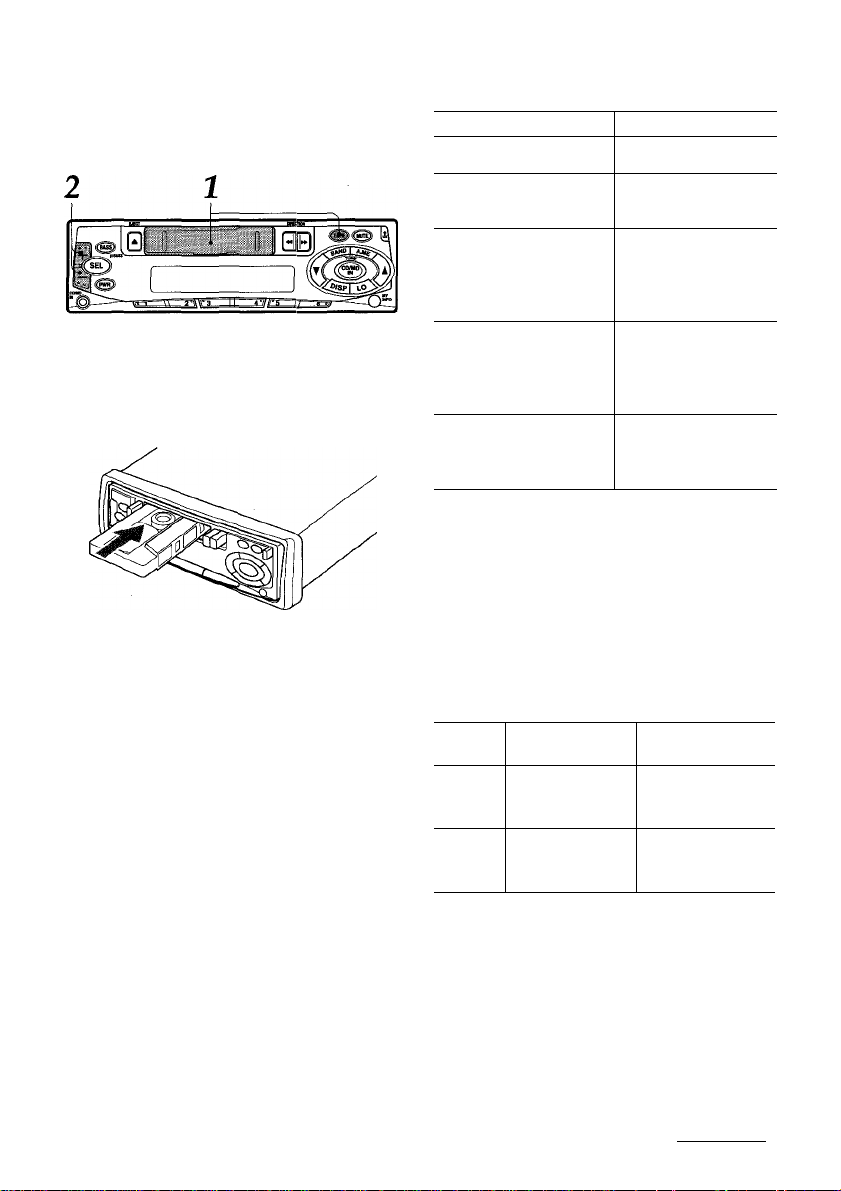

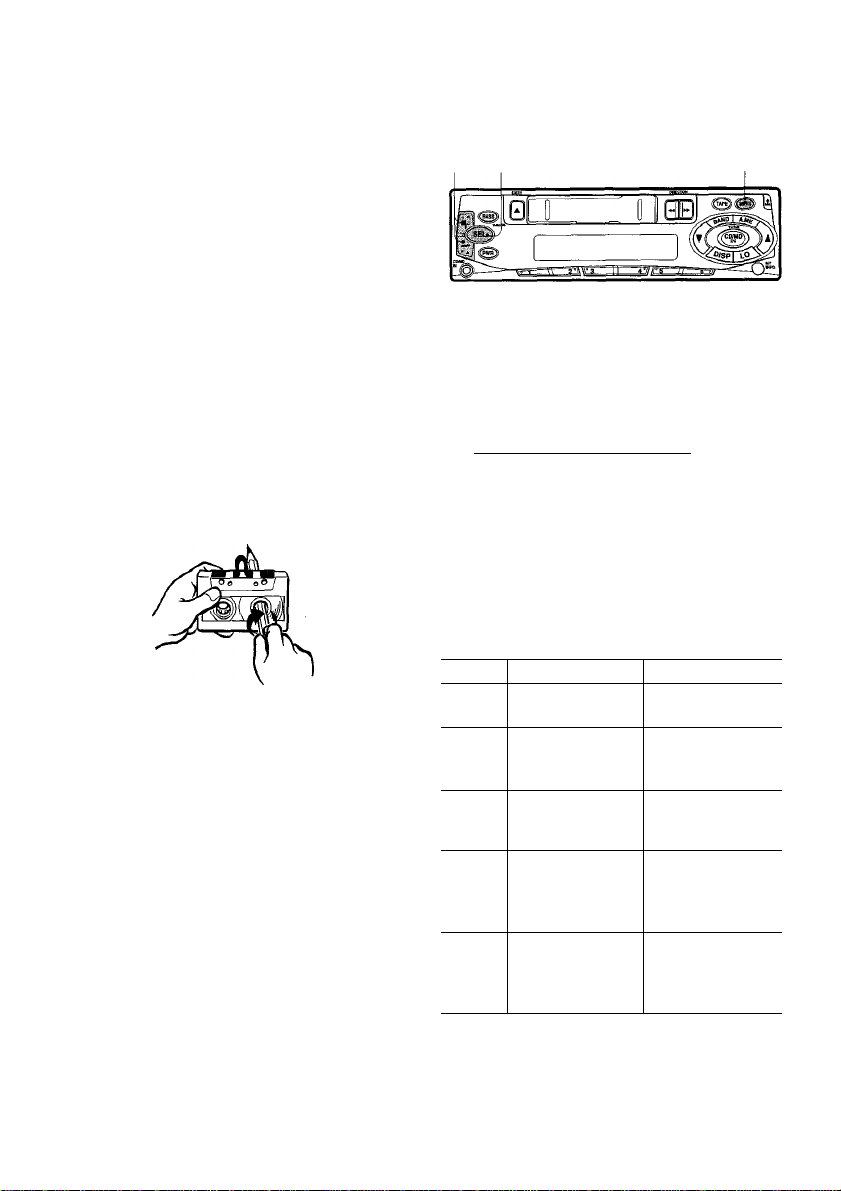

TAPE PLAYBACK
Insert a cassette to start playback.
If a cassette is already Inserted, press TAPE
to start playback.
Press the following buttons to operate tape
transport.
To do this
Eject the cassette*
Change the playback
side
Fast-fonvard upper side
of the tape
Rewind lower side of
the tape
Rewind upper side of
the tape
Fast-forward lower side
of the tape
Press this button
0
0 and B
simultaneously
B
a
Playback starts in the direction that the unit
played back previously.
T O
O C
• f n L
2 Adjust the volume with +/—.
Stop fast winding and
resume playback
* When you eject the cassette, the unit switches to
Radio mode.
** Do not press 3 or 10 all the way. Doing so may
change the direction of tape transport.
a or B lightly**
Auto reverse function
When the end of the tape is reached during
playback or fast tape transport, the direction of
the tape is automatically reversed, and playback
starts again.
Tape direction indications
Playback
Upper side
Lower side
Fast- forward
or rewind
x'' *
i\\
continued
ENGLISH 1 0
TAPE PLAYBACK
SOUND ADJUSTMENTS
Before turning the ignition off
Be sure to eject any cassette from the unit before
turning the ignition off. Otherwise, the unit may be
damaged when you detach the front panel.
Switching modes
When the unit is in Radio mode, inserting a
cassette switches the unit to Tape Play mode
automatically.

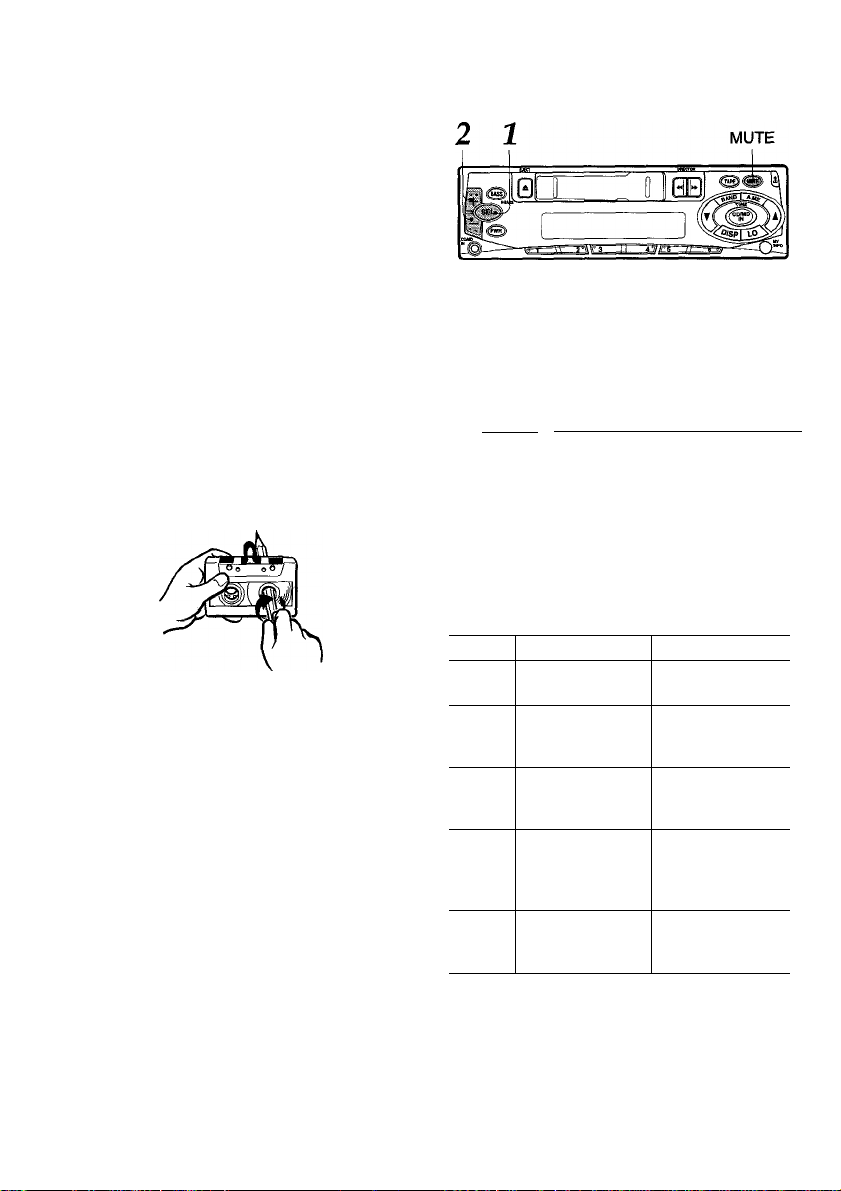

To prevent tape problems
Before inserting a cassette into the unit, make
sure that there is no slack in the tape. If necessary,
take up the slack by inserting a pencil into the
spindle hole and winding.
90-minute or longer tapes are extremely thin and
easily deformed or damaged. They are no
recommended.
2 1

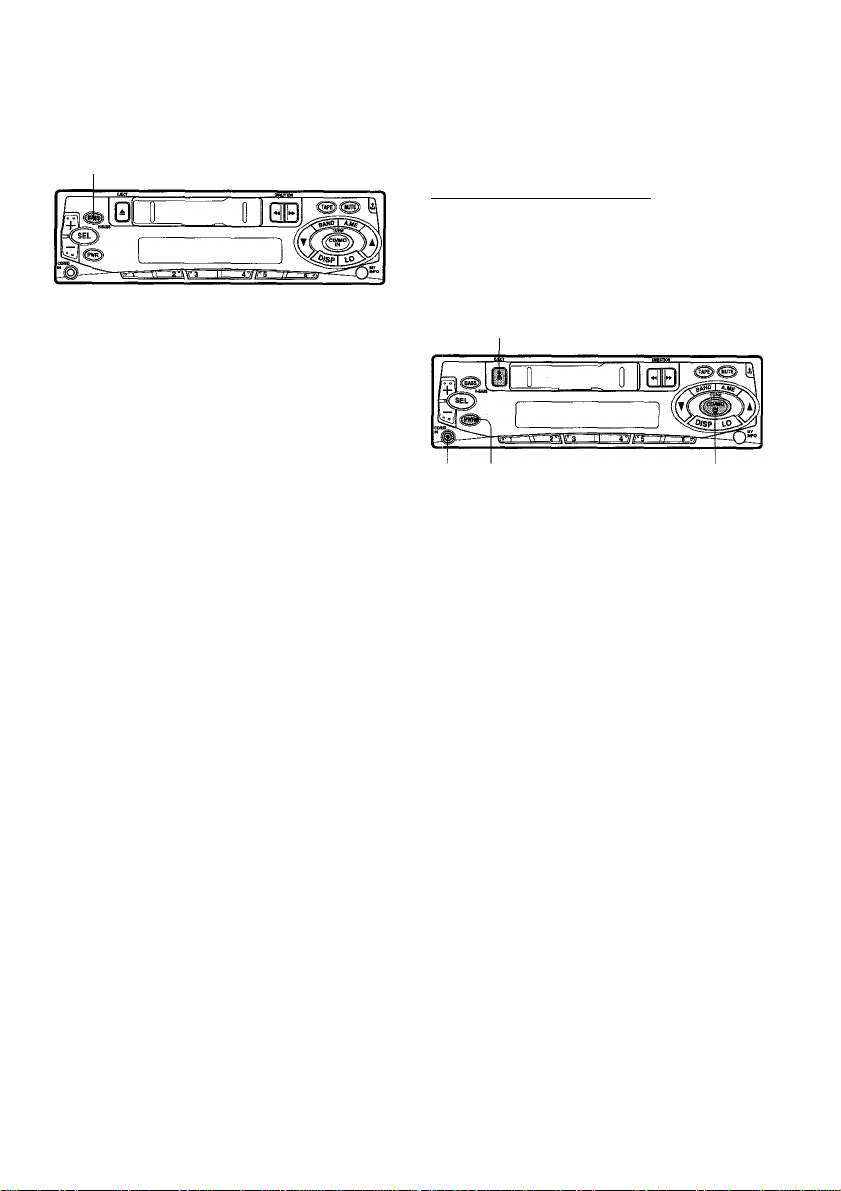

MUTE
wish to adjust from: VOL (volume), BAS (bass), TRE (treble), BAL (balance) and FAD (fader).
The following indications appear in cyclic
order.
j~*UDL-*SR5~*T PE~*SRL~*’FR]}~f
If you do not proceed with step 2 within 5
seconds, the selected mode is canceled, and
the indication returns to the current source
mode.
Press +/— to adjust the level.
Press and hold either button to change the
level rapidly.
Adjust each mode referring to the audio
control indicators in the display window (see
page 3).
—
lini
u u ¡_
IIQ C
Jj n _<
T oc
II pi
MriL
CO
r n M
Decreases the
volume level
Decreases the
bass level
Decreases the
< M ¡_
treble level
Decreases the
level of the right
speaker(s)
Decreases the
level of the front
speakers
Without selecting any mode with SEL, only
the volume level can be adjusted by pressing
+/-.
MUTE button
Press this button to temporarily lowerthe volume.
Press it again to restore the previous volume.
+
Increases the
volume level
Increases the
bass level
Increases the
treble level
Decreases the
level of the left
speaker(s)
Decreases the
level of the rear
speakers
11 FNGUSH

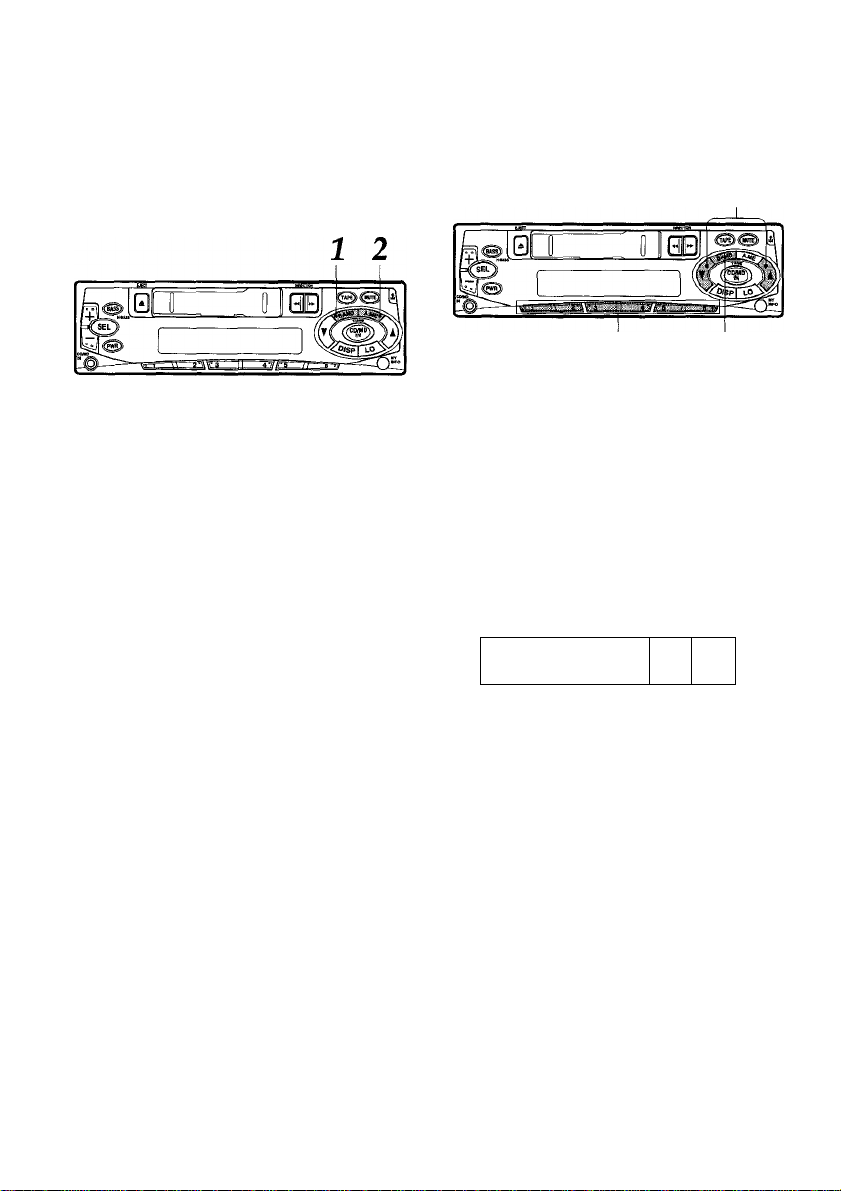

H-BASS (High BASS)
You can enjoy music with strong bass sound.
H-BASS
Press H-BASS to obtain powerful bass.
The “tBASS" indicator lights up.
Each time you press H-BASS, this function turns
on or off.
CONNECTING A PORTABLE CD/MD PLAYER OR OTHER EQUIPMENT
This unit is equipped with the line-level input (CD/
MD IN) jack enabling high quality of the sound.
2 3
1 If a cassette is inserted, remove it to
prevent possibie damage to the unit.
2 Connect a portable CD/MD player, etc.
via the CD/MD iN jack (3.5-mm dia.) on
the unit.
3 Press PWR to turn the unit on.
4 Press CD/MD iN to iisten to the
connected equipment.
The “CD” indication appears.
•For further information on the connected
equipment, refer to the operating instructions
for the equipment.
Note
Be sure to press CD/MD IN after you connect a
portable CD/MD player, etc. to the CD/M DIN jack
to listen using the connected equipment.
Even if equipment is connected to the CD/MD IN
jack, you cannot listen using the connected
equipment without switching the unit to CD/MD
IN mode by pressing CD/MD IN.
ENGLISH 12
MAINTENANCE
SPECIFICATIONS
Cleaning the front panel
When the front panel is soiled, wipe the surface
of the panei with a dry and soft cloth.
Cleaning the tape head
Use a cleaning cassette to clean the playback
head and capstans approximately once a month.
If the playback head is dirty, the high tones may
not be reproduced properly.

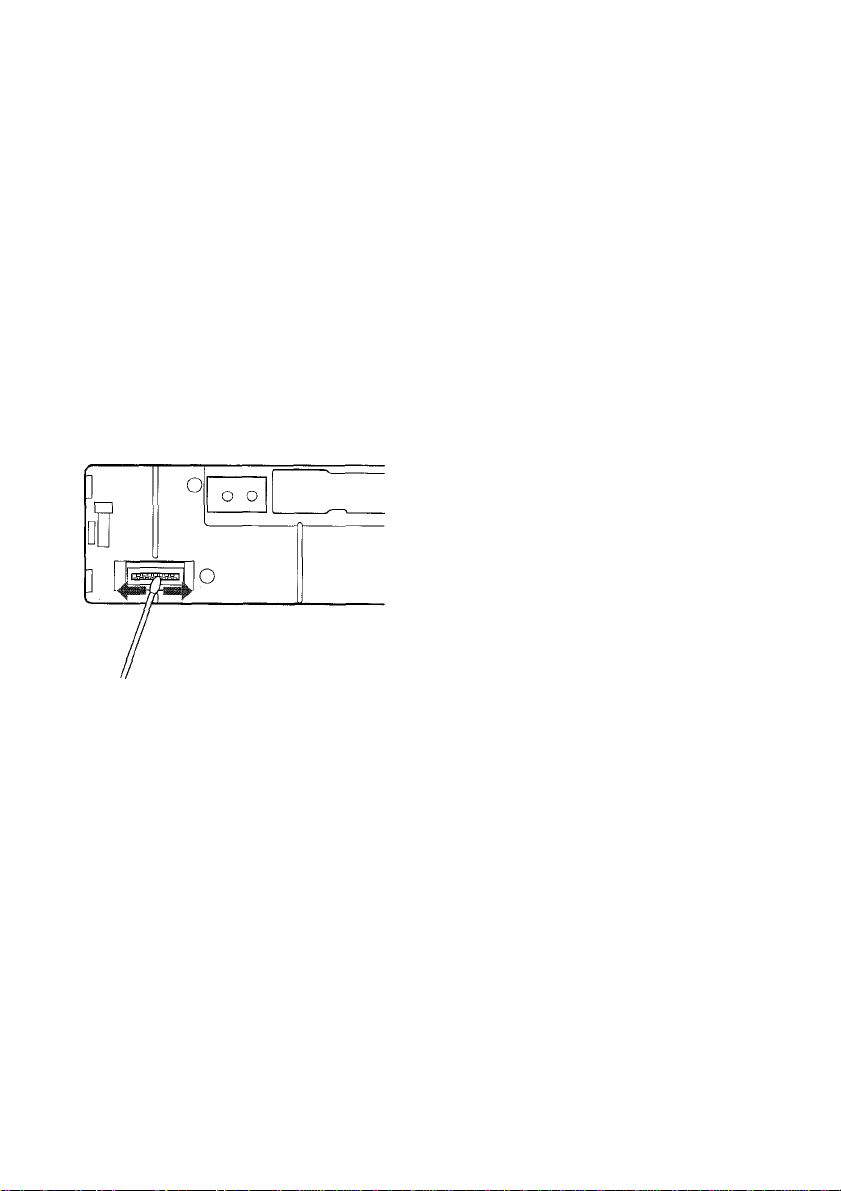

Cleaning the connector
The connector on the reverse side of the front
panel needs to be cleaned occasionally. Wipe
the surface of the connector with a cotton swab
slightly moistened with alcohol.
RADIO SECTION
(FM)
Frequency Range:
Usable Sensitivity:
50 dB Quieting Sensitivity:
IF Rejection:
Frequency Response: 30 Hz-15,000 Hz
S/N Ratio:
Stereo Separation:
Alternate Channel Selectivity:
Capture Ratio:
87.5 MHz-108 MHz
(100-kHz steps)
87.5 MHz-108 MHz
(50-kHz steps)
12.7dBf
17.2 dBf
80 dB
63 dB
35 dB at 1 kHz
70 dB
3dB
(AM (MW))
Frequency Range:
Usable Sensitivity:
530 kHz-1,710 kHz
(10-kHz steps)
522 kHz-1,620 kHz
(9-kHz steps)
30 pV (30 dB)
TAPE SECTION
Tape Speed:
S/N Ratio:
Frequency Response:
Stereo Separation:
FF/REW Time:
4.8 cm/sec. (1 % ips)
50 dB
40 Hz-14,000 Hz
40 dB
190 sec. (C-60)
AUDIO SECTION
Max. Power Output:
35 W X 4 channels
13 ENGLISH
CD/MD IN Input
Input sensitivity (load impedance)
CD/MD IN:
500 mV (lOkil)
GENERAL
Power-Supply Voltage:
Load Impedance: 4 £1
Tone Control: Bass ± 10 dB at 100 Hz
Preamp Output Voltage (load impedance):
Installation size: 182 (W) x 53 (H) x
Accessory supplied: Carrying case (1)
• Specifications and external appearance are subject to
change without notice due to product improvement.
14.4 V (11 to 16 V allowable),
DC, negative ground
Treble ± 10 dB at 10 kHz
2.2 V(10kn)
155 (D) mm
(7 V4 (W) X 2 Vs (H) X
6 Vs(D) inches)
Loading...
