CSDSR-540

Aiwa CSDSR-540, CSDSR-545 Service manual

Download
Page 1
CSD-SR545
EZ
CSD-SR540
EZ,K
COMPACT DISC STEREO
RADIO CASSETTE RECORDER
BASIC TAPE MECHANISM : TN21ZVW-1810 BASIC CD MECHANISM : KSM-213CDM
S/M Code No. 09-993-327-7N1
DATA
Page 2
SPECIFICATIONS
Design and specifications are subject to change without
•
notice
.
2
Page 3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when open and interlocks defeated avoid expo­sure to beam. Advarsel:Usynling laserståling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit­ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit­tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i denna bruksanvising, kan användaren utsättas för osynling laserstrålning, som överskrider gränsen för laserklass 1.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que ceux spécifiés peut entraîner une dangereuse exposition aux radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior.
CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1
LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT
Precaution to replace Optical block (KSS-213C)
Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode.
1) After the connection, remove solder shown in the right figure.
3
Page 4
ELECTRICAL MAIN PARTS LIST
REF. NO PART NO. KANRI DESCRIPTION
NO.
IC 87-A20-955-010 IC,LA1828
87-A20-946-040 C-IC,MM1434XF 87-A20-591-010 IC,BA5417 87-A21-111-040 C-IC,M62495FP 87-020-828-010 IC,BA3416BL
87-001-440-010 IC,BA15218N 87-A20-446-010 C-IC,LA9241ML 87-A20-459-010 C-IC,LC78622ED 87-A21-093-010 IC,LA6541D 87-070-416-010 IC,NJU7201 L55
8Z-CH4-636-010 IC,LC867132V-5K36 87-A20-650-010 IC,RPM6938-V11<545 EZSC>
TRANSISTOR
89-319-233-080 TR,2SC1923 (0.1W) 87-026-572-080 TR,DTA114TS 87-026-215-080 TR,DTC114YS 89-109-521-080 TR,2SA952 (0.6W) 87-026-462-080 TR,2SC1740 S(RS 0.3W)
87-026-291-010 TR,DTC124XS 87-026-463-010 TR,2SA933S,RS 89-318-154-080 TR,2SC1815 (0.4W) 89-320-011-010 TR,2SC2001 (0.6W) 87-026-463-080 TR,2SA933S (0.3W)
87-026-291-080 TR,DTC124XS 89-320-011-080 TR,2SC2001 (15W) 89-112-965-010 TR,2SA1296GR 89-113-184-080 TR,2SA1318T 89-213-702-010 TR,2SB1370 (1.8W)
87-026-462-010 TR,2SC1740S 88-NF9-637-010 TR,2SA1318T/U 89-112-965-080 TR,2SA1296 (0.75W) 87-026-464-010 TR,DTC114TS
DIODE 87-020-465-080 DIODE,1SS133 (110MA)
87-027-607-080 ZENER,HZ7B3L 87-A40-466-080 ZENER,MTZJ2.7A 87-017-161-080 ZENER,HZS7C2L 87-017-148-080 ZENER,HZS6A1L
87-017-139-010 ZENER,HZS15-2 87-A40-465-010 DIODE,FR202
MAIN C.B C2 87-A11-076-080 CAP,TC U 33P-50 J CH
C3 87-A11-073-080 CAP,TC U 22P-50 J CH C6 87-010-378-080 CAP, ELECT 10-16V C7 87-018-208-080 CAP 0.047-50F C8 87-018-132-080 CAP, CER 2200P-16V
C9 87-018-161-080 TC CAP 12P C13 87-018-142-080 CAP,TC-U 3.9P-50 CH C14 87-010-400-080 CAP, ELECT 0.47-50V C16 87-018-131-080 CAP, CER 1000P-50V C17 87-010-544-080 CAP, ELECT 0.1-50V
C18 87-018-205-080 CAP, CERA-SOL 0.022 C19 87-010-490-040 CAP, ELECT 0.1-50 C20 87-010-493-040 CAP,E 0.47-50 GAS C21 87-010-403-080 CAP, ELECT 3.3-50V C24 87-018-134-080 CAPACITOR,TC-U 0.01-16
C25 87-018-134-080 CAPACITOR,TC-U 0.01-16 C26 87-010-491-040 CAP,E 0.22-50 GAS C27 87-010-491-040 CAP,E 0.22-50 GAS C28 87-018-208-080 CAP 0.047-50F C29 87-018-208-080 CAP 0.047-50F
C30 87-010-248-080 CAP, ELECT 220-10V
REF. NO PART NO. KANRI DESCRIPTION
NO.
C31 87-010-379-080 CAP, ELECT 22-16V C37 87-018-122-080 CAP 180P-50 B C38 87-A11-080-080 CAP,TC U 47P-50 J CH C44 87-018-123-080 CAP, CER 220P-50V C207 87-010-374-080 CAP, ELECT 47-10V
C208 87-010-402-080 CAP, ELECT 2.2-50V C209 87-018-134-080 CAPACITOR,TC-U 0.01-16 C210 87-018-134-080 CAPACITOR,TC-U 0.01-16 C211 87-010-401-080 CAP, ELECT 1-50V C212 87-010-401-080 CAP, ELECT 1-50V
C213 87-018-132-080 CAP, CER 2200P-16V C214 87-018-132-080 CAP, CER 2200P-16V C217 87-010-400-080 CAP, ELECT 0.47-50V C218 87-010-400-080 CAP, ELECT 0.47-50V C220 87-010-405-080 CAP, ELECT 10-50V
C222 87-018-134-080 CAPACITOR,TC-U 0.01-16 C223 87-018-134-080 CAPACITOR,TC-U 0.01-16 C226 87-018-134-080 CAPACITOR,TC-U 0.01-16 C228 87-010-401-080 CAP, ELECT 1-50V C229 87-010-401-080 CAP, ELECT 1-50V
C230 87-018-134-080 CAPACITOR,TC-U 0.01-16 C233 87-010-546-080 CAP, ELECT 0.33-50V C234 87-010-546-080 CAP, ELECT 0.33-50V C235 87-010-544-080 CAP, ELECT 0.1-50V C236 87-010-544-080 CAP, ELECT 0.1-50V
C237 87-010-374-080 CAP, ELECT 47-10V C238 87-010-263-080 CAP, ELECT 100-10V C239 87-010-112-080 CAP, ELECT 100-16V C241 87-010-405-080 CAP, ELECT 10-50V C242 87-010-405-080 CAP, ELECT 10-50V
C243 87-010-405-080 CAP, ELECT 10-50V C244 87-010-405-080 CAP, ELECT 10-50V C245 87-010-405-080 CAP, ELECT 10-50V C246 87-010-405-080 CAP, ELECT 10-50V C247 87-010-404-080 CAP, ELECT 4.7-50V
C248 87-010-404-080 CAP, ELECT 4.7-50V C251 87-010-401-080 CAP, ELECT 1-50V C261 87-010-402-080 CAP, ELECT 2.2-50V C262 87-010-402-080 CAP, ELECT 2.2-50V C263 87-018-131-080 CAP, CER 1000P-50V
C264 87-018-131-080 CAP, CER 1000P-50V C265 87-010-383-080 CAP, ELECT 33-25V C266 87-010-383-080 CAP, ELECT 33-25V C267 87-010-380-080 CAP, ELECT 47-16V C268 87-010-380-080 CAP, ELECT 47-16V
C271 87-010-221-080 CAP, ELECT 470-10V C272 87-010-221-080 CAP, ELECT 470-10V C275 87-010-628-080 CAP,E 3.3-16 M 5L BP SRE C276 87-010-628-080 CAP,E 3.3-16 M 5L BP SRE C277 87-010-260-080 CAP, ELECT 47-25V
C278 87-010-384-080 CAP, ELECT 100-25V C280 87-010-401-080 CAP, ELECT 1-50V C281 87-010-401-080 CAP, ELECT 1-50V C301 87-018-131-080 CAP, CER 1000P-50V C302 87-018-131-080 CAP, CER 1000P-50V
C303 87-018-131-080 CAP, CER 1000P-50V C304 87-018-131-080 CAP, CER 1000P-50V C305 87-010-374-080 CAP, ELECT 47-10V C306 87-010-374-080 CAP, ELECT 47-10V C307 87-010-382-080 CAP, ELECT 22-25V
C308 87-010-405-080 CAP, ELECT 10-50V C309 87-010-545-080 CAP, ELECT 0.22-50V C310 87-010-545-080 CAP, ELECT 0.22-50V C311 87-010-248-080 CAP, ELECT 220-10V C312 87-010-374-080 CAP, ELECT 47-10V
C315 87-010-401-080 CAP, ELECT 1-50V C316 87-010-401-080 CAP, ELECT 1-50V C317 87-010-382-080 CAP, ELECT 22-25V C318 87-010-382-080 CAP, ELECT 22-25V C319 87-010-405-080 CAP, ELECT 10-50V
4
Page 5
REF. NO PART NO. KANRI DESCRIPTION
C320 87-010-405-080 CAP, ELECT 10-50V C321 87-018-125-080 CAP, CER 330P-50V C322 87-018-125-080 CAP, CER 330P-50V C325 87-018-196-080 CAP, CER 1500P-16V C326 87-018-196-080 CAP, CER 1500P-16V
C327 87-010-404-080 CAP, ELECT 4.7-50V C328 87-018-131-080 CAP, CER 1000P-50V C329 87-018-132-080 CAP, CER 2200P-16V C331 87-010-374-080 CAP, ELECT 47-10V C333 87-018-209-080 CAP, CER 0.1-50V
C334 87-018-122-080 CAP 180P-50 B C337 87-A10-577-080 CAP,CER 0.022-50 Z YF C341 87-018-125-080 CAP, CER 330P-50V C342 87-018-125-080 CAP, CER 330P-50V C343 87-018-125-080 CAP, CER 330P-50V
C344 87-018-125-080 CAP, CER 330P-50V C348 87-018-134-080 CAPACITOR,TC-U 0.01-16 C361 87-010-112-080 CAP, ELECT 100-16V C362 87-018-134-080 CAPACITOR,TC-U 0.01-16 C501 87-010-453-010 CAP, ELECT 4700-25V
C502 87-010-221-080 CAP, ELECT 470-10V C503 87-010-401-080 CAP, ELECT 1-50V C506 87-010-404-080 CAP, ELECT 4.7-50V C507 87-010-401-080 CAP, ELECT 1-50V C508 87-010-221-080 CAP, ELECT 470-10V
C509 87-010-263-080 CAP, ELECT 100-10V C510 87-010-248-080 CAP, ELECT 220-10V C511 87-010-384-080 CAP, ELECT 100-25V C512 87-010-101-080 CAP, ELECT 220-16 C513 87-A10-577-080 CAP,CER 0.022-50 Z YF
C514 87-010-248-080 CAP, ELECT 220-10V C551 87-010-405-080 CAP, ELECT 10-50V C552 87-010-221-080 CAP, ELECT 470-10V C553 87-010-197-080 CAP, CHIP 0.01 DM CF1 87-A90-128-010 FLTR,AM IF CFAL-455
CF2 82-785-747-080 CF,MS2 GHY,R CF3 82-785-747-080 CF,MS2 GHY,R CN203 87-049-469-010 CONN,4P V CN204 87-049-469-010 CONN,4P V CN205 87-A60-109-010 CONN,2P V S2M-2W
CN205 87-A60-109-010 CONN,2P V S2M-2W CN301 87-A60-110-010 CONN,4P V S2M-4W CN302 87-A60-111-010 CONN,5P V S2M 5W CN303 87-099-408-010 CONN,8P EH V WHT CN501 87-049-919-010 CONN,3P EH V WHT
CN501 87-049-919-010 CONN,3P EH V WHT D3 87-A40-226-080 VARI-CAP,SVC251SPA J251 87-009-216-010 JACK, DIA 3.5 L2 87-A50-347-010 COIL,FM BPF EX L3 87-A50-348-010 COIL,BAR ANT LW/MW (COI)
L4 87-A50-345-010 COIL,FM RF EX L5 87-A50-343-010 COIL,FM OSC EX L7 87-A50-336-010 COIL,AM IFT (TOKO) L8 87-A50-335-010 COIL,FM IFT (TOKO) L9 87-A50-334-010 COIL,FM DET (TOKO)
L10 87-003-102-080 COIL, 10UH L16 87-A50-339-010 COIL,LW OSC (TOKO) L17 87-A50-337-010 COIL,AM OSC (TOKO) L330 88-CT6-620-010 REC OSC SFR301 87-024-239-010 SFR,2.2K V RH0632C
SW1 8Z-CD9-607-010 SW,SL 2-4-3 SK43D01G4 SW301 88-CT6-619-010 BACK SLIDE SW 6P2T SHORTIN TC5 87-011-221-080 CAP, TRIMMER 30P TC6 87-011-220-080 TRIMMER CAP 20P VTC PVC1 87-A91-168-010 TUN-CAP,20P-140P FA-22124 N000
CD C.B C401 87-010-403-080 CAP, ELECT 3.3-50V
C402 87-018-134-080 CAPACITOR,TC-U 0.01-16
NO.
C403 87-010-263-080 CAP, ELECT 100-10V C404 87-010-248-080 CAP, ELECT 220-10V C405 87-018-134-080 CAPACITOR,TC-U 0.01-16 C406 87-010-374-080 CAP, ELECT 47-10V C409 87-010-248-080 CAP, ELECT 220-10V
C410 87-010-263-080 CAP, ELECT 100-10V C412 87-010-544-080 CAP, ELECT 0.1-50V C414 87-010-405-080 CAP, ELECT 10-50V C416 87-010-545-080 CAP, ELECT 0.22-50V C417 87-018-125-080 CAP, CER 330P-50V
C425 87-018-129-080 CAP, CER 680P-50V C430 87-018-123-080 CAP, CER 220P-50V C431 87-010-400-080 CAP, ELECT 0.47-50V C432 87-010-374-080 CAP, ELECT 47-10V C433 87-010-401-080 CAP, ELECT 1-50V
C433 87-010-401-080 CAP, ELECT 1-50V C435 87-018-134-080 CAPACITOR,TC-U 0.01-16 C436 87-010-374-080 CAP, ELECT 47-10V C437 87-010-404-080 CAP, ELECT 4.7-50V C438 87-018-209-080 CAP, CER 0.1-50V
C442 87-018-059-080 CAP TC-S 22P-50CH C444 87-018-134-080 CAPACITOR,TC-U 0.01-16 C445 87-018-209-080 CAP, CER 0.1-50V C446 87-018-209-080 CAP, CER 0.1-50V C447 87-018-209-080 CAP, CER 0.1-50V
C448 87-018-111-080 CAP, CERA-SOL SS 27P C450 87-018-127-080 CAP, CER 470P-50V C451 87-018-123-080 CAP, CER 220P-50V C452 87-018-127-080 CAP, CER 470P-50V C453 87-018-119-080 CAP, CER 100P-50V
C454 87-018-120-080 CAP, CERA-SOL SS 120P C455 87-010-263-080 CAP, ELECT 100-10V C456 87-018-134-080 CAPACITOR,TC-U 0.01-16 C457 87-018-113-080 CAP, CER 33P-50V C458 87-018-113-080 CAP, CER 33P-50V
C459 87-010-263-080 CAP, ELECT 100-10V C460 87-018-209-080 CAP, CER 0.1-50V C461 87-018-209-080 CAP, CER 0.1-50V C462 87-010-248-080 CAP, ELECT 220-10V C464 87-018-209-080 CAP, CER 0.1-50V
C465 87-010-404-080 CAP, ELECT 4.7-50V C466 87-018-209-080 CAP, CER 0.1-50V C467 87-010-263-080 CAP, ELECT 100-10V C469 87-018-121-080 CAP, CER 150P-50V C470 87-010-544-080 CAP, ELECT 0.1-50V
C475 87-018-134-080 CAPACITOR,TC-U 0.01-16 C476 87-010-236-080 CAP,E 1000-10 SME C477 87-018-134-080 CAPACITOR,TC-U 0.01-16 C478 87-010-263-080 CAP, ELECT 100-10V C479 87-018-134-080 CAPACITOR,TC-U 0.01-16
C480 87-010-221-080 CAP, ELECT 470-10V C481 87-010-405-080 CAP, ELECT 10-50V C482 87-010-405-080 CAP, ELECT 10-50V C483 87-018-123-080 CAP, CER 220P-50V C484 87-018-123-080 CAP, CER 220P-50V
C489 87-018-209-080 CAP, CER 0.1-50V C490 87-018-209-080 CAP, CER 0.1-50V C493 87-018-209-080 CAP, CER 0.1-50V C495 87-018-119-080 CAP, CER 100P-50V C496 87-018-119-080 CAP, CER 100P-50V
C497 87-018-119-080 CAP, CER 100P-50V C498 87-018-119-080 CAP, CER 100P-50V C499 87-018-119-080 CAP, CER 100P-50V CN401 87-A60-424-010 CONN,16P V TOC-B L401 87-003-102-080 COIL, 10UH
L404 87-003-152-080 COIL, 100UH L405 87-003-152-080 COIL, 100UH L407 87-003-102-080 COIL, 10UH L412 87-003-102-080 COIL, 10UH SFR401 87-024-437-080 SFR100K,RH063EC
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
X401 81-592-641-010 VIB,CER 16.93MHZ
FRONT C.B
C501 87-010-405-080 CAP, ELECT 10-50V C601 89-654-185-080 CAP,TC 18P-50 J CH UP125 C602 89-654-235-080 CAP TC 27P-50J CH C603 89-654-275-080 CAP,TC 39P-50 J CH UP125 C604 89-654-215-080 CAP,TC 22P-50 J CH UP125
C605 89-654-275-080 CAP,TC 39P-50 J CH UP125 C606 87-018-134-080 CAPACITOR,TC-U 0.01-16 C608 87-018-209-080 CAP, CER 0.1-50V C609 87-018-209-080 CAP, CER 0.1-50V C610 87-010-263-080 CAP, ELECT 100-10V
C611 87-018-209-080 CAP, CER 0.1-50V C612 87-010-248-080 CAP, ELECT 220-10V C613 87-010-402-080 CAP, ELECT 2.2-50V C614 87-018-209-080 CAP, CER 0.1-50V C615 87-010-400-080 CAP, ELECT 0.47-50V
C616 87-010-401-080 CAP, ELECT 1-50V C617 87-018-131-080 CAP, CER 1000P-50V<545EZSC> C618 87-010-405-080 CAP, ELECT 10-50V<545EZSC> C622 87-010-405-080 CAP, ELECT 10-50V CN601 87-099-827-010 CONN,3P S2M-3W<545EZSC>
L601 87-003-171-010 COIL,15UH TROIDAL L612 87-003-102-080 COIL, 10UH LCD601 8Z-CD3-649-010 LCD,HLC7365 ZCD-3 LED601 8Z-CT6-632-010 LED,L-934LID LED602 8Z-CT6-632-010 LED,L-934LID
LED603 8Z-CT6-632-010 LED,L-934LID LED605 8Z-CT6-635-010 LED,L-934LGD LED606 8Z-CT6-635-010 LED,L-934LGD LED607 8Z-CT6-632-010 LED,L-934LID LED608 8Z-CT6-632-010 LED,L-934LID
REF. NO PART NO. KANRI DESCRIPTION
LED609 8Z-CT6-632-010 LED,L-934LID S601 87-A90-095-080 SW,TACT EVQ11G04M S602 87-A90-095-080 SW,TACT EVQ11G04M S603 87-A90-095-080 SW,TACT EVQ11G04M S604 87-A90-095-080 SW,TACT EVQ11G04M
S605 87-A90-095-080 SW,TACT EVQ11G04M S606 87-A90-095-080 SW,TACT EVQ11G04M S607 87-A90-095-080 SW,TACT EVQ11G04M S608 87-A90-095-080 SW,TACT EVQ11G04M S609 87-A90-095-080 SW,TACT EVQ11G04M
S610 87-A90-095-080 SW,TACT EVQ11G04M S611 87-A90-095-080 SW,TACT EVQ11G04M S612 87-A90-095-080 SW,TACT EVQ11G04M S613 87-A90-095-080 SW,TACT EVQ11G04M X601 87-030-273-010 VIB,XTAL 32.768K5PPM
X602 87-A70-070-080 VIB,CER 5.76MHZ CRHF
PT C.B
!
87-A90-160-080 FUSE CLAMP,FC 51F C701 87-A10-577-080 CAP,CER 0.022-50 Z YF C702 87-A10-577-080 CAP,CER 0.022-50 Z YF C703 87-A10-577-080 CAP,CER 0.022-50 Z YF C704 87-A10-577-080 CAP,CER 0.022-50 Z YF
CN702 87-049-919-010 CONN,3P EH V WHT
!
F701 87-035-139-010 FUSE, 2.5A T 250V
REMOTE C.B<545EZSC>
NO.
• Regarding connectors, they are not stocked as they are not the initial order items. The connectors are available after they are supplied from connector manufacturers upon the order is received.
TRANSISTOR ILLUSTRATION
ECB
2SA933 2SC1740 DTA114TS DTC114TS
ECB
2SA952 2SA1318 2SC1923 2SC2001
ECB
2SA1296 2SC1815
BCE
2SB1370
DTC114YS DTC124XS
65
Page 6
WIRING-1 (MAIN)
1
A
B
C
D
234567
8
9
10
11 12 13
14
E
F
G
MW/LW ANT
H
I
J
K
87
Page 7
SCHEMATIC DIAGRAM-1 (MAIN 1/2)
AC IN DETECT
AZIMUTH ADJ
Q 508,509 TU +B SWITCH
CD 8V POWER SWITCH
Q 551,552
Q 361,362
MOTOR DRIVER
5V REG
REG
+5V REG
+8V
Q 501~503
POWER SWITCH
109
Page 8
SCHEMATIC DIAGRAM-2 (FRONT)
-5K36
1211
Page 9
SCHEMATIC DIAGRAM-3 (MAIN 2/2)
SIGNAL
: FM : AM
1413
Page 10
SCHEMATIC DIAGRAM-4 (CD)
SIGNAL
: PB
1615
Page 11
WIRING-2 (FRONT/CD)
1
A
B
C
D
234567
8
9
10
11 12 13
14
E
F
G
H
I
J
K
1817
Page 12
IC DESCRIPTION IC, LA9241ML
Pin No. Pin Name I/O Description
— —
Pin to which external pickup photo diode is connected. RF signal is created by adding
I
with the FIN1 pin signal. FE signal is created by subtracting from the FIN1 pin signal.
I
Pin to which external pickup photo diode is connected. Pin to which external pickup photo diode is connected. TE signal is created by
I
subtracting from the F pin signal.
I
Pin to which external pickup photo diode is connected.
I
DC component of the TE signal is input.
I
Pin to which external resistor setting the TE signal gain is connected between the TE pin.
O
TE signal output pin. TES “Track Error Sense” comparator input pin. TE signal is passed through a band-
I
pass filter then input.
I
Shock detection signal input pin.
I
Tracking gain time constant setting pin.
O
TA amplifier output pin. Pin to which external tracking phase compensation constants are connected between
I
the TD and VR pins.
I
Tracking phase compensation setting pin.
I
Tracking jump signal (kick pulse) amplitude setting pin.
O
Tracking control signal output pin.
O
Focusing control signal output pin. Pin to which external focusing phase compensation constants are connected between
I
the FD and FA pins. Pin to which external focusing phase compensation constants are connected between
I
the FD– and FA– pins. Pin to which external focusing phase compensation constants are connected between
I
the FA and FE pins.
O
FE signal output pin.
I
Pin to which external FE signal gain setting resistor is connected between the FE pin. Analog signal GND. No connection.
O
Single ended output of the CV+ and CV– pin input signal.
I
Pin to which external spindle gain setting resistor in 12 cm mode is connected.
10 11
12
13 14 15 16
17
18
19
20 21 22 23 24 25
1
2
3
4 5 6 7
8
9
FIN2
FIN1
E
F
TB
TE–
TE
TESI
SCI
TH TA
TD–
TD
JP TO FD
FD–
FA
FA–
FE
FE–
AGND
NC
SP
SPG
Pin No. Pin Name I/O Description
36
37
38
39, 40
41
42
43
44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
TES
HFL
SLOF
CV–, CV+
RFSM
RFS–
SLC
SLI
DGND
FSC
TBC
NC DEF CLK
CL
DAT
CE
DRF
FSS
VCC2
REFI
VR
LF2 PH1
BH1
LDD
LDS
VCC1
O
Pin from which TES signal is output to DSP. “High Frequency Level” is used to judge whether the main beam position is on top of
O
bit or on top of mirror.
I
Sled servo off control input pin.
I
CLV error signal input pin from DSP.
O
RF output pin. RF gain setting and EFM signal 3T compensation constant setting pin together with
I
RFSM pin. “Slice Level Control” is the output pin which controls the RF signal data slice level by
O
DSP.
I
Input pin which control the data slice level by the DSP.
—
Digital system GND.
O
Output pin to which external focus search smoothing capacitor is connected.
I
“Tracking Balance Control” EF balance variable range setting pin.
—
No connection.
O
Disc defect detector output pin.
I
Reference clock input pin. 4.23 MHz of the DSP is input.
I
Microprocessor command clock input pin.
I
Microprocessor command data input pin.
I
Microprocessor command chip enable input pin.
O
“Detect RF” RF level detector output.
I
“Focus Search Select” focus search mode (± search/+ search) select pin.
—
Servo system and digital system Vcc pin.
—
Pin to which external bypass capacitor for reference voltage is connected.
O
Reference voltage output pin.
I
Disc defect detector time constant setting pin.
I
Pin to which external capacitor for RF signal peak holding is connected.
I
Pin to which external capacitor for RF signal bottom holding is connected.
O
APC circuit output pin.
I
APC circuit input pin.
—
RF system Vcc pin.
26
27 28
29 30, 31 32, 33
34
35
SP–
SPD
SLEQ
SLD
SL–, SL+
JP–, JP+
TGL
TOFF
Pin to which external spindle phase compensation constants are connected together
I
with SPD pin.
O
Spindle control signal output pin.
I
Pin to which external sled phase compensation constants are connected.
O
Sled control signal output pin.
I
Sled advance signal input pin from microprocessor.
I
Tracking jump signal input pin from DSP.
I
Tracking gain control signal input from DSP. Low gain when TGL = H.
I
Tracking off control signal input pin from DSP. Off when TOFF = H.
2019
Page 13
IC, LC78622ED
Pin No. Pin Name I/O Description
1 2 3 4 5
DEFI
TAI
PDO
VVSS
ISET
—
I
Defect sense signal (DEF) input pin. (Connect to 0V when not used).
I
O
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V. Phase comparator output pin to control external VCO. GND pin for built-in VCO. Be sure to connect to 0V.
For PLL.
I
Pin to which external resistor adjusting the PD0 output current. 6 7 8 9
10 11
12, 13
14
15 16 17 18
19, 20
21
22
23
24-28
29
VVDD
FR
VSS
EFMO
EFMIN
TEST2
CLV+, CLV–
___
V/P
HFL
TES
TOFF
TGL
JP+, JP–
PCK
FSEQ
VDD
SL+ - PUIN
EMPH
—
—
O
O
O
O O O O
O
—
I/O
O
Power supply pin for built-in VCO.
I
Pin for VCO frequency range adjustment.
Digital system GND. Be sure to connect to 0V.
EFM signal output pin.
For slice level control.
I I
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V.
EFM signal input pin.
Disc motor control output. Three level output is possible using command. Rough servo or phase control automatic selection monitoring output pin. Rough servo at H. Phase servo at L.
I
Track detect signal input pin. Schmidt input.
I
Tracking error signal input pin. Schmidt input. Tracking OFF output pin. Tracking gain selection output pin. Gain boost at L. Track jump control signal output pin. Three level output is possible using command. EFM data playback clock monitoring pin 4.3218 MHz when phase is locked in. Sync signal detection output pin. H when the sync signal which is detected from EFM signal and thesync signal which is internally generated agree. Digital system power supply pin.
The pin is controlled by the serial data command from microprocessor. When
General purpose input/output pin 1 to 5.
the pin is not used, set the pin to the input terminal and connect to 0V, or alternately set the pin to output terminal and leave the pin open.
De-emphasis monitor output pin. De-emphasis disc is being played back at H. 30 31
32, 33
34 35 36 37 38 39 40 41 42
C2F
DOUT
TEST3, TEST4
N.C.
MUTEL
LVDD LCHO
LVSS
RVSS RCHO RVDD
MUTER
—
—
— —
—
O
C2 flag output pin.
O
DIGITAL OUT output pin. (EIAJ format).
I
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V. Not used. Set the pin to open.
O
L-channel 1-bit DAC.
O
L-channel mute output pin. L-channel power supply pin. L-channel output pin. L-channel GND. Be sure to connect to 0V. R-channel GND. Be sure to connect to 0V.
O
R-channel output pin.
R-channel 1-bit DAC.
R-channel power supply pin.
O
R-channel mute output pin.
21
Page 14
Pin No. Pin Name I/O Description
43 44 45 46 47
XVDD XOUT
XIN XVSS SBSY
—
—
Crystal oscillator power supply pin.
O
Pin to which external 16.9344 MHz crystal oscillator is connected.
I
Crystal oscillator GND pin. Be sure to connect to 0V.
O
Subcode block sync signal output pin. 48 49 50
51
52
53 54 55 56 57 58 59 60 61 62
63
64
EFLG
PW
SFSY
SBCK
FSX
WRQ RWC
SQOUT
COIN
___________
CQCK
________
RES
TST11
16M
4.2M
TEST5
______
CS
TEST1
O
C1, C2, single and dual correction monitoring pin.
O
Subcode P, Q, R, S, T, U and W output pin.
O
Subcode frame sync signal output pin. Falls down when subcode enters standby.
Subcode read clock input pin. Schmidt input. (Be sure to connected to 0V when not in
I
use.)
Pin outputting the 7.35 kHz sync signal which is generated by dividing frequency of
O
crystal oscillator.
O
Subcode Q output standby output pin.
I
Read/write control input pin. Schmidt input.
O
Subcode Q output pin.
I
Command input pin from microprocessor.
I
Command input read clock or subcode read input clock from SQOUT pin
I
LC78622 reset input pin. Set this pin to L once when the main power is turned on.
O
Test signal output pin. Use this pin as open (normally L output).
O
16.9344 MHz output pin.
O
4.2336 MHz output pin.
I
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V.
Chip select signal input pin with built-in pull-down resistor. Be sure to connect to 0V
I
while it is not controlling.
I
Test signal input pin without built-in pull-down resistor. Be sure to connect to 0V.
Note: The same potential must be applied to the respective power supply terminals. (VDD, VVDD, LVDD, RVDD, XVDD)
22
Page 15
IC, LC867132V-5K36
Pin No. Pin Name I/O Description
1 2 3
O-RMC/CE
O-DATA
O-CLK
O
CD read/write control output and TU CE.
O
Data output to LC72121M, M62495FP.
O
Output LC72121M CLK. (Not connected)
10 11 12 13 14 15 16 17 18 19 20 21 22
4 5 6 7 8 9
NC
O-CLK SFT
I-HOLD
I-RST
XT1 (IN)
XT2 (OUT)
VSS1
CF1 (IN)
CF2 (OUT)
VDD1
I-ST IND
I-KEYO
I-CD SW
I-KEY1
I-MOTOR
I-REC
I-FM/AM
I-TU DO
O-BASS LED (NC)
—
—
—
Not Connected.
O
Clock shift output of the microcomputer.
I
Hold status detection.
I
Microcomputer reset.
I
Connected to 32.768kHz crystal oscillator.
O
GND.
I
Connected to 6MHz Ceramic Filter.
O
Power supply for microcomputer (+5V).
I
FM STEREO status input.
I
KEY AD input.
I
CD DOOR SW status detection input.
I
KEY AD input.
I
DECK MECHA MOTOR status input.
I
REC status input.
I
FM, AM status input.
I
Data input from LC72121M. (Not connected)
O
BASS LED ON/OFF control output. (Not connected) 23 24 25 26 27 28 29 30 31 32 33 34 35 36
37-40
41 42
43-50
O-QS LED
O-DUBB LED
O-INT
I-DRF
I-WRQ
I-REMO
S0-PA0 S1/PA1 S2/PA2 S3/PA3 S4/PA4 S5/PA5 S6/PA6 S7/PA7 S8-S11
VDD3
VSS3
S12-S19
— —
O
Q-Sound LED ON/OFF control output.
O
LED control output used for high-speed dubbing.
O
INT DIODE MATRIX detection output. (Not connected)
I
CD RF level detection input.
I
CD sub-code Q standby input.
I
Remote control input.
O
LCD segment output and initial settings output. (SW)
O
LCD segment output and initial settings output. (LW)
O
LCD segment output and initial settings output. (MW 10K)
O
LCD segment output and initial settings output. (FM WIDE)
O
LCD segment output and initial settings output. (AMST)
O
LCD segment output and initial settings output. (SW2)
O
LCD segment output and initial settings output.
O
LCD segment output and initial settings output.
O
Power supply for microcomputer (+5V).
GND.
O
LCD segment output.
51-54
S20-S23 (NC)
O
LCD segment output. (Not Connected)
23
Page 16
Pin No. Pin Name I/O Description
55 56 57
O-CD LED O-TU LED O-TA LED
O
LED ON/OFF control output for CD functions.
O
LED ON/OFF control output for TU functions.
O
LED ON/OFF control output for TAPE functions. 58 59 60 61 62 63
64-66
67 68 69 70 71 72 73 74 75 76 77 78
O-ROCK LED
O-POP LED
O-JAZZ LED
NC
— —
COM0-COM2
NC
VSS2
VDD2 O-CD ON O-TU ON
O-P.CONT
___________________
O-H.DUBB
O-MUTE
O-FM MONO
O-BEAT CONT
O-QSOUND
O-COIN
— — —
— — —
O
LED ON/OFF control output for ROCK.
O
LED ON/OFF control output for POP.
O
LED ON/OFF control output for JAZZ.
Not connected.
O
LCD common output. Not connected. GND. Power supply for microcomputer (+5V).
O
CD PWR control output.
O
TU PWR control output.
O
Power supply control output.
O
Dubbing speed control output.
O
Main mute output.
O
FM mono output.
O
BEAT switch over output.
O
Q-Sound ON/OFF output.
O
CD command output. 79 80
I-SQOUT
O-CQCK
I
CD sub-code Q input.
O
CLK for CD commands/sub-codes.
24
Page 17

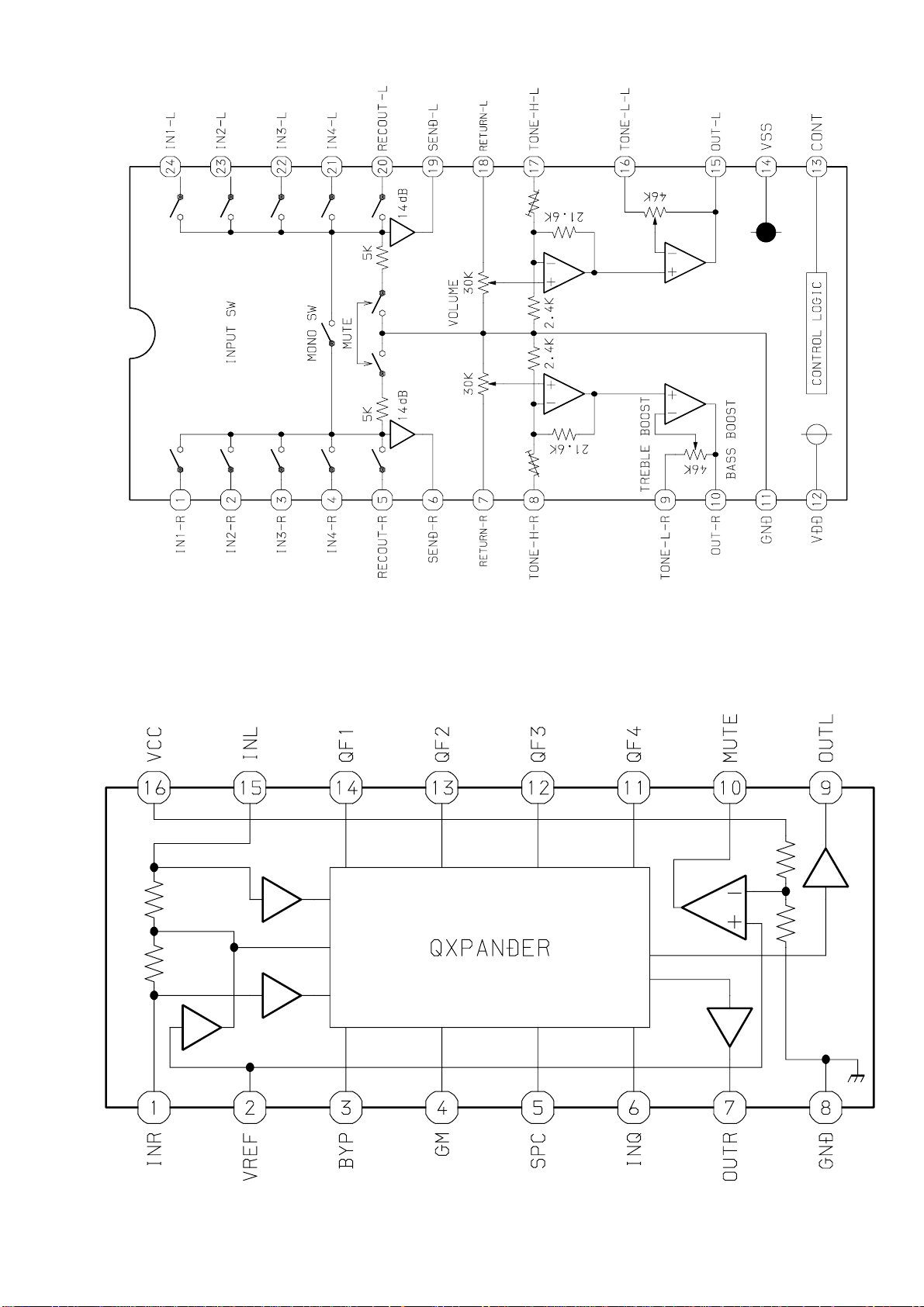

IC BLOCK DIAGRAM IC, M62495FP
IC, MM1434XF
25
Page 18
IC, LA1828
IC, BA3416BL
26
Page 19
LCD DISPLAY
27
Page 20
MECHANICAL PARTS LIST 1/1
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 8Z-CD3-014-010 WINDOW,CASS R 2 8Z-CD3-013-010 WINDOW,CASS L 3 8Z-CD3-219-010 SPR-T,CASS 4 8Z-CD3-012-010 BOX,CASS R 5 8Z-CD3-011-010 BOX,CASS L
6 8Z-CD3-001-010 CABI,FR 7 86-CT9-223-010 CUSH,FOOT 8 8Z-CD3-027-010 GRILLE,SPKR R 9 8Z-CD3-026-010 GRILLE,SPKR L 10 88-CD5-602-010 SPKR 4’3.2
11 8Z-CD3-214-010 HLDR,SPKR 12 8Z-CD3-201-010 BOX,GEAR 13 8Z-CD3-022-010 POINTER,TU 14 8Z-CD3-024-010 KNOB,RTRY TU 15 86-CT9-220-110 OIL-DMPR,BRACKET
16 86-CT9-219-110 OIL-DMPR,GEAR 17 8Z-CD3-638-010 CONN ASSY,8P DECK MOTOR 18 8Z-CD3-206-010 HLDR,LCD 19 8Z-CD3-640-010 CONN ASSY,5P RPH. 20 8Z-CD3-021-010 LENS,LED
21 86-CT9-039-010 BADGE,AIWA 30N 22 8Z-CD3-046-010 PANEL,FR K<540KS,540EZS> 22 8Z-CDD-001-010 PANEL,FR 545<545EZSC> 23 8Z-CD3-007-010 WINDOW,LCD 24 8Z-CD3-016-010 KNOB,SL BAND
25 8Z-CD3-028-010 GRILLE,TOP 26 8Z-CD3-636-010 CONN ASSY,6P CD MOTOR 27 8Z-CD3-642-010 FF-CABLE, 16P 1.0 300MM 28 8Z-CD3-211-010 SPR-P,DMPR 29 87-CL4-762-010 SPKR CER TWEETER
30 8Z-CD3-045-010 WINDOW,BAND K<540KS,540EZS> 30 8Z-CD3-025-010 WINDOW,BAND<545EZSC> 31 8Z-CD3-202-010 LEVER,BAND 32 8Z-CD3-220-010 SPR-T,CD 33 8Z-CD3-005-010 HANDL,ARM
34 8Z-CD3-006-010 HANDL,GRIP 35 8Z-CD3-023-010 WINDOW,CD 36 8Z-CD3-015-010 BOX,CD 37 86-CD4-225-010 CHUCK(A) 38 86-CT9-222-010 PLATE,MAGNET
39 87-036-368-010 MAGNET 40 8Z-CT6-213-010 BASE,CHUCK 41 8Z-CT6-214-010 RING,CHUCK 42 8Z-CD3-008-010 LID,BATT 43 88-CT6-633-010 ANT,ROD
REF. NO PART NO. KANRI DESCRIPTION
44 8Z-CD3-048-010 COVER, ANT 45 8Z-CD3-225-010 SPR-C,BATT LINK 46 8Z-CD3-223-010 SPR-C,BATT LINK L 47 8Z-CD3-002-010 CABI,REAR 48 8Z-CD3-216-010 SPR-P,REC
!
49 87-A60-178-010 JACK,AC E W/SW 50 87-A90-086-010 COVER,AC-SOCKET 51 8Z-CD3-003-010 CABI,TOP
!
52 88-CT6-630-010 PT,EZ/K 53 8Z-CD3-212-010 HLDR,PT
54 8Z-CD3-208-010 HLDR,ANT 55 8Z-CD3-222-010 SPR-C,BATT(-)L 56 8Z-CD3-224-010 SPR-C,BATT(-) 57 8Z-CD3-207-010 HLDR,PWB 58 8Z-CD3-205-010 GEAR,3
59 8Z-CD3-204-010 GEAR,2 60 8Z-CD3-203-010 GEAR,1 61 8Z-CD3-018-010 BTN,2 62 8Z-CD3-017-010 BTN,1 63 8Z-CD3-010-010 KEY,CASS B
64 8Z-CD3-009-010 KEY,CASS A 65 8Z-CD3-020-010 BTN,4 66 8Z-CD3-019-010 BTN,3 67 8Z-CD3-210-010 LEVER,REC 68 8Z-CD3-218-010 CLR,REC
69 8Z-CD3-215-010 HLDR,REC 70 87-036-389-010 SW,PUSH 1-1-1 R8120125 A 81-CD5-204-010 SCREW CD B 87-651-104-410 VT1+3-30 C 87-751-097-410 SCREW 3X12
D 87-651-075-210 VT1+2.6-10 E 87-721-095-410 QT2+3-8GLD W/O SLOT F 87-501-095-410 VF+3-8 G 87-493-100-410 VWWS+3-16 BLK H 87-651-102-410 VT1 3-20 GLD
I 87-571-033-410 TAPPING SCREW, VIT+2-4
NO.
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green LD Dark Blue DT Transparent Orange
28
Page 21
MECHANICAL EXPLODED VIEW 1/1
10
11
11
C
66
23
65
C
22
21
20
61
57
C
17
C
P.C.B
a
62
57
19
18
24
P.C.B
63
25
C
29
CUSHION,CD
64
KSM213CDM
C
26
27
G
C
70
31
b
C
G
32
28
67
25
68
51
30
35
29
P.C.B
C
b
G
a
15
16
C
A
E
I
69
F
E
48
33
34
F
36
37
38
39
40 41
42
43
B
45
46
TN-21ZVW-1810
12
59
14
58
C
D
50
11
49
53
10
11
52
F
7
55
C
P.C.B
56
PLATE,BATT
54
D
9
5
3
3
2
1
4
60
16
8
C
7
15
P.C.B
16
13
6
C
H
7
44
B
B
47
3029
Page 22
TAPE MECHANISM EXPLODED VIEW 1/1
F
B
B
LUG PLATE
52
4
3
a
15 16
17
34
35
54
C
37
38
39
59
P
P
42
11
5
12
13
E
46
58
20
1
8
d
9
29
10
18
M
60
D
6
21
7
25
53
31
30
A
b
a
C
40
D
K
I
41
32
33
36
Q
d
22
23
24
26
27
28
G
1
E
2
51
8
c
10
18
J L
b
O
14
19
B
9
53
20
22
23
24
58
c
26
27
28
29
55
47
H
P
F
G
2
51
J L
O
14
b
19
LUG PLATE
52
4
3
a
15 16
17
34
35
54
C
37
38
39
42
11
5
12
13
49
M
48
D
6
7
31
30
A
b
a
c
C
D
K
41
40
I
32
33
57
56
P
P
50
45
N
44
P
43
43
3231
Page 23
TAPE MECHANISM PARTS LIST 1/1
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 S1-921-030-4A0 HEAD BASE 2 S1-821-030-070 AZIMUTH SPRING 3 S1-921-030-090 PANEL P SPRING 4 S1-921-260-050 GEAR PLATE SPRING 5 S1-921-265-020 GEAR PLATE ASSY
6 S1-921-140-370 P ARM COLLER 7 S1-921-140-340 P ARM 8 S1-921-030-110 HEAD PANEL 9 S1-921-143-160 BASE ASSY 10 S1-921-141-8A0 M CONTROL SPRING
11 S1-921-260-4A0 SENSING LEVER 12 S1-921-043-100 PINCH ROLLER ARM ASSY 13 S1-921-130-010 EJECT SLIDE LEVER 14 S1-921-141-3A0 P CONTROL SPRING 15 S1-921-140-820 PAUSE LEVER(F)
16 S1-921-140-120 PAUSE LEVER SPRING 17 S1-921-140-110 PAUSE STOPPER 18 S1-921-140-150 BUTTON LEVER SPRING(B) 19 S1-821-011-590 E KICK LEVER 20 S1-921-140-140 BUTTON LEVER SPRING(A)
21 S1-921-030-050 MG ARM 22 S1-921-140-090 SWITCH ACTUATOR 23 S1-921-140-080 PUSH BUTTON ACTUATOR 24 S1-921-140-190 PLAY BUTTON LEVER 25 S1-921-030-100 MG ARM SPRING
26 S1-921-140-040 REW BUTTON LEVER 27 S1-921-140-050 FF,BUTTON LEVER 28 S1-921-140-060 STOP BUTTON LEVER 29 S1-921-140-600 PAUSE BUTTON LEVER 30 S1-821-100-700 FF GEAR
31 S1-921-050-060 SENSOR 32 S1-921-053-100 TAKE UP REEL ASSY 33 S1-829-100-010 PACK SPRING 34 S1-921-050-150 S REEL HUB 35 S1-921-050-220 BACK TENSION SPRING
36 S1-921-140-030 REC BUTTON LEVER 37 S1-921-140-170 P.S.LEVER SPRING 38 S1-921-073-080 RF CLUTCH ASSY 39 S1-921-070-030 RF BELT 40 S1-921-260-020 CAM GEAR
REF. NO PART NO. KANRI DESCRIPTION
NO.
41 S1-921-140-160 E ACTUATOR SPRING 42 S1-921-093-040 FLYWHEEL ASSY 43 S1-921-090-240 MAIN BELT 44 S1-921-120-130 MOTOR PULLEY 45 S6-002-030-290 MOTOR EG530YD-2BH
46 S6-209-100-100 E HEAD PH-K380-MS1 47 S1-821-120-650 COLLER B 48 S1-921-140-210 REC BUTTON LEVER SPRING 49 S1-821-100-690 RECORD SAFETY LEVER 50 S1-921-120-110 MOTOR BRACKET
51 S9-W13-000-100 Y WASHER PB 0.1T 52 S6-202-010-920 R.P HEAD MS15R-AK0N1 53 S6-401-011-520 LEAF SW MSW-1541F 54 S1-921-015-010 CHASSIS ASSY 55 S1-921-120-090 P KICK LEVER
56 S1-821-120-680 P KICK LEVER (A) 57 S1-821-120-250 P KICK LEVER SPRING 58 S1-821-010-500 PLAY BUTTON LEVER SPRING 59 S1-820-130-060 MOTOR RUBBER 60 S6-401-011-610 LEAF SW MSW-17820MVEI
A S9-P33-200-320 DEL TITE SCREWM2-3 B S1-821-120-020 MOTOR COLLER SCREW C S9-B10-200-510 P TAPPING BIND SCREW M2-5 D S9-C07-204-510 SCREW,TAPPING(CAMERA)M2-4.5 E S9-P01-200-610 SCREW,M2-6
F S9-P01-200-310 SCREW,M2-3 H S9-P04-200-610 C TAPPING SCREW M2-6 I S9-W02-300-100 P WASHER CUT 1.2-3.8-0.3 J S9-W02-500-100 P WASHER CUT 1.45-3.8-0.5 K S9-W01-400-100 P WASHER 2-3.5-0.4
L S9-W01-130-200 P WASHER 2.1-4-0.13 M S9-P08-203-010 PS TAPPING SCREW M2-3 N S1-821-120-230 PK COLLER SCREW A O S9-P05-200-810 SCREW,S TAP 2-8 P S9-P04-200-410 C TAPPING SCREW M2-4
Q S9-P04-200-310 C TAPPING SCREW 2-3
33
Page 24
CD MECHANISM EXPLODED VIEW 1/1
2
COVER
5
3
SPINDLE MOTOR (M1)
4
CD MECHANISM PARTS LIST 1/1
A
1
(M2)
MOTOR C.B
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 9X-262-620-210 MOTOR CHASSIS ASSY 2 92-626-907-010 GEAR(A) 3 87-A90-468-010 PICK UP KSS-213C 4 92-626-908-010 SHAFT SLED 5 92-627-003-020 GEAR(B)(RP)
A 97-621-255-150 SCREW+P2-3
34
Page 25
ACCESSORIES/PACKAGE LIST
REF. NO PART NO. KANRI DESCRIPTION
1 8Z-CD3-908-010 IB,EZ(9L)FM<EXCEPT 540KS> 1 8Z-CD3-909-010 IB,K(E)FM<540KS>
!
2 87-050-076-010 AC CORD SET ASSY,E
!
3 87-A90-312-010 PLUG,CONVERSION WTN-1157R1<EXCEPT 540KS>
4 8Z-CDK-962-010 RC UNIT,RC-ZAT02(VS)<545EZSC>
NO.
35
Page 26
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111
737004
Printed in Singapore
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
