Aiwa CSD-FD93 Service Manual

Download
CSD-FD93
HT
SERVICE MANUAL
COMPACT DISC STEREO RADIO
CASSETTE RECORDER
This Service Manual contains information about the difference between CSD-FD93 (HT) and CSD-FD91 (U). If requiring the other information, see Service Manual of CSD-FD91 (U), (S/M Code No.09-003-426-8R1).
BASIC TAPE MECHANISM : TN-51RV-240 BASIC CD MECHANISM : CMS-B31TG6
S/M Code No. 09-009-426-8S1
DATA
SPECIFICATIONS
Tuner section Frequency range FM : 87.5 MHz-108 MHz
Antenna : Rod antenna
AM : 530/531 kHz-1,710/1,602 kHz
(10/9 kHz/step) Antenna : Ferrite bar antenna
Deck section Track format 4 tracks, 2 channels Frequency range Normal tape : 50 Hz-12,500 Hz (EIAJ) Recording system AC bias Erasing system Magnet erase Heads Recording/Playback head x 1 /
Erasure head x 1
CD player section Disc Compact disc Scanning method Non-contact optical scanner
(semiconductor laser)
General Speaker 100 mm cone type (2),
36 mm cone type(2)
Output Headphones jack (stereo mini-jack) Power output 4.5 W + 4.5 W (EIAJ 3.2 ohms DC),
3.3 W + 3.3 W (DIN 1% Rated Power)
Power requirement DC 12 V using eight R14 (size C) batteries,
AC 110-120 V/220-240 V switchable, 50/60 Hz
Power consumption 22 W Dimensions (W x H x D) 460 x 191.9 x 261.2 mm Weight 4 kg (excluding batteries)
 Design and specifications are subject to change without notice.
ACCESSORIES / PACKAGE LIST
PART NO.
1 8A-CH4-911-110 IB,HT (EC-H) B 2 87-A80-036-010 AC CORD SET ASSY,E W FLTR V
!
3 8Z-CK4-962-010 RC UNIT,RC-ZAT04 (VS)
!
4 87-A90-312-010 PLUG,CONVERSION WTN-1157R1
NO.
DESCRIPTIONREF. NO. KANRI
 2 
ELECTRICAL MAIN PARTS LIST
PART NO.
NO.
IC
87-A21-550-010 IC,TA2149N 87-A21-185-040 C-IC,LC72121M 87-A21-090-010 IC,LA4600 87-A21-520-040 C-IC,M61509FP 87-A20-446-010 C-IC,LA9241ML
87-A20-459-010 C-IC,LC78622ED 87-A21-093-010 IC,LA6541D 8A-CH4-661-010 C-IC,LC867132V-5P07 87-A21-431-010 IC,BA4560N 87-A21-245-010 IC,RPM6938-V4
TRANSISTOR
89-327-143-080 TR,2SC2714 (0.1W) 87-026-447-080 TR,2SC1740SR 89-111-624-080 TR,2SA1162Y 87-026-213-080 CHIP-TR,DTC114YK 89-327-125-080 CHIP TR,2SC2712GR
89-318-154-080 TR,2SC1815Y(0.4W) 89-112-965-080 TR,2SA1296GR 87-026-463-080 TR,2SA933SRS 87-026-291-080 TR,DTC124XS 89-213-702-080 TR,2SB1370E
87-026-462-080 TR,2SC1740S 89-109-332-380 TR,2SA933RS 89-113-187-080 TR,2SA1318TU 87-026-239-080 C-TR,DTC114TK 87-026-210-080 C-TR,DTC144EK
87-026-464-080 TR,DTC114TS (0.3W)
DIODE
87-020-465-080 DIODE,1SS133 (110MA) 87-017-072-080 ZENER,HZS3B1 87-027-703-080 ZENER,HZ7A1L 87-A40-648-080 ZENER,MTZJ8.2A 87-017-978-080 DIODE,1N4003
87-027-702-080 DIODE,ZENER HZ6C2L 87-A40-465-010 DIODE,FR202 87-A40-234-080 ZENER,MTZJ5.6A
MAIN C.B
C211 87-010-805-080 CAP, S 1-16 C212 87-010-805-080 CAP, S 1-16 C215 87-016-460-080 C-CAP,S 0.22-16 B C216 87-016-460-080 C-CAP,S 0.22-16 B C231 87-010-213-080 C-CAP,S 0.015-50 B
C232 87-010-213-080 C-CAP,S 0.015-50 B C233 87-A10-201-080 C-CAP,S0.33-16 KB C234 87-A10-201-080 C-CAP,S0.33-16 KB C235 87-016-669-080 C-CAP,S 0.1-25 K B C236 87-016-669-080 C-CAP,S 0.1-25 K B
C237 87-010-371-080 CAP, ELECT 470-6.3M C239 87-010-197-080 CAP, CHIP 0.01 DM C240 87-010-197-080 CAP, CHIP 0.01 DM C247 87-010-401-080 CAP, ELECT 1-50V C248 87-010-401-080 CAP, ELECT 1-50V
C310 87-010-248-080 CAP, ELECT 220-10V C316 87-010-263-080 CAP, ELECT 100-10V M 11L SME C317 87-010-197-080 CAP,S 0.01-25 KB C2012 C801 87-010-248-080 CAP, ELECT 220-10V C805 87-012-365-080 C-CAP,S 0.027-25VBK
C806 87-012-365-080 C-CAP,S 0.027-25VBK C807 87-010-405-080 CAP, ELECT 10-50V C808 87-010-405-080 CAP, ELECT 10-50V C809 87-010-401-080 CAP, ELECT 1-50V C810 87-010-401-080 CAP, ELECT 1-50V
DESCRIPTIONREF. NO. KANRI
C811 87-010-178-080 CHIP CAP 1000P C812 87-010-178-080 CHIP CAP 1000P C816 87-010-180-080 C-CER 1500P C817 87-010-180-080 C-CER 1500P C821 87-010-401-080 CAP, ELECT 1-50V
C822 87-010-401-080 CAP, ELECT 1-50V C823 87-010-175-080 C-CAP, 5600P-50 J SL C824 87-010-175-080 C-CAP, 5600P-50 J SL C829 87-010-178-080 CHIP CAP 1000P C830 87-010-178-080 CHIP CAP 1000P
C833 87-018-195-080 CAP, CER 1200P-16V C843 87-010-197-080 CAP, CHIP 0.01 DM C844 87-018-124-080 CAP, CER 270P-50V C845 87-010-178-080 CHIP CAP 1000P C846 87-010-263-080 CAP, ELECT 100-10V
C851 87-010-186-080 CAP,CHIP 4700P C852 87-010-178-080 CHIP CAP 1000P C853 87-018-211-080 CAP, CER 0.01-50 CN201 87-099-018-010 CONN,16P CN801 87-A60-110-010 CONN,4P V S2M-4W
CNA302 8A-CH4-629-010 CONN ASSY, 6P MA-TU CNA801 8A-CD9-630-010 CONN ASSY, 4P RPH FC201 8A-CD9-620-010 FF-CABLE, 16P FR-MAIN L301 87-003-097-080 FIXED INDUCTOR 1UH L302 87-003-097-080 FIXED INDUCTOR 1UH
L303 87-003-097-080 FIXED INDUCTOR 1UH L801 87-007-342-010 COIL,OSC 85K BIAS SW801 8Z-CD9-609-010 SW,SL 1-6-2 PS62D01
CD C.B
C30 87-010-260-080 CAP, ELECT 47-25V C251 87-010-404-080 CAP, ELECT 4.7-50V C263 87-010-178-080 CHIP CAP 1000P C264 87-010-178-080 CHIP CAP 1000P C266 87-010-545-080 CAP, ELECT 0.22-50V
C267 87-010-545-080 CAP, ELECT 0.22-50V C271 87-010-237-080 CAP, ELECT 1000-16V C272 87-010-237-080 CAP, ELECT 1000-16V C277 87-010-404-080 CAP, ELECT 4.7-50V C278 87-010-263-080 CAP, ELECT 100-10V
C279 87-010-405-080 CAP, ELECT 10-50V C301 87-016-495-000 CAP,E 3300-25 M SMG C306 87-010-404-080 CAP, ELECT 4.7-50V C307 87-010-401-080 CAP, ELECT 1-50V C308 87-010-221-080 CAP, ELECT 470-10V
C311 87-010-265-080 CAP, ELECT 33-16M C312 87-010-385-080 CAP, ELECT 220-25V C321 87-010-197-080 CAP, CHIP 0.01 DM C322 87-010-263-080 CAP, ELECT 100-10V C325 87-010-405-080 CAP, ELECT 10-50V
C401 87-010-403-080 CAP, ELECT 3.3-50V C402 87-010-197-080 CAP, CHIP 0.01 DM C403 87-010-263-080 CAP, ELECT 100-10V C404 87-010-248-080 CAP, ELECT 220-10V C405 87-010-197-080 CAP, CHIP 0.01 DM
C406 87-010-374-080 CAP, ELECT 47-10V C407 87-010-178-080 CHIP CAP 1000P C408 87-010-198-080 CAP, CHIP 0.022 C409 87-010-248-080 CAP, ELECT 220-10V C410 87-010-263-080 CAP, ELECT 100-10V
C411 87-A11-177-080 C-CAP,S 0.15-16 K B C412 87-010-401-080 CAP, ELECT 1-50V C413 87-016-369-080 C-CAP,S 0.033-25 B K C414 87-010-405-080 CAP, ELECT 10-50V C416 87-010-545-080 CAP, ELECT 0.22-50V
C417 87-012-157-080 C-CAP,S 330P-50 CH C418 87-010-213-080 C-CAP,S 0.015-50 B C419 87-A11-608-080 C-CAP,S 0.33-25 K B C420 87-016-369-080 C-CAP,S 0.033-25 B K
PART NO.
NO.
DESCRIPTIONREF. NO. KANRI
 3 
REF. NO.
C421 87-A11-177-080 C-CAP,S 0.15-16 K B C422 87-010-183-080 C-CAP,S 2700P-50 B C423 87-010-956-080 CHIP-CAP,S 0.068-25B C424 87-010-993-080 C-CAP,S 0.056-25 B C425 87-010-176-080 C-CAP,S 680P-50 SL
C426 87-A11-608-080 C-CAP,S 0.33-25 K B C428 87-010-197-080 CAP, CHIP 0.01 DM C429 87-010-186-080 CAP,CHIP 4700P C430 87-012-156-080 C-CAP,S 220P-50 CH C431 87-010-545-080 CAP, ELECT 0.22-50V
C432 87-010-374-080 CAP, ELECT 47-10V C433 87-010-401-080 CAP, ELECT 1-50V C434 87-010-184-080 CHIP CAPACITOR 3300P(K) C435 87-010-197-080 CAP, CHIP 0.01 DM C436 87-010-374-080 CAP, ELECT 47-10V
C437 87-010-404-080 CAP, ELECT 4.7-50V C438 87-012-368-080 C-CAP,S 0.1-50 F C439 87-010-178-080 CHIP CAP 1000P C440 87-010-145-080 CAP, CHIP 1P-50 C CH C441 87-010-197-080 CAP, CHIP 0.01 DM
C442 87-010-312-080 C-CAP,S 15P-50 CH C446 87-012-368-080 C-CAP,S 0.1-50 F C447 87-012-368-080 C-CAP,S 0.1-50 F C448 87-010-315-080 C-CAP,S 27P-50 CH C450 87-012-140-080 CAP 470P
C451 87-012-156-080 C-CAP,S 220P-50 CH C457 87-010-312-080 C-CAP,S 15P-50 CH C458 87-010-312-080 C-CAP,S 15P-50 CH C459 87-010-263-080 CAP, ELECT 100-10V C460 87-015-819-080 CAPACITOR,0.01
C461 87-010-197-080 CAP, CHIP 0.01 DM C462 87-010-248-080 CAP, ELECT 220-10V C463 87-A11-155-080 CAP,TC U 0.01-16 C465 87-010-404-080 CAP, ELECT 4.7-50V C466 87-012-368-080 C-CAP,S 0.1-50 F
C467 87-010-263-080 CAP, ELECT 100-10V C469 87-012-154-080 C-CAP,S 150P-50 CH C470 87-010-544-080 CAP, ELECT 0.1-50V C472 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z C474 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C475 87-010-197-080 CAP, CHIP 0.01 DM C476 87-010-236-080 CAP,E 1000-10 SME C477 87-010-197-080 CAP, CHIP 0.01 DM C478 87-010-263-080 CAP, ELECT 100-10V C479 87-010-197-080 CAP, CHIP 0.01 DM
C480 87-010-221-080 CAP, ELECT 470-10V C481 87-010-405-080 CAP, ELECT 10-50V C482 87-010-405-080 CAP, ELECT 10-50V C489 87-012-368-080 C-CAP,S 0.1-50 F C490 87-012-368-080 C-CAP,S 0.1-50 F
C491 87-010-197-080 CAP, CHIP 0.01 DM C492 87-010-221-080 CAP, ELECT 470-10V C493 87-010-197-080 CAP, CHIP 0.01 DM C494 87-A11-155-080 CAP,TC U 0.01-16 C495 87-010-184-080 CHIP CAPACITOR 3300P(K)
C501 87-012-368-080 C-CAP,S 0.1-50 F C502 87-010-322-080 C-CAP,S 100P-50 CH C503 87-010-322-080 C-CAP,S 100P-50 CH C504 87-010-322-080 C-CAP,S 100P-50 CH C505 87-010-322-080 C-CAP,S 100P-50 CH
C506 87-010-322-080 C-CAP,S 100P-50 CH C510 87-012-368-080 C-CAP,S 0.1-50 F C831 87-010-198-080 CAP, CHIP 0.022 CN202 8A-CH4-689-010 CONN,3P V 2.5 CN301 8A-CH4-689-010 CONN,3P V 2.5
CN303 8A-CH4-686-010 CONN, 2P V 2.5 CN304 8A-CH4-686-010 CONN, 2P V 2.5 CN401 87-A60-424-010 CONN,16P V TOC-B CN403 87-099-201-010 CONN,8P 6216 H CN405 87-A60-109-010 CONN,2P V S2M-2W
PART NO.
KANRI NO.
DESCRIPTION
CN802 8A-CH4-691-010 CONN,6P H 2.5 CNA205 8A-CD9-626-010 CONN ASSY,2P DOOR CNA303 8A-CH4-634-010 CONN ASSY, 2P S-SP.L CNA304 8A-CH4-635-010 CONN ASSY, 2P S-SP.R CNA402 8A-CD9-625-010 CONN ASSY,6P CD-ME
CNA802 8A-CD9-632-010 CONN ASSY,6P TA-ME FC401 8A-CD9-621-010 FF-CABLE, 16P CD-RF FC403 8A-CD9-622-010 FF-CABLE, 8P CD-FR L401 87-003-102-080 COIL, 10UH L404 87-003-152-080 COIL, 100UH
R840 87-029-124-010 RES,FUSE 2.2-1/4 SFR430 87-024-437-080 SFR,100K H RH063MC SW205 87-036-389-010 SW, PUSH 1-1-1 R8120125 X401 8Z-CD5-633-010 VIB, CER16.93MHZ FCR16.93M2
FRONT C.B
C601 87-010-313-080 CAP, CHIP 18P C602 87-010-315-080 C-CAP,S 27P-50 CH C603 87-010-319-080 C-CAP,S 56P-50 CH C604 87-010-312-080 C-CAP,S 15P-50 CH C605 87-010-317-080 C-CAP,S 39P-50 CH
C606 87-010-197-080 CAP,S 0.01-25 KB C608 87-010-196-080 CHIP CAPACITOR,0.1-25 C610 87-010-555-040 CAP,E 100-10 GAS C611 87-010-196-080 CHIP CAPACITOR,0.1-25 C612 87-A10-189-040 CAP,E 220-10
C613 87-010-495-040 CAP,E 2.2-50 GAS C614 87-010-196-080 CHIP CAPACITOR,0.1-25 C615 87-010-493-040 CAP,E 0.47-50 GAS C616 87-010-494-040 CAP,E 1-50 GAS C617 87-010-178-080 CHIP CAP 1000P
C618 87-010-498-040 CAP,E 10-16 GAS C620 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z C625 87-010-196-080 CHIP CAPACITOR,0.1-25 CN601 87-099-033-010 16P 6216 H CN602 87-099-201-010 CONN,8P 6216 H
CNA603 8A-CD9-624-010 CONN ASSY,4P TU-FR L611 87-003-097-080 COIL,1.0UH K LAL02 L612 87-003-097-080 COIL,1.0UH K LAL02 L637 87-003-097-080 COIL,1.0UH K LAL02 LCD601 8Z-CH4-635-010 LCD,HLC7365 ZCH-4
LED602 8A-CDA-645-010 LED,6224-10ID RED LED603 8A-CDA-645-010 LED,6224-10ID RED LED604 8A-CDA-645-010 LED,6224-10ID RED LED606 8A-CDA-645-010 LED,6224-10ID RED LED607 8A-CDA-645-010 LED,6224-10ID RED
LED608 8A-CDA-645-010 LED,6224-10ID RED LED609 8A-CDA-645-010 LED,6224-10ID RED LED611 8A-CDA-646-010 LED,6224-10GD GRN LED612 8A-CDA-645-010 LED,6224-10ID RED S601 87-A91-704-080 SW,TACT EVQ 214 05R
S603 87-A91-704-080 SW,TACT EVQ 214 05R S604 87-A91-704-080 SW,TACT EVQ 214 05R S605 87-A91-704-080 SW,TACT EVQ 214 05R S606 87-A91-704-080 SW,TACT EVQ 214 05R S607 87-A91-704-080 SW,TACT EVQ 214 05R
S608 87-A91-704-080 SW,TACT EVQ 214 05R S613 87-A91-704-080 SW,TACT EVQ 214 05R S621 87-A91-704-080 SW,TACT EVQ 214 05R S622 87-A91-704-080 SW,TACT EVQ 214 05R S623 87-A91-704-080 SW,TACT EVQ 214 05R
X601 87-030-273-010 VIB,XTAL 32.768K5PPM X602 87-030-376-080 VIB,CER CSA5.76MG200
TUNER C.B
C1 87-010-312-080 C-CAP,S 15P-50V C2 87-010-316-080 C-CAP,S 33P-50 CH C3 87-010-312-080 C-CAP,S 15P-50V
KANRI NO.
DESCRIPTIONREF. NO. PART NO.
 4 
REF. NO.
PART NO.
KANRI
DESCRIPTION
NO.
C5 87-016-669-080 C-CAP,S 0.1-25 K B C6 87-010-313-080 CAP, CHIP 18P C7 87-014-049-080 CAP,PP 470P-100 J C8 87-010-178-080 CHIP CAP 1000P C10 87-010-197-080 CAP, CHIP 0.01 DM
C11 87-010-197-080 CAP, CHIP 0.01 DM C12 87-010-197-080 CAP, CHIP 0.01 DM C13 87-010-150-080 C-CAP,S 6P-50 CH C14 87-010-303-080 C-CAP,S 330P-50CH C15 87-010-178-080 CHIP CAP 1000P
C16 87-010-374-080 CAP, ELECT 47-10V C17 87-010-198-080 CAP, CHIP 0.022 C18 87-015-835-080 C-CAP,0.047 D C19 87-010-263-080 CAP, ELECT 100-10V C20 87-010-404-080 CAP, ELECT 4.7-50V
C21 87-010-197-080 CAP, CHIP 0.01 DM C22 87-010-197-080 CAP, CHIP 0.01 DM C23 87-010-197-080 CAP, CHIP 0.01 DM C24 87-010-303-080 C-CAP,S 330P-50CH C25 87-016-460-080 C-CAP,S 0.22-16 B
C27 87-A11-067-080 C-CAP,S 1-10 K B C28 87-016-669-080 C-CAP,S 0.1-25 K B C29 87-016-669-080 C-CAP,S 0.1-25 K B C30 87-010-220-080 C-CAP,S 0.018-25 K B C31 87-010-220-080 C-CAP,S 0.018-25 K B
C33 87-012-358-080 C-CAP,S 0.47-10 F Z C34 87-012-358-080 C-CAP,S 0.47-10 F Z C35 87-015-819-080 CAPACITOR,0.01 C36 87-010-263-080 CAP, ELECT 100-10V C37 87-010-197-080 CAP, CHIP 0.01 DM
C38 87-010-263-080 CAP, ELECT 100-10V C39 87-010-404-080 CAP, ELECT 4.7-50V C40 87-010-197-080 CAP, CHIP 0.01 DM C41 87-010-178-080 CHIP CAP 1000P C42 87-010-178-080 CHIP CAP 1000P
C43 87-010-178-080 CHIP CAP 1000P C45 87-010-312-080 C-CAP,S 15P-50 CH C46 87-010-197-080 CAP, CHIP 0.01 DM C47 87-010-197-080 CAP, CHIP 0.01 DM C48 87-010-197-080 CAP, CHIP 0.01 DM C49 87-012-140-080 CAP 470P
C50 87-010-197-080 CAP, CHIP 0.01 DM C71 87-010-197-080 CAP, CHIP 0.01 DM C72 87-010-263-080 CAP, ELECT 100-10V C73 87-010-197-080 CAP, CHIP 0.01 DM
C75 87-010-197-080 CAP, CHIP 0.01 DM C92 87-010-197-080 CAP, CHIP 0.01 DM C93 87-010-197-080 CAP, CHIP 0.01 DM CF1 87-A91-094-010 FLTR,CDA10.7 MG80A CF2 87-008-261-010 FILTER, SFE10.7MA5-A
CF3 87-008-261-010 FILTER, SFE10.7MA5-A CN2 87-099-854-010 CONN,6P S2M-6W CN3 87-A60-110-010 CONN,4P V S2M-4W D3 87-A40-616-070 VARI-CAP,SVC384(S/T) D4 87-A40-128-080 C-VARI-CAP,HVU202A
PART NO.
KANRI
DESCRIPTIONREF. NO.
NO.
D5 87-A40-128-080 C-VARI-CAP,HVU202A L2 87-A50-560-010 COIL,FM BPF(ACD) L3 8A-CH4-670-010 BAR-ANT,MW 2B-ACH(COI) L4 87-A50-420-010 COIL,MW OSC(SYN) L5 87-A50-566-010 COIL,FM RF EX(ACH)
L6 87-A50-567-010 COIL,FM OSC(ACH) L7 87-A91-308-010 FLTR,PCFAZH- 450T (TOK) L8 87-005-849-080 COIL,10UH(CECS) TC1 87-011-254-080 TRIMER,20P LAR X1 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
H.P C.B
C275 87-016-280-080 CAP,E 3.3-50 M BP SME C276 87-016-280-080 CAP,E 3.3-50 M BP SME CN204 8A-CH4-687-010 CONN,4P V 2.5 CNA203 8A-CH4-628-010 CONN ASSY,5P MA-HP J251 87-A60-569-010 JACK,HTJ-035-18
KEY C.B
CN605 87-A60-109-010 CONN,2P V S2M-2W S614 87-A91-704-080 SW,TACT EVQ 214 05R S615 87-A91-704-080 SW,TACT EVQ 214 05R
BATT1 C.B
C901 87-018-205-080 CAP, CERA-SOL 0.022 C902 87-018-205-080 CAP, CERA-SOL 0.022 C903 87-018-205-080 CAP, CERA-SOL 0.022 C904 87-018-205-080 CAP, CERA-SOL 0.022 CNA901 8A-CD9-627-010 CONN ASSY,3P PWR
F901 87-035-347-010 FUSE,2.5A 250 VT
!
FC901 87-033-213-010 CLAMP,FUSE SMK
!
FC902 87-033-213-010 CLAMP,FUSE SMK
!
PT901 8A-CH4-668-010 PT,H
! !
SW901 87-A91-369-010 SW,AC SL 2 2 2 SDKGA41700
BATT2 C.B
SP C.B
CNA204 8A-CH4-633-010 CONN ASSY,4P SP
MOTOR C.B
 5 
WIRING – 1 (MAIN / CD)
101112131415161718192021222324
1234567892526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 6 –
R
S
T
U
SCHEMATIC DIAGRAM - 1 (MAIN / CD (1/2) / H.P / KEY / BATT1 / BATT2 / SP)
– 7 –
SCHEMATIC DIAGRAM - 2 (CD (2/2))
– 8 –
WIRING – 2 (FRONT / H.P / KEY / BATT1 / BATT2 / SP)
101112131415161718192021222324
1234567892526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 9 –
R
S
T
U
SCHEMATIC DIAGRAM - 3 (FRONT)
– 10 –
WIRING – 3 (TUNER)
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 11 –
R
S
T
U

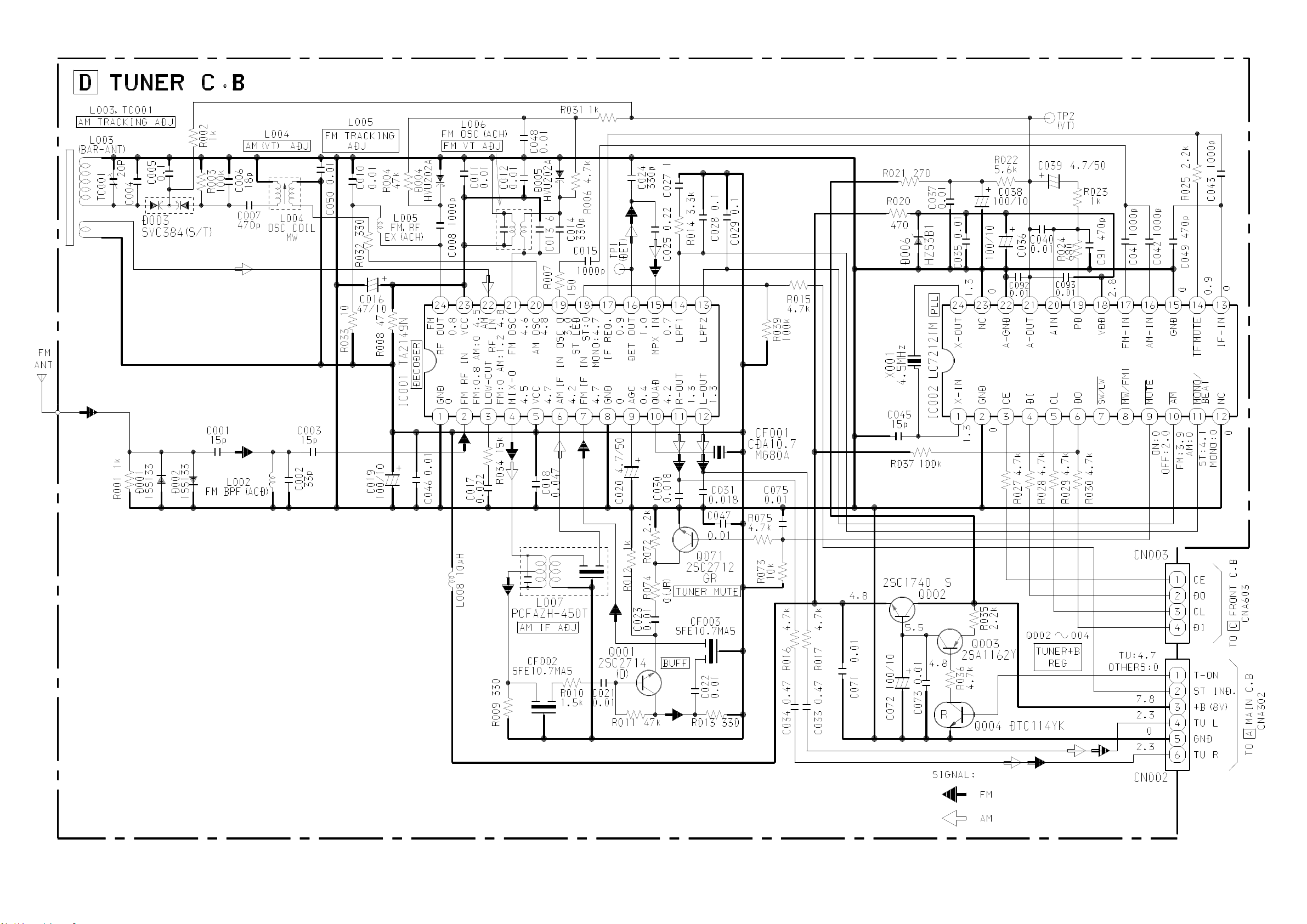

SCHEMATIC DIAGRAM - 4 (TUNER)
– 12 –
WIRING – 4 (MOTOR)
123456789101112131415
A
J MOTOR C. B
M2
M2
(SLED MOTOR)
SW1
PIN3
6 5 3 1
TO B CD C.B
CNA402
M1
(SPINDLE MOTOR)
SW1
(INSIDE LIMIT SWITCH)
B
C
M1
D
E
F
G
H
I
J
LD
FOCUS/TRACKING
COIL
CD PICK UP ASSY
K
L
PDIC
M
N
O
P
Q
R
S
SHORT
LAND
11 9 7 5 3
TO B CD C.B CN401
– 13 –
11315
21416 12 10 8 6 4
T
U

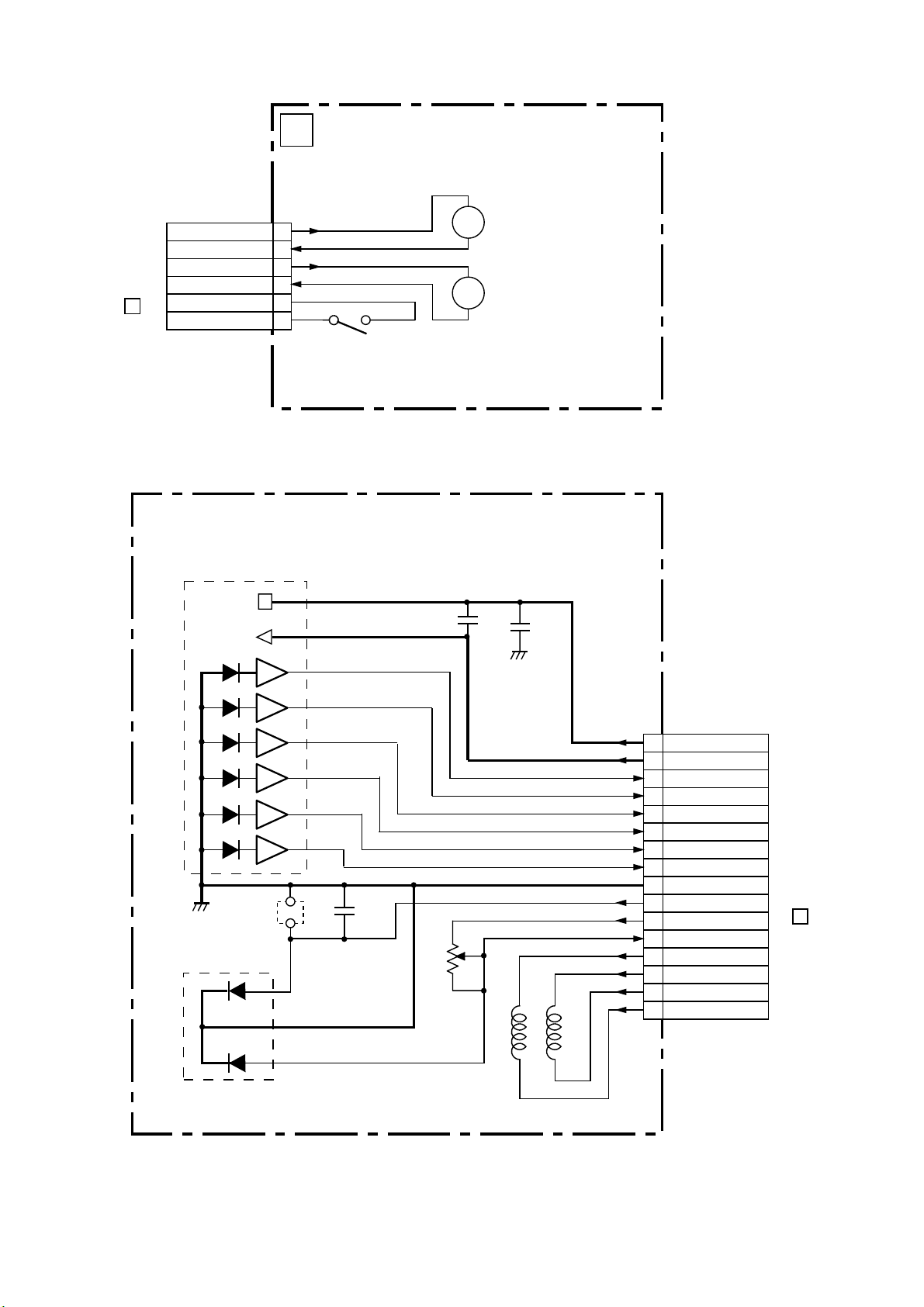

SCHEMATIC DIAGRAM - 5 (MOTOR)
J MOTOR C.B
PIN3
1 2 3 4 5 6
SW1
SW1
(INSIDE LIMIT SW)
(INSIDE LIMIT SW)
CNA402
TO B CD C.B (2/2)
SPINDLE +
SPINDLE -
SLED +
SLED ­LIMIT SW LIMIT SW
CD PICK-UP ASSY
PDIC
+2.5V
+5V
M
(SPINDLE MOTOR)
M
C1
M1
M2
(SLED MOTOR)
C2
SHORT
LAND
LD
C3
SFR1
TRACKING
FOCUSING
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
VREF
VCC (5V)
GND
FOCUS -
TRACKING -
TRACKING +
FOCUS +
E
D
A B
C
F
LD VR PD
CNA402
TO B CD C.B (2/2)
– 14 –
MECHANICAL EXPLODED VIEW 1 / 1
11
12
35
34
33
32
31
P. C . B
49
A
C
C
44
D
53
42
45
52
46
I
P. C . B
P. C . B
E
50
47
C
C
J
50
36
40
58
38
A
41
P. C . B
43
H
15
16
I
57
P. C . B
37
39
A
A
A
A
12
CMS-B31TG6
30
28
29
10
B
B
26
A
A
GRILLE TW,L
13
PLATE
5
4
1
17
B
GRILLE FR,L
27
25
22
A
16
6
3
2
23
19
21
15
18
8
GRILLE FR,R
7
24
H
54
D
TN-51RV-240
53
A
12
H
A
A
48
P. C . B
20
A
14
GRILLE TW,R
B
A
13
PLATE
A
12
A
55
F
PLATE
F
PLATE
51
A
7
P. C . B
F
A
F
F
56
A
P. C . B
9
G
CSD-FD93 HTNCC (FileName:EXP.EPS) 2000/8/5 ACH-R
11
– 15 –
MECHANICAL PARTS LIST 1 / 1
PART NO.
NO.
1 8A-CH4-126-010 WINDOW,CASS RV 2 8A-CH4-205-010 SPR-T,CASS 3 8A-CHE-007-010 BOX,CASS HI 4 8A-CHR-117-010 WINDOW,LCD LH R 5 87-B00-010-010 BADGE,AIWA 30.5-5.2 S 2.5L
6 8A-CH4-009-010 PANEL,LCD 7 86-CT4-218-010 CUSHION,FOOT/PORON 8 8A-CHR-101-010 CABI,FR R ASSY 9 8A-CH4-208-010 SPR-P,REC 8K 10 88-CH6-019-010 PANEL,CD
11 8A-CH4-681-010 SPKR,10- 3.2OHM 12 8Z-CH4-204-010 HLDR,SPEAKER 13 8Z-CH4-645-010 SPKR,MAYLOR 8OHM SILVER 14 8A-CH4-103-010 PANEL,TW R ASSY 15 84-CD5-215-010 GEAR
16 84-CD5-216-010 BRACKET 17 8A-CH4-102-010 PANEL,TW L ASSY 18 8A-CH4-030-010 CAP, STOP 19 8A-CH4-029-010 CAP, PLAY 20 8A-CH4-022-010 BTN,PLAY
21 8A-CH4-027-010 BTN,BASS 22 8A-CH4-024-010 BTN,EQ 23 8A-CH4-028-010 BTN,SOUND 24 8A-CH4-201-010 HLDR,LCD 25 8A-CH4-034-010 LENS,FUNC
26 8A-CH4-025-010 BTN,FUNC 27 8A-CH4-033-010 CAP, REPEAT 28 8A-CH4-032-010 CAP, REW 29 8A-CH4-031-010 CAP, FF 30 8A-CH4-023-010 BTN,SKIP
31 8Z-CH4-212-010 RING,CHUCK 32 8Z-CH4-211-010 BASE,CHUCK 33 87-036-368-010 MAGNET 34 84-CD5-217-010 PLATE,MAGNET 35 85-CD7-217-010 HLDR,CHUCK A
DESCRIPTIONREF. NO. KANRI
PART NO.
36 8A-CHR-122-010 BOX,CD HE R 37 8A-CH4-204-010 SPR-T,CD 38 87-036-389-010 SW,PUSH LOCK 39 8A-CH4-004-010 CHAS,CD 8K 40 8A-CH4-206-010 HLDR,OIL-DMPR
41 8A-CH4-026-010 BTN,VOL 42 8A-CH4-018-010 HANDL,GRIP 43 8A-CH4-019-010 COVER, HANDL
!
44 87-A90-086-010 COVER,AC-SOCKET
!
45 87-A60-178-010 JACK,AC E W/SW
46 8A-CHR-002-010 CABI,REAR R 47 8Z-CH4-640-010 ANT,ROD 48 8A-CD9-620-010 FF-CABLE, 16P FR-MAIN 49 8A-CHE-011-010 LID,BATT HI 50 87-CD6-213-010 SPR-C,BATT (-)
51 8A-CH4-210-010 HLDR,ANT
!
52 8A-CH4-668-010 PT,H 53 8A-CH4-211-010 COVER, HLDR PT 54 8A-CH4-209-010 HLDR,PT 55 8A-CH4-021-010 KEY,CASS 8K
56 8A-CH4-203-010 HLDR,TU 57 8A-CD9-622-010 FF-CABLE, 8P CD-FR 58 8A-CD9-621-010 FF-CABLE, 16P CD-RF A 87-741-096-410 UT2+3-10 B 87-342-074-010 UT2+2.6-8
C 87-741-100-410 UT2+3-16(W/O) SLOT D 87-661-100-410 VFT1+3-16 E 87-067-566-010 TAPPING SCREW, VFTT+3-6 F 87-741-095-410 UT2+3-8 GLD G 87-571-032-410 VIT+2-3
H 87-B10-239-010 QT2+3-8 W/O CR I 87-751-075-410 VT2+2.6-10 J 87-744-095-410 UT2+3-8CR
NO.
DESCRIPTIONREF. NO. KANRI
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
– 16 –
CD MECHANISM EXPLODED VIEW 1 / 1
1
6
7
5
2
4
A
9
CD MECHANISM PARTS LIST 1 / 1
13
P.C.B
3
8
10
PART NO.
NO.
1 M8-ZZK-L90-070 CMS-B31TG6 2 SJ-660-060-1G0 COVER GEAR 3 SJ-660-060-1D0 GEAR(A) 4 SJ-660-060-1B0 GEAR(B) 5 SJ-660-060-1F0 GEAR(C)
6 SJ-700-060-1A0 SHAFT UP 7 SJ-750-060-1F0 PICKUP ASSY 8 SJ-310-060-1A0 MOTOR FEED 9 S4-090-001-740 SW,LEAF 10 SJ-370-060-1A0 CONN,WAFER
A SJ-600-060-1O0 SCREW-PH(+M2+3)
DESCRIPTIONREF. NO. KANRI
– 17 –
211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111
Printed in Singapore9301978 0251431
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
