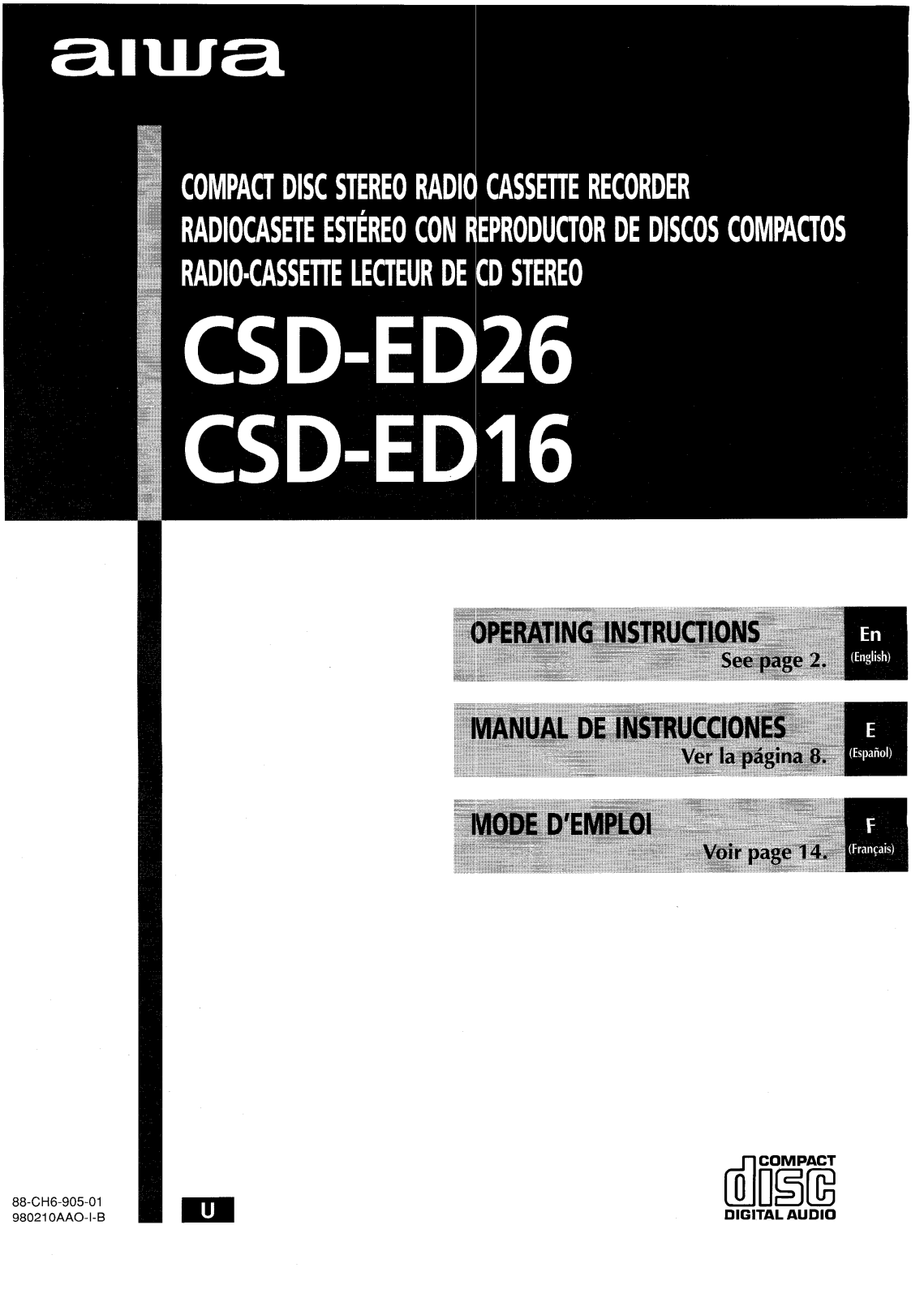

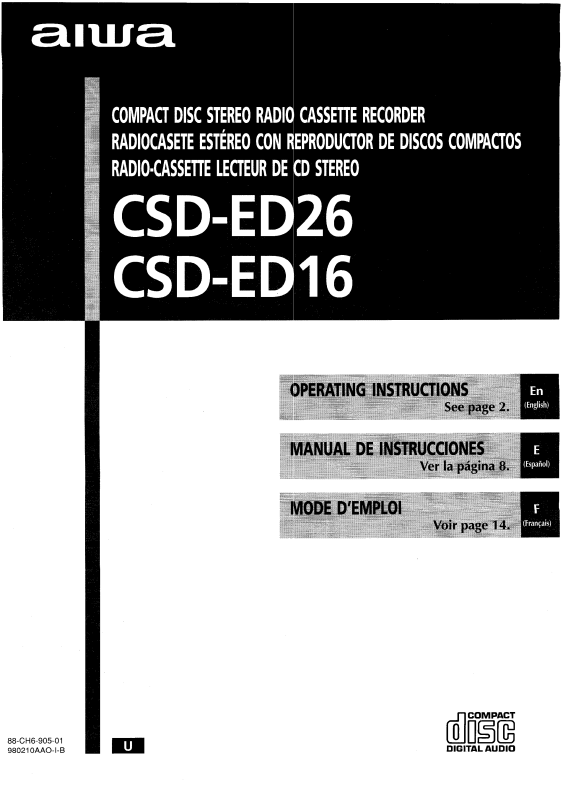

Aiwa CSD-ED16, CSD-ED26 Operating Instruction
88-CH6-905-01
98021 OAAO-I-B
Im

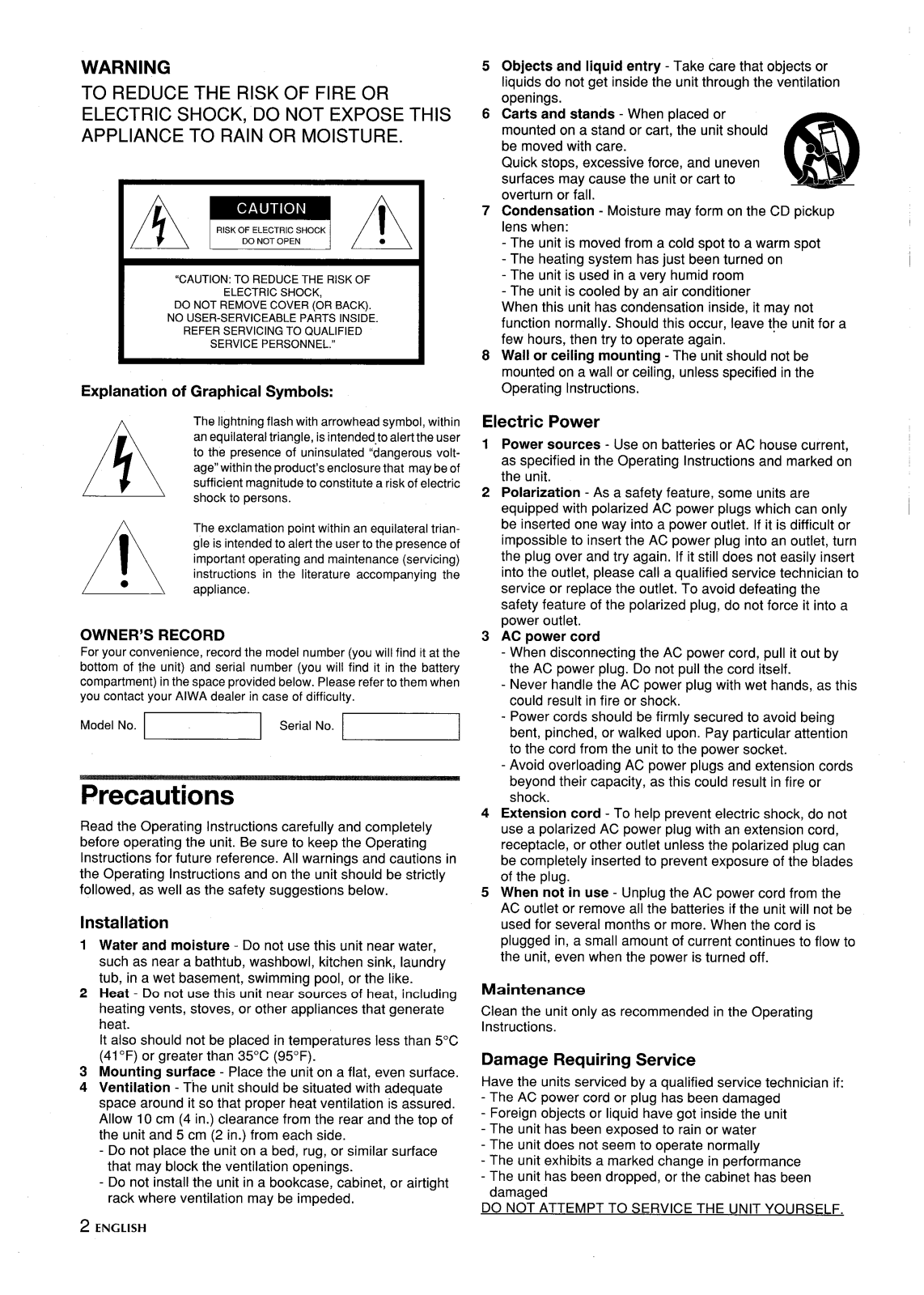

WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
A=A
“CAUTION: TO REDUCE THE RISK OF
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
Explanation of Graphical Symbols:
ELECTRIC SHOCK,
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
5
Objects and liquid entry - Take care that objects or
liquids do not get inside the unit through the ventilation
openings.
6
Carts and stands - When placed or
mounted on a stand or cart, the unit should
be moved with care.
Quick stops, excessive force, and uneven
surfaces may cause the unit or cart to
overturn or fall.
7
Condensation - Moisture may form on the CD pickup
lens when:
- The unit is moved from a cold spot to a warm spot
- The heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not
function normally. Should this occur, leave the unit for a
few hours, then try to operate again.
Wall or ceiling mounting - The unit should not be
8
mounted on a wall or ceiling, unless specified in the
Operating Instructions.
(
&
~
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intendedto alert the user
to the presence of uninsulated “dangerousvoltage” within the product’s enclosure that may be of
A
●
A
OWNER’S RECORD
For your convenience, record the model number (you will find it at the
bottom of the unit) and serial number (you will find it
compartment) in the space provided below. Please refer to them when
you contact your AIWA dealer
‘odel”o ~ ‘erial”o ~
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
in the battery
in case of difficulty.
Precautions
Read the Operating Instructions carefully and completely
before operating the unit. Be sure to keep the Operating
Instructions for future reference. All warnings and cautions in
the Operating Instructions and on the unit should be strictly
followed, as well as the safety suggestions below.
Installation
Water and moisture - Do not use this unit near water,
1
such as near a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement, swimming pool, or the Iike.
Heat - Do not use this unit near sources of heat, including
2
heating vents, stoves, or other appliances that generate
heat.
It also should not be placed in temperatures less than 5°C
(41 “F) or greater than 35°C (95°F).
Mounting surface - Place the unit on a flat, even surface.
3
Ventilation - The unit should be situated with adeauate
4
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of
the unit and 5 cm (2 in.) from each side.
- Do not place the unit on a bed, rug, or similar surface
that may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight
rack where ventilation may be impeded.
2 ENGLISH
Electric Power
Power sources - Use on batteries or AC house current,
1
as specified in the Operating Instructions and marked on
the unit.
Polarization - As a safety feature, some units are
2
equipped with polarized AC power plugs which can only
be inserted one way into a power outlet. If it is difficult or
impossible to insert the AC power plug into an outlet, turn
the plug over and try again. If it still does not easily insert
into the outlet, please call a qualified service technician to
service or replace the outlet. To avoid defeating the
safety feature of the polarized plug, do not force it into a
power outlet.
AC power cord
3
- When disconnecting the AC power cord, pull it out by
the AC power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this
could result in fire or shock.
- Power cords should be firmly secured to avoid being
bent, pinched, or walked upon. Pay particular attention
to the cord from the unit to the Dower socket.
- Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or
shock.
4
Extension cord - To help prevent electric shock, do not
use a polarized AC power plug with an extension cord,
receptacle, or other outlet unless the polarized plug can
be completely inserted to prevent exposure of the blades
of the plug.
5
When not in use - Unplug the AC power cord from the
AC outlet or remove all th; batteries if the unit will not be
used for several months or more. When the cord is
plugged in, a small amount of current continues to flow to
the unit, even when the power is turned off.
Maintenance
Clean the unit only as recommended in the Operating
Instructions.
Damage Requiring Service
Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or liquid have got inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been
damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

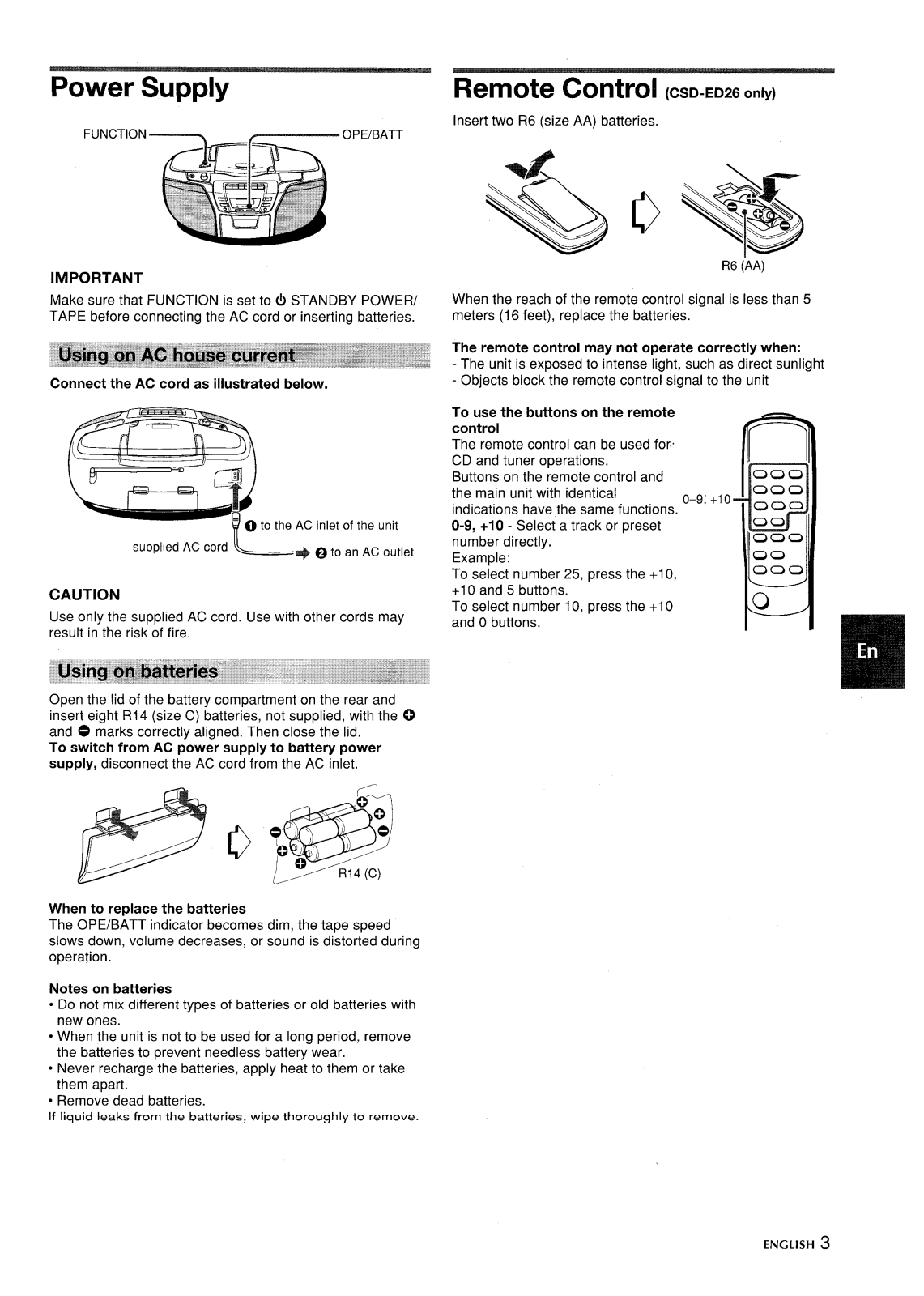

Power Supply
R(emote control (CSD-ED26 O~iy)
FUNCTION_
IMPORTANT
Make sure that FUNCTION is set to (!) STANDBY POWER/
TAPE before connecting the AC cord or inserting batteries.
Connect the AC cord as illustrated below.
supplied AC cord ~+ ~ to an AC outlet
CAUTION
Use only the supplied AC cord. Use with other cords may
result in the risk of fire,
— OPE/BATT
to the AC inlet of the unit
Ins[?rt two R6 (size AA) batteries.
R6 (AA)
When the reach of the remote control signal is less than 5
meters (16 feet), replace the batteries.
The! remote control may not operate correctly when:
- Tble unit is exposed to intense light, such as direct sunlight
- Objects block the remote control signal to the unit
To use the buttons on the remote
control
The remote control can be used for.
CD and tuner operations.
Buttons on the remote control and !
the main unit with identical
indications have the same functions.
0-9, +10 - Select a track or preset
number directly.
Example:
To select number 25, press the +1O,
+1Oand 5 buttons.
To select number 10, press the +10
and O buttons.
0–9; +10
I 000
U
Itil
000
00
000
00
000
H
1!m
Open the lid of the battery compartment on the rear and
insert eight RI 4 (size C) batteries, not supplied, with the C)
O marks correctly aligned. Then close the lid,
and
To switch from AC power supply to battery power
supply, disconnect the AC cord from the AC inlet.
When to replace the batteries
The OPE/BATT indicator becomes dim, the tape speed
slows down, volume decreases, or sound is distorted during
operation.
Notes on batteries
● Do not mix different types of batteries or old batteries with
new ones.
● When the unit is not to be used for a long period, remove
the batteries to prevent needless battery wear.
● Never recharge the batteries, apply heat to them or take
them apart.
● Remove dead batteries.
If liquid leaks from the batteries, wipe thoroughly to remove.
ENGLISH 3
