Aiwa CDC-MP33R Service Manual

CDC-MP33R

YZ

SERVICE MANUAL

STEREO CAR CD RECEIVER

• This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
CDC-MP33R <YZ>, (S/M Code No. 09-014-444-3T1).

BASIC CD MECHANISM : CDC02AW1

S/M Code No. 09-017-444-3R1

REVISION

DATA

SPECIFICATIONS

RADIO SECTION
(FM)
Frequency Range: 87.5 MHz – 108 MHz (50-kHz steps)
Usable Sensitivity: 12.7 dBf
50 dB Quieting Sensitivity: 17.2 dBf
IF Rejection: 80 dB
Frequency Response: 30 Hz – 15,000 Hz
S/N Ratio: 63 dB
Stereo Separation: 35 dB at 1 kHz
Alternate Channel Selectivity: 70 dB
Capture Ratio: 3 dB

(MW)
Frequency Range: 531 kHz – 1,602 kHz (9-kHz steps)
Usable Sensitivity: 30 µV (30 dB)

(LW)
Frequency Range: 144 kHz – 288 kHz (1-kHz/9-kHz steps)
Usable Sensitivity: 30 µV (30 dB)

CD SECTION
Frequency Response: 17 Hz – 20 kHz +0/–3 dB
Dynamic Range: More than 80 dB
Channel Separation: More than 65 dB
S/N Ratio: More than 85 dB
Wow/Flutter: Not applicable
MP3 Decoding: MPEG 1 Audio Layer 3

AUDIO SECTION
Max. Power Output: 50 W x 4 channels

AUX IN input
Input Sensitivity (load impedance) AUX IN: 300 mV (10 kΩ)

GENERAL
Power-Supply Voltage: 14.4 V (11 to 16 V allowable), DC,

negative ground

Load Impedance: 4 Ω
Tone Control: Bass ± 10 dB at 100 Hz, Treble ± 10 dB at 10 kHz
Preamp Output Voltage (load impedance): 2.2 V (10 kΩ)
Installed Size: 182 (W) x 53 (H) x 155 (D) mm

(71/4 (W) x 21/8 (H) x 61/8 (D) inches)

STEERING WHEEL REMOTE CONTROL
Dimensions: Approx. 67 (W) x 26 (H) x 27 (D) mm

(23/4 (W) x 11/16 (H) x 11/8 (D) inches) (excluding holder)
Weight: Approx. 38 g (1.33 oz.) (including holder, battery)

• Design and specifications are subject to change without notice.

– 2 –

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.

WARNING!!

WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC­TIVE LENS ON THE OPTICAL PICK-UP BLOCK.

s Caution: Invisible laser radiation when

open and interlocks defeated avoid
exposure to beam.

s Advarsel: Usynlig laserståling ved åbning,

når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.

CAUTION

Use of controls or adjustments or performance of proce­dures other than those specified herin may result in
hazardous radiation exposure.

ATTENTION

L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.

ADVARSEL

Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT

Precaution to replace Optical block

(KSS-710A)

Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.

1) After the connection, remove solder shown in
right figure.

PICK-UP ASSY PWB

SOLDER

– 3 –

ELECTRICAL MAIN PARTS LIST

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

IC

88-KT1-607-080 C-IC,SAA6579T
8Z-KT1-622-010 C-IC,LC75374E
8B-KCF-616-010 IC,TA8273H
87-A21-532-030 C-IC,LC75817W-8720
87-A90-951-010 RCR UNIT,SBX1971-52

88-KT1-606-080 IC,PST994D
87-A20-712-040 C-IC,BA6417F
8B-KC6-621-030 C-IC,UPD178018AGC-598
87-020-784-080 IC,TC4053BF
87-A21-467-040 C-IC,CXA2581N

87-A21-533-030 C-IC,CXD2587Q
87-A21-161-040 C-IC,BA6392FP
87-A20-712-040 C-IC,BA6417F
87-A21-941-030 C-IC,UT62L1024LC-70LL
87-A21-621-010 C-IC,MAS3507D-G10

87-A21-624-040 C-IC,SN74AHC1G08 DCK
87-A21-599-010 C-IC,LC89513K
87-A21-942-030 C-IC,T15L256A-70P
87-A21-714-030 C-IC,DAC3550A-C2
87-A20-905-040 C-IC,BA033FP

87-A21-190-040 C-IC,PQ20WZ1U
87-A21-728-040 C-IC,SN74LVC07A
87-A22-017-030 C-IC,UPD784216AYGC-110-8EU

TRANSISTOR

87-A30-287-040 C-TR,DTC114TKA
87-A30-289-040 C-TR,2SA1037AK(R)
89-324-122-040 C-TR,2SC2412KR
87-A30-283-040 C-TR,DTA114YKA
87-A30-288-040 C-TR,DTC114YKA

87-A30-290-010 TR,KTA1658(Y)
86-NFZ-664-040 C-TR,DTC143TKA
87-A30-291-010 TR,KTC4369(Y)
89-418-580-080 TR,2SD1858TV2
89-423-952-010 TR,2SD2395E

87-A30-248-040 C-TR,2SB1197KQ
87-A30-011-080 C-TR,DTB113ZK
87-A30-273-040 C-TR,DTC124EKA
87-A30-455-040 C-TR,DTA144EKA

DIODE

87-A40-250-040 C-DIODE,DAN217
87-070-136-080 ZENER,MTZJ5.1B
87-020-331-040 C-DIODE,DAN202K
87-A40-817-040 C-ZENER,STZ6.8N
87-001-783-080 DIODE,1N4002

87-A40-798-010 DIODE,1N5402 (3A/200V)
87-A40-624-080 ZENER,MTZJ10A
87-A40-509-080 ZENER,MTZJ6.8C
87-020-330-040 C-DIODE,DAP202K
87-A40-620-080 ZENER,MTZJ6.2A

MAIN C.B

ANT101 8Z-KT1-614-010 ANT,AW-002
C101 87-012-274-080 C-CAP,U 1000P-50 K B
C102 87-012-286-080 C-CAP,U 0.01-25 K B
C103 87-012-282-080 C-CAP,U 4700P-50 K B
C104 87-010-498-040 CAP,E 10-16 M 5L SRE

C105 87-010-787-080 CAP,U 0.022-25 K B
C106 87-010-787-080 CAP,U 0.022-25 K B
C107 87-012-274-080 C-CAP,U 1000P-50 K B
C108 87-010-787-080 C-CAP,U 0.022-25 K B
C109 87-010-831-080 C-CAP,U 0.1-16 Z F

C110 87-012-281-080 C-CAP,U 3900P-50 B
C111 87-012-286-080 C-CAP,U 0.01-25 K B
C112 87-010-831-080 C-CAP,U 0.1-16 Z F
C114 87-010-831-080 C-CAP,U 0.1-16 Z F

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

C115 87-010-831-080 C-CAP,U 0.1-16 Z F
C116 87-010-495-040 CAP,E 2.2-50 M 5L SRE
C117 87-012-286-080 C-CAP,U 0.01-25 K B
C118 87-012-278-080 C-CAP,U 2200P-50 K B
C119 87-010-490-040 CAP,E 0.1-50 M 5L MA

C120 87-012-282-080 C-CAP,U 4700P-50 K B
C121 87-012-278-080 C-CAP,U 2200P-50 K B
C122 87-012-274-080 C-CAP,U 1000P-50 K B
C123 87-012-286-080 C-CAP,U 0.01-25 K B
C125 87-010-786-080 C-CAP,U 0.018-25 K B GRM

C126 87-010-786-080 C-CAP,U 0.018-25 K B GRM
C127 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C128 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C151 87-012-336-080 C-CAP,U 330P-50 J SL
C152 87-010-495-040 CAP,E 2.2-50 M 5L SRE

C153 87-012-271-080 C-CAP,U 560P-50 K B
C154 87-010-787-080 C-CAP,U 0.022-25 K B
C155 87-012-182-080 C-CAP,U 27P-50 J CH
C156 87-012-183-080 C-CAP,U 30P-50 J CH
C157 87-010-831-080 C-CAP,U 0.1-16 Z F

C158 87-010-553-040 CAP,E 47-16 M 5L SRE
C301 87-010-497-040 CAP,E 4.7-35 M 5L SRE
C302 87-010-497-040 CAP,E 4.7-35 M 5L SRE
C303 87-010-494-040 CAP,E 1-50 M 5L SRE
C304 87-010-494-040 CAP,E 1-50 M 5L SRE

C305 87-012-280-080 C-CAP,U 3300P-50 K B
C306 87-012-280-080 C-CAP,U 3300P-50 K B
C307 87-010-787-080 C-CAP,U 0.022-25 K B
C308 87-010-787-080 C-CAP,U 0.022-25 K B
C309 87-010-494-040 CAP,E 1-50 M 5L SRE

C310 87-010-494-040 CAP,E 1-50 M 5L SRE
C311 87-A12-308-080 C-CAP,S 0.15-25 K B
C312 87-A12-308-080 C-CAP,S 0.15-25 K B
C313 87-A12-308-080 C-CAP,S 0.15-25 K B
C314 87-A12-308-080 C-CAP,S 0.15-25 K B

C315 87-010-494-040 CAP,E 1-50 M 5L SRE
C316 87-010-494-040 CAP,E 1-50 M 5L SRE
C317 87-010-831-080 C-CAP,U,0.1-16 Z F
C318 87-010-498-040 CAP,E 10-16 M 5L SRE
C321 87-010-555-040 CAP,E 100-10 M 5L SRE

C322 87-010-787-080 C-CAP,U 0.022-25 K B
C323 87-010-498-040 CAP,E 10-16 M 5L SRE
C324 87-010-498-040 CAP,E 10-16 M 5L SRE
C325 87-010-498-040 CAP,E 10-16 M 5L SRE
C326 87-010-498-040 CAP,E 10-16 M 5L SRE

C341 87-010-491-040 CAP,E 0.22-50 M 5L SRE
C342 87-010-491-040 CAP,E 0.22-50 M 5L SRE
C401 87-010-494-040 CAP,E 1-50 M 5L SRE
C402 87-A10-369-080 C-CAP,S 0.47-16 K B
C403 87-A10-369-080 C-CAP,S 0.47-16 K B

C405 87-010-759-080 C-CAP,U 0.1-25 Z F
C406 87-010-759-080 C-CAP,U 0.1-25 Z F
C407 87-010-494-040 CAP,E 1-50 M 5L SRE
C408 87-010-494-040 CAP,E 1-50 M 5L SRE
C409 87-010-494-040 CAP,E 1-50 M 5L SRE

C410 87-010-494-040 CAP,E 1-50 M 5L SRE
C423 87-010-497-040 CAP,E 4.7-35 M 5L SRE
C424 87-010-497-040 CAP,E 4.7-35 M 5L SRE
C425 87-010-497-040 CAP,E 4.7-35 M 5L SRE
C426 87-010-497-040 CAP,E 4.7-35 M 5L SRE

C427 87-012-270-080 C-CAP,U 470P-50 K B
C428 87-012-270-080 C-CAP,U 470P-50 K B
C429 87-012-270-080 C-CAP,U 470P-50 K B
C430 87-012-270-080 C-CAP,U 470P-50 K B
C451 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB

C452 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C453 87-010-831-080 C-CAP,U 0.1-16 Z F
C454 87-012-286-080 C-CAP,U 0.01-25 K B
C461 87-010-787-080 C-CAP,U 0.022-25 K B
C501 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB

– 4 –

PART NO. DESCRIPTIONREF. NO. KANRI

C502 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C503 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C504 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C505 87-012-270-080 C-CAP,U 470P-50 K B
C506 87-012-270-080 C-CAP,U 470P-50 K B

C507 87-012-270-080 C-CAP,U 470P-50 K B
C508 87-012-270-080 C-CAP,U 470P-50 K B
C510 87-010-498-040 CAP,E 10-16 M 5L SRE
C515 8A-KC7-623-000 CAP,E 2200-16 125 BT
C516 87-012-368-080 C-CAP,S 0.1-50 Z F

C517 87-012-368-080 C-CAP,S 0.1-50 Z F
C519 87-010-494-040 CAP,E 1-50 M 5L SRE
C522 87-012-368-080 C-CAP,S 0.1-50 Z F
C701 87-012-278-080 C-CAP,U 2200P-50 K B
C704 87-012-368-080 C-CAP,S 0.1-50 Z F

C705 87-012-278-080 C-CAP,U 2200P-50 K B
C706 87-010-553-040 CAP,E 47-16 M 5L SRE
C707 87-010-787-080 C-CAP,U 0.022-25 K B
C708 87-010-553-040 CAP,E 47-16 M 5L SRE
C709 87-010-759-080 C-CAP,U 0.1-25 Z F

C713 87-010-759-080 C-CAP,U 0.1-25 Z F
C714 87-010-787-080 C-CAP,U 0.022-25 K B
C715 87-010-759-080 C-CAP,U 0.1-25 Z F
C716 87-010-759-080 C-CAP,U 0.1-25 Z F
C717 87-010-759-080 C-CAP,U 0.1-25 Z F

C718 87-010-759-080 C-CAP,U 0.1-25 Z F
C719 87-010-759-080 C-CAP,U 0.1-25 Z F
C720 87-010-787-080 C-CAP,U 0.022-25 K B
C723 87-010-759-080 C-CAP,U 0.1-25 Z F
C725 87-010-553-040 CAP,E 47-16 M 5L SRE

C751 87-012-368-080 C-CAP,S 0.1-50 Z F
C752 87-012-368-080 C-CAP,S 0.1-50 Z F
C753 87-012-368-080 C-CAP,S 0.1-50 Z F
C754 87-010-553-040 CAP,E 47-16 M 5L SRE
C901 87-016-039-090 CAP,DL 0.022F-5.5 Z 70 FM

C902 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C903 87-010-831-080 C-CAP,U 0.1-16 Z F
C904 87-010-787-080 C-CAP,U 0.022-25 K B
C905 87-012-180-080 C-CAP,U 22P-50 J CH
C906 87-012-182-080 C-CAP,U 27P-50 J CH

C907 87-010-831-080 C-CAP,U 0.1-16 Z F
C908 87-012-282-080 C-CAP,U 4700P-50 K B
C909 87-012-274-080 C-CAP,U 1000P-50 K B
C910 87-012-195-080 C-CAP,U 100P-50 J CH
C911 87-012-195-080 C-CAP,U 100P-50 J CH

C912 87-010-787-080 C-CAP,U 0.022-25 K B
C913 87-010-787-080 C-CAP,U 0.022-25 K B
C914 87-010-831-080 C-CHIP,U 1000P-50 K B
C915 87-012-274-080 C-CAP,U 1000P-50 K B
C916 87-010-787-080 C-CAP,U 0.022-25 K B

CON401 87-A61-219-010 CONN,20P H 52089-2020
CON402 87-A61-584-010 CONN,24P H 52089-2420
CON403 87-A61-583-010 CONN,16P H 52089-1620
CON701 8A-KT1-646-010 CONN ASSY,8P ISO-WHITE-B
CON702 8A-KT1-645-010 CONN ASSY,8P ISO-BLACK-B

CON751 87-A60-670-010 CONN,6P H 2MM JMT
F701 8Z-KC1-621-010 FUSE,15A 32V

!

FFC401 88-KC4-641-010 FF-CABLE,20P 1.0 90MM
FFC651 8B-KC1-603-010 F-CABLE,2P (PWB LED)
J401 87-A61-224-110 JACK,PIN 4P XR-401

J402 8A-KC7-620-010 JACK,DIN 13 P SKDS1302
L101 87-003-143-080 COIL,4.7UH K LAL02
L102 8Z-KT1-619-010 COIL,68MH K7-D
L401 87-003-102-080 COIL,10UH J LAL02
L402 87-003-102-080 COIL,10UH J LAL02

L403 87-003-102-080 COIL,10UH J LAL02
L701 8B-KCF-615-010 FLTR,AMORPHOUS -CHOKE
L702 87-003-149-080 COIL,47UH J LAL02
L703 87-003-050-080 COIL,47UH K LAL04
SFR101 87-024-437-080 SFR,100K H RH063MC

NO.

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

TU101 8B-KC3-620-010 TU UNIT, FAE347-E21
X151 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309
X901 87-A70-175-010 VIB,XTAL 4.5MHZ AT-49

DISP C.B

C602 87-010-831-080 C-CAP,U 0.1-16 Z F
C603 87-010-831-080 C-CAP,U 0.1-16 Z F
C604 87-A10-504-080 C-CAP,U 0.047-16 K B
C605 87-012-199-080 C-CAP,U 220P-50 J CH
C606 87-A10-504-080 C-CAP,U 0.047-16 K B

C607 87-A10-504-080 C-CAP,U 0.047-16 K B
C608 87-A10-504-080 C-CAP,U 0.047-16 K B
C609 87-A10-504-080 C-CAP,U 0.047-16 K B
C610 87-010-805-080 C-CAP,S 1-16 Z F
C611 87-010-831-080 C-CAP,U 0.1-16 Z F

C612 87-010-831-080 C-CAP,U 0.1-16 Z F
C613 87-012-286-080 C-CAP,U 0.01-25 K B
CON601 87-A61-585-080 C-CONN,24P H 54548-2490
LCD701 8B-KC7-626-010 LCD,BKC-1/7
LED601 87-A91-355-040 C-LED,BR1112H-TR-RED

LED602 87-A91-355-040 C-LED,BR1112H-TR-RED
LED603 87-A91-355-040 C-LED,BR1112H-TR-RED
LED604 87-A91-355-040 C-LED,BR1112H-TR-RED
SW601 87-A90-001-080 C-SW,TACT SKQMAL
SW602 87-A90-001-080 C-SW,TACT SKQMAL

SW603 87-A90-001-080 C-SW,TACT SKQMAL
SW604 87-A90-001-080 C-SW,TACT SKQMAL
SW605 87-A90-001-080 C-SW,TACT SKQMAL
SW620 87-A90-001-080 C-SW,TACT SKQMAL

KEY C.B

C621 87-010-831-080 C-CAP,U 0.1-16 Z F
CON603 87-A61-586-080 C-CONN,16P V FLZT-SM1
L601 87-005-906-080 C-COIL,S 10.0UH K LK2125
L602 87-005-906-080 C-COIL,S 10.0UH K LK2125
L603 87-005-906-080 C-COIL,S 10.0UH K LK2125

LED611 87-A91-355-040 C-LED,BR1112H-TR-RED
LED612 87-A91-355-040 C-LED,BR1112H-TR-RED
LED613 87-A91-355-040 C-LED,BR1112H-TR-RED
LED614 87-A91-355-040 C-LED,BR1112H-TR-RED
LED615 87-A91-355-040 C-LED,BR1112H-TR-RED

LED616 87-A91-355-040 C-LED,BR1112H-TR-RED
LED617 87-A91-355-040 C-LED,BR1112H-TR-RED
LED618 87-A41-096-010 LED,E1L31-3B0A2 BLU
LED619 87-A40-813-240 C-LED,SEC1E01C BLU
LED620 87-A40-813-240 C-LED,SEC1E01C BLU

LED621 87-A40-813-240 C-LED,SEC1E01C BLU
LED622 87-A40-813-240 C-LED,SEC1E01C BLU
LED625 87-A91-355-040 C-LED,BR1112H-TR-RED
LED626 87-A91-355-040 C-LED,BR1112H-TR-RED
SW606 87-036-220-080 C-SW,TACT SKQDAA

SW607 87-036-220-080 C-SW,TACT SKQDAA
SW608 87-036-220-080 C-SW,TACT SKQDAA
SW609 87-036-220-080 C-SW,TACT SKQDAA
SW610 87-036-220-080 C-SW,TACT SKQDAA
SW611 87-036-220-080 C-SW,TACT SKQDAA

SW612 87-036-220-080 C-SW,TACT SKQDAA
SW613 87-036-220-080 C-SW,TACT SKQDAA
SW614 87-036-220-080 C-SW,TACT SKQDAA
SW615 87-036-220-080 C-SW,TACT SKQDAA
SW616 87-036-220-080 C-SW,TACT SKQDAA

SW617 87-036-220-080 C-SW,TACT SKQDAA
SW618 87-036-220-080 C-SW,TACT SKQDAA

SENS C.B

CNA751 8B-KC7-617-010 CONN ASSY,6P EMP
FFC671 8B-KC7-618-010 F-CABLE,2P MOT
M601 87-A91-054-010 MOT,FF-050SK

– 5 –

PART NO.

NO.

PS671 87-A92-061-080 C-SNSR,GP1S092 HCPI
SW671 87-A92-039-080 C-SW,PUSH ESE22MH24XQ

AUX C.B

FFC601 8B-KC1-602-010 F-CABLE,4P (AUX-W/S)
J601 87-A60-925-010 JACK,3.6 BLK ST W/SW

LED L C.B

LED605 87-A41-085-010 LED,NSPW315BS WHT

LED R C.B

LED606 87-A41-085-010 LED,NSPW315BS WHT

LED C.B

LED651 87-A40-228-040 LED,SLR-342MG T31 GREEN

FLEX KEY C.B

8B-KC7-612-010 PWB,FLEX KEY

FLEX DISP C.B

8B-KC7-611-010 PWB,FLEX DISP

CD C.B

C0601 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0602 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0603 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0604 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0605 87-012-274-080 C-CAP,U 1000P-50 K B

C0606 87-012-274-080 C-CAP,U 1000P-50 K B
C0621 87-010-880-080 C-CAP,E 47-6.3 M MF
C0622 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0623 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0624 87-A10-263-080 C-CAP,U 0.1-16 Z F

C0625 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0626 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0627 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0628 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0629 87-A10-263-080 C-CAP,U 0.1-16 Z F

C0630 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0631 87-010-880-080 C-CAP,E 47-6.3 M MF
C0651 87-016-287-080 C-CAP,TN 3.3-6.3 M
C0652 87-012-286-080 C-CAP,U 0.01-25 K B
C0653 87-010-880-080 C-CAP,E 47-6.3 M MF

C0654 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0655 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0656 87-012-178-080 C-CAP,U 18P-50 J CH
C0657 87-012-178-080 C-CAP,U 18P-50 J CH
C0658 87-A10-263-080 C-CAP,U 0.1-16 Z F

C0659 87-016-317-080 C-CAP,TN 2.2-6.3 M
C0660 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0661 87-010-880-080 C-CAP,E 47-6.3 M MF
C0662 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0663 87-012-271-080 C-CAP,U 560P-50 K B

C0664 87-012-271-080 C-CAP,U 560P-50 K B
C0665 87-012-193-080 C-CAP,U 82P-50 J CH
C0666 87-012-193-080 C-CAP,U 82P-50 J CH
C0667 87-012-335-080 C-CAP,U 270P-50 J SL
C0668 87-012-335-080 C-CAP,U 270P-50 J SL

C0669 87-012-274-080 C-CAP,U 1000P-50 K B
C0670 87-012-274-080 C-CAP,U 1000P-50 K B
C0803 87-A10-711-080 C-CAP,E 100-6.3 M MF
C0804 87-012-274-080 C-CAP,U 1000P-50 K B
C0805 87-A10-260-080 C-CAP,U 0.1-16 K B

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

C0806 87-012-280-080 C-CAP,U 3300P-50 K B
C0808 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0809 87-010-880-080 C-CAP,E 47-6.3 M MF
C0811 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0812 87-012-165-080 C-CAP,U 3P-50 C CH

C0813 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0815 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0816 87-010-880-080 C-CAP,E 47-6.3 M MF
C0817 87-010-880-080 C-CAP,E 47-6.3 M MF
C0831 87-012-199-080 C-CAP,U 220P-50 J CH

C0832 87-A10-504-080 C-CAP,U 0.047-16 K B
C0833 87-012-198-080 C-CAP,U 180P-50 J CH
C0834 87-012-199-080 C-CAP,U 220P-50 J CH
C0835 87-016-669-080 C-CAP,S 0.1-25 K B
C0836 87-012-199-080 C-CAP,U 220P-50 J CH

C0837 87-012-280-080 C-CAP,U 3300P-50 K B
C0838 87-A10-504-080 C-CAP,U 0.047-16 K B
C0839 87-010-880-080 C-CAP,E 47-6.3 M MF
C0840 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0841 87-A10-263-080 C-CAP,U 0.1-16 Z F

C0842 87-016-526-080 C-CAP,S 0.47-16 BK
C0843 87-012-198-080 C-CAP,U 180P-50 J CH
C0844 87-012-198-080 C-CAP,U 180P-50 J CH
C0845 87-012-273-080 C-CAP,U 820P-50 K B
C0846 87-012-273-080 C-CAP,U 820P-50 K B

C0847 87-016-563-080 C-CAP,TN 10-10
C0848 87-016-563-080 C-CAP,TN 10-10
C0861 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0871 87-A10-419-080 C-CAP,TN 1-16 A TCF
C0872 87-A10-419-080 C-CAP,TN 1-16 A TCF

C0873 87-016-526-080 C-CAP,S 0.47-16 BK
C0874 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0875 87-A10-260-080 C-CAP,U 0.1-16 K B
C0876 87-A10-260-080 C-CAP,U 0.1-16 K B
C0877 87-010-880-080 C-CAP,E 47-6.3 M MF

C0878 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0879 87-012-274-080 C-CAP,U 1000P-50 K B
C0880 87-010-880-080 C-CAP,E 47-6.3 M MF
C0881 87-A12-424-080 C-CAP,E 220-10 M 4B SE1A221
C0882 87-A10-263-080 C-CAP,U 0.1-16 Z F

C0883 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0884 87-012-274-080 C-CAP,U 1000P-50 K B
C0885 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C0886 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0887 87-A10-263-080 C-CAP,U 0.1-16 Z F

C0888 87-A10-263-080 C-CAP,U 0.1-16 Z F
C0898 87-012-274-080 C-CAP,U 1000P-50 K B
C0899 87-A10-711-080 C-CAP,E 100-6.3 M MF
CN0801 87-A61-125-080 C-CONN,16P H FLZ-SM1-TB
CN0891 87-A61-220-080 C-CONN,20P H 52271-2090

L0621 87-A50-536-080 C-COIL,10UH K LQH3C24
L0622 87-A50-536-080 C-COIL,10UH K LQH3C24
L0651 87-A50-499-080 C-COIL,S 4.7UH K LQG21N
L0652 87-A50-536-080 C-COIL,10UH K LQH3C24
L0801 87-A50-536-080 C-COIL,10UH K LQH3C24

L0802 87-A50-536-080 C-COIL,10UH K LQH3C24
L0831 87-A50-536-080 C-COIL,10UH K LQH3C24
L0832 87-A50-536-080 C-COIL,10UH K LQH3C24
L0833 87-A50-536-080 C-COIL,10UH K LQH3C24
L0871 87-A50-367-080 C-COIL, 10UH LQG21F

L0881 87-A50-536-080 C-COIL,10UH K LQH3C24
S0861 87-A91-627-080 SW,PUSH MPU10372MLBO
X0601 87-A70-266-080 C-VIB,CER 6.25MHZ CSTRC-MG05
X0651 87-A70-267-080 C-VIB,XTAL 14.725MHZ CX-53F
X0831 87-A70-261-080 C-VIB,CER 16.93MHZ CSTCW-MX03T

SENSOR C.B

SW1 S1-100-570-760 SW,LOAD MPU10853MLB2
SW2 S1-100-570-760 SW,LOAD MPU10853MLB2

DESCRIPTIONREF. NO. KANRI

– 6 –

CHIP RESISTOR PART CODE

Chip Resistor Part Coding

88

A

Resistor Code

Chip resistor

Wattage Type Tolerance
1/16W 1005 5% CJ

1/16W
1/10W

1/8W

1608
2125

3216

5%
5%

5%

TRANSISTOR ILLUSTRATION

Symbol

CJ
CJ

CJ

Figure

Value of resistor

Form

L

Dimensions (mm)

t

W

0.55

Resistor Code

108
118

128

LW t

1.0 0.5 0.35 104

1.6 0.8 0.45
2 1.25 0.45

3.2

1.6

: A
: A

B C E

KTA1658(Y)
KTC4369(Y)

B

E

E C B

2SD1858TV2 2SA1037AK(R)

2SB1197KQ
2SC2412KR
DTA114YKA
DTA144EKA

C

DTB113ZK
DTC114TKA
DTC114YKA
DTC124EKA
DTC143TKA

B C E

2SD2395E

– 7 –

BLOCK DIAGRAM (CD / SENSOR)

12CC

12CB

33

41 34

43
44
45

48

IC622

2
3
4

5
8
9

08 DCK

SN74AHC1G

32
CS

HD4

O

31

WR

HD4
50

I
I

VSENS
13

5

VDD

1

30
RD

RS

IC623

HD5

HD6

HD5

HD6

OE

22

ROE

42

43

CLKI

AVDD

IC621

PR

PI19

PI18

1416171819

HD6

HD7

4

SW IC

2

BCK

LRCK

PCMD

27

28

29

LRCK

SDATA

LC89513K

HD7

HRD

535251

54

HD7

IO7

IO3

191513
IO7

A10

CS

21

20

23

RAB

RAA

RCS

MP3 DECODER

MAS3507D-G10

PI17

PI16

PI15

PI14

202122

HD5

HD3

HD2

HD4

XTAL

C2PO

23

242526

BCK

VDD

C2PQ

XTALCK

ROM DECODER

DTEN

VDD

IO0

56

57

55

IO0

IO0

IO2

11

IO3

IO2

IO0

A11

A13

A9

A8

26

24

25

RA9

RA8

RAE

RAD

SII

SOI

PI12

PI13

HD1

22

RESET

IO7
64

IO7

T15L256A-70P

A12

A14

RA7

RAC

C
I2C

I2CD

1816151413

12

XT0

XT1

SCL

SDA

VDD

CLKOUT

I

2324

I

SQSO

SCK

42

SYS-CLK

IC601

SQ IN

SCLK

SCLK

DCDMS

DMSCD

41

36

40

REF1

SYS-DI

SYS-DO

AV

MICON

UPD784216AYGC-110-8EU

SQCK

SENS

XRST

SV-CONT

SENS

XRST

SQCK

SV-CONT

I

2526

O

3132

FINL
39

A0

20
A0

IO1

A10

IO2

212223

31

A10

D0D1D2

IC651

DAC3550A-C2

A7

A12

A14

111213

A7

A12

A14

IO3

IO4
25

D3

DAC-C2

FINR
43

A16

D7

VREF
44

A15

10
A16

IO8
29

10
9

A13A8A9

7

A8

A13

A15

UT62L1024LC-70LL

OE

CE1

8

30

32

XTAL-VDD

A11

5

1

234
A9

A11

WE

2

VCC

CE
6

BA033FP

REG

IC871

VOUT

2

GND

1 3

VIN

2

ON

3

IC872

VOUT

1

VIN

PQ20WZ1U

++

REG

70

AOUT2

AIN2

TFDR

FFDR

TRDR
31

3233383940

30

757677

LOUT2

IC831

FRDR

71

72

AIN1

AOUT1

LOUT1

CD DSP

CXD2587Q

VC

FE

69

AVDD1

SE

25
24
23

LO
LO

CHACK SW

C2PO

LOCK

APC

CD-MUTE

GFS

FOK

RF-SW

99

100

DFS

FOK

SYSN

LOCK

RF-SW

APC

C2PO

LO­LO

2122

17 19 20
16
15
14

10 11
8 9

CHACK SW

5 6

2 3
1

Q804

Q805

CD ON SW

8

14 13 12 11 10 9

Q861

CD ON SW

D861

IC873

VCC6A6Y5A5Y4A4Y

Q862

Q806

VDD SW

XTAL-VDD

HEX BUFFER

SN74LVC07A

1A 1Y 2A 2Y 3A 3Y

Q807

SRQ

1 2 3 4 5 6

DCDMS

C2PO

78

1

AVDD2
2
3456789101819

20

FOK

LOCK

24

25

LOCK

FOK

31

2826

25
24
23

HD0

SOI

SOI

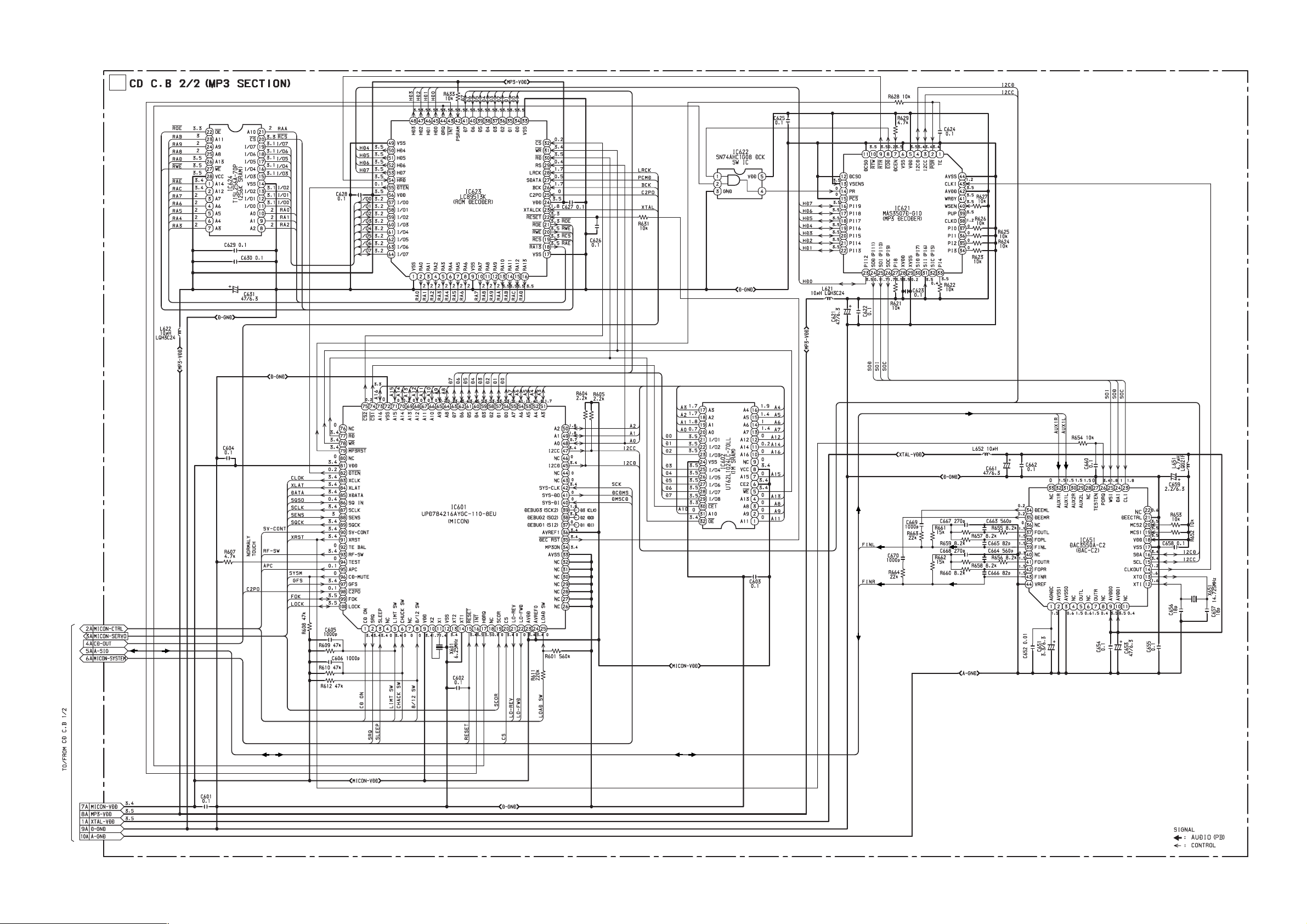

CD C.B 2/2

(MP3 SECTION)

I2CD

I2C C

35

45

47

I2CD

I2CC

48

DEC RST

20 21
1918

108 16

2

28

VCC

A7

A0

WE

321

27

10

RA0

RWE

64 63 5655

71

75 74 73

DTEN

MP3RST

XLAT

RD

XCLK

VDD

WR

CLOK

XDATA

XLAT

DATA

77787981828384858687888990919395969798

19

17

20

16

18

SRQ

CS

SCK

DCDMS

SLEEP

DMSCD

XTAL

BCK

LRCK

PCMD

616263

67

65

66

BCK

XTAI

PCMD

XTAO

XVDD

LRCK

59

57

42 43 51
41

MDP

SFDR

SRDR

28

29

26

TO MAIN C.B CON401 (FFC401)

3

24579

6

8

12

10

11

14

15

13

S-GND

S-GND

D-GND

RESET

8V (ACC)

5V (BAT)

5V (ACC)

S-GND

1

CN891

LCH

RCH

A-GND

A-GND

INSW

DC-OFST

CD RF AMP

D

CN801

CDC02AW1

1

4 2
5

O

VC

RF DCI

RF DC

PD

A

BCD

LD

EQ-IN

Q801

Q802

LASER SW

APC

PDVRVC

A

GND

LD

C

B

VCC

CXA2581N

IC801

AC-SUM

VCC

CE

CEI

SW

F

RF-SW

FEFCS+

TE-BAL

E

TE

DVCC

FEI

DVC

TRK-

FOCUS COIL

FE

RF AC

TRK+

TRACKING COIL

S861

CHUCK SW

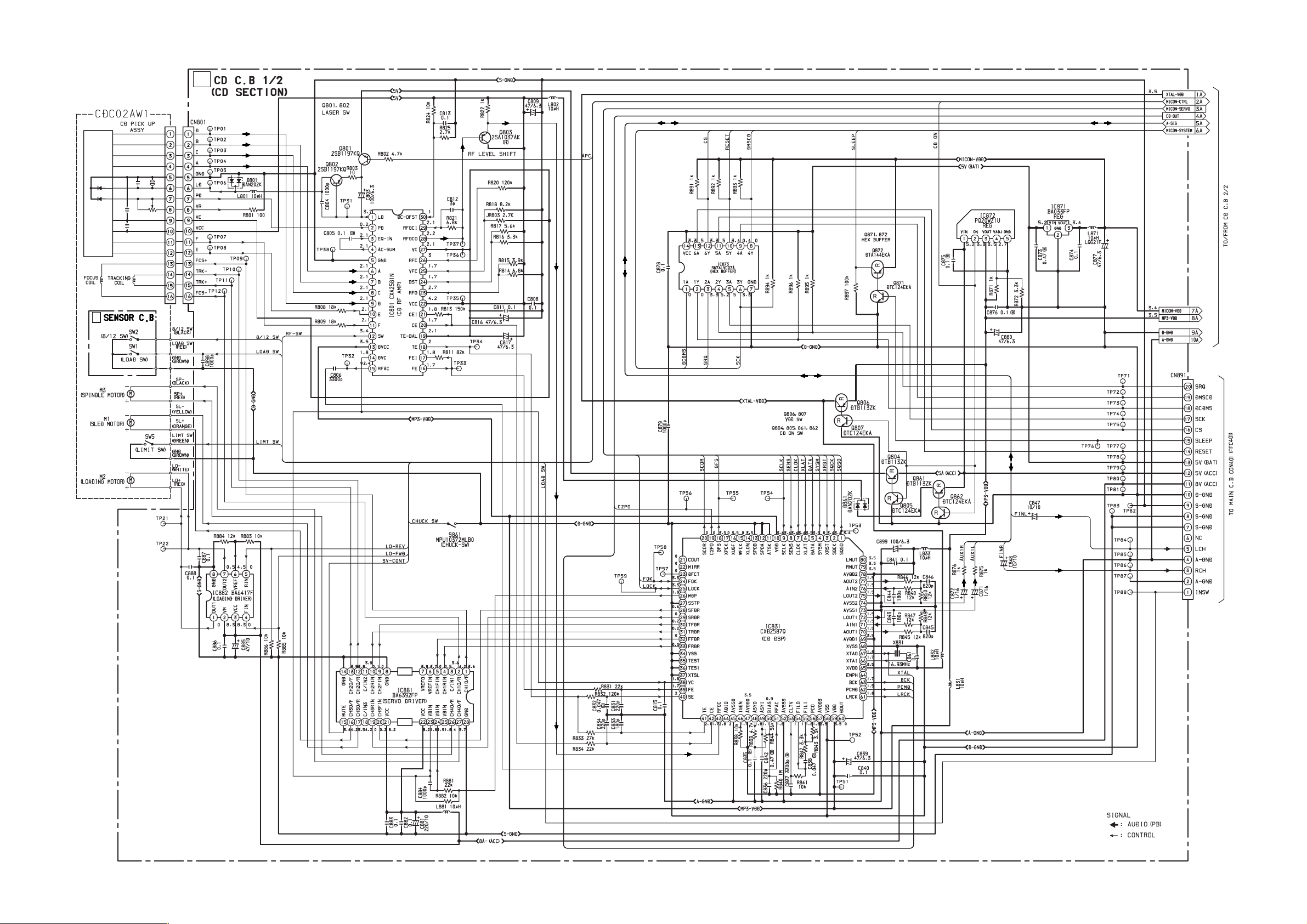

CD C.B 1/2

(CD SECTION)

LINT SW

8/12 SW

TCS-

LOADSW

GND

SP-

8/12 5V

(RED)

(BLACK)

SW2

L

SP+

LOADSW

(BROWN)

(BLACK)

(RED)

M

SW1

M3

GND

SL-

SL+

(YELLOW)

(ORANGE)

M
M1

SPINDL E MOTOR

LD+

LD-

(GREEN)

LIMT SW

(BROWN)

(RED)

(WH ITE)

SW5

M
M2

SLED MOTOR

LOADING MOTOR

-FWD
SV-CONT

LO-REV

LO

FIN

RIN

OUT2

OUT1

9
101213

VREF

VCC

VM

LOADING DRIVER

BA6392FP

IC881

SERVO DRIVER

22 23 24 26 27

21
2019

17
1615

 8 

WIRING  1 (MAIN / SENS / LED / FLEX KEY (2 / 2) / FLEX DISP (2 / 2)) <1 / 2>

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

A

B

C

D

W1

E

F

G

H

I

J

K

L

M

(TEST LAND)

 9 

N

O

PS671
+
_

P

Q

R

S

T

U

WIRING  1 (MAIN / LED) <2 / 2>

1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

 10 

SCHEMATIC DIAGRAM  1 (MAIN / SENS / LED)

 11 

WIRING  2 (DISP / KEY / AUX / LED L / LED R / FLEX KEY (1 / 2) / FLEX DISP (1 / 2)) <1 / 2>

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

A

B

C

D

E

F

G

H

TO MAIN C.B CON403

VIA FLEX KEY C.B (2/2)

I

J

K

L

M

~

N

TO MAIN C.B CON402 VIA FLEX DISP C.B (2/2)

O

P

Q

 12 

R

S

T

U

WIRING  2 (DISP / KEY / AUX) <2 / 2>

1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

~

R

S

T

U

 13 

SCHEMATIC DIAGRAM  2 (DISP / KEY / AUX / LED L / LED R)

 14 

WIRING  3 (CD / SENSOR)

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

X651

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

C834

C835

I

I

J

J

K

K

L

L

M

M

N

N

O

O

P

P

Q

Q

R

R

S

S

T

T

U

U

 15 

SCHEMATIC DIAGRAM  3 (CD : 1 / 2 / SENSOR)

K

L

 16 

SCHEMATIC DIAGRAM  4 (CD : 2 / 2)

K

 17 

LCD DIAGRAM (LCD, BKC–1/7)

SEGMENT WIRING

COMMON WIRING

– 18 –

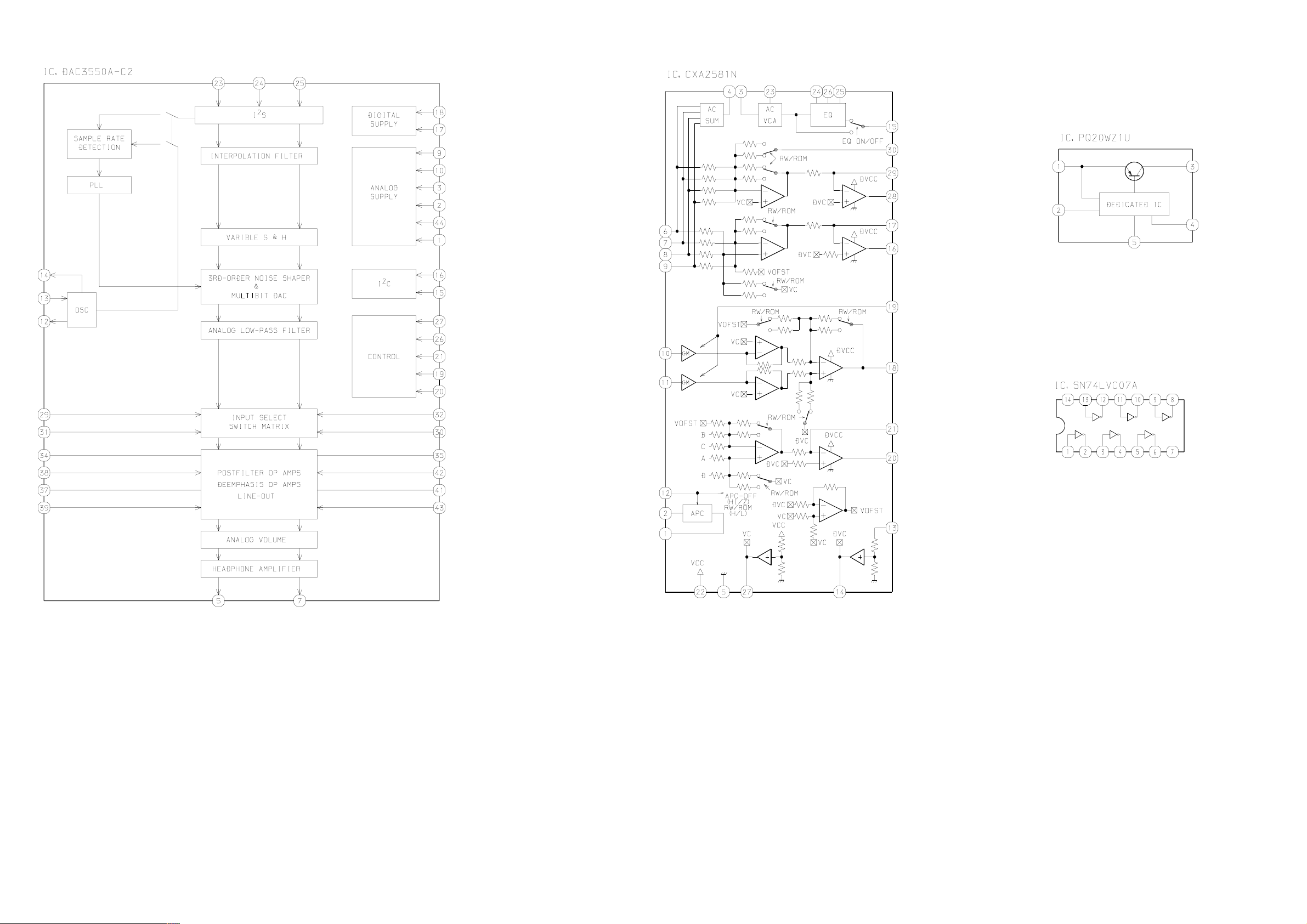

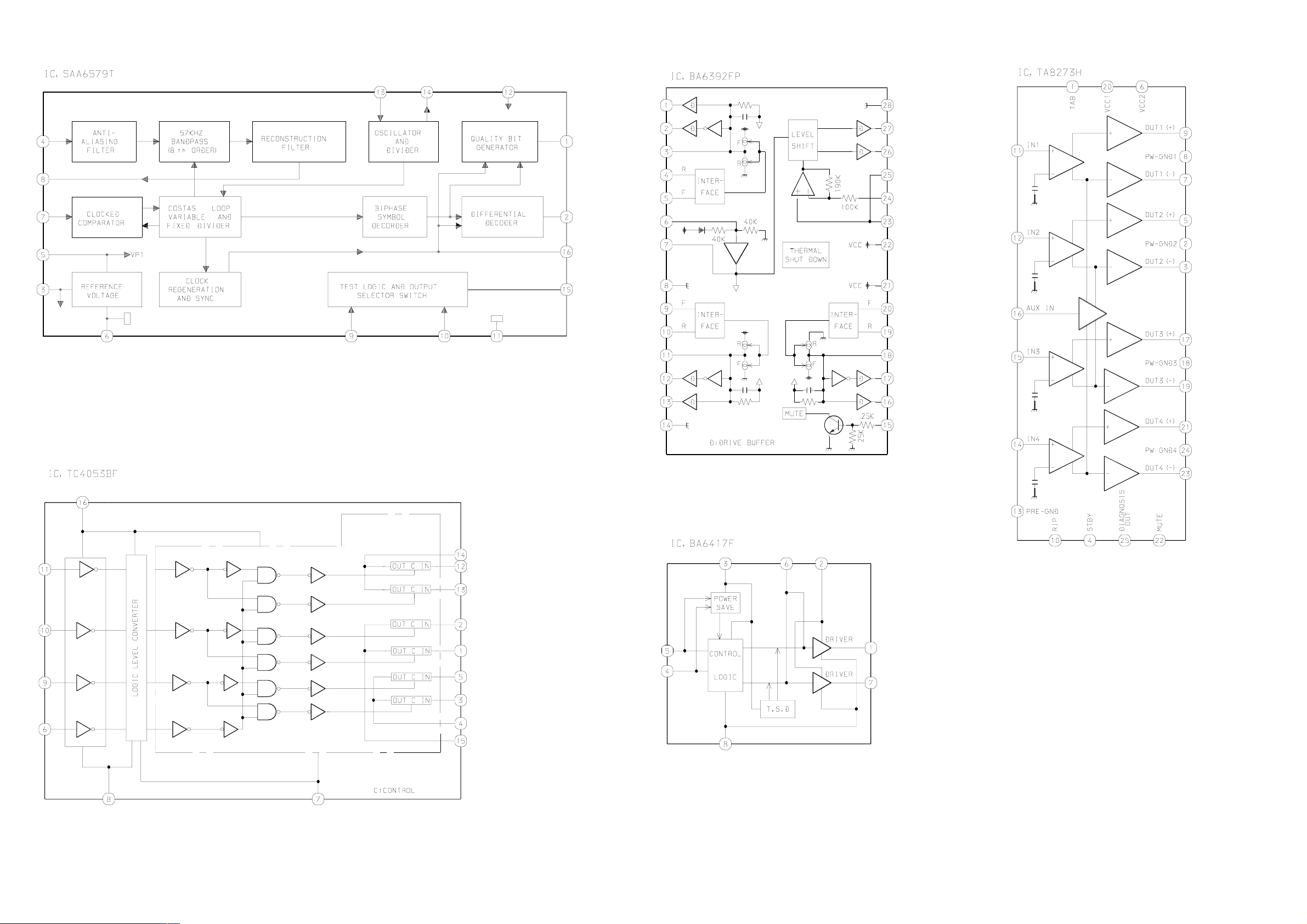

IC BLOCK DIAGRAM

 19 

 20 

IC DESCRIPTION

IC, µPD178018AGC-598

Pin No. Pin Name I/O Description

1 FM/AM S–M I Input RDS AF signal and FM/AM S-meter signal input.
2 LEVEL IND I Voltage input for level indicator.
3 SEN 1 I Load sens detect input.
4 CD CONNECT I Connection check of CD changer.
5 CD DISP SEL O Signal output of communication timing with CD changer. H: TX, L: RX.
6 CD CLO O Synchronize clock signal output for transmission.
7 CD DI I Data signal input for reception.
8 CD DO O Data signal output for transmission.

9 CD CLI I Synchronize clock signal input for reception.
10 LCD STB/CE O LCD driver CE signal output.
11 CLK SEL O Clock selection for LCD driver.
12 LCD DI I Data signal input for LCD driver.
13 LCD DO O Data signal output for LCD driver.
14 LCD CLO O Synchronize clock signal output for LCD driver.
15 CD ACC CONT O ACC signal output for CD changer.
16 POWER MUTE O POWER MUTE signal output.
17 ST–BY MUTE O ST-BY MUTE signal output.
18 POWER CONT O POWER CONTROL signal output.
19 CONT 1 O LCD contrast: Control 1. (Not used)
20 CONT 2 O LCD contrast: Control 2. (Not used)
21 GND PORT – Ground for port.
22 VDD PORT – Power supply for port.
23 MUTE O Audio mute output.
24 BAND CONT O FM/AM power switch output. H: AM, L: FM.
25 RADIO CONT O Radio power switch output. L: Radio mode. (Not used)
26 RDS MODE O High output during RDS AF mode.
27 IF REQ O Request output for IF count signal.
28 AM IF I AM IF count signal input.
29 FM IF I FM IF count signal input.
30 VDD PLL – Power supply for PLL.
31 FM OSC I Input from FM station.
32 AM OSC I Input from AM station.
33 GND PLL – Ground for PLL.
34 EO0 O Error output from charge pump.
35 EO1 O Error output from charge pump.
36 GND – Ground.
37 LOC/DX O LOC/DX switch output during radio seek. H: LOC, L: DX.

38 SD/ST IND I

39 PHONE MUTE I External mute control. L:–20dB Mute.
40 CDS CS O CS signal output.
41 CDS RESET O RESET signal output.

Station detect signal input during FM/AM seek. H: Detect station / L: Seeking.
Stereo signal input during FM reception. H: Mono, L: ST.

– 21 –

Pin No. Pin Name I/O Description

42 CDS SLEEP O SLEEP signal output.
43 CDS STOP I STOP signal input. (Connected to ground through a resistor)
44 CDS IN I DISC insertion detect input.
45 SEN2 I Load sens detect input.
46 BBE–2 I BBE input 1. (Not used)
47 BBE–1 I BBE input 2. (Not used)
48 MF.CONT O SLEEP signal control output.
49 MI–1 I Diode matrix input for default setting.
50 MI–2 I Diode matrix input for default setting.
51 MI–3 I Diode matrix input for default setting.
52 MO–1 O Diode matrix output for default setting. (Not used)
53 MO–2 O Diode matrix output for default setting.
54 MO–3 O Diode matrix output for default setting.
55 MO–4 O Diode matrix output for default setting.
56 PANCON1 O Panel control motor reverse drive output.
57 PANCON2 O Panel control motor forward drive output.
58 ACC IN I ON/OFF input for ACC (accessory power supply).
59 BEEP O BEEP output.
60 REMOTE I Remote control input.
61 E–VOL CE O Chip enable output to electrical volume.
62 E–VOL DO O Data output to electrical volume.
63 E–VOL CLO O Clock output to electrical volume.
64 DRV CONT O High output during DRIVE mode.
65 RDS DI I RDS data input.
66 DFP IN I Front panel detection.
67 FLAP IN I OPEN/CLOSE detection of FLAP DFP. DFP IN: Enable when High.
68 RDS CLI I RDS clock input.
69 JACK IN I JACK detect input.
70 BATT IN I ON/OFF input for BATT.
71 RE–1 I Rotary encoder input 1. (Connected to GND through a resistor)
72 RE–2 I Rotary encoder input 2. (Connected to GND through a resistor)
73 S–REQ – S-REQ signal input for CDS.
74 REG CPU – CPU power supply regulator.
75 GND – Ground.
76 X–OUT – System clock oscillator.
77 X–IN – System clock oscillator.
78 REG OSC – Oscillator circuit regulator.
79 VDD – System power supply.
80 RESET I System reset.

– 22 –

IC, LC75374E

Pin No. Pin Name I/O Description

1 RVR IN I 4dB volume control input. Must be driven at a low impedance.
2 R COM – 1dB volume control common pin. (Connected to GND through a capacitor)

For the connection of capacitors that compensate for bass and treble in the tone control circuits.

3 ~ 5 RT1 ~ RT3 – A high-frequency compensation capacitor must be connected between RT1 and RT2.

A low-frequency compensation capacitor must be connected between RT2 and RT3.

6 RT OUT O Tone control output.
7 RS IN I Super bass input. Must be driven at a low impedance.
8 NC – Connected to GND.

9 NC – Not connected.
10 RS3
11 RS OUT
12 FR IN I Fader input. Must be driven at a low impedance.
13 FR OUT
14 RR OUT
15 VSS – GND.
16 CL I Serial clock input for control.
17 DI I Serial data input for control.

18 CE –

19 VREF –

20 RL OUT
21 FL OUT
22 FL IN I Fader input. Must be driven at a low impedance.
23 LS OUT
24 LS3
25 NC – Not connected.

O For the connection of RCH super bass compensation capacitors.

O Fader output. The front and rear sides can be attenuated independently.

Chip enable. Data is written in the internal latch when the chip enable signal goes "L"
from "H", and each analog switch is activated. Data transfer is enabled at "H".

Generates a 1/2VDD power source. A capacitor must be connected between VREF and
GND as a troubleshooting against power ripples.

O Fader output. The front and rear sides can be attenuated independently.

O For the connection of LCH super bass compensation capacitors.

26 NC – Connected to GND.
27 LS IN I Super bass input. Must be driven at a low impedance.
28 LT OUT O Tone control output.

For the connection of capacitors that compensate for bass and treble in the tone control circuit.

29 ~ 31 LT3 ~ LT1 – A high-frequency compensation capacitor must be connected between LT1 and LT2.

A low-frequency compensation capacitor must be connected between LT2 and LT3.

32 L COM – 1dB volume control common pin.
33 LVR IN I 4dB volume control input. Must be driven at a low impedance.
34 LSELO O Input selector output pin.
35 AUX (L)
36 CD (L)
37 TUN (L)
38 TP (L)
39 VDD – Power supply.

I Signal input pins.

– 23 –

Pin No. Pin Name I/O Description

40 TP (R)
41 TUN (R)
42 CD (R)
43 AUX (R)
44 RSELO O Input selector output pin.

I Signal input pins.

IC, LC75817W-8720

Pin No. Pin Name I/O Description

1 ~ 56 S1 ~ S56 O LCD segment output.

57 ~ 59 S57 ~ S59 O LCD segment output. (Not used)

60 S60 / COM10 O LCD segment output / LCD common driver output. (Not used)
61 COM9 O LCD common driver output. (Not used)

62 ~ 69 COM8 ~ COM1 O LCD common driver output.

70 , 71 KS1, KS2 O Key scan output. (Not used)
72 ~ 75 KS3 ~ KS6 O Key scan output.
76 ~ 80 KI1 ~ KI5 I Key scan input.

81 P-1
82 P-2

83, 84 P-3, P-4 O Not used.

85 VDD – Power supply.
86 VLCD – LCD power supply.
87 VLCD0 – LCD power supply.
88 VLCD1 I

89 VLCD2 I 1/2 bias voltage is applied to the LCD drive externally.
90 VLCD3 I

91 VLCD4 – Connected to GND.
92 VSS – GND.

93 TEST – Test pin. (Connected to GND)
94 OSC-OUT O
95 OSC-IN I
96 INT – Connected to VDD.
97 DO O Serial data interface pin; output data.
98 CE O Serial data interface pin; chip enable.
99 CL O Serial data interface pin; synchronization.

O Illumination driver output.

3/4 bias voltage is applied to the LCD drive externally.

1/4 bias voltage is applied to the LCD drive externally.

Resistor and capacitor are attached externally to form an oscillator circuit.

100 DI I Serial data interface pin; data transferred.

– 24 –

IC, CXD2587Q

Pin No. Pin Name I/O Description

1

SQSO

O

Sub-Q 80-bit and PCM peak level data output. CD TEXT data output.

10
11
12
13
14
15
16
17
18

O

–

I/O

O
O
O
O
O

I

Clock input for reading SQSO.

I

System reset. Reset at "L".

I

Muting input. Muted at "H".

I

Serial data input from CPU.

I

Latch input from CPU. Latches serial data at the trailing edge.

I

Clock input for serial data transfer from CPU.
SENS output to CPU.

I

Clock input for reading SENS serial data.
Power supply of digital circuits.
Input/output for anti-shock. (Connected to GND)

I

Microprocessor extended interface (input A). (Connected to GND)

I

Microprocessor extended interface (input B). (Connected to GND)
Microprocessor extended interface (output). (Not used)
WFCK output. (Not used)
WUGF output. MNT1 or RFCK is output when switched by command. (Not used)
XPCK output. MNT0 is output when switched by command. (Not used)
GFS output. MNT3 or XROF is output when switched by command.

2
3
4
5
6
7
8
9

SQCK

XRST
SYSM
DATA
XLAT
CLOK

SENS

SCLK

VDD

ATSK

SPOA

SPOB
XLON

WFCK
XUGF

XPCK

GFS
19
20
21
22
23
24

25

26
27
28
29
30
31
32
33
34

C2PO
SCOR
COUT

MIRR

DFCT

FOK

LOCK

MDP
SSTP

SFDR
SRDR

TFDR
TRDR

FFDR
FRDR

VSS

O

O
I/O
I/O
I/O
I/O

I/O

O

O

O

O

O

O

O

–

C2PO output.
Outputs "H" when Sub-code sync S0 or S1 is detected.
Track number count signal input/output. (Not used)
Mirror signal input/output. (Not used)
Defect signal input/output. (Not used)
Focus OK signal input/output.
Outputs "H" when GFS sampled by 460 Hz is "H"; "L" when GFS is "L" continuously for 8
samplings. Or, a signal is input when LKIN is "1".
Spindle motor servo control output.

I

Disc innermost edge detection signal input. (Connected to GND)
Sled drive output.
Sled drive output.
Tracking drive output.
Tracking drive output.
Focus drive output.
Focus drive output.

Ground of digital circuits.
35
36

37

38
39

TEST
TES1

XTSL

VC

FE

I

TEST pin. Normally grounded. (Connected to GND)

I

TEST pin. Normally grounded. (Connected to GND)

Crystal select input. "L" when 16.9344MHz crystal is used; "H" when 33.8688MHz crystal is

I

used. (Connected to GND)

I

Neutral voltage input.

I

Focus error signal input.

– 25 –

Pin No. Pin Name I/O Description

40

SE

I

Sled error signal input.
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

TE

CE

RFDC

ADIO

AVSS0

IGEN

AVDD0

ASYO

ASYI
BIAS

RFAC

AVSS3

CLTV

FILO

FILI

PCO

AVDD3

I

Tracking error signal input.

I

Neutral servo analog input.

I

RF signal input.

O

For test. Do not connect. (Not used)

–

Ground of analog circuits.

I

Constant current input for OP-AMP.

–

Power supply of analog circuits.

O

EFM full-swing output ("L": VSS; "H": VDD).

I

Asymmetry comparator voltage input.

I

Asymmetry circuit constant current input.

I

EFM signal input.

–

Ground of analog circuits.

I

VCO1 control voltage input for multiplication.

O

Filter output for master PLL (Slave: Digital PLL).

I

Filter input for master PLL.

O

Charge pump output for master PLL.

–

Power supply of analog circuits.
58
59
60
61
62
63

64

65
66
67
68
69
70
71
72
73

VSS

VDD

DOUT

LRCK

PCMD

BCK

EMPH

XVDD

XTAI

XTAO

XVSS
AVDD1
AOUT1

AIN1
LOUT1
AVSS1

–

Ground of digital circuits.

–

Power supply of digital circuits.

O

Digital output. (Not used)

O

D/A interface LR clock output f=Fs.

O

D/A interface serial data output (2's COMP, MSB first).

O

D/A interface bit clock output.
Outputs "H" when disc to be played is applied with emphasis; "L" when disc to be played is not

O

applied with emphasis. (Not used)

–

Power supply of master clock.

I

Crystal oscillator input. External master clock is input to this pin.

O

Crystal oscillator output.

–

Ground of master clock.

–

Power supply of analog circuits.

O

Lch analog output.

I

Lch OP-AMP input.

O

Lch line output.

–

Ground of analog circuits.
74
75
76
77
78
79
80

AVSS2
LOUT2

AIN2
AOUT2
AVDD2

RMUT
LMUT

–

Ground of analog circuits.

O

Rch line output.

I

Rch OP-AMP input.

O

Rch analog output.

–

Power supply of analog circuits.

O

Rch "0" detection flag. (Not used)

O

Lch "0" detection flag. (Not used)

– 26 –

IC, CXA2581N

Pin No. Pin Name I/O Description

1

LD

O

APC-AMP output.

10
11
12
13
14
15
16
17
18

2
3
4
5
6
7
8
9

PD

EQ-IN

AC-SUM

GND

A
B
C
D
E
F

SW

DVCC

DVC

RFAC

FE

FEI

TE

I

APC-AMP input.

I

RFAC-system VCA/EQ block input.

O

RFAC-system RF SUM output.

–

Ground.

I

A-signal input.

I

B-signal input.

I

C-signal input.

I

D-signal input.

I

E-signal input.

I

F-signal input.

I

MODE switching signal input.

–

Power supply.

O

DVC output.

O

RFAC signal output.

O

Focus error signal output.

I

FE AMP virtual ground.

O

Tracking error signal output.
19
20
21
22
23
24
25
26
27
28
29
30

TE-BAL

CE

CEI
VCC
RFG

BST
VFC
RFC

VC

RFDCO

RFDCI

DC-OFST

I

TE balance adjustment. (Connected to VC).

O

Center error signal output.

I

CE AMP virtual ground.

–

Power supply.

I

RFAC-system VCA block low-frequency gain adjustment.

I

EQ boost level adjustment.

I

EQ cutoff frequency adjustment.

I

EQ cutoff frequency adjustment.

O

VC voltage output.

O

RFDC signal output.

I

RFDC AMP virtual ground.

I

RFDC signal output offset adjustment.

– 27 –

IC, UPD784216AYGC-110-8EU

Pin No. Pin Name I/O Description

1

CD ON

CD mechanism power control output.

O

10
11
12
13
14
15
16
17
18

2
3
4
5
6
7
8
9

SRQ

SLEEP

NC

LIMT-SW

CHUCK-SW

NC

8/12 SW

VDD

X2

X1
VSS
XT2
XT1

RESET

INT

HDRQ

NC

Mechanism microprocessor communication request.

O

Sleeping request from system microprocessor.

I

Not connected.

–

Inner edge limit switch.

I

Checking complete switch.

I

Not connected

–

8/12 cm check switch.

I

Power supply.

–

6.25MHz oscillator circuit.

–

6.25MHz oscillator circuit.

–

GND.

–

Not used.

–

Connected to GND.

–

System reset input. Active “L”.

I

Interruption input to IC, LC89513K pin 43. Active “L”.

I

Output gate to IC, SN74AHC1G08 DCK pin 2.

O

Not connected.

–
19
20
21
22
23
24
25

26 ~ 32

33
34
35
36
37
38
39
40
41

SCOR

CS

LO-REV

LO-FWD

AVDD

AVREF0

LOAD SW

NC

AVSS

MP3ON

DEC RST

AVREF1

DEBUG1 (SI2)

DEBUG2 (SO2)

DEBUG3 (SCK2)

SYS-DI

SYS-DO

Sub-code syn input.

I

CS signal input.

I

Loading motor reverse drive output.

O

Loading motor forward drive output.

O

Power supply.

–

A/D converter reference voltage input.

–

Disc loading switch.

I

Not connected.

–

GND.

–

Not used.

–

Reset output to IC, LC89513K pin 22. Active “L”.

O

A/D converter reference voltage input.

–

Debug output 1. (Not used)

O

Debug output 2. (Not used)

O

Debug output 3. (Not used)

O

System microprocessor serial data input.

I

System microprocessor serial data output.

O

42

43, 44

45
46
47

48 ~ 55

SYS-CLK

NC

I2CD

NC

I2CC

A0 ~ A7

–

O

–

O

I/O

System microprocessor sync clock input.

I

Not connected.
I2C data line to IC, MAS3507D-G10 and IC, DAC3550A-C2.
Not connected.
I2C clock line to IC, MAS3507D-G10 and IC, DAC3550A-C2.
A0 ~ A7 terminal to IC, UT62L1024LC-70LL pin 20 ~ 13.

– 28 –

Pin No. Pin Name I/O Description
56 ~ 63 D0 ~ D7 I/O D0 ~ D7 terminal to IC, UT62L1024LC-70LL pin 21 ~ 23, 25 ~ 29 respectively.
64 ~ 71 A8 ~ A15 I/O A8 ~ A15 terminal to IC, UT62L1024LC-70LL pin 3, 2, 31, 1, 12, 4, 11, 7 respectively.

72 VSS – GND.
73 A16 I/O A16 terminal to IC, UT62L1024LC-70LL pin 10.
74 CS1 O CS1 terminal to IC, UT62L1024LC-70LL pin 30. Active “L”.
75 CS2 O CS2 terminal to IC, LC89513K pin 32. Active “L”.
76 NC – Not connected.
77 RD O OE terminal to IC, UT62L1024LC-70LL pin 32. Active “L”.

78 WR O

79 MP3RST O

80 NC – Not connected.
81 VDD – Power supply.
82 DTEN O DTEN terminal to IC, LC89513K pin 55. Active “L”.
83 XCLK O DSP serial data transfer clock output.
84 XLAT O DSP serial data latch output.
85 XDATA O DSP serial data output.
86 SQ IN I SUB Q/PCM peak/Level data input.
87 SCLK O SENS serial data clock output.
88 SENS I SENES input.
89 SQCK O Output clock for reading SQSO.

90 SV-CONT O

91 XRST O CD reset output.
92 TE BAL – Not used.

WE terminal to IC, UT62L1024LC-70LL pin 5 and WR terminal to IC, UT62L1024LC-70LL pin

31. Active “L”.
TE terminal to IC, MAS3507D-G10 pin 1 and POR terminal to IC, MAS3507D-G10 pin 2. Active
“L”.

Output “H” when the power is turned on. (When power is supplied, this pin output “H” after DSP
is initialised.)

93 RF-SW O CD/CD-RW switching output.
94 TEST – Connected to VSS through a resistor.
95 APC O Laser ON/OFF switching output.
96 CD-MUTE O Muting output.
97 GFS I GFS input.
98 C2PO I C2PO input. Active “L”
99 FOK I/O FOCUS OK signal input/output.

100 LOCK I/O Output “H” when GFS sampled by 460Hz is “H” , “L” when GFS is “L” continuosly for 8

samplings. Or, a signal is input when LKIN is “1” .

– 29 –

IC, LC89513K

Pin No. Pin Name I/O Description

1

VSS

–

GND.

2 ~ 8

9

10 ~ 16

17
18
19
20
21
22
23
24
25
26
27
28
29
30

RA0 ~ RA6

VSS

RA7 ~ RA13

VSS

RA13

RCS

RWE

ROE

RESET

XTALCK

VDD

C2PO

BCK

SDATA

LRCK

RS

RD

O

Address signal output to data buffer RAM pin.

–

GND.

O

Address signal output to data buffer RAM pin.

–

GND.

O

Address signal output to data buffer RAM pin. Active “L”.

O

Chip select to RAM pin. Active “L”.

O

Data write signal to RAM pin. Active “L”.

O

Data read signal from RAM pin. Active “L”.

I

Reset pin reset at level low. Active “L”.

I

X’tal oscillating circuit input pin.

–

Power supply.

I

C2 pointer input pin.

I

Serial data input clock pin.

I

Serial data input pin.

I

44.1kHz strobe signal input pin.

I

Register select signal pin.

I

CPU data read signal input pin. Active “L”.
31
32
33

34 ~ 41

42
43
44

45 ~ 48

49

50 ~ 53

54
55
56

57 ~ 64

WR

CS

VSS
D0 ~ D7
PSRAM

INT

DRQ

HD0 ~ HD3

VSS

HD4 ~ HD7

HRD

DTEN

VDD

I/O0 ~ I/O7

–

I/O

O
O
O

–

O

O

–

I/O

I

CPU data write signal input pin. Active “L”.

I

CS signal input from CPU pin. Active “L”.
GND.
CPU data signal pin with built in pull-up resistor.

I

Pseudo-SRAM select pin.
Interrupt request signal to CPU output pin. Active “L”.
DRQ signal output pin.
Data output to CPU pin.
GND.
Data output to CPU pin.

I

Data read signal input pin. Active “L”.
Data enable signal output pin. Active “L”.
Power supply.
Data buffer RAM data signal pin with built in pull-up resistor.

– 30 –

IC, DAC3550A-C2

Pin No. Pin Name I/O Description

1

AGNDC

I/O

Analog reference voltage.

10
11
12
13
14
15
16
17
18

2
3
4
5
6
7
8
9

AVSS1
AVSS0

NC

OUTL

NC

OUTR

NC

AVDDO

AVDD1

NC

XTI

XTO

CLKOUT

SCL

SDA

VSS

VDD

–

O

–

O

–

–

I/O

O
I/O
I/O

I

VSS 1 for audio back-end.

I

VSS 0 for audio output amplifiers.
Not connected.
Audio output: Headphone left or Speaker +. (Not used)
Not connected.
Audio output: Headphone right or Speaker -. (Not used)
Not connected.

I

VDD0 for audio output amplifiers.

I

VDD1 for audio back-end.
Not connected.

I

Quartz oscillator pin 1.
Quartz oscillator pin 2.
Clock output.
I2C clock.
I2C data.

I

Digital VSS.

I

Digital VDD.
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

MCS1
MCS2

DEECTRL

NC

CLI
DAI
WSI

PORQ

TESTEN

NC
AUX2L
AUX2R
AUX1L
AUX1R

NC

DEEML
DEEMR

I

I2C chip select 1.

I

I2C chip select 2.

I

Deemphasis ON/OFF control. (Connected to VSS)

–

Not connected.

I

I2S bit clock.

I

I2S data.

I

I2S frame identification.

I

Power on reset, active “L”.

I

Test enable. (Connected to VSS)

–

Not connected.

I

AUX2 left input for external analog signals (e.g. tape). (Not used)

I

AUX2 right input for external analog signals (e.g. tape). (Not used)

I

AUX1 left input for external analog signals (e.g. FM).

I

AUX1 right input for external analog signals (e.g. FM).

–

Not connected.

O

Deemphasis network left.

O

Deemphasis network right.
36
37
38
39
40
41

NC

FOUTL

FOPL

FINL

NC

FOUTR

–

O
I/O
I/O

–

O

Not connected.
Output to left external filter.
Filter op amp inverting input, left.
Input for FOUTL or filter op amp output (line out).
Not connected.
Output to right external filter.

– 31 –

Pin No. Pin Name I/O Description

42

FOPR

I/O

Right Filter op amp inverting input.
43
44

FINR

VREF

I/O

Input for FOUTR or filter op amp output (line out).

I

Analog reference ground.

– 32 –

IC, MAS3507D-G10

Pin No. Pin Name I/O Description

1

TE

I

Test enable. (Connected to VSS)

10
11
12
13
14
15
16
17
18

2
3
4
5
6
7
8
9

POR
I2CC
I2CD
VDD

VSS

DCEN

EOD

RTR
RTW

DCSG
DCSO

VSENS

PR

PCS
PI19
PI18
PI17

I/O
I/O

–
–

O
O
O

–

O

I/O
I/O
I/O

I

Reset, active “L”.
I2C clock line.
I2C data line.
Positive supply for digital parts.
Ground supply for digital parts.

I

Enable DC/DC converter.
PIO end of DMA, active “L”.
PIO ready to read, active “L”.
PIO ready to write, active “L”.
DC converter transistor ground. (Connected to VSS)
DC converter transistor open drain. (Connected to VSS)

I

DC converter voltage sense. (Connected to VDD)

I

PIO DMA request or read/write.

I

PIO chip select, active “L”. (Connected to VSS)
PIO data [19] (demand pin in SDI mode).
PIO data [18] (MPEG header bit 11-MPEG ID. SDI mode).

PIO data [17] (MPEG header bit 12-MPEG ID. SDI mode).
19
20
21
22
23
24
25
26

27

28
29
30
31
32

33

PI16
PI15
PI14
PI13
PI12

SOD (PI11)

SOI (PI10)

SOC (PI9)

PI8

XVDD

XVSS

SID (PI7)

SII (PI6)

SIC (PI5)

PI4

I/O
I/O
I/O
I/O
I/O

O
O
O

O

–
–

O

PIO data [16] (alternative input for SIC. SDI mode).

PIO data [15] (alternative input for SII. SDI mode).

PIO data [14] (alternative input for SID. SDI mode).

PIO data [13] (MPEG header bit 13-Layer ID. SDI mode).

PIO data [12] (MPEG header bit 14-Layer ID. SDI mode).

Serial output data.

Serial output frame identification.

Serial output clock.

I

Start-up: clock output scaler ON/OFF.

Operation: MPEG CRC error.

Positive supply of output buffers.

Ground of output buffers.

I

Serial input data. (Not used)

I

Serial input frame identification. (Connected to VDD)

I

Serial input clock. (Not used)

I

Start-up: select SDI/PI0-DMA input mode.

Operation: MPEG frame Sync.

34

35

PI3

PI2

I

Start-up: enable layer 3 / disable layer 3 decoding.

O

Operation: MPEG header bit 20 (Sampling Frequency).

I

Start-up: enable layer 2 / disable layer 2 decoding.

O

Operation: MPEG header bit 21 (Sampling Frequency).

– 33 –

Pin No. Pin Name I/O Description

I

36

37

PI1

PI0

Start-up: SDO: select 32-bit mode / 16-bit I 2S mode.

O

Operation: MPEG header bit 30 (Emphasis).

I

Start-up: Select multimedia mode / broadcast mode.

O

Operation: MPEG header bit 31 (emphasis).
38
39
40

41

42
43
44

CLKO

PUP

WSEN

WRDY

AVDD

CLKI

AVSS

O

Clock output for the D/A converter. (Not used)

O

Power up, i. e. status of voltage supervision. (Not used)

I

Enable DSP and DC/DC converter.

Decoder operation ready. If WSEN=0: Valid clock input at CLKI. If WSEN=1: Clock

O

synthesizer PLL locked. (Not used)

–

Supply for analog circuits.

I

Clock input.

–

Ground supply for analog circuits.

– 34 –

VOLTAGE CHART

IC151, SAA6579T

IC501, TA8273H IC901, UPD178018AGC-598

IC601, LC75817W-8720

PIN NO. VOLT (V)

1, 2 2.25 ~ 2.70

3 2.52
4 2.50
5 5.00
60
7 2.50
8 2.55

9 ~ 11 0

12 5.00
13 2.15
14 2.55
15 2.51
16 2.52

IC301, LC75374E

PIN NO. VOLT (V)

1 ~ 7 4.32

80
9 0.07

10 ~ 14 4.32

15 0
16 ~ 18 –
19 ~ 24 4.32

25 0.04

26 0
27 ~ 38 4.32

39 8.36
40 ~ 44 4.32

PIN NO. VOLT (V)

1, 2 0

3 7.60
4 3.65
5 7.60
6 14.35
7 7.60
80
9 7.60

10 8.90

11, 12 1.40

13 0

14, 15 1.42

16 1.35
17 7.60
18 0
19 7.60
20 14.35
21 7.60
22 4.15
23 7.60
24 0
25 0.02

PIN NO. VOLT (V)

1 ~ 56 3.30
57 ~ 61 –
62 ~ 69 3.30

70, 71 –
72 ~ 75 4.85
76 ~ 80 –

81 4.85 (ILL1)
82 4.85 (ILL2)

83, 84 –

85 5.40
86 8.30
87 6.60
88 5.00
89 3.35
90 1.70

91 ~ 93 0

94, 95 2.70

96, 97 5.40

98 0.45
99 4.65

100 0.25

IC602, SBX1971-52

PIN NO. VOLT (V)

10

2, 3 5.2

IC701, PST994D

PIN NO. VOLT (V)

1 8.70
20
3 4.35

IC751, BA6417F

PIN NO. VOLT (V)

1 0.24
2, 3 8.20
4, 5 –

6 3.64

7 0.25

80

PIN NO.

19, 20 – –

22, 23 4.90 4.90

26, 27 – –
28, 29 0.03 0.03

34, 35 1.05 1.05

40, 41 4.90 4.90

45 ~ 57 – –

61 ~ 64 – –

VOLT (V)

FM AM

1, 2 – –

3 0.07 0.07
4––
5 4.90 4.90

6 ~ 9 – –

10 0.24 0.24
11 0.58 0.58
12 4.32 4.32
13 0.12 0.12
14 4.70 4.70
15 – 1.90
16 4.10 4.10
17 3.55 3.55
18 4.85 4.85

21 0 0

24 – 4.85
25 4.90 4.90

30 4.90 4.90
31 2.20 0.65
32 0.35 2.50
33 0 0

36 0 0
37 – –
38 4.75 4.75
39 3.20 3.20

42 4.85 4.85
43 – –
44 4.30 4.30

58 5.00 5.00
59 – –
60 5.22 5.22

65 – 0.70

– 35 –

TU101, FAE347-E21

PIN NO. VOLT (V)

66 ~ 67 5.10 5.10

68 – 2.50
69 0.70 5.00
70 4.35 4.35

71 ~ 72 – –

73 5.30 5.30
74 3.55 3.55
75 0 0
76 1.60 1.60
77 1.55 1.55
78 3.55 3.55

79 ~ 80 4.90 4.90

* Pin 24

DX/

LO

Pin31, 32

FM/

AM

Pin 65, 68 RDS

OFF/

ON

Pin 69 AUX JACK IN

OFF/

REF NO. ANODE CATHODE

VOLT (V)

PIN NO.

LED 601 3.40 1.70
LED 602 1.70 0
LED 603 3.30 1.70

LED 604 1.70 0

LED 611 1.70 0
LED 612 3.35 1.70
LED 613 1.70 0
LED 614 3.50 1.80
LED 615 1.80 0.06
LED 616 3.50 1.80
LED 617 1.80 0.06
LED 618 9.00 5.50

LED 619 ~ 622 9.00 5.15

LED 625 3.40 1.70
LED 626 5.00 3.35
LED 651 2.00 0

ON

1 ~ 3 – –

4 7.67 0.28
500
6 1.29 ~ 7.45 1.29 ~ 7.45

7,8 0 0

9 1.60 8.75
10 0 0
11 0.12 0.23
12 8.05 0.03
13 8.26 8.15
14 2.2 ~ 3.68 2.2 ~ 3.68
15 0 0

16,17 3.33 3.33

18 0 0
19 0 0

FM AM

20 – –

IC903, TC4053BF

PIN NO. VOLT (V)

1 4.25
2 0.12
3 4.85
4 4.70
5 4.55

6 ~ 8 0

9 ~ 11 0.55

12 4.90
13 0.05
14 4.30
15 0.12
16 4.90

21 1.58 0.01
22 0.04 4.73
23 0 0
24 4.00 1.16
25 8.26 8.15
26 1.14 0.05

– 36 –

PIN

NAME

B––
C 7.67 0.28

E00

B 9.0 8.30
C 1.60 8.75

E 9.00 9.00

B 8.75 0.04
C 9.00 9.00

E 8.05 0.03

B 4.8 –
C 8.75 0.04

E00

B 1.05 1.00
C 0.65 2.20

E 0.60 0.61

B 0.60 0.61
C 0.65 2.20

E00

B 1.14 0.58
C 1.29 8.0

E 0.64 0.30

B 0.64 0.30
C 1.29 8.0

E00

B––
C––

E00

B – 4.10
C––

E00

FM AM

Q 101

Q 102

Q 103

Q 104

Q 105

Q 106

Q 107

Q 108

Q 109

Q 341

PIN

NAME

B – 4.10
C––
E00

B00
C 0.04 0.04
E 0.03 0.03

B 4.90 4.90
C 0.04 0.04
E00

B – 3.65
C––
E00

B – 3.65
C––
E00

B – 3.65
C––
E00

B – 3.65
C––
E00

B 1.50 1.50
C 4.70 4.70
E 0.90 0.90

B 14.30 0.02
C 0.15 14.30
E 14.35 14.35

B – 1.90
C 14.30 0.02
E00

FM AM

Q 342

Q 401

Q 402

Q 403

Q 404

Q 405

Q 406

Q 451

Q 461

Q 462

PIN

NAME

B 0.75 0.75
C 0.06 0.06
E00

B 4.85 4.85
C 9.00 0.80
E – 0.75

B 4.85 4.85
C 0.80 9.00
E 0.75 –

B 0.75 –
C 0.09 –
E00

B 0.75 –
C 0.09 –
E00

B 13.60 13.60
C 14.30 14.30
E 14.35 14.35

B 4.85 4.85
C 0.06 0.06
E00

B 9.70 9.70
C 14.30 14.30
E 9.00 9.00

B 6.25 6.25
C 13.30 13.30
E 5.60 5.60

B 8.85 8.85
C 14.35 14.35
E 8.20 8.20

FM AM

Q 611

Q 612

Q 613

Q 614

Q 615

Q 701

Q 702

Q 704

Q 708

Q 709

PIN

NAME

B 9.40 9.40
C 14.35 14.35
E 8.85 8.85

B 8.75 8.75
C 9.40 9.40
E 9.45 9.45

B 2.25 2.25
C––
E00

B 5.60 5.60
C 8.20 8.20
E 5.00 5.00

B 3.00 3.00
C––
E00

B––
C 5.60 5.60
E 5.60 5.60

FM AM

Q 710

Q 711

Q 712

Q 713

Q 715

Q 716

– 37 –

CD TEST MODE

1. Disassembly

1. Remove COVER TOP / COVER BOTTOM.

2. Remove the screws (as shown by arrows in Fig-1) of CD
mechanism. See Fig-1.

2. Service Position

Check the function with the mechanism is set to a stable
position. (Use a tool such as PLATE). See Fig-2.

Fig-1

3. Test Mode

1. Starting the CD Test Mode

1) Short-circuit the TEST land (TP904 - as shown by arrow

in Fig-3) of the MAIN PWB, using solder. See Fig-3.

2) Connect the ACC (red) and BACKUP (yellow) wire of

the power supply/speakers connector to the positive
(+) terminal of the Power Supply device and the
Ground (black) wire to the negative (–) terminal.

3) Adjust the voltage applied to the Power Supply device

to 14.5V and then turn on the power.
The test mode starts, and the LCD are all lit. See Fig-4.

2. Exiting the CD Test Mode

1) Turn off the power of the Power Supply device.

2) Remove all the wires from the power supply/speakers

connector.

3) Remove the solder of the TEST land (TP904) of the

MAIN PWB.

Fig-2

IC901

Fig-3

Fig-4

– 38 –

3. CD Test Mode Functions

Mode

Start Mode All lights are lit. Test mode starts.

Button for

Activation

Display Operation Contents

Load/Unload

EJECT VCC on

Search RNDM Continuous focus search. APC circuit check
Mode

Play Mode REP 1 TOC READING Normal playback. Focus servo

Traverse INT Track No. and play Pause status Tracking servo OFF

Mode

STOP REP All lights are lit. Standby status All servo OFF

Sled Mode

• During search mode check, do not insert a disc.

• Press the REPEAT button to exit each mode.

6

5

3

4

TUNE

All lights are lit. Checking All servo off

Laser on

PU lens repeats full swings. (Note 1) Laser current measurement

Focus error waveform check

Track No. If TOC READ is unavailable, the Tracking servo
Play time display search mode function is on. CLV servo

Level display Sled servo

time are displayed

Laser ON/OFF

All lights are lit. Pickup moves to the Sled servo

outermost track. Mechanism function check
Pickup moves to the
innermost track.

Note 1: When the focus search mode is repeated more than 10 minutes, the driver IC may generate heat, activating the protection

circuit to stop the CD function. If this happens, turn off the power, wait for 10 minutes to release heat before restarting.

– 39 –

ADJUSTMENT

1. RDS Adjustment
Settings : • Test point : IC901 1 pin

• Adjustment location : SFR101

• Input : 98MHz
31 dB
1 kHz (Modulation Frequency)
45 kHz DEV

Method : Set to FM 98.0 MHz and adjust SFR101 so that the

test point is 2.0V ± 0.1 V.

µV (EMF)

– 40 –

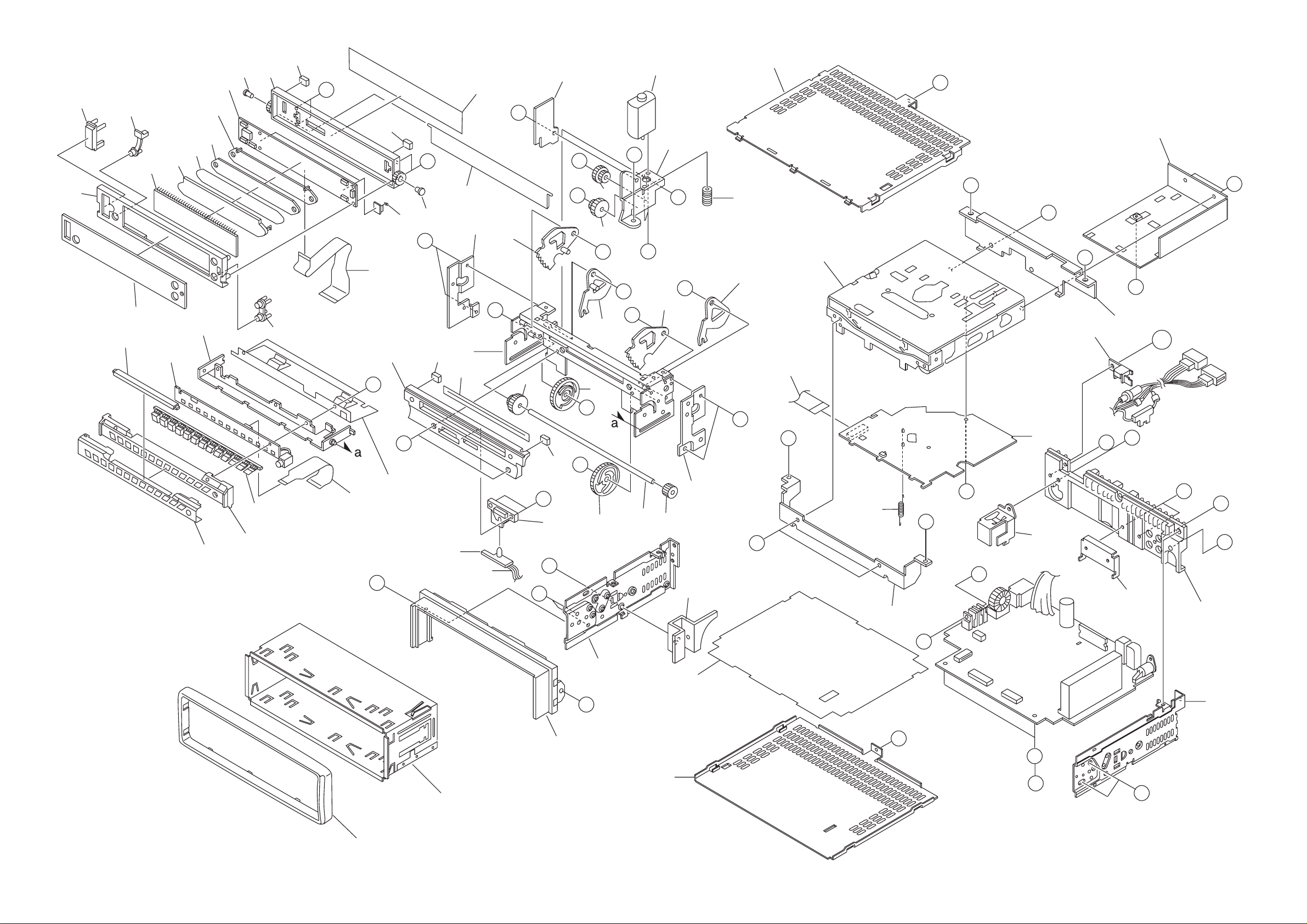

MECHANICAL EXPLODED VIEW 1 / 1

10

9

53

PWB

3

2

16

4

SH LCD

LCD

1

6

PWB

17

8

7

5

15

14

13

A

10

54

12

37

B

I

SH L-BT 18

18

J

SH CABI REAR

A

11

53

E

26

36

35

PWB

23

C

24

D

39

32

E

H

PWB

36

38

L

D

D

21

22
F

25

27

G

G

31

MOT FF-050SK

C

C

F

28

F

33

19

C

F

30

34

42

20

29

E

43

I

55

I

J

CDC02AW1

46

J

O

47

J

J

L

48

PWB

HLDR
CD-AC

45

I

44

K

HLDR
P-IC-AC

O

L

K

N

PANEL HT-SINK

J

M

K

51

52

40

L

41

SH,PWB

J

I

P

50

K

E

CDC-MP33R YZSTF
(FileName:CDCMP33R.EPS)
13/4/29 BKC-5

49

– 41 –

MECHANICAL PARTS LIST 1 / 1

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

1 8B-KC5-001-010 WINDOW,LCD MP33R YZ
2 8B-KC7-001-010 CABI,FRONT HIGH
3 8B-KC7-004-010 BTN,+/­ 4 8B-KC7-005-010 BTN,MUTE
5 8B-KC7-006-010 BTN,TWIN

6 8B-KC7-204-010 CASE,LCD
7 8B-KC7-202-010 LENS,LCD
8 8B-KC7-201-010 PLATE,LENS BOTTOM
9 8B-KC7-002-010 CABI,REAR
10 8B-KC7-222-010 PLATE,MAGNET

11 8B-KC7-025-010 PANEL,BOARD
12 8B-KC7-611-010 PWB,FLEX DISP
13 8B-KC6-002-010 CABI,FRONT AL MP3
14 8B-KC7-008-010 CABI,BTN PANEL B
15 8B-KC1-002-010 BTN,P-SET YZ

16 8B-KC7-015-010 LENS,BER
17 8B-KC7-207-010 PLATE,PANEL A’SSY
18 8B-KC7-612-010 PWB,FLEX KEY
19 8A-ZL2-211-010 HLDR ASSY MOT
20 8A-ZL2-241-010 GEAR,WORM

21 8A-ZL2-242-010 WORM-WHL
22 8A-ZL2-243-010 GEAR,L-1
23 8B-KC7-209-010 HLDR,SP-L
24 8A-ZL2-231-010 LEVER ASSY GEAR L
25 8A-ZL2-221-010 LEVER ASSY L

26 8A-ZL2-201-010 FRAME ASSY MAIN
27 8A-ZL2-246-010 GEAR CAM L
28 8A-ZL2-236-010 LEVER ASSY GEAR R
29 8A-ZL2-226-010 LEVER ASSY R
30 8B-KC7-210-010 HLDR,SP-R

31 8A-ZL2-247-010 GEAR CAM R
32 8A-ZL2-244-010 GEAR,L-2
33 8A-ZL2-251-010 SHAFT COUNTER
34 8A-ZL2-245-010 GEAR R
35 8B-KC7-208-010 COVER, DUST

36 85-ZL3-203-010 MAGNET,ACU
37 8B-KC7-021-010 CABI,BASE MAIN
38 8B-KC7-022-010 LENS,CD
39 8B-KC1-603-010 F-CABLE,2P (PWB LED)
40 8B-KC7-023-010 CABI,BASE AROUND

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

41 8B-KC1-213-110 CHAS,SIDE L-BC
42 8B-KC7-212-010 HLDR,TR2-B
43 8Z-KC1-256-010 COVER, BOTTOM RDS
44 8B-KC7-211-010 HLDR,MECHA
45 8B-KC7-246-010 HLDR,ISO WIRE B

46 88-KC4-641-010 FF-CABLE, 20P 1.0 90MM
47 8A-KC7-255-010 SPR-C,WIRE
48 8B-KC7-217-010 HLDR,MECHA FR
49 8B-KC1-214-110 CHAS,SIDE R-BC
50 8B-KC1-201-010 COVER, BT RDS

51 8B-KC7-024-010 CABI,TRIM
52 8Z-KC1-231-110 HLDR,HALF -C
53 8B-KC7-215-010 SHAFT,FLAP L/R
54 8B-KC7-218-010 TERMINAL,PWB
55 8B-KC6-201-010 HLDR,STATIC MP3

A 8Z-KC1-253-010 S-SCREW,PT 2*8 BH+ BLK
B 87-B10-335-010 VTT+1.7-4 W/O
C 87-261-032-210 V+2-3
D 87-067-800-010 W-P,1.5-3.5-0.25SLT
E 87-251-070-410 U+2.6-3

F 87-078-018-010 W-P,1.55-3.5-0.25C-WT
G 87-067-272-010 W-P,2.1-4-0.25SLIT
H 8Z-KC1-254-010 S-SCREW,PT 2*5 BH+ BLK
I 87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6)
J 8Z-KC1-251-010 S-SCREW,TH2.6-4.0-0.8

K 87-251-073-410 SCREW,U+2.6-6
L 87-B10-336-010 VTT+2.6-6 W/O
M 87-B10-259-010 UT2+3.0-10.0 W/O SLOT (BH TAP)
N 87-251-096-410 U+3-10
O 88-ZG5-317-010 S-SCREW,8ZG5S+2-4 W/O

P 87-432-903-010 WASHER,WTE 2.6

COLOR NAME TABLE

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange
G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver

T Brown V Violet W White

WT Transparent White Y Yellow YT Transparent Yellow

LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green

YM Metallic Yellow DM Metallic Orange PT Transparent Pink

LA Aqua Blue GL Light Green HT Transparent Gray

– 42 –

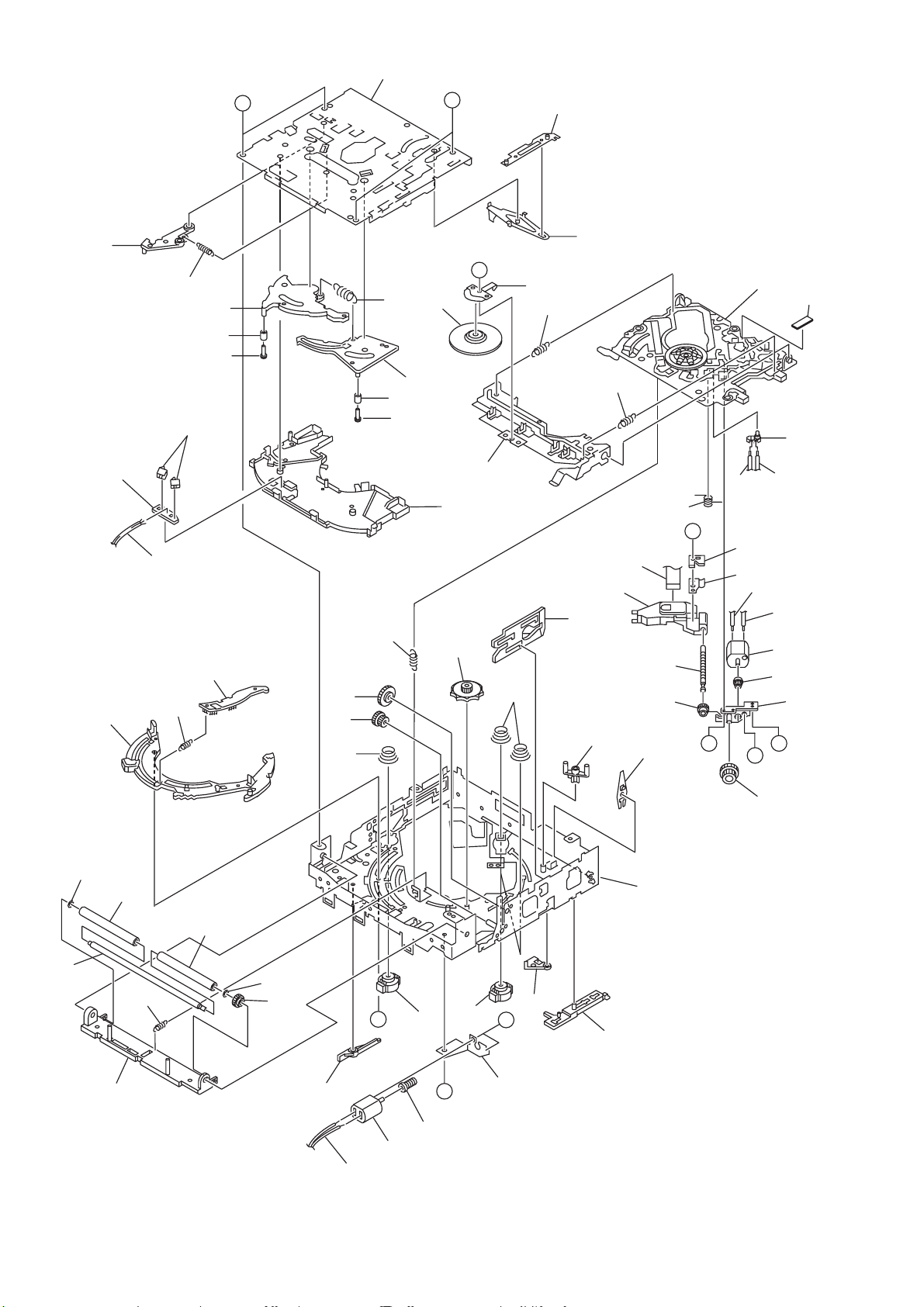

CD MECHANISM EXPLODED VIEW 1 / 1

1

4

PWB

CORD 3P

56

51

5

10

52

55

A

6

7

43

8

7

55

38

42

41

A

B

13

9

15

11

37

41

12

14

2

3

57

DISC,SHEET

16

19

20

21

23

C

26

27

36

33

34

40

39

24
25

LEAD MOTOR A

LEAD MOTOR B

30

31

32

A

A

D

22

17

29

18

28

18

17

54

53

A

LEAD 2P

50

47

A

49

– 43 –

47

48

35

44

46

E

45

CDC02AW1(12cm ONLY)
(FileName:AW1.EPS)
13/6/26

CD MECHANISM PARTS LIST 1 / 1

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

1 S1-100-510-130 COVER TOP
2 S1-100-510-090 LEVER RELEASE
3 S1-100-510-180 ARM START SET
4 S1-100-520-220 LEVER,SENSOR
5 S1-100-540-070 SP LEVER SENSOR

6 S1-100-520-050 DISC ARM L
7 S1-100-530-260 ROLLER ARM DISC
8 S1-100-540-040 SP ARM DISC
9 S1-100-520-060 DISC ARM R
10 S1-100-570-760 SW,LOAD MPU10853MLB2

11 S1-100-520-230 GUIDE TOP
12 S1-100-510-070 PLATE CLAMPER
13 S1-100-520-040 CLAMPER
14 S1-100-740-020 SP ARM CHUCK
15 S1-100-510-030 ARM CHUCK

16 S1-100-740-040 SP ARM CHUCK(R)
17 S2-181-600-50D PSW,1.6-5-0.25 (CUT)
18 S1-100-750-020 LOLLER LOADING
19 S1-100-570-070 SW,INNER
20 S1-100-570-140 LEAD SW A

21 S1-100-570-150 LEAD SW B
22 S1-100-530-060 SHAFT ROLLER
23 S1-100-740-010 SP FEED
24 S1-100-510-110 GUIDE,SPG
25 S1-100-720-040 GUIDE A

26 S1-100-570-790 FLEX PICK(FOC)
27 S1-100-770-090 PICK KSS-710A
28 S1-100-540-100 SP LEVER UP
29 S1-100-520-240 LEVER,UP
30 S1-100-270-030 MOTOR,MAIN FF-030PK

31 S1-100-520-110 GEAR MOTOR FEED
32 S1-100-520-190 CASE,MOTOR
33 S1-100-730-010 SCREW,FEED
34 S1-100-520-090 GEAR,FEED A
35 S1-100-520-300 GEAR FEED B

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

36 S1-100-520-170 LEVER,R
37 S1-100-520-140 GEAR H CAM
38 S1-100-540-080 SP SUB DAMPER
39 S1-100-510-080 ARM,R
40 S1-100-520-180 LEVER,LOCK

41 S1-100-540-030 DAMPER SP
42 S1-100-520-130 GEAR LOAD
43 S1-100-520-120 GEAR L H
44 SX-100-710-030 CHASSIS ASSY
45 S1-100-520-160 LEVER,KICK

46 S1-100-520-270 LEVER,SUB KICK
47 S1-100-760-010 DAMPER ASSY
48 S1-100-510-060 BRACKET,L M
49 S1-100-520-200 MOTOR WORM
50 S1-100-770-080 MOTOR LOAD

51 S1-100-540-090 SP GEAR SUB
52 S1-100-520-030 GEAR SUB CAM
53 S1-100-520-250 LEVER,SW
54 S1-100-520-210 GEAR,ROLLER
55 S1-100-530-250 PIN ARM DISC

56 S1-100-520-020 GEAR CAM
57 SZ-100-710-010 PICK BASE GROSS ASSY
A S1-100-550-030 SCREW,XP
B S2-139-140-40P B-TYPE M1.4-4
C S2-103-170-60P (+)P. PRECISION SCREW M1.7-6

D S2-103-200-40P (+)P.PRECISION SCREW M2.0-4.0
E S2-101-200-25P (+)P.PRECISION SCREW M2.0-2.5

– 44 –

ACCESSORIES / PACKAGE LIST

PART NO.

NO.

1 8B-KC5-901-010 IB,YZ(9L)MP33R
1 8B-KCF-906-110 IB,INST,YZ,YV(9L,R)-I
2 87-B10-141-010 NUT,5 TYPE-2
3 87-B10-143-010 UT1+5-15 W/O SLOT
4 87-B10-144-010 W,5.2-10-0.5

5 87-B10-145-010 W-SPR,5.3-8.5-1.5
6 8Z-KC1-231-110 HLDR,HALF-C
7 8Z-KC1-232-010 KEY,REMOVE-C
8 8Z-KC1-235-010 HLDR,REAR MTG
9 8Z-KC1-244-010 S-SCREW,5*6 TH+ TAPPING ST

10 8Z-KC1-250-010 S-SCREW,HEXAGON
*11 R8-BZR-191-040 BZR-1 RC3YZNF

*NOTE: This remote controller is not an accessory part.
It is an individual model.

DESCRIPTIONREF. NO. KANRI

– 45 –

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]

Printed in Singapore2000068 0251431
