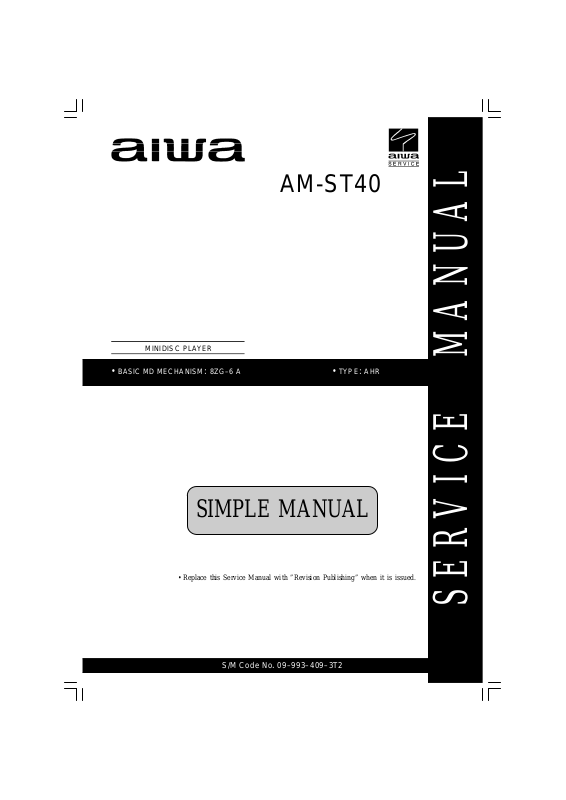

Page 1
S E R V I C E M A N U A L
AM-ST40
MINIDISC PLAYER
• BASIC MD MECHANISM: 8ZG–6 A • TYPE: AHR
SIMPLE MANUAL
• Replace this Service Manual with ”Revision Publishing” when it is issued.
S/M Code No. 09–993–409–3T2
Page 2
ELECTRICAL MAIN PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
AHR ....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-HM4-611-010 PWB,FLEX JACK EX A...................
* 8Z-HM4-603-110 PWB,FLEX MECHA A...................
* 8Z-HM4-604-010 PWB,FLEX JACK ....................
J 701 87-A60-682-010 JACK,3.5 ST 7P A...................
C 109 87-010-787-080 CAP, U 0.022-25 A...................
C 108 87-012-286-080 CAP, U 0.01-25 A...................
C 102 87-016-296-080 C-CAP,TN 22-4SV(A) A...................
C 103 87-016-296-080 C-CAP,TN 22-4SV(A) A...................
C 106 87-016-296-080 C-CAP,TN 22-4SV(A) A...................
C 100 87-016-296-080 C-CAP,TN 22-4SV(A) A...................
C 104 87-A10-057-080 C-CAP,TN 100-4 F95 E A...................
C 107 87-A10-504-080 C-CAP,U 0.047-16 K B A...................
C 119 87-010-787-080 CAP, U 0.022-25 A...................
C 116 87-012-195-080 C-CAP,U 100P-50CH A...................
C 111 87-012-282-080 CAP, U 4700P-50 A...................
C 113 87-012-282-080 CAP, U 4700P-50 A...................
C 118 87-012-286-080 CAP, U 0.01-25 A...................
C 117 87-012-286-080 CAP, U 0.01-25 A...................
C 115 87-016-448-080 C-CAP,TN 2.2-10 F95P A...................
C 110 87-A10-353-080 C-CAP,U0.22-10KB A...................
C 114 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 112 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 125 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 126 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 127 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 129 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 124 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 128 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 120 87-012-284-080 CAP, U 6800P-50 A...................
C 122 87-012-286-080 CAP, U 0.01-25 A...................
C 123 87-012-286-080 CAP, U 0.01-25 A...................
C 121 87-A10-504-080 C-CAP,U 0.047-16 K B A...................
CN 100 87-A60-470-080 C-CONN,22P H SFV2ST A...................
IC 100 87-A20-707-010 C-IC,CXA2523AR A...................
L 100 87-A50-108-080 C-COIL,330H K NLC A...................
L 102 87-A50-108-080 C-COIL,330H K NLC A...................
Q 104 87-026-644-080 C-TR,DTA144EE A...................
Q 101 87-A30-148-080 C-TR,2SC4738GR A...................
Q 100 89-115-884-080 CHIP -TRANSISTER 2SA1588Y A...................
C 206 87-012-270-080 CAP, U 470P-50 A...................
C 202 87-012-280-080 CAP, U 3300P-50 A...................
C 208 87-012-286-080 CAP, U 0.01-25 A...................
C 205 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 203 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 204 87-A10-902-080 C-CAP,U 0.47-10 K B A...................
C 207 87-A10-902-080 C-CAP,U 0.47-10 K B A...................
C 216 87-010-785-080 C-CAP,U0.015-25BK A...................
C 214 87-A10-353-080 C-CAP,U0.22-10KB A...................
C 217 87-A10-954-080 C-CAP,TN 22-4 MCR A...................
C 212 87-A10-954-080 C-CAP,TN 22-4 MCR A...................
IC 200 87-A20-931-010 C-IC,CXD2655R A...................
IC 204 87-A21-027-080 C-IC,TC7W66FU A...................
IC 203 87-A21-140-010 C-IC,MSM51V17400D A...................
L 200 87-A50-358-080 C-COIL, 10UH K NLFC252018 A...................
Q 205 87-026-644-080 C-TR,DTA144EE A...................
Q 201 87-A30-147-080 C-TR,2SA1832GR A...................
Q 202 87-A30-147-080 C-TR,2SA1832GR A...................
Q 200 87-A30-147-080 C-TR,2SA1832GR A...................
R 209 87-A91-358-080 C-F-BEAD, BK1005HM102 A...................
X 201 87-A70-158-080 C-VIB,CER 22.57MHZ SSR-B A...................
C 415 87-012-278-080 C-CAP,U 2200P-50 B A...................
C 416 87-012-278-080 C-CAP,U 2200P-50 B A...................
C 414 87-012-278-080 C-CAP,U 2200P-50 B A...................
C 417 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 418 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 419 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 413 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 411 87-A11-070-080 C-CAP,U 0.033-16 K B A...................
C 412 87-A11-070-080 C-CAP,U 0.033-16 K B A...................
C 422 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 424 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 428 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 423 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 429 87-A10-057-080 C-CAP,TN 100-4 F95 E A...................
C 420 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 421 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 432 87-016-296-080 C-CAP,TN 22-4SV(A) A...................
C 431 87-A10-057-080 C-CAP,TN 100-4 F95 E A...................
C 430 87-A10-057-080 C-CAP,TN 100-4 F95 E A...................
CN 401 87-A60-795-080 C-CONN,8P H SFV1ST A...................
IC 411 87-A21-024-010 C-IC,BD6601KV A...................
L 414 87-A50-358-080 C-COIL, 10UH K NLFC252018 A...................
L 417 87-A50-358-080 C-COIL, 10UH K NLFC252018 A...................
L 413 87-A50-358-080 C-COIL, 10UH K NLFC252018 A...................
L 412 87-A50-358-080 C-COIL, 10UH K NLFC252018 A...................
L 411 87-A50-358-080 C-COIL, 10UH K NLFC252018 A...................
Page 3
ELECTRICAL MAIN PARTS LIST - 2/2
L 415 87-A50-361-080 C-COIL, 100UH K NLFC252018 A...................
Q 402 87-A30-235-080 C-TR,UMD2N A...................
Q 401 87-A30-261-080 C-FET,FDC633N A...................
C 704 87-012-195-080 C-CAP,U 100P-50CH A...................
C 703 87-012-195-080 C-CAP,U 100P-50CH A...................
C 700 87-012-286-080 CAP, U 0.01-25 A...................
C 701 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 702 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 777 87-A10-057-080 C-CAP,TN 100-4 F95 E A...................
C 778 87-A10-057-080 C-CAP,TN 100-4 F95 E A...................
C 776 87-A10-057-080 C-CAP,TN 100-4 F95 E A...................
C 779 87-A10-057-080 C-CAP,TN 100-4 F95 E A...................
C 771 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 772 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 775 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 770 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 774 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 773 87-A11-049-080 C-CAP,U 1-6.3 K B A...................
C 782 87-016-296-080 C-CAP,TN 22-4SV(A) A...................
C 785 87-016-296-080 C-CAP,TN 22-4SV(A) A...................
C 787 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 790 87-A10-504-080 C-CAP,U 0.047-16 K B A...................
CN 701 87-A60-471-080 C-CONN,8P H SFV2ST A...................
FB 704 87-A91-364-080 C-F-BEAD, BK1608HS601 A...................
FB 701 87-A91-364-080 C-F-BEAD, BK1608HS601 A...................
FB 703 87-A91-364-080 C-F-BEAD, BK1608HS601 A...................
FB 702 87-A91-364-080 C-F-BEAD, BK1608HS601 A...................
IC 770 87-A21-029-040 C-IC,BA3577FV A...................
L 701 87-A50-358-080 C-COIL, 10UH K NLFC252018 A...................
L 771 87-A50-362-080 C-COIL,ACM2520-601-2P ....................
L 770 87-A50-362-080 C-COIL,ACM2520-601-2P ....................
R 793 87-A91-358-080 C-F-BEAD, BK1005HM102 A...................
R 796 87-A91-358-080 C-F-BEAD, BK1005HM102 A...................
C 303 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 305 87-012-286-080 CAP, U 0.01-25 A...................
C 307 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 302 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 306 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 301 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 309 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 310 87-012-286-080 CAP, U 0.01-25 A...................
C 311 87-012-286-080 CAP, U 0.01-25 A...................
C 312 87-016-453-080 C-CAP,U 0.1-16 BK A...................
CN 301 87-A60-847-080 C-CONN,4P H 6206 A...................
D 301 87-070-398-080 C-LED,CL220HR A...................
D 302 87-A40-124-080 C-DIODE,RB501V-40 A...................
D 304 87-A40-124-080 C-DIODE,RB501V-40 A...................
IC 302 87-A21-030-040 C-IC,S-93C46AMFN A...................
IC 300 8Z-HM6-601-010 C-IC,CXP81952 A...................
Q 304 87-026-645-080 C-TR,DTC144EE A...................
Q 303 87-A30-033-080 C-FET,2SK2035 A...................
R 304 87-022-239-080 C-RES U 10K-1/16WF A...................
S 300 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 A...................
S 304 87-A90-952-080 C-SW,PUSH MPU10853MLB3 A...................
X 301 87-030-369-080 C-VIB,CER PBRC12.00B A...................
C 2 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 600 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 606 87-016-296-080 C-CAP,TN 22-4SV(A) A...................
C 605 87-016-296-080 C-CAP,TN 22-4SV(A) A...................
C 601 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 607 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 609 87-016-453-080 C-CAP,U 0.1-16 BK A...................
C 602 87-A10-591-080 C-CAP,TN 47-6.3 M F95-BCASE A...................
C 608 87-A10-954-080 C-CAP,TN 22-4 MCR A...................
C 603 87-A10-954-080 C-CAP,TN 22-4 MCR A...................
C 604 87-A10-955-080 C-CAP,TN 47-6.3 MCR A...................
C 610 87-016-453-080 C-CAP,U 0.1-16 BK A...................
D 605 87-017-850-080 C-DIODE,DAP222 A...................
D 601 87-A40-540-080 C-DIODE,M1FP3 A...................
D 606 87-A40-540-080 C-DIODE,M1FP3 A...................
D 602 87-A40-540-080 C-DIODE,M1FP3 A...................
D 604 87-A40-541-080 C-DIODE,1SS362 A...................
F 600 87-A90-745-080 C-FUSE,750MA 13.2V MINISMDC075 A...................
F 601 87-A90-745-080 C-FUSE,750MA 13.2V MINISMDC075 A...................
IC 604 87-A20-674-040 C-IC,S-80825ANNP-EDN A...................
IC 603 87-A20-674-040 C-IC,S-80825ANNP-EDN A...................
IC 602 87-A21-026-080 C-IC,S-8327B25MC A...................
IC 605 87-A21-028-080 C-IC,TK11224B A...................
IC 601 87-A21-132-080 C-IC,S-8327B28MC A...................
IC 610 87-A20-861-040 C-IC,S-80808ANNP A...................
L 603 87-A50-324-080 C-COIL,47UH C4-K3L A...................
L 602 87-A50-325-080 C-COIL,180UH C4-K3L A...................
Q 605 87-026-645-080 C-TR,DTC144EE A...................
Q 603 87-A30-033-080 C-FET,2SK2035 A...................
Q 606 87-A30-033-080 C-FET,2SK2035 A...................
Q 608 87-A30-183-040 C-TR,2SD1628G A...................
Q 607 87-A30-235-080 C-TR,UMD2N A...................
Q 601 87-A30-261-080 C-FET,FDC633N A...................
Q 604 87-A30-262-080 C-FET,FDC634P A...................
Q 602 87-A30-262-080 C-FET,FDC634P A...................
R 608 87-022-294-080 C-RES,U 470K 1-16W F A...................
Page 4
MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
AHR ....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-HM6-001-010 PANEL ASSY,TOP A...................
8Z-HM6-003-010 FRAME,CENTER A...................
8Z-HM6-004-010 LID,BAT A...................
8Z-HM6-018-010 FRAME,CENTER R A...................
8Z-HM6-011-010 KNOB,RTRY EJECT A...................
8Z-HM6-012-010 KEY,MAIN A...................
8Z-HM6-014-010 KNOB,SL HOLD A...................
8Z-HM6-007-010 PANEL,BOT ....................
8Z-HM6-021-010 PANEL,BOT EZ ....................
8Z-HM6-022-010 PANEL,BOT HR A...................
8Z-HM6-023-010 PANEL,BOT HK ....................
8Z-HM6-016-010 LENS,LED A...................
8Z-HM4-206-110 SPR-T,OPEN A...................
8Z-HM4-207-010 SPR-P,TOP F A...................
8Z-HM4-208-010 SPR-P,TOP R A...................
8Z-HM4-213-010 COVER, BAT A...................
8Z-HM4-214-110 DMPR,G A...................
8Z-HM4-215-010 BAT-CONTACT,- A...................
8Z-HM4-226-110 HLDR,PWB A...................
8Z-HM4-230-010 SPR-E,EJECT A...................
8Z-HM4-240-010 DMPR,R A...................
8Z-HM4-249-010 W-M,1.59-3.2-0.238 A...................
8Z-HM6-201-010 FRAME ASSY,FRONT A...................
8Z-HM6-218-010 COVER, BAT BOX A...................
8Z-HM6-220-010 COVER,BAT + A...................
8Z-HM6-223-010 FRAME ASSY,REAR A...................
8Z-HM6-225-010 HLDR,BAT A...................
8Z-HM6-228-010 HINGE ASSY,BAT A...................
8Z-HM6-231-010 BAT-CONTACT,+ BOX A...................
8Z-HM6-232-010 BAT-CONTACT,- BOX A...................
8Z-HM6-233-010 HANGER ASSY,REAR A...................
8Z-HM6-234-010 JOINT,EJECT A...................
8Z-HM6-235-010 SPR-T,EJECT A...................
87-067-394-010 TAPPING SCREW, +1.4-2.5 A...................
87-067-430-010 VT1.4-5 BLK A...................
87-067-556-010 SCREW 1.4-3SPL(B) N A...................
87-067-745-010 V+1.4-1.1(1) CR A...................
87-067-746-010 SCREW,M 1.4-2(H0.5) A...................
87-353-507-310 VT2+1.4-3 CHROME A...................
87-HM1-242-010 S-SCREW,1.4-2.0CR A...................
87-HM1-243-010 S-SCREW,1.4-1.4CRNL A...................
87-HM1-254-010 S-SCREW,1.4-1.4CR A...................
8Z-HM1-236-010 S-SCREW,+1.4-1.2 SWCH CR A...................
8Z-HM4-611-010 PWB,FLEX JACK EX A...................
Page 5
ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
AHR ....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-HM6-901-010 IB,D (J) ....................
8Z-HM6-903-010 IB,AE (EFS) ....................
8Z-HM6-904-010 IB,AE (GID) ....................
8Z-HM6-905-010 IB,AE (POHCZ) ....................
8Z-HM6-906-010 IB,AHR (ECA) A...................
87-A90-312-010 PLUG,CONVERSION WTN-1157R1 A...................
87-B30-066-110 CHARGER,RB-M01 ....................
87-B30-201-010 BAT,MHB-901 A...................
87-B30-221-010 CASE,BATTERY A...................
87-B30-242-010 CHARGER,RB-M02E ....................
87-B30-244-010 CHARGER,RB-M02K ....................
87-B30-246-010 CHARGER,RB-M02HR A...................
87-B30-248-010 HEADPHONE,HP-M038 A...................
87-B30-249-010 HEADPHONE,HP-M039 ....................
8Z-HK4-090-010 BOX,BAT ASSY SIL A...................
8Z-HM4-605-010 RC UNIT,RC-HX30 A...................
8Z-HM4-951-010 STRAP,RC-HX30 ....................
8Z-HM6-953-010 STRAP,AM-ST40 ASSY A...................
Page 6

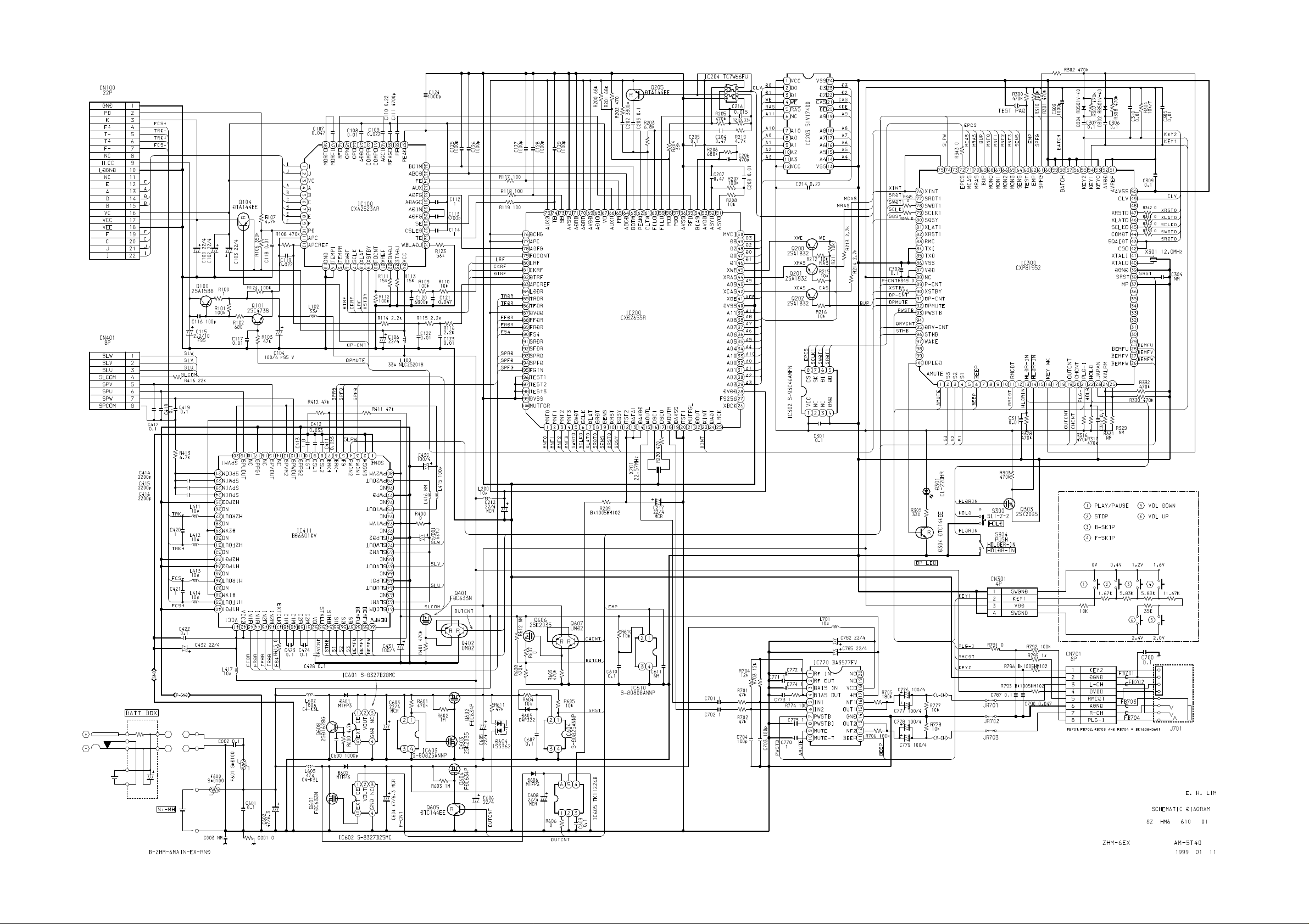

SCHEMATIC DIAGRAM
Page 7
4
9420025
Tokyo Japan
Printed in Singapore
Loading...
