Aiwa ADC-M65 YZ Service Manual

ADC-M65

SERVICE MANUAL

STEREO CAR

CD CHANGER SYSTEM

• Replace this Service Manual with ”Revision Publishing” when it is issued.

BASIC CD MECHANISM : 8ZG-3 RNF

S/M Code No. 09-002-404-5T6

SIMPLE

DATA

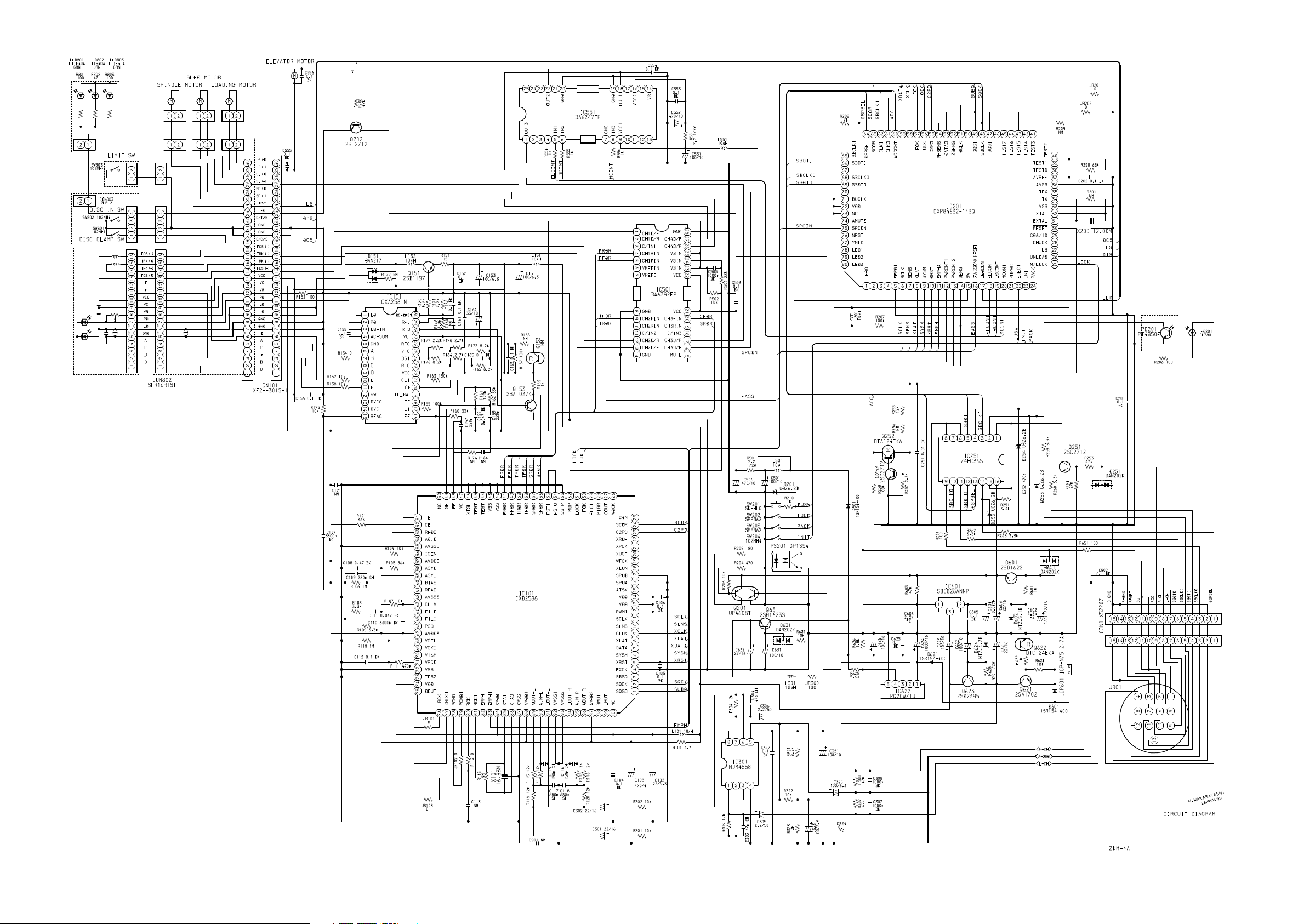

ELECTRICAL MAIN PARTS LIST - 1 / 3

NOTE: The characters in the suffix column indicate the part usage.

YZ .....................XX..................................A...................

KANRI REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 201 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 202 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 201 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 202 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 221 87-010-498-040 CAP,E 10-16 GAS ....................

C 222 87-010-552-040 CAP,E 22-16 GAS ....................

C 251 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 251 87-010-497-040 CAP,E 4.7-35 GAS ....................

C 252 87-012-140-080 CAP 470P A...................

D 201 87-A40-196-080 C-ZENER,UDZ6.2B A...................

D 251 87-020-331-080 CHIP-DIODE,DAN202K A...................

D 254 87-A40-196-080 C-ZENER,UDZ6.2B A...................

D 253 87-A40-196-080 C-ZENER,UDZ6.2B A...................

D 255 87-A40-196-080 C-ZENER,UDZ6.2B A...................

D 252 87-A40-602-040 C-ZENER,UDZ7.5B ....................

IC 201 8Z-KM3-690-010 C-IC,CXP84632-138Q ....................

IC 201 8Z-KM3-691-010 C-IC,CXP84632-143Q A...................

IC 251 87-A21-158-040 C-IC,TC74HC365AF A...................

L 201 87-A50-536-080 C-COIL,10UH K LQH3C24 A...................

PD 201 87-026-674-010 P-TR,PT4850F A...................

PS 201 87-A90-244-010 SNSR,GP1S94 A...................

Q 201 87-026-648-080 C-TR,UPA608T A...................

Q 203 87-A30-272-040 C-TR,DTA124EKA ....................

Q 202 89-327-125-080 CHIP TR,2SC2712GR A...................

Q 222 87-A30-273-040 C-TR,DTC124EKA ....................

Q 221 87-A30-275-040 C-TR,2SB1123 ....................

Q 252 87-A30-272-040 C-TR,DTA124EKA A...................

Q 251 89-327-125-080 CHIP TR,2SC2712GR A...................

Q 253 89-327-125-080 CHIP TR,2SC2712GR A...................

SW 203 87-036-110-010 PUSH SWITCH A...................

SW 202 87-036-110-010 PUSH SWITCH A...................

SW 204 87-036-312-080 C-SW,PUSH 102MH4 A...................

SW 201 87-A91-155-010 SW,TACT SKHHLQ A...................

X 200 87-A70-200-080 C-VIB,CER 12MHZ CSTCV12MTJ0C4 A...................

8Z-KM1-232-010 HLDR,LED A...................

C 107 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 107 87-010-186-080 CAP,CHIP 4700P ....................

C 105 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 104 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 106 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 102 87-010-499-040 CAP,E 22-6.3 GAS A...................

C 101 87-010-550-040 CAP,E 100-6.3 GAS ....................

C 109 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 103 87-016-350-040 CAP,E 470-4 MA GAS ....................

C 108 87-016-526-080 C-CAP,S 0.47-16 BK A...................

C 108 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 106 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 105 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 104 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 103 87-A12-154-010 CAP,E 470-4 M 7L SRA A...................

C 117 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 118 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 110 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 112 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 113 87-010-318-080 C-CAP,S 47P-50 CH ....................

C 111 87-010-992-080 C-CAP,S 0.047-25 B A...................

C 116 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 115 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 112 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 155 87-010-178-080 CHIP CAP 1000P ....................

C 159 87-010-318-080 C-CAP,S 47P-50 CH ....................

C 156 87-010-880-080 C-CAP,E 47-6.3 MF ....................

C 157 87-010-880-080 C-CAP,E 47-6.3 MF ....................

C 154 87-010-880-080 C-CAP,E 47-6.3 MF ....................

C 158 87-010-992-080 C-CAP,S 0.047-25 B A...................

C 159 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 157 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 153 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 156 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 152 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 155 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 153 87-A10-711-080 C-CAP,E 100-6.3 M MF A...................

C 152 87-A10-711-080 C-CAP,E 100-6.3 M MF ....................

C 151 87-A10-711-080 C-CAP,E 100-6.3 M MF A...................

C 160 87-010-317-080 C-CAP,S 39P-50 CH ....................

C 161 87-012-156-080 C-CAP,S 220P-50 CH ....................

C 166 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 161 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 163 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 165 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 162 87-A12-031-080 C-CAP,E 33-10 M MF A...................

C 172 87-010-149-080 C-CAP,S 5P-50 CH ....................

C 171 87-012-156-080 C-CAP,S 220P-50 CH ....................

C 181 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 404 87-010-178-080 CHIP CAP 1000P ....................

C 403 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

ELECTRICAL MAIN PARTS LIST - 2 / 3

C 402 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 405 87-010-318-080 C-CAP,S 47P-50 CH ....................

C 401 87-A10-711-080 C-CAP,E 100-6.3 M MF ....................

C 452 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 505 87-010-178-080 CHIP CAP 1000P A...................

C 503 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 509 87-010-237-080 CAP, ELECT 1000-16V ....................

C 501 87-010-553-040 CAP,E 47-16 GAS ....................

C 501 87-010-555-040 CAP,E 100-10 GAS A...................

C 503 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 506 87-A11-257-010 CAP,E 470U-10 M UVZ1A A...................

C 555 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 553 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 556 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 554 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 557 87-010-221-080 CAP, ELECT 470-10V ....................

C 551 87-010-552-040 CAP,E 22-16 GAS ....................

C 551 87-010-555-040 CAP,E 100-10 GAS A...................

C 556 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 553 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 555 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 554 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 552 87-A11-257-010 CAP,E 470U-10 M UVZ1A A...................

C 558 87-A11-257-010 CAP,E 470U-10 M UVZ1A ....................

C 604 87-010-782-010 CAP 0.047F A...................

C 604 87-A11-258-010 CAP,DL 0.022F-5.5 Z FYD0H ....................

D 151 87-020-330-080 DIODE,DAP202K ....................

D 151 87-A40-250-040 C-DIODE,DAN217 A...................

D 501 87-A40-524-040 C-DIODE,1SR154-400 A...................

IC 101 87-A20-892-010 C-IC,CXD2588R A...................

IC 151 87-A20-963-040 C-IC,CXA1791N ....................

IC 151 87-A21-467-040 C-IC,CXA2581N A...................

IC 401 87-A20-574-010 IC,SM5902 AF ....................

IC 451 87-A21-160-040 C-IC,MSM5117400C-60SJ ....................

IC 501 87-A21-161-040 C-IC,BA6392FP A...................

IC 551 87-A21-162-040 C-IC,BA6247FP A...................

L 101 87-003-184-080 C-COIL, 10UH K LQH3 ....................

L 101 87-A50-536-080 C-COIL,10UH K LQH3C24 A...................

L 151 87-003-184-080 C-COIL, 10UH K LQH3 ....................

L 151 87-A50-536-080 C-COIL,10UH K LQH3C24 A...................

L 152 87-A50-536-080 C-COIL,10UH K LQH3C24 A...................

L 401 87-003-184-080 C-COIL, 10UH K LQH3 ....................

L 501 87-003-184-080 C-COIL, 10UH K LQH3 ....................

L 501 87-A50-536-080 C-COIL,10UH K LQH3C24 A...................

L 551 87-003-184-080 C-COIL, 10UH K LQH3 ....................

L 551 87-A50-536-080 C-COIL,10UH K LQH3C24 A...................

Q 152 87-026-608-080 C-TR,DTC 123 JK ....................

Q 151 87-A30-248-040 C-TR,2SB1197KQ A...................

Q 153 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................

Q 151 89-110-372-080 TR,2SA1037(140MHZ 200MW) ....................

R 153 87-022-359-080 C-RES,S22K-1/10WF ....................

R 154 87-022-359-080 C-RES,S22K-1/10WF ....................

X 101 87-A70-163-080 C-VIB,CER 16.93MHZ CSTCVMXJ0C4 A...................

C 605 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 601 87-010-552-040 CAP,E 22-16 GAS A...................

C 603 87-010-552-040 CAP,E 22-16 GAS A...................

C 608 87-010-805-080 CAP, S 1-16 ....................

C 605 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 602 87-A10-368-080 C-CAP,S 2.2-10 Z F A...................

C 606 87-A10-368-080 C-CAP,S 2.2-10 Z F A...................

C 622 87-010-060-040 CAP,E 100-16 ....................

C 623 87-010-060-040 CAP,E 100-16 ....................

C 625 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 624 87-010-237-080 CAP, ELECT 1000-16V ....................

C 624 87-010-260-080 CAP, ELECT 47-25V A...................

C 621 87-010-552-040 CAP,E 22-16 GAS A...................

C 622 87-010-555-040 CAP,E 100-10 GAS A...................

C 623 87-010-555-040 CAP,E 100-10 GAS A...................

C 626 87-016-044-040 CAP,E 100-16 GAS A...................

C 625 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 623 87-A10-818-040 CAP,E 100-16 7LSRA SERIES ....................

C 622 87-A10-818-040 CAP,E 100-16 7LSRA SERIES ....................

C 632 87-010-552-040 CAP,E 22-16 GAS A...................

C 631 87-010-555-040 CAP,E 100-10 GAS A...................

D 603 87-001-221-080 CHIP DIODEISS319 ....................

D 604 87-020-331-080 CHIP-DIODE,DAN202K ....................

D 602 87-070-136-080 ZENER,MTZJ5.1B A...................

D 602 87-A40-350-080 ZENER,MTZJ 4.7C ....................

D 601 87-A40-524-040 C-DIODE,1SR154-400 A...................

D 624 87-017-931-080 ZENER,MTZJ5.6B ....................

D 622 87-020-331-080 CHIP-DIODE,DAN202K ....................

D 623 87-A40-196-080 C-ZENER,UDZ6.2B ....................

D 624 87-A40-437-080 ZENER,MTZJ4.3B A...................

D 621 87-A40-524-040 C-DIODE,1SR154-400 A...................

D 631 87-020-331-080 CHIP-DIODE,DAN202K A...................

D 651 87-020-331-080 CHIP-DIODE,DAN202K A...................

IC 601 87-A21-102-040 C-IC,S-80828ANNP-EDR-T2 A...................

IC 622 87-A21-190-040 C-IC,PQ20WZ1U A...................

ICP 601 87-A91-337-080 PROTECTOR,IC ICP-N75 A...................

Q 602 87-A30-272-040 C-TR,DTA124EKA ....................

Q 601 87-A30-274-040 C-TR,2SD1622S-TD A...................

Q 603 89-327-125-080 CHIP TR,2SC2712GR ....................
