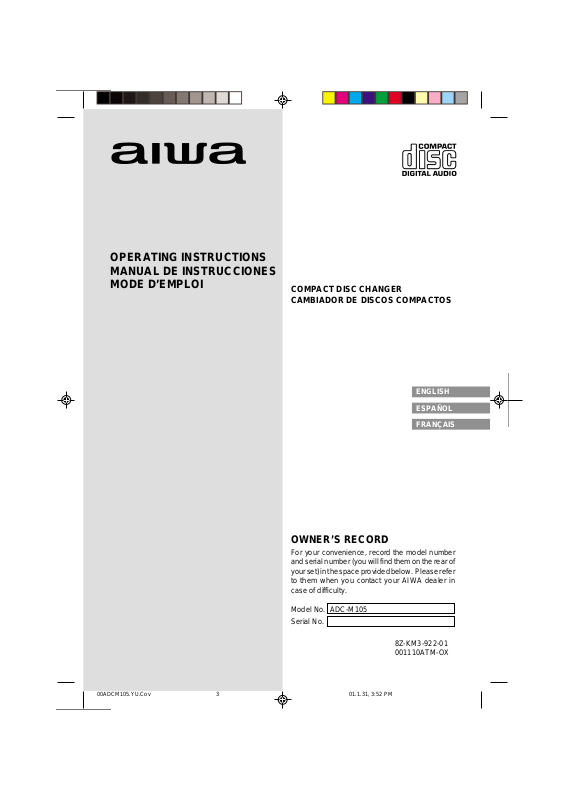

OPERATING INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MODE D’EMPLOI
ADC-M105 YU
COMPACT DISC CHANGER
CAMBIADOR DE DISCOS COMPACTOS
ENGLISH
ESPAÑOL
FRANÇAIS
OWNER’S RECORD
For your convenience, record the model number
and serial number (you will find them on the rear of
your set) in the space provided below. Please refer
to them when you contact your AIWA dealer in
case of difficulty.
Model No. ADC-M105
Serial No.
8Z-KM3-922-01
001110ATM-OX
Welcome
Thank you for your purchasing this AIWA product. To optimize the performance of this unit, please read
through this manual carefully.
TABLE OF CONTENTS
FEATURES ..........................................................................................................................................1
PRECAUTIONS ...................................................................................................................................2
UNPACKING........................................................................................................................................3
INSTALLATIONS .................................................................................................................................4
CONNECTIONS ..................................................................................................................................8
HOW TO USE ......................................................................................................................................9
SPECIFICATIONS .............................................................................................................................10
FEATURES
• Tracks from 10 CDs stored in the disc magazine
can be selected and played.
• Horizontal, vertical, slanted or suspended
installation can be made.
• Through the window at the top of the unit, you
can see a disc spinning as it plays.
• Since it is smaller in size, you will find it easier
to install the unit.
In addition to ordinary CDs, CD-Rs or CD-RWs
can be read by this unit. However, NEVER use
a CD-R or CD-RW that contains no data or data
in the wrong format, such as MP3 or other
computer files.
When you insert a CD-R/CD-RW, it may take
longer to start playing.
1
ENGLISH
NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on
circuit different from that to which the receiver
is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
CAUTION
Modifications or adjustments to this product, which
are not expressly approved by the manufacturer,
may void the user’s right or authority to operate
this product.
PRECAUTIONS
• Do NOT install the unit in a location where it
may be subjected to:
— Direct sunlight or other sources of excessive
heat
— Fluid, rain or moisture
— Excessive dirt or dust
— Excessive vibration
• This unit is designed to be operated on a 12-volt
DC negative-ground electrical system only.
• Choose the mounting location carefully so that
the unit will not interfere with normal driving
functions.
• Before making connections, disconnect the (
terminal of the car battery to avoid short
circuiting.
Notes on CDs
• A defective or soiled disc stored in the disc
magazine can cause the sound to drop out
during play.
• Always handle a disc by holding its inner and
outer edges.
• Do NOT touch the surface of the unlabeled side
of the disc.
• Do NOT attach paper or tape etc. to a disc.
• Clean the discs before inserting them into the
disc magazine. Always clean a disc from the
center outward with a cleaning cloth.
• There may be burrs left on the inner and outer
edges of a brand-new disc. The burr may
cause the malfunction of the unit or sound dropout. To prevent these problems, if the burr is
left on the disc, be sure to remove them with a
ball-point pen, etc. as illustrated.
Ball-point pen
ENGLISH
Burr
Burr
Ball-point pen
• Do NOT expose the discs to direct sunlight or
excessive heat.
• NEVER use solvents such as benzine or alcohol
to clean a disc.
• You cannot play an 8-cm (3-inch) CD — even
with the specially designed adaptor.
• Do NOT use irregular shape CDs (example:
heart-shaped, octagonal ones).
It may result in malfunction.
Notes on the disc magazine
• Do NOT leave the disc magazine in a place
subject to excessive temperature or humidity.
• Do NOT insert more than one disc per slot.
• Do NOT drop the disc magazine.
ENGLISH
2
UNPACKING
Compact disc changer
Compact disc magazine Connecting cable
Supplied mounting kit
for the compact disc changer
The letters are keyed to those in the instructions.
Use only the supplied mounting hardware for safe and secure installation.
a Brackets (1 pair)
e Adhesive label
(1 sheet)
b Washer screws
(4 ea.)
(2 ea.)
d Nuts (4 ea.)c Plate brackets
3
ENGLISH
INSTALLATIONS
Precautions
Select the mounting location very carefully,
referring to the following points.
• Make sure that there is no fuel tank, wiring or
piping on the other side of the mounting surface.
• Make sure that the installation of the unit will not
hinder the movement of the deck lid or interfere
with the spare tire, etc.
• Use only the supplied mounting kit for safe and
proper installation.
Removing the transport screws
Find the three transport screws at the bottom of
the unit, which lock the unit’s mechanism during
transport. Remove these screws before
installation.
Retain these screws and replace them in the
original positions if the unit is transported for
service or maintenance.
Mounting angle setting levers
Be sure to change the position of both mounting
angle setting levers according to the angle at
which the unit is to be installed.
Mounting angle setting levers
Insert a pointed object such as a screw driver or
ball-point pen, etc. into the low spot of the lever
and slide the lever to the position from among
HORIZONTAL, 45°, and VERTICAL positions.
Notes
• Be sure to eject the disc magazine when you set the
levers.
• Be sure to set both levers to the same position.
• Be sure to set the levers exactly at the position (notch).
If the lever is deviate from the position, the sound may
drop out.
• Care must be taken when you mount the unit at the
angle of lower than level. The disc magazine may drop
if you eject the magazine.
• Do NOT turn over the unit or slide the lever when the
unit is activated. Doing so may damage the mechanism
or the discs in the unit.
• The mounting angle setting levers on each side of the
unit are factory-set to the HORIZONTAL position.
• When you complete the setting, attach the supplied
adhesive labels e over the slots.
ENGLISH
4
INSTALLATIONS
Horizontal installation
Construction
1
For details on abc..., see page 3.
Note
If the mounting surface needs to be strengthened,
secure the plate brackets c to the bottom surface of the
car trunk, etc. with the tapping screws (not supplied).
The effective angle of the unit.
The position of the lever.
Deciding the position
2
Removing temporarily
3
Making holes in the carpet
4
Completion
5
5
ENGLISH
Vertical installation
Construction
1
For details on abc..., see page 3.
Notes
• If the mounting surface needs to be strengthened,
secure the plate brackets c to the bottom surface
of the car trunk, etc. with the tapping screws (not
supplied).
Deciding the position
2
Cut the plate
bracket c if it
is too long.
The effective angle of
the unit.
• If installation space is narrow, bend the plate bracket
c back and forth along the perforated line to break off
the end.
Making holes in the carpet
4
The position of
the lever.
Removing temporarily
3
Completion
5
ENGLISH
6
INSTALLATIONS
Suspended installation
When installing the unit in the trunk below the
package tray, observe the following.
• Select the mounting location carefully so that
the unit does not hinder the movement of the
torsion bars of the deck lid.
Construction
1
For details on abc..., see page 3.
Making holes
2
Caution
Before drilling the holes, make sure that there is
nothing on the other side of the mounting surface.
The effective angle of the unit.
The position of the lever.
Completion
3
Slanted installation
15˚
15˚
45˚
7
ENGLISH
Be sure to set the
mounting angle
setting levers to the
45° position.
Tapping screws are not supplied.
Note on the brackets a
To save installation space, you can place the
brackets a inside out, as illustrated below.
CONNECTIONS
This unit is designed only for AIWA brand car
stereo. Therefore you cannot use the unit with
other brand’s equipment.
Compact disc changer
Connecting cable
(supplied)
to AIWA brand car stereo
Caution
Be sure to disconnect the ground wire terminal of
the car battery before making a connection in
order to prevent short circuiting.
Note
Use only the supplied connecting cable. Using an
unspecified connecting cable may cause background
noise.
ENGLISH
8
HOW TO USE

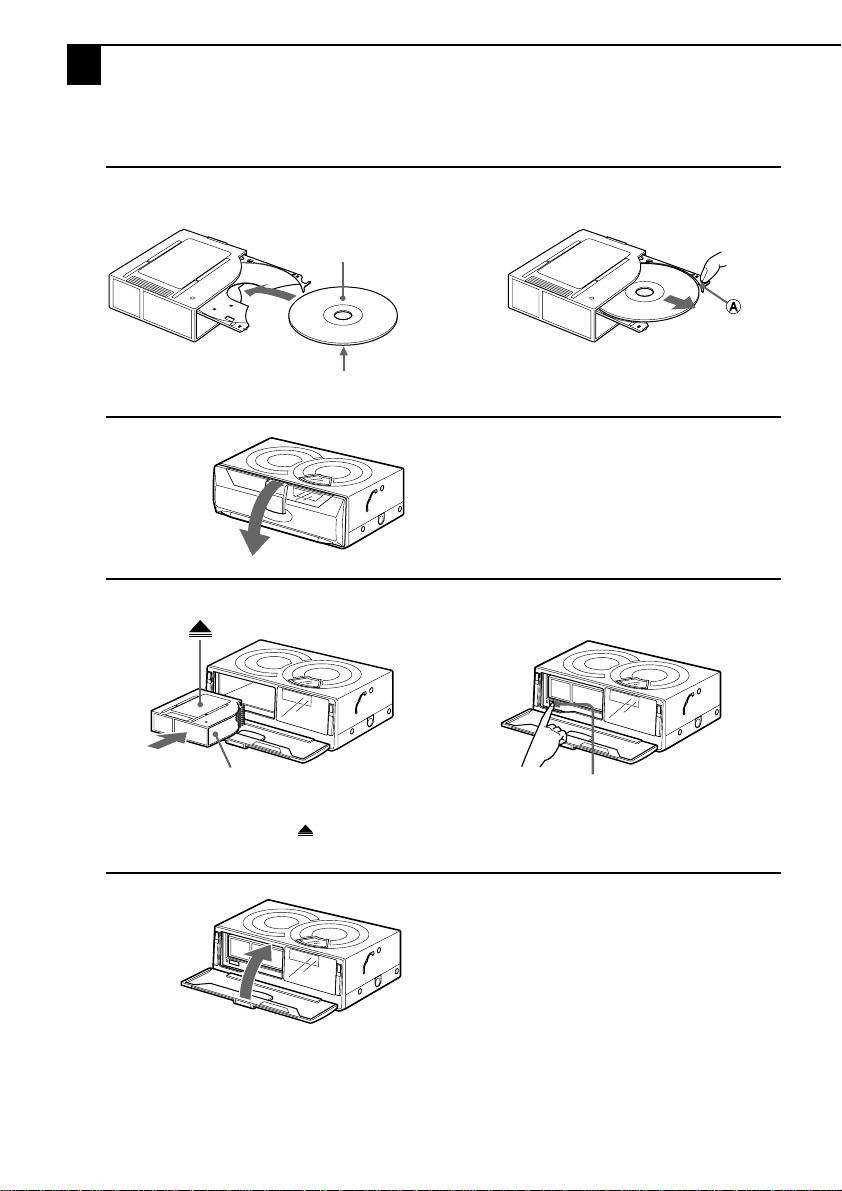

How to use a compact disc magazine
1
With the label side up, insert a disc all the way.
Labeled side
10 discs, one in
each disc tray
Recorded side
2
Open the door.
3
To remove a disc, pull part A in the direction
of the arrow as illustrated.
Disc magazine
Insert the magazine (which has been taken
out of the unit) firmly with the
on the top side.
4
Close the door.
9
ENGLISH
mark visible
z (eject) button
To remove the magazine, press the z button
and pull out the disc magazine.
SPECIFICATIONS
Notes on the disc magazine
• Be sure to place a disc on the disc tray with the
label side up. If a disc is not set properly, it may
cause damage to the unit.
Disc magazine
Disc
Disc tray
• The disc tray may be taken off from the magazine
if you pull the tray forcibly. If the tray is taken
out, put it back into the magazine as illustrated.
Be sure that both ends of the tray are aligned to
the grooves of the magazine correctly.
Disc tray
Compact disc changer
System Compact disc digital audio
Frequency response 5 Hz – 20 kHz
Wow and flutter Below measurable limit
Signal to noise ratio 91 dB or more
Outputs Line output (for changer
Operating temperature
Dimensions 254 × 83 × 173 mm (w/h/d)
Weight 2.1 kg
Power requirement 12 V DC car battery
D/A converter 1 bit DAC, 8 times over
Sampling rate 44.1 kHz
Disc size 120 mm
Supplied accessories Disc magazine (1)
Design and specifications are subject to change without
notice.
system
connector only)
–10 °C to 55 °C
3
/8 × 6 7/8 in.)
(10 × 3
(4.62 lbs.)
(negative ground)
sampling
Mounting kit (1 set)
Connecting cable (5 m)
(16.4 ft.) (1)
Groove
Disc
magazine
Disc tray
Groove
• Be sure all the trays are set in the magazine
when using the unit.
ENGLISH
10
Printed in Indonesia
Loading...
