Ai Thinker Technology ESP-07, ESP-12 Installation Manual
ESP-01/07/12 Series Modules User's Manual
OEM/Integrators Installation Manual
Version 1.4
Ai-Thinker Inc
Copyright
(c)
2017
ESP-01/07/12 Series Modules User's Manual V1.4
Revision Record
Date
Version
Author
Release Notes
2017.07.01
V1.0
Wang Chong
First Version
2017.09.04
V1.1
Wang Chong
Add ESP-01M, Delete ESP-12E
2017.12.18
V1.2
Fang Dongbin
Modify the GPIO4 pin description, change
the contact number
2018.3.10
V1.3
Lv Junxiong
Add ESP-01F
2018.8.16
V1.4
Lv Junxiong
Add ESP-01E
ESP-01/07/12 Series Modules User's Manual V1.4
FCC STATEMENT
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Please notice that if the FCC identification number is not visible when the module is
installed inside another device, then the outside of the device into which the module is installed
must also display a label referring to the enclosed module. This exterior label can use wording
such as the following: “Contains FCC ID:2AHMR-ESP01M” or “Contains FCC
ID:2AHMR-ESP07S”or “Contains FCC ID:2AHMR-ESP12S” or “Contains FCC
ID:2AHMR-ESP12F” or “Contains FCC ID:2AHMR-ESP01E”or “Contains FCC
ID:2AHMR-ESP01F”any similar wording that expresses the same meaning may be used.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
The module is limited to OEM installation ONLY.
The OEM integrator is responsible for ensuring that the end-user has no manual instruction t
o remove or install module.
The module is limited to installation in mobile application.
A separate approval is required for all other operating configurations, including portable con
figurations with respect to Part 2.1093 and difference antenna configurations.
There is requirement that the grantee provide guidance to the host manufacturer for complia
nce with Part 15B requirements.
ESP-01/07/12 Series Modules User's Manual V1.4
Table Of Contents
1 Product Overview .............................................................................................. 1!
1.1 Product Features ..................................................................................... 1!
1.2 Application Plan ..................................................................................... 1!
2 Module Interface ................................................................................................ 2!
2.1 Package Size ........................................................................................... 2!
2.1 Pin Definition ......................................................................................... 6!
2.2 Boot Mode .............................................................................................. 7!
3 Electrical Characteristics ................................................................................... 8!
3.1 Maximum Ratings .................................................................................. 8!
3.2 Suggested Working Environment ........................................................... 8!
3.3 Digital Port Features ............................................................................... 8!
3.4 Power Consumption ............................................................................... 8!
3.5 Transmit Power ..................................................................................... 10!
3.6 Receive Sensitivity ............................................................................... 10!
4 Hardware Guidance ......................................................................................... 11!

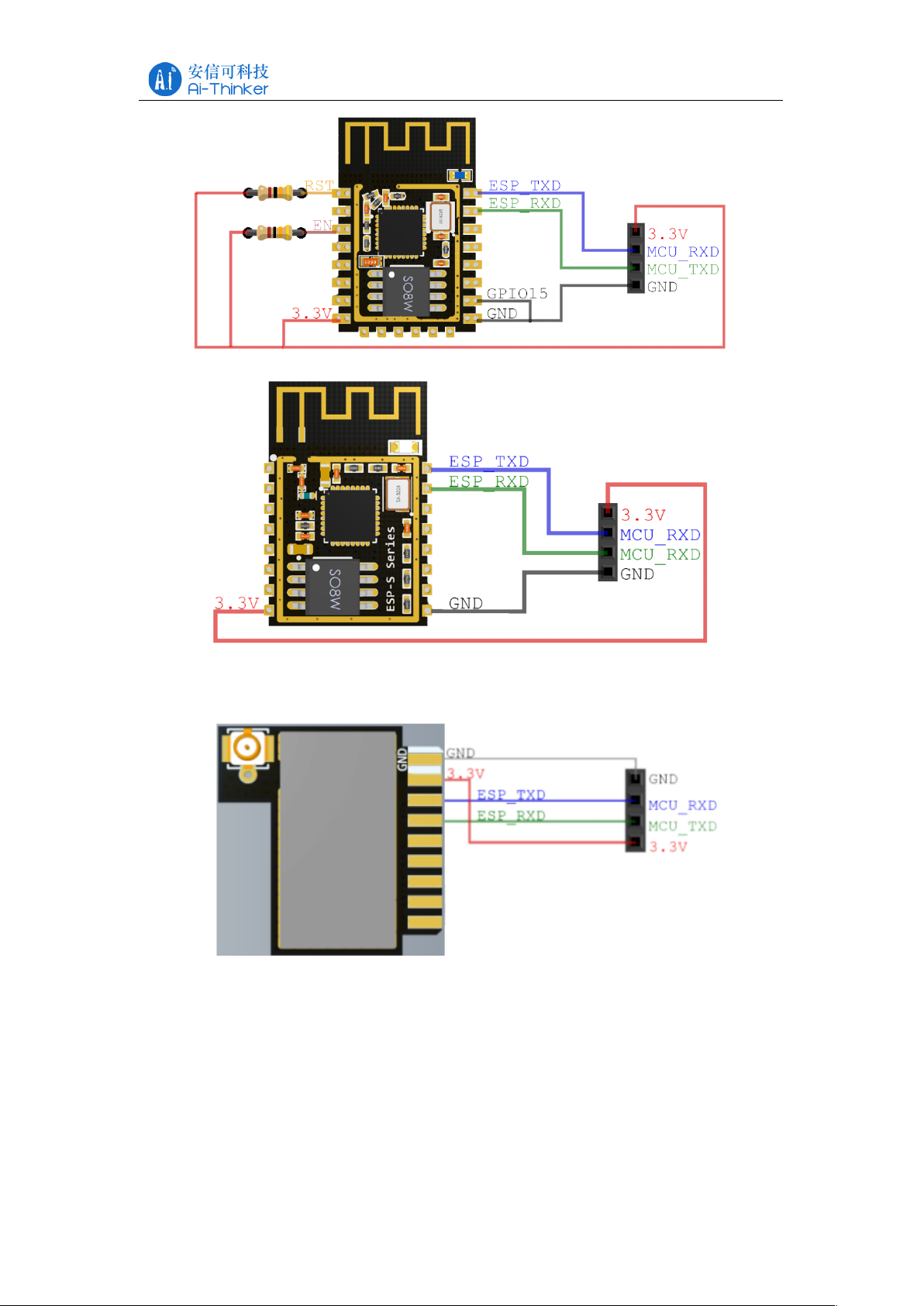

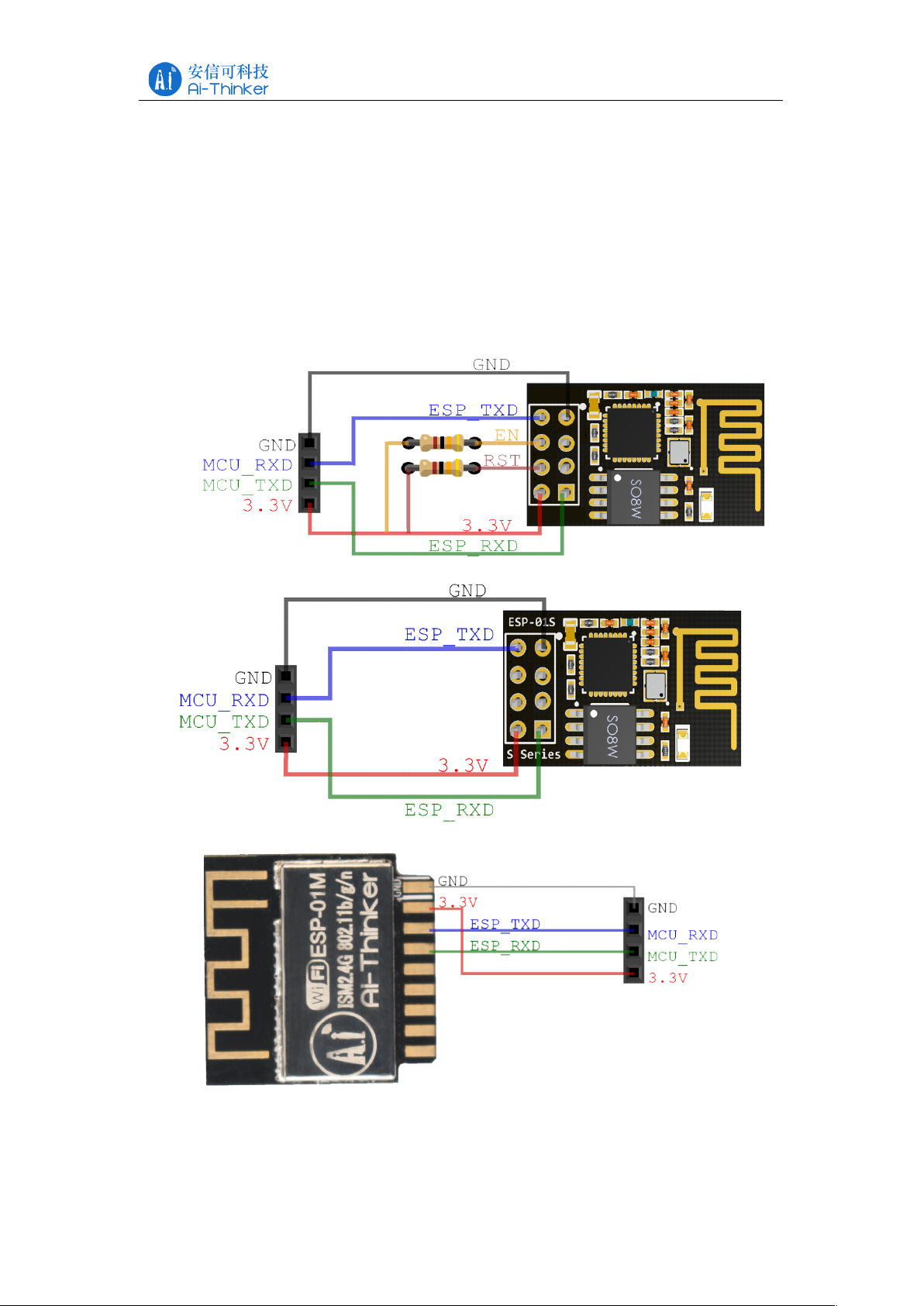

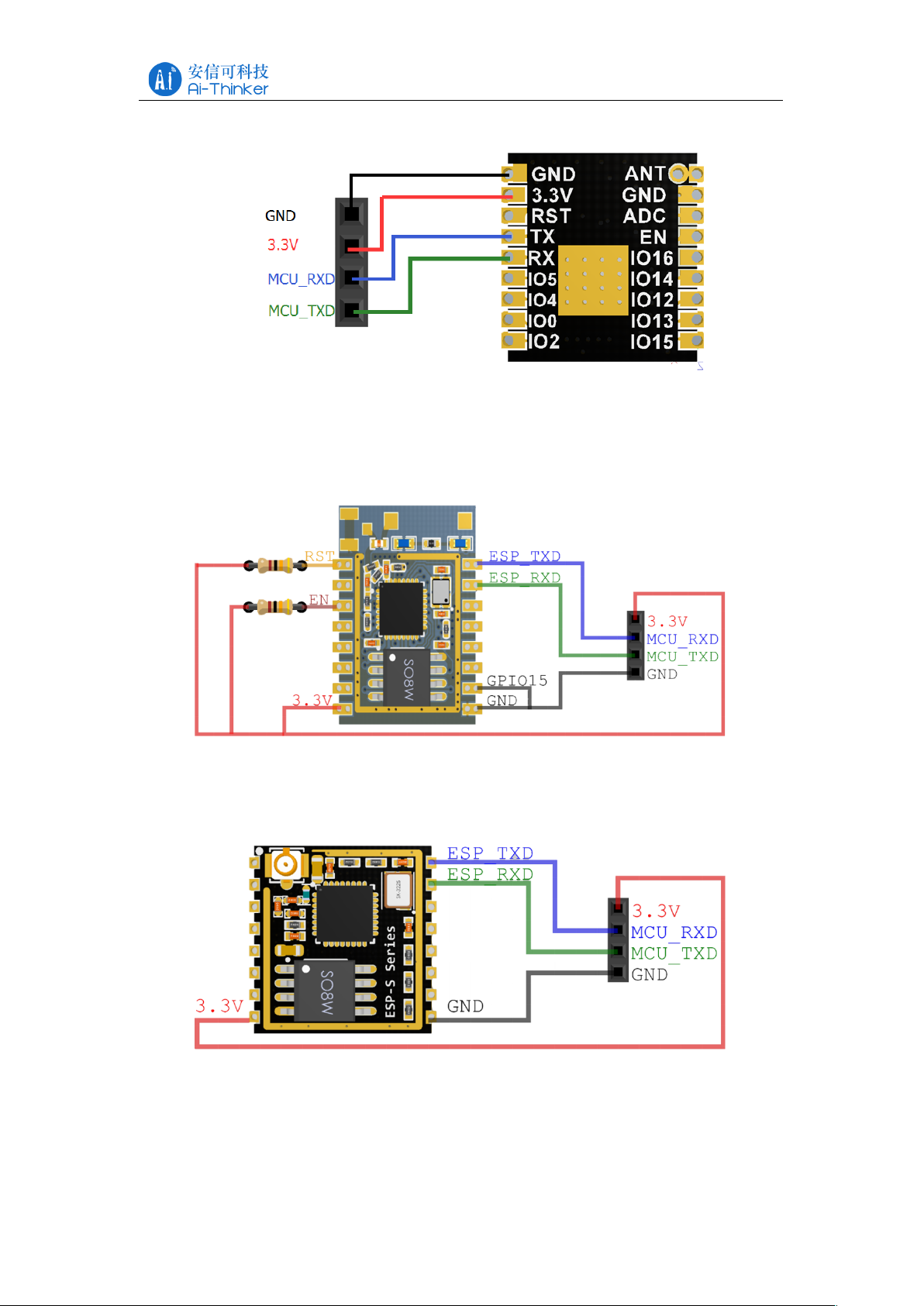

4.1 Typical Applications ............................................................................. 11!

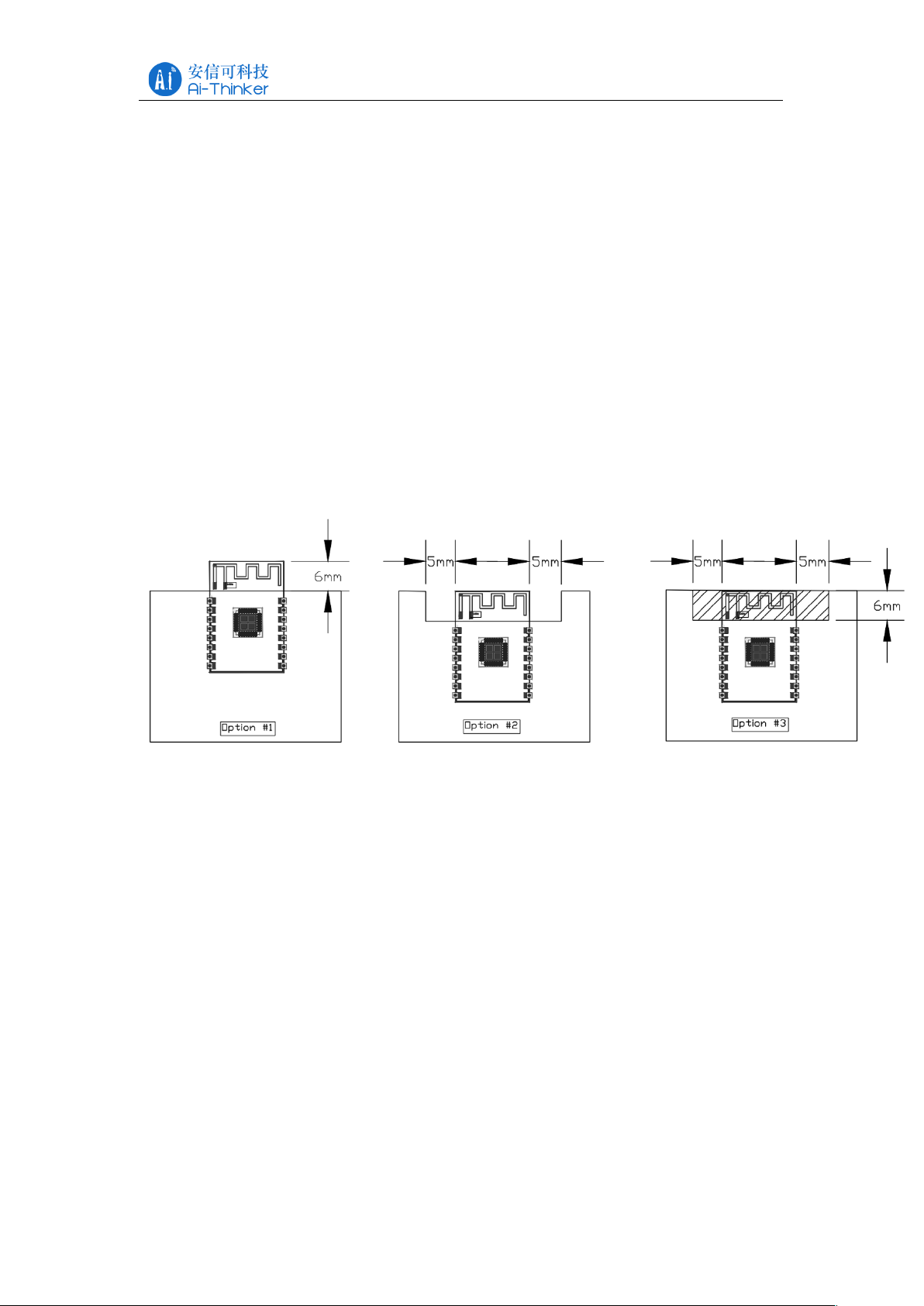

4.2 PCB Antenna Display Instructions ....................................................... 13!
4.3 Module Peripheral Routing Instructions ............................................... 14!

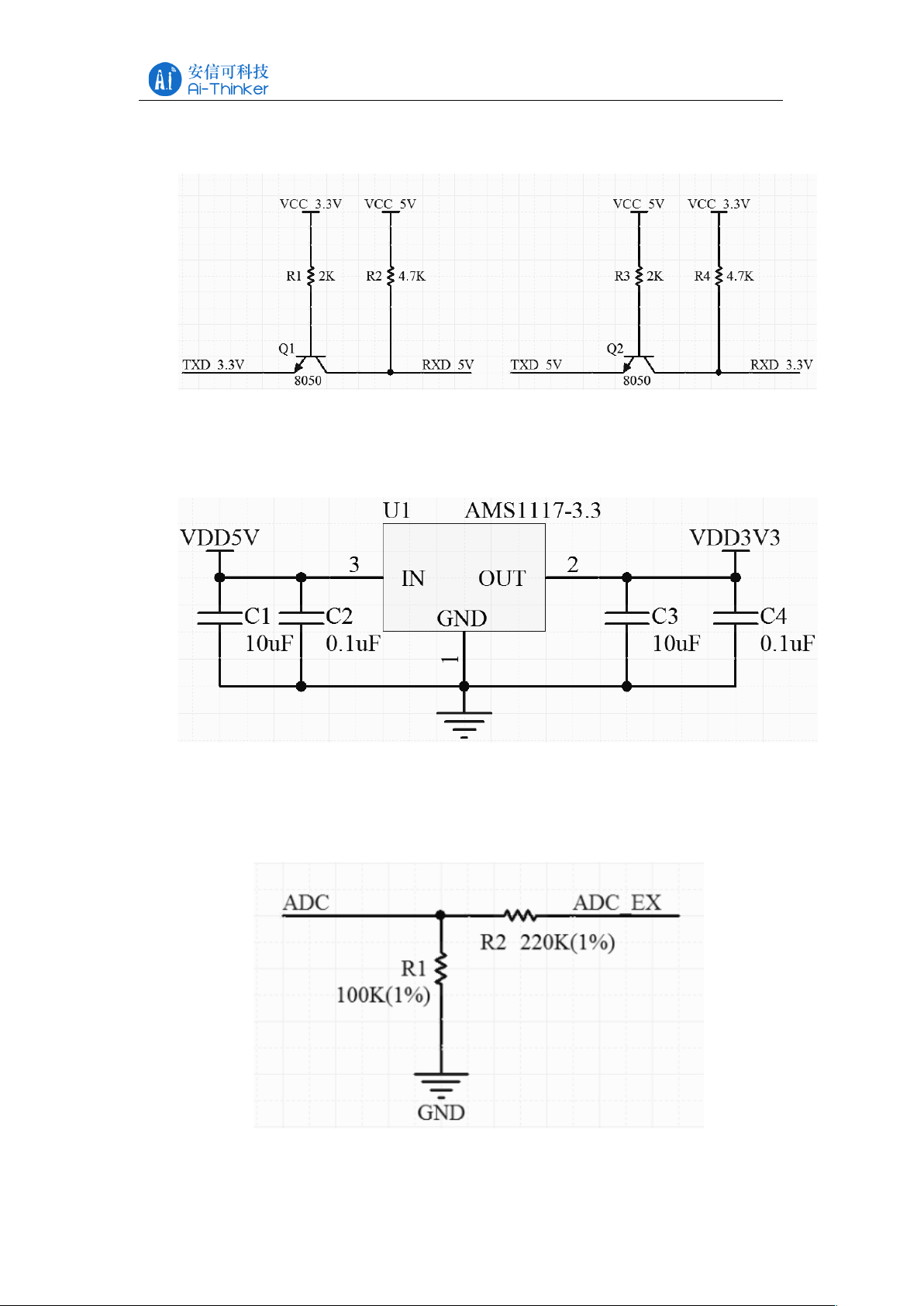

4.4 GPIO Level Conversion ....................................................................... 15!
4.5 Power Supply Reference Design .......................................................... 15!
4.6 ADC Supply Reference Design ............................................................ 15!

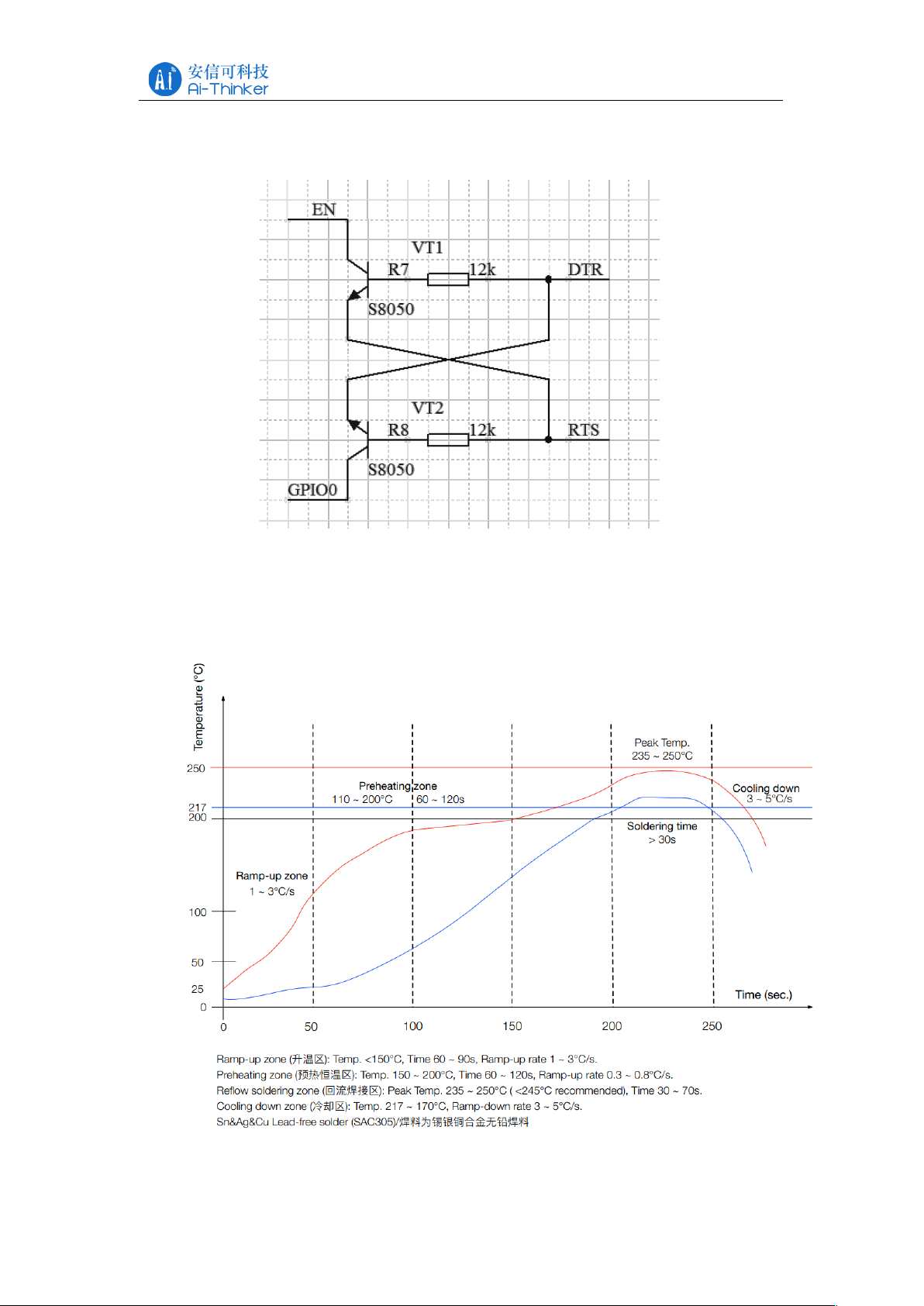

4.7 Automatically Download Reference Design ........................................ 16!
4.8 Reflow oven temperature curve ............................................................ 16!
5 Usage Guide .................................................................................................... 17!
5.1 Introduction To The Basic AT Command ............................................ 17!
5.1.1 AT .............................................................................................. 17!
5.1.2 AT+GMR .................................................................................. 17!
5.1.3 AT+RST .................................................................................... 17!
ESP-01/07/12 Series Modules User's Manual V1.4
5.1.4 AT+RESTORE .......................................................................... 18!
5.2 Use Examples ....................................................................................... 18!
5.2.1 TCP Communication Test ......................................................... 18!
5.2.2 UDP Communication Test ......................................................... 20!
6 FAQ ................................................................................................................. 22!
6.1 Garbage Instructions When Power Is On ............................................. 22!
6.2 How To Shield The Power When The Garbled .................................... 22!
6.3 Can’t Burn Normally ......................................................................... 22!
6.4 SDK Development Environment .......................................................... 23!
6.5 Startup Information Description ........................................................... 23!
7 Module Selection ............................................................................................. 23!
8 Contact US ....................................................................................................... 25!
ESP-01/07/12 Series Modules User's Manual V1.4
Copyright © 2017 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
Page 1 of 23
1 Product Overview
ESP8266 series wireless module is a series of cost-effective Wi-Fi SOC module
which can be developed independently. The series modules support the standard
IEEE802.11 b/g/n protocol, built-in complete TCP/IP protocol stack. Users can use
this series of modules to add networking capabilities to existing devices, or to build
standalone network controllers.
Ai-Thinker Technology can provide customers with a complete hardware,
software reference program, in order to shorten your product development cycle, for
your cost savings.
1.1 Product Features
! The smallest 802.11b/g/n Wi-Fi SOC module
! Using low-power 32-bit CPU, can also serve as the application
processor
! Clocked at up to 160MHz
! Built-in 10 bit high precision ADC
! Support UART/GPIO/IIC/PWM/ADC/HSPI and other interfaces
! Integrated Wi-Fi MAC/BB/RF/PA/LNA
! Supports multiple sleep modes, deep sleep current as low as 20uA
! Embedded Lwip protocol stack
! Support STA/AP/STA + AP work mode
! Supports Smart Config/AirKiss key distribution network
! Serial port rate up to 4Mbps
! General AT commands can be used quickly
! Support SDK secondary development
! Supports serial local upgrade and remote firmware upgrade (FOTA)
1.2 Application Plan
! Industrial wireless control
! Infant Monitor
! IP camera
! Sensor network
! Household appliances
! Home automation
! Smart socket/intelligent light
! Mesh network
! Wearable electronic products
! Wireless location sensing device
! Security ID tag
! Wireless positioning system beacon
ESP-01/07/12 Series Modules User's Manual V1.4
Copyright © 2017 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
Page 2 of 23
2 Module Interface
2.1 Package Size
Figure 2.1 ESP-01/ESP-01S pin dimensions
Figure 2.2 ESP-01M pin dimensions
ESP-01/07/12 Series Modules User's Manual V1.4
Copyright © 2017 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
Page 3 of 23
Figure 2.3 ESP-01F pin dimensions
Figure 2.4 ESP-07 pin dimensions
ESP-01/07/12 Series Modules User's Manual V1.4
Copyright © 2017 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
Page 4 of 23

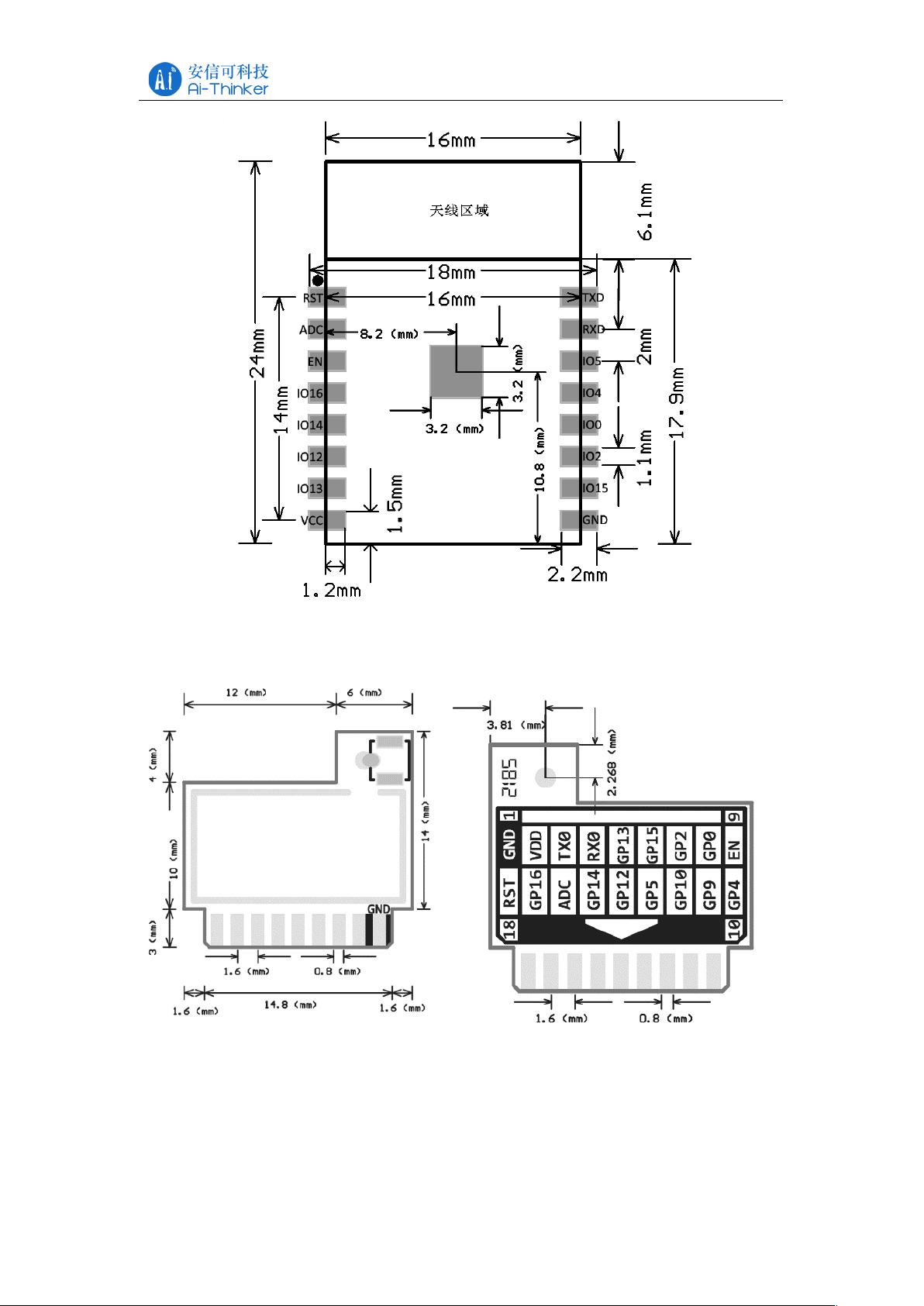

Figure 2.5 ESP-07S pin dimensions
Figure 2.6 ESP-12F pin dimensions
