Page 1
TABLE TENNIS TABLE
3502-2
9 FT/108 INCH/274.3 CM
ASSEMBLY INSTRUCTIONS
Model: TT-3502-2
WARNING:
C H O K I N G H A Z A R D
Not for children under 3 years
Small parts
ADVERTENCIA:
P E L I G R O D E A S F I X I A
No apto para niño menores de 3 años
Partes pequeñas
CONTACT INFO
Distributed by Airzone Ltd.
Questions or Comments? Call 1-800-775-6524 or Mail [email protected]
Made in China.
Two or more adults required for assembly
Including: Net post set, 2 bats and 3 balls
Page 2
IMPORTANT
After receiving the shipment, inspect the product thoroughly to ensure
that it has been shipped with care.
Before assembly make sure that the packaging contains all parts.
For service or parts replacement under warranty, the official sales
receipt is required. Please keep your official sales receipt for future
reference
OFFICIAL SALES RECEIPT
CAN BE ATTACHED HERE
Service or parts under warranty
only available with show of receipt
Please contact us for any questions at 1-800-775-6524before returning
this product.
Please inspect your play field before assembling this product. It is not
possible to replace or repair the play field under warranty. Therefore, if
the play field is damaged, the complete table needs to be returned to
the place of purchase to be exchanged for a new table.
Use a soft, clean and level surface to begin the assembly of your game table.
(Such as the inside of the cardboard box, carpet, etc.). This will prevent the
table surface from getting damaged. Make sure to remove any staples from
the cardboard box before using it as an underground.
This game table will be partially assembled upside down and then
turned over onto its legs. This is a heavy game and turning it over will
require at least two strong adults.
When installing parts that have more than one screw or bolt, hand
tighten all screws or bolts in place before tightening with screwdriver
or allen key.
Electric screwdrivers may be helpful during assembly. However, please
set a low torque and use extreme caution because screws may be
stripped or over tightened if the electric screwdriver's torque is set too
high.
1
Page 3
Save these IMPORTANT
Safety Instructions
Warning
This product is intended for indoor use in a climate controlled environment only.
Excessive temperatures and humidity may have an influence on the play quality
and durability of this table.
This table should only be used by adults or under the supervision of adults.
This table is NOT a toy.
Do not sit, climb, or lean on the table. Do not place anything, including
people, on the top of the play field.
Do not drag the table when moving it, as this could damage the legs or unit
beyond repair.
Do not place any food or drinks on the table.
Only use the table for its intended purpose
Damaged or worn parts may be dangerous for users and the integrity of the
table. Replace worn or damaged components immediately and do not use the
table until any issues have been resolved.
:
Unauthorized repairs or changing the table’s design or functions may be
dangerous and will void the warranty.
Check all screws, bolts, etc. with regular intervals to ensure that they are in
good working condition and have not loosened overtime.
Care and Maintenance
Clean the table surface with a soft damp (not wet) micro fiber cloth.
To prevent damage to the play surface DO NOT use any chemicals, abrasive,
or cleaning products. IMPORTANT: Periodically, lubricate all moving parts,
including pivot points, to assure smooth opening and closing. A light lubricant
such as WD-40 is recommended.
2
Page 4

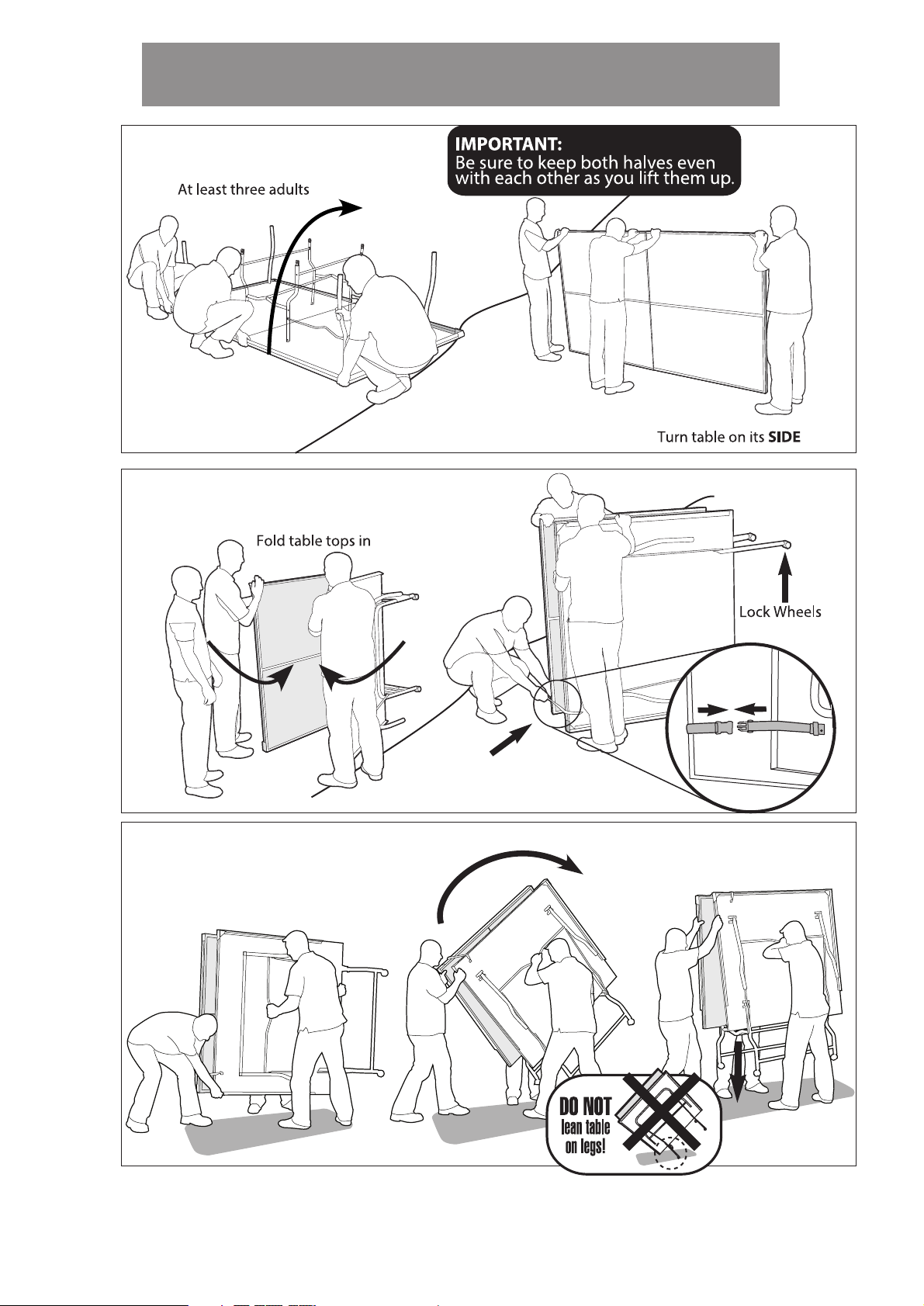

Turning the table
3
Page 5
TOOLS
Required
Phillips head screwdriver
(Not included)
Wrench
(Included)
Allen key
(Included)
To assure a smooth assembly we recommend to ensure yourself that you
have received all parts listed and in the correct quantities.
Recommended
Electric screwdriver
Socket wrench set
Level
PARTS IDENTIFIER
How to use
Parts ID
Used in
12
STEP 1
Parts Quantity
x2
Parts Image
Leg Panel
Parts Description
4
Page 6
PARTS IDENTIFIER
1 2
STEP 1 STEP 1
Table Top A1A
TT-3502-2-001 TT-3502-2-002 TT-3502-2-003 TT-3502-2-004
5
H-leg
TT-3502-2-005 TT-3502-2-006 TT-3502-2-007 TT-3502-2-008
9
STEP 5 STEP 3 STEP 3 STEP 5
“U” Leg Tube (short)
TT-3502-2-009 TT-3502-2-010 TT-3502-2-011 TT-3502-2-012
13
x2
Table Top A1B
x2
6
Logo Panel
x2
10
Support Long
x2
14
x2
3
STEP 6 STEP 6
x2
7 8
x2
11 12
x2
15 16
Connection Tube
Leg Wheel
Support Short
x2
4
x4
STEP 5STEP 7STEP 10STEP 8, 9
x4
x4
x2
Connection Tube A
x2
“U” Leg Tube (long)
x12
Bracket
x6
STEP 4
Tie Strap Short
TT-3502-2-013 TT-3502-2-014 TT-3502-2-015 TT-3502-2-016
17
STEP 13 STEP 12
TT Net
TT-3502-2-017 TT-3502-2-018
21
End Cap
TT-3502-2-021
STEP 11
x1
18
x4
Gravity Lock
x2
19
Net Post
Pre-installed Parts
18
STEP 4
Plastic Corner
Tie Strap Long
TT-3502-2-019
STEP 1STEP 2
Bracket A
x1
5
Page 7
Hardware
31 32 33 34
STEP 1, 2, 3, 4 ,5
TT-3502-2-031 TT-3502-2-032 TT-3502-2-033 TT-3502-2-034
Screw
35 36
STEP 11
T Style Washer
TT-3502-2-035
39
STEP 5
Bolt
TT-3502-2-039
x127
STEP 6, 8, 9 STEP 6, 8, 9, 1 1
x2
STEP 10
x8
Bushing
TT-3502-2-036 TT-3502-2-037
Screw
x16
x8
37
STEP
x18
Bolt
x1
Wrench
STEP 6, 11
38
STEP
x10
Locking Nut M6
x1
TT-3502-2-038
4mm Allen Key
6
Page 8
ASSEMBLY INSTRUCTIONS
Before assembly make sure that all parts
are available and sorted
All parts can be identified on the parts and accessories identifier
Please inspect your play field before assembling this product. It is not
possible to replace or repair the play field under warranty. Therefore, if
the play field is damaged, the complete table needs to be returned to
the place of purchase to be exchanged for a new table
31
31
15
STEP 1
A1A
31
16
STEP 2
STEP 3
11
indentation point
A1A
A1B
A1B
15
A1B
A1B
31
A1A
A1A
COMPONENTS Q.TY HARDWARE Q.TY
Bracket ATable Top A1A
1
2
Table Top A1B
x2
x2
16
31
Screw
x6
x24
NOTE
COMPONENTS Q.TY HARDWARE Q.TY
ScrewPlastic Corner
15
x4
31
x12
NOTE
COMPONENTS Q.TY HARDWARE Q.TY
ScrewSupport Long
10
11
Support Short
x2
x4
31
x24
10
STEP 4
31
13
19
31
11
31
NOTE
COMPONENTS Q.TY HARDWARE Q.TY
13
13
19
Tie Strap Long
x2
x1
31
ScrewTie Strap Short
x3
NOTE
7
Page 9
ASSEMBL Y INSTRUCTIONS
STEP 5
STEP 6
Countersink
8
12
12
Groove
COMPONENTS Q.TY HARDW ARE Q.TY
No Screw
Groove
9
31
“U” Leg Tube Long
8
“U” Leg Tube Short
9
Bracket
12
x2
x2
x12
31
39
Screw
Bolt
x64
x8
12
A1A
12
A1B
12
39
Circular hole
31
12
NOTE
34
8
4
32
8
COMPONENTS Q.TY HARDW ARE Q.TY
BushingConnection Tube
3
Connection Tube A
4
x2
x2
32
33
Bolt
x8
x8
M6 Locking Nut
9
3
33
34
34
37
38
Wrench
4mm Allen Key
x8
x1
x1
32
33
4
33
5
32
8
9
8
4
33
34
32
34
3
NOTE
8
Page 10
ASSEMBLY INSTRUCTIONS
STEP 7
7
9
STEP 8
5
9
37
32
COMPONENTS Q.TY HARDWARE Q.TY
WrenchLeg Wheel
7
x4
37
x1
7
7
9
9
7
7
NOTE
COMPONENTS Q.TY HARDWARE Q.TY
BushingH-leg
32
33
Bolt
x4
x4
33
5
x2
STEP 9
33
32
32
33
NOTE
COMPONENTS Q.TY HARDWARE Q.TY
Bushing
32
33
38
Bolt
4mm Allen Key
x4
x4
x1
NOTE
9
Page 11
ASSEMBLY INSTRUCTIONS
STEP 10
A1B
STEP 11
A1B
NOTE: Repeat for
both Gravity Locks
A1A
A1A
NOTE:Repeat for
both Gravity Locks.
37
A1A
A1A
Face upward
34
14
35
A1B
A1B
6
COMPONENTS Q.TY HARDWARE Q.TY
ScrewLogo Panel
36
x8
36
36
36
6
x2
NOTE
36
COMPONENTS Q.TY HARDWARE Q.TY
BoltGravity Lock
14
x2
33
35
34
37
38
T Style Washer
M6 Locking Nut
Wrench
Allen Key
x2
x2
x2
x1
x1
9
NOTE
33
38
STEP 12
18
COMPONENTS Q.TY HARDWARE Q.TY
18
Net Post
x2
NOTE
10
Page 12
ASSEMBLY INSTRUCTIONS
STEP 13
STEP 14
17
COMPONENTS Q.TY HARDWARE Q.TY
TT Net
17
NOTE
COMPONENTS Q.TY HARDWARE Q.TY
NOTE
x1
11
Page 13
Limited Warranty
This product is warranted to the original owner to be free from defects in workmanship and
materials when used for the intended purpose under normal use and conditions for a period
of 90 days from the date of original retail purchase. Proof of purchase is required when
requesting for parts or service.
This Limited Warranty covers all defects in materials and workmanship but will be void
if the product is:
- Damaged due to transportation, improper usage, storage, negligence, misuse, abuse,
acts of nature or accidents (including for not following the instructions supplied with
this product).
- Used in a commercial environment such as schools, correctional facilities, recreational centers,
camps, churches, day-cares or any other public facility and/or as rentals.
- Modified or repaired by unauthorized persons.
This Limited Warranty does not cover:
- Nonessential items such as accessories, cosmetic parts and any other items showing wear
due to normal usage.
- Any transportation, delivery, installation costs incurred by the consumer from original place
of purchase to home, or back to the original place of purchase.
- Items purchased from a third party or from an unauthorized retailer.
This warranty is nontransferable and is expressly limited to the repair or replacement of the
defective product. During the warranty period, the manufacturer shall repair or replace
defective parts at no cost to the purchaser. Shipping charges and insurance are not covered
and are the responsibility of the purchaser. Labor charges and related expenses for removal,
installation or replacement of the product or components are not covered under this warranty.
The manufacturer reserves the right to make substitutions to warranty claims if parts are
unavailable or obsolete.
Distributed by Airzone Ltd.
Questions, Comments or Warranty Claims:
CALL 1-800-775-6524
or
MAIL [email protected]
12
