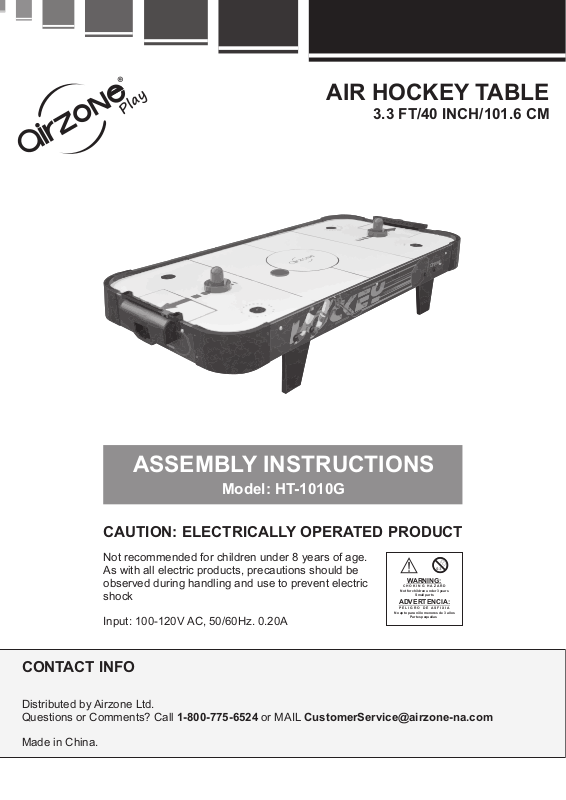

AIR HOCKEY TABLE
3.3 FT/40 INCH/101.6 CM
ASSEMBLY INSTRUCTIONS
Model: HT-1010G
CAUTION: ELECTRICALLY OPERATED PRODUCT
Not recommended for children under 8 years of age.
As with all electric products, precautions should be
observed during handling and use to prevent electric
shock
Input: 100-120V AC, 50/60Hz. 0.20A
CONTACT INFO
Distributed by Airzone Ltd.
Questions or Comments? Call 1-800-775-6524 or MAIL [email protected]
Made in China.
WARNING:
C H O K I N G H A Z A R D
Not for children under 3 years
Small parts
ADVERTENCIA:
P E L I G R O D E A S F I X I A
No apto para niño menores de 3 años
Partes pequeñas
Page 2
IMPORTANT
After receiving the shipment, inspect the product thoroughly to ensure
that it has been shipped with care.
Before assembly make sure that the packaging contains all parts.
For service or parts replacement under warranty, the official sales
receipt is required. Please keep your official sales receipt for future
reference
OFFICIAL SALES RECEIPT
CAN BE ATTACHED HERE
Service or parts under warranty
only available with show of receipt
Please contact us for any questions at 1-800-775-6524 before returning
this product.
Please inspect your play field before assembling this product. It is not
possible to replace or repair the play field under warranty. Therefore, if
the play field is damaged, the complete table needs to be returned to
the place of purchase to be exchanged for a new table
Use a soft, clean and level surface to begin the assembly of your game table.
(Such as the inside of the cardboard box, carpet, etc.). This will prevent the
table surface from getting damaged. Make sure to remove any staples from
the cardboard box before using it as an underground.
This game table will be partially assembled upside down and then
turned over onto its legs.
When installing parts that have more than one screw or bolt, hand
tighten all screws or bolts in place before tightening with screwdriver
or allen key.
Electric screwdrivers may be helpful during assembly. However, please
set a low torque and use extreme caution because screws may be
stripped or over tightened if the electric screwdriver's torque is set too
high.
Page 3
Save these IMPORTANT
Safety Instructions
Read these instructions:
Read all Safety and Operating instructions carefully before using this game
table
Power supply:
Before connecting this game table to a power outlet, ensure that the power
supply voltage and frequency requirements meet with those of the location
(110/120V)?.
Overloading / Power cord protection:
Do not overload power outlets and extension cords to avoid risk of fire or
electric shock. Avoid routing the power cord on places with busy foot traffic
or where it can be damaged by items placed against or upon it.
Warning:
This product is intended for indoor use in a climate controlled environment only.
Excessive temperatures and humidity may have an influence on the play quality
and durability of this table.
This game table should only be used by adults or under the supervision of
adults. This game table is NOT a toy. To avoid the risk of electric shock or
other injuries, adults should explain all safety rules to children.
Do not sit or lean on the table. Do not place anything on the top of the
play field.
Do not drag the table when moving it, as this could damage the legs or
unit beyond repair.
Do not place any food or drinks on the table.
Fluids and objects:
Avoid fluids to be spilled on this game table. For cleaning the surface it is
recommended to follow the instructions or call technical support for
assistance. Do not push any objects through gaps or holes as they may
accidently get in contact with dangerous power points which could cause
an electric shock or fire.
Airflow:
Holes in the play field allow for air to be blown onto the play field, creating
an air cushion on which the pucks can float. The openings on the air fan are
there to allow air to be moved through the fan onto the play field. Never
block or allow hands, hair or other objects near the air fan openings. The air
fan may overheat if openings are blocked.
Unplug the game table from power outlet when damaged:
The air fan should be serviced by qualified service personnel only and not
by yourself. Opening or removing covers may cause electric shock or other
injuries. The following damages always should be repaired by qualified
service personnel:
- Damaged power cords.
- Fluids spilled or objects fallen into the air fan.
- When the air fan makes unusual noises or when the airflow is too much or
too little.
Page 4
Save these IMPORTANT
Safety Instructions (continued)
Age Grade 8+:
This product is not recommended for children under 8 years of age.
Regular checks:
To avoid risk of personal injury, electric shock or fire we suggest to regularly
check the game table for quality problems. In case such problems have been
found the game should not be used until appropriate repairs have been made.
ALWAYS switch off the game table and disconnect the power cable from the
power supply before cleaning.
It is recommended to use a soft microfiber cloth or clean paper towel with a
small amount of Isopropyl Alcohol for cleaning the play field. Do NOT use
silicone, waxes or household cleaners which coats the surface and/or plugs
up the holes.
Any non-ammonia non-bleach based household cleaner may be used to
wipe down the cabinet side panels and legs.
Vacuum out the inside cavities frequently to prevent dust, grime and other
debris from collecting inside table gaps and openings.
Care and Maintenance
Page 5
TOOLS
Required
Phillips head screwdriver
(Not included)
Allen key
(Included)
To assure a smooth assembly we recommend to ensure yourself that you
have received all parts listed and in the correct quantities.
Recommended
Electric screwdriver
Level
PARTS IDENTIFIER
How to use
Parts ID
Used in
12
STEP 1
Parts Quantity
x2
Parts Image
Leg Panel
Parts Description
Page 6
PARTS IDENTIFIER
1
STEP 1
11
Corner
Main Frame
x1
2
HT-1010G-001 HT-1010G-002 HT-1010G-003 HT-1010G-004
STEP 1
Leg-left
x2
3
STEP 1
Leg-right
x2
4
STEP 2
Goal
x2
Pre-installed Parts
x4
12
HT-1010G-011 HT-1010G-012 HT-1010G-013
Air fan with power cord
x1
13
Air fan protection screen
x1
Hardware
60
STEP 1
80
T-nut
Bolt
x8
61
HT-1010G-060 HT-1010G-061 HT-1010G-062 HT-1010G-063
STEP 1
Washer
x8
62
STEP 2
Screw
x4
63
STEP 1
Allen Key
x1
Pre-installed Hardware
x8
81
HT-1010G-080 HT-1010G-081 HT-1010G-082
Screw
x16
82
Screw
x4
Page 7
Accessories
90
Pusher
x2
91
HT-1010G-090 HT-1010G-091 HT-1010G-092
Felt Pad
x2
92
Puck
x2
Page 8
ASSEMBLY INSTRUCTIONS
Before assembly make sure that all parts
are available and sorted
All parts can be identified on the parts and accessories identifier
Please inspect your play field before assembling this product. It is not
possible to replace or repair the play field under warranty. Therefore, if
the play field is damaged, the complete table needs to be returned to
the place of purchase to be exchanged for a new table
STEP 1
61
60
STEP 2
60
61
COMPONENTS Q.TY HARDWARE Q.TY
BoltMain Frame
2
3
61
60
61
63
60
1
Leg-left
2
Leg-right
3
x1
x2
x2
60
61
63
Washer
Allen Key
x8
x8
x1
NOTE
1
COMPONENTS Q.TY HARDWARE Q.TY
62
4
62
91
4
90
91
Pusher
Felt Pad
x2
x2
x2
62
ScrewGoal
x4
90
NOTE
Page 9
Limited Warranty
This product is warranted to the original owner to be free from defects in workmanship and
materials when used for the intended purpose under normal use and conditions for a period
of 90 days from the date of original retail purchase. Proof of purchase is required when
requesting for parts or service.
This Limited Warranty covers all defects in materials and workmanship but will be void
if the product is:
- Damaged due to transportation, improper usage, storage, negligence, misuse, abuse,
acts of nature or accidents (including for not following the instructions supplied with
this product).
- Used in a commercial environment such as schools, correctional facilities, recreational centers,
camps, churches, day-cares or any other public facility and/or as rentals.
- Modified or repaired by unauthorized persons.
This Limited Warranty does not cover:
- Nonessential items such as accessories, cosmetic parts and any other items showing wear
due to normal usage.
- Any transportation, delivery, installation costs incurred by the consumer from original place
of purchase to home, or back to the original place of purchase.
- Items purchased from a third party or from an unauthorized retailer.
This warranty is nontransferable and is expressly limited to the repair or replacement of the
defective product. During the warranty period, the manufacturer shall repair or replace
defective parts at no cost to the purchaser. Shipping charges and insurance are not covered
and are the responsibility of the purchaser. Labor charges and related expenses for removal,
installation or replacement of the product or components are not covered under this warranty.
The manufacturer reserves the right to make substitutions to warranty claims if parts are
unavailable or obsolete.
Distributed by Airzone Ltd.
Questions, Comments or Warranty Claims:
CALL 1-800-775-6524
or
MAIL [email protected]
