AirStage ASHA007GTAH, ASYA009GTAH, ASYA007GTAH, ASHA004GTAH, ASHA009GTAH Installation Manual

TM

INSTALLATION MANUAL

EEV internal model

ASYA004GTAH/ASHA004GTAH
ASYA007GTAH/ASHA007GTAH
ASYA009GTAH/ASHA009GTAH

EEV external model

ASYE004GTAH/ASHE004GTAH
ASYE007GTAH/ASHE007GTAH
ASYE009GTAH/ASHE009GTAH

INDOOR UNIT (Wall Mounted Type)

For authorized service personnel only.

INSTALLATIONSANLEITUNG

INNENGERÄT (wandmontierter Typ)

Nur für autorisiertes Fachpersonal.

MANUEL D’INSTALLATION

UNITÉ INTÉRIEURE (Type montage mural)

Pour le personnel agréé uniquement.

MANUAL DE INSTALACIÓN

UNIDAD INTERIOR (Tipo montado en pared)

Únicamente para personal de servicio autorizado.

MANUALE DI INSTALLAZIONE

UNITÀ INTERNA (tipo montato a parete)

A uso esclusivo del personale tecnico autorizzato.

English

Deutsch

FrançaisEspañol

Italiano

ASYA030GTAH/ASHA030GTAH
ASYA034GTAH/ASHA034GTAH

ΕΓΧΕΙΡΙΔΙΟ ΕΓΚΑΤΑΣΤΑΣΗΣ

ΕΣΩΤΕΡΙΚΗ ΜΟΝΑΔΑ (Επιτοιχιος Τύπος)

Μόνο για εξουσιοδοτημένο τεχνικό προσωπικό.

MANUAL DE INSTALAÇÃO

UNIDADE INTERIOR (Tipo mural)

Apenas para técnicos autorizados.

РУКОВОДСТВО ПО УСТАНОВКЕ

ВНУТРЕННИЙ МОДУЛЬ (настенного типа)

Только для авторизованного обслуживающего персонала.

MONTAJ KILAVUZU

İÇ ÜNİTE (Duvara Monteli Tip)

Yalnızca yetkili servis personeli için.

Refer to the rating label with the serial number.

MADE IN THAILAND

ΕλληνικάPortuguês

РусскийTürkçe

[Original instructions]

PART No. 9373370345

INSTALLATION MANUAL

PART No. 9373370345
VRF system indoor unit (Wall mounted type)

Contents

1. SAFETY PRECAUTIONS ........................................................................................... 1

2. ABOUT THIS PRODUCT ............................................................................................ 1

2.1.

Precautions for using R410A refrigerant ................................................................ 1

2.2. Special tools for R410A .......................................................................................... 1

Accessories ............................................................................................................ 2

2.3.

2.4.

Optional parts ......................................................................................................... 2

3. INSTALLATION WORK .............................................................................................. 2

3.1.

Selecting an installation location ............................................................................ 2

Installation dimension ............................................................................................. 3

3.2.

3.3.

Installing the unit .................................................................................................... 3

4. PIPE INSTALLATION .................................................................................................. 4

4.1.

Selecting the pipe material ..................................................................................... 4

Pipe requirement .................................................................................................... 5

4.2.

4.3. Flare connection (pipe connection) ........................................................................ 5

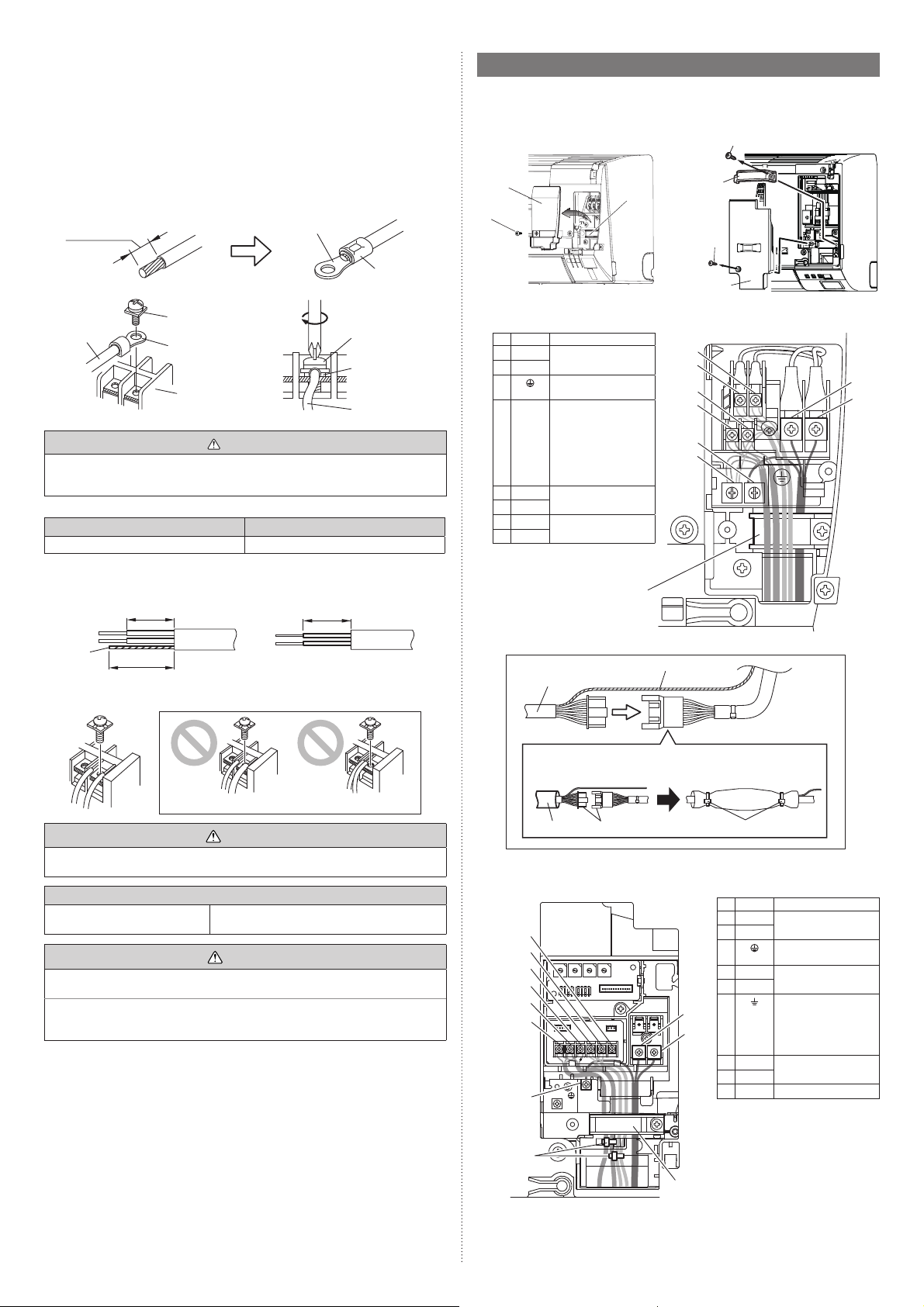

5. ELECTRICAL WIRING ................................................................................................5

5.1.

Electrical requirement ............................................................................................ 6

5.2. Wiring method ........................................................................................................ 6

Unit wiring ............................................................................................................... 6

5.3.

5.4.

Wiring ..................................................................................................................... 7

6. FIELD SETTING .......................................................................................................... 8

Setting the address ................................................................................................ 8

6.1.

Custom code setting .............................................................................................. 8

6.2.

Function setting ...................................................................................................... 9

6.3.

6.4. External input and external output (Optional parts) ............................................. 10

7. FINISHING................................................................................................................. 12

7.1.

Connection pipe, cable and drain hose ............................................................... 12

8. FRONT PANEL REMOVAL AND INSTALLATION ................................................... 13

8.1.

Intake grill removal and installation ...................................................................... 13

8.2.

Front panel removal ............................................................................................. 13

Front panel installation ......................................................................................... 13

8.3.

9. TEST RUN ................................................................................................................. 13

9.1.

Test run using Outdoor unit (PCB) ....................................................................... 13

Test run using remote controller........................................................................... 13

9.2.

10. CHECK LIST ............................................................................................................. 13

11. ERROR CODES ........................................................................................................14

CAUTION

Read carefully all security information before use or install the air conditioner.
Do not attempt to install the air conditioner or a part of the air conditioner by yourself.
This unit must be installed by qualified personnel with a capacity certificate for handling

refrigerant fluids. Refer to regulation and laws in use on installation place.
The installation must be carried out in compliance with regulations in force in the place

of installation and the installation instructions of the manufacturer.
This unit is part of a set constituting an air conditioner. It must not be installed alone or

with non-authorized by the manufacturer.
Always use a separate power supply line protected by a circuit breaker operating on all

wires with a distance between contact of 3 mm for this unit.
The unit must be correctly earthed (grounded) and the supply line must be equipped

with a differential breaker in order to protect the persons.
The units are not explosion proof and therefore should not be installed in explosive

atmosphere.
Never touch electrical components immediately after the power supply has been turned

off. Electric shock may occur. After turning off the power, always wait 5 minutes before
touching electrical components.

This unit contains no user-serviceable parts. Always consult authorized service person­nel to repairs.

When moving, consult authorized service personnel for disconnection and installation
of the unit.

This mark indicates procedures which, if improperly performed,
might possibly result in personal harm to the user, or damage
to property.

2. ABOUT THIS PRODUCT

2.1. Precautions for using R410A refrigerant

WARNING

Do not introduce any substance other than the prescribed refrigerant into the refrigera­tion cycle. If air enters the refrigeration cycle, the pressure in the refrigeration cycle will
become abnormally high and cause the piping to rupture.

If there is a refrigerant leak, make sure that it does not exceed the concentration limit.
If a refrigerant leak exceeds the concentration limit, it can lead to accidents such as
oxygen starvation.

Do not touch refrigerant that has leaked from the refrigerant pipe connections or other
area. Touching the refrigerant directly can cause frostbite.

If a refrigerant leak occurs during operation, immediately vacate the premises and thor­oughly ventilate the area. If the refrigerant comes in contact with a flame, it produces a
toxic gas.

2.2. Special tools for R410A

1. SAFETY PRECAUTIONS

• Be sure to read this Manual thoroughly before installation.

• The warnings and precautions indicated in this Manual contain important information
pertaining to your safety. Be sure to observe them.

• Hand this Manual, together with the Operating Manual, to the customer. Request the
customer to keep them on hand for future use, such as for relocating or repairing the
unit.

WARNING

Request your dealer or a professional installer to install the indoor unit in accordance
with this Installation Manual. An improperly installed unit can cause serious accidents
such as water leakage, electric shock, or fire. If the indoor unit is installed in disregard of
the instructions in the Installation Manual, it will void the manufacturer’s warranty.

Do not turn ON the power until all work has been completed. Turning ON the power
before the work is completed can cause serious accidents such as electric shock or fire.

If refrigerant leaks while work is being carried out, ventilate the area. If the refrigerant
comes in contact with a flame, it produces a toxic gas.

Installation work must be performed in accordance with national wiring standards by
authorized personnel only.

Except for EMERGENCY, never turn off main as well as sub breaker of the indoor units
during operation. It will cause compressor failure as well as water leakage.
First, stop the indoor unit by operating the controller, converter or external input device
and then cut the breaker.
Make sure to operate through the controller, converter or external input device.
When the breaker is designed, locate it at a place where the users cannot start and stop
in the daily work.

This mark indicates procedures which, if improperly performed,
might lead to the death or serious injury of the user.

WARNING

To install a unit that uses R410A refrigerant, use dedicated tools and piping materi­als that have been manufactured specifically for R410A use. Because the pressure
of R410A refrigerant is approximately 1.6 times higher than the R22, failure to use
dedicated piping material or improper installation can cause rupture or injury.
Furthermore, it can cause serious accidents such as water leakage, electric shock, or
fire.

Tool name Contents of change for R22 tool

Pressure is huge and cannot be measured with a conven­tional gauge. To prevent erroneous mixing of other refriger-

Gauge manifold

Charging hose

Vacuum pump

Gas leakage detector Special gas leakage detector for HFC refrigerant R410A.

ants, the diameter of each port has been changed.
It is recommended to use a gauge manifold with a high
pressure display range -0.1 to 5.3 MPa and a low pressure
display range -0.1 to 3.8 MPa.

To increase pressure resistance, the hose material and base
size were changed.

A conventional vacuum pump can be used by installing a
vacuum pump adapter.

• A conventional vacuum pump can be used by installing a
vacuum pump adapter.

• Be sure that the pump oil does not back flow into the
system. Use one capable for vacuum suction of -100.7kPa
(5 Ton, -755mmHg).

En-1

2.3. Accessories

WARNING

For installation purposes, be sure to use the parts supplied by the manufacturer or other
prescribed parts.
The use of non-prescribed parts can cause serious accidents such as the unit falling,
water leakage, electric shock, or fire.

• The following installation parts are furnished. Use them as required.

• Keep the Installation Manual in a safe place and do not discard any other accessories
until the installation work has been completed.

Name and Shape Q’ty Application

Operating
Manual

Installation
Manual

Operating
Manual
(CD-ROM)

Wall hook bracket

Tapping screw (M4 × 25 mm) (004/007/

Drain hose Insulation

Cloth tape

Cable tie

Air cleaning filter

Air cleaning filter frame

1

1

1

1

009

model)

5

(030/034

model)

8

(030/034

model)

1

1

(030/034

model)

2

(030/034

model)

2

(030/034

model)

2

(This book)

For indoor unit installation.

For wall hook bracket installation.

For installing drain hose

For indoor unit installation.

For transmission and remote controller
cable binding.

For installation, refer to the “CLEANING
AND CARE” in the operating manual.

2.4. Optional parts

Descrip-

tion

External
connect kit

Model Application

UTY-XWZXZC For output function (Output terminal / CNB01)

UTY-XWZXZB

UTY-XWZXZD For control input function (Dry contact terminal / CNA02)

UTY-XWZXZ7

UTY-XWZXZE

For control input function (Apply voltage terminal /
CNA01)

For forced thermostat off function (Apply voltage terminal
/ CNA03)

For forced thermostat off function (Dry contact terminal
/ CNA04)

3. INSTALLATION WORK

Correct initial installation location is important because it is difficult to move unit after it is
installed.

3.1. Selecting an installation location

Decide the mounting position together with the customer as follows.

WARNING

Select installation locations that can properly support the weight of the indoor unit.
Install the units securely so that they do not topple or fall.

CAUTION

Do not install the indoor unit in the following areas:

• Area with high salt content, such as at the seaside. It will deteriorate metal parts, caus­ing the parts to fail or the unit to leak water.

• Area filled with mineral oil or containing a large amount of splashed oil or steam, such
as a kitchen. It will deteriorate plastic parts, causing the parts to fail or the unit to leak
water.

• Area that generates substances that adversely affect the equipment, such as sulfuric
gas, chlorine gas, acid, or alkali. It will cause the copper pipes and brazed joints to
corrode, which can cause refrigerant leakage.

• Area that can cause combustible gas to leak, contains suspended carbon fibers or
flammable dust, or volatile inflammables such as paint thinner or gasoline. If gas leaks
and settles around the unit, it can cause a fire.

• Area where animals may urinate on the unit or ammonia may be generated.

Do not use the unit for special purposes, such as storing food, raising animals, growing
plants, or preserving precision devices or art objects.
It can degrade the quality of the preserved or stored objects.

Do not install where there is the danger of combustible gas leakage.

Do not install the unit near a source of heat, steam, or flammable gas.

Install the unit where drainage does not cause any trouble.

Install the indoor unit, power supply cable, transmission cable, and remote controller
cable at least 1 m away from a television or radio receivers. The purpose of this is to
prevent TV reception interference or radio noise. (Even if they are installed more than 1
m apart, you could still receive noise under some signal conditions.)

If children under 10 years old may approach the unit, take preventive measures so that
they cannot reach the unit.

Take precautions to prevent the unit from falling.

(1) Install the indoor unit on a place having a sufficient strength so that it withstands

against the weight of the indoor unit.

(2) The inlet and outlet ports should not be obstructed; the air should be able to blow all

over the room.
(3) Leave the space required to service the air conditioner.
(4) Install the unit where connection to the outdoor unit (or RB unit) is easy.
(5) Install the unit where the connection pipe can be easily installed.
(6) Install the unit where the drain pipe can be easily installed.
(7) Install the unit where noise and vibrations are not amplified.
(8) Take servicing, etc., into consideration and leave the spaces. Also install the unit

where the filter can be removed.
(9) Do not install the unit where it will be exposed to direct sunlight.

Detection range of the human sensor (030/034 model only)

CAUTION

Do not hit or push the human sensor. This may lead to damage or malfunction.

Do not touch the human sensor. Any scratches or dirt may lead to incorrect detection.

Do not place large objects near the human sensor. Also keep heating units outside the
sensor’s detection area.

Vertical angle 90° (Side view) Horizontal angle 100° (Top view)

7 m

90°

7 m

50° 50°

En-2

3.2. Installation dimension

004/007/009 model

Left side
70 mm or
more (*2)

1500 mm
or more

80 mm or
more (*1)

1800 mm or
more

Wall hook bracket

Wall cap

Right side
200 mm or
more (*2)

004/007/009 model

030/034 model

Wall hook bracket

Tapping screw
(accessory, 5 pcs)

030/034 model

Left side
70 mm or more
(*2)

1500 mm or more

*1: The distance between the wall hook bracket and the ceiling.
*2: The distance between the wall hook bracket and the side wall.

80 mm or
more (*1)

1800 mm or
more

Wall hook bracket

Wall cap

Right side 200
mm or more (*2)

3.3. Installing the unit

WARNING

Install the air conditioner in a location which can withstand a load of at least 5 times the
weight of the main unit and which will not amplify sound or vibration. If the installation
location is not strong enough, the indoor unit may fall and cause injuries.

If the job is done with the panel frame only, there is a risk that the unit will come loose.
Please take care.

3.3.1 Determining the piping direction

The piping can be connected
according to the figure and table.
When the piping is connected
in direction (B), (C), (D) or (E),
cut along the piping groove in
the side of the front panel with a
hacksaw.

Model

004/007/009
030/034 Good Good Good Good Good Good Good

(A)

Rear

outlet

(B)

Right
outlet

Good Good Good Good Good ― Good

(B)

(C)

Bottom
outlet

(C)

(D)

Left
bottom
outlet

(A)

(E)

Left
outlet

(F)

(F)

Center
outlet

3.3.2 Installing the wall hook bracket

• Refer to figure below for the installation hole dimensions of the wall hook bracket.

• Before fastening the wall hook bracket to the wall with the screws, level it by tapping the
hook at the center of bracket to the wall with the handle of a screwdriver.

(1) Fasten the wall hook bracket to the wall with 5 or more screws and anchor bolts

through the holes near the outer edge of the bracket.
(Do not install the wall hook bracket at only 1 place or at an angle.)

(2) For a concrete wall, embed anchor bolts (10 mm dia.) into the wall at the wall hook

bracket holes.
(Allow the anchor bolts to stick out at least 18 mm from the wall. Use 2 bolts for flat

concrete wall and 4 bolts for blister concrete wall.)
(3) Install the nuts to the anchor bolts through the wall hook bracket.
(4) Finally tighten the bolts and wood screws after confirming, using the level indicator,

that the clamp is horizontal.

WARNING

Install the wall hook bracket level, both horizontally and vertically. If the wall hook
bracket is tilted, wa ter will drip to the floor.

As the weight of the indoor unit is 15 to 18 kg, it should be installed after properly exam­ining the place where it is in tended to be in stalled. If the place is not strong enough, a
plank or girder should be used to make the place sufficiently strong so that the wall can
support the weight.

(D)

(G)

Left rear
outlet

(E)

(G)

Wall hook bracket

Tapping screw
(accessory, 8 pcs)

3.3.3 Cutting the hole in the wall for the connecting piping

(1) Cut a hole in the wall at the position shown in the following.
(2) Cut the hole so that the outside end is lower (5 to 10 mm) than the inside end.
(3) Always align the center of the wall hole. If misaligned, water leakage will occur.
(4) Cut the wall pipe to match the wall thickness, stick it into the wall cap, fasten the cap

with vinyl tape, and stick the pipe through the hole.

(5) For left piping and right piping, cut the hole a little lower so that drain water will flow

freely.

004/007/009 model

Wall hook bracket

Center mark Center mark

65 mm dia. hole65 mm dia. hole

030/034 model

Wall hook bracket

10 mm
or more

Attach the wall pipe

WARNING

If the wall pipe is not used, the
cable interconnecting the indoor
and outdoor units may touch
metal and cause electric leakage.

Fasten with vinyl
tape

Wall cap*

Center mark

80 mm dia. hole80 mm dia. hole

Wall pipe*

(Inside) Wall (Outside)

10 mm
or more

5 to 10 mm
low

* Locally

LowerLower

purchased

3.3.4 Attach the drain hose insulation (030/034 model only)

• Wrap the insulation around the
drain hose, making sure that
there are no gaps.

• Attach the Insulation (Drain
hose) to the drain hose.

Insulation (Drain hose)

Drain hose

(Accessories)

En-3

3.3.5 Forming the drain hose and pipe

CAUTION

Insert drain hose and drain cap securely. Drain should slope down to avoid water leak­age.

When inserting the drain hose, no other material than water should be applied. Applica­tion of other material than water will cause deterioration of the hose, and may cause
water leakage.

After you remove a drain hose, be sure to attach the drain cap.
When you secure the piping and drain hose with tape, arrange the drain hose so that it

is at the bottom of the piping.
For drain hose piping in low temperature environment, you need to apply freeze protec-

tion to prevent a frozen drain hose.
After cooling operation is performed in low temperature environment, (when outdoor
temperature under 0 °C,) water in the drain hose could be frozen. Frozen drain water
will block the water flow in the hose, and may cause water leakage at the indoor unit.

[For (A) Rear piping, (B) Right piping and (C) Bottom piping]

(1) Install the indoor unit piping in

the direction of the wall hole
and bind the drain hose and
pipe together with vinyl tape.

(2) Install the piping so that the

drain hose is at the bottom.

(3) Wrap the pipe of the indoor unit

that visible from the outside
with decorative tape.

(4) For right or bottom outlet

piping, cut off the piping outlet
cutting groove with a hacksaw.

Bottom piping

Indoor unit drain hose
(bottom)

Bind with vinyl tape

Pipe (top)
Rear piping

[For (D) Left bottom piping, (E) Left piping and (F) Center piping, (G) Left rear
piping]

CAUTION

Insert the drain hose and drain cap into the drain port, making sure that it comes in con­tact with the back of the drain port, and then mount it. If the drain hose is not connected
properly, leaking will occur.

(1) Interchange the drain cap and the drain hose.

• For left outlet piping, cut off
the piping outlet cutting groove
with a hacksaw.

• Remove the drain cap by pull­ing at the projection at the end
of the cap with pliers, etc.

Right side

Drain cap

Left side

Drain hose

Drain hose removal and installation method of the 004/007/009 model

Removal Installation

Screw

Drain fixture

Remove the screw at the left
of drain hose and pull out drain
hose.

Drain hose

Screw hole

Vertically insert the drain hose toward the inside, so that
the drain fixture can accurately align with the screw hole
around the drain cock. After inserting and before replac­ing, reinstall and fix the removed screws.

Drain cock

Drain fixture

Drain hose

Screw

Installing the drain cap

No gap

Hexagonal
wrench

(2) Align the marks on the wall hook bracket and shape the connection pipe.

For left piping and left rear piping, align the marks on the wall hook bracket and
shape the connection pipe.

Wall hook
bracket

Drain cock

Drain cap

Use a hexagonal wrench 4 mm at opposite side to
insert the drain cap, till the drain cap contacts the
tip of drain cock.

Alignment marks

004/007/009 model

(3) Bend the connection piping at the bend radius of 70 mm or more and install no more

than 35 mm from the wall.

030/034 model

(4) Bend the connection piping at the bend radius of 100 mm or more and install no

more than 35 mm from the wall.

3.3.6 Installing the indoor unit

(1) After passing the indoor piping and drain hose through the wall hole, hang the indoor

unit on the hooks at the top and bottom of the wall hook bracket.
After hooking the indoor unit to the top hook, hook the fittings of the indoor unit to the
2 bottom hooks while lowering the unit and pushing it against the wall.

004/007/009 model

Indoor
unit

030/034 model

Indoor
unit

(2) Insert the spacer, etc. between the

indoor unit and the wall hook bracket
and separate the bottom of the indoor
unit from the wall.

(Fitting)

Top hooks

Bottom hooks

Top hooks

Bottom hooks

Indoor unit

Spacer

Wall hook bracket

Wall hook
bracket

Wall hook
bracket

4. PIPE INSTALLATION

CAUTION

Be more careful that foreign matter (oil, water, etc.) does not enter the piping than with
refrigerant R410A models. Also, when storing the piping, securely seal the openings by
pinching, taping, etc.

While welding the pipes, be sure to blow dry nitrogen gas through them.

4.1. Selecting the pipe material

CAUTION

Do not use existing pipes from another refrigeration system or refrigerant.

Use pipes that have clean external and internal sides without any contamination which
may cause trouble during use, such as sulfur, oxide, dust, cutting waste, oil, or water.

It is necessary to use seamless copper pipes.
Material : Phosphor deoxidized seamless copper pipes
It is desirable that the amount of residual oil is less than 40 mg/10 m.

Do not use copper pipes that have a collapsed, deformed, or discolored portion (es­pecially on the interior surface). Otherwise, the expansion valve or capillary tube may
become blocked with contaminants.

Improper pipe selection will degrade performance. As an air conditioner using R410A
incurs pressure higher than when using conventional (R22) refrigerant, it is necessary to
choose adequate materials.

• Thicknesses of copper pipes used with R410A are as shown in the table.

• Never use copper pipes thinner than those indicated in the table even if they are avail­able on the market.

Thicknesses of Annealed Copper Pipes (R410A)

Pipe outside diameter [mm (in)] Thickness [mm]

6.35 (1/4) 0.80

9.52 (3/8) 0.80

12.70 (1/2) 0.80

15.88 (5/8) 1.00

19.05 (3/4) 1.20

Connection
piping

Connection pipe
(Liquid pipe)

Connection pipe (Gas pipe)

En-4
