Patient Manual
for NewLife 8-Liter and
NewLife 10-Liter
Oxygen Concentrator
Includes
Pediatric/Low Flow Options
Oxygen Monitor, Dual Flow, and
Page 2
English: A multilingual version of the manual is available through your equipment provider.
Español: Una versión multilingüe del manual está disponible a través de su proveedor de equipo.
Français: Une version multilingue du manuel est disponible par l'intermédiaire de votre fournisseur de matériel.
Deutsche: Eine mehrsprachige Version des Handbuchs ist in Ihrer Geräte-Anbieter.
Page 3
TABLE OF CONTENTS
®
AirSep
Oxygen Concentrator
NewLife® Intensity
AirSep NewLife Intensity
Oxygen Concentrator 1
Symbols 1
Why Your Physician Prescribed Oxygen 3
What is an Oxygen Concentrator? 4
Important Safety Rules 5
How to Operate Your Oxygen Concentrator 7
Filters 11
Oxygen Without Humidifier 11
Oxygen With Humidifier 12
Nasal Cannula 13
Proper Setting of Oxygen Flowmeter 14
Cleaning, Care, and Proper Maintenance 15
Cabinet 15
Filters 16
Reserve Oxygen Supply 16
Page 4
TABLE OF CONTENTS
AirSep® NewLife® Intensity
Oxygen Concentrator
Troubleshooting 17
Product Specifications 19
Classification 20
Oxygen Monitor Option 21
Function of the Oxygen Monitor 21
Alarm Signal 21
Dual Flow and Pediatric/
Low Flow Options
Dual Flow Application 22
Pediatric/Low Flow Application 22
Setting the Pediatric Flowmeter 23
22
Page 5
AirSep® NewLife® Intensity Oxygen Concentrator
This Patient Manual will acquaint you with AirSep’s NewLife Intensity Oxygen Concentrator (both 8-liter and 10-liter models). Make
sure you read and understand all the information contained in this manual before you operate your unit. Should you have any questions,
your Equipment Provider will be happy to answer them for you.
Symbols
Symbols are frequently used on equipment and/or the manual in preference to words with the intention of decreasing the
possibility of misunderstanding caused by language differences. Symbols can also permit easier comprehension of a concept
within a restricted space.
The following table is a list of symbols and definitions that may be used with the NewLife Intensity Oxygen Concentrator.
Symbol
Description
Warning – Describes a hazard or
unsafe practice that can result in severe
bodily injury or death
Caution – Describes a hazard or
unsafe practice that can result in minor
bodily injury or property damage
Note – Provides information
important enough to emphasize or
repeat
Refer to Patient Manual Instructions
No oil or grease
Symbol
Description
No smoking
CE Mark
Safety agency for CAN/CSA C22.2 No.
601.1 M90 for medical electrical
equipment. (10-liter only)
Safety agency for CAN/CSA C22.2 No.
601.1 M90 for medical electrical
equipment. (8-liter only)
Do not disassemble
MN164-1 Rev 08/09
1
Page 6
Symbol
Description
Proper disposal of waste of electrical
and electronic equipment required
Type BF Equipment
Symbol
Description
Class II
Keep unit and accessories dry
In the event of an alarm, you observe the unit is not working properly, or if you feel discomfort, consult your
Equipment Provider and/or your physician immediately.
This unit is not to be used for life support. Geriatric, pediatric, or any other patients unable to communicate discomfort
while using this machine may require additional monitoring. Patients with hearing and/or sight impairment(s) may
need assistance with monitoring alarms.
This device supplies high-concentration oxygen that promotes rapid burning. Do not allow smokin g or open flames
within five feet (1.5 m) of (1) this device, or (2) any oxygen-carrying accessory.
Use no oil, grease, or petroleum-based products on or near unit.
Disconnect the power cord from the electrical outlet before you clean or service the unit.
MN164-1 Rev 08/09
2
Page 7
Why Your Physician Prescribed Oxygen
Many people suffer from a variety of heart, lung, and other respiratory diseases. A significant number of these patients can benefit
from supplemental oxygen therapy at home, in the hospital, or at a medical facility.
Oxygen is a gas that makes up 21% of the room air we breathe. Our bodies depend on a steady supply to function properly. Your
physician prescribed a flow or setting to address your particular respiratory condition.
Although Oxygen is a non-additive drug, unauthorized oxygen therapy can be dangerous. You must seek medical advice before you
use this oxygen concentrator. The Equipment Provider who supplies your oxygen equipment will demonstrate how to set the
prescribed flow rate.
It is very important to select the prescribed level of oxygen flow. Do not increase or decrease the flow until you first
consult your physician.
MN164-1 Rev 08/09
3
Page 8
What is an Oxygen Concentrator?
Oxygen concentrators were introduced in the mid-1970’s and have become the most convenient, reliable source of supplemental
oxygen available today. Oxygen concentrators are the most cost-effective, efficient, and safest alternative to using high-pressure
oxygen cylinders or liquid oxygen. An oxygen concentrator provides all the oxygen you need with no cylinder or bottle deliveries
required.
The air we breathe contains approximately 21% oxygen, 78% nitrogen, and 1% other gases. In the NewLife Intensity unit, room air
passes through a regenerative, adsorbent material called “molecular sieve.” This material separates the oxygen from the nitrogen. The
result is a flow of high-concentration oxygen delivered to the patient.
There is never a danger of depleting the oxygen in a room when you use your NewLife Intensity unit.
MN164-1 Rev 08/09
4
Page 9
Important Safety Rules
Carefully review and familiarize yourself with the following im portant safety information about the NewLife Intensity Oxygen
Concentrator.
In the event of an alarm, you observe the NewLife Intensity is not working properly, or if you feel discomfort, consult
your Equipment Provider and/or your physician immediately.
This unit is not to be used for life support. Geriatric, pediatric, or any other patients unable to communicate discomfort
while using this machine may require additional monitoring. Patients with hearing and/or sight impairment(s) may need
assistance with monitoring alarms.
Do not leave the nasal cannula under bed coverings or chair cushions. If the unit is turned on but not in use, the oxygen
will make the material flammable. Set the I/0 power switch to the 0 (off) position when the NewLife Intensity unit is not in
use.
Electrical shock hazard. Do not remove covers while the unit is plugged in. Only your Equipment Provider should
remove the covers.
MN164-1 Rev 08/09
5
Page 10
This device manufactures high concentration oxygen, which promotes rapid burning. Do not allow smokin g or open
flames within 5 feet (1.5 m) of: (1) this device or (2) any oxygen carrying accessory.
Do not use extension cords with this unit.
AirSep recommends an alternate source of supplemental oxygen in the event of a powe r outa ge, alarm condition, or
mechanical failure. Consult your physician or Equipment Provider for the type of reserve system required.
Federal (USA) law restricts this device to sale or rental by or on the order of a physician or licensed health care
provider.
MN164-1 Rev 08/09
6
Page 11
A
How to Operate Your Oxygen Concentrator
E
F

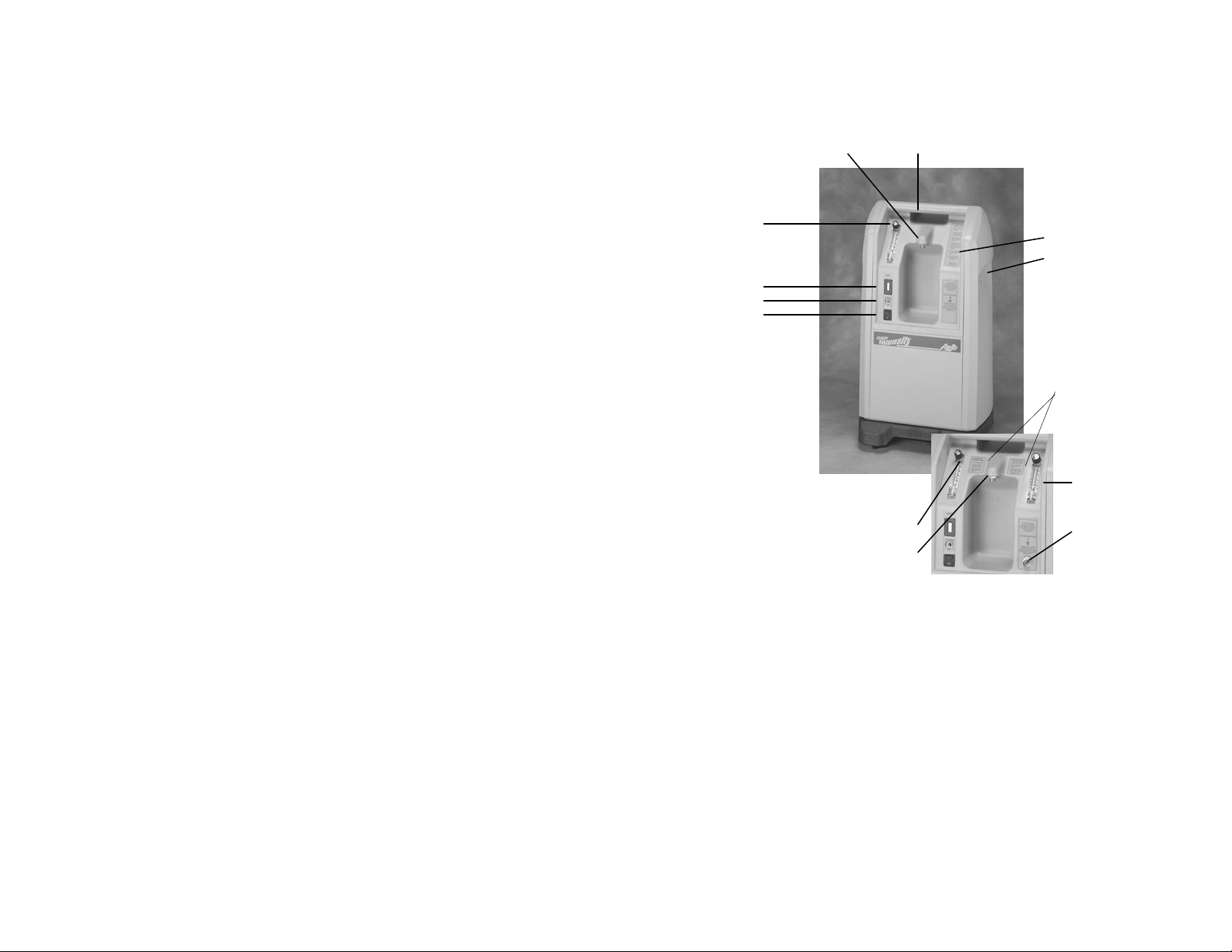

First, become familiar with the important parts of your NewLife
Intensity Oxygen Concentrator (Figures 1a and 1b).
A. On/Off (I/0) Power Switch:
Starts and stops the operation of the unit.
B. Circuit Breaker Reset Button:
C
B
GD
F
Resets the unit after electrical overload shutdown
C. Digital Hour Meter:
Records the unit’s total hours of operation.
D. Flowmeter/Adjustment Knob (Primary on Dual Option):
G
Controls and indicates the oxygen flow rate in liters per minute
(lpm). Main flowmeter (left side) on units with dual flow option.
E. Oxygen Outlet (Primary on Dual Option):
Provides connections for a humidifier (if required), nasal cannula, face mask,
or catheter . On units with dual flow option, controlled by primary flowmeter. Figure 1a
F. Top and Side Handles:
Enables convenience in carrying the unit.
G. Operating Instructions:
E
H
ID
Explains procedures to operate the unit. Dual Flow Option
H. Secondary Flowmeter (Dual Option):
Flowmeter (right side) on units with dual flow option.
I. Secondary Oxygen Outlet (Dual Option):
Oxygen outlet (right side) on units with dual flow option.
Controlled by secondary flowmeter.
MN164-1 Rev 08/09
7
Page 12
J. Air Intake Gross Particle Filter:
Prevents dust and other airborne particles from entering the unit.
K. Power Cord:
Allows connection of unit into electrical outlet.
J
Do not use extension cords with this unit.
K

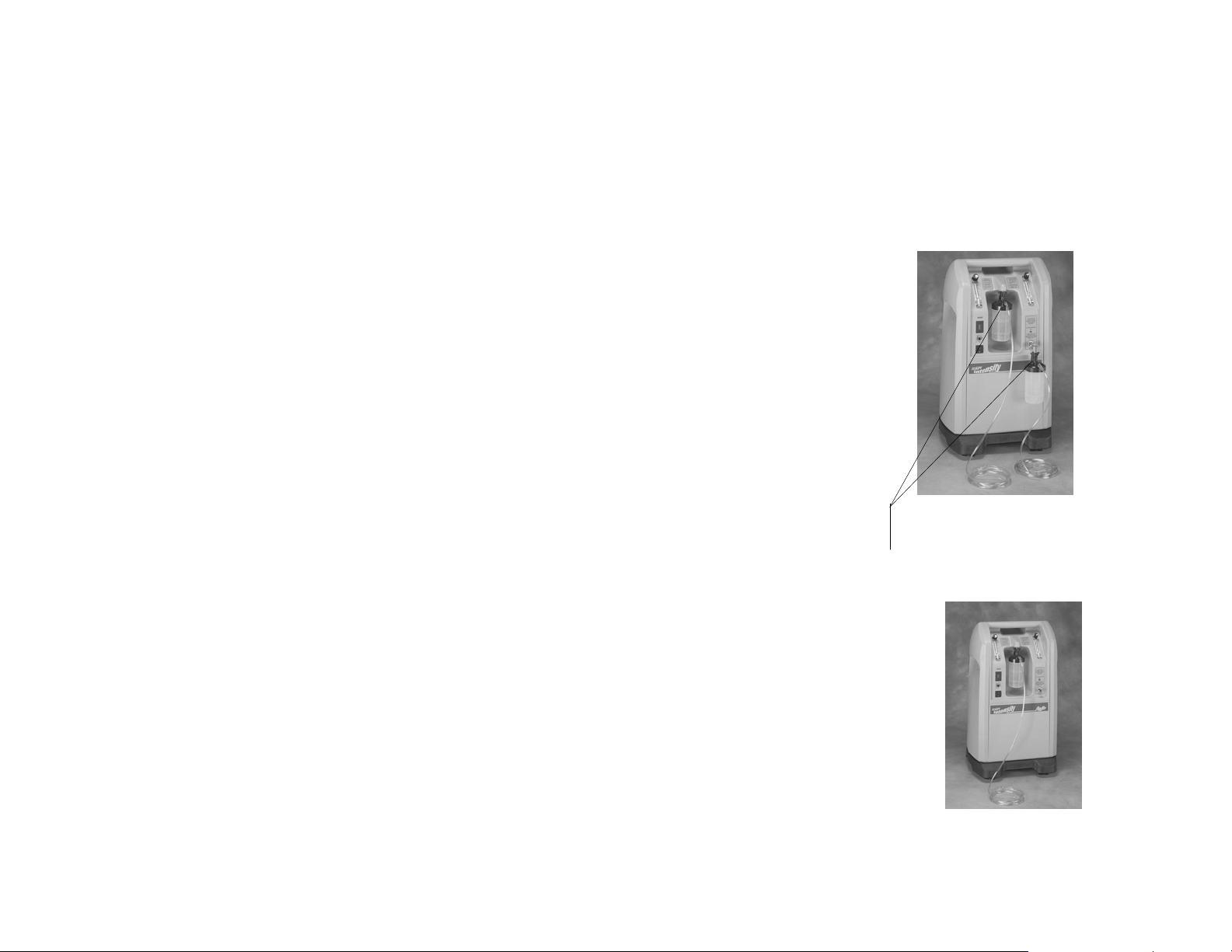

1. Locate the unit near an electrical outlet in the room where you spend
most of your time.

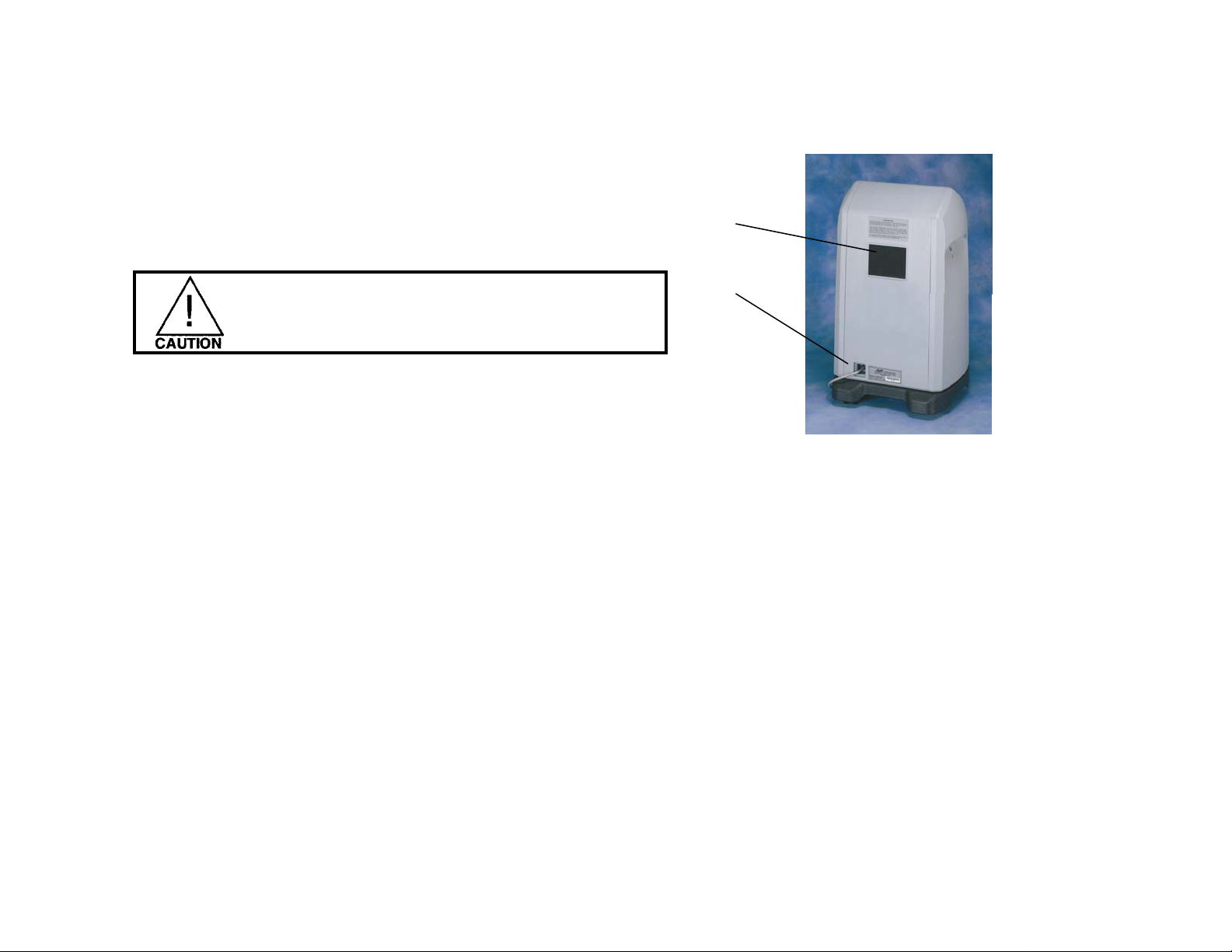

Figure 1b
2. Position the unit away from curtains or drapes, hot air registers, heaters,
and fireplaces. Be certain to place the unit so all sides are at least 12 inches
(30.5 cm) away from a wall or other obstruction. Do not place the unit in a
confined area.
3. Turn the unit so that the operating controls are within easy reach and the air intake on the back of the unit is not obstructed.
4. Connect oxygen accessories such as a humidifier (if required), nasal cannula, face mask, catheter, and/or extension tubing to
the oxygen outlet.
5. Completely unwrap the power cord (Figure 1b).
MN164-1 Rev 08/09
8
Page 13
6. Insert power cord into the electrical outlet.
On/Off
Power Switch
7. Locate the power switch on the front of the unit, and switch it to
the I position (on). (Figure 2.)
A battery-operated audible alarm must sound for a 5-second
test to indicate a good battery and alarm.
If the alarm is weak or does not sound at all, consult your
Equipment Provider immediately.
Figure 2
The standard NewLife Intensity Oxygen Concentrator
accommodates high pressure/high flow prescriptions.
8. Dual Flow and High Flow Applications: Set the flowmeter adjustment
knob(s) to the prescribed lpm, in any combination of flows up to a total
of the maximum capacity of the concentrator (8 lpm for Intensity and
10 lpm for Intensity 10). (Figure 3).
or
Pediatric/Low Flow Applications: See page 22 for details.
Figure 3
The concentrator is now ready for use.
MN164-1 Rev 08/09
9
Page 14
9. To turn the concentrator off, press the
I/0 switch to the 0 position.
Always operate the unit in an upright position.
10. If the NewLife Intensity unit fails to operate properly, refer to the Troubleshooting section for a list of probable causes
and solutions.
MN164-1 Rev 08/09
10
Page 15
Filters

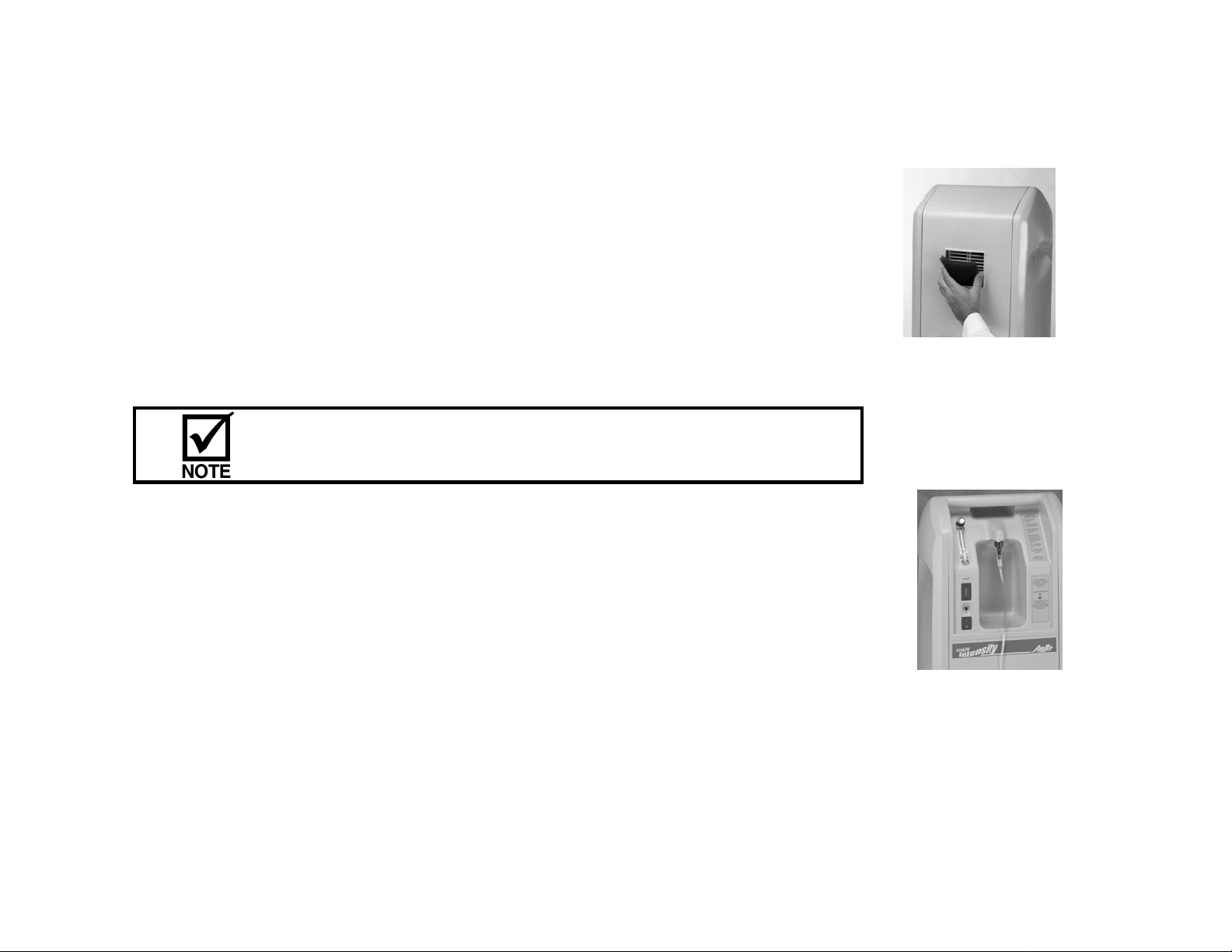

Air enters the NewLife Intensity unit through an air intake gross particle filter located on the
back off the oxygen concentrator. This filter removes dust particles and other large particles from
the air. Before you operate the NewLife Intensity unit, make sure this filter is clean and positioned
correctly (Figure 4).
The supplemental oxygen produced by the NewLife Intensity unit receives additional filtration
from a product filter located within the oxygen concentrator. Your Equipment Provider performs
maintenance on the product filter in addition to other maintenance on the unit. Figure 4
The use of some oxygen administration accessories not specified for use with this
oxygen concentrator may impair its performance.
Oxygen Without Humidifier
1. If your physician did not prescribe a humidifier, connect the oxygen tubing directly to the unit’s
Oxygen outlet. A separate outlet fitting is supplied for this type of connection (Figure 5).
Figure 5
MN164-1 Rev 08/09
11
Page 16
Operating With Humidifier
Following these steps if your physician prescribed an oxygen humidifier as part of your therapy:

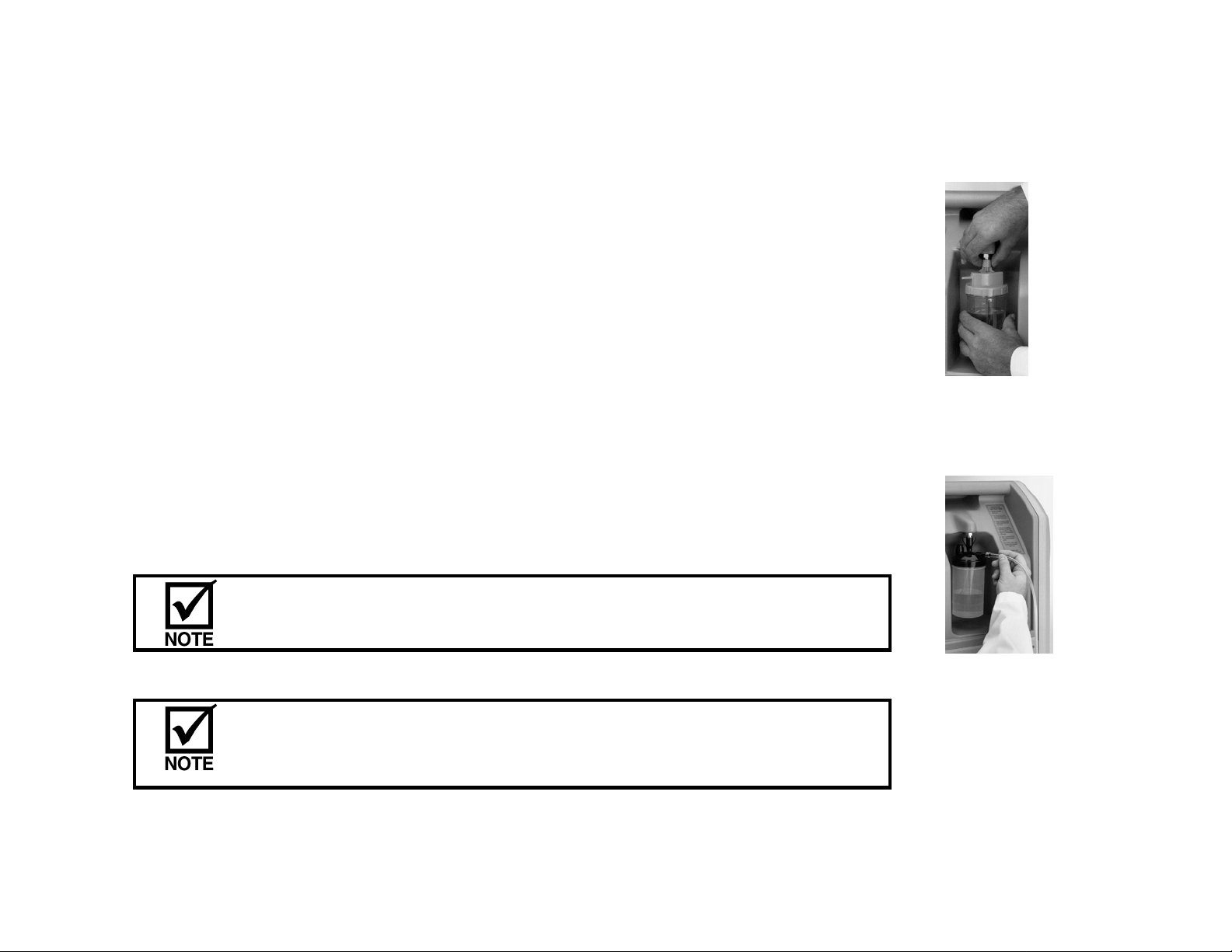

1. Remove or unscrew the reservoir bottle from the humidifier (If you have a pre-filled
unit, do not perform this step. Proceed directly to step 4.)
2. Fill the reservoir with cool or cold water (distilled water is preferred) to the fill line indicated
on the bottle. DO NOT OVERFILL.
3. Screw the reservoir bottle back together. Figure 6
4. On the top of the humidifier, turn the thread nut counterclockwise while you connect the
humidifier to the oxygen outlet, and tighten securely (Figure 6).
5. Connect oxygen tubing from the nasal cannula, face mask, or other accessories to the
humidifier outlet fitting (Figure 7).
Fi gure 7
The use of certain humidifiers not specified for use with this oxygen concentrator may
impair its performance.
To Equipment Provider: The following humidifier bottle is recommended for use with
the NewLife Intensity Oxygen Concentrator:
AirSep Part No. HU014-1
MN164-1 Rev 08/09
12
Page 17
Nasal Cannula
Your physician has prescribed either a nasal cannula, face mask, or other accessories (Figure 8). In
most cases the manufacturer has already connected the oxygen supply tubing to the nasal cannula,
face mask, or other accessory. If not, follow the manufacturer’s instructions for proper connection.
Connect the oxygen tubing to the oxygen outlet adapter or humidifier.
Figure 8
To Equipment Provider: The following oxygen administration accessories are
recommended for use with the NewLife Intensity Oxygen Concentrator:
Nasal Cannula with 7 feet (2.1 m) of tubing: AirSep Part No. CU002-1.
Oxygen Outlet Adapter: AirSep Part No. F0025-1.
Face Mask with 7 feet (2.1 m) of tubing: AirSep Part No. MS013-1
MN164-1 Rev 08/09
13
Page 18

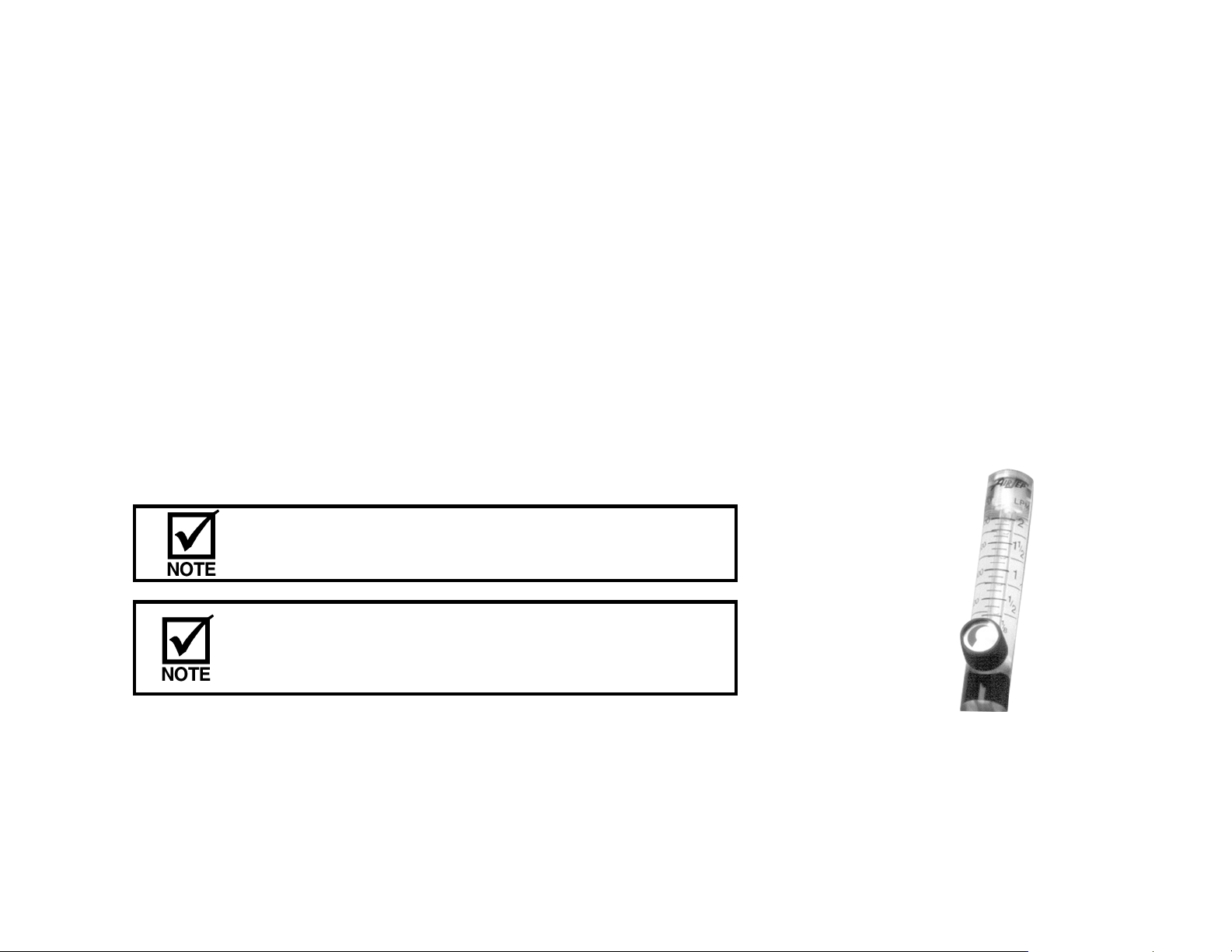

Proper Setting of Oxygen Flowmeter

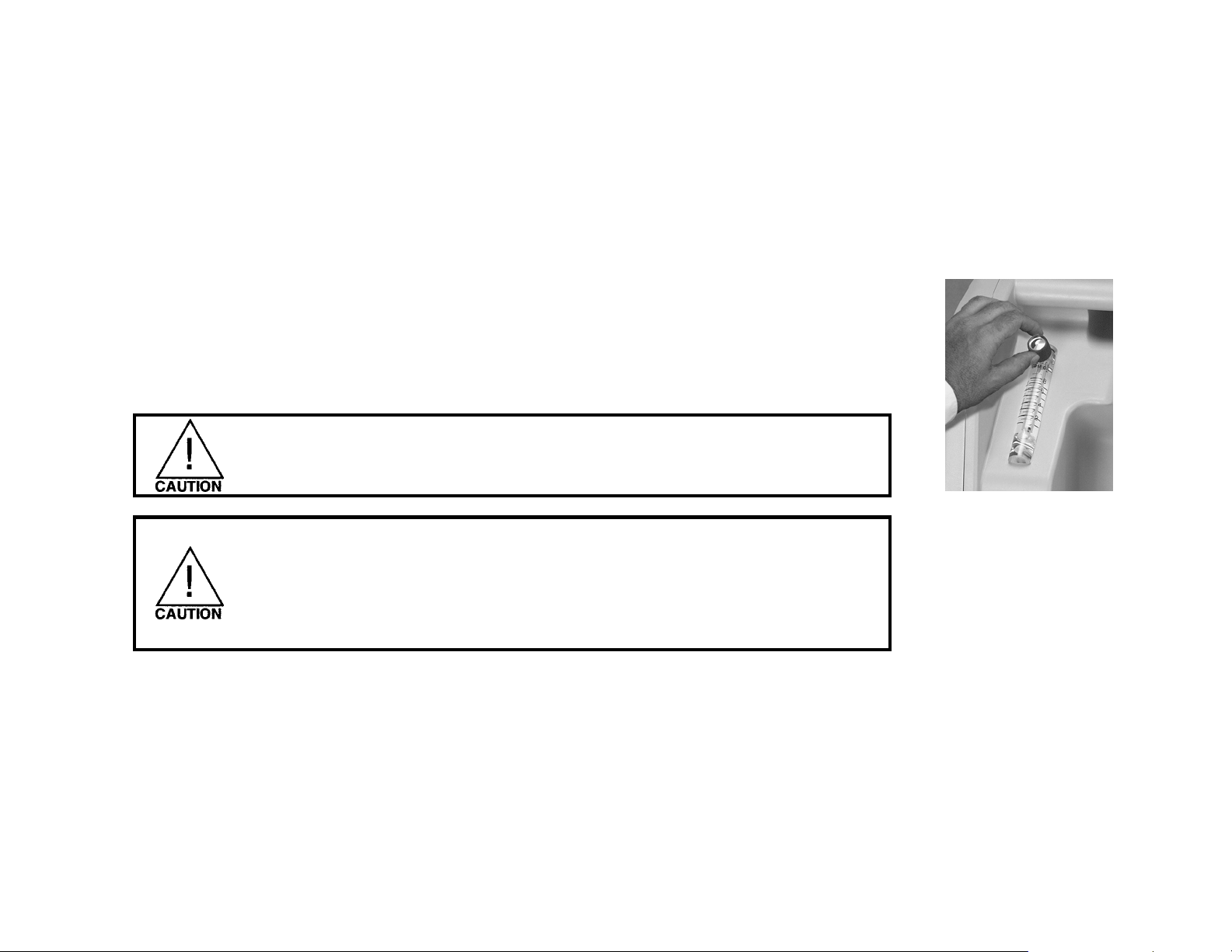

To set the proper flow of supplemental oxygen, turn the flowmeter adjustment knob left or right
until the ball inside the flowmeter centers on the flow line number prescribed by your physician
(Figure 9).
To view the flowmeter at the proper angle, note that the back line and the front numbered line
must give the appearance of just one line.
It is very important to follow the prescribed level of oxygen. Do not increase or decrease
the flow until you first consult your physician.
Figure 9
Normally, you should not need to adjust the flowmeter on your unit. If you turn the
flowmeter adjustment knob clockwise, you will decrease and can shut off the flow of
oxygen from your unit. For your convenience, the flowmeter is marked in ½ lpm
increments. For units with the pediatric flowmeter option, the flowmeter is marked in 1/8
lpm increments for flow settings up to 2 lpm.
MN164-1 Rev 08/09
14
Page 19
Cleaning, Care, and Proper Maintenance
Cabinet
Turn off the NewLife Intensity unit, and disconnect the power cord from unit before you clean the cabinet.
Do not use liquid directly on the NewLife Intensity unit to clean it. A list of undesirable chemical agents includes but
is not limited to, the following, according to the plastics manufacturer: alcohol and alcohol-based products,
concentrated chlorine-based products (ethylene chloride), and oil-based pro ducts (Pine-Sol, Lestoil). These are NOT
to be used to clean the plastic housing; they can damage the unit’s plastic.
Clean the cabinet and power cord only with a mild household cleaner applied with a damp cloth or sponge, and then
wipe them dry.
To prevent a voided AirSep warranty, follow all manufacturer’s instructions.
AirSep does not recommend the sterilization of this equipment.
MN164-1 Rev 08/09
15
Page 20
Filters
At least one time each week, wash the air intake gross particle filter, which is located in the back of the unit. Your
Equipment Provider may advise you to clean it more often, depending upon your operating conditions. Follow these
steps to properly clean the air intake filter:
1. Remove the filter and wash it in a warm solution of soap and water.
2. Rinse the filter thoroughly, and remove excess water with a soft, adsorbent towel. Ensure that the filter is dry
before replacing it.
3. Replace the dry filter.
Reserve Oxygen Supply
Your Equipment Provider may recommend another source of supplemental oxygen therapy in case there is a mechanical
failure or a power outage.
MN164-1 Rev 08/09
16
Page 21
Troubleshooting
If your NewLife Intensity Oxygen Concentrator fails to operate properly, refer to the chart on the following pages for possible
causes and solutions and, if needed, consult your Equipment Provider.
If you cannot get the unit to operate, connect your nasal cannula, face mask, or other accessories to the reserve supplemental
oxygen supply (if provided).
Do not attempt any maintenance other than the possible solutions listed below.
Problem
Unit does not operate. Power failure
condition causes a continuous alarm to
sound.
Limited oxygen flow.
Probable Cause
Power cord not connected into electrical
outlet.
No power at electrical outlet.
Oxygen concentrator circuit breaker is
activated.
Dirty or obstructed humidifier bottle.
Defective nasal cannula, face mask,
catheter, and/or oxygen delivery tube, or
other accessory.
Other leak or restriction.
Solution
Check power cord plug at the electrical outlet for a
proper connection.
Check power source, wall switch, fuse, or circuit
breaker in-house.
Contact your Equipment Provider for service.
Remove the humidifier bottle (if used) from the
oxygen outlet. If flow is restored, clean or replace
with a new humidifier bottle.
Remove nasal cannula, face mask, or other
accessories from oxygen tubing. If proper flow is
restored, replace with new nasal cannula, face mask,
or other accessories.
Disconnect delivery tubing at oxygen outlet (front of
unit). If proper flow is restored, check oxygen tubing
for kinks or obstructions. Replace if needed.
Contact your Equipment Provider.
MN164-1 Rev 08/09
17
Page 22
Problem
Condensation collects in the oxygen
tubing when you use the humidifier
bottle.
Intermittent alarm sounds at one second
intervals.
Unit does not alarm, or weak alarm
sounds for 5 seconds during start-up.
All other problems.
Probable Cause
Unit not properly ventilated. Elevated
operating temperature.
Equipment malfunction.
Weak 9-volt battery
Solution
Make sure unit is positioned away from curtains or
drapes, hot air registers, heaters, and fireplaces. Be
certain to place the unit so all sides are at least 12
inches (30.5 cm) away from a wall or other
obstruction. Do not place the unit in a confined area.
Allow oxygen tubing to dry out, or replace with new
tubing. Refill humidifier bottle with COLD water.
DO NOT OVERFILL.
Set I/0 power switch to 0 position, use your reserve
oxygen supply (if provided), and consult your
Equipment Provider immediately.
Call your Equipment Provider to replace 9-volt
battery.
Set I/0 power switch to the 0 position, use your
reserve oxygen supply (if provided), and consult
your Equipment Provider immediately.
MN164-1 Rev 08/09
18
Page 23
Product Specifications
Oxygen Concentration: *
Dimensions:
8-Liter Concentrators
2-7 lpm: 92% ± 3%
8 lpm: 90% ± 3%
10-Liter Concentrators
2-9 lpm: 92% ± 3%
10 lpm: 90% ± 3%
27.5 in. high x 16.5 in. wide x 14.5 in. deep
(69.9 cm high x 41.9 cm wide x 36.8 cm deep)
Weight:
Electrical:
Alarms:
54 lb (24.5 kg)
120 VAC, 60 Hz, 4.0 amps
Two-prong polarized plug
Double insulated cabinet
Export Models:
220-240 VAC, 50 Hz, 2.0 amps
220 VAC, 60 Hz, 2.0 amps
Double-insulated cabinet
58 lb (26.4 kg)
120 VAC, 60 Hz, 6.0 amps
Two-prong polarized plug
Double insulated cabinet
Export Models:
220-240 VAC, 50 Hz, 3.0 amps
220 VAC, 60 Hz, 3.0 amps
Double-insulated cabinet
Battery test
Power failure
High and low pressure
Low oxygen concentration (Oxygen monitor)
Storage Temperature:
* Based on an atmospheric pressure of 14.7 psi (101 kPa) at 70°F (21°C)
* Operating unit outside of operational temperature range can affect performance.
-4°F to 140°F (-20°C to 60°C)
MN164-1 Rev 08/09
19
Page 24
Classification
Type of protection against electric shock:
Class II Protection from electric shock is achieved by double insulation.
Protective earthing or reliance upon installation conditions are not required.
Degree of protection against electric shock:
Type B Equipment providing a particular degree of protection against electric shock particularly regarding:
Degree of protection against harmful ingress of water:
Drip-proof equipment – IPX1.
Method of cleaning and infection control allowed:
Please refer to Maintenance section in the NewLife Intensity Service Manual.
Degree of safety of application in the presence of flammable anesthetic gases:
Equipment not suited for such application.
Mode of operation:
Continuous duty.
1) allowable leakage current;
2) reliability of protective earth connection (if present).
Not intended for direct cardiac application.
Equipment provided with an enclosure preventing of such an amount of falling liquid as might interfere with the
satisfactory and safe operation of the equipment.
MN164-1 Rev 08/09
20
Page 25
A
Oxygen Monitor Option
The following information will acquaint you with Oxygen Monitor option of the NewLife Intensity Oxygen Concentrator. Ma ke sure
you read and understand all the information con tained in this m anual before you ope rate your uni t. Should you have any questions, your
Equipment Provider will be happy to answer them for you.
Function of the Oxygen Monitor
The oxygen monitor is a small electronic device within the NewLife Intensity Oxygen
Concentrator that monitors the concentration of oxygen produced by the unit.
Alarm Signal
If oxygen concentration falls below the acceptable therapeutic level, an amber
OXYGEN MONITOR light on the Oxygen Concentrator turns on (Figure 10). If the
light remains on for more than 15 minutes, an intermittent alarm sounds.
mber Light
Figure 10
Contact your Equipment Provider immediately if the amber OXYGEN MONITOR light remains on for more than 15
minutes.
When you turn the unit on, it’s normal for the amber OXYGEN MONITOR light to turn on and remain on for up to five
minutes.
MN164-1 Rev 08/09
21
Page 26
A
Dual Flow and Pediatric/Low Flow Options
The following information will acquaint you with t h e d u a l f l o w a n d p ed i a t r i c /l o w f l o w op t i o n s o f t h e NewLife Intensity Oxygen
Concentrator (See Figure 11). Make sure you read and understand all the inform ation contained in this manual before you operate
your unit. S hould you have any questions, your Equipment Provider will be happy to answer them for you.
Dual Flow Application
The NewLife Intensity unit’s dual flow option allows a single concentrator to
meet the high flow requirements of one patient (Figure 12) or the needs of two
patients, in any combination of flows up to the maximum capacity of the
concentrator (Figure 11). Excellent for use in the home, extended care facility,
hospital, or physician’s waiting room.
Figure 11
Two Patients/
Dual Flow
pplications
Pediatric/Low Flow Application
The pediatric flowmeter (available for use with the dual flow NewLife Intensity
unit) meets low flow requirements up to 2 lpm in 1/8 liter (125 ccm) increments
(Figure 13).
Figure 12
MN164-1 Rev 08/09
22
Page 27
Setting the Pediatric Flowmeter
When using the pediatric flowmeter, the unit will not reach proper concentration at the pediatric setting (less than 2 lpm) until
you bleed off a portion of the oxygen by opening the primary flowmeter (on the left side of the unit). Follow the procedure
below when using the pediatric flowmeter.
1. Follow the start-up instructions 1-7 as outlined on page 8 & 9.
2. Set the pediatric flowmeter to the prescribed flow.
3. Set the primary flowmeter to 2 lpm to bleed off excess product, and allow the unit to achieve maximum concentration.
The NewLife Intensity Oxygen Concentrator must be operated for
at least five minutes at 2 lpm before using the unit.
The NewLife Intensity is appropriate for usage by two patients,
provided the combined flow is a minimum of 2 lpm and does not
exceed the maximum capacity of the concentrator.
Figure 13
MN164-1 Rev 08/09
23
Page 28
Page 29
For European representative:
Gavin Ayling
9 Bungham Lane
Penkridge Stafford
Staffordshire ST19 5NH England
E-mail: eurorepcontact@airsep.com
Page 30
For service on your NewLife Intensity Oxygen Concentrator, please contact your local Equipment Provider at:
Manufactured by:
AirSep Corporation
Buffalo, NY 14228-2085 USA
www.airsep.com
|MN164-1_-^~
MN164-1 Rev –
08/09
Loading...
