Page 1
AUTOMOTIVE ACCESSORY
MANUFACTURE & DISTRIBUTION
AIRPLEX INDUSTRIES LTD
21 Saleyards Road, Otahuhu, Auckland 1062, New Zealand
PO Box 11286, Ellerslie, Auckland 1542 New Zealand
PH +64 (9) 276-9826 Fax +64 (9) 276-9836
[email protected] www.airplex.co.nz

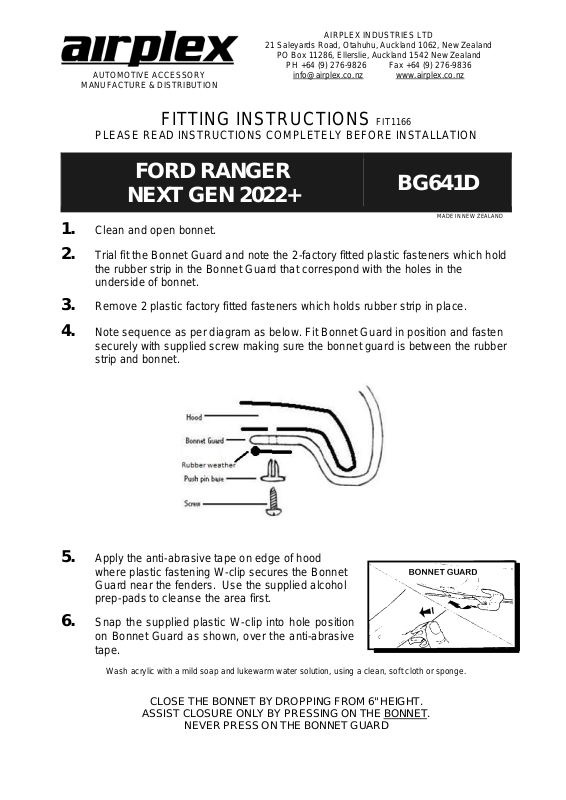

FITTING INSTRUCTIONS FIT1166
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE INSTALLATION
FORD RANGER
NEXT GEN 2022+
BG641D
MADE IN NEW ZEALAND
1. Clean and open bonnet.
2. Trial fit the Bonnet Guard and note the 2-factory fitted plastic fasteners which hold
the rubber strip in the Bonnet Guard that correspond with the holes in the
underside of bonnet.
3. Remove 2 plastic factory fitted fasteners which holds rubber strip in place.
4. Note sequence as per diagram as below. Fit Bonnet Guard in position and fasten
securely with supplied screw making sure the bonnet guard is between the rubber
strip and bonnet.
5. Apply the anti-abrasive tape on edge of hood
where plastic fastening W-clip secures the Bonnet
Guard near the fenders. Use the supplied alcohol
prep-pads to cleanse the area first.
6. Snap the supplied plastic W-clip into hole position
on Bonnet Guard as shown, over the anti-abrasive
tape.
Wash acrylic with a mild soap and lukewarm water solution, using a clean, soft cloth or sponge.
CLOSE THE BONNET BY DROPPING FROM 6" HEIGHT.
ASSIST CLOSURE ONLY BY PRESSING ON THE BONNET.
NEVER PRESS ON THE BONNET GUARD
