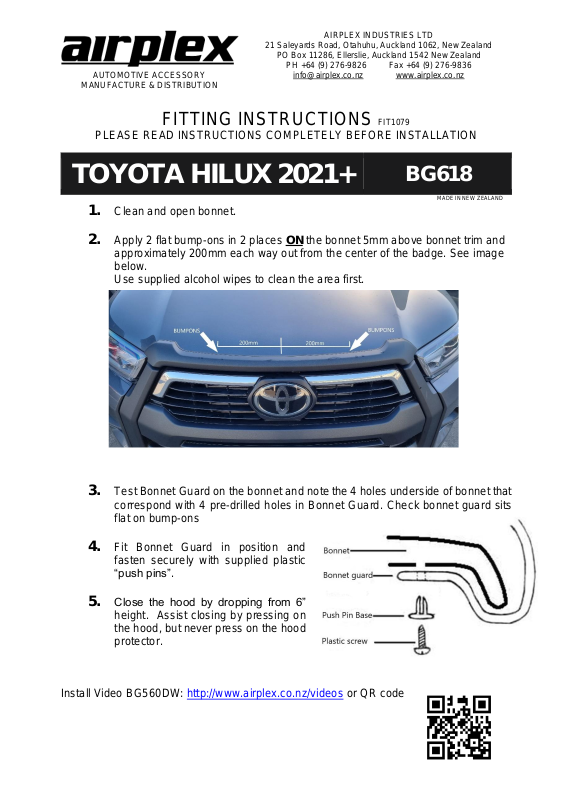

FITTING INSTRUCTIONS FIT1079
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE INSTALLATION
TOYOTA HILUX 2021+
BG618
MADE IN NEW ZEALAND
1. Clean and open bonnet.
2. Apply 2 flat bump-ons in 2 places ON the bonnet 5mm above bonnet trim and
approximately 200mm each way out from the center of the badge. See image
below.
Use supplied alcohol wipes to clean the area first.
3. Test Bonnet Guard on the bonnet and note the 4 holes underside of bonnet that
correspond with 4 pre-drilled holes in Bonnet Guard. Check bonnet guard sits
flat on bump-ons
4. Fit Bonnet Guard in position and
fasten securely with supplied plastic
“push pins”.
5. Close the hood by dropping from 6”
height. Assist closing by pressing on
the hood, but never press on the hood
protector.
Install Video BG560DW: http://www.airplex.co.nz/videos or QR code
