AUTOMOTIVE ACCESSORY
MANUFACTURE & DISTRIBUTION
AIRPLEX INDUSTRIES LTD
21 Saleyards Road, Otahuhu, Auckland 1062, New Zealand
PO Box 11286, Ellerslie, Auckland 1542 New Zealand
PH +64 (9) 276-9826 Fax +64 (9) 276-9836
[email protected] www.airplex.co.nz

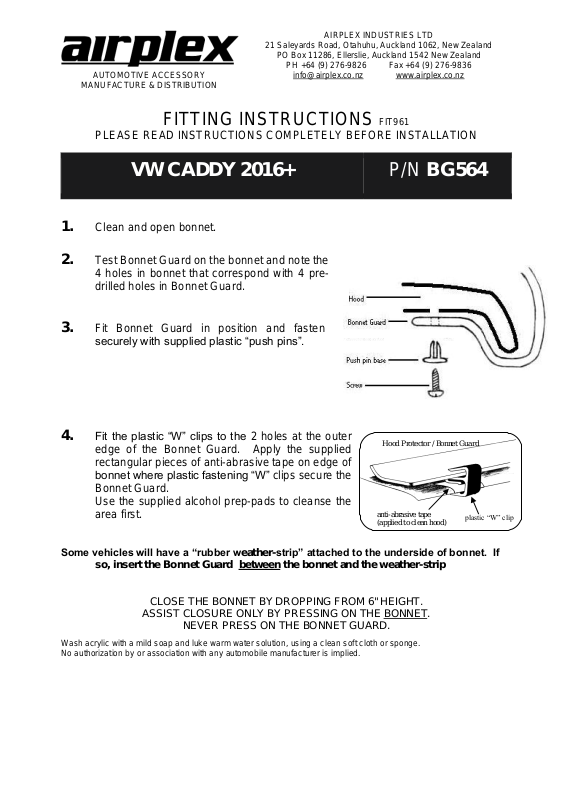

FITTING INSTRUCTIONS FIT961
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE INSTALLATION
VW CADDY 2016+
P/N BG564
1. Clean and open bonnet.
2. Test Bonnet Guard on the bonnet and note the
4 holes in bonnet that correspond with 4 predrilled holes in Bonnet Guard.
3. Fit Bonnet Guard in position and fasten
securely with supplied plastic “push pins”.
4. Fit the plastic “W” clips to the 2 holes at the outer
edge of the Bonnet Guard. Apply the supplied
rectangular pieces of anti-abrasive tape on edge of
bonnet where plastic fastening “W” clips secure the
Bonnet Guard.
Use the supplied alcohol prep-pads to cleanse the
area first.
Some vehicles will have a “rubber weather-strip” attached to the underside of bonnet. If
so, insert the Bonnet Guard between the bonnet and the weather-strip
CLOSE THE BONNET BY DROPPING FROM 6" HEIGHT.
ASSIST CLOSURE ONLY BY PRESSING ON THE BONNET.
NEVER PRESS ON THE BONNET GUARD.
Wash acrylic with a mild soap and luke warm water solution, using a clean soft cloth or sponge.
No authorization by or association with any automobile manufacturer is implied.
plastic “W” clip
anti-abrasive tape
(applied to clean hood)
Hood Protector / Bonnet Guard
