Page 1
AUTOMOTIVE ACCESSORY
MANUFACTURE & DISTRIBUTION
AIRPLEX INDUSTRIES LTD
21 Saleyards Road, Otahuhu, Auckland 1062, New Zealand
PO Box 11286, Ellerslie, Auckland 1542 New Zealand
PH +64 (9) 276-9826 Fax +64 (9) 276-9836
[email protected] www.airplex.co.nz

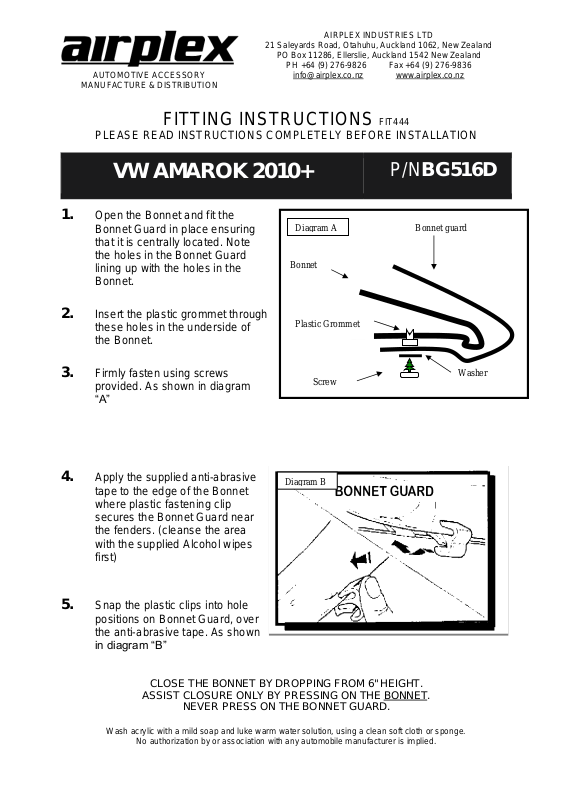

FITTING INSTRUCTIONS FIT444
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE INSTALLATION
VW AMAROK 2010+
P/NBG516D
1. Open the Bonnet and fit the
Bonnet Guard in place ensuring
that it is centrally located. Note
the holes in the Bonnet Guard
lining up with the holes in the
Bonnet.
2. Insert the plastic grommet through
these holes in the underside of
the Bonnet.
3. Firmly fasten using screws
provided. As shown in diagram
“A”
4. Apply the supplied anti-abrasive
tape to the edge of the Bonnet
where plastic fastening clip
secures the Bonnet Guard near
the fenders. (cleanse the area
with the supplied Alcohol wipes
first)
5. Snap the plastic clips into hole
positions on Bonnet Guard, over
the anti-abrasive tape. As shown
in diagram “B”
CLOSE THE BONNET BY DROPPING FROM 6" HEIGHT.
ASSIST CLOSURE ONLY BY PRESSING ON THE BONNET.
NEVER PRESS ON THE BONNET GUARD.
Wash acrylic with a mild soap and luke warm water solution, using a clean soft cloth or sponge.
No authorization by or association with any automobile manufacturer is implied.
Bonnet
Screw
Washer
Plastic Grommet
Bonnet guard
Diagram A
Diagram B
