Airlux XTD03A-H User Manual

XTD03
Référence
Désignation

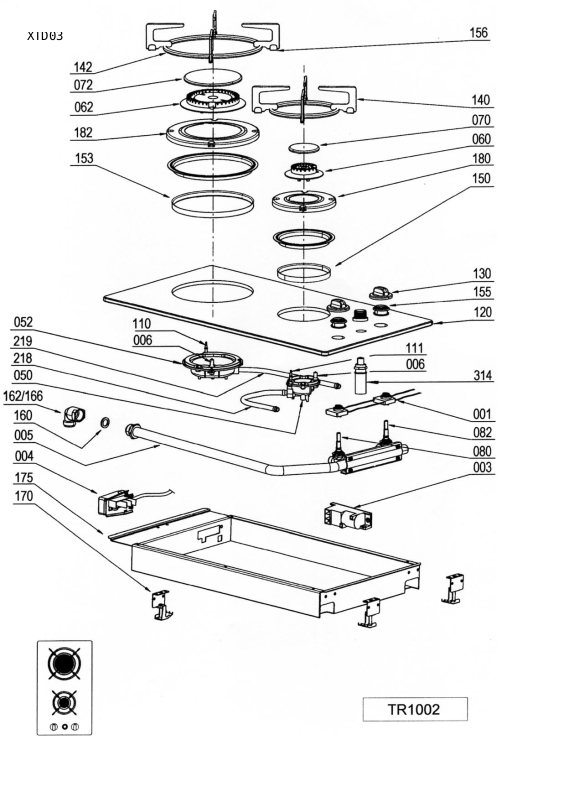

XTD03A
---------------------------------------------------------------------------------------------------------------------­! C292VNRC50BX492 PIANO GLEM CRIST.XTD03A FRANCIA NR 1,000 !
---------------------------------------------------------------------------------------------------------------------­! 001 Z003035 BURNER MICRO UNIT NR 1 ! ! 003 Z004011 IGNITION GENERATOR NR 1 ! ! 004 Z005001 TRIPOLAR TERMINAL NR 1 ! ! 005 Z101014 GAS RAMP NR 1 ! ! 050 Z103009F A BURNER BOWL 76 G20 NR 1 ! ! 052 Z103011F R BURNER BOWL 128 G20 NR 1 ! ! 060 Z103104 A BURNER HEAD NR 1 ! ! 062 Z103106 R BURNER HEAD NR 1 ! ! 070 Z105001 A BURNER COVER NR 1 ! ! 072 Z105003 R BURNER COVER NR 1 ! ! 080 Z106043 BY-PASS TAP 27 NR 1 ! ! 082 Z106045 BY-PASS TAP 40 NR 1 ! ! 110 Z107005 THERMOCOUPLE L.495 NR 1 ! ! 111 Z107007 THERMOCOUPLE L.250 NR 1 ! ! 120 Z201188 P.C. C2920.RC BB GLEM A01122 NR 1 ! ! 130 Z202019 CRISTAL BLACK KNOB 764 NR 2 ! ! 140 Z203001 A RACK NR 1 ! ! 142 Z203003 R RACK NR 1 ! ! 150 Z204021 A SUMP WASHER NR 1 ! ! 153 Z204023 WOK SUMP WASHER NR 1 ! ! 155 Z204029 KNOB WATER SEAL BUSH VTC NR 2 ! ! 156 Z204005 RACK SUPPORT FOOT NR 8 ! ! 160 Z204006 RUBBER-HOSE HOLDER WASHER NR 2 ! ! 162 Z307004 GAS ELBOW (1/2") NR 1 ! ! 170 Z308008 FIX TOP HOOK NR 2 ! ! 175 Z621065 TOP BOTTOM NR 1 ! ! 180 Z640801 A INOX SUMP NR 1 ! ! 182 Z640803 R INOX SUMP NR 1 ! ! 218 Z102043 A BURNER PIPE NR 1 ! ! 219 Z102044 R BURNER PIPE NR 1 !
----------------------------------------------------------------------------------------------------------------------
Référence
Désignation
XTD03H
---------------------------------------------------------------------------------------------------------------------­! C292VNRC50NX492 PIANO GLEM CRIST.XTD03H FRANCIA NR 1,000 !
---------------------------------------------------------------------------------------------------------------------­! 001 Z003035 BURNER MICRO UNIT NR 1 ! ! 003 Z004011 IGNITION GENERATOR NR 1 ! ! 004 Z005001 TRIPOLAR TERMINAL NR 1 ! ! 005 Z101014 GAS RAMP NR 1 ! ! 050 Z103009F A BURNER BOWL 76 G20 NR 1 ! ! 052 Z103011F R BURNER BOWL 128 G20 NR 1 ! ! 060 Z103104 A BURNER HEAD NR 1 ! ! 062 Z103106 R BURNER HEAD NR 1 ! ! 070 Z105001 A BURNER COVER NR 1 ! ! 072 Z105003 R BURNER COVER NR 1 ! ! 080 Z106043 BY-PASS TAP 27 NR 1 ! ! 082 Z106045 BY-PASS TAP 40 NR 1 ! ! 110 Z107005 THERMOCOUPLE L.495 NR 1 ! ! 111 Z107007 THERMOCOUPLE L.250 NR 1 ! ! 120 Z201189 P.C. C2920.RC NN GLEM A01122 NR 1 ! ! 130 Z202019 CRISTAL BLACK KNOB 764 NR 2 ! ! 140 Z203001 A RACK NR 1 ! ! 142 Z203003 R RACK NR 1 ! ! 150 Z204021 A SUMP WASHER NR 1 ! ! 153 Z204023 WOK SUMP WASHER NR 1 ! ! 155 Z204029 KNOB WATER SEAL BUSH VTC NR 2 ! ! 156 Z204005 RACK SUPPORT FOOT NR 8 ! ! 160 Z204006 RUBBER-HOSE HOLDER WASHER NR 2 ! ! 162 Z307004 GAS ELBOW (1/2") NR 1 ! ! 170 Z308008 FIX TOP HOOK NR 2 ! ! 175 Z621065 TOP BOTTOM NR 1 ! ! 180 Z640801 A INOX SUMP NR 1 ! ! 182 Z640803 R INOX SUMP NR 1 ! ! 218 Z102043 A BURNER PIPE NR 1 ! ! 219 Z102044 R BURNER PIPE NR 1 !
----------------------------------------------------------------------------------------------------------------------

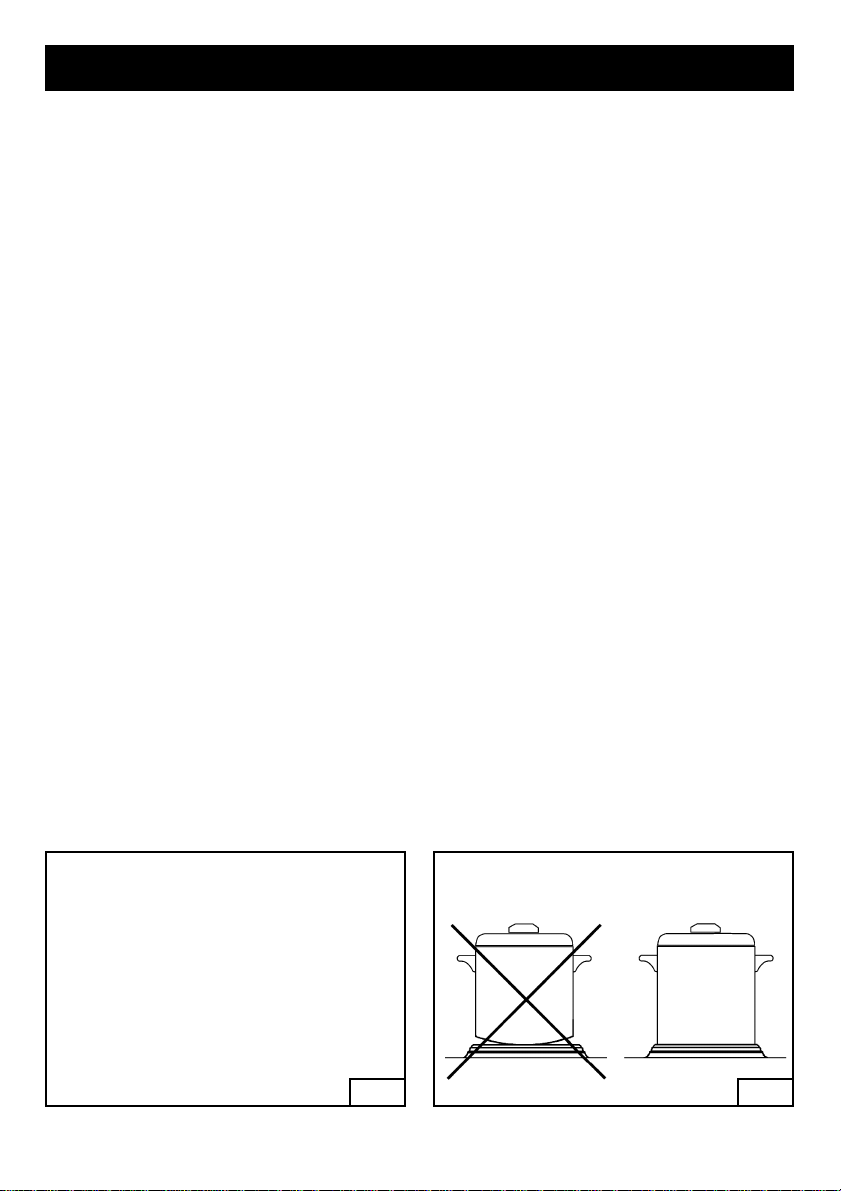

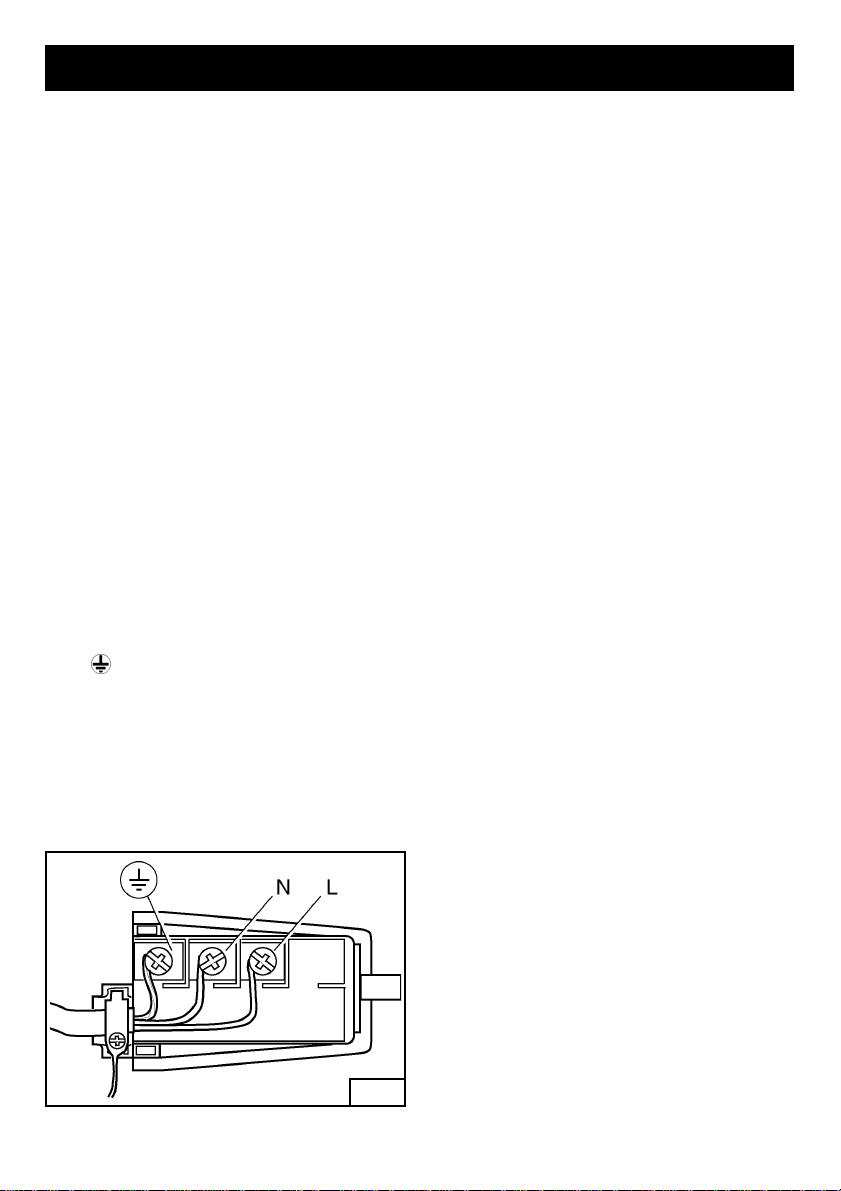

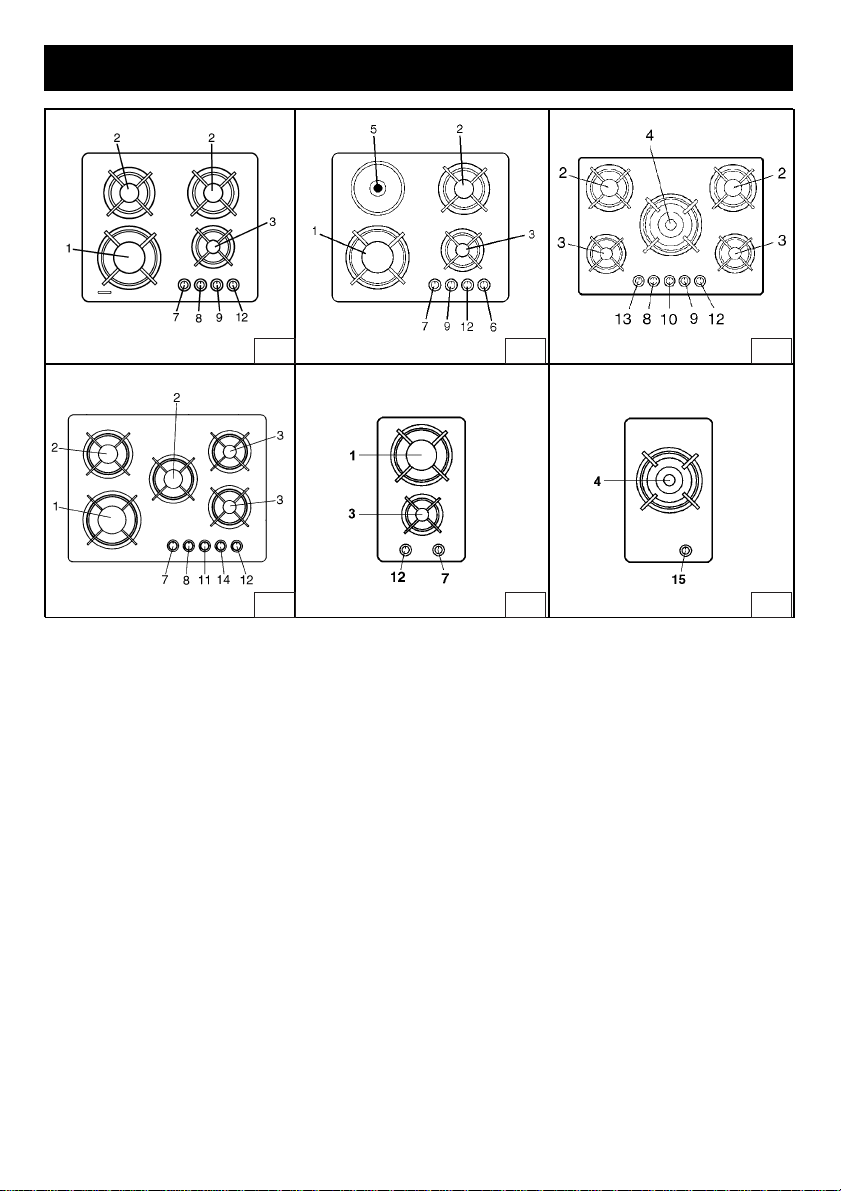

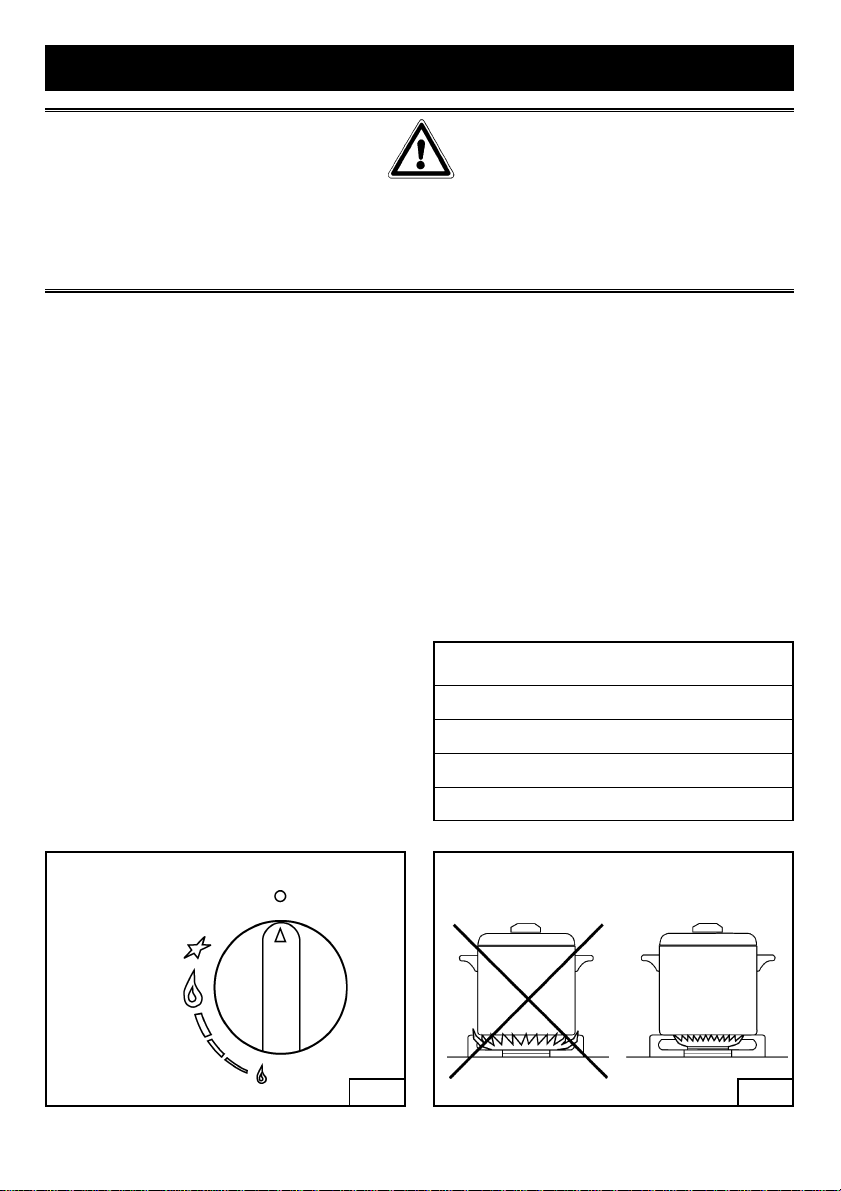

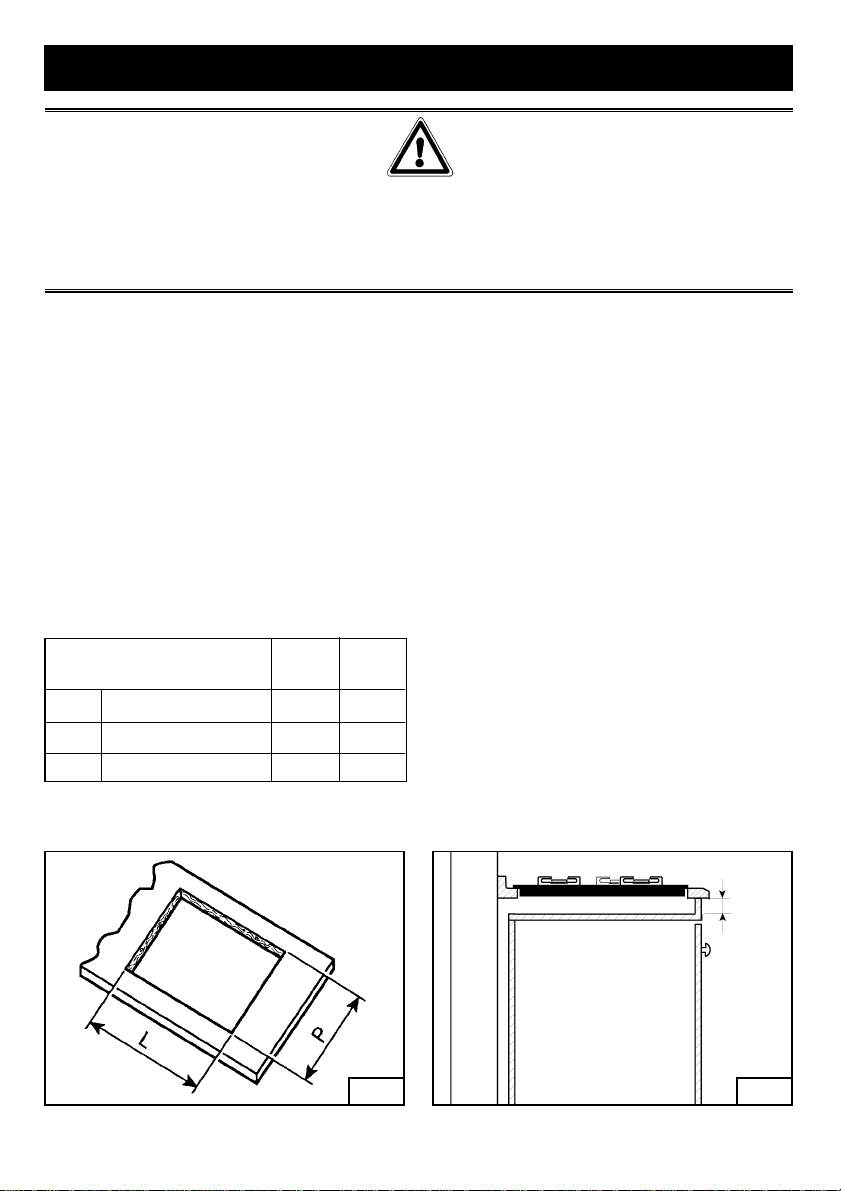

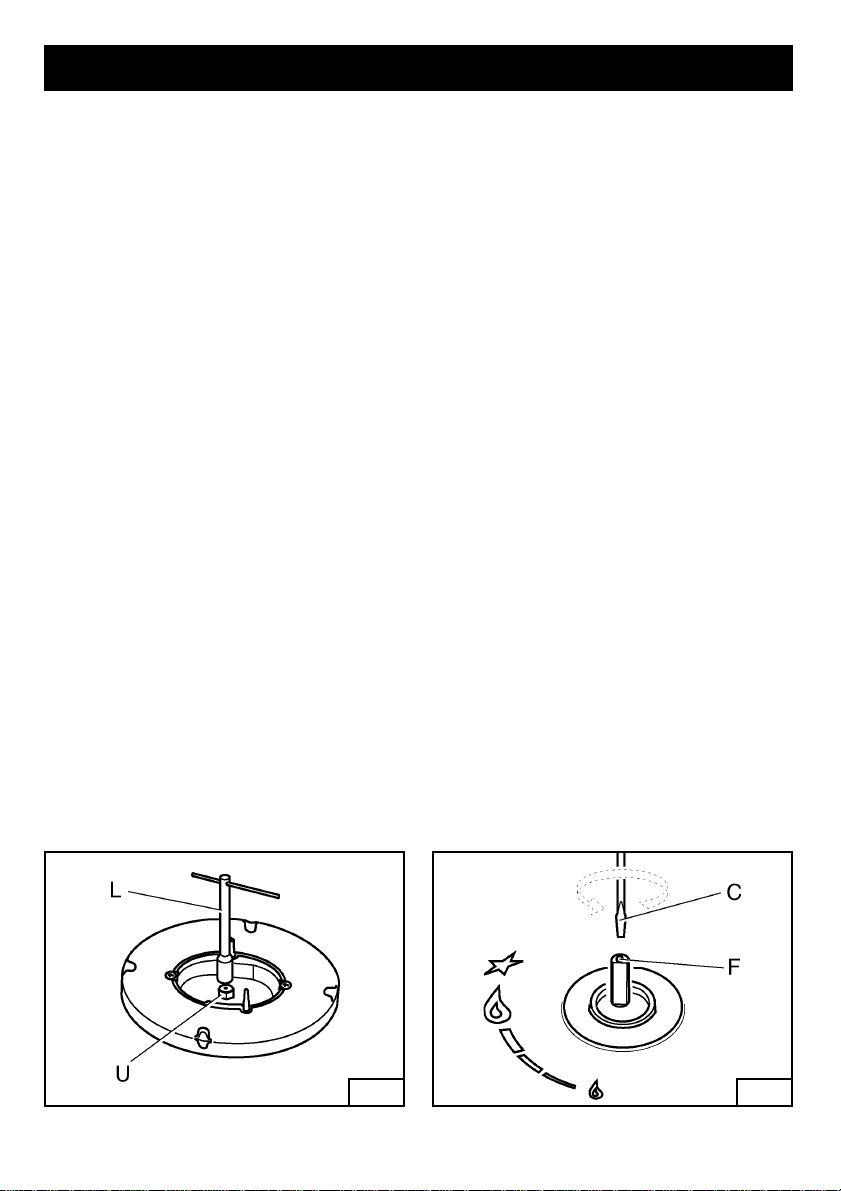

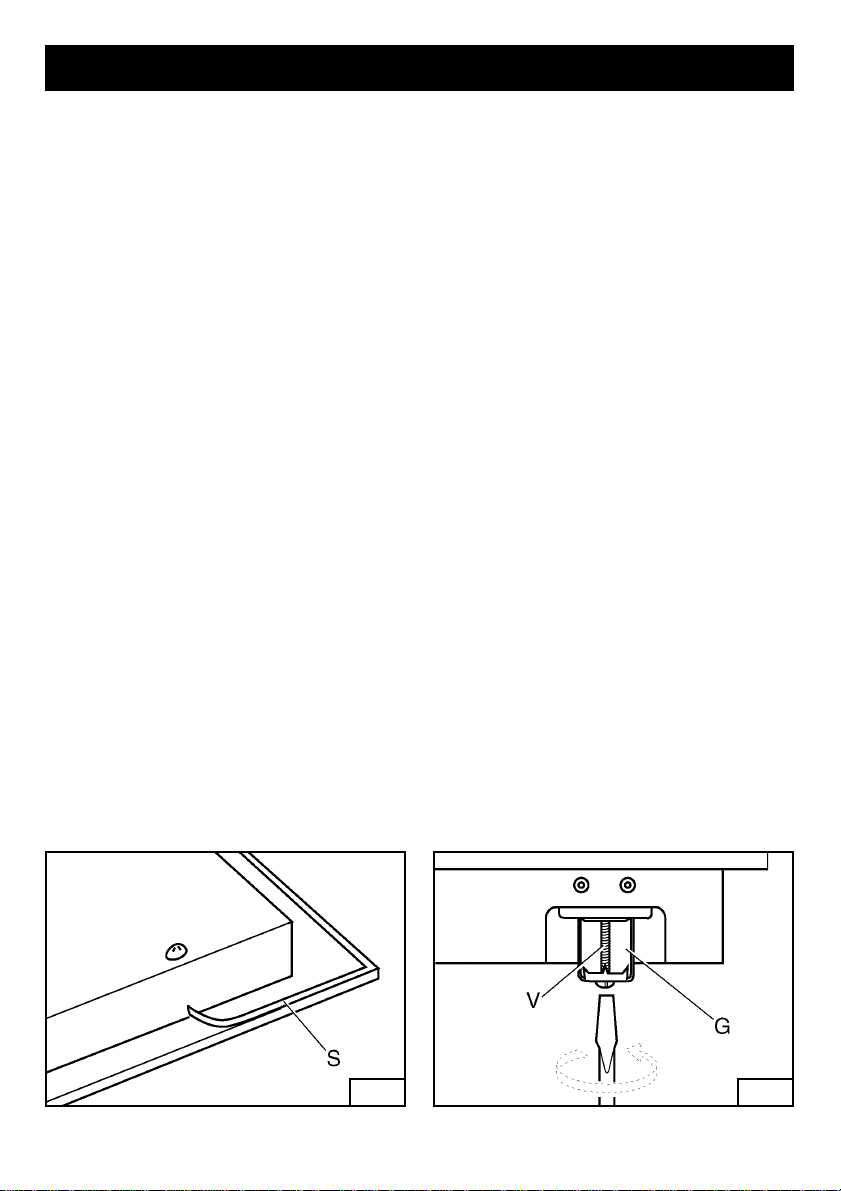

RECOMMANDATIONS DE MONTAGE ET MODE
D’EMPLOI DE LA TABLE DE CUISSON
XTA64A/H XTA65A/H XTA66A/H XTD03A/H
FR
COD. 208042 02.09.2005
