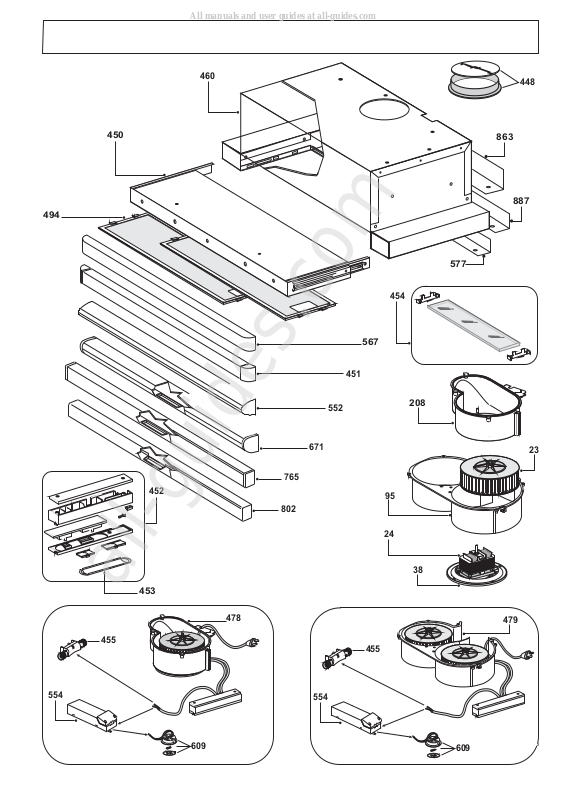

AIRLUX HT14A, HT13H, HT13, HT16 User Manual

452

453

208

478

609

554

455

448

494

450

479

455

609

554

454

567

671

765

802

451

552

863

577

887

460

All manuals and user guides at all-guides.com

all-guides.com

HT14A

COD. DESCRIPTION

POSITION

Z00SP0023000

NR.4 FAN WHEEL

Z00SP0024003

NR.2 MOTORS

Z00SP0038000

MOTOR SUPPORT STANDARD

Z00SP0095000

CONVEYOR 2 MOTORS

Z00SP0448000

FLANGE 120MM + ALUMINIUM AIR COLD VALVE

448

Z00SP045060B

S3 WHITE SLIDING PART 60 CM

450

Z00SP045200B

S3 WHITE CONTROL K

452

Z00SP0453000

TRANSPARENT CONTROL COVER

453

Z00SP045400B

GLASS COVER WITH WHITE SUPPORTS

454

Z00SP0455000

LAMP HOLDER

455

Z00SP04606IB

S3 WHITE BODY 60CM 1/2 MT TRADIT. LAMPS

460

Z00SP0479000

CONVEYOR IN2 S3 2 MOTORS SLIDER

479

Z00SP0494000

ALUMINIUM PANEL SLIM3 60 CM

494

Z00SP056760B

WELDED FRONT SLIM3 60 CM WHITE

567

Z00SP057760B

DISTANCE PIECE S3 CM 60 WHITE

577

All manuals and user guides at all-guides.com

HT14C

COD. DESCRIPTION

POSITION

Z00SP0023000

NR.4 FAN WHEEL 23

Z00SP0024003

NR.2 MOTORS

Z00SP0038000

MOTOR SUPPORT STANDARD

Z00SP0095000

CONVEYOR 2 MOTORS

Z00SP0448000

FLANGE 120MM + ALUMINIUM AIR COLD VALVE

448

Z00SP045060X

S3 INOX SLIDING PART 60 CM

450

Z00SP045200N

S3 BLACK CONTROL K

452

Z00SP0453000

TRANSPARENT CONTROL COVER

453

Z00SP045400N

GLASS COVER WITH BLACK SUPPORTS

454

Z00SP0455000

LAMP HOLDER

455

Z00SP04606IX

S3 INOX BODY 60 CM 1/2 MT TRADIT. LAMPS

460

Z00SP0479000

CONVEYOR IN2 S3 2 MOTORS SLIDER

479

Z00SP0494000

ALUMINIUM PANEL SLIM3 60 CM

494

Z00SP056760X

WELDED FRONT SLIM3 60 CM INOX

567

Z00SP057760X

DISTANCE PIECE S3 CM 60 INOX

577

All manuals and user guides at all-guides.com

HT14H

COD. DESCRIPTION

POSITION

Z00SP0023000

NR.4 FAN WHEEL

Z00SP0024003

NR.2 MOTORS

Z00SP0038000

MOTOR SUPPORT STANDARD

Z00SP0095000

CONVEYOR 2 MOTORS

Z00SP0448000

FLANGE 120MM + ALUMINIUM AIR COLD VALVE

448

Z00SP045060N

S3 BLACK SLIDING PART 60 CM

450

Z00SP045200N

S3 BLACK CONTROL K

452

Z00SP0453000

TRANSPARENT CONTROL COVER

453

Z00SP045400N

GLASS COVER WITH BLACK SUPPORTS

454

Z00SP0455000

LAMP HOLDER

455

Z00SP0455000FA

LAMP HOLDER FRANKE IT.

455

Z00SP04606IN

S3 BLACK BODY 60CM 1/2 MT TRADIT. LAMPS

460

Z00SP0479000

CONVEYOR IN2 S3 2 MOTORS SLIDER

479

Z00SP0494000

ALUMINIUM PANEL SLIM3 60 CM

494

Z00SP056760N

WELDED FRONT SLIM3 60 CM BLACK

567

Z00SP057760N

"DISTANCE PIECE ""S3"" CM 60 BLACK

577

All manuals and user guides at all-guides.com

7PIASLIM3

Black

Brown

Blue

Brown

Blue

Red

Black

Brown

White

White Black

Brown

Red Red

Blue Brown

Black

Brown

White

All manuals and user guides at all-guides.com

Instructions de montage et mode d'emploi de la hotte aspirante Instructions on mounting and use of the cooker hood Montagevorschrift und Gebrauchsanleitung fur die Dunstabzugshaube Istruzioni di montaggio e d'uso della cappa aspirante-filtrante

Mod. HOTTE TIROIR

HT 12

HT 14 HT 16

HT 13

All manuals and user guides at all-guides.com

all-guides.com

13530

165

440

290

600 / 900

270

469 / 76921.5 21.5

512 / 812

6513131

258

120

22930

259

339

150

440

77.5

290

600 / 900

258

512 / 812

43.5 43.5

89.5

469 / 76921.5 21.5

65131

Fig.1

All manuals and user guides at all-guides.com

440

Fig.2

Fig.3 Fig.4

All manuals and user guides at all-guides.com

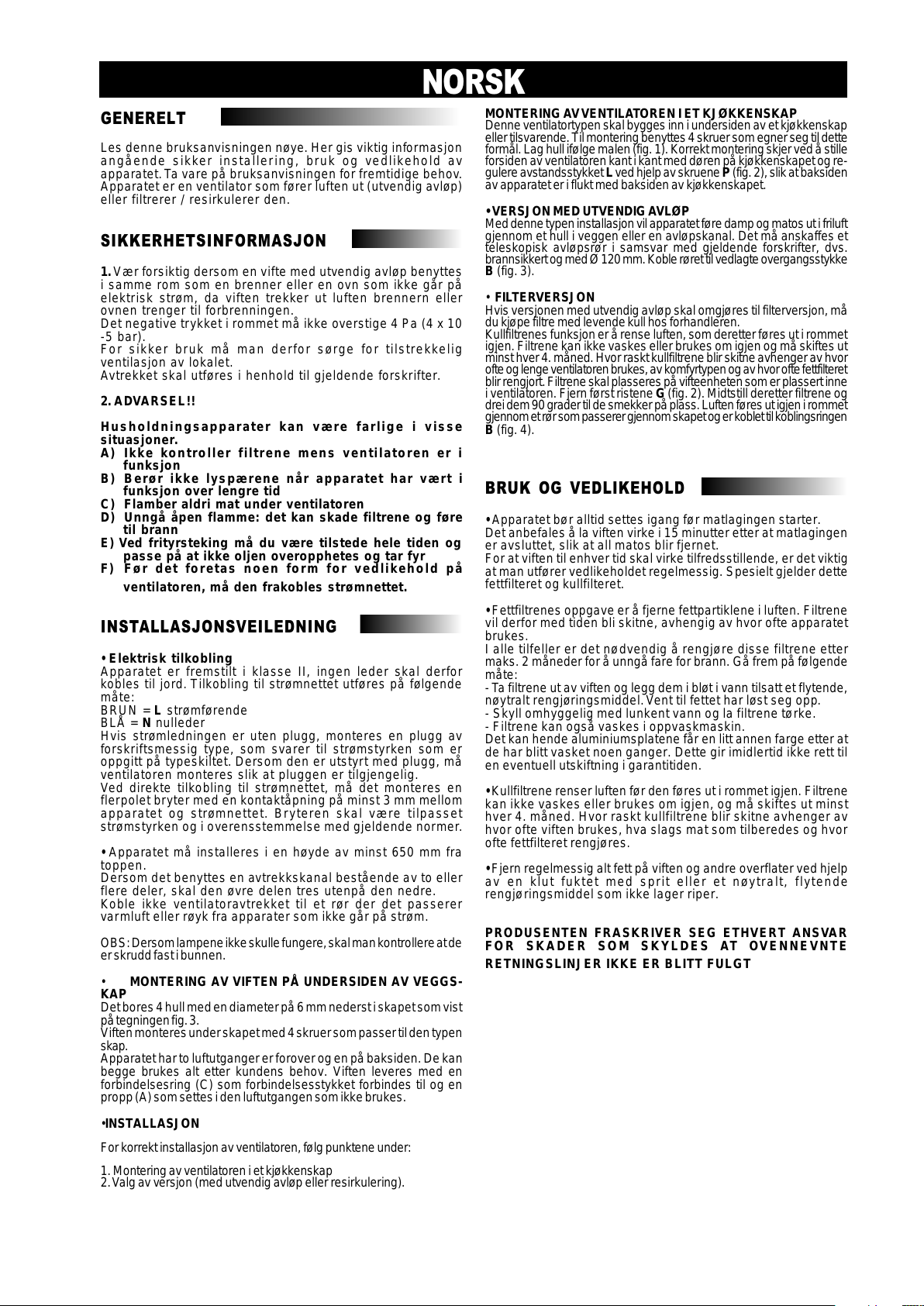

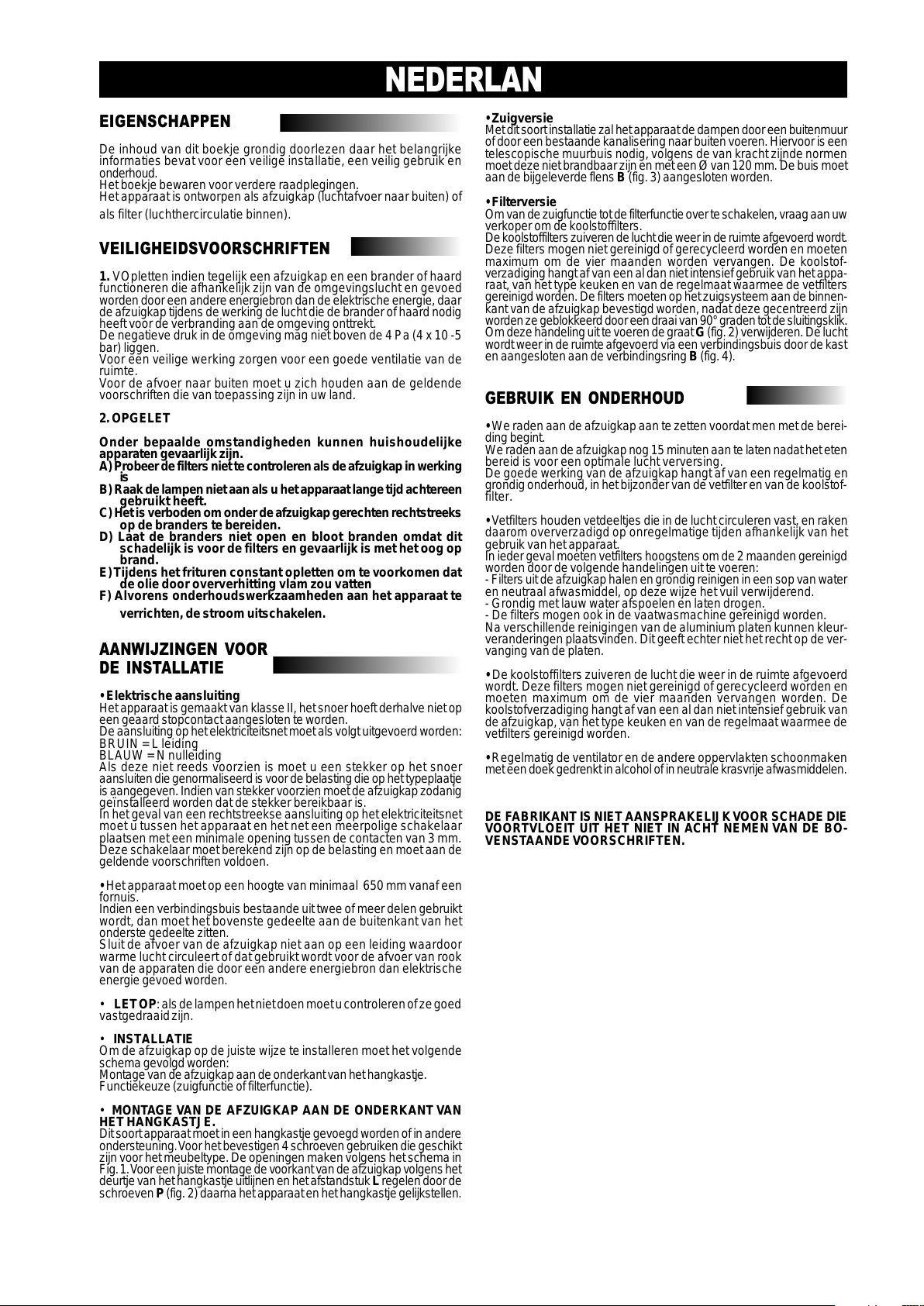

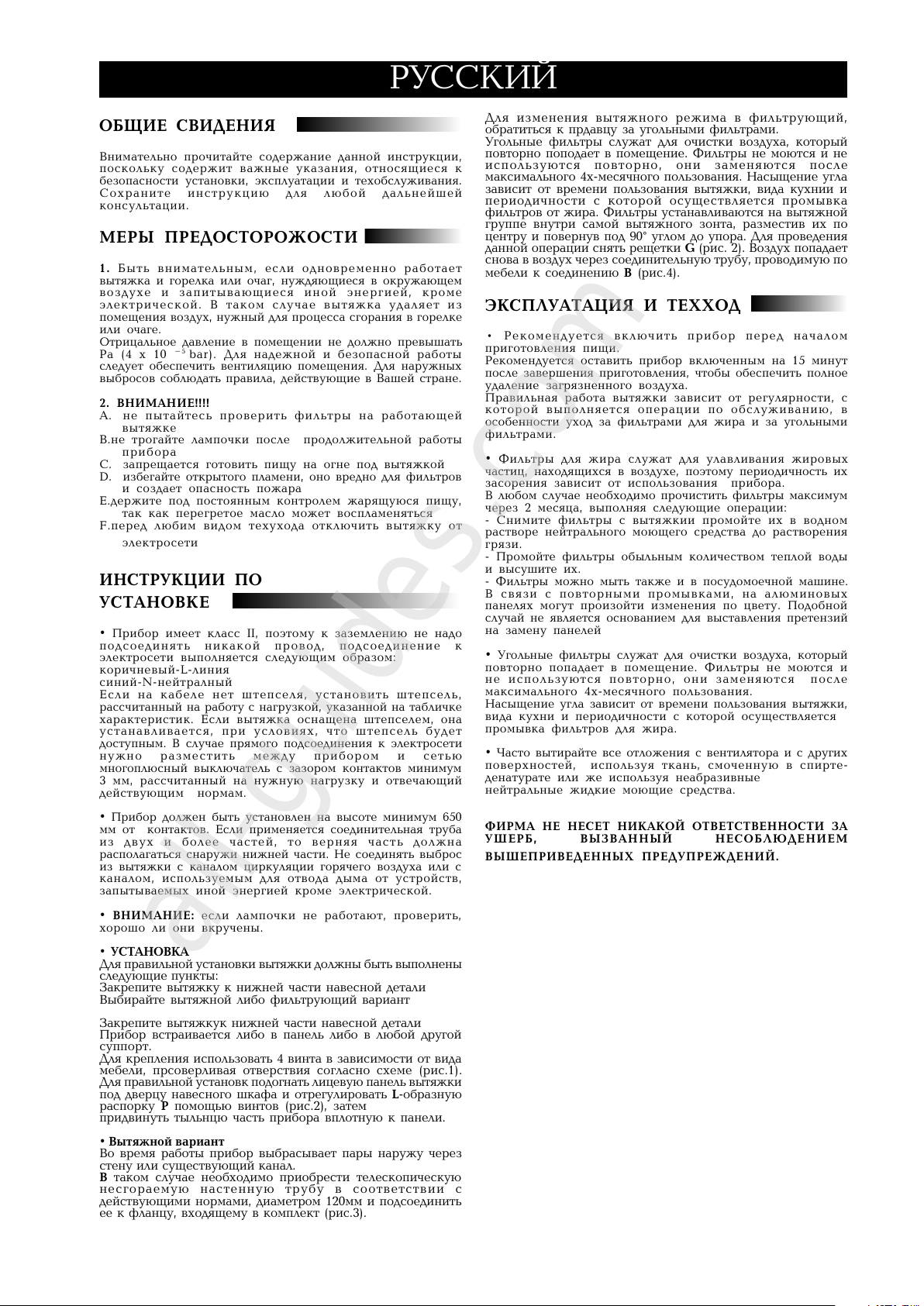

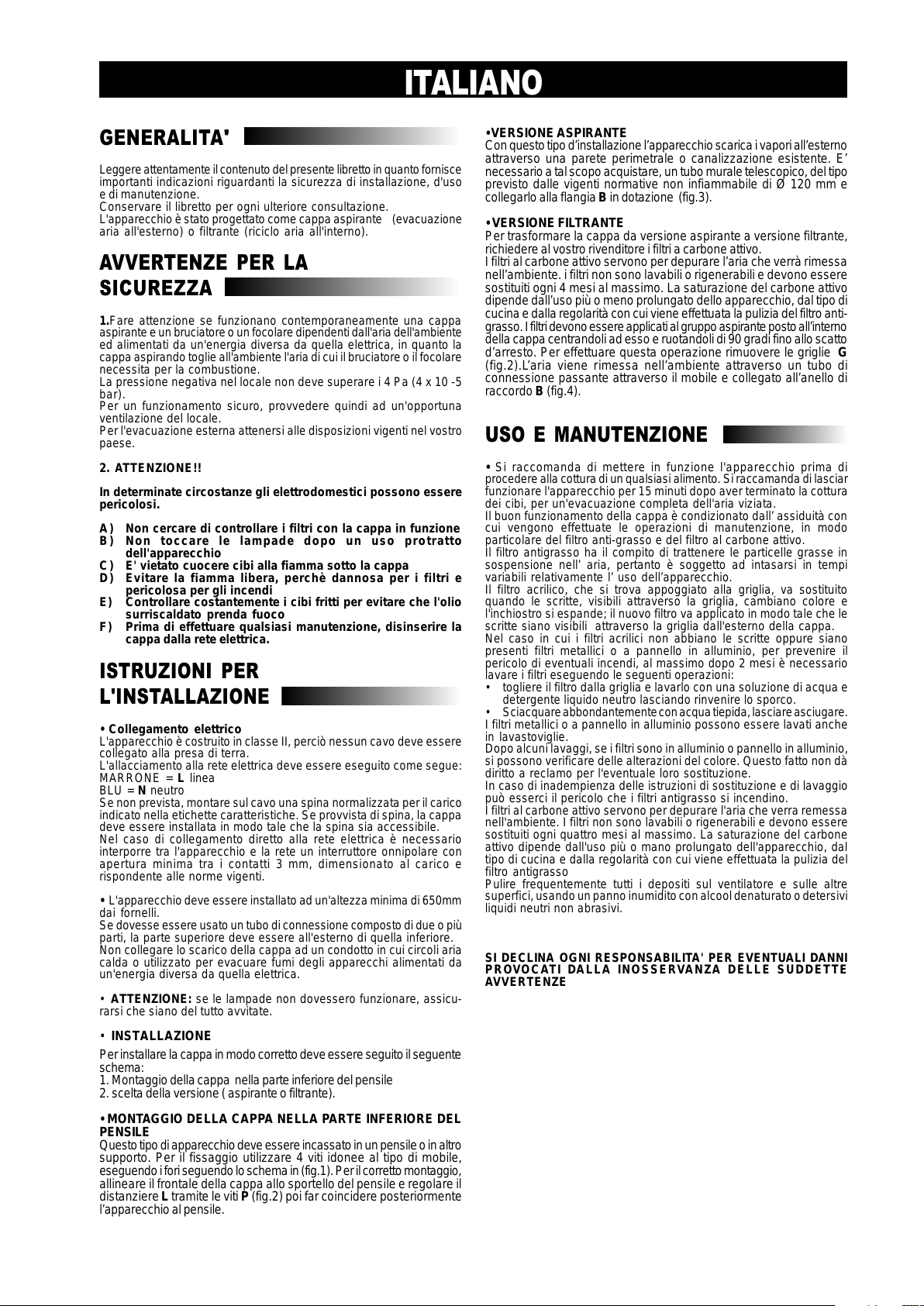

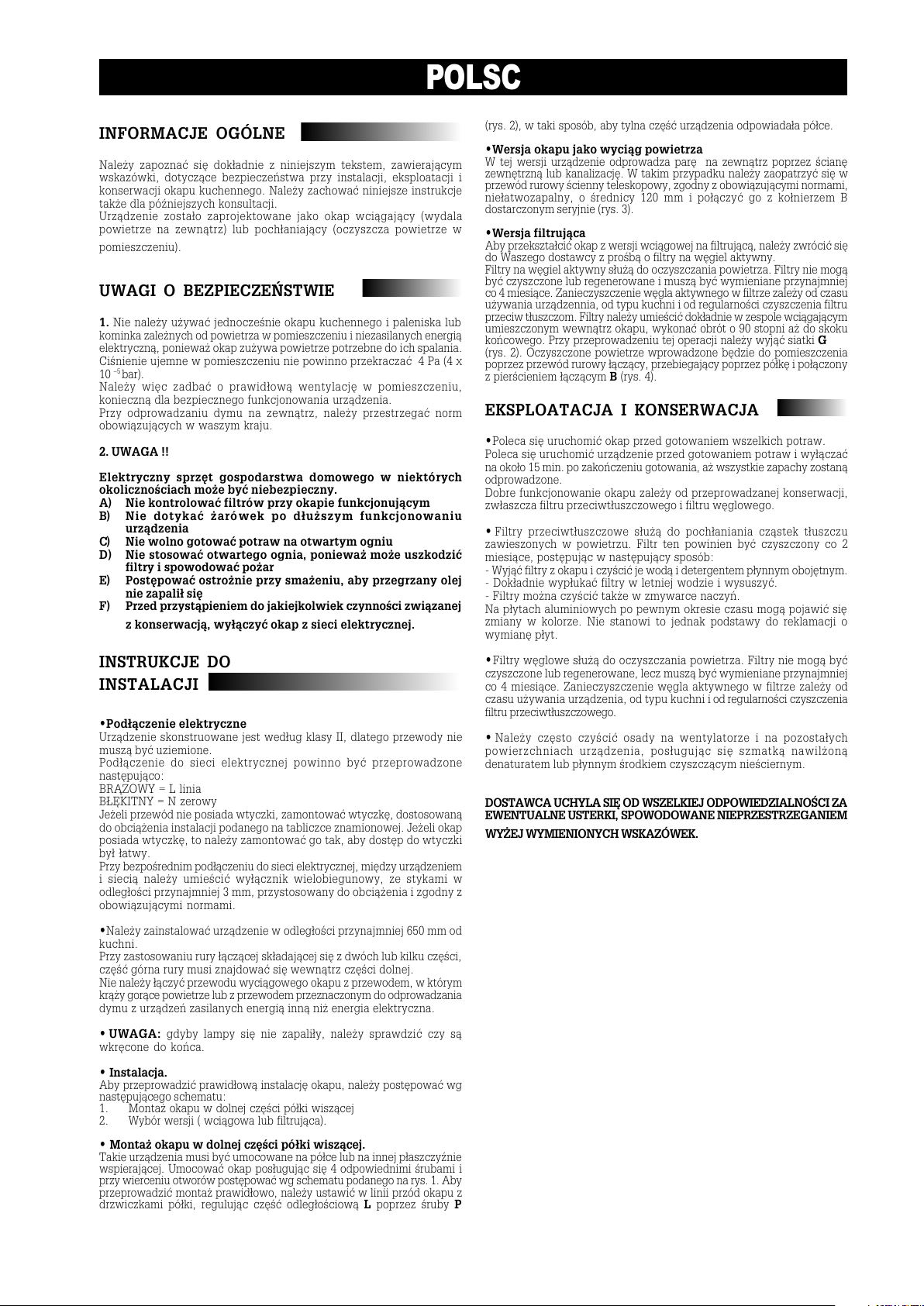

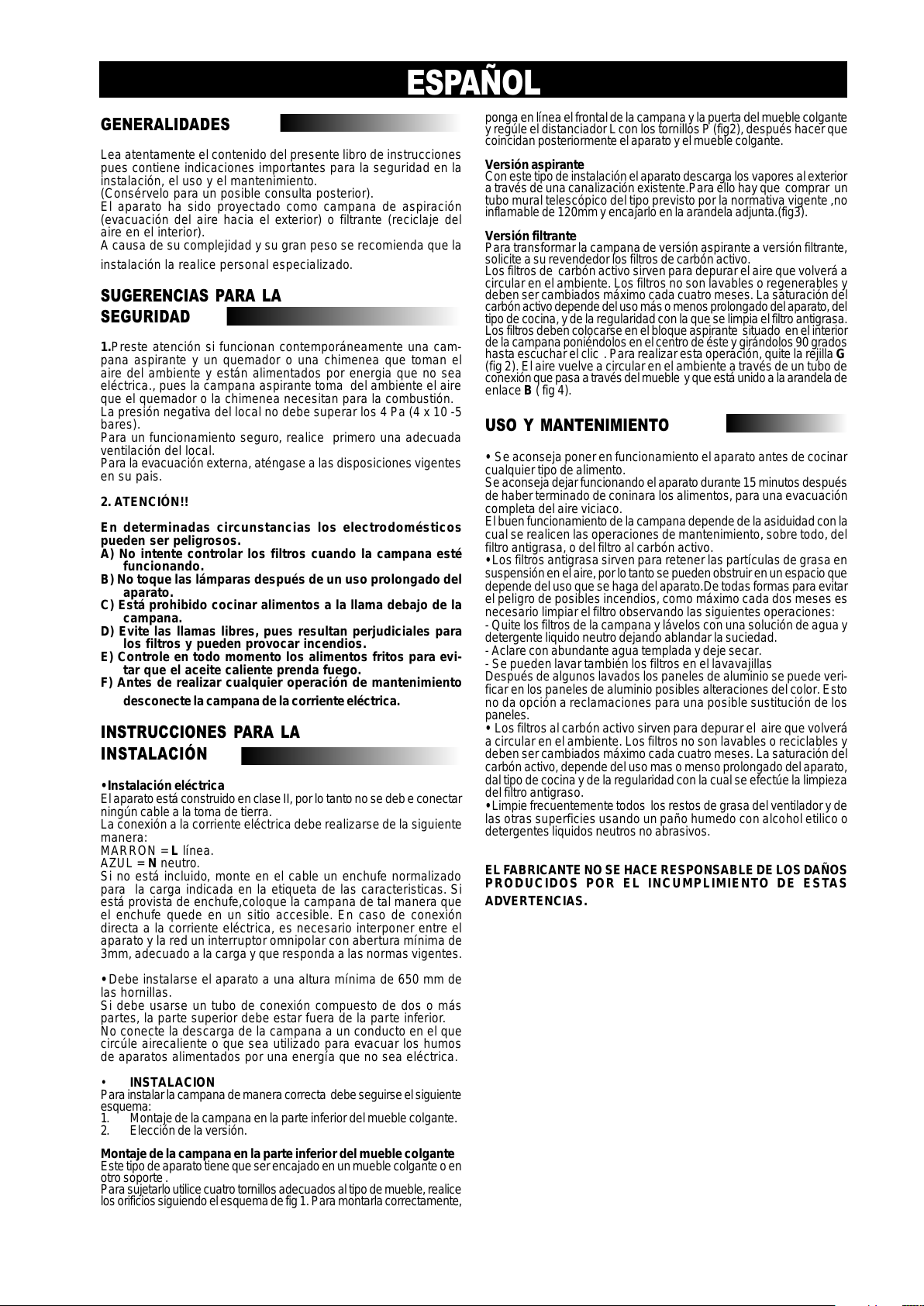

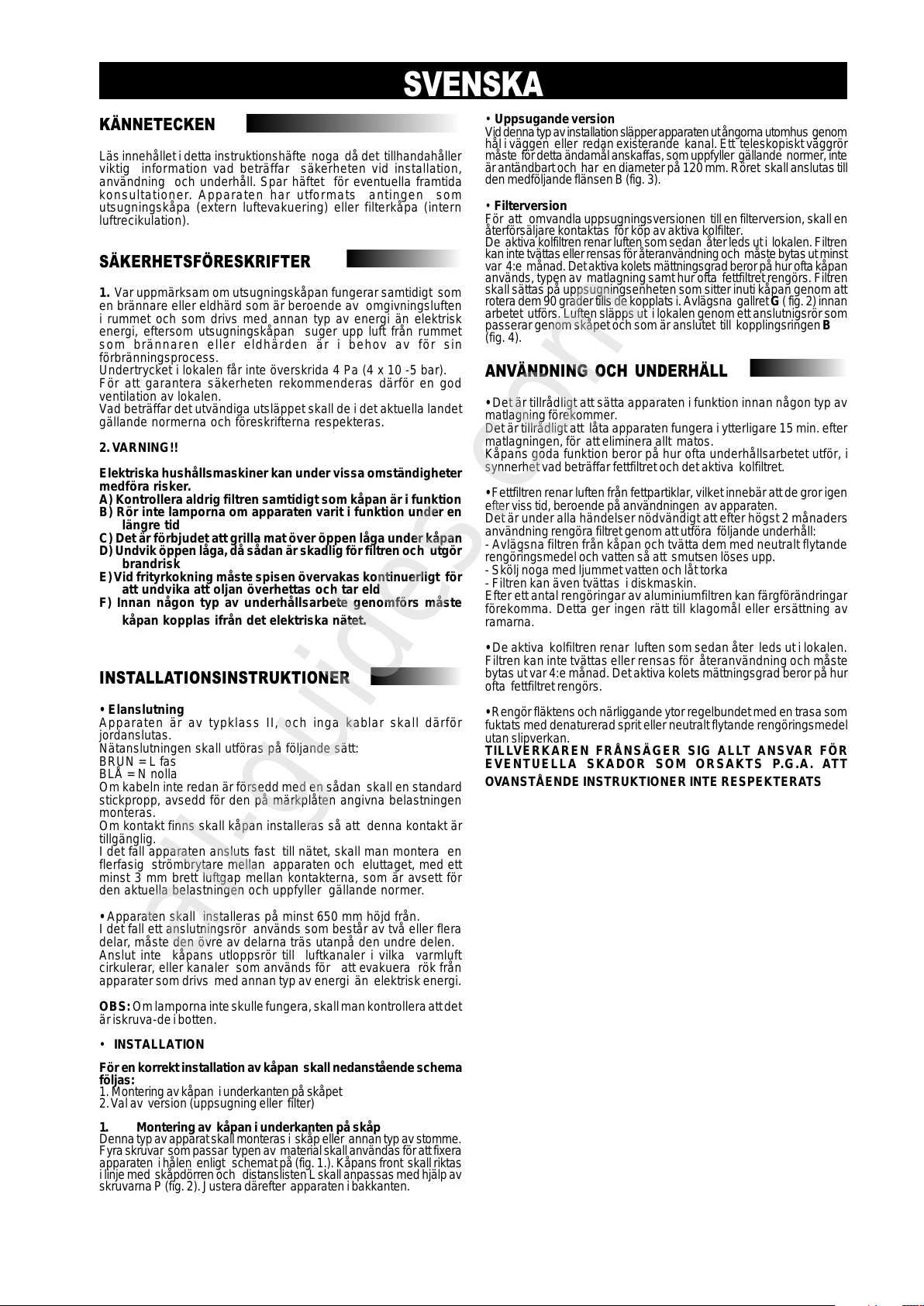

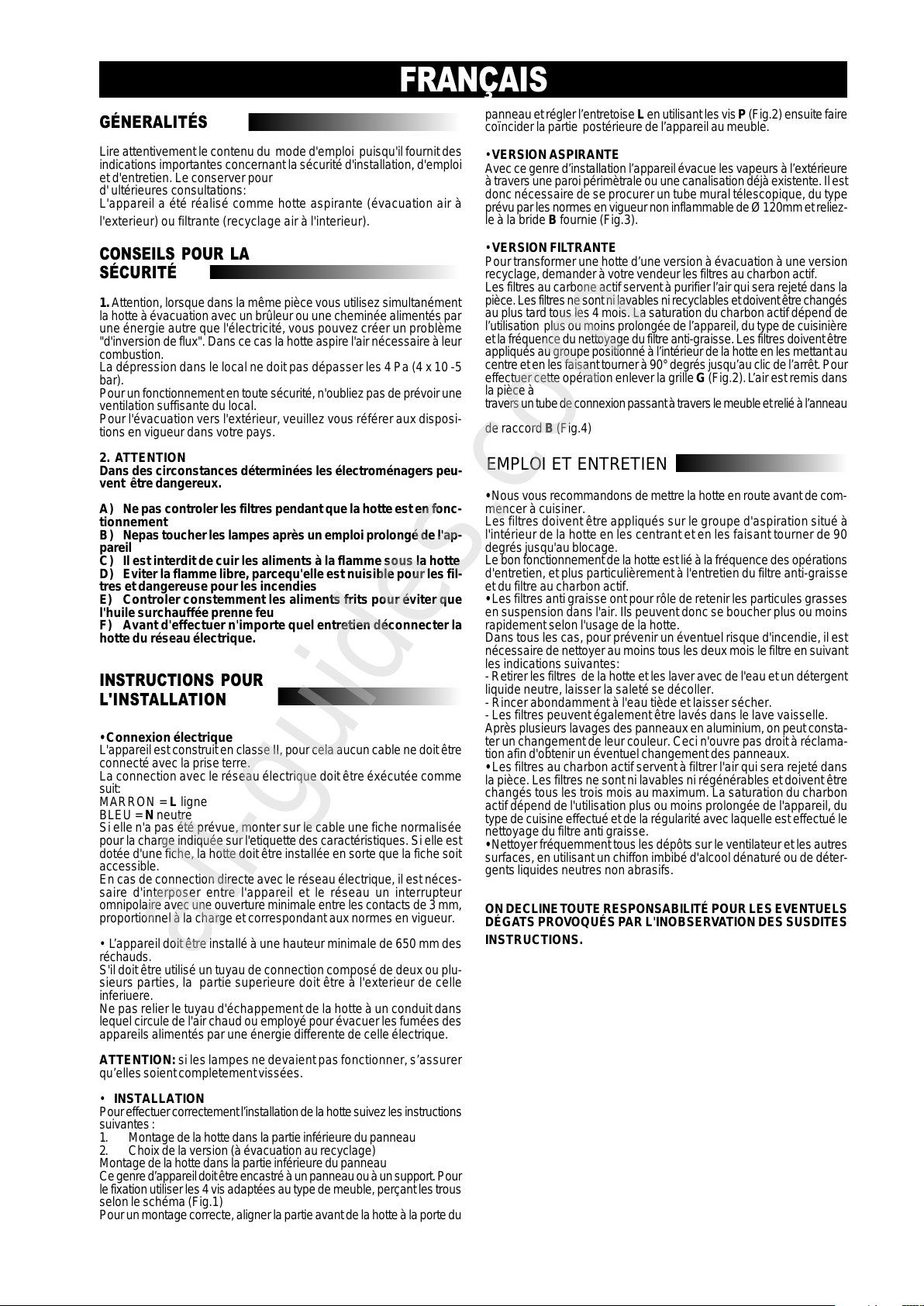

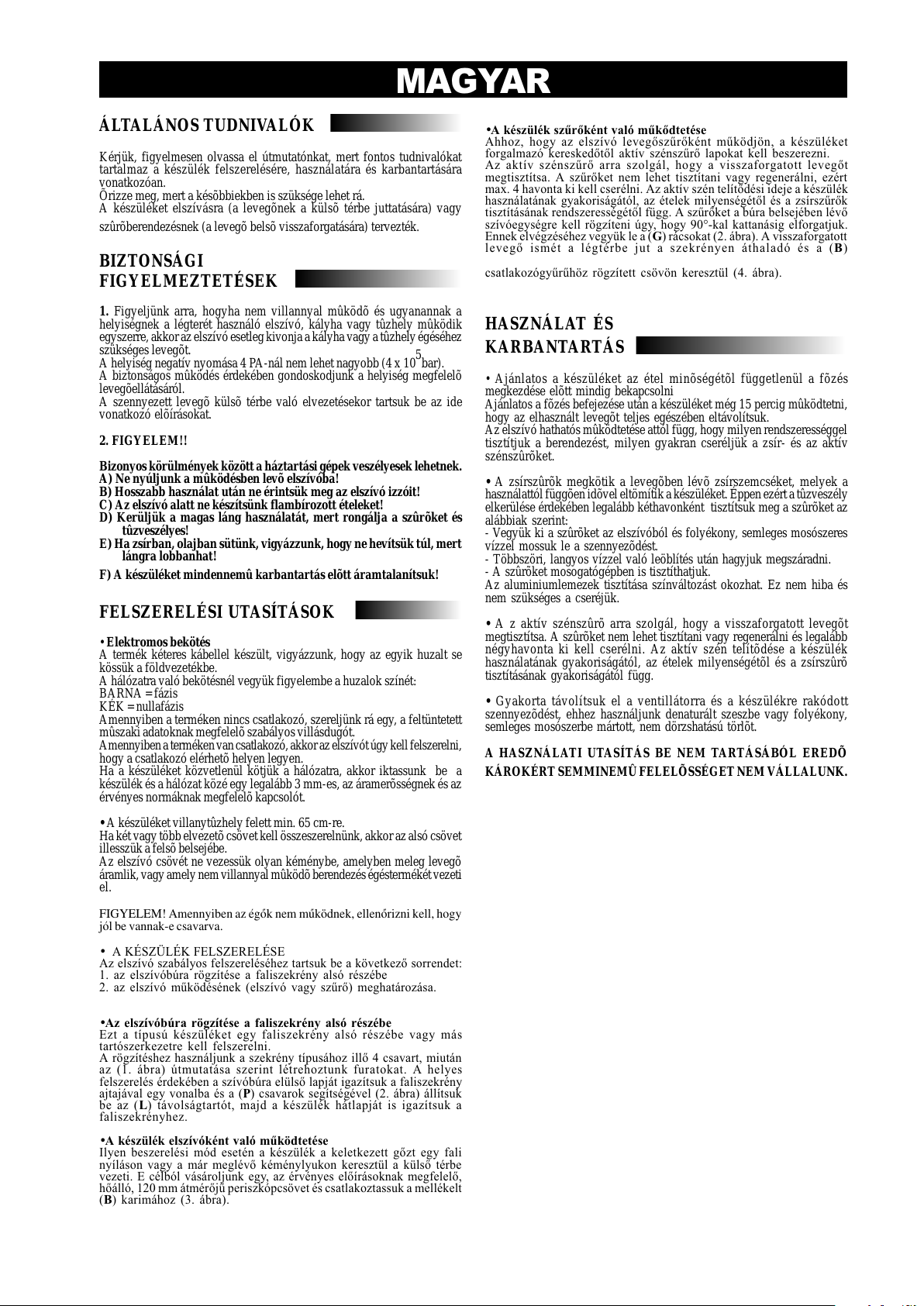

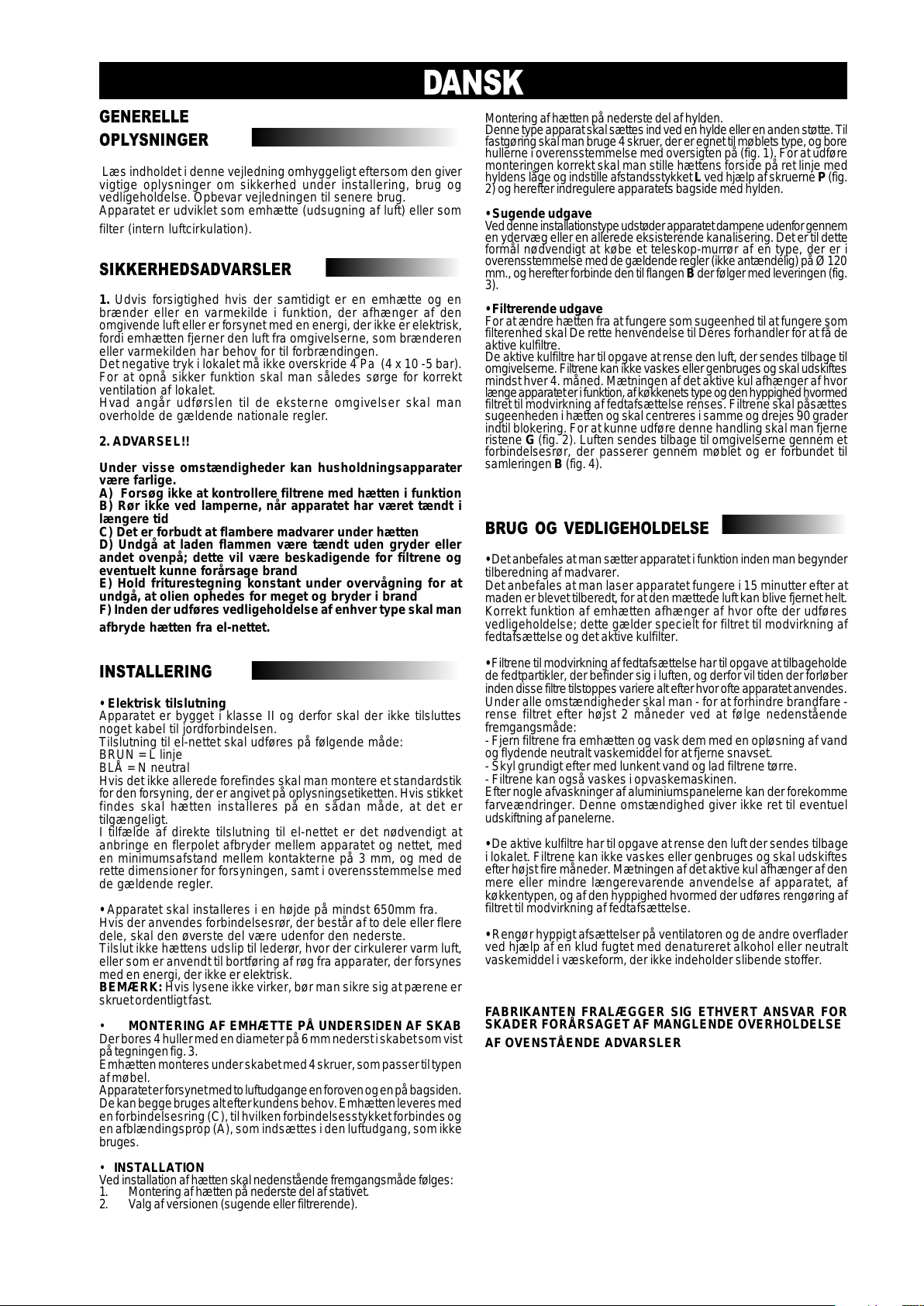

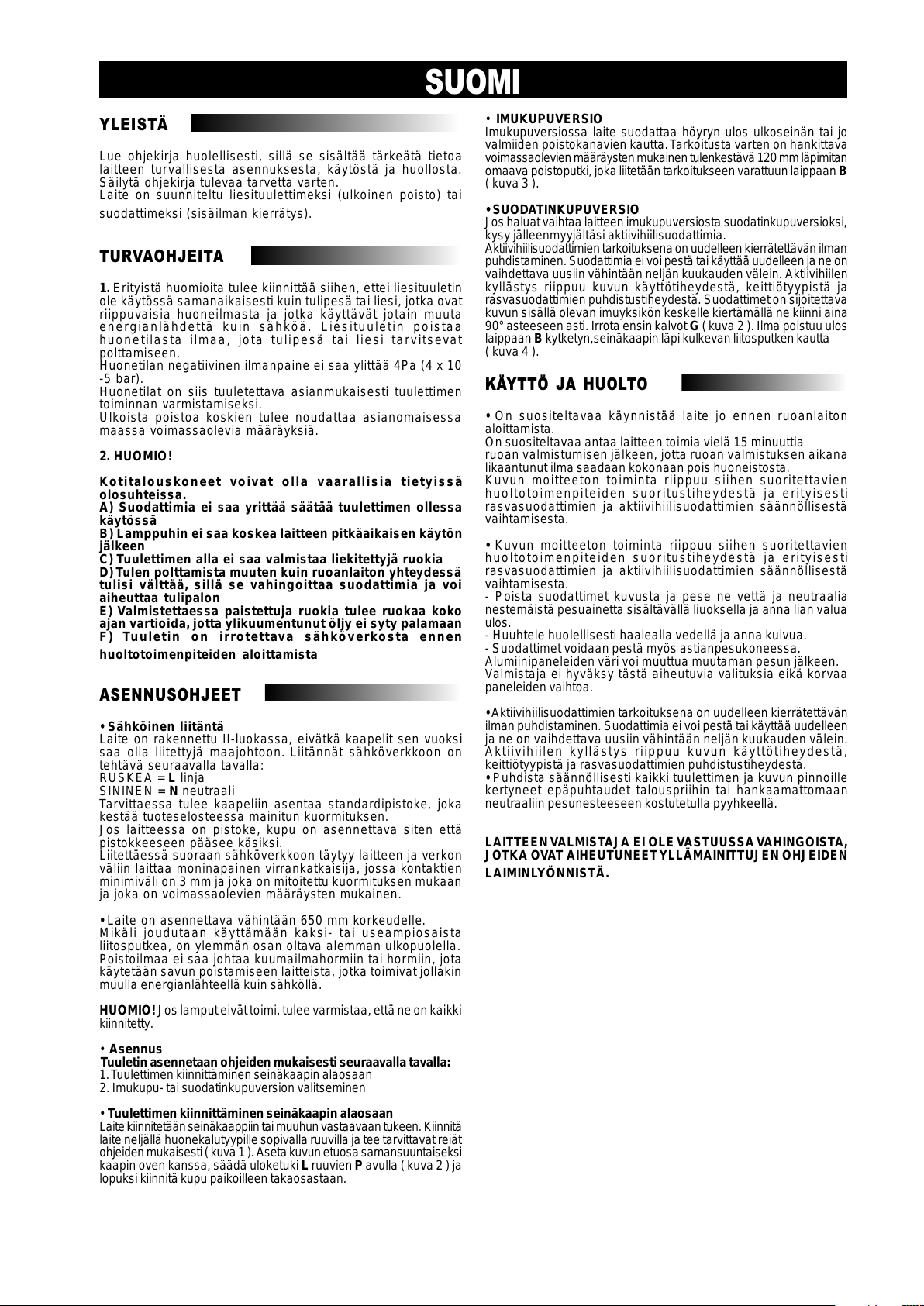

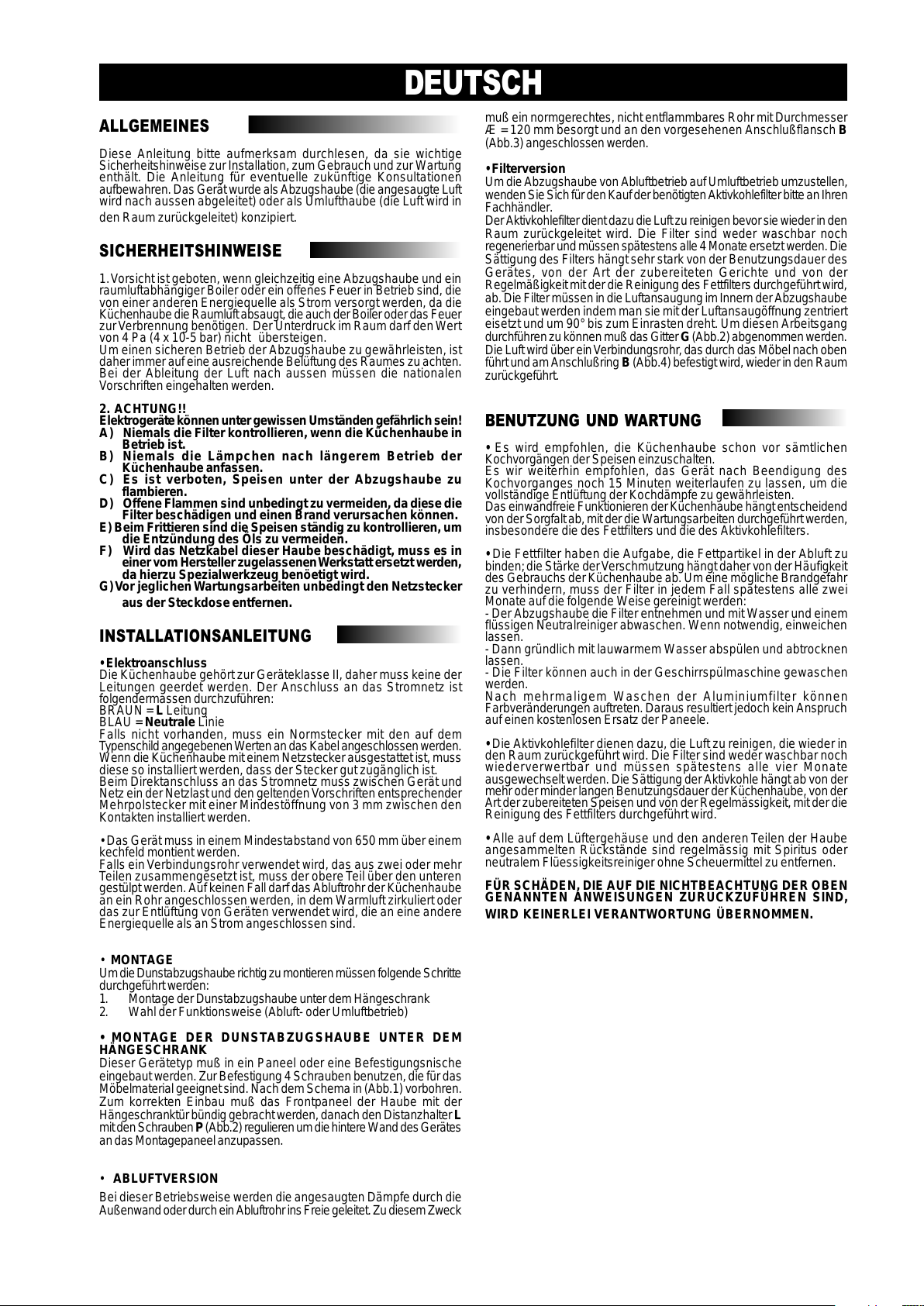

ENGLISH

GENERAL

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed as a exhausting version (external exhaust) or as a filter version (internal air recycle) cooker hood.

SAFETY PRECAUTION

1. ake care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy , as the cooker hood removes the air from the environment which a burner or fireplace need for combustion. The negative pressure in the environment must not exceed 4 Pa (4 x 10 -5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacuation.

2. WARNING!! In certain circumstances electrical appliances may be a danger

hazard. A) Do not check the status of the filters while the cooker hood

is operating B) Do not touch the light bulbs after appliance use C) Flambè cooking is prohibited underneath the cooker hood D) Avoid free flame, as it is damaging for the filters and a fire

hazard E) Constantly check food frying to avoid that the overheated oil

may become a fire hazard F) Disconnect the electrical plug prior to any maintenance.

INSTALLATION INSTRUCTIONS

• Electric Connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary. The connection to the mains is carried out as follows: BROWN = L line BLUE = N neutral If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed in order that the plug is easily accessible. An omnipolar switch with a minimum aperture of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

• The appliance must be installed at a minimum height of 650 mm from an cooker stove. If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source.

• ATTENTION: should the lamps not work, make sure they are well tightened.

• INSTALLA TION The following instruction should be followed to carry out the correct installation of the cooker hood.

1) Mounting of the cooker hood on the lower side of the cupboard.

2) Selection of the version (extraction or filtration) Mounting the cooker hood on the lower side of the cupboard. This appliance must be fitted to a cupboard or other suitable support. For fixing use 4 screws suitable for the cupboard, using the hole in Fig.1. When mounting align the front of the cooker hood to the door of the cupboard and regulate the L wall spacer through the screws marked P (Fig 2). The rear of the appliance must then align with the cupboard.

• EXTRACTION THROUGH AN OUTSIDE WALL The appliance expels the fumes through an outside wall or a duct. It is necessary to buy a telescopic pipe in accordance with the standards in use (inflammable with diameter 120mm) and connect it to flange B (Fig 3).

• RECIRCULATION T o t ransf orm the cooker hood from the extraction v ersion to the re circulating one ask your supplier for an activated carbon filter. The activated carbon filter cleans the air of the room. This filter is not washable or re-usable and must be substituted at least every 4 months. Saturation of the activated charcoal depends on how often the appliance is used, the type of kitchen and how regularly the grease filter is cleaned. The filter must be fitted to the extracting group cooker hood in the centre of the fan grille by twisting it by 90 degrees until it is gripped securely . For this operation remov e the grill G (Fig 2). The clean air is returned into the room through a connecting tube passing inside the cupboard and connected to the ring B (fig 4).

USE AND MAINTENANCE

• It is recommended to operate the appliance prior to cooking. It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours. The proper function of the cooker hood is conditioned by the regularity of the maintenance operations, in particular, the active carbon filter.

• The anti-grease filters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance. In order to prevent fire hazard, it is recommendable to clean the filter at a maximum of 2 months by carrying out the following instructions:

- Remove the filters from the cooker hood and wash them in a solution of water and neutral liquid detergent, leaving to soak.

- Rinse thoroughly with warm water and leave to dry.

- The filters may also be washed in the dishwasher. The aluminium panels may alter in colour after several washes. This is not cause for customer complaint nor replacement of panels.

• The active carbon filters purify the air that is replaced in the environment. The filters are not washable nor re-useable and must be replaced at maximum every four months. The saturation of the active carbon filter depends on the frequency of use of the appliance, by the type of cooking and the regularity of cleaning the anti-grease filters.

• Clean the fan and other surfaces of the cooker hood regularly using a cloth moistened with denatured alcohol or non abrasive liquid detergent.

THE MANUF ACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL D AMAGES CA USED BY BREA CHING THE ABO VE

WARNINGS.

ENGLISH
