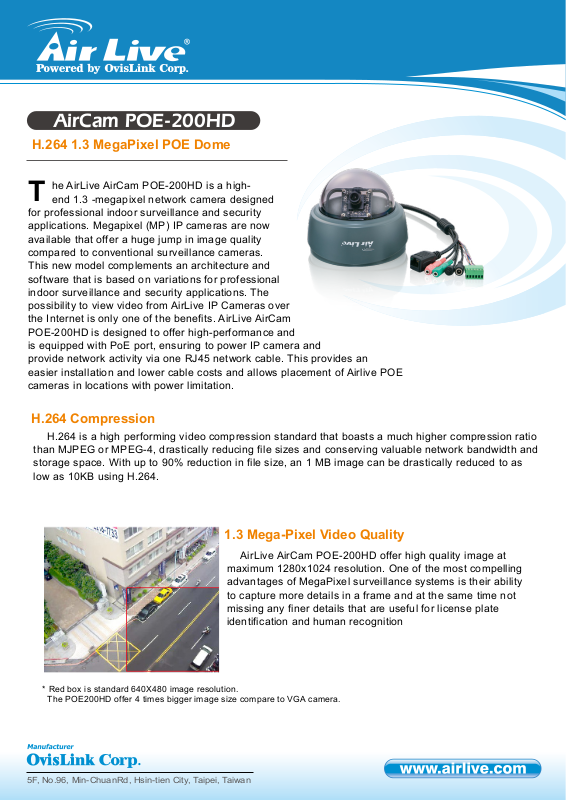

Airlive POE-200HD DATASHEET

AirCam POE-200HD

H.264 1.3 MegaPixel POE Dome

he AirLive AirCam POE-200HD is a high-

T

end 1.3 -megapixel network camera designed
for professional indoor surveillance and security
applications. Megapixel (MP) IP cameras are now
available that offer a huge jump in image quality
compared to conventional surveillance cameras.
This new model complements an architecture and
software that is based on variations for professional
indoor surveillance and security applications. The
possibility to view video from AirLive IP Cameras over
the Internet is only one of the benefits. AirLive AirCam
POE-200HD is designed to offer high-performance and
is equipped with PoE port, ensuring to power IP camera and
provide network activity via one RJ45 network cable. This provides an
easier installation and lower cable costs and allows placement of Airlive POE
cameras in locations with power limitation.

H.264 Compression

H.264 is a high performing video compression standard that boasts a much higher compression ratio
than MJPEG or MPEG-4, drastically reducing file sizes and conserving valuable network bandwidth and
storage space. With up to 90% reduction in file size, an 1 MB image can be drastically reduced to as
low as 10KB using H.264.

1.3 Mega-Pixel Video Quality

AirLive AirCam POE-200HD offer high quality image at
maximum 1280x1024 resolution. One of the most compelling
advantages of MegaPixel surveillance systems is their ability
to capture more details in a frame and at the same time not
missing any finer details that are useful for license plate
identification and human recognition

* Red box is standard 640X480 image resolution.
The POE200HD offer 4 times bigger image size compare to VGA camera.

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

AirLive CamProExpress

The AirLive CamPro Express supports 32
cameras, providing a fully integrated surveillance
and alarm management solution. The AirLive
CamPro Express is complete freeware for you to
do the centre monitor. You can find this software
in the CD or you can download from the support
page.The Cam Pro Express support WL-2000CAM,
POE-100CAMv2, POE-200CAMv2, OD-300CAM,
POE-260CAM,WL-2600CAM.OD-325HD,OD­600HD,POE-250HD,POE-200HD.

The E-map user interface and intelligent
privilege management solves management
problems.

Multiple rotation screens (1/4/9/16/32)
provide the most flexible method to monitor
your surveillance installation.

Web Monitor

The CamPro Express allows you to monitor 32
channels via the computer and WEB UI. You can
choose how you would like to view the camera,
the Cam Pro Express supports 1/4/9/16/32
different view. You can also choose to view the
different camera in single view or 1/4/9/16/32
view.

The CamPro Express allows you to monitor 32 channels via the computer and WEB UI. You can
choose how you would like to view the camera, the Cam Pro Express supports 1/4/9/16/32 different
view. You can also choose to view the different camera in single view or 1/4/9/16/32 view.
