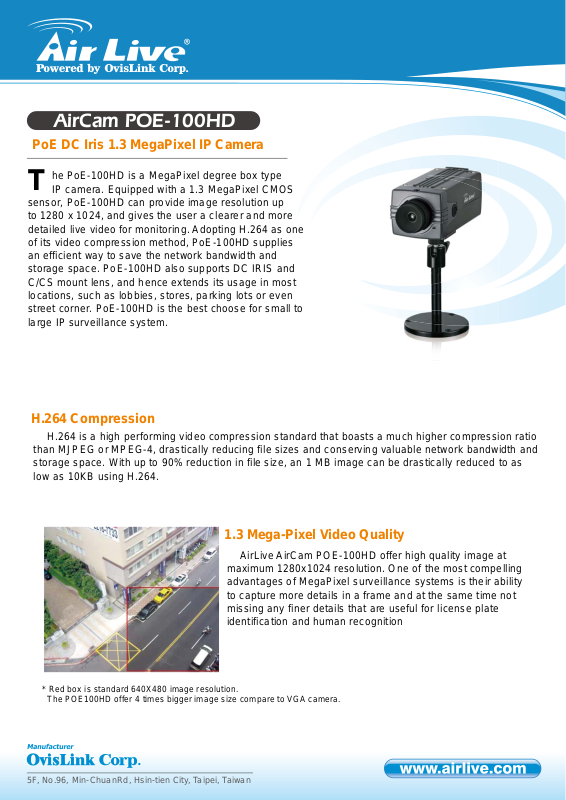

Airlive POE-100HD Datasheet

AirCam POE-100HD

PoE DC Iris 1.3 MegaPixel IP Camera

he PoE-100HD is a MegaPixel degree box type

T

IP camera. Equipped with a 1.3 MegaPixel CMOS
sensor, PoE-100HD can provide image resolution up
to 1280 x 1024, and gives the user a clearer and more
detailed live video for monitoring. Adopting H.264 as one
of its video compression method, PoE-100HD supplies
an efficient way to save the network bandwidth and
storage space. PoE-100HD also supports DC IRIS and
C/CS mount lens, and hence extends its usage in most
locations, such as lobbies, stores, parking lots or even
street corner. PoE-100HD is the best choose for small to
large IP surveillance system.

H.264 Compression

H.264 is a high performing video compression standard that boasts a much higher compression ratio
than MJPEG or MPEG-4, drastically reducing file sizes and conserving valuable network bandwidth and
storage space. With up to 90% reduction in file size, an 1 MB image can be drastically reduced to as
low as 10KB using H.264.

1.3 Mega-Pixel Video Quality

AirLive AirCam POE-100HD offer high quality image at
maximum 1280x1024 resolution. One of the most compelling
advantages of MegaPixel surveillance systems is their ability
to capture more details in a frame and at the same time not
missing any finer details that are useful for license plate
identification and human recognition

* Red box is standard 640X480 image resolution.
The POE100HD offer 4 times bigger image size compare to VGA camera.

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

AirLive CamProExpress

The AirLive CamPro Express supports 32
cameras, providing a fully integrated surveillance
and alarm management solution. The AirLive
CamPro Express is complete freeware for you to
do the centre monitor. You can find this software
in the CD or you can download from the support
page.The Cam Pro Express support WL-2000CAM,
POE-100CAMv2, POE-200CAMv2, OD-300CAM,
POE-260CAM,WL-2600CAM.OD-325HD,OD­600HD,POE-250HD,POE-200HD.

The E-map user interface and intelligent
privilege management solves management
problems.

Multiple rotation screens (1/4/9/16/32)
provide the most flexible method to monitor
your surveillance installation.

Web Monitor

The CamPro Express allows you to monitor 32
channels via the computer and WEB UI. You can
choose how you would like to view the camera,
the Cam Pro Express supports 1/4/9/16/32
different view. You can also choose to view the
different camera in single view or 1/4/9/16/32
view.

The CamPro Express allows you to monitor 32 channels via the computer and WEB UI. You can
choose how you would like to view the camera, the Cam Pro Express supports 1/4/9/16/32 different
view. You can also choose to view the different camera in single view or 1/4/9/16/32 view.
