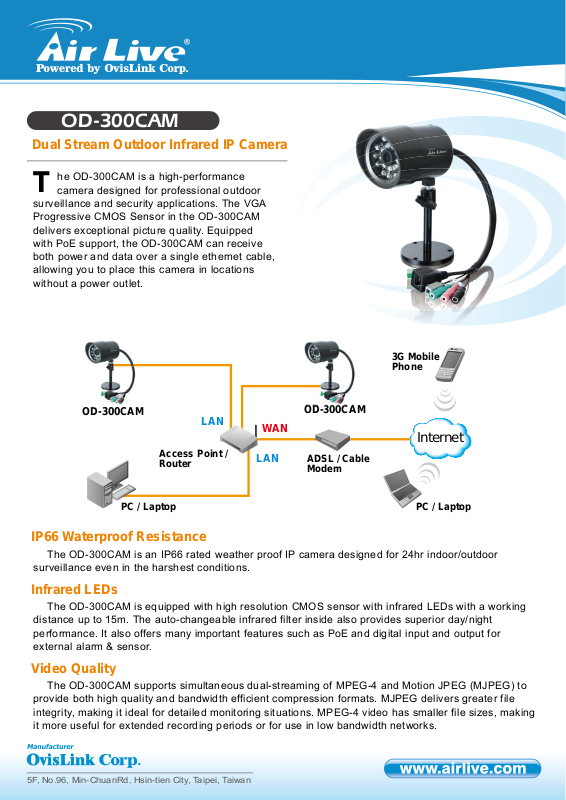

Airlive OD-300CAM Datasheet

OD-300CAM

Dual Stream Outdoor Infrared IP Camera

he OD-300CAM is a high-performance

T

camera designed for professional outdoor
surveillance and security applications. The VGA
Progressive CMOS Sensor in the OD-300CAM
delivers exceptional picture quality. Equipped
with PoE support, the OD-300CAM can receive
both power and data over a single ethernet cable,
allowing you to place this camera in locations
without a power outlet.

3G Mobile
Phone

OD-300CAM

LAN

WAN

OD-300CAM

Internet

Access Point /
Router

PC / Laptop PC / Laptop

LAN

ADSL / Cable
Modem

IP66 Waterproof Resistance

The OD-300CAM is an IP66 rated weather proof IP camera designed for 24hr indoor/outdoor

surveillance even in the harshest conditions.

Infrared LEDs

The OD-300CAM is equipped with high resolution CMOS sensor with infrared LEDs with a working
distance up to 15m. The auto-changeable infrared filter inside also provides superior day/night
performance. It also offers many important features such as PoE and digital input and output for
external alarm & sensor.

Video Quality

The OD-300CAM supports simultaneous dual-streaming of MPEG-4 and Motion JPEG (MJPEG) to
provide both high quality and bandwidth efficient compression formats. MJPEG delivers greater file
integrity, making it ideal for detailed monitoring situations. MPEG-4 video has smaller file sizes, making
it more useful for extended recording periods or for use in low bandwidth networks.

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

Language Pack Feature

This camera also comes with upgradeable device language pack offering fourteen different
languages for user-friendly operation. The language pack support 14 languages now and still updating.
These languages include Chinese, German, Spanish, Russian, Czech, Portuguese, and more.

View from Mobile Phone

The RSTP protocol feature allows 3G and 2.5G mobile phones to display captured images from
the camera for live video surveillance from a remote location. With automatic light adjustment that
eliminates bit rate problems caused by poor night time performance, OD-300CAM is the perfect solution
to remotely monitor your house while you are traveling.

* The mobile device must be Internet-ready. Supporting Real Time Streaming Protocol (RTSP) and is

equipped with a 3G video player such as PacketVideo™, Quicktime™, or RealPlayer™, and have

Internet access.
* A PoE Switch or router is required to provide power via the Ethernet connection.
* Using video equipment for recording people’s image without their knowledge and consent is prohibited

in certain states or jurisdictions. The end-user assumes all liability for compliance with applicable

state, local, and federal laws.

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

AirLive CamProExpress

The AirLive CamPro Express supports 16
cameras, providing a fully integrated surveillance
and alarm management solution. The AirLive
CamPro Express is complete freeware for you to do
the central monitor. The CamPro Express supports
WL-2000CAM, POE-100CAM, POE-200CAM, OD­300CAM, WL-2600CAM.

The E-map user interface and intelligent
privilege management solve management
problems.

Multiple rotation screens (1/4/9/16) provide
the most flexible method to monitor your
surveillance installation.

The CamPro Express allows you to monitor 16
channels via the computer and WEB UI. You can
choose how you would like to view the camera, the
Cam Pro Express supports 1/4/9/16 different view.
You can also choose to view the different camera
in single view or 1/4/9/16 view.

Web Monitor

The CamPro Express supports you to view
from the remote site of computer. By simple step
that you install the IIS Server into your computer
you can view your home or office when you are
overseas.

CamPro Express system provides a solution for local stores, supermarkets, warehouses, petrol
stations, government offices, buildings, schools, car parks, holiday villas, luxury homes and many other
applications.

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

Hardware Specifi cation

Sensor

- 1/4" Progressive CMOS Sensor

Lens

- 4.3mm, F2.0 Board Lens

Minimum Illumination

- 0 Lux with IR LED on

Infrared Filter

- Automatic removable Infrared-cut filter with
adjustable threshold

Infrared Working Distance

- 15 Meters

System

- ARM9 based 32-bit RISC CPU, 8MB Flash,
64 MB RAM

- Embedded OS: Linux 2.4

Video Compression

- MPEG-4, Motion JPEG

- Adjustable Bitrate (64Kbps to 2048Kbps),
Quality and Bitrate

Video Resolution

- Up to 30 frames in all resolutions

Video Streaming

- Simultaneous MPEG-4 & MJPEG (Dual
Streaming)

- Supports Unicast & Multicast

- Supports 3GPP/ISMA RTSP (Real Time
Streaming Protocol)

- Input x 1, Output x 1 for External Alarm &
Sensor (DIDO)

- Triggered and scheduled events, Pre- and
Post-alarm buffer

Supported Protocols

- TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP,
SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP,
TCP, UDP, 3GPP/ISMA RTSP

Security

- ID/Password Authentication; SSL Protocol
V3.0

Power

- 12V DC, 1A, Max 6W

- PoE (Power over Ethernet) Built-in IEEE

802.3af Class 0

Connectors

- Ethernet – RJ45 for 10/100 Base-T (with PoE)

- 12V DC

- Input x 1, Output x 1 for External Alarm &
Sensor (DIDO)

- 3.5mm Audio Input, 3.5mm Audio Output

- Reset Button

Operating Environment

- -10º - 50 ºC (14º - 122ºF)

- Humidity 20 - 80% RH (non-condensing)

Video Surveillance Software

- Professional surveillance application for
viewing, recording and archiving up to 16
cameras

Audio

- Two-way audio (full-duplex)

Alarm and Event

- Built-in multi-window motion detection

Approvals

- CE, FCC, RoHS

Dimension

- 99mm x 73mm (φ)

Ordering Information:

AirLive OD-300CAM Dual Stream Outdoor Infrared IP Camera
