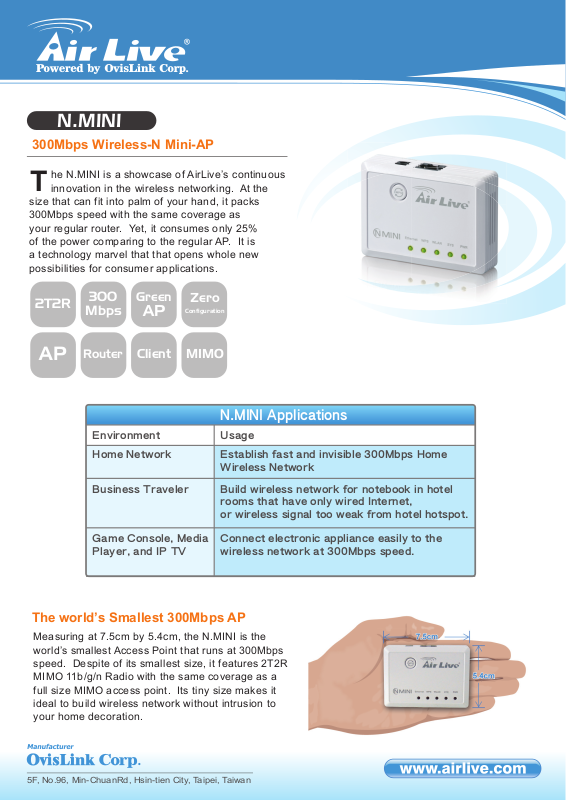

N.MINI
300Mbps Wireless-N Mini-AP
he N.MINI is a showcase of AirLive’s continuous
T
innovation in the wireless networking. At the
size that can fit into palm of your hand, it packs
300Mbps speed with the same coverage as
your regular router. Yet, it consumes only 25%
of the power comparing to the regular AP. It is
a technology marvel that that opens whole new
possibilities for consumer applications.
2T2R
AP
300
Mbps
Router
Environment
Home Network
Business Traveler
Game Console, Media
Player, and IP TV
Green
AP
Client
Zero
Configuration
MIMO
N.MINI Applications
Usage
Establish fast and invisible 300Mbps Home
Wireless Network
Build wireless network for notebook in hotel
rooms that have only wired Internet,
or wireless signal too weak from hotel hotspot.
Connect electronic appliance easily to the
wireless network at 300Mbps speed.
The world’s Smallest 300Mbps AP
Measuring at 7.5cm by 5.4cm, the N.MINI is the
world’s smallest Access Point that runs at 300Mbps
speed. Despite of its smallest size, it features 2T2R
MIMO 11b/g/n Radio with the same coverage as a
full size MIMO access point. Its tiny size makes it
ideal to build wireless network without intrusion to
your home decoration.
5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan
Multi-Function and Zero Confi gurations
Ethernet
WPS
WLAN SYS PWR
WPS
Ethernet
WPS
WLAN SYS PWR
WPS
WPS
Instant
Establish!
Instant
Establish!
Client AP
WPS
The N.MINI can switch between AP Client, and
Router modes using the hardware selection switch
in the back. By using the WPS push button, you
can establish secured wireless network instantly
between 2 N.MINI. There is no need to use
software configuration, it requires no networking
knowledge to setup the connection.
Connect Electronic Appliances to Wireless Internet
The N.MINI’s zero
configuration and
300mbps speed makes
it the ideal device to
connect your home
appliances to Internet. If
your IPTV, game console,
or Media player are far
away from the network
connections; the N.MINI
is the device of choice to
link them to the Internet
wirelessly.
Wired ADSL2/2+ 4 Ports Modem Router
ADSL Modem N.MINI
Internet
AP Router
WPS
Ethernet WPS WLAN SYS PWR
LAN
ADSL1234
PWR
Wireless
300Mbps
Client Mode
WPS
WPS
Ethernet
WLAN SYS PWR
N.MINI
PC, Game Console,
Media Player or IP TV
