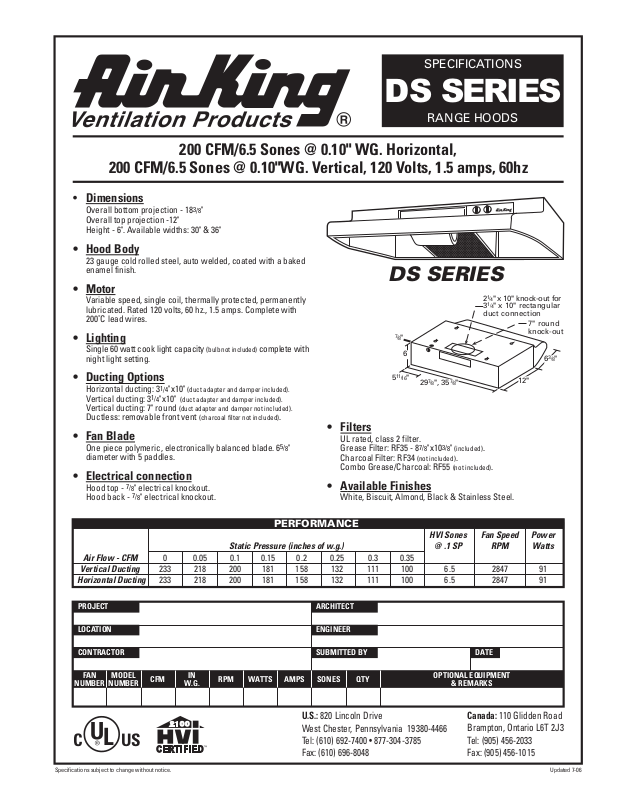

Air King DS User Manual
200 CFM/6.5 Sones @ 0.10" WG. Horizontal,
200 CFM/6.5 Sones @ 0.10"WG. Vertical, 120 Volts, 1.5 amps, 60hz
• Dimensions
3
Overall bottom projection - 18
Overall top projection -12"
Height - 6". Available widths: 30" & 36"
• Hood Body
23 gauge cold rolled steel, auto welded, coated with a baked
enamel finish.
• Motor
Variable speed, single coil, thermally protected, permanently
lubricated. Rated 120 volts, 60 hz., 1.5 amps. Complete with
200˚C lead wires.
• Lighting
Single 60 watt cook light capacity (bulb not included) complete with
night light setting.
• Ducting Options
1
Horizontal ducting: 3
Vertical ducting: 3
/
4
1
/
"x10" (duct adapter and damper included).
4
Vertical ducting: 7" round (duct adapter and damper not included).
Ductless: removable front vent (charcoal filter not included).
• Fan Blade
One piece polymeric, electronically balanced blade. 6
diameter with 5 paddles.
• Electrical connection
7
Hood top Hood back -
/
" electrical knockout.
8
7
/
" electrical knockout.
8
/
"
8
"x10" (duct adapter and damper included).
SPECIFICATIONS
DS SERIES
RANGE HOODS
DS SERIES
1
/
2
" x 10" knock-out for
4
1
/
3
" x 10" rectangular
4
duct connection
7" round
7
/
"
8
6
11
/
5
"
16
7
7
/
", 35
8
/
"
8
29
• Filters
5
/
"
8
UL rated, class 2 filter.
Grease Filter: RF35 - 8
Charcoal Filter: RF34
7
3
/
/
"x10
8
8
(not included).
" (included).
Combo Grease/Charcoal: RF55 (not included).
• Available Finishes
White, Biscuit, Almond, Black & Stainless Steel.
knock-out
12"
3
/
6
"
8
PERFORMANCE
HVI Sones Fan Speed Power
Static Pressure (inches of w.g.) @ .1 SP RPM Watts
Air Flow - CFM
Vertical Ducting
Horizontal Ducting
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
NUMBER NUMBER W.G. & REMARKS
CUS
0 0.05 0.1 0.15 0.2 0.25 0.3 0.35
233 218 200 181 158 132 111 100 6.5 2847 91
233 218 200 181 158 132 111 100 6.5 2847 91
ARCHITECT
ENGINEER
SUBMITTED BY DATE
CFM
IN
RPM WATTS AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
OPTIONAL EQUIPMENT
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
Updated 7-06Specifications subject to change without notice.
