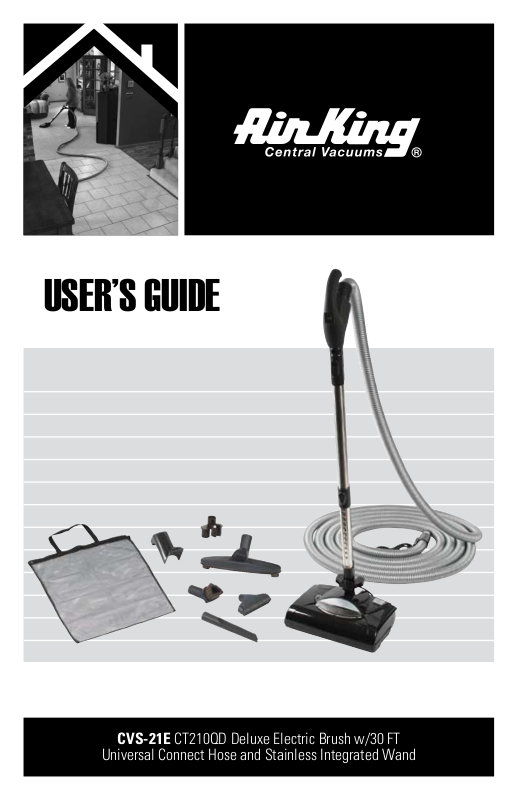

USER’S GUIDE
CVS-21E CT210QD Deluxe Electric Brush w/30 FT
Universal Connect Hose and Stainless Integrated Wand
IMPORTANT SAFETY INSTRUCTIONS
* READ ALL INSTRUCTIONS before using the Electric Powerhead.
When using this electrical appliance, basic precautions should always be followed,
including the following:
WARNING:
Unplug and disconnect power before servicing.
2. Always turn off this appliance before connecting or disconnecting either
hose or motorized nozzle.
3. Do not vacuum up anything that is burning or smoking, such as cigarettes, matches,
or hot ashes.
4. Do not pick up flammable or combustible liquids such as gasoline or use it in areas
where they may be present.
5. Use only as described in this manual. Use only manufactures
recommended attachments.
6. Do not unplug by pulling on cord. To unplug, grasp plug, not the cord.
7. Do not handle system or appliances with wet hands.
8. Turn off all controls before unplugging.
9. Do not use with damaged cord or plug.
10. Do not allow to be used as a toy. Pay close attention when used by or
near small children.
11. The hose contains electrical wires. Do not use if damaged, cut, or punctured. Avoid
picking up sharp objects.
12. Do not put any object into openings.
13. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that
may reduce air flow.
14. Keep hair, loose clothing, fingers, and all parts of the body away from openings and
moving parts.
15. Do not leave vacuum or brush when plugged in. Unplug from outlet when not in use
and before servicing.
16. If appliance is not working as it should, has been dropped, damaged, left outdoors, or
dropped in water, return it to your distributor
17. Use extra care when cleaning on stairs.
Electric shock could occur if used outdoors or on wet surfaces.
SAVE THESE INSTRUCTIONS — INTENDED FOR HOUSEHOLD USE ONLY
2
SAVE THESE INSTRUCTIONS
CVS-21E CT210QD Electric Package
Individual tools may vary and
are subject to change at any time.
2.
3.
10.
PACKAGE INCLUDES:
1. CT210QD — Deluxe Electric Brush
2. 94235 — 30 FT Universal Connect Hose
3. 52164 — Stainless Integrated Wand
4. 34905 — 12” Floor Brush
5. 34828 — Dusting Brush
6. 34806 — Crevice Tool
7. 35290 — Upholstery Tool / 35312 Slide-On
8. 34751 — Clip-On Tool Caddy
9. 35202 — Hose Hanger
10. 35224 — Mesh Caddy Bag
9.
5.
8.
4.
7.
6.
1.
3
CT210QD 12” ELECTRIC BRUSH
This powerbrush, with metal agitator, is to be used to vacuum wall-to-wall carpeting,
handmade carpets, fine rugs, and other flooring. This powerbrush must be used with the
integrated wand.
FEATURES INCLUDE:
Soft over molded wheels mean
less wheel noise on hard floor
surfaces and insure against
scratches to floor surfaces.
Head light provides extra visibility in closets and under furnishings insuring you avoid articles
on the floor you don’t wish to
expose to the power nozzle.
Six position height adjustment
insures you can set the nozzle for
any carpet conditions for deep
cleaning and proper grooming of
carpeted surfaces.
Reinforced poly-v drive insures years of reliable service without
the noise and vibration associated with geared belts. A poly-v belt
design insures more surface contact between the drive pully and the
belt providing better power transmission than cogged designs.
Metal agitator with replaceable brush strips insures years
of reliable service.
REMEMBER: As with all electric appliances, risk of shock is possible. Do not
remove brush, pull wands out, or attempt maintenance while power is on.
4
SAVE THESE INSTRUCTIONS
INTEGRATED TELESCOPIC WAND
Easy wand release lever permits
the wand retraction from the
electric nozzle for above the floor
cleaning saving you time and
effort As you move through your
home. The wand accepts standard
cleaning accessories and a floor
brush eliminating the need for a
second wand set.
When released to vacuum the neck
features a double swivel permitting
easy steering of the power nozzle
around and under furnishings.
The hose to wand connection is designed for a positive
lock with a reliable recessed
electrical connection.
A gentle push on the rocking
latch releases your hose
from the wand. No struggling
with tiny buttons or strain to
separate the hose for above
the floor cleaning.
5
CT210QD ELECTRIC BRUSH INSTRUCTIONS
INSTALLATION:
1. Read important safety instructions before installing powerhead.
2. Ensure vacuum cleaner is disconnected from power supply before
installing powerhead.
3. Connect extension wands from vacuum into powerhead’s neck.
STORAGE:
1. Ensure vacuum cleaner is disconnected before unplugging powerhead.
2. Disconnect wand from hose.
3. Remove powerhead from wand and store powerhead in a safe place.
CHANGING BELT:
1. Disconnect vacuum cleaner from power supply.
2. Remove screws from bottom of powerhead.
3. Remove base plate from powerhead.
4. Remove brush roll.
5. Replace old belt with new belt.
6. Insert brush roll back into correct spot.
7. Replace base plate and put screw back in.
CHANGING BRUSH ROLL:
1. Disconnect powerhead from electrical supply.
2. Remove screws from bottom of powerhead.
3. Remove base plate from powerhead.
4. Replace old brush roll with new brush roll.
5. Insert brush roll back into correct spot.
6. Replace base plate and put screw back in.
INTEGRATED WAND INSTRUCTIONS
The wand length is adjustable and requires no assembly.
To adjust, simply push down on the wand and adjust
button and slide to the desired height.
6
CT210QD EXPLOSION
SAVE THESE INSTRUCTIONS
1 57015 SWITCH PEDAL
2 57026 SWITCH
3 57037 SWITCH HOUSING
4 57048 DECORATING LAMP COVER
6 57059 TRANSPAR ENT WINDOW
7 57070 LAMP C OVER (STICK ER ON THE L AMP COVER)
8 57081 CONNEC TOR OF THE ELBOW BACK COVER
RELEAS E PEDAL SPR ING
9-1 57092 POWER CORD 2
10 57103 CONNEC TOR OF THE ELBOW
11 57114 CLIP R ING
12 57125 SEALIN G FOR THE S UCTION PANEL
13 57136 SUCTIO N PANEL / SEA LING / SEAL ING STRIP
14 57147 RELEAS E PANEL FOR T HE TELESCOP IC TUBE
15 57158 ELEVATOR CA M ADJUST PED AL
16 57169 ELEVATOR CA M ADJUSTMENT
17 57180 ELEVATOR CA M ADJUSTMENT FIXING
18 57191 CLIP S PRING
19-25 57202 ELEVATOR CA M ASSEMBLY
26 57213 CLIP S PRING
27 57224 LOCK P EDAL AXIS
28 57235 LOCK P EDAL
29 57246 REAR W HEEL PVC
33 57257 OVER L OADING PROT ECTOR SWITC H
34 57268 FIXING PLATE
35 57279 JACKET
36 57290 FRONT WHEEL
37 57301 FRONT AXLE
38 57312 SUCTIO N PANEL TOP C OVER
39 57323 FRONT AXLE COVER BOARD
41 57334 WIRE F IXING PLATE
42 57345 MOTOR
43 57356 BELT
44 57367 METAL BRU SH ROLL
45 57378 BRISTL E
46 57389 FURNIT URE GUARD
47 57400 REFLEC TOR SHIELD
48 57411 BULB
49 57422 LAMP H OLDER
51 57433 TOP CO VER FELT
52 57444 DUST B LOCK CLOTH
53 57455 LOWER BASE FELT
54 57466 UPPER COVER
55 57477 LOWER BASE
7
4-WIRE SWIVEL ELECTRIC CRUSH-PROOF HOSE
The “slimfit” style handle has 360° rotation to minimize kinks, effort, and in-hand weight.
For use with the electric brush.
HOSE HANDLING:
Hold the hose and handle in any way you find to be the
most comfortable. With this new style handle, numerous
hand positions are offered and reduce strain and
increase ease of use.
Also, for added ease while vacuuming, try keeping the hose behind you rather than out
in front of you. Use one hand to hold the handle and the other hand to hold and guide the
hose. Again, do what feels comfortable to you.
THREE POSITION SWITCH:
Allows vacuum to be controlled from the handle
• Vacuum on, Brush off
• Vacuum off, Brush off — Center Position
• Vacuum on, Brush on
IMPORTANT:
Make sure power is turned OFF before removing the hose and handle from the wand.
Arcing or damage to the electrical contacts can occur if the wand is removed while brush
power is on.
Universal Wall End:
Use with standard pin-jack valve.
To insert hose cuff into valve: Lift valve door, insert
cuff into hole, & plug cord into 110 electrical outlet.
8
SAVE THESE INSTRUCTIONS
CLEANING ATTACHMENTS AND TOOLS
PLASTIC HOSE HANGER:
• Use of hanger can increase the life of your hose and save
space while storing.
• Coil your hose around this hanger to store when not in use.
• Mount on a wall in a closet, garage, or any other convenient
location for hose storage, and place it high enough so you can
loop your hose only four times and still clear the floor.
• Mounts using only one stud and two screws.
12” FLOOR BRUSH:
• Works well to clean bare floors, wood flooring, tile, etc.
• Shorter bristles in front, longer in back, allows larger
dirt particles to be picked up with forward movement.
For best results, do not force the front of the brush down when moving forward. allow
the brush to gently glide across the floor. The front of the brush should allow particles to
enter through the raised bristles.
CREVICE TOOL:
• Tool to reaches into cracks and crevices such as tracks of slid
ing glass doors, corners, along baseboards, and even in the
cracks of couches and other furniture.
• Notched end helps maintain air flow and proper suction.
• This tool has flat sides which makes it great for reaching un
der refrigerators, around air conditioner coils, and other hard
to reach places that collect a lot of dust and dirt.
DUSTING BRUSH:
• Use for dusting furnishings such as bookcases,
tables, desks, and mantles.
• Also great for dusting picture frames, collectibles,
tops of televisions, window sills, and even the
backs of computer monitors.
• Full, natural bristles for gentle cleaning.
-
-
9
CLEANING ATTACHMENTS AND TOOLS
UPHOLSTERY TOOL WITH SLIDE-ON BRUSH:
• Cleans upholstered furniture, drapes, mattresses,
and even works well on vehicle upholstery and carpets.
• The directional slide brush assures consistent fit and
is detachable for aggressive cleaning.
INTEGRATED TELESCOPIC WAND:
• Attach any of your standard suction tools such as the upholstery tool or dusting brush
for whatever cleaning needs you may have.
TOOL CADDY:
• Adds portable convenience by allowing multiple tools to be
carried on the wand for quicker and easier access.
• To attach: Snap caddy onto wand at an angle (beveled side
first), then slip attachments and tools onto caddy pegs. when
clipping it onto wand, attach it so that the two-peg side faces
up, while the single-peg side faces down the wand. This will
keep your tools on better.
MESH TOOL CADDY BAG:
• Holds accessories and tools making
them more manageable.
• For storing and transporting tools & accessories.
Accessories shown may not be to scale.
10
SAVE THESE INSTRUCTIONS
For more details on these or any other AirKing products, contact your local Airking dealer or visit our websites at www.airkinglimited.com
Caring for your carpet.
“Proper maintenance will extend the time you can enjoy your carpet and help keep its fresh appearance.
Vacuum regularly, remove spills promptly, and extraction clean periodically. Use a strong, well function
ing vacuum cleaner with a powerful airflow, adjustable brushes, and an enclosed, high efficiency filtration
bag. It is best to purchase a vacuum cleaner that bears the CRI indoor Air Quality Testing Program
label, assuring that the cleaner will remove soil well, contain the dust within the machine, and protect the
carpet’s appearance.”
—The Carpet & Rug Institute (CRI)
For more information on caring for your carpet, please visit the CRI website at www.carpet-rug.com
AIR KING AMERICA LIMITED WARRANTY:
WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.
HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for
one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product,
whichever first occurs.
WHAT AIR KING WILL DO: During the warranty period, Air King will, at its sole option, repair or replace any part or parts
that prove to be defective or replace the whole product with the same or comparable model.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed
because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or
attempted. This warranty does not cover shipping costs for the return of products to Air King for repair or replacement. Air
King will pay return shipping charges from Air King following warranty repairs or replacement ANY AND ALL WARRAN-
TIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF
THE PRODUCT SELLS OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL
AIR KING’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACMENT OR REPAIR OF ANY HOUSE
FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO
EVENT SHALL AIR KING’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE
PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.
Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province. Proof of purchase
is required before a warranty claim will be accepted.
-
CUSTOMER SERVICE:
Our Customer Service team is available to assist you with product questions, service center locations, and replacement
parts. They can be reached Monday through Friday, 8am-4pm Eastern. Please have your model number available, as well
as the type and style (located on the label inside of your product). Please do not return product to place of purchase.
PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS
MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER
COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR
Toll-Free (800) 465-7300
www.airkinglimited.com
INSTALLATION OR REPLACEMENT.
11
CONTACT
Location Information
Corporate Headquarters for
United States division:
820 Lincoln Avenue
West Chester, PA 19380
Ph. 800.465.7300
#F51063
Loading...
