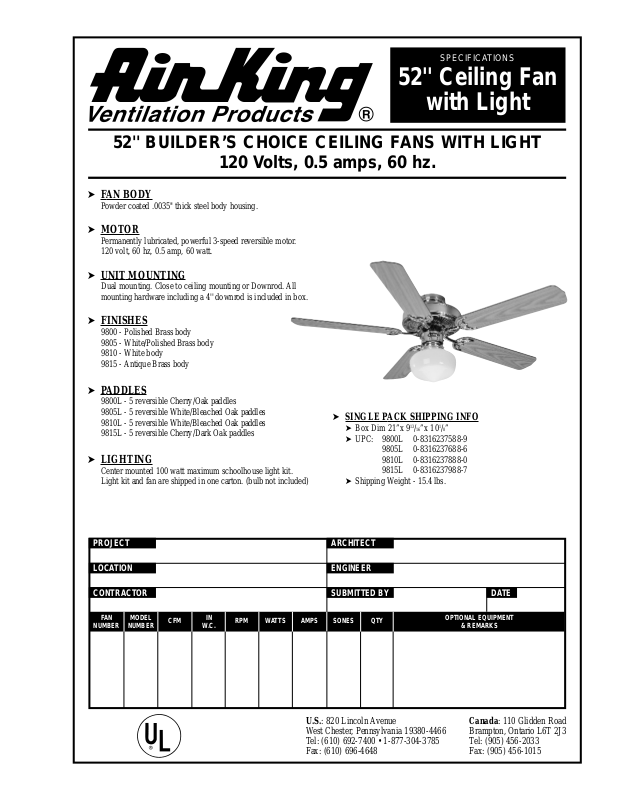

Air King Ceiling Fan with Light User Manual

52'' BUILDER’S CHOICE CEILING FANS WITH LIGHT

120 Volts, 0.5 amps, 60 hz.

PROJECT

LOCATION

CONTRACTOR

ARCHITECT

ENGINEER

SUBMITTED BY

DATE

FAN

NUMBER

OPTIONAL EQUIPMENT

& REMARKS

MODEL

NUMBER

IN

W.C.

CFM RPM WATTS SONES QTY

AMPS

SPECIFICATIONS

52'' Ceiling Fan

with Light

➤ FAN BODY

Powder coated .0035'' thick steel body housing.

➤ MOTOR

Permanently lubricated, powerful 3-speed reversible motor.
120 volt, 60 hz, 0.5 amp, 60 watt.

➤ UNIT MOUNTING

Dual mounting. Close to ceiling mounting or Downrod. All
mounting hardware including a 4'' downrod is included in box.

➤ FINISHES

9800 - Polished Brass body
9805 - White/Polished Brass body
9810 - White body
9815 - Antique Brass body

➤ PADDLES

9800L - 5 reversible Cherry/Oak paddles
9805L - 5 reversible White/Bleached Oak paddles
9810L - 5 reversible White/Bleached Oak paddles
9815L - 5 reversible Cherry/Dark Oak paddles

➤ LIGHTING

Center mounted 100 watt maximum schoolhouse light kit.
Light kit and fan are shipped in one carton. (bulb not included)

U.S.: 820 Lincoln Avenue
West Chester, Pennsylvania 19380-4466
Tel: [phone] • 1-877-304-3785
Fax: [phone]

Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: [phone]
Fax: [phone]

➤ SINGLE PACK SHIPPING INFO

➤ Box Dim 21”x 913/16”x 101/8”
➤ UPC: 9800L 0-8316237588-9

9805L 0-8316237688-6
9810L 0-8316237888-0
9815L 0-8316237988-7

➤ Shipping Weight - 15.4 lbs.
