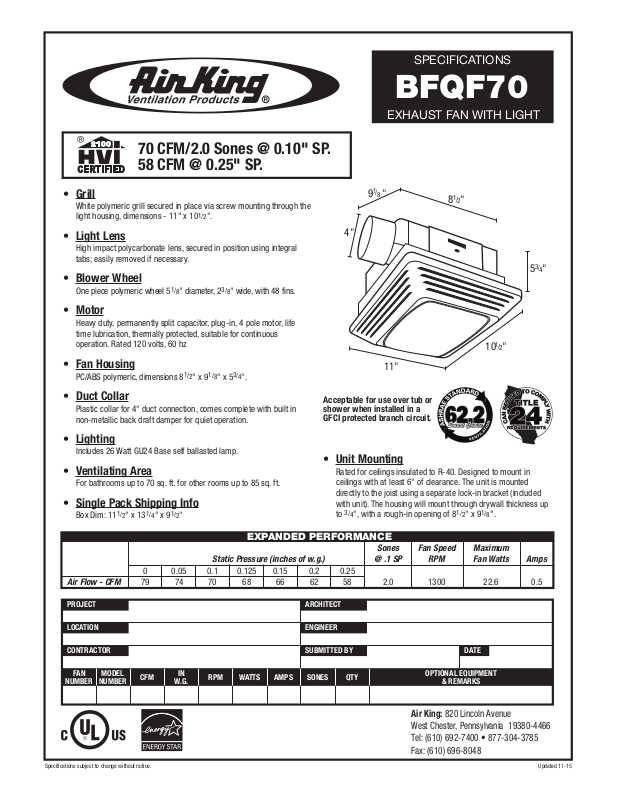

Air King BFQF70 Specifications
70 CFM/2.0 Sones @ 0.10" SP.
58 CFM @ 0.25" SP.
• Grill
White polymeric grill secured in place via screw mounting through the
light housing, dimensions - 11" x 10
• Light Lens
High impact polycarbonate lens, secured in position using integral
tabs; easily removed if necessary.
• Blower Wheel
One piece polymeric wheel 5
• Motor
Heavy duty, permanently split capacitor, plug-in, 4 pole motor, life
time lubrication, thermally protected, suitable for continuous
operation. Rated 120 volts, 60 hz
1
/
8
" diameter, 2
1
/
2
".
3
/
8
" wide, with 48 fins.
4"
SPECIFICATIONS
BFQF70
EXHAUST FAN WITH LIGHT
1
/
8
9
"
1
/
8
2
"
10
3
/
4
5
"
1
/
2
"
• Fan Housing
1
1
PC/ABS polymeric, dimensions 8
/
2
" x 9
/
8
" x 5
3
/
4
".
• Duct Collar
Plastic collar for 4" duct connection, comes complete with built in
non-metallic back draft damper for quiet operation.
Acceptable for use over tub or
shower when installed in a
GFCI protected branch circuit.
11"
• Lighting
Includes 26 Watt GU24 Base self ballasted lamp.
• Unit Mounting
• Ventilating Area
For bathrooms up to 70 sq. ft. for other rooms up to 85 sq. ft.
• Single Pack Shipping Info
1
1
/
4
" x 9
1
/
2
"
/
Box Dim: 11
2
" x 13
EXPANDED PERFORMANCE
Sones Fan Speed Maximum
Static Pressure (inches of w.g.) @ .1 SP RPM Fan Watts Amps
0 0.05 0.1 0.125 0.15 0.2 0.25
Air Flow - CFM 79 74 70 68 66 62 58 2.0 1300 22.6 0.5
PROJECT
LOCATION
CONTRACTOR
Rated for ceilings insulated to R-40. Designed to mount in
ceilings with at least 6" of clearance. The unit is mounted
directly to the joist using a separate lock-in bracket (included
with unit). The housing will mount through drywall thickness up
3
/
4
", with a rough-in opening of 8
to
ARCHITECT
ENGINEER
SUBMITTED BY DATE
1
1
/
/
2
8
" x 9
".
FAN MODEL
NUMBER NUMBER W.G. & REMARKS
IN
CFM
RPM WATTS AMPS SONES QTY
OPTIONAL EQUIPMENT
Air King: 820 Lincoln Avenue
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
Specifications subject to change without notice.
Updated 11-15
