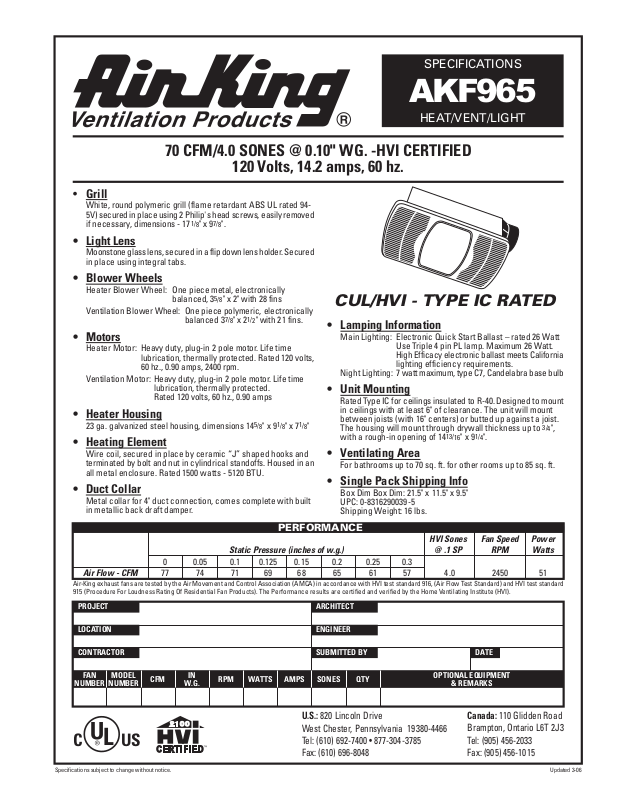

Air King AKF965 User Manual
70 CFM/4.0 SONES @ 0.10" WG. -HVI CERTIFIED
120 Volts, 14.2 amps, 60 hz.
• Grill
White, round polymeric grill (flame retardant ABS UL rated 945V) secured in place using 2 Philip's head screws, easily removed
if necessary, dimensions - 17
• Light Lens
Moonstone glass lens, secured in a flip down lens holder. Secured
in place using integral tabs.
• Blower Wheels
Heater Blower Wheel: One piece metal, electronically
Ventilation Blower Wheel: One piece polymeric, electronically
• Motors
Heater Motor: Heavy duty, plug-in 2 pole motor. Life time
lubrication, thermally protected. Rated 120 volts,
60 hz., 0.90 amps, 2400 rpm.
Ventilation Motor: Heavy duty, plug-in 2 pole motor. Life time
lubrication, thermally protected.
Rated 120 volts, 60 hz., 0.90 amps
• Heater Housing
23 ga. galvanized steel housing, dimensions 14
• Heating Element
Wire coil, secured in place by ceramic “J” shaped hooks and
terminated by bolt and nut in cylindrical standoffs. Housed in an
all metal enclosure. Rated 1500 watts - 5120 BTU.
• Duct Collar
Metal collar for 4" duct connection, comes complete with built
in metallic back draft damper.
1
/
" x 9
8
balanced, 3
balanced 3
7
/
".
8
5
/
" x 2" with 28 fins
8
7
1
/
/
" x 2
8
2
5
" with 21 fins.
1
/
/
" x 9
8
" x 7
8
CUL/HVI - TYPE IC RATED
• Lamping Information
Main Lighting: Electronic Quick Start Ballast – rated 26 Watt
Night Lighting: 7 watt maximum, type C7, Candelabra base bulb
• Unit Mounting
Rated Type IC for ceilings insulated to R-40. Designed to mount
in ceilings with at least 6" of clearance. The unit will mount
1
/
"
8
between joists (with 16" centers) or butted up against a joist.
The housing will mount through drywall thickness up to
with a rough-in opening of 14
• Ventilating Area
For bathrooms up to 70 sq. ft. for other rooms up to 85 sq. ft.
• Single Pack Shipping Info
Box Dim Box Dim: 21.5" x 11.5" x 9.5"
UPC: 0-8316290039-5
Shipping Weight: 16 lbs.
Use Triple 4 pin PL lamp. Maximum 26 Watt.
High Efficacy electronic ballast meets California
lighting efficiency requirements.
SPECIFICATIONS
AKF965
HEAT/VENT/LIGHT
13
1
/
/
" x 9
".
16
4
3
/
",
4
PERFORMANCE
HVI Sones Fan Speed Power
Static Pressure (inches of w.g.) @ .1 SP RPM Watts
0 0.05 0.1 0.125 0.15 0.2 0.25 0.3
Air Flow - CFM
Air-King exhaust fans are tested by the Air Movement and Control Association (AMCA) in accordance with HVI test standard 916, (Air Flow Test Standard) and HVI test standard
915 (Procedure For Loudness Rating Of Residential Fan Products). The Performance results are certified and verified by the Home Ventilating Institute (HVI).
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
NUMBER NUMBER W.G. & REMARKS
CUS
77 74 71 69 68 65 61 57 4.0 2450 51
ARCHITECT
ENGINEER
SUBMITTED BY DATE
CFM
IN
RPM WATTS AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
OPTIONAL EQUIPMENT
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
Updated 3-06Specifications subject to change without notice.
