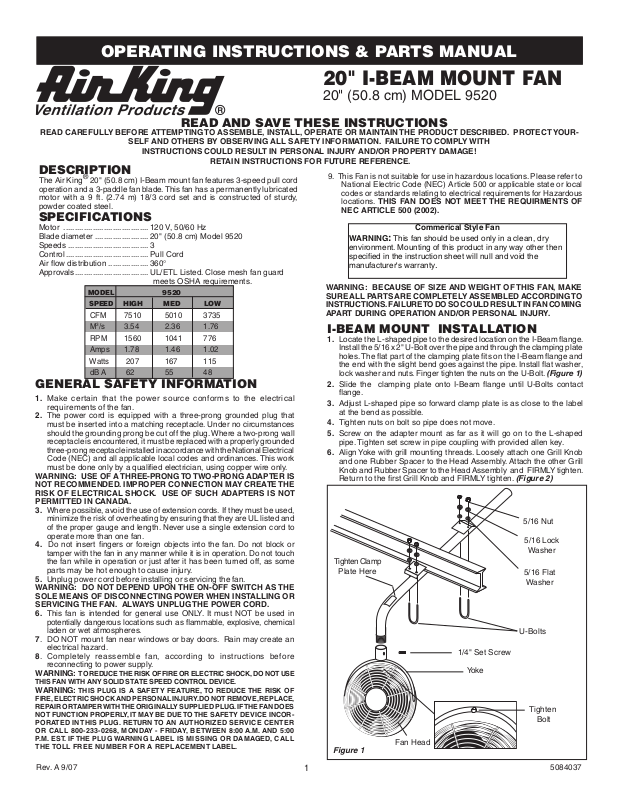

OPERATING INSTRUCTIONS & PARTS MANUAL

20" I-BEAM MOUNT FAN

20" (50.8 cm) MODEL 9520

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOUR-

SELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH

INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

DESCRIPTION

The Air King® 20" (50.8 cm) I-Beam mount fan features 3-speed pull cord
operation and a 3-paddle fan blade. This fan has a permanently lubricated
motor with a 9 ft. (2.74 m) 18/3 cord set and is constructed of sturdy,
powder coated steel.

SPECIFICATIONS

Motor ......................................120 V, 50/60 Hz

Blade diameter ........................20" (50.8 cm) Model 9520

Speeds ....................................3

Control..................................... Pull Cord

Air ow distribution ..................360°

Approvals................................. UL/ETL Listed. Close mesh fan guard

meets OSHA requirements.....................

MODEL

9520

SPEED

HIGH MED LOW

CFM 7510 5010 3735
M3/s 3.54 2.36 1.76
RPM 1560 1041 776
Amps 1.78 1.46 1.02
Watts 207 167 115
dB A 62 55 48

GENERAL SAFETY INFORMATION

1. Make cer tain that the power source conforms to the electrical
require

2. The power cord is equipped with a three-prong grounded plug that

WARNING: USE OF A THREE-PRONG TO TWO-PRONG ADAPTER IS
NOT RECOMMENDED. IMPROPER CONNECTION MAY CREATE THE
RISK OF ELECTRICAL SHOCK. USE OF SUCH ADAPTERS IS NOT
PERMITTED IN CANADA.

3. Where possible, avoid the use of extension cords. If they must be used,

4. Do not insert ngers or foreign objects into the fan. Do not block or

5. Unplug power cord before installing or servicing the fan.

WARNING: DO NOT DEPEND UPON THE ON-OFF SWITCH AS THE
SOLE MEANS OF DISCONNECTING POWER WHEN INSTALLING OR
SERVICING THE FAN. ALWAYS UNPLUG THE POWER CORD.

6. This fan is intended for general use ONLY. It must NOT be used in

7. DO NOT mount fan near windows or bay doors. Rain may create an

8. Comple tely reassemble fan, according to ins tructions before

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE

THIS FAN WITH ANY SOLID STATE SPEED CONTROL DEVICE.

WARNING: THIS PLUG IS A SAFETY FEATURE, TO REDUCE THE RISK OF

FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. DO NOT REMOVE, REPLACE,
REPAIR OR TAMPER WITH THE ORIGINALLY SUPPLIED PLUG. IF THE FAN DOES
NOT FUNCTION PROPERLY, IT MAY BE DUE TO THE SAFETY DEVICE INCOR­PORATED IN THIS PLUG. RETURN TO AN AUTHORI ZED SERVICE CENTER
OR CALL 800-233-0268, MONDAY - FRIDAY, BETWEEN 8:00 A.M. AND 5:00
P.M. EST. IF THE PLUG WARNING LABE L IS MISSING OR DAMAGED, C ALL
THE TOLL FREE NUMBER FOR A REPLACEMENT LABEL.

ments of the fan.

must be inserted into a matching receptacle. Under no circumstances
should the grounding prong be cut off the plug. Where a two-prong wall
receptacle is encountered, it must be replaced with a properly grounded
three-prong receptacle installed in accordance with the National Electrical
Code (NEC) and all applicable local codes and ordinances. This work
must be done only by a qualied electrician, using copper wire only.

minimize the risk of overheating by ensuring that they are UL listed and
of the proper gauge and length. Never use a single extension cord to
operate more than one fan.

tamper with the fan in any manner while it is in operation. Do not touch
the fan while in operation or just after it has been turned off, as some
parts may be hot enough to cause injury.

potentially dangerous locations such as ammable, explosive, chemical
laden or wet atmospheres.

electrical hazard.

reconnecting to power supply.

READ AND SAVE THESE INSTRUCTIONS

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

9. This Fan is not suitable for use in hazardous locations. Please refer to
National Electric Code (NEC) Article 500 or applicable state or local
codes or standards relating to electrical requirements for Hazardous
locations. THIS FAN DOES NOT MEET THE REQUIRMENTS OF

NEC ARTICLE 500 (2002).

Commerical Style Fan

WARNING: This fan should be used only in a clean, dry

environment. Mounting of this product in any way other then
specied in the instruction sheet will null and void the
manufacturer's warranty.

WARNING: BECAUSE OF SIZE AND WEIGHT OF THIS FAN, MAKE
SURE ALL PARTS ARE COMPLETELY ASSEMBLED ACCORDING TO
INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN FAN COMING
APART DURING OPERATION AND/OR PERSONAL INJURY.

I-BEAM MOUNT INSTALLATION

1. Locate the L-shaped pipe to the desired location on the I-Beam ange.

Install the 5/16 x 2" U-Bolt over the pipe and through the clamping plate
holes. The at part of the clamping plate ts on the I-Beam ange and
the end with the slight bend goes against the pipe. Install at washer,
lock washer and nuts. Finger tighten the nuts on the U-Bolt. (Figure 1)

2. Slide the clamping plate onto I-Beam ange until U-Bolts contact

ange.

3. Adjust L-shaped pipe so forward clamp plate is as close to the label

at the bend as possible.

4. Tighten nuts on bolt so pipe does not move.

5. Screw on the adapter mount as far as it will go on to the L-shaped

pipe. Tighten set screw in pipe coupling with provided allen key.

6. Align Yoke with grill mounting threads. Loosely attach one Grill Knob

and one Rubber Spacer to the Head Assembly. Attach the other Grill
Knob and Rubber Spacer to the Head Assembly and FIRMLY tighten.
Return to the rst Grill Knob and FIRMLY tighten. (Figure 2)

Tighten Clamp

Plate Here

Fan Head

Figure 1

1

5/16 Nut

5/16 Lock

Washer

5/16 Flat

Washer

U-Bolts

1/4" Set Screw

Yoke

Tighten

Bolt

5084037Rev. A 9/07

MODEL 9520

Yoke

Figure 2

CAUTION: THE SECONDARY SUPPORT CABLE PROVIDED
SHOULD BE USED ANYTIME THE CIRCULATOR IS MOUNTED
OVERHEAD FOR ADDITIONAL SAFETY.

SECONDARY SUPPORT CABLE

1. Loop one end of Cable around the Large Diameter Wires of both the
Front and Rear Circulator Guard. (Figure 4)

2. Attach a Cable Clamp with the "U" on the tail side of the loop leaving
a tail approximately 1 to 2 inches. Tighten Clamp Nuts. Make sure no
part of the Cable interferes with the Blade. (Figure 4)

3. Wrap the other end of the Cable around a secure building joist, truss,
I-Beam or other support near the Fan. Do not attach cable to I-Beam
mount pipe. (Figure 3) Take up all excess slack in the Cable.

Rubber
Spacer

CAU TION : USE O NLY THE MO UNTI NG HAR DWARE WHIC H IS
REC OMMENDED FOR USE ON THIS FAN.

4. Attach the remaining Cable Clamp as indicated in Step 2. The excess
tail should be trimmed to extend 1 to 2 inches past the Clamp.

5. Check the Assembly to assure the Blade is free of all obstructions.

CAUTION: USE OF THE SECONDARY SUPPORT CABLE DOES NOT
GUARANTEE PROTECTION AGAINST INJURY OF PERSONS. MOUNT­ING OF BOTH THE CIRCULATOR AND CABLE COULD FAIL IF SUB­JECTED TO ABUSE, NEGLECT OR IMPROPER INSTALLATION.

OPERATION

1. Plug in cord and select desired operating speed with pull cord.

2. WARNING: This fan should be used only in a clean, dry environment. Mounting

of this product in any way other then specied in the instruction sheet will null
and void the manufacturer's warranty.

MAINTENANCE

WARNING: ALWAYS UNPLUG THE CORD BEFORE SERVICING.

CLEANING: Use a soft cloth and a mild soap solution such as liquid dish
washing detergent.

CAUTION: DO NOT USE GASOLINE, BENZINE, THINNER, HARSH
CLEANERS, ETC. WHICH WILL DAMAGE THE FAN.

Dry all parts with a soft cloth completely before reconnecting to power supply.

STORAGE: When not in use, keep unit in a clean dry place.
MOTOR IS PERMANENTLY LUBRICATED.

Figure 3

Secondary
Support
Cable

Figure 4

Large Guard
Wires

PART BAG

Description Qty.

5/16 x 2" U-Bolt 2
Clamp Plate 2
5/16-13 Nut 4
5/16 Lock Washer 4
5/16 Flat Washer 4
Rubber Spacer 2
Grill Knob 2
Set Screw 1/4-20 1
Secondary Support Kit 1
Allen Key 1

LIMITED WARRANTY

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.
HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of

original purchase or until the original purchaser of the product sells or transfers the product, whichever rst occurs.
WHAT AIR KING WILL DO: During the warranty period, Air King will, at its sole option, repair or replace any part or parts that prove to be defective or
replace the whole product with the same or comparable model.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling
or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of
products to Air King for repair or replacement. Air King will pay return shipping charges from Air King following warranty repairs or replacement

ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY),
LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS
THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL AIR KING'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY
INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACMENT OR REPAIR OF ANY
HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL AIR
KING'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH
LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these
exclusions or limitations may not apply to you. This warranty gives you specic legal rights. You may also have other rights which vary from state to state and province to
province. Proof of purchase is required before a warranty claim will be accepted.

Toll-Free [phone]. Email: [e-mail]

CUSTOMER SERVICE:

Our Customer Service team is available to assist you with product questions, service center locations, and replacement parts. They can be

reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style (located on the

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380 (Please do not send product to this location) www.laskoproducts.com

PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY
REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS
FOR INSTALLATION OR REPLACEMENT.

underside of your product). Please do not return product to place of purchase.

2

5084037Rev. A 9/07
