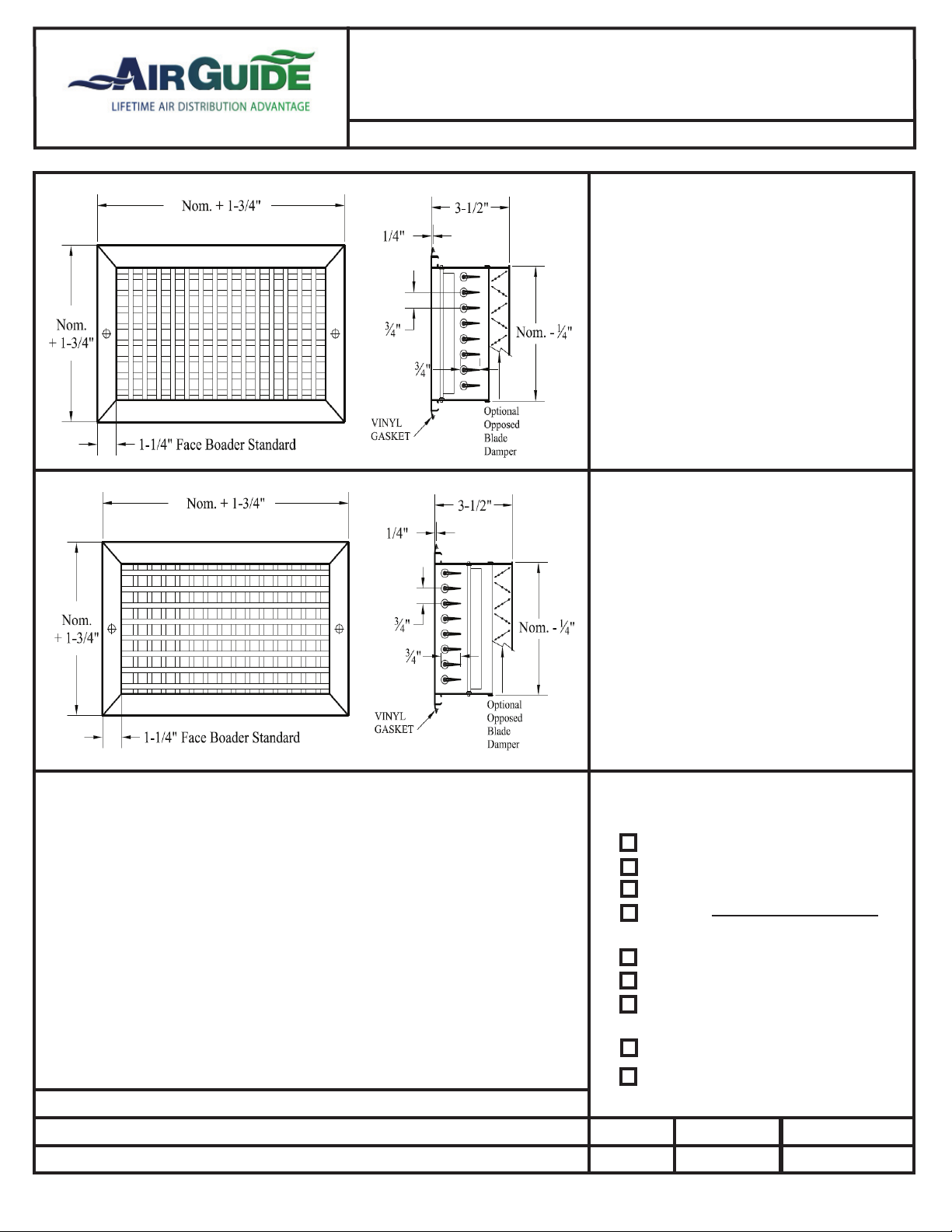

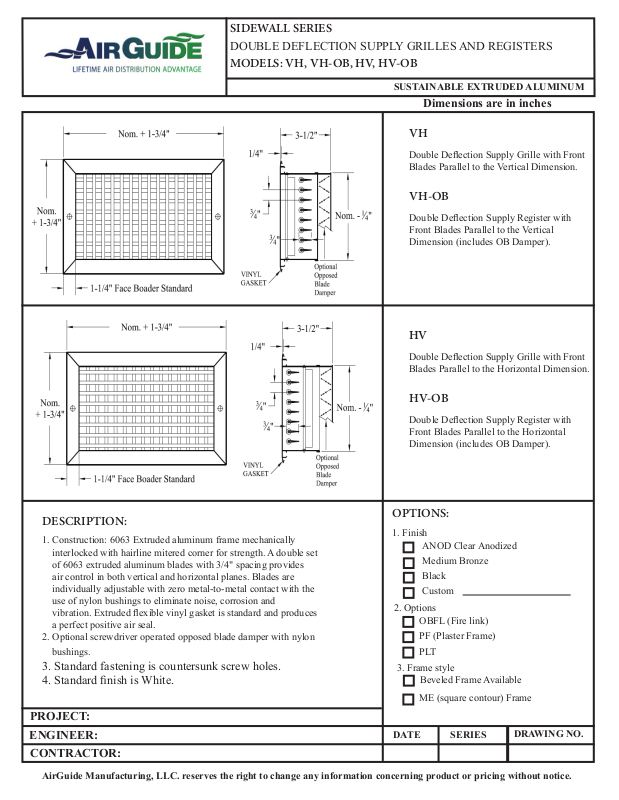

SIDEWALL SERIES
DOUBLE DEFLECTION SUPPLY GRILLES AND REGISTERS
MODELS: VH, VH-OB, HV, HV-OB
SUSTAINABLE EXTRUDED ALUMINUM
Dimensions are in inches
VH
Double Deflection Supply Grille with Front
Blades Parallel to the Vertical Dimension.
VH-OB
Double Deflection Supply Register with
Front Blades Parallel to the Vertical
Dimension (includes OB Damper).
DESCRIPTION:
1. Construction: 6063 Extruded aluminum frame mechanically
interlocked with hairline mitered corner for strength. A double set
of 6063 extruded aluminum blades with 3/4" spacing provides
air control in both vertical and horizontal planes. Blades are
individually adjustable with zero metal-to-metal contact with the
use of nylon bushings to eliminate noise, corrosion and
vibration. Extruded flexible vinyl gasket is standard and produces
a perfect positive air seal.
2. Optional screwdriver operated opposed blade damper with nylon
bushings.
3. Standard fastening is countersunk screw holes.
4. Standard finish is White.
HV
Double Deflection Supply Grille with Front
Blades Parallel to the Horizontal Dimension.
HV-OB
Double Deflection Supply Register with
Front Blades Parallel to the Horizontal
Dimension (includes OB Damper).
OPTIONS:
1. Finish
ANOD Clear Anodized
Medium Bronze
Black
Custom
2. Options
OBFL (Fire link)
PF (Plaster Frame)
PLT
3. Frame style
Beveled Frame Available
ME (square contour) Frame
PROJECT:
ENGINEER:
DATE SERIES
DRAWING NO.
CONTRACTOR:
AirGuide Manufacturing, LLC. reserves the right to change any information concerning product or pricing without notice.
