CAUTION:
Use an approved ABS to PVC transition cement such as Oatey or Hercules
which is NSF Certified and meets ASTM D 3138 when connecting to PVC
pipe.
Placentia, California
Model:
IMPORTANT:
The ET120-001 general-purpose standpipe air gap is designed for residential
and commercial water treatment equipment and condensate lines that require
an air gap discharge to the drain. The ET120-001 air gap is perfect for
applications where a rigid Schedule-40 pipe must be plumbed to an approved air
gap device. The ET120-001 provides a convenient, ready-made, true air gap for
all Schedule-40 DWV standpipes.
The general-purpose standpipe air gap provides many advantages and ensures
safety and peace of mind that your water supply is uncontaminated. These
advantages include:
Designed to allow water to flow only in the desired direction
Strong material to provide durable connection
Protection against splash or spray through the air gap window
Tested and listed for compliance with applicable plumbing codes
Legal to install in any state
The ET120-001 general-purpose standpipe air gap is listed by UPC© and tested
for compliance with IPC© and NSF© standards.

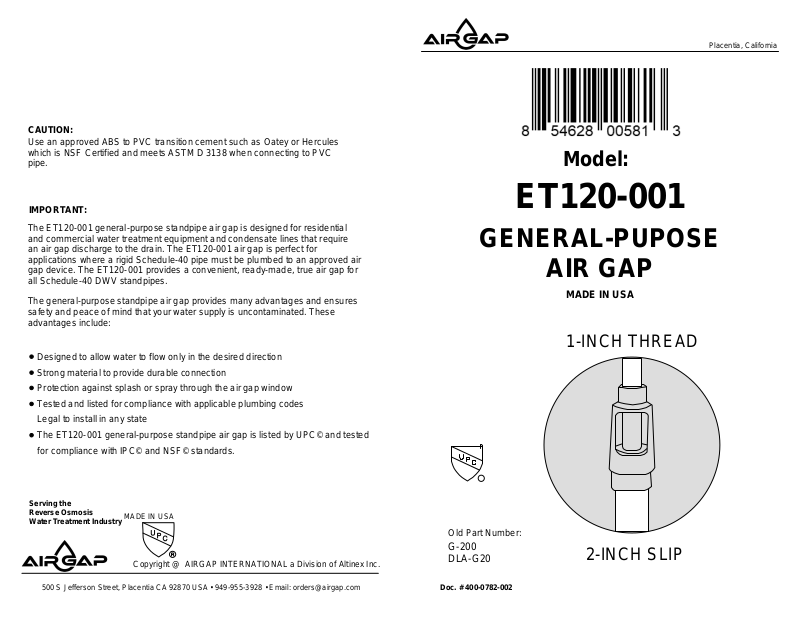

ET120-001
GENERAL-PUPOSE
AIR GAP
MADE IN USA
1-INCH THREAD
Serving the
Reverse Osmosis
Water Treatment Industry
500 S Jefferson Street, Placentia CA 92870 USA • 949-955-3928 • Email: [email protected]
MADE IN USA
Copyright @ AIRGAP INTERNATIONAL a Division of Altinex Inc.
Old Part Number:
G-200
DLA-G20
Doc. # 400-0782-002
2-INCH SLIP
Page 2
ET120-001
Installation Procedures
LIST OF PARTS ENCLOSED
1 – General-purpose air gap
• The ET120-001 is a general-purpose air gap for use with water
softeners, iron filters, water heaters, ice makers, and water filters.
• To install the ET120-001 general-purpose air gap, follow instructions in
this user guide.
Installation
1.
Make sure that the drain pipe has P-trap installed.
2.
The ET120-001 should be installed at least 18 inches above the P-trap to avoid
water splashing back from the air gap.
3.
Insert the ET120-001 air gap vertically. For permanent installations, use approved PVC glue.
To avoid splashing noise, install a 22 degrees elbow between the air gap and the P-trap.
4.

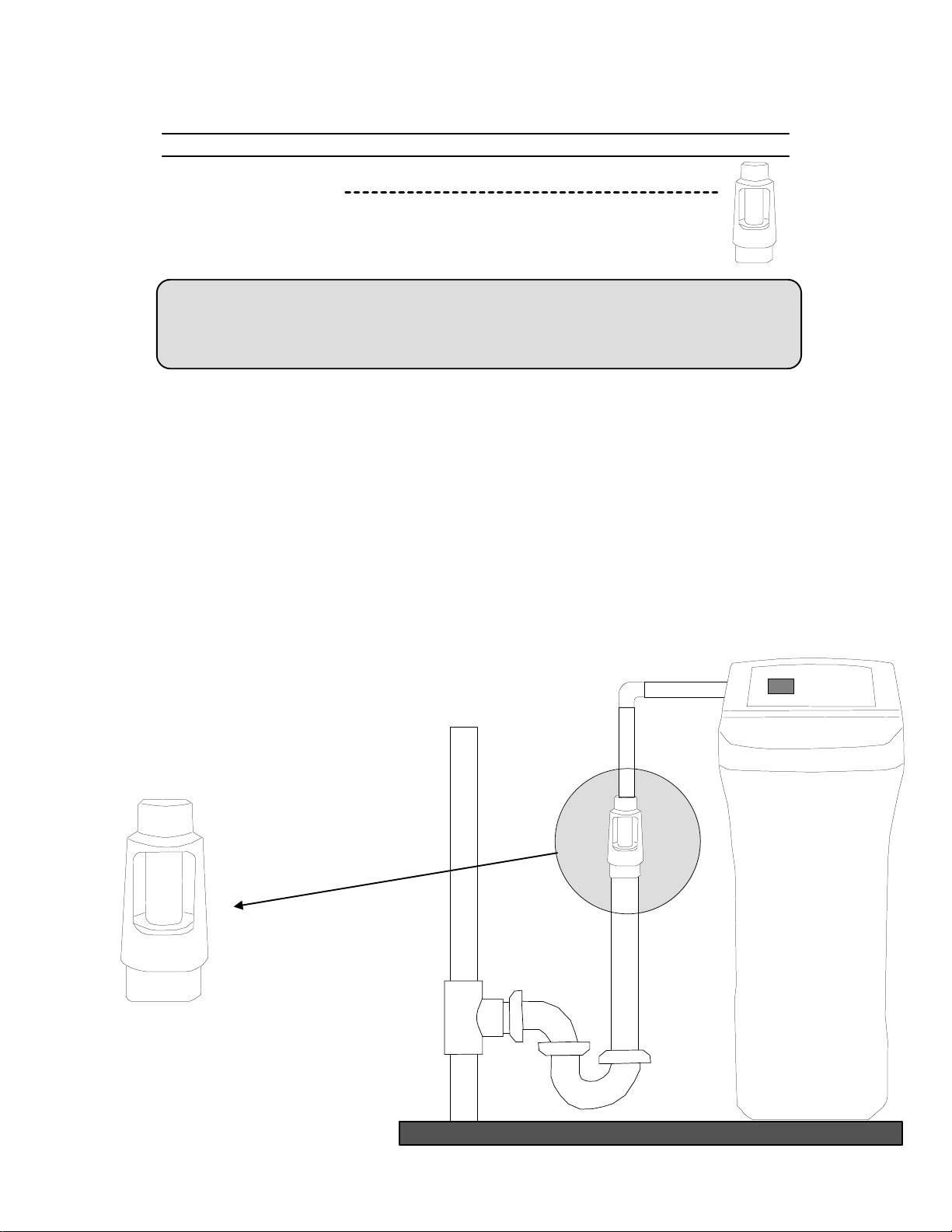

1-inch PVC pipe
Vent
1-INCH THREAD
FIG. 1
2-INCH SLIP
P-trap
