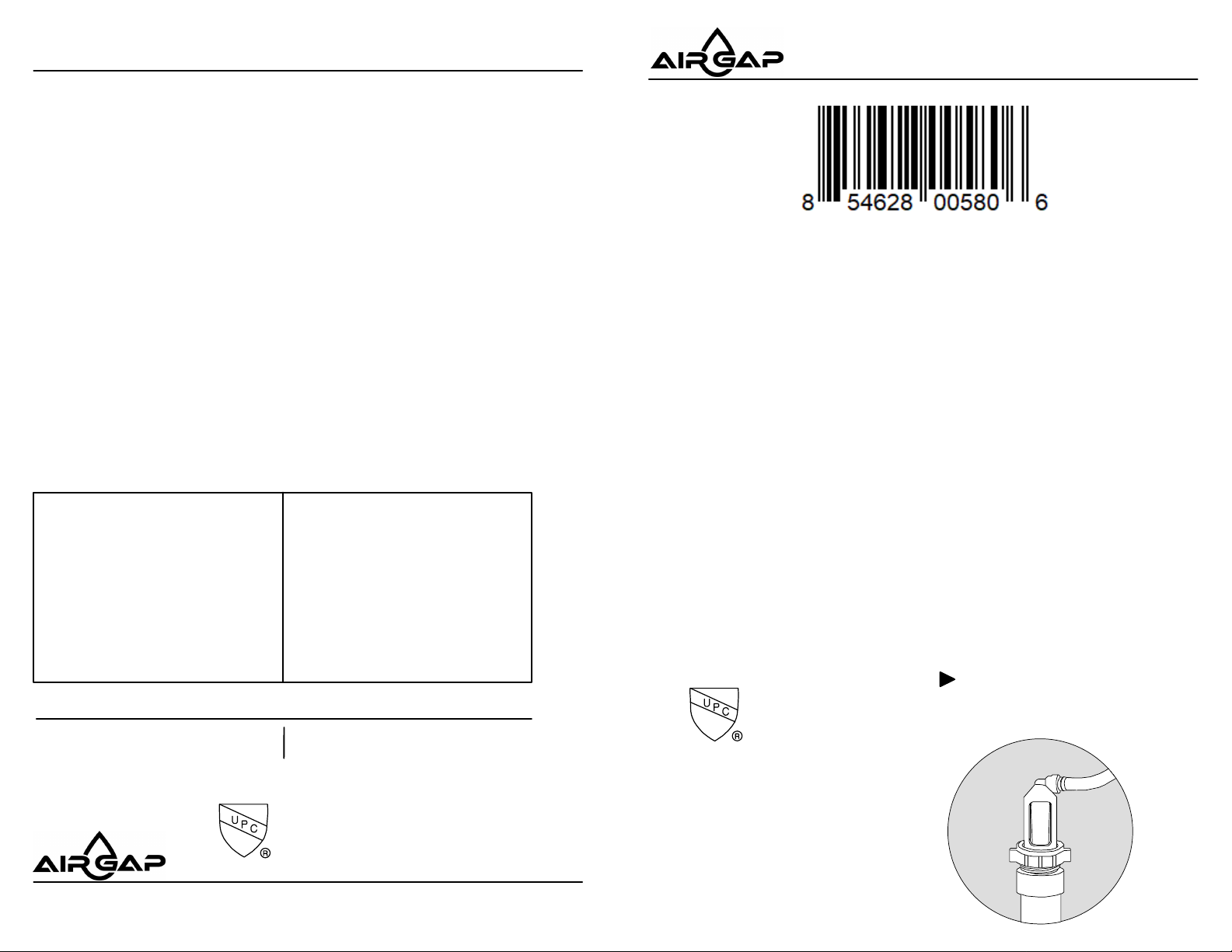

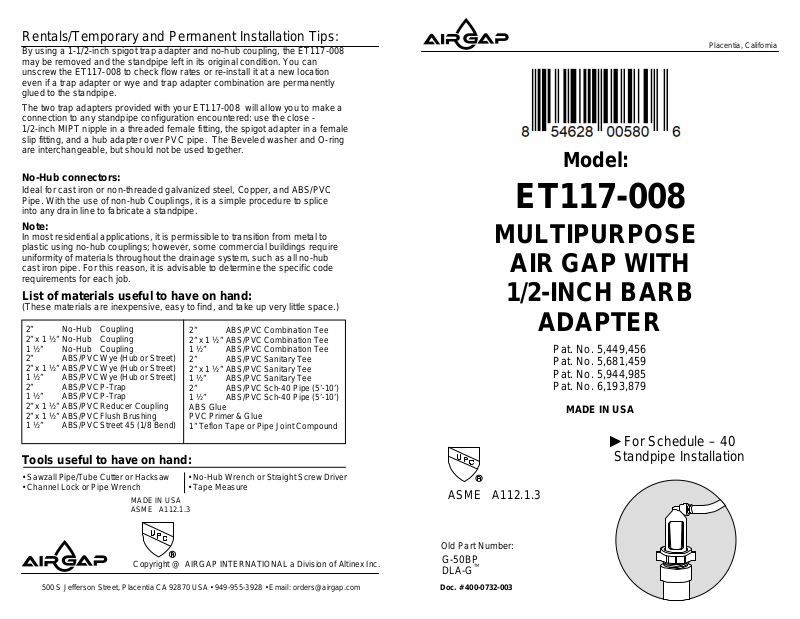

Rentals/Temporary and Permanent Installation Tips:
By using a 1-1/2-inch spigot trap adapter and no-hub coupling, the ET117-008
may be removed and the standpipe left in its original condition. You can
unscrew the ET117-008 to check flow rates or re-install it at a new location
even if a trap adapter or wye and trap adapter combination are permanently
glued to the standpipe.
The two trap adapters provided with your ET117-008 will allow you to make a
connection to any standpipe configuration encountered: use the close 1/2-inch MIPT nipple in a threaded female fitting, the spigot adapter in a female
slip fitting, and a hub adapter over PVC pipe. The Beveled washer and O-ring
are interchangeable, but should not be used together.
No-Hub connectors:
Ideal for cast iron or non-threaded galvanized steel, Copper, and ABS/PVC
Pipe. With the use of non-hub Couplings, it is a simple procedure to splice
into any drain line to fabricate a standpipe.
Note:
In most residential applications, it is permissible to transition from metal to
plastic using no-hub couplings; however, some commercial buildings require
uniformity of materials throughout the drainage system, such as all no-hub
cast iron pipe. For this reason, it is advisable to determine the specific code
requirements for each job.
Placentia, California
Model:
ET117-008
MULTIPURPOSE
AIR GAP WITH
List of materials useful to have on hand:
(These materials are inexpensive, easy to find, and take up very little space.)
2”
2” x 1 ½”
1 ½”
2”
2” x 1 ½”
1 ½”
2”
1 ½”
2” x 1 ½”
2” x 1 ½”
1 ½”
No-Hub
No-Hub
No-Hub
ABS/PVC
ABS/PVC
ABS/PVC
ABS/PVC
ABS/PVC
ABS/PVC
ABS/PVC
ABS/PVC
Coupling
Coupling
Coupling
Wye (Hub or Street)
Wye (Hub or Street)
Wye (Hub or Street)
P-Trap
P-Trap
Reducer Coupling
Flush Brushing
Street 45 (1/8 Bend)
2”
2” x 1 ½”
1 ½”
2”
2” x 1 ½”
1 ½”
2”
1 ½”
ABS Glue
PVC Primer & Glue
1” Teflon Tape or Pipe Joint Compound
ABS/PVC
ABS/PVC
ABS/PVC
ABS/PVC
ABS/PVC
ABS/PVC
ABS/PVC
ABS/PVC
Combination Tee
Combination Tee
Combination Tee
Sanitary Tee
Sanitary Tee
Sanitary Tee
Sch-40 Pipe (5’-10’)
Sch-40 Pipe (5’-10’)
Tools useful to have on hand:
• Sawzall Pipe/Tube Cutter or Hacksaw
• Channel Lock or Pipe Wrench
MADE IN USA
ASME A112.1.3
Copyright @ AIRGAP INTERNATIONAL a Division of Altinex Inc.
500 S Jefferson Street, Placentia CA 92870 USA • 949-955-3928 • Email: [email protected]
• No-Hub Wrench or Straight Screw Driver
• Tape Measure
1/2-INCH BARB
ASME A112.1.3
Old Part Number:
G-50BP
DLA-G
Doc. # 400-0732-003
TM
ADAPTER
Pat. No. 5,449,456
Pat. No. 5,681,459
Pat. No. 5,944,985
Pat. No. 6,193,879
MADE IN USA
For Schedule – 40
Standpipe Installation
Page 2
ET117-008
Installation Procedures
For Stand Pipe Applications
LIST OF PARTS ENCLOSED
1 – Air gap with 1/2-inch Barb Connection
1 – 1-1/2-inch Schedule – 40 (Hub x Male Pipe Thread) PVC Trap Adapter
1 – 1-1/2-inch Schedule – 40 (Spigot x Male Pipe Thread) PVC Trap Adapter
1 – 1-1/2-inch Slip Joint Wing Nut
1 – 1-1/2-inch Slip Joint Beveled Washer
1 – 1-1/2-inch Nitrile O-Ring
(for alternate use instead of washer)
• The ET117-008 provides an air gap for all Schedule-40 DWV standpipes.
• These instructions are intended for a professional installer. Examples are
provided without giving details of every procedure.
The standpipe used with an ET117-XXX Series air-gaps must be trapped, vented and fabricated from a Schedule-40
Drain Waste and Vent material that has been approved in your area, such as: ABS, PVC, galvanized steel, copper,
or no-hub cast iron with an inside diameter of 1-1/2-inch or greater. This will ensure compliance with plumbing code
requirements.

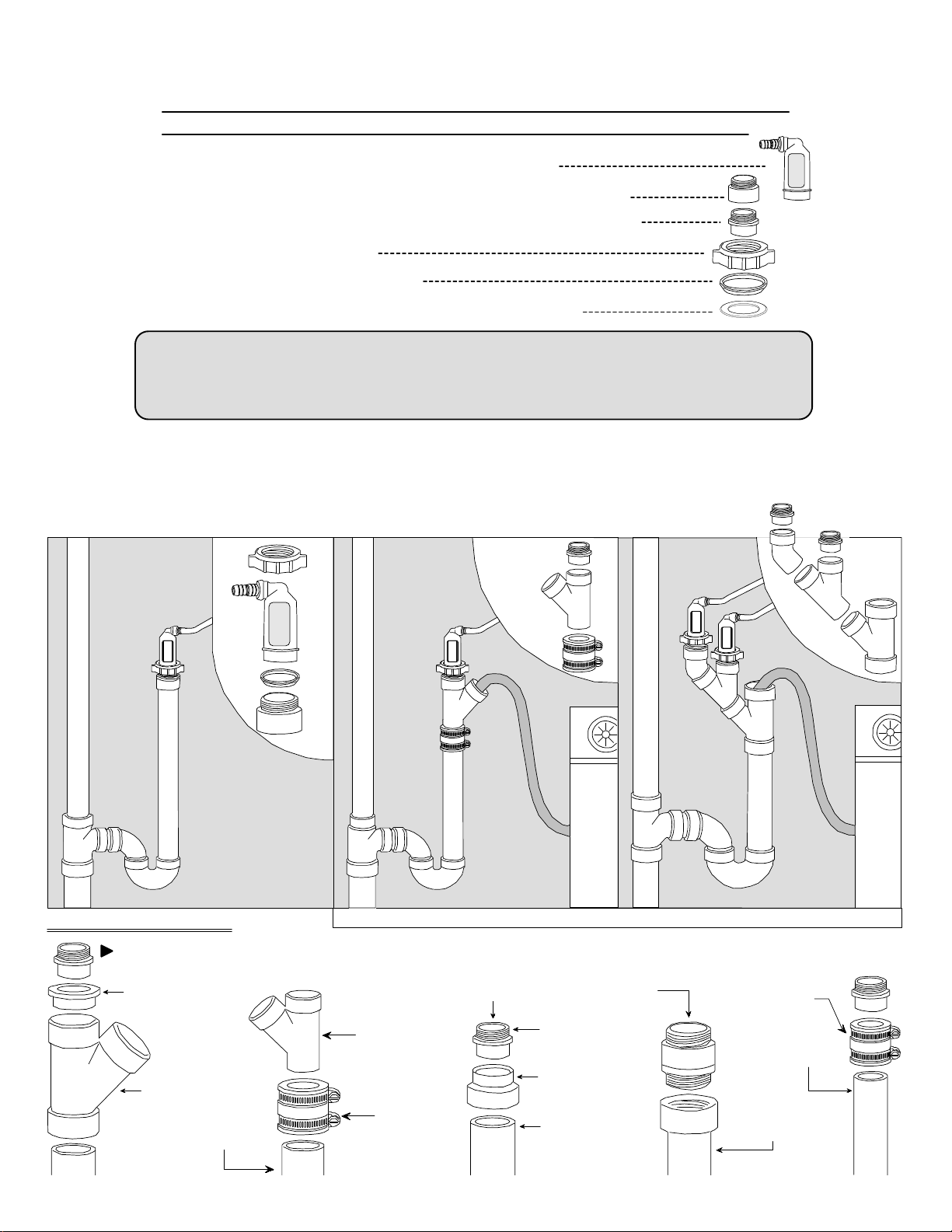

Below are the three practical standpipe configurations:
The examples below:
Details on how the ET117-XXX air gaps may be adapted to different pipe materials and size encountered in the
field:
2” x 1 ½” ABS or
PVC Brushing
2” ABS or
PVC Wye
Sch-40 Pipe (any material)
Combination residential water softener / RO / washing machine drain configurations
Mated
1 ½” Street Wye
(any material)
2” x 1 ½”
No-Hub Coupling
(Typical)
H x MPT & SP x MPT
Trap Adapters
1 ½” ABS/PVC
SP x MPT
Trap Adapter
2” x 1 ½” ABS/ PVC
Reducer coupling
2’ Sch-40
ABS/PVC Pipe
1 ½” No-Hub
Coupling
1 ½” Pipe
(any material)
1 ½” Galv.
Steel Pipe
with Coupling
-OVER-
