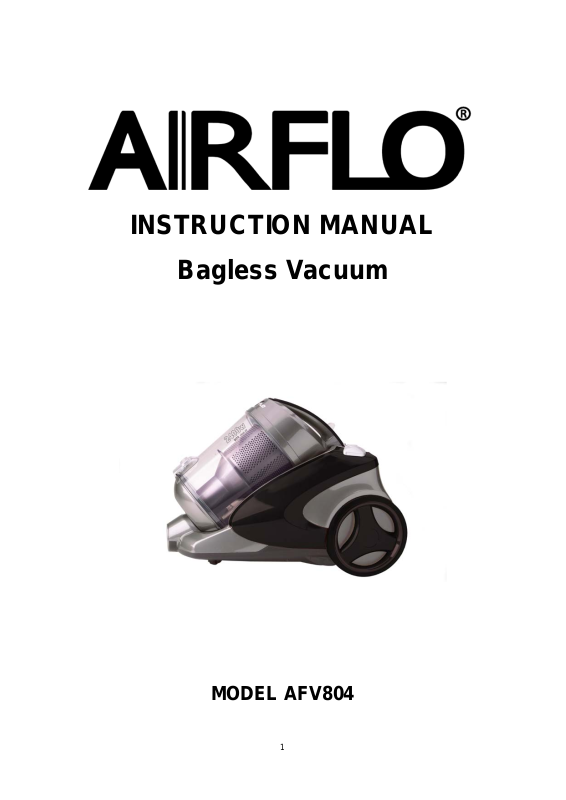

Page 1
INSTRUCTION MANUAL
Bagless Vacuum
MODEL AFV804
1
Page 2
Safety directions:
1. Please r ead I n s t r uct ion Manual before c ommencing operations
2. Before use, make s ure t he dust cup is properly installed.
3. Make sure the power supply is 220-240V, 50/60Hz
4. Do not vacuum water and inflammable mater ia l.
5. Do not vacuum burning material and ashes .
6. Do not use the machine w ithout filter.
7. Do not use the dust cup if it is damaged.
8. Do not st ore or use the machine in high tem per at ur e p laces.
9.
This applia nce is not intended for use by person/s (including children) with reduced
physical, sensory or mental ca pabil ities , or la ck of experience and knowledge, unless t hey
have bee n given supe rvis ion or instr ucti on concerning us e of t he appliance by a person
responsible for their s afety.
10. If abnormal noise, or burning smell, sm oke or any other failure is f ound during operations, you
should turn off the switch and unplug it. T hen contac t your ser vice center for repair. Do not
repair it yourself.
11. If the supply c ord is damaged, it mus t be replaced by the manufacturer or its ser vic e agen t o r a
similarly qualif ied pers on in order to avoid a hazard.
Introduction of Product:
1 2 3 4 5 6 7 8 9
1. Hose c onnection 2. Dust cup 3. Dust cup cradle
4. Rubber fl oor prote ctors 5. ON / OFF button 6. Cord rewind button
7. Speed control 8. External filter housing 9. Power cord
2
Page 3
Ope rat ion me tho ds:
1. Connect the hose by inserting it into the suction inlet. (Fig 1)
2. Connect the telescopic ro d to the hos e elbow. (Fig 2)
3. Connect the floor nozzle tool or any other accessories to the telescopic rod for different
cleaning purpose : Floor brus h for carpet or floor (Fig3); combined brush & nozzle for s ofa,
walls, c urta ins, corner or space between furniture and etc. (Fig4)
4. To start the machine: insert the power plug into the w all soc ket and depress t he on/off button.
(Fig 5)
5. To rewind the cor d, pr ess the cord rew ind button marked w ith cor d symbol. (Fig 6)
1 2 3
4 5 6
Maintenance:
1. Empty the dust cup after every use, be sure not to over fill it.
● To remove dust cup from cr adle, press the cup locket（Fig. 7）and pull in upward direction.
● Tw ist the cup to separate from the top handle cover（Fig. 8）
● To remove the internal filter cover, twist and separ at e，and then twist HEPA f ilter to r emove
and cleaner （Fig. 9 and 10）
2. To remove the rear filter, depress lock on the filter c over and the filter w ill be ass ess able. Be
su r e to c lean and r ep lace t he f ilter f or m aximum effic ienc y. ( Fig 11 and 12)
7 8 9
3
Page 4
10 11 12
WARNING:
This app lia nce is not intended for use by persons (including children) with reduced
1.
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety
2. Children s hould be supervis ed to ensure that they do not play with the appliance.
Warranty I nf ormation:
The manufacturer provides warranty in accordance with the legislation of the customer's own
count ry of residenc e, w ith a minimum of 1 year, st arting fr om the date on w hich the appliance is
sold to the end user.
The warranty only covers defects in material or wor kmanship.
The repairs under warranty may only be carried out by an authorized service centre. When making
a c laim under the warranty, the origina l bill of purchase (w ith purchase date) mus t be submitted.
The warranty will not apply in cases of:
- N or m al w ear and tear
- I ncorrect use, e.g. overload ing of the applianc e, us e of non-approved accessor ies
- Use of force, dam age caused b y ext er n al inf luenc es
- Damage caus ed by non-observanc e of the user manual, e.g. connec tion to an unsuitable mains
supply or non-compliance w ith the installation ins tructions
- P artially or c omplete ly dismantled appliances
.
4
