INSTRUCTION MANUAL

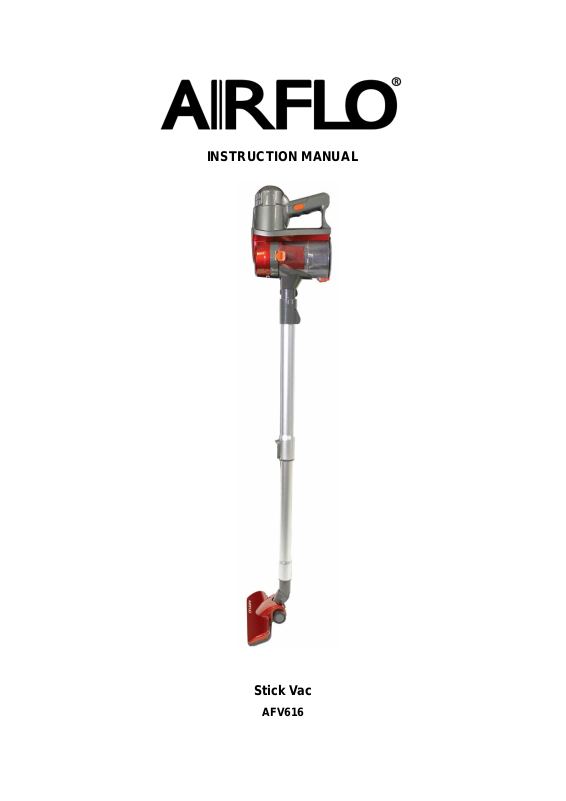

Stick Vac
AFV616
Page 2
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic safety precautions should always be observed, including
the following
READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANER.
WARNING: To reduce the risk of fire, electrical shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. Use only as described in this manual. Use only manufacturer’s recommended attachments.
5. Do not use with damaged cord or plug. Do not use vacuum if it has been dropped, damaged, left
outdoors, or dropped in water. Return it to an authorized service center.
6. Do not pull or carry by cord, use cord as a handle, or pull cord around sharp edges or corners.
7. Do not run appliance over cord. Keep cord away from heated surfaces.
8. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
9. Do not handle plug or appliance with wet hands.
10. Do not put any object into openings. Do not use with any opening blocked; keep free of dust,
lint, hair and anything that may reduce air flow.
11. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or got ashes.
13. Turn off the control before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where
they may be present.
16. Follow all label and marking instructions.
17. Keep end of hose, rods and other openings away from your face and body.
18. Do not use the vacuum cleaner without dust cup filter in place.
19. Always unplug this appliance before connecting or disconnecting vacuum hose.
20. Store the vacuum indoors. Put the vacuum away after use to prevent tripping accidents.
21. Using improper voltage may result in damage to the motor and possible injury to the user.
Correct voltage is listed on the rating label.
22. Use only on dry, indoor surfaces.
23. Do not use for any purpose other than described in this user’s guide.
24. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Page 3
PARTS
8
9
Dust Cup Cover
Dust Cup
Release Button
Dust Cup Cover
for Air Exhaust
Plastic Centering
Filter System
Dust Cup
Dust Cup Bottom
Dust Cup Set
5
6
4
7
3
1
2
1. Main Floor brush
2. Telescopic rod
3. Dust tank lock
4. Power Switch
5. Dust tank
6. Upper release button for dust tan k
7. Bottom re lease button for dust tank
8. Multi Crevice Brush
9. HEPA filter
Page 4
PRECAUTIONARY MEASURES
to pull the
from the wall contact,
If the opening that sucks in the air is blocked, you should switch off the vacuum cleaner at
once. Clear the blockage before you attempt to restart the vacuum cleaner.
1. Do not operate the vacuum
cleaner too close to heaters
or radiators. Do not pick
up cigarette butts etc.
2. Before you insert the plug
into the wall contact, make
sure your hand is dry.
3. Before you start using the
vacuum cleaner, please remove
large or sharp objects from the
floor to prevent the filter being
damaged. Do not use the
vacuum to clean anything that is
flammable.
4. When you want
plug
pull the plug itself and not the
electrical cable.
Page 5
ASSEMBLING YOUR VACUUM CLEANER
the underside of dust cup to
position and direction). Then push
fig.B
2、move
1、push here
Always remove the plug from the power socket before fitting or removing accessories.
1.Fitting the vacuum cleaner
Before you use the vacuum, you must
install the brush into the body first.
2. Extending the rod
Extending the rod will make it easier for you to
reach and clean the floor. Either connect it to the floor
brush or to the multi brush (2-in-1) for vacuuming
furniture, shelves, etc.
3.Remove and install the dust cup
(a) Remove dust cup from body: push
the release button of dust cup then
take out the dust cup from body. (fig.
A)
(b) Install dust cup on body: first,
connect
the body. (pay attention to the fitting
the dust cup all the way to the body
(fig.B).
fig.A
Page 6
CLEANING THE APPLIANCE
dust will fall
too dirty, press the
filter assembly out of the dust cup, then
ry them completely before
case box. Clean the Sponge and HEPA filter
All the
e recommend you to
positioned back
Plastic Centering
Filter System
Filter Assembly
Dust Cup Bottom
Release Button
Push
A. Cleaning the dust cup
1. Remove the dust cup from body.
2. Press the dust cup bottom release button
to release the dirt inside (
down automatically, fig. A)
If the filter system is
3.
dust cup cover release button, take out the
clean them with a soft brush or wash them
with water. D
you use again. (fig. B).
fig.A
B. Cleaning the HEPA filter / sponge
1. Remove the dust cup from body.
2. Rotate the dust cup cover counter-clockwise
and take out the dust cup cover. Draw out the
sponge and HEPA filter set.
3. Pull up the knob of the filter frame and pull
out the sponge filter and HEPA filter from the
with a soft brush or rinse it in lukewarm water.
Dry them completely before use. (
filters are washable. W
clean the filters when the suction power is
becoming weak, fig. B)
Note: Filters should be
properly for the vacuum to work efficiently.
(fig. A)
fig.B
fig.A
fig.B
Page 7
TROUBLESHOOTING GUIDE
Remove dust cup filter and
for object(s) in air duct
Puncture/hole in dust cup
Review dust cup filter
BRUSHES WILL NOT
1.Empty and clean dust cup
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
HAND VACUUM
WILL NOT OPERATE
HAND VACUUM
WILL NOT PICK-UP
OR SUCTION
POWER IS WEAK
DUST ESCAPING
FROM HAND
VACUUM
1. No power in electrical outlet
2. Unit needs servicing
1. Dust cup is full.
2. Dust cup filter needs
cleaning.
1. Dust cup is full.
2. Dust cu p filter is not installed
correctly.
3.
filter.
1. Check fuse or breaker.
Replace fuse/reset breaker.
1. Empty dust cup
2.
check
and remove.
1. Empty dust cup .
2.
instruction.
3. Replace dust cup filter.
HAND VACUUM
PICK-UP
1. Dust cup is full.
container.
