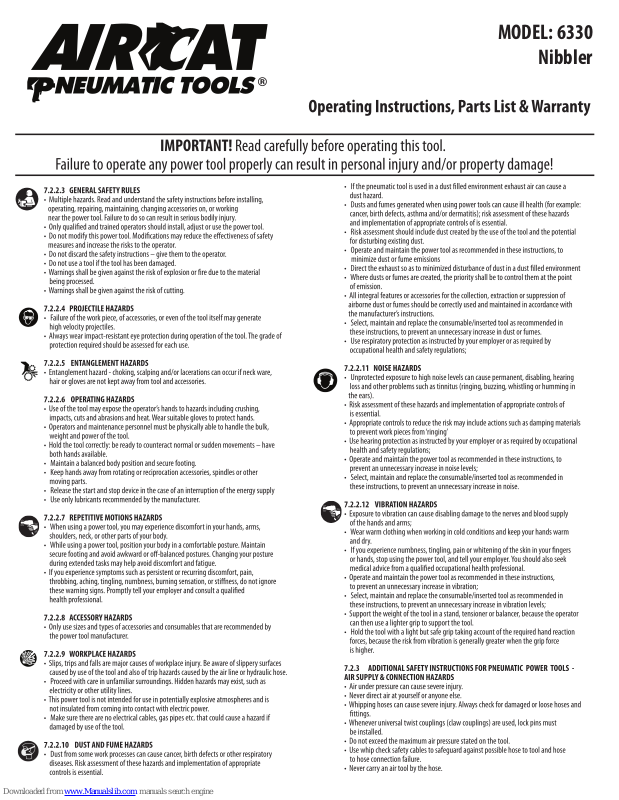

Air cat 6330 Operating Instructions, Parts List & Warranty

MODEL: 6330

Nibbler

Important Warnings - Grinders & Cut-Off Tools

SPECIFICATIONS

Model Free Speed Cutting Weight Length Air Cons.

Number (RPM) Capacity (lbs) (In) (CFM)

6330 2600 18 Gauge 2- 1/4 7-0 3.5

Air Supply

Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free. Higher
pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty. Water in the air line will
cause damage to the tool. Drain the air tank daily. Clean the air inlet lter screen on at least a weekly schedule. The recommended hookup procedure can be viewed
in the illustration below. The air inlet, used for connecting air supply, has standard 1/4” NPT American Thread. Line pressure should be increased to compensate for
unusually long air hoses (over 25 feet). Minimum hose diameter should be 3/8” I.D. and ttings should have the same inside dimensions.
