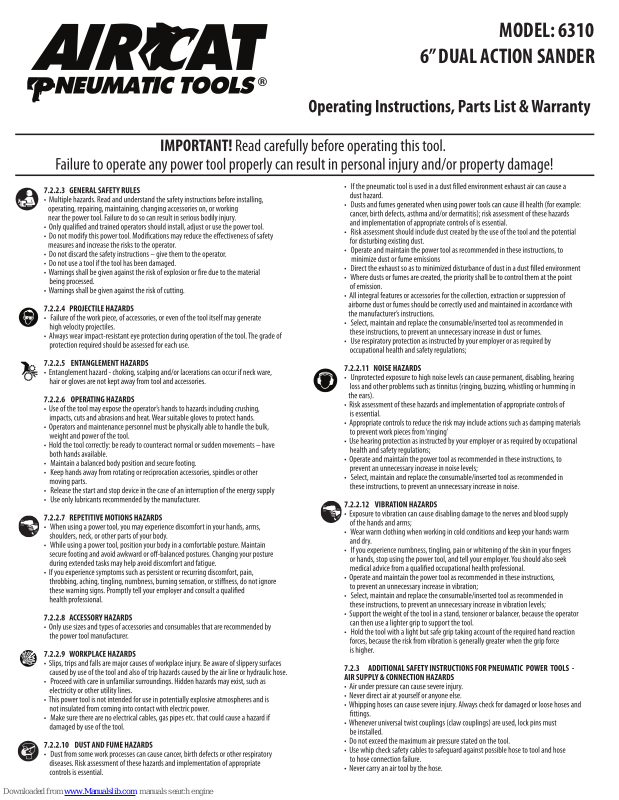

Page 1
MODEL: 6310
6” DUAL ACTION SANDER
Page 2
Important Warnings - Sanders & Polishers
1. Eye protection, safety gloves and safety aprons must always we worn when operating a sander or
polisher.
2. Never adjust the sander or polisher or change the backing pad, sanding disc, sanding belt or
polishing bonnet unless the air supply and air hose is disconnected from the tool
3. Only use backing pads and polishing backing pads that have a rated speed then same as the sander
or polisher or higher.
4. Never attempt to modify or adapt a sander or polisher for use with a grinding wheel or cut-off wheel
or wire brush.
5. Only personnel trained in the correct methods to change pads, sanding discs, sanding belts and
polishing bonnets should conduct these operations.
SPECIFICATIONS
Model No.
6310 10,000 6 5/16 - 24 3/16 2.25 10.5 2.5 3/8 1/4 NPT
Free Speed
(RPM)
Pad Size
(in.)
Spindle Thread
(in.)
Orbit
(in.)
Weight
(lbs.)
Length
(in)
Air Cons.
(CFM)
Rec. Hose
Size
(in.)
Air Inlet
(in.)
Air Supply
Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free. Higher
pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty. Water in the air line will
cause damage to the tool. Drain the air tank daily. Clean the air inlet lter screen on at least a weekly schedule. The recommended hookup procedure can be viewed
in the illustration below. The air inlet, used for connecting air supply, has standard 1/4” NPT American Thread. Line pressure should be increased to compensate for
unusually long air hoses (over 25 feet). Minimum hose diameter should be 3/8” I.D. and ttings should have the same inside dimensions.
Page 3
MODEL: 6310
6” DUAL ACTION SANDER

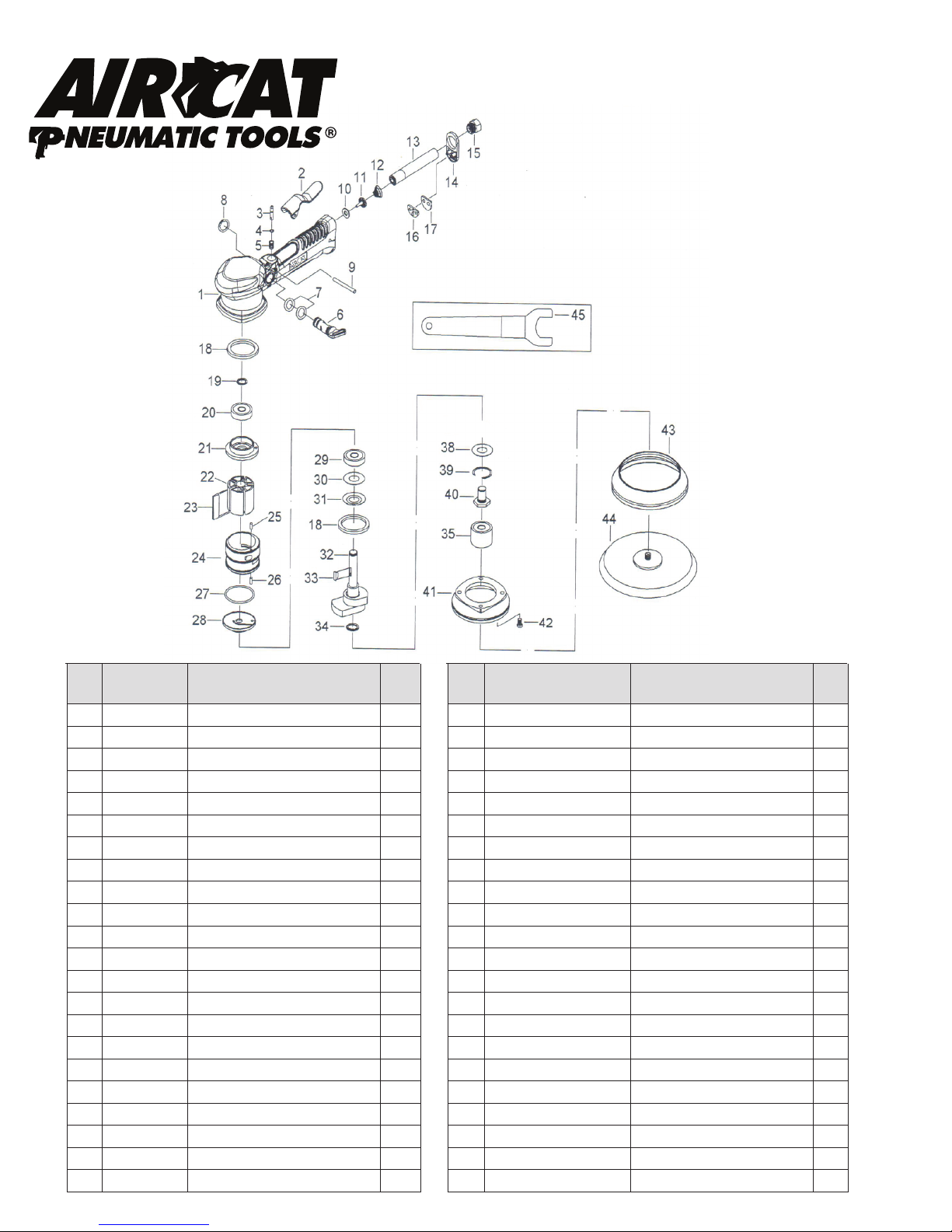

Exploded View & Parts List
Ref #Part Number Description Qty Ref #Part Number Description Qty.
1 9HS501-1A HOUSING (AIRCAT) 1 23 92HS-23 ROTOR BLADE 5
2 9HS502 LEVER (BLACK) 1 24 9ST2HG-27B CYLINDER 1
3 9A-05 VALVE STEM 1 25 9ST246014 PIN 1
4 9OB-04 O-RING 1 26 981326 PIN 1
5 9HS505 BUSHING 1 27 9OB-24 O-RING 1
6 9HS506 REGULATOR (BLACK) 1 28 9STOB-25 FRONT PLATE 1
7 9OB-02 O-RING 2 29 9OB-26A BEARING 1
8 9OB-30 SNAP RING 1 30 9OB-28 WASHER 1
9 9ST25116 PIN 1 31 9E-29 WASHER 1
10 9ST288316 WASHER 1 32 9SX2HS-34-1 MOTOR SHAFT BALANCER 1
11 9ST288315 VALVE 1 33 9ST70407 ROTOR KEY 1
12 9ST288314 SPRING 1
13 9HS513 HOSE 1
14 9HS514 MUFFLER 1
15 9HS515 AIR INLET 1
16 9HS546 WASHER 1
17 9HS547 SILENCER 1
18 9OB86848 RUBBER WASHER 2
19 970410 SNAP RING 1
20 970048A BEARING 1
21 9STOB-19 REAR PLATE 1
22 9ST2HS-24 ROTOR 1
34 9OB-30 SNAP RING 1
35 9OB-101-32A BEARING 1
38 9OB-28.1 WASHER 1
39 9OB-33 SNAP RING 1
40 9S560-34 SHAFT 1
41 9HS541 HOUSING COVER 1
42 9OB-36 SCREW 4
43 9HS543 SHROUD 1
44 5436 PSA PAD 6 in. (AIRCAT) 1
45 9OB-39-22 STOP SPANNER 1

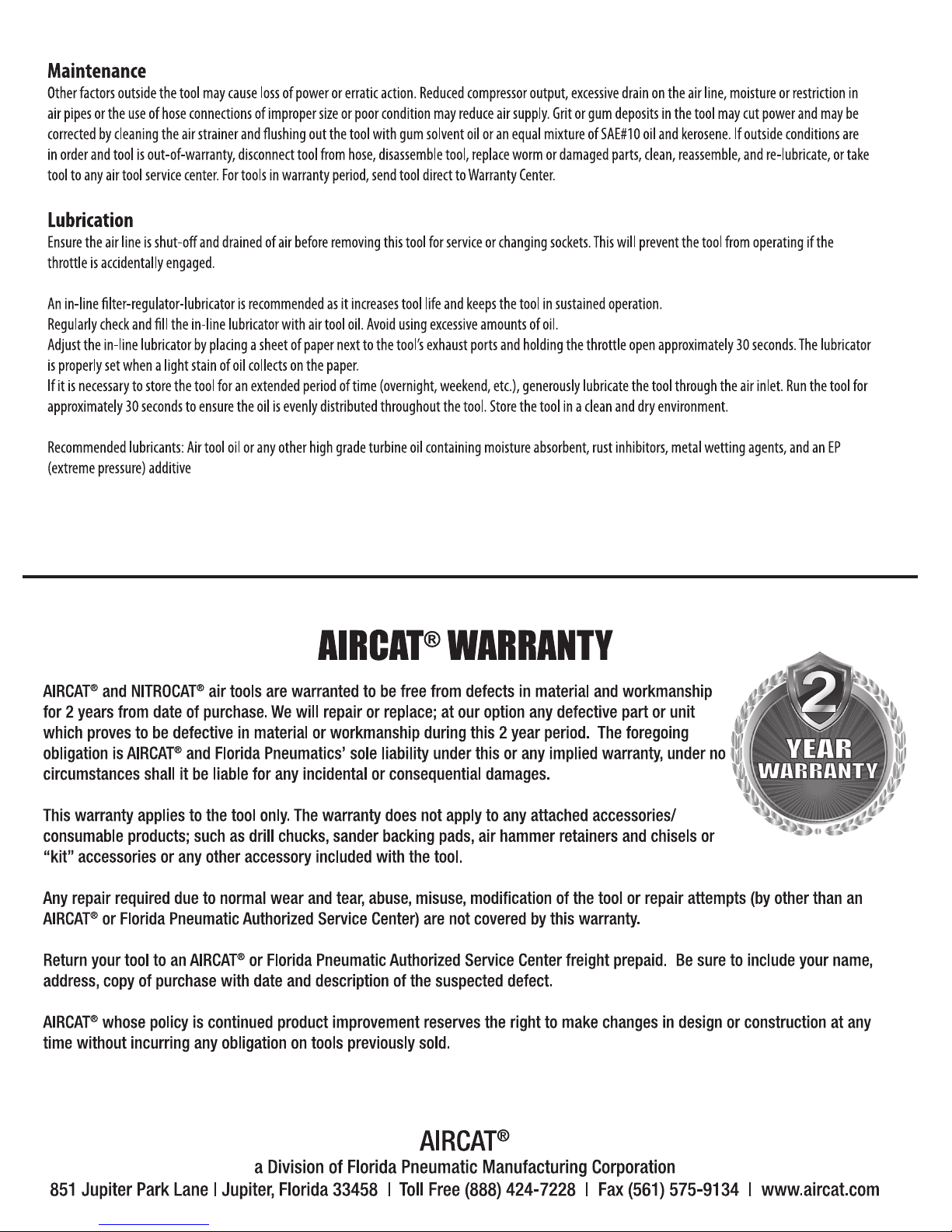

Page 4
SERVICE CENTER LISTINGS ENCLOSED
