Airaid 310-164 Installation Instructions

Installation Instructions

For Part Numbers:

310-164 700-456 Airaid Oiled Media Filter
311-164 701-456 SynthaMax Dry Media Filter - Red
312-164 702-456 SynthaMax Dry Media Filter - Black
313-164 703-456 SynthaMax Dry Media Filter - Blue

1997-2002 Jeep Wrangler (TJ)

2.5L I4

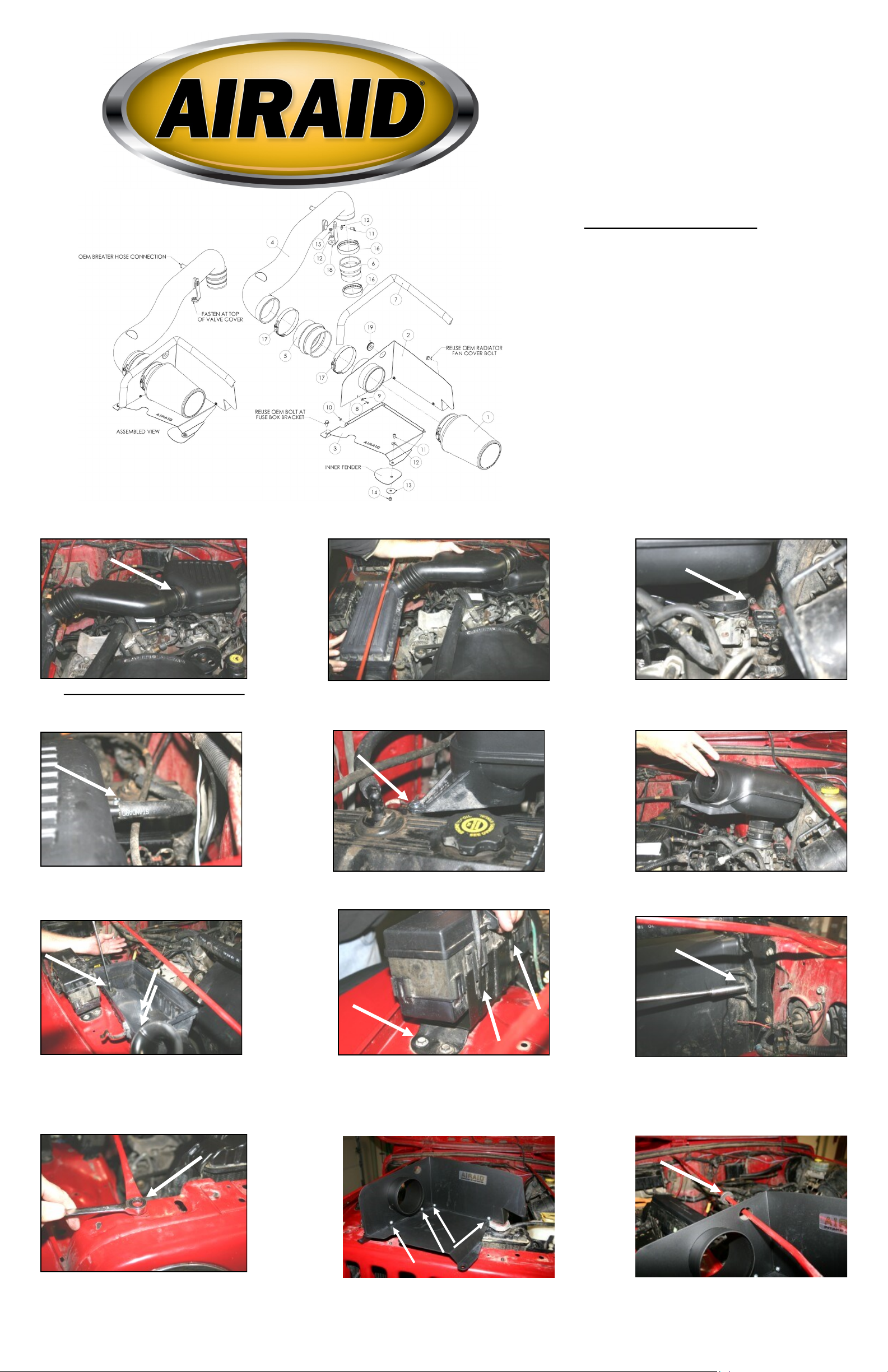

Component Identification

1. Airaid Premium Filter 1

2. MAF Panel 1

3. Bottom Panel 1

4. Airaid Intake Tube 1

5. Hump Hose 1

6. Reducer 1

7. Weather Strip 27” 1

8. 6-32x5/16” Screw 4

9. #6 Flat Washer 4

10. 6-32 Keps Nut 4

11. ¼”X20x1/2” Button Head Bolt 2

12. ¼” Flat Washer 3

13. 1/4” Fender Washer 1

14. 1/4-20 Nylock Nut 1

15. M6x12mm Hex Bolt 1

16. #44 Hose Clamp 2

17. #72 Hose Clamp 2

18. L-Bracket 1

19. Grommet 1

Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.

1. Disconnect the negative battery cable.
Loosen the hose clamp that holds the factory
intake tube to the resonator.

2. Unlatch the clips on the factory air cleaner
lid, next remove the lid, and tube as an assem­bly.

3. Loosen the clamp that holds the resonator to
the throttle body.

4. Disconnect the breather hose from the reso­nator.

7. Remove three bolts from inside the lower air
cleaner box and remove it from the vehicle.

5. Remove the bolt that holds the resonator to
the valve cover.

A.

B.

8. A.) On the right fender, pry two tabs away

from the fuse box, lift it up and set it off to the
side. B.) Next, remove and save the outside bolt
from the fuse box mount. It will be re-used in
step #14.

6. Remove the resonator from the vehicle.

9. Remove one bolt from the passenger side

radiator fan shroud and save it for step #15.

10. Remove and save the bolt from the pas­senger side radiator support brace. It will be re

-used in step #13.

11. Assemble the two Cool Air Dam panels (#2)
& (#3) using the four 6-32 screws (#8), #6 flat
washers (#9), and nuts (#10), as shown.

12. Slide the rubber grommet (#19) over the
radiator support, followed by the assembled
CAD. Use caution not to scr atch the paint
on the support rod.

13. Align the CAD over the mounting holes,
and re-install the factory bolt from step #10 in
the radiator support. Slide the grommet for­ward into the hole in the CAD as shown.

14. Re-install the factory bolt from step # 8
thru the CAD, and into the fender. Re-install the
fuse box on the factory mount.

15. Install the supplied 1/4”button head bolt
(#11), and 1/4” washer (#12), thru the CAD,
with the 1/4” fender washer (#13) and nut
(#14), on the bottom of the fender. Re-install
the factory bolt in the radiator shroud re­moved in step #9.

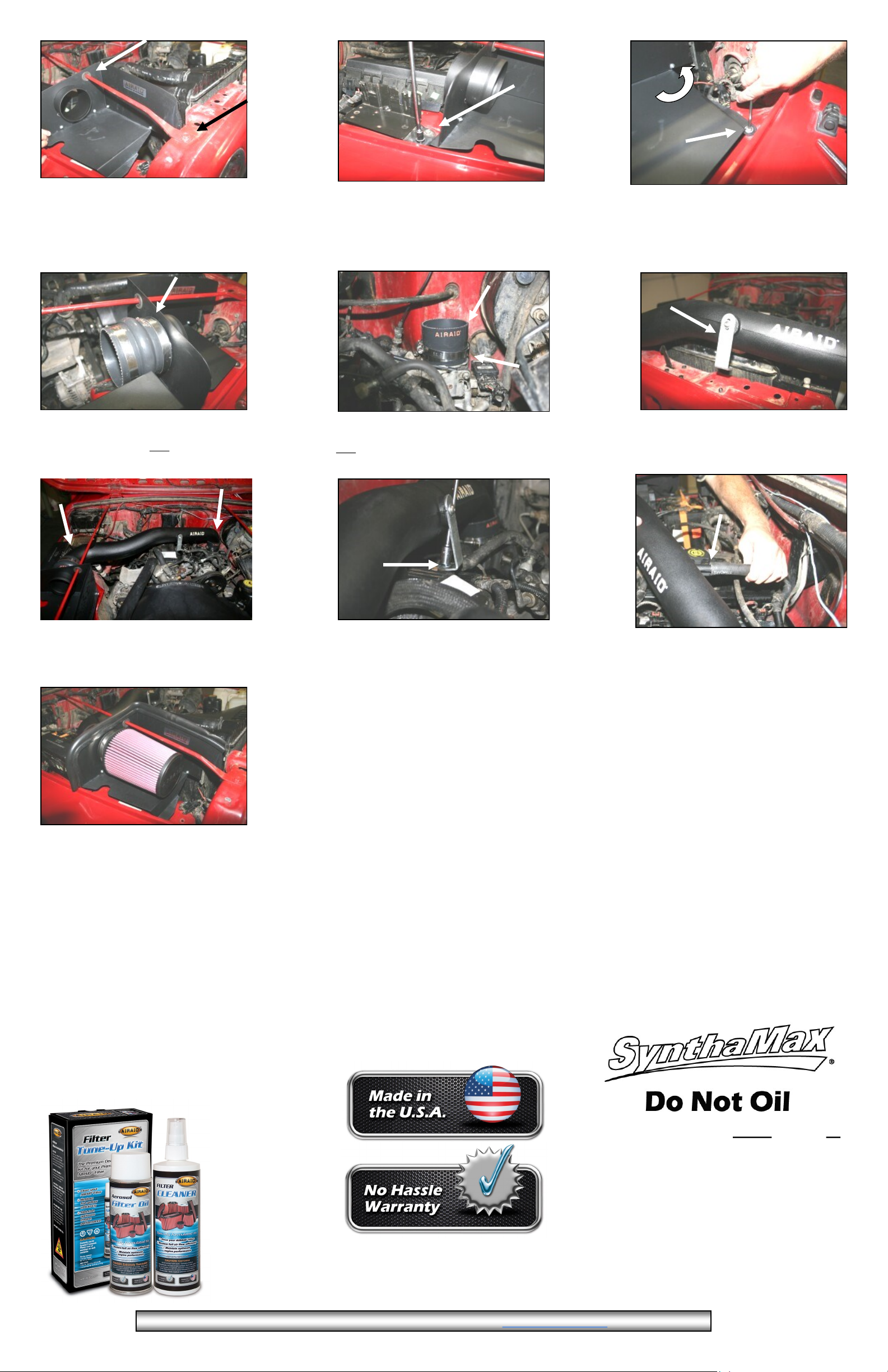

16. Install the hump hose (#5) onto the back
side of the CAD tube using two #72 hose
clamps (#17). Tighten only the hose clamp on
the metal tube for now.

A.

19. A.) Install the large end of the Airaid In-

take Tube into the hump hose.
B.) Now slide the small end into the reducer on
the throttle body.

B.

17. Install the reducer (#6) onto the throttle

body using two #44 hose clamps (#16). Tighten
only the hose clamp on the throttle body for
now..

20. Install the 6mm bolt (#15), and 1/4” flat
washer (#12), thru the L-bracket, and into the
valve cover, adjust for fit, and then tighten all
hose clamps, and bolts.

23. Double check your work!

Make sure there is no foreign material in the
intake path. Make sure all clamps, hoses,
bolts, and screws are tight. Periodically
check the tightness of all hose clamps, nuts,
and bolts.

18. Install the L-bracket (#18), onto the
Airaid Intake Tube (#4), using one 1/4” but­ton head bolt (#11), and flat washer (#12).
Leave the bolt loose for now.

21. Re-connect the breather hose to the
Airaid Intake Tube.

22. Install the Airaid Premium Filter (#1) onto
the CAD tube and tighten the hose clamp. Next,
install the weather strip onto the top of the
CAD as shown, starting at the fender, working
your way towards the radiator.

Thank you for purchasing the Airaid Intake System. Contact Airaid @ [phone] 8:00 AM - 5:00 PM MST weekdays for questions regarding fit or instructions
that are not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are missing, or were damaged during shipping. If any parts are
missing, contact Airaid. The air filter element is protected from direct exposure to water and debris; care should be taken not to drive through deep water. WATER INGESTION
IS THE DRIVERS RESPONSIBILTY! The air filter is reusable and should be cleaned periodically.

24. Reconnect the negative battery
cable!

FILTER IDENTIFICATION

700-456 Airaid Oiled Media 701-456 Airaid SynthaMax Dry Media - Red

702-456 Airaid SynthaMax Dry Media - Black 703-456 Airaid SynthaMax Dry Media - Blue

For your Oiled media filter

we suggest using the AIRAID

Filter Tune-Up Kit!

Synthamax Air Filters do not require oil.
Service air filter as needed by cleaning with
common non-petroleum all-purpose house­hold cleaner and water. Simple Green®,
Formula 409® or equivalent works great.
Apply cleaner to outside of air filter and
allow to soak. Then flush filter clean from
the inside out with a garden hose and re­peat steps if necessary. Do not apply high

P/N 790-551 Aerosol Spray
P/N 790-550 Squeeze Spray

pressure water or air to clean filter. Allow
filter to air dry and reinstall.

Airaid Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 [phone] [e-mail] www.airaid.com

REV.11.7.13
